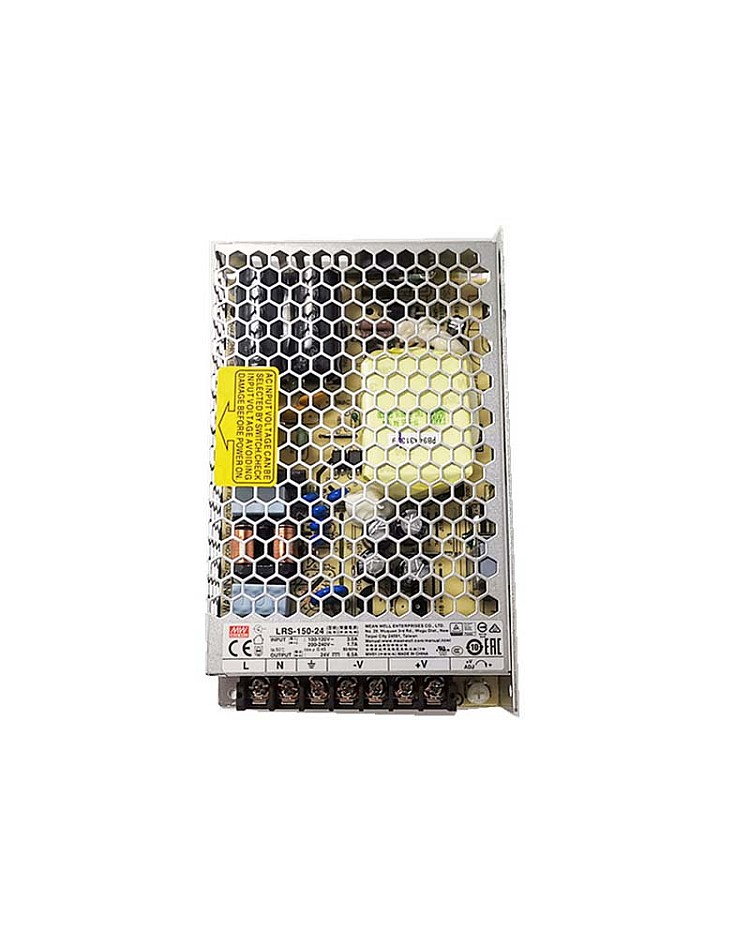

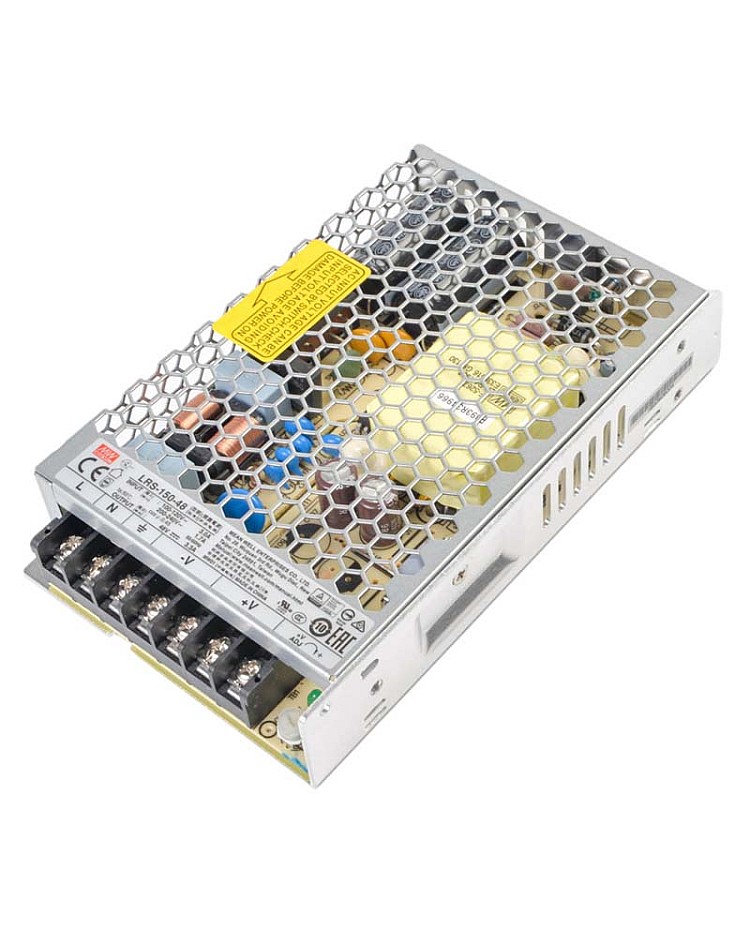

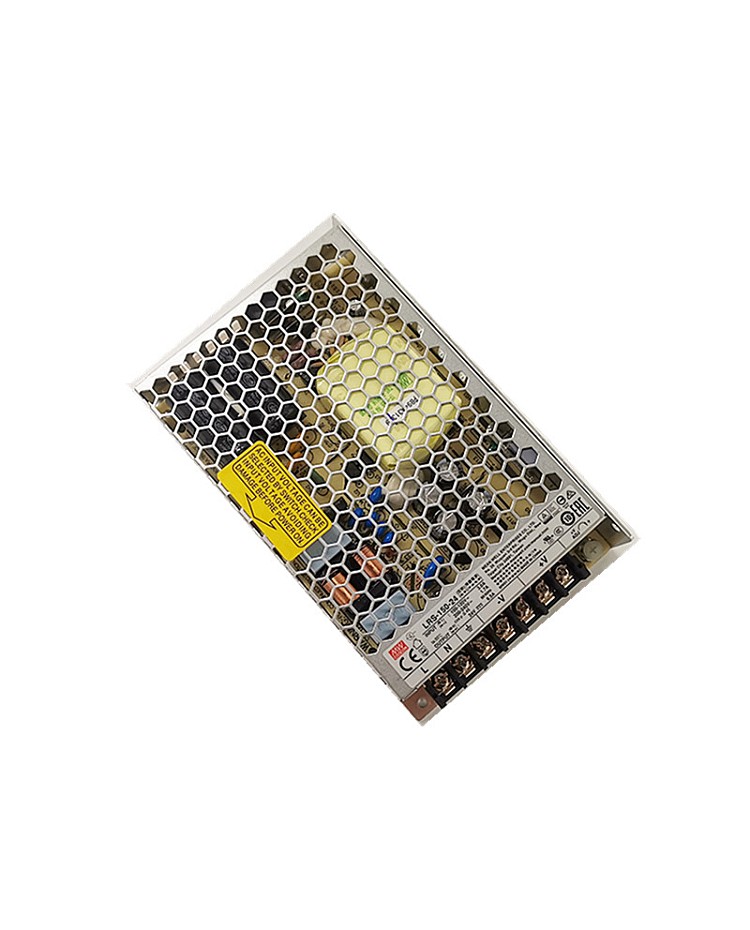

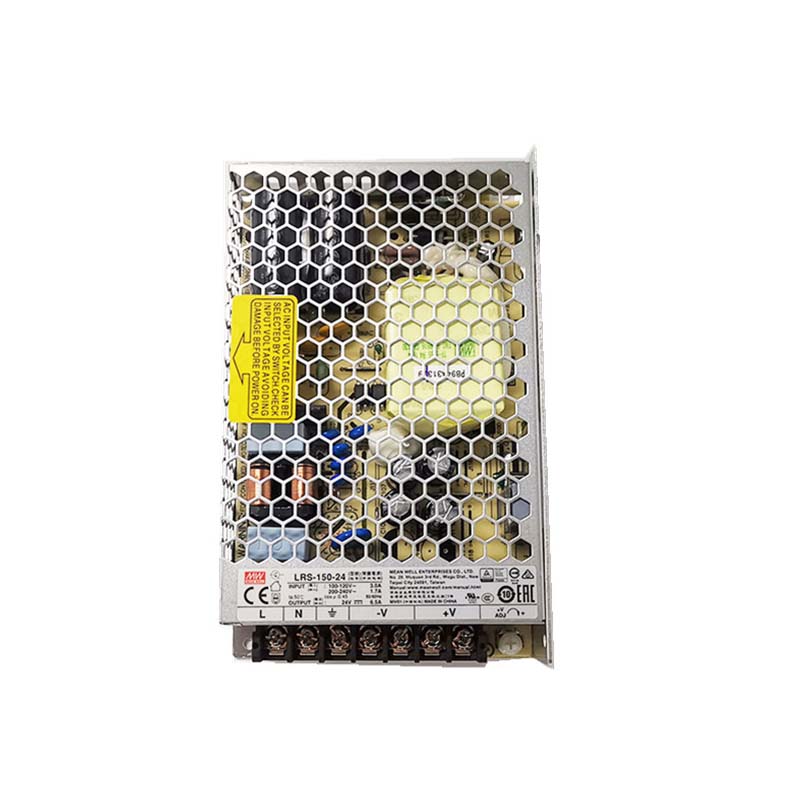

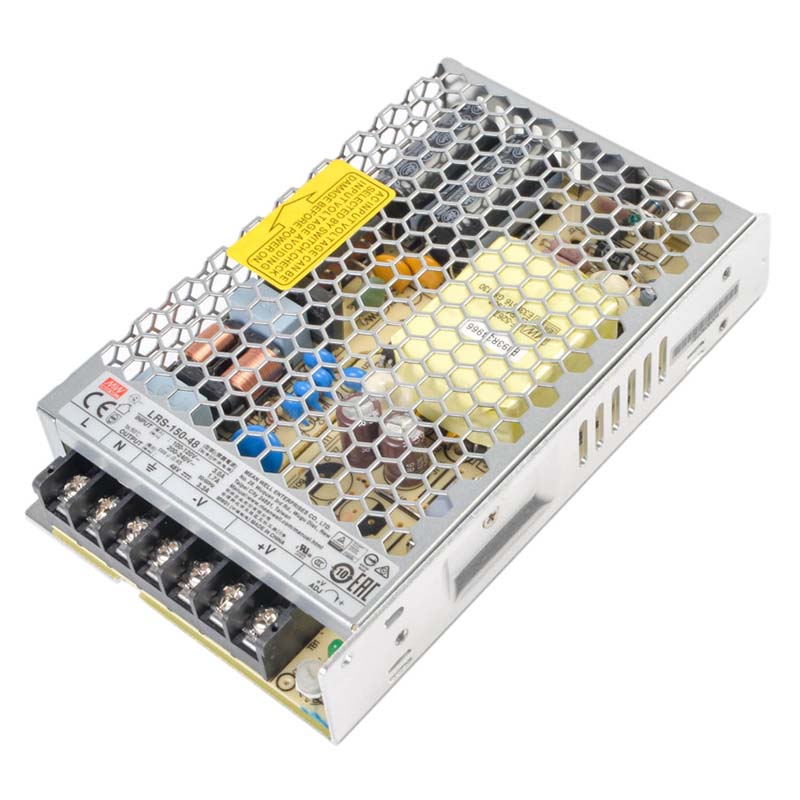

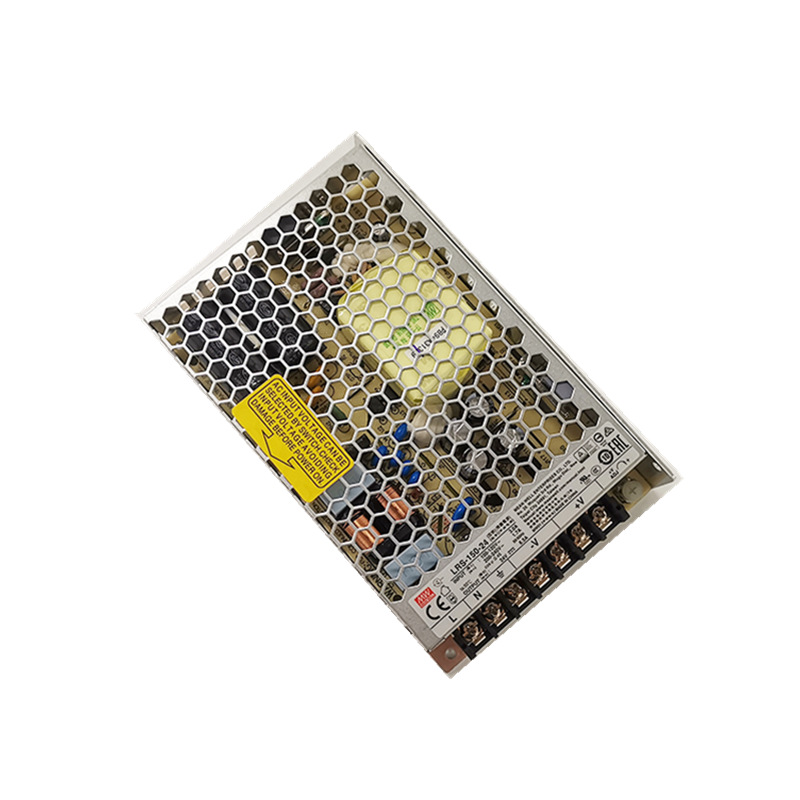

The Mean Well LRS-150 AC to DC adapters are single-output enclosed-type power supplies with a 30mm low-profile design. The input voltage range is from AC85V to AC264V and is selectable by a switch. The entire series AC DC adapters provide an output voltage line of 12V, 15V, 24V, 36V and 48V. in addition to the high efficiency of up to 90%, the design of metallic mesh case enhances the heat dissipation that the whole line of Meanwell adapters from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no-load power consumption of less than 0.5W, the end system allows it to meet the worldwide energy requirement easily. LRS-150 has complete protection functions and 5G anti-vibration capability. It complies with international safety regulations such as TUV EN62368-1, EN60335-1, EN61558-1/-2-16, UL62368-1, and GB4943.
- AC Input Range Selectable By Switch
- Withstand 300VAC Surge Input for 5 seconds
- No Load Power Consumption<0.5W
- Miniature Size And 1U Low Profile
- High Operating Temperature Up to 70℃
- Protections: Short Circuit / Overload / Over Voltage / Over Temperature
- Cooling By Free Air Convection
- Compliance To IEC/EN 60335-1(PD3) And IEC/EN61558-1, 2-16 For Household Appliances
- Operating Altitude Up To 5000 Meters
- Withstand 5G Vibration Test
- High Efficiency, Longer Lifespan, And High Reliability
- LED Indicator For Power On
- Over Voltage Category III
- 100% Full Load Burn-In Test
- 3 Years Warranty
Quick Links:
Meanwell LRS-150 Specification Document
Specifications:
- Model: LRS-150

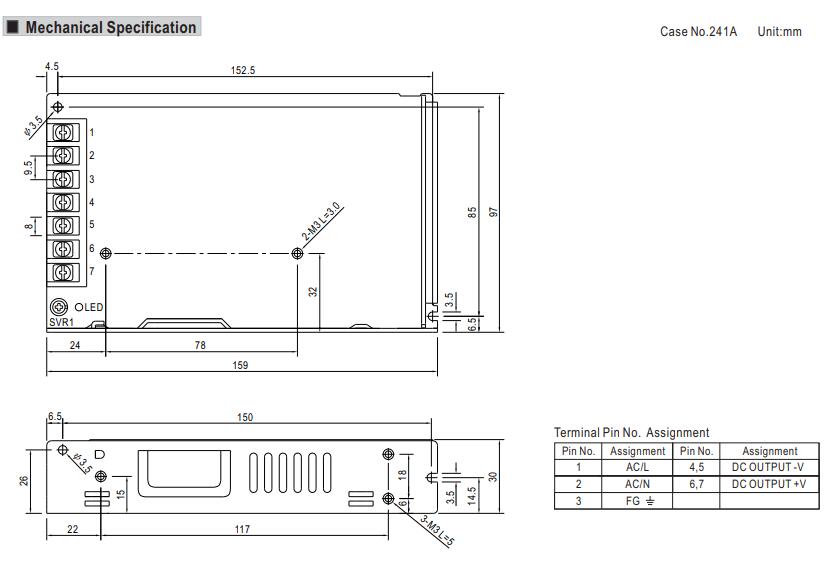

- Size:159*97*30mm(L*W*H)
- Input Voltage: 85-132VAC/170-264VAC By Switch
- Frequency Range: 47- 63Hz
- Output Voltage: DC12V, DC15V, DC24V, DC36V, DC48V
- Rated Current: 12.5A(DC12V), 10A(DC15V), 6.5A(DC24V), 4.3A(DC36V), 3.3A(DC48V)
- Rated Power: 150W(DC12V), 150W(DC15V), 156W(DC24V), 154.8W(DC36V), 158.4W(DC48V)
- Efficiency: 87.5%(DC12V), 88.5%(DC15Vz), 89%(DC24V), 89%(DC36V), 90%(DC48V)
- AC Current: 3A/115VAC, 1.7A/230VAC
- Working Temperature: -30℃-+70℃
- Vibration: 10-500Hz, 5G 10min./1cycle, 60min.each along X, Y, Z axes
- Safety Standards: UL62368-1, TUV EN62368-1, EN60335-1, EN61558-1/-2-16
- Overload Protection
- Over-Voltage Protection
- Over Temperature Protection
- 3 Years Warranty
Includes:
1 * Meanwell LRS-150 150W DC Adapter
