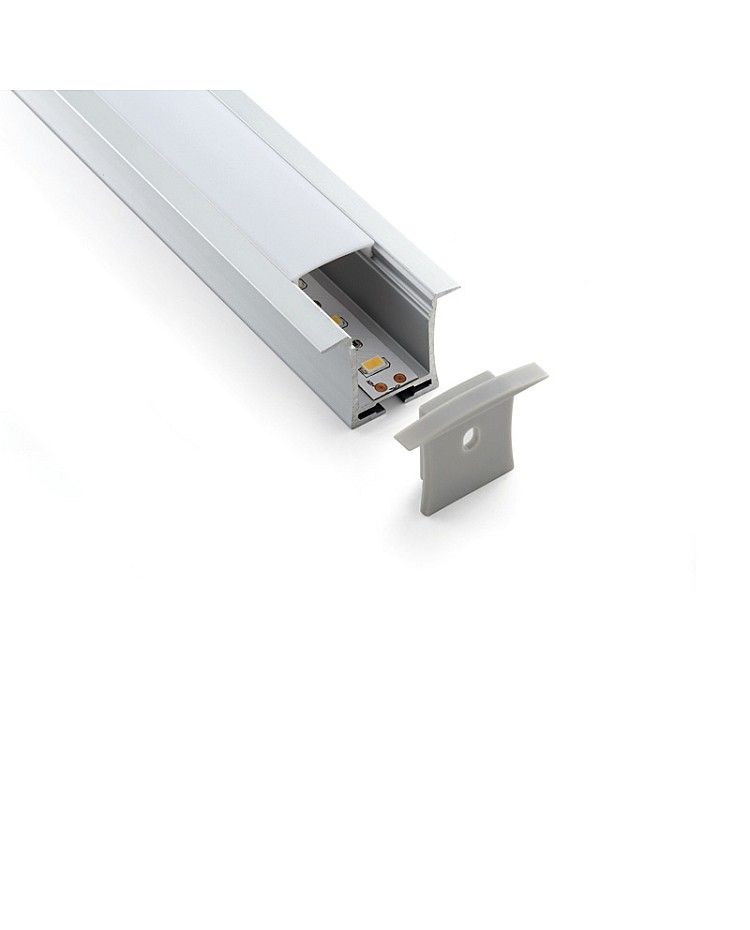

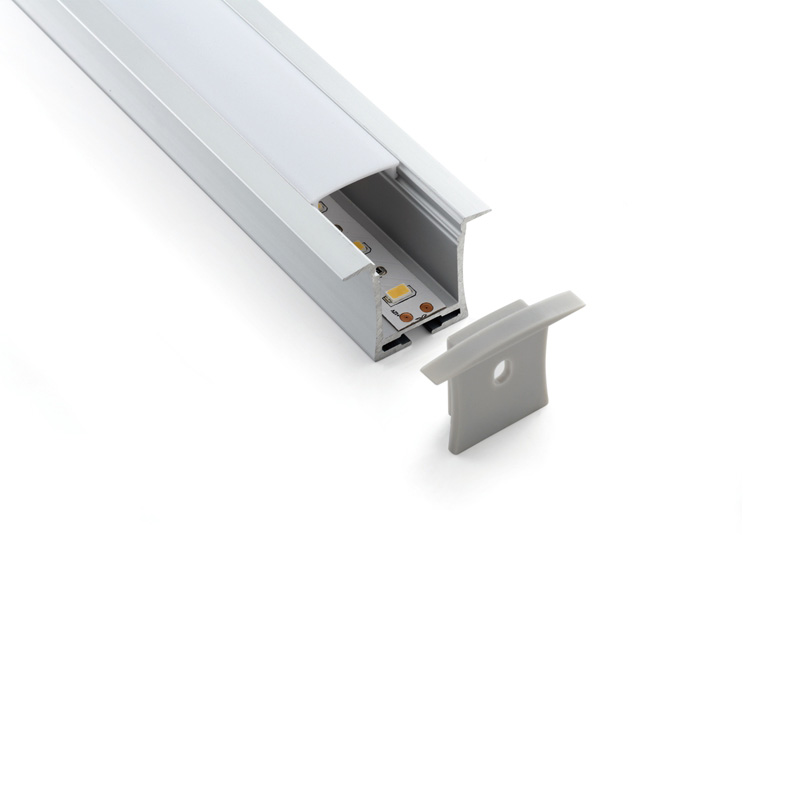

The LED strip lighting extrusions are an ideal choice for wall light fixtures, and the flanges provide a strong connection between the fixtures and the wall, supporting the weight of the lighting. Aluminum extrusions with flanges also offer a neat, clean look that can complement the overall aesthetics of the space. It's made of durable aluminum alloy with an anodized finish, anti-oxidation resistance, and a longer lifespan than similar products. Six different covers are available; you can choose the one that best suits the other lighting transmittance. You can select the PMMA opal matte cover, PMMA semi-clear cover, PMMA clear cover, PC diffused cover, PC semi-clear cover, and PC clear cover. The covers are made of stable material, are anti-yellowing, and have perfect light distribution. The default lengths are 1M and 2M; the max length is 3 meters, and it can be cut to the desired length. The inner width is 18.6mm, allowing a maximum strip light width of 18mm. We recommend installing double rows of 8mm COB LED strips as the light source, without visible light dots or dark areas. End caps with wire holes are included, and it is easy to connect the COB LED strips to light converters for lighting. The spring clips are included, easy to mount on the ceiling or recessed into the wall, and require minimal maintenance.
Specifications:
- Material: 6063-T5 Aluminium Alloy
- Surface Treatment: Silver Anodized

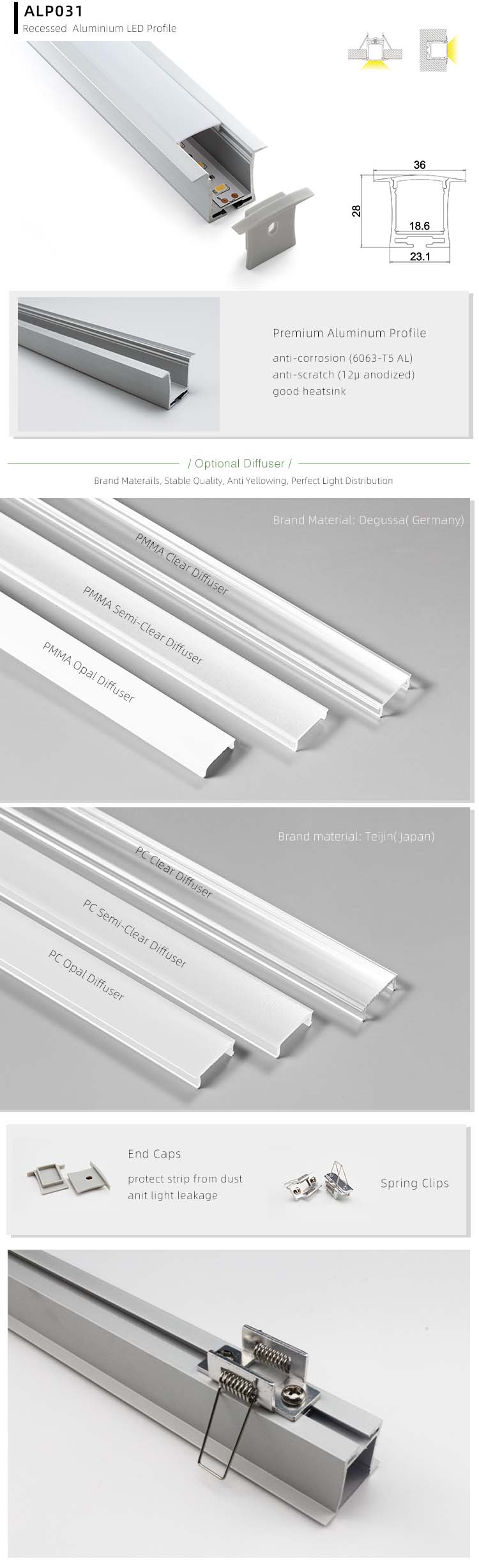

- Model: ALP031
- Colors: Silver, White, Black

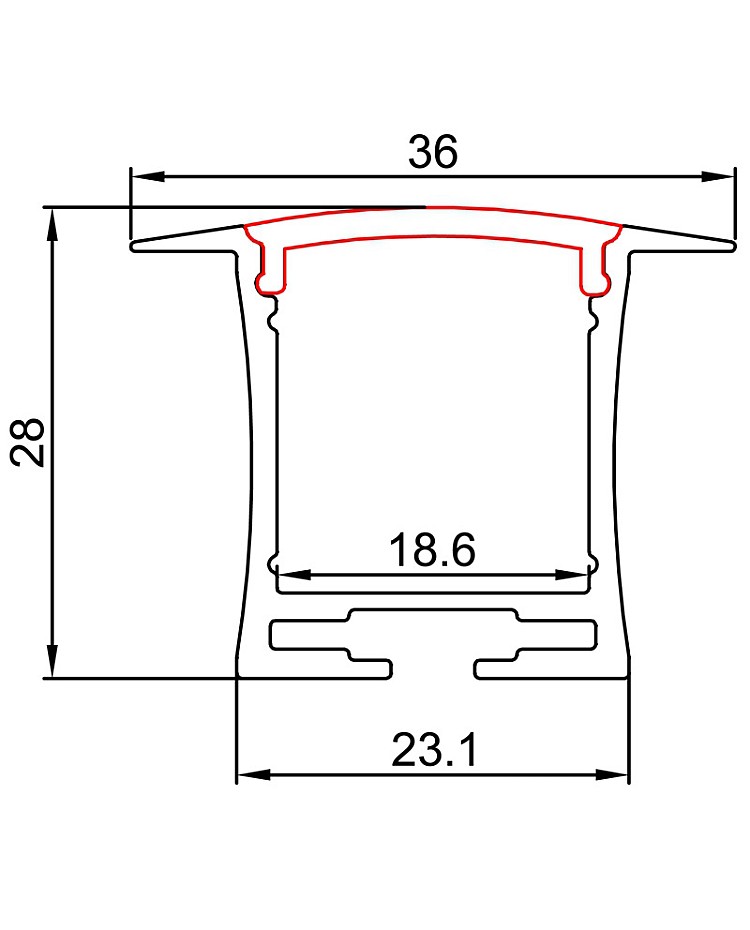

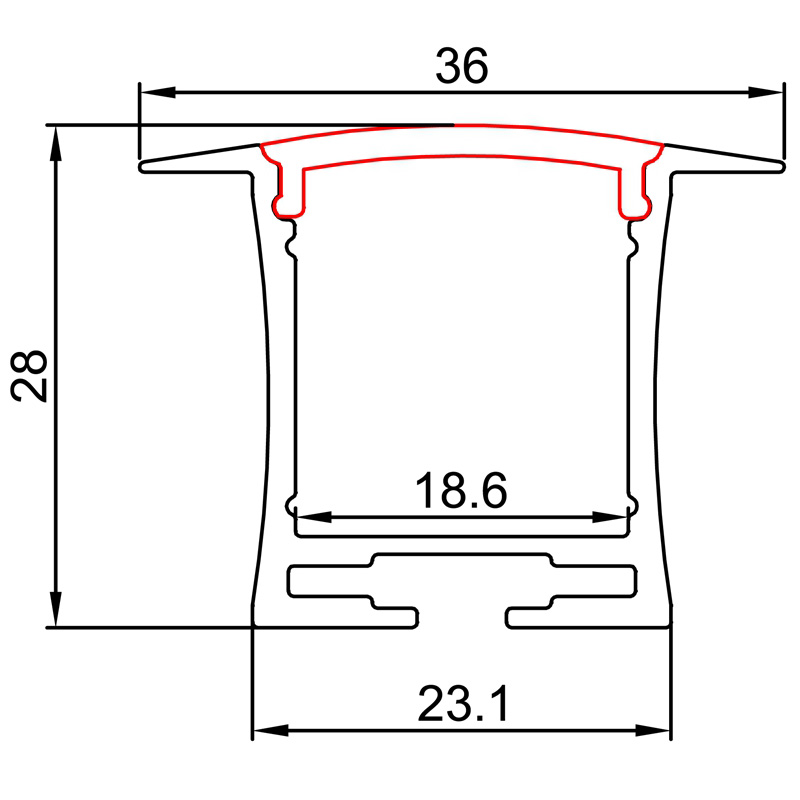

- Size: 36*28mm（W*H)
- Covers: PMMA Opal Matte Cover, PMMA Semi-Clear Cover, PMMA Clear Cover, PC Diffused Cover, PC Semi-Clear Diffuser, PC Clear Diffuser
- Default Length: 1M
- Other Lengths Available: 0.5M, 1.5M, 2M, 2.5M, 3M
- Custom Length Available: YES
- Inner Width: 18.6mm
- Allows The Max Width Of Strip Lights To Be 18mm
- Recommend LED Strips: Flexible LED Strips, COB LED Tape In Double Rows
- Max Power: <25W/M
- Beam Angle: 100°
- End Caps With Wire Holes And Spring Clips Included
- LED Strips Sold Separately

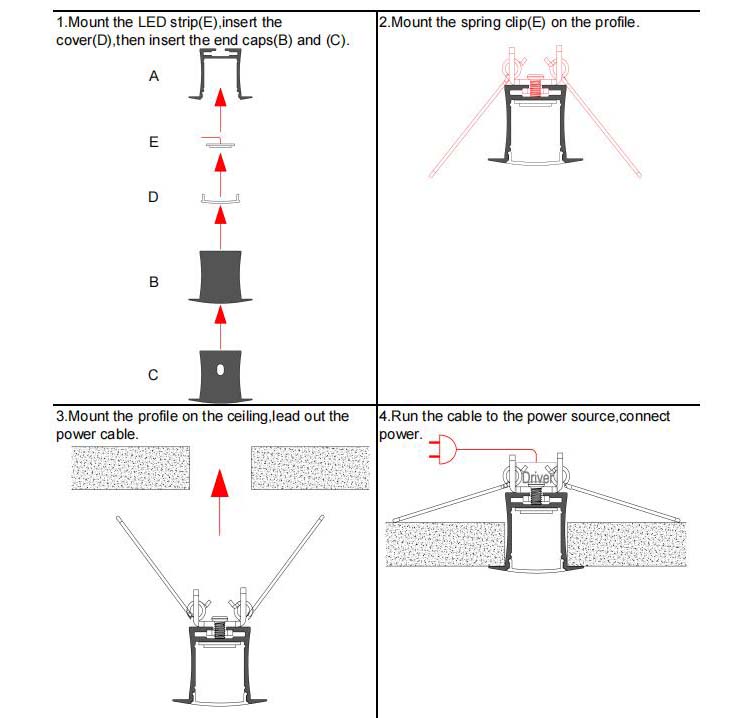

- Installation: Recessed Mounted

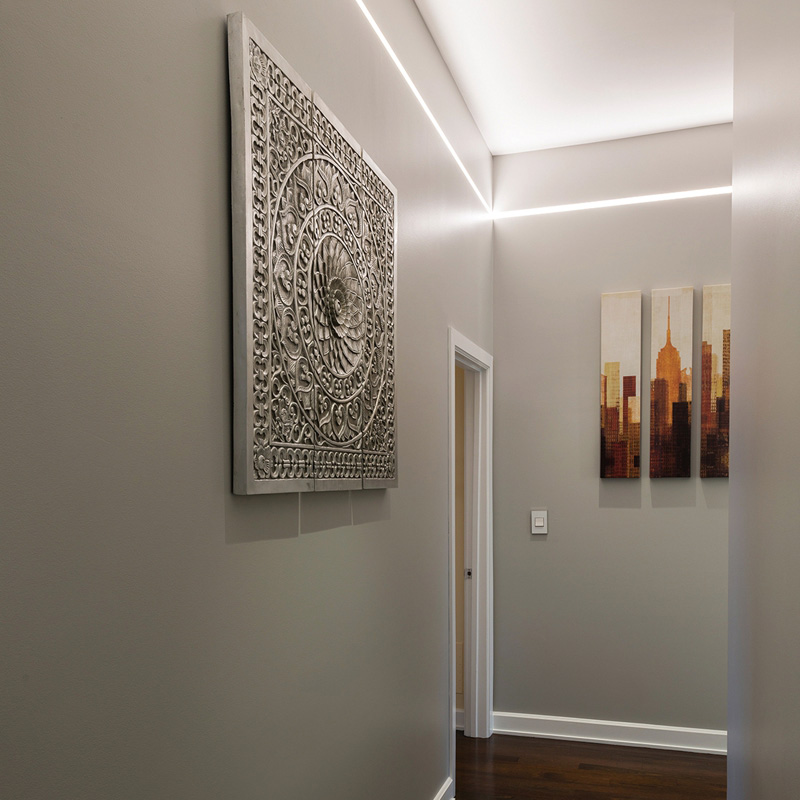

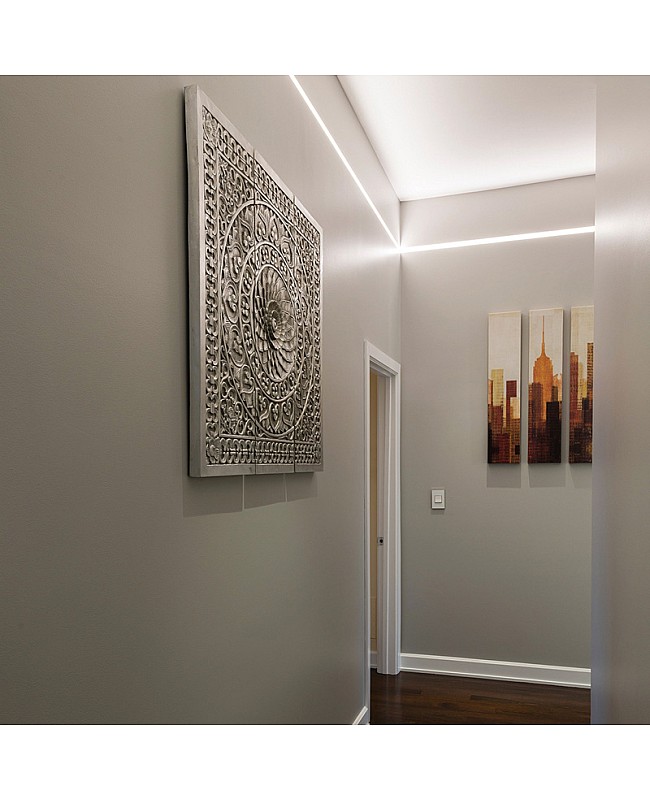

- Applications: Recessed In-Wall, Ceiling For Indoor Commercial Lighting
- 5 Years Warranty

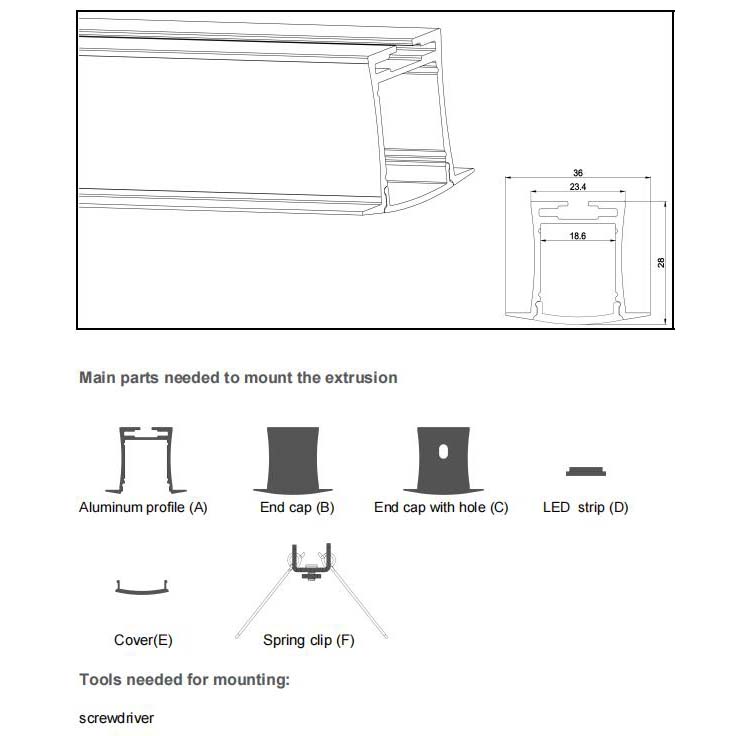

Includes:
1 * LED Strip Lighting Aluminium Extrusions With Cover
End Caps(With Wire Hole/Without Wire Hole)

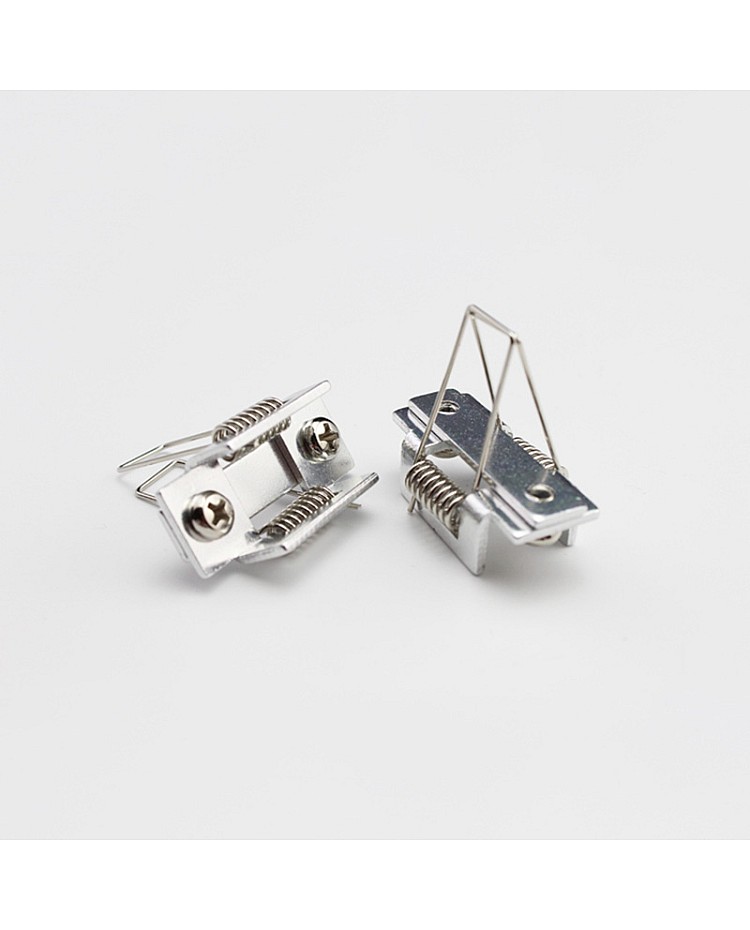

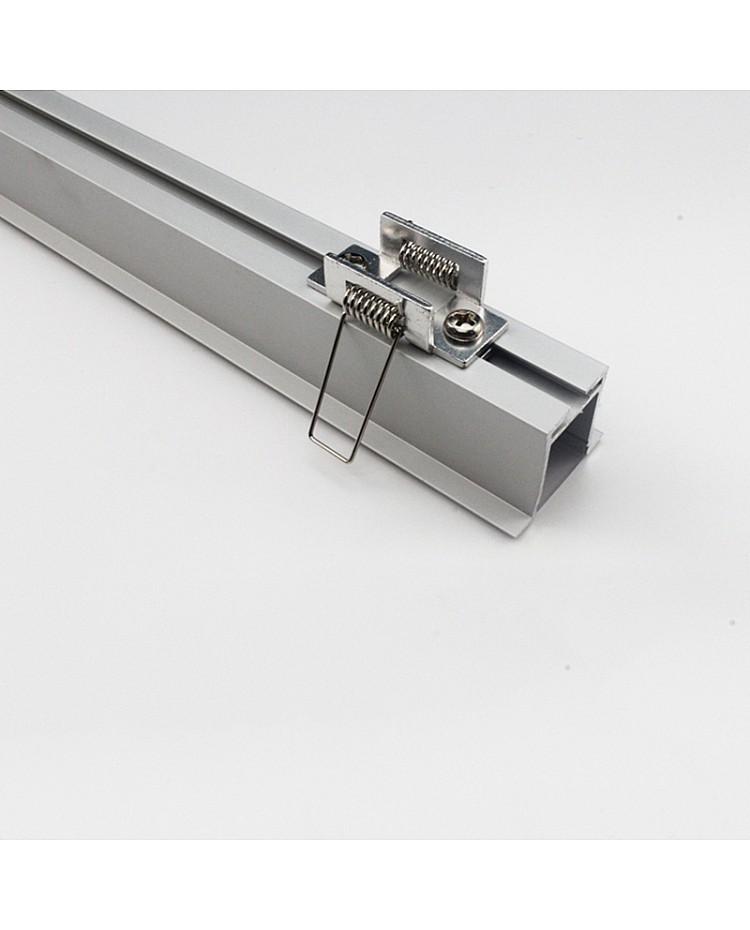

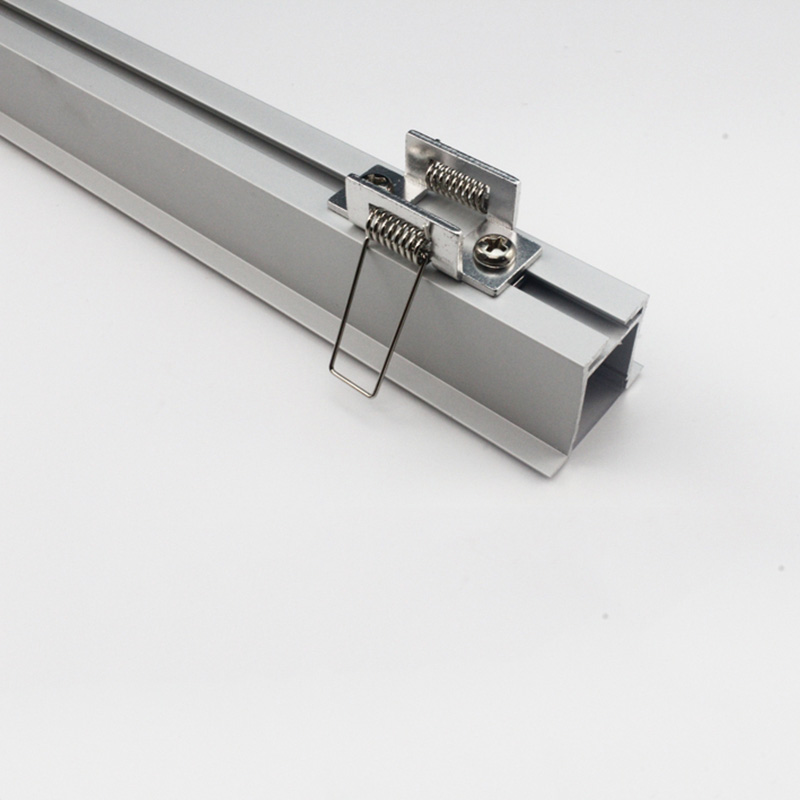

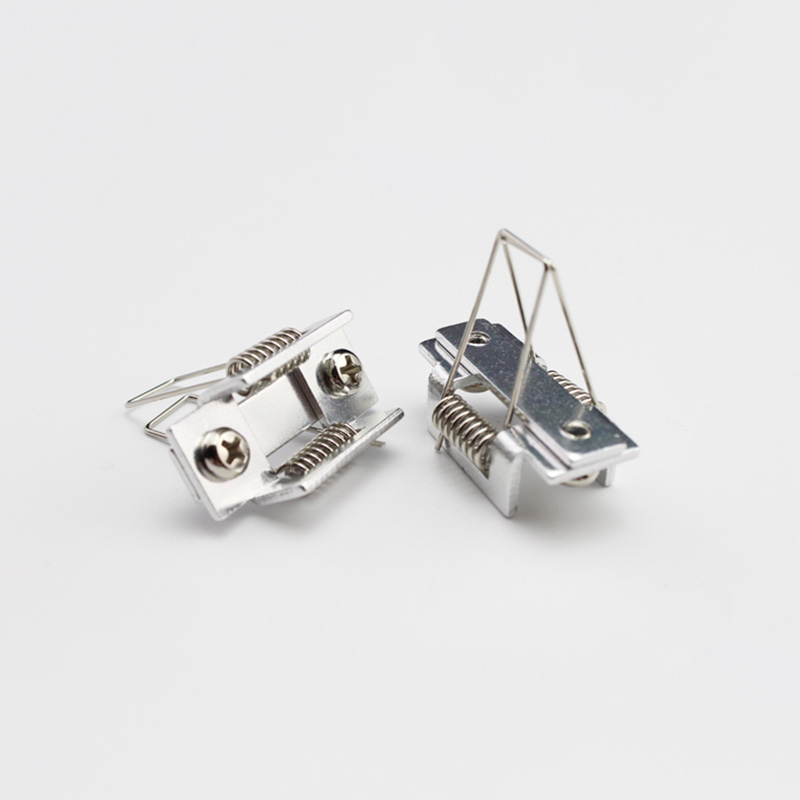

Spring Clips
