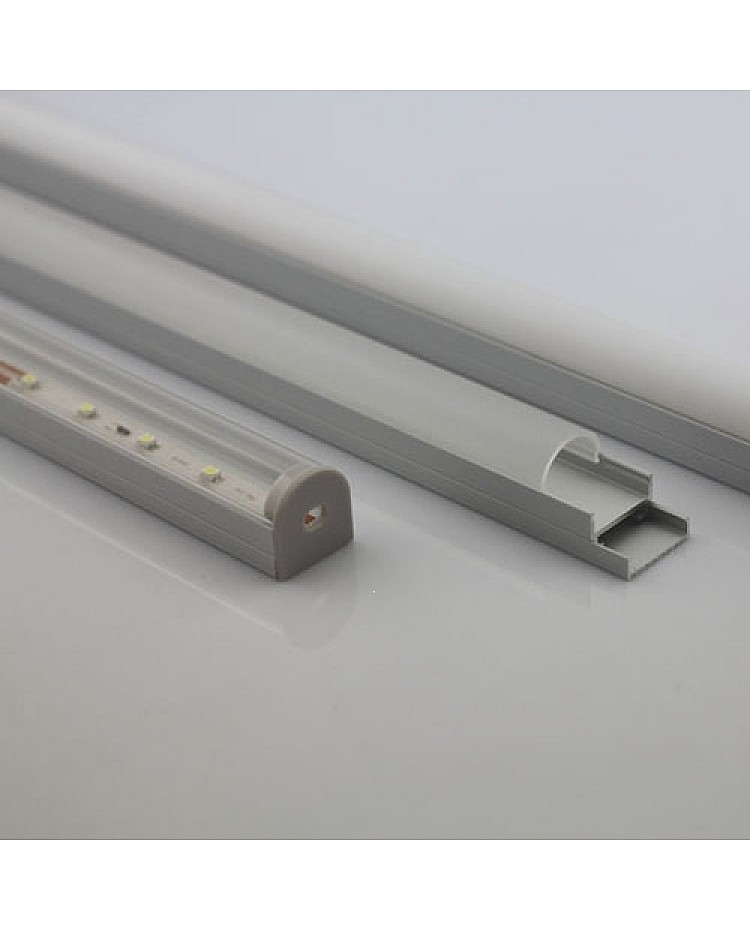

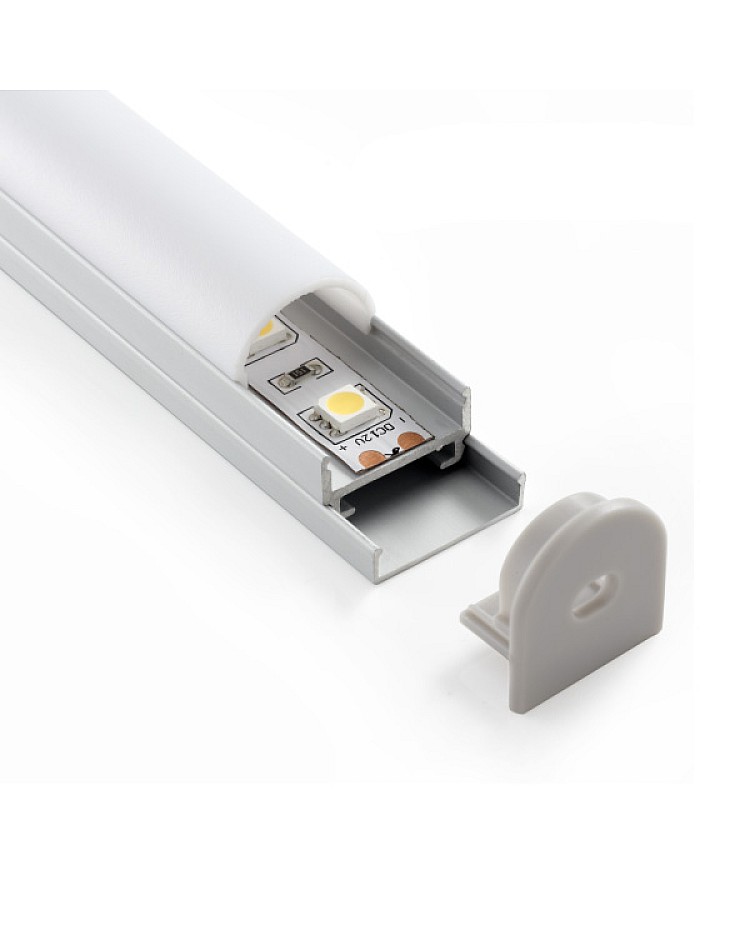

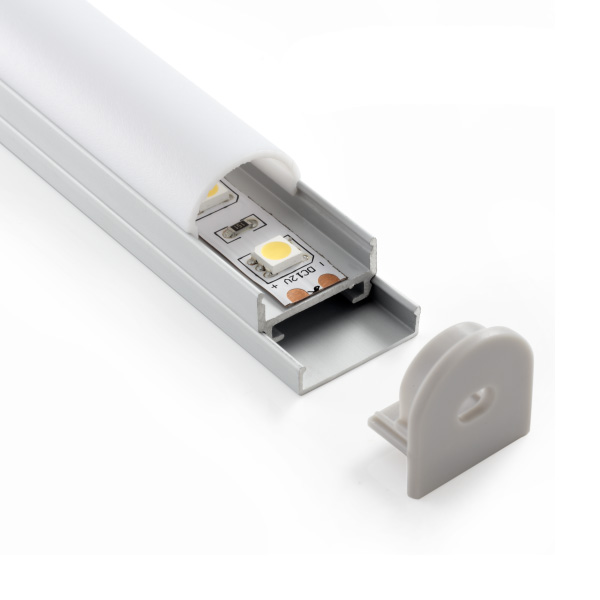

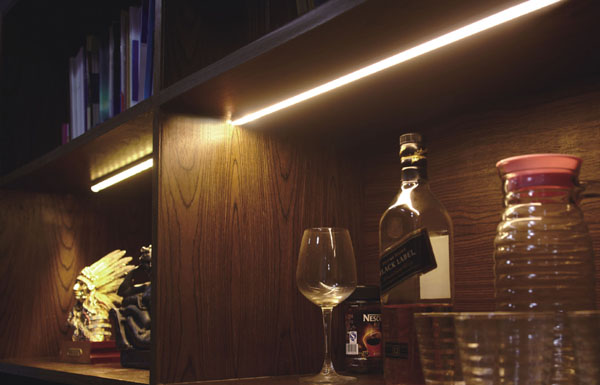

The U-shaped LED aluminum profiles with semi-round diffusers are designed for modern linear lighting applications. They can be widely used in cabinets, shelves, under-cabinet lighting, retail displays, ceilings, walls, and architectural accent lighting to create uniform lighting along surfaces. The slim structure allows for discreet installation while maintaining a clean and minimal appearance.

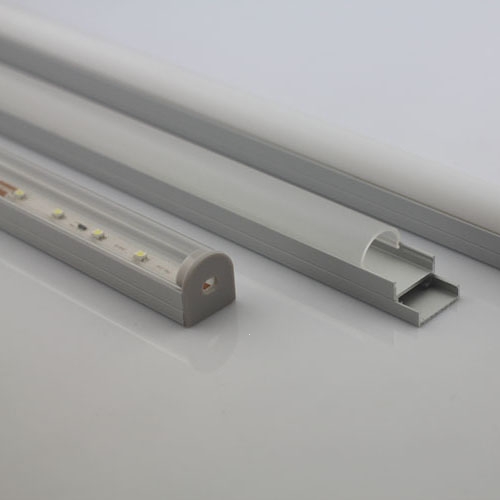

The slim LED profile is made of high-quality aluminum and features professional surface treatment for a longer lifespan. It can also act as a heat sink, providing excellent heat dissipation, stable performance, and extended lifespan for your LED strips. The standard lengths are 1m and 2m per piece, and custom lengths are supported. The inner width is 17mm, allowing a maximum strip light width of 17mm. Recommend adding high-density SMD or COB strip lights as the light source without visible dots.

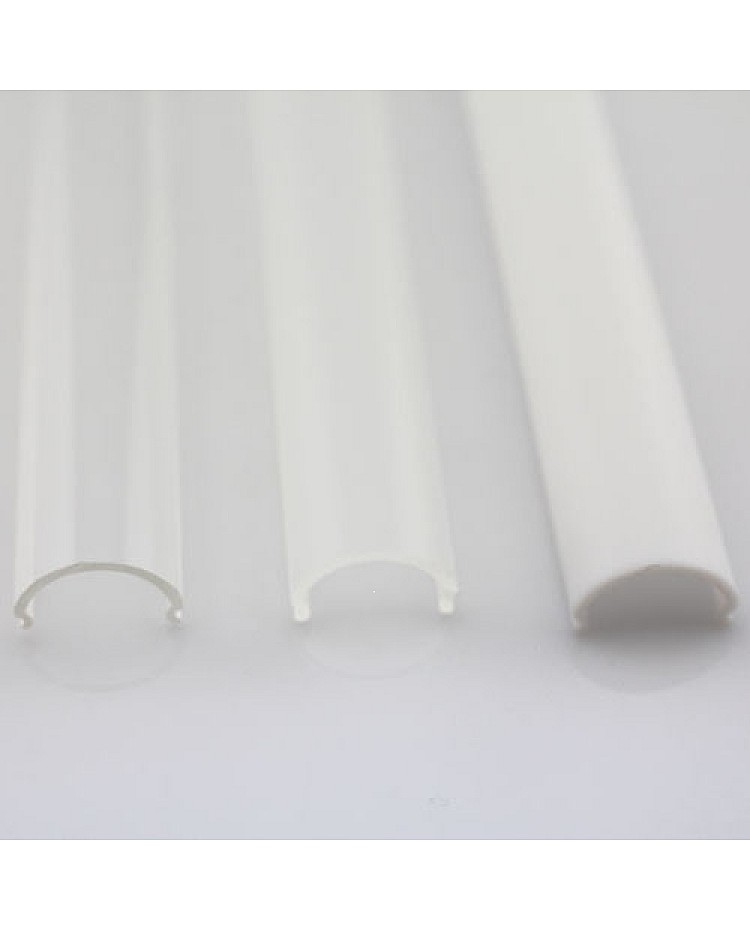

The semi-round diffuser softens and evenly spreads the light, reducing glare and eliminating visible hotspots. Resulting in a smooth, uniform lighting effect that enhances visual comfort. They are PMMA and PC series diffusers are selectable.

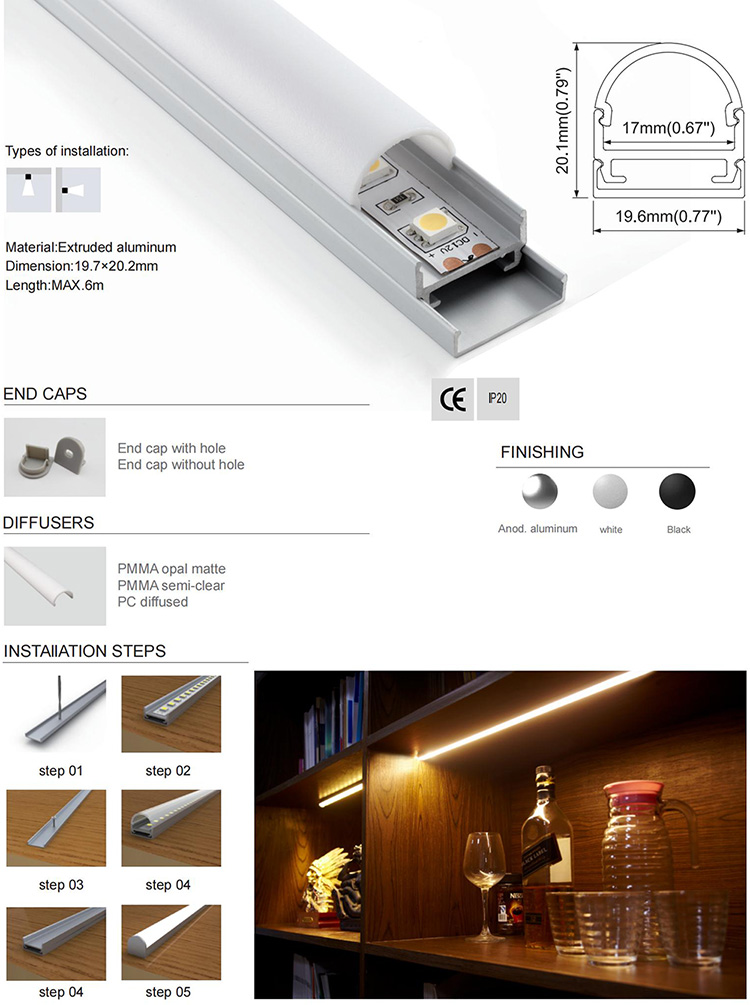

Specifications:

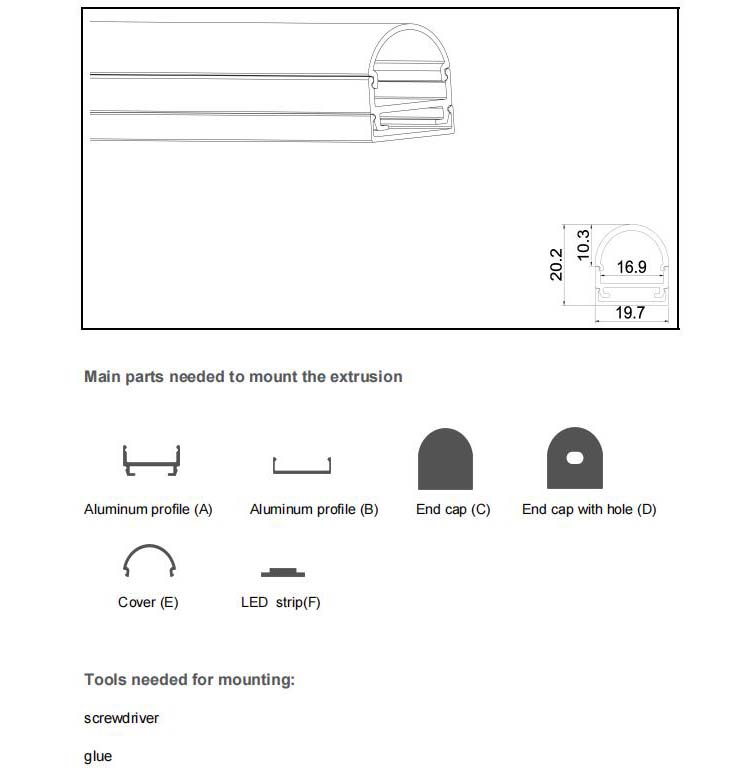

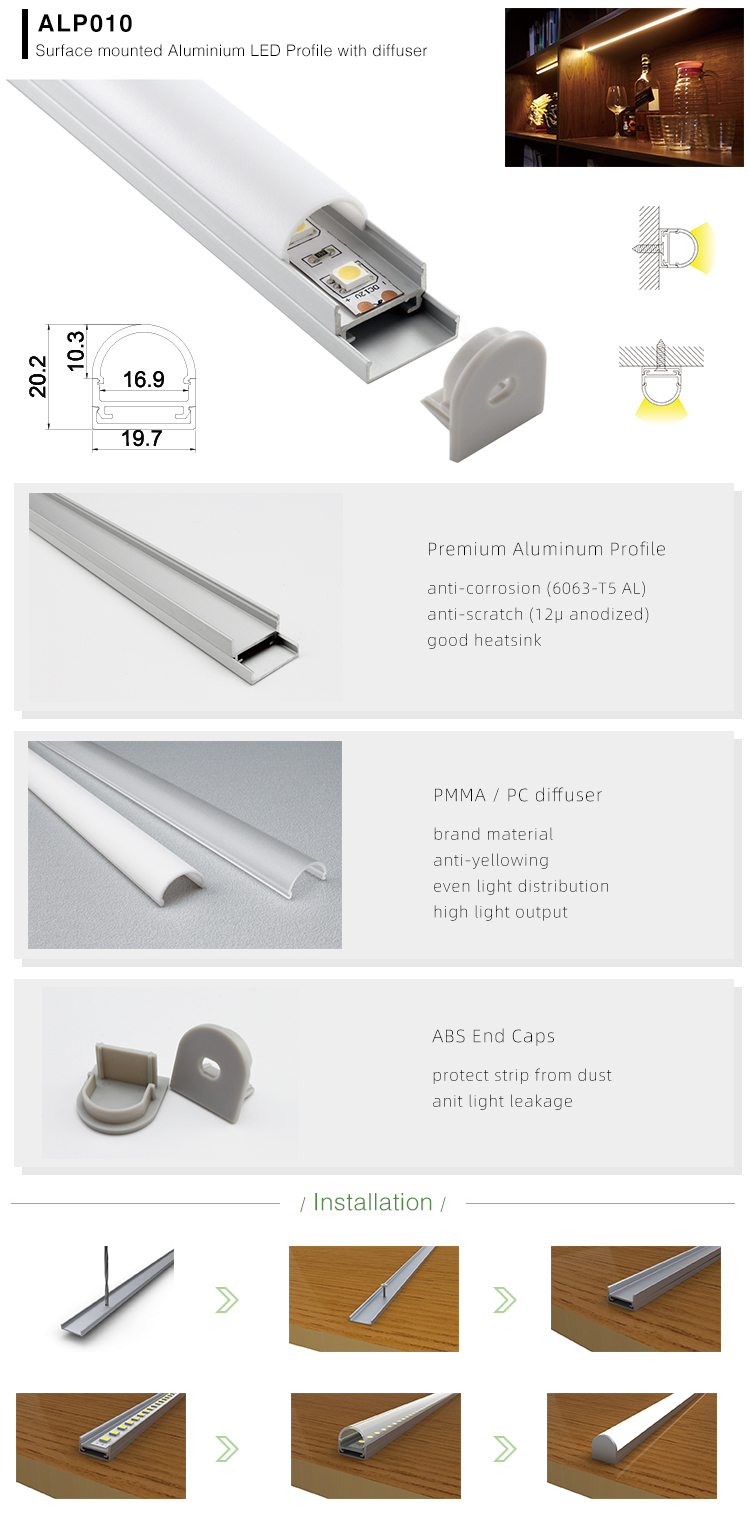

- Model: ALP010
- Material: Anodized aluminum 6063-T5
- Surface treatment: Anodized
- Color: Silver, white, black

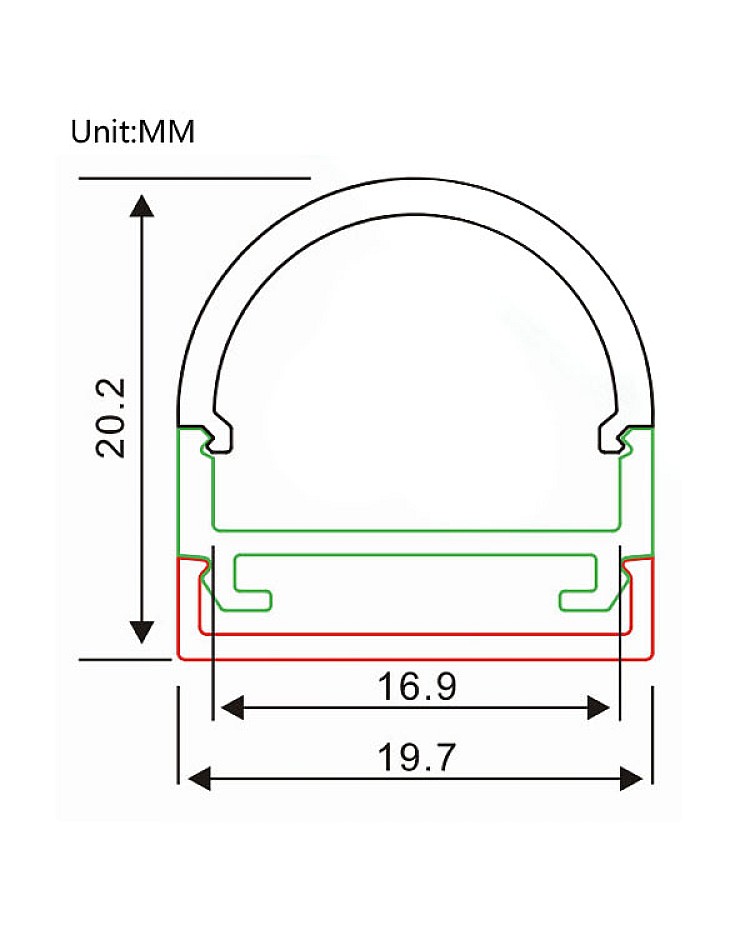

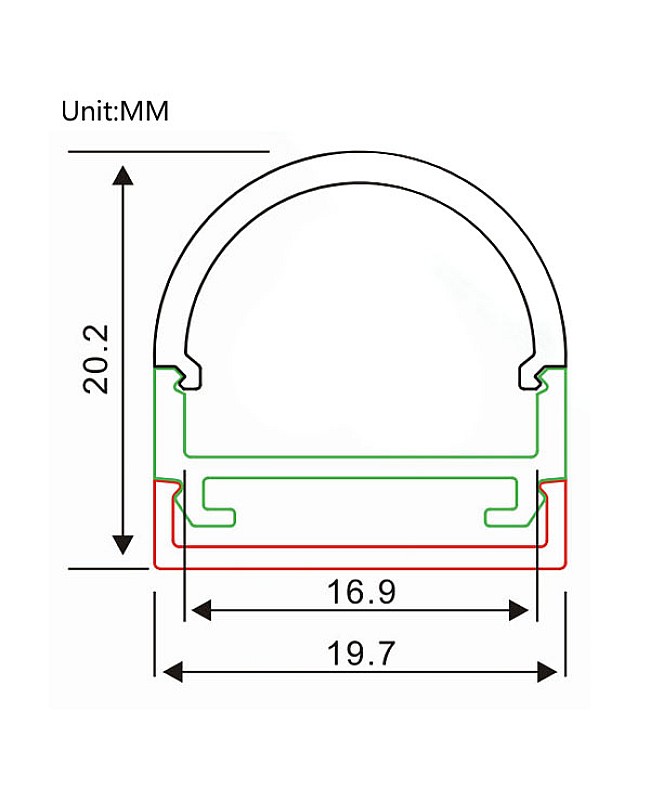

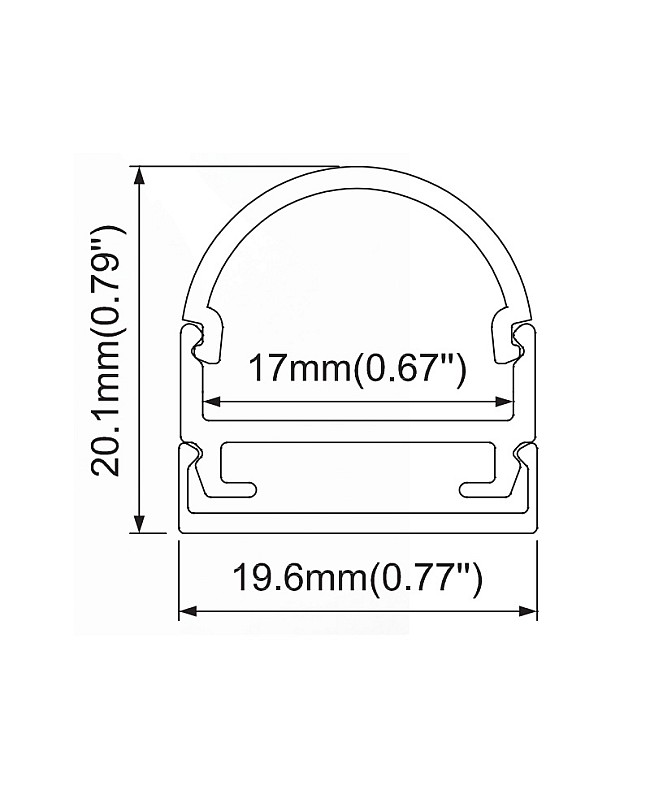

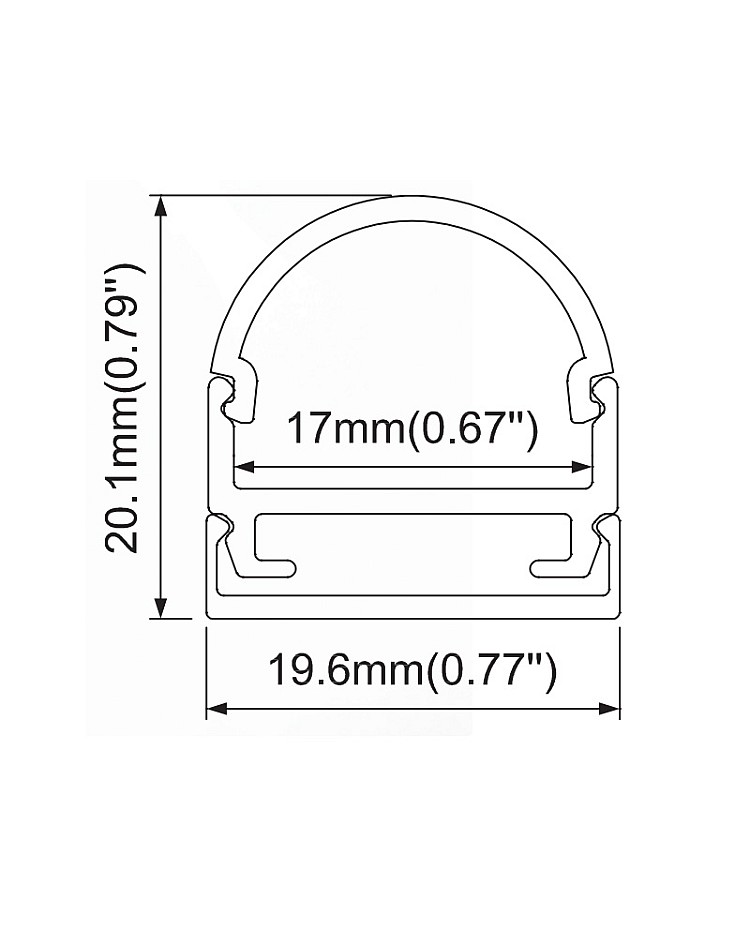

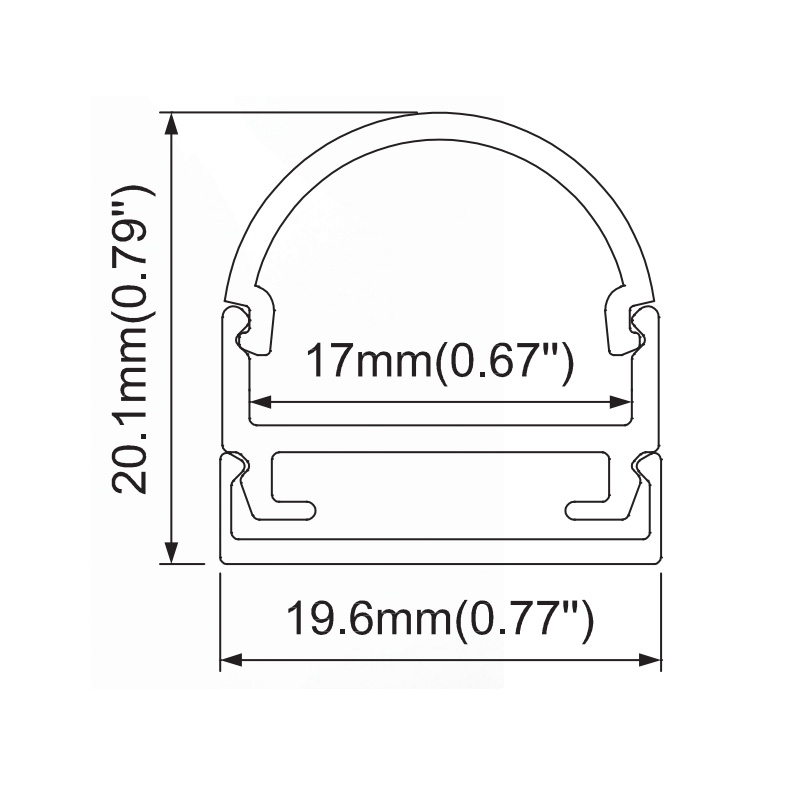

- Size ( Width x Height ): 19.7mm x 20.2mm / 0.77" x 0.79"
- Standard lengths: 1 m ( 39" ), 2m ( 78" )
- Custom length available: YES
- Inner width: 17mm / 0.67"
- Maximum width of strip lights: 17mm / 0.67"
- Max power: ≤20W/m

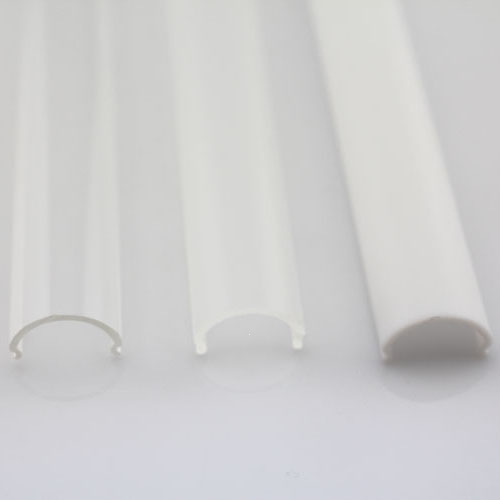

- Covers: PMMA opal matte cover / PMMA semi-clear cover / PMMA clear cover / PC diffused cover

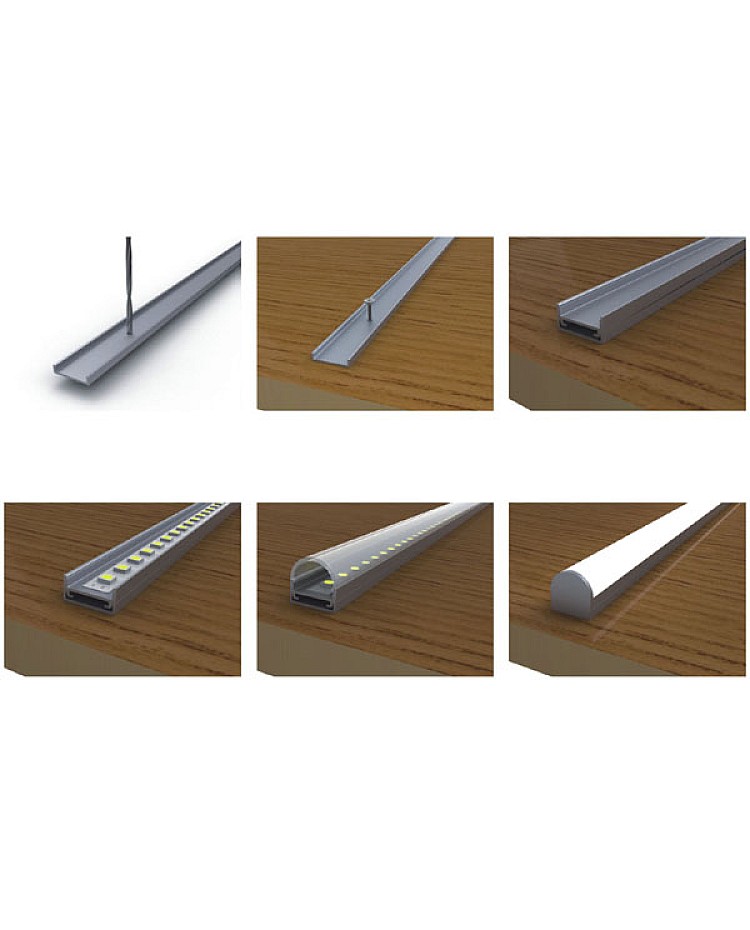

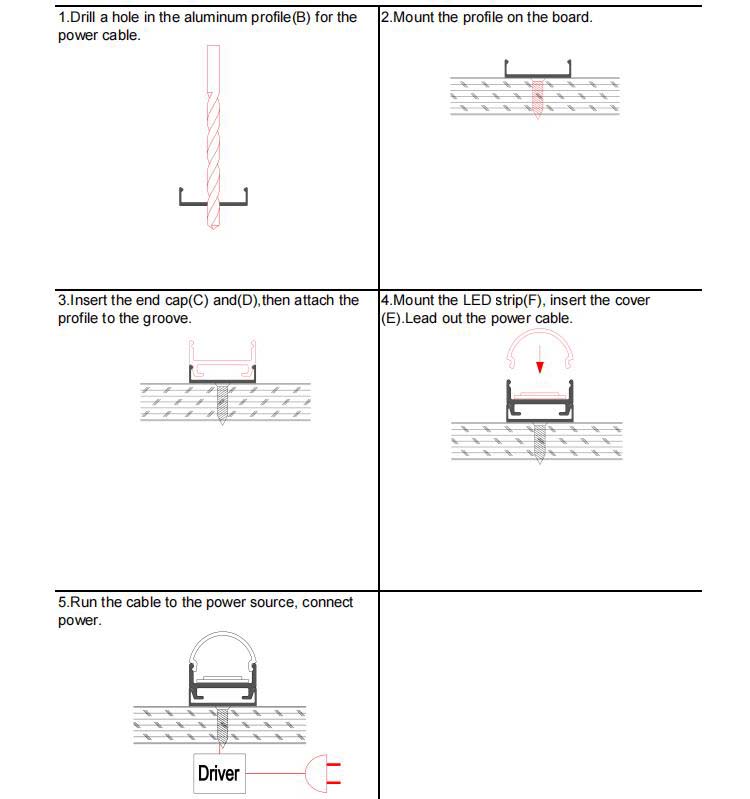

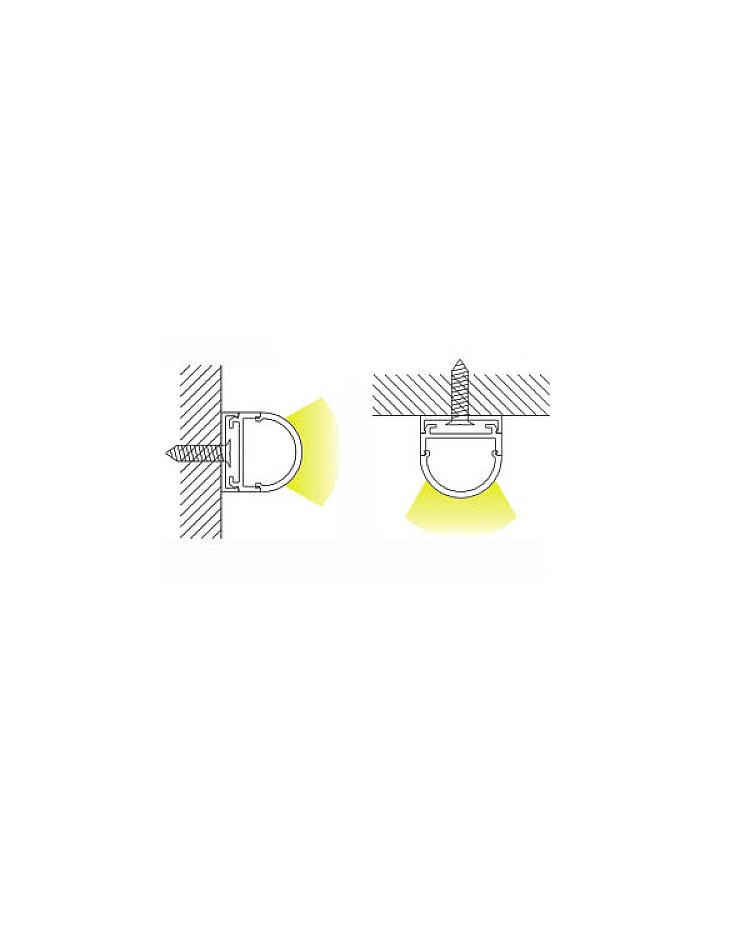

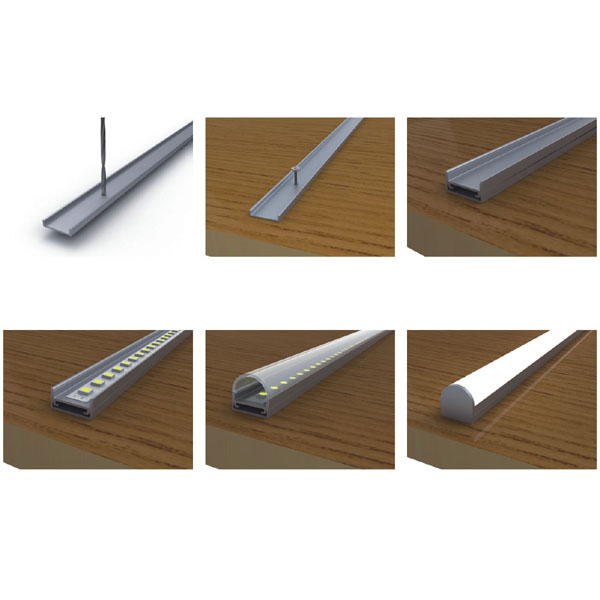

- Installation: Surface Mounted

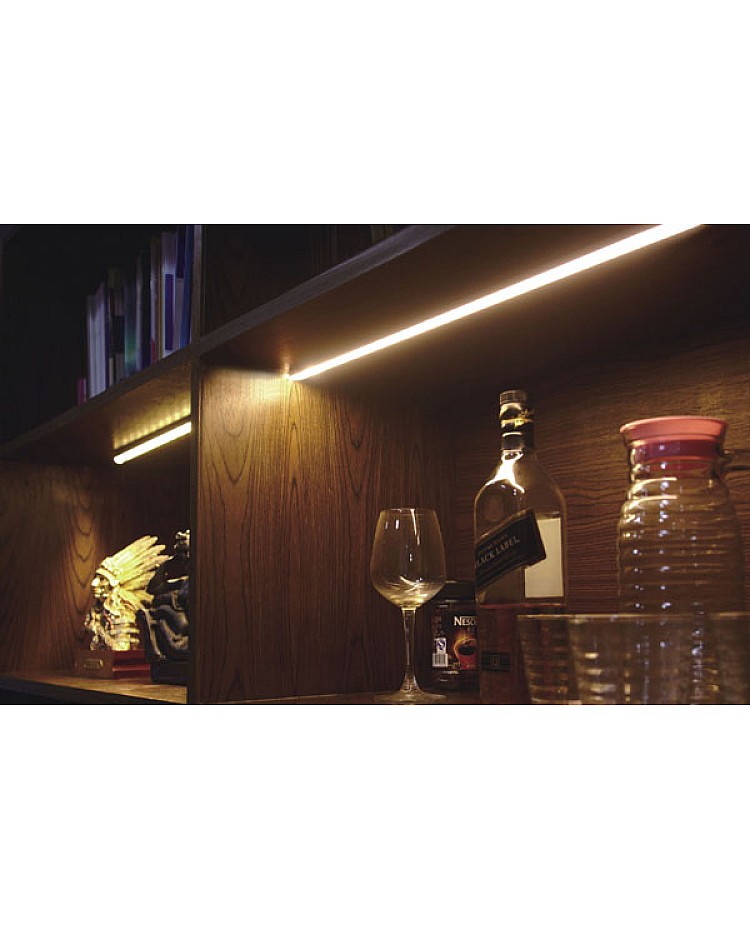

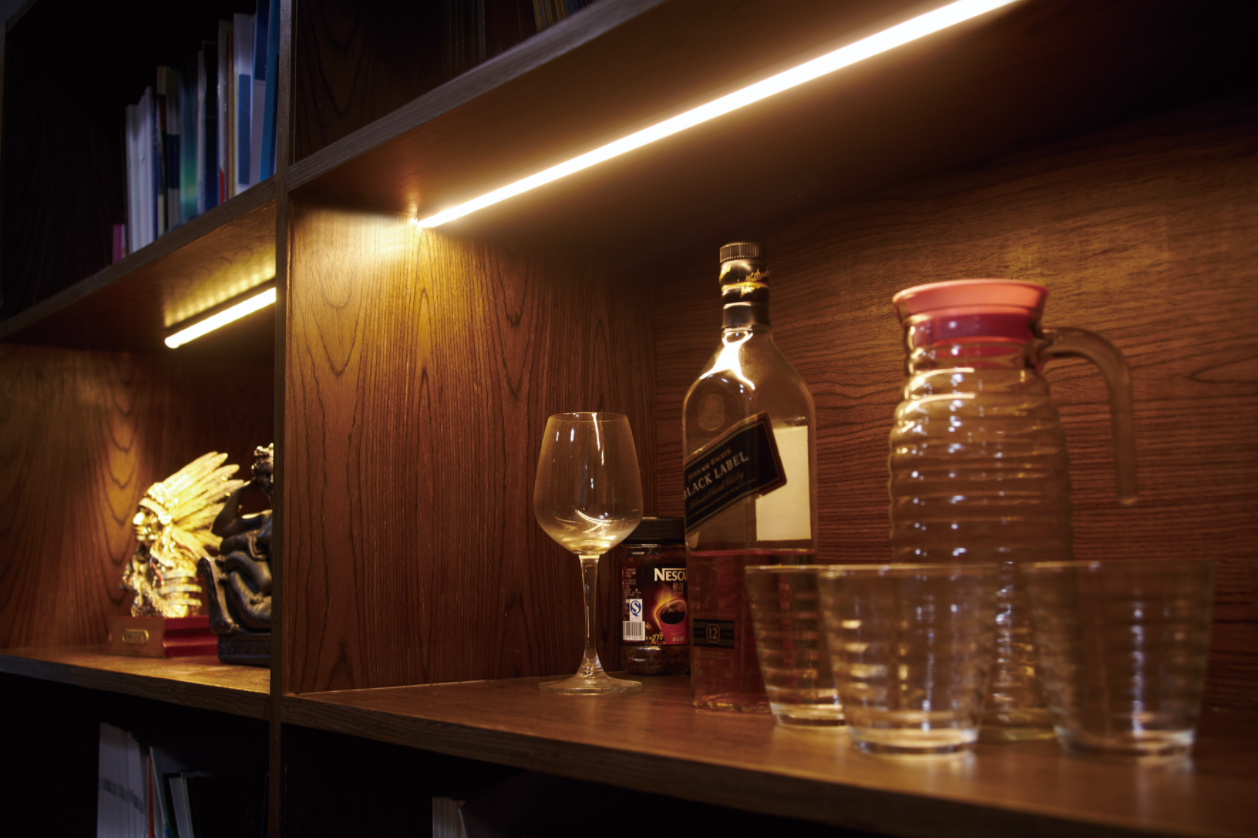

- Applications: Under Cabinets, Showcases
- End caps with and without wire holes are included
- Warranty: 5 years
Package:
1 * LED aluminum profile with semi-round diffuser
End caps
