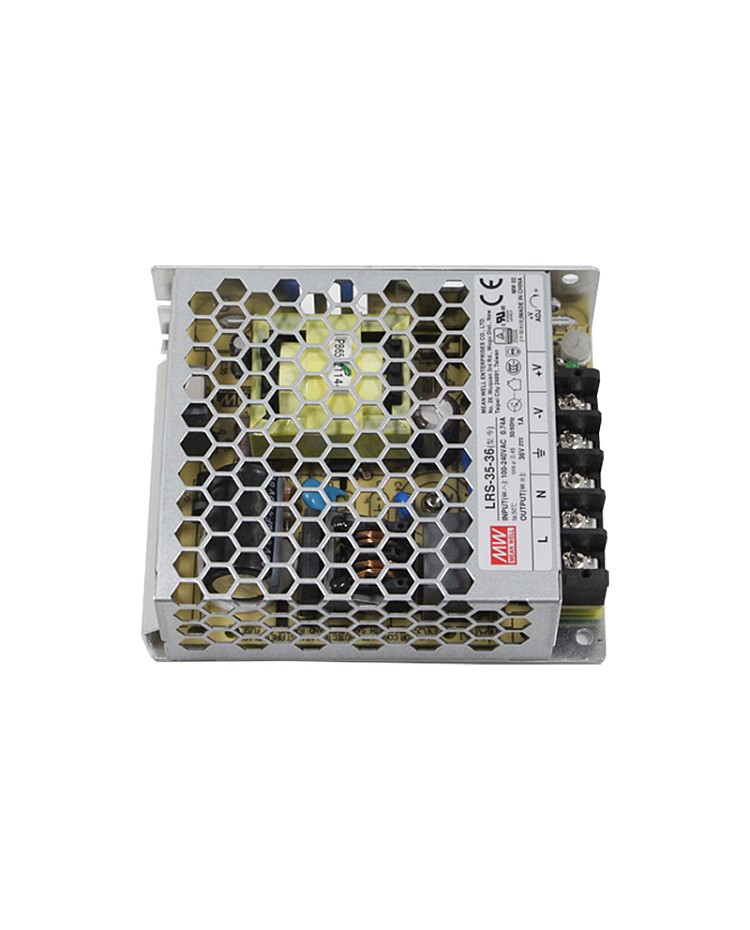

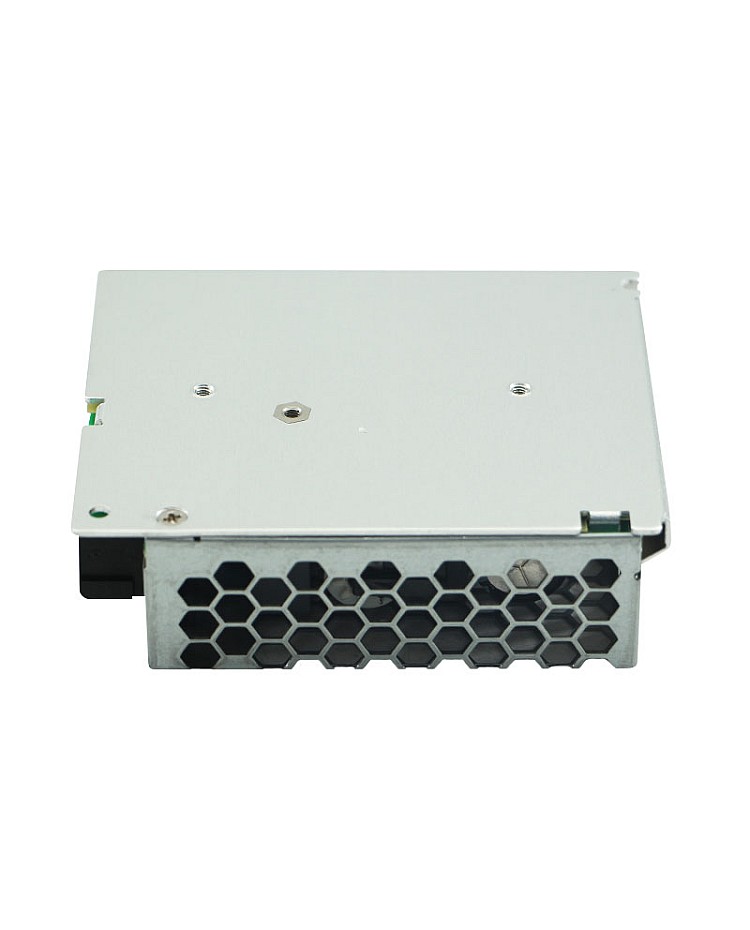

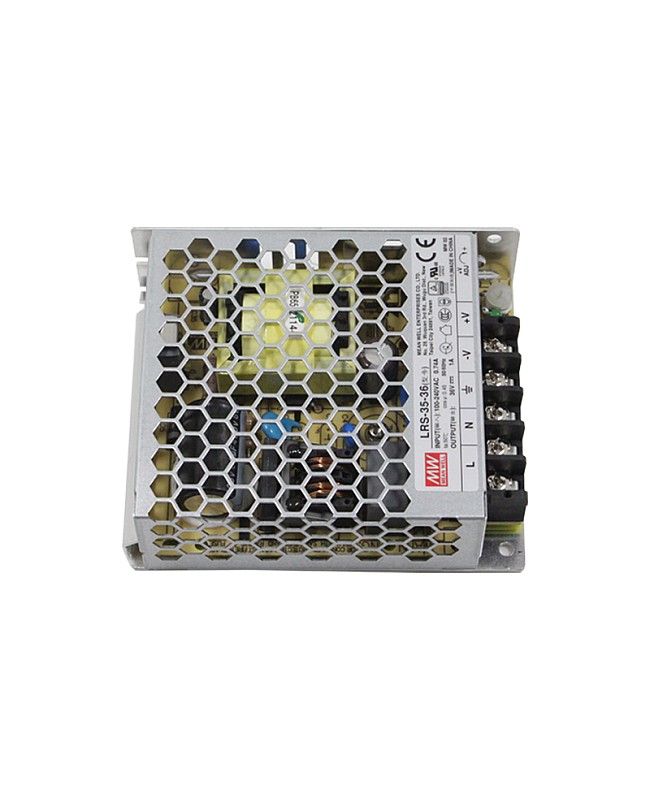

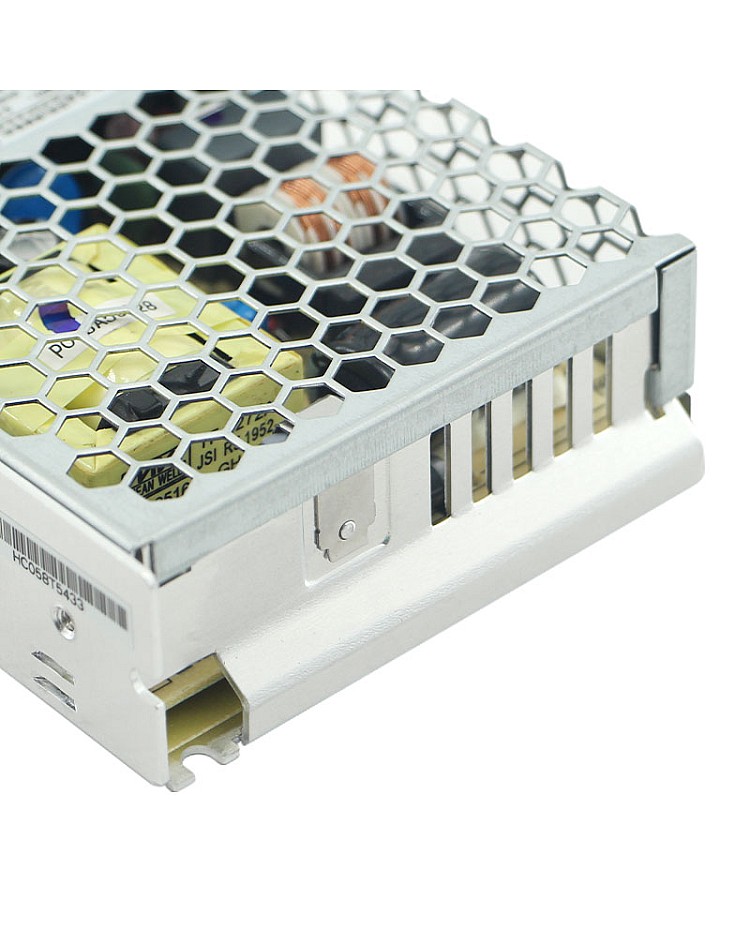

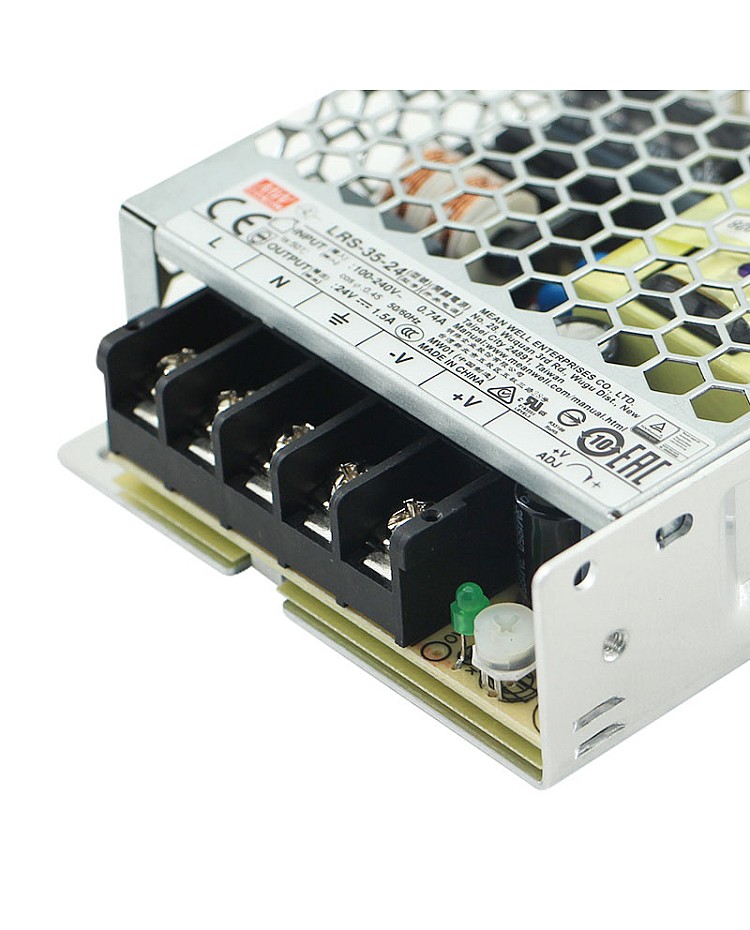

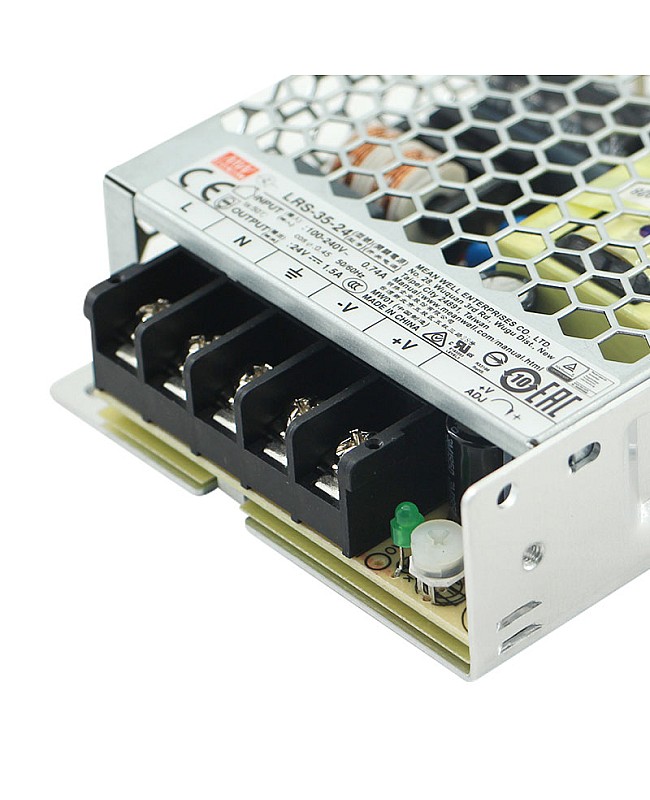

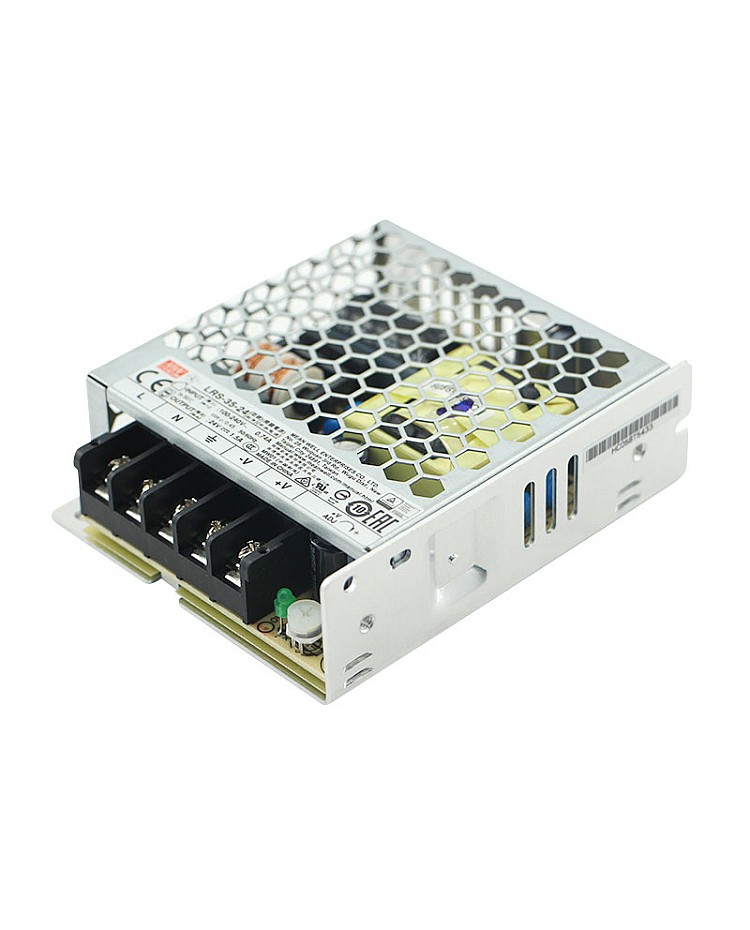

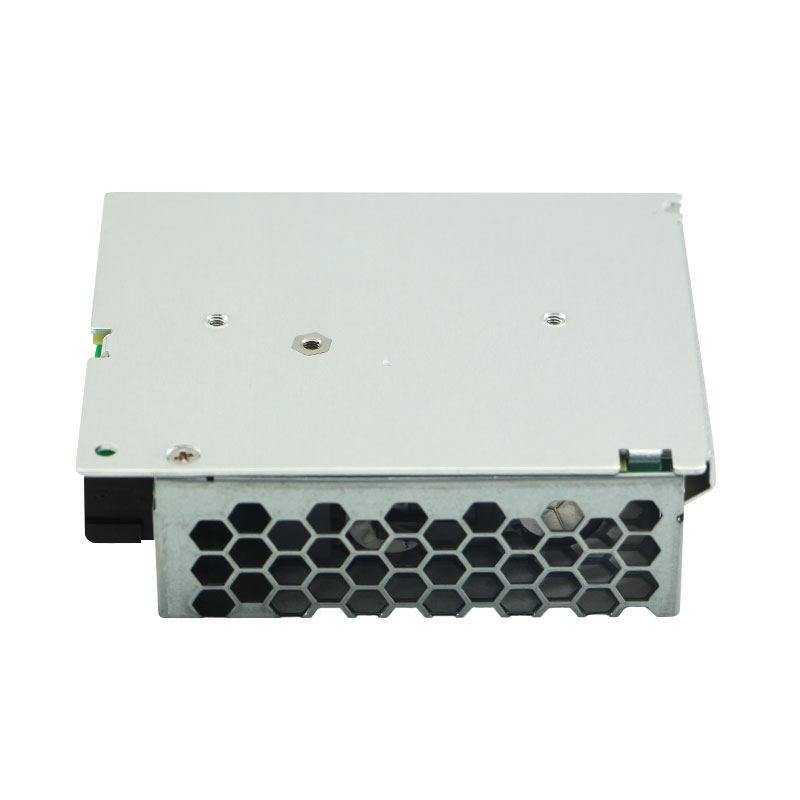

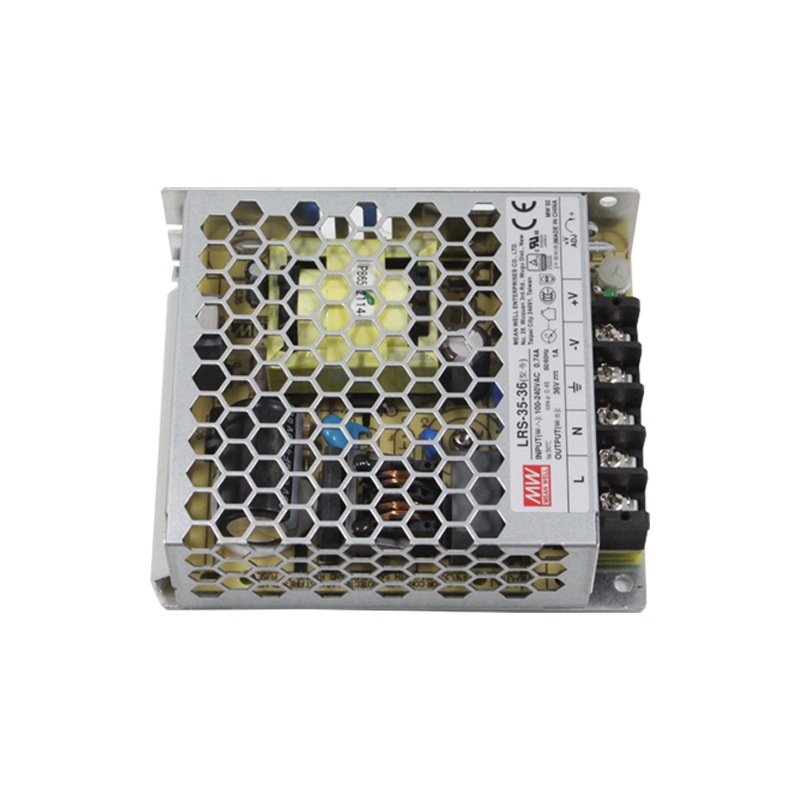

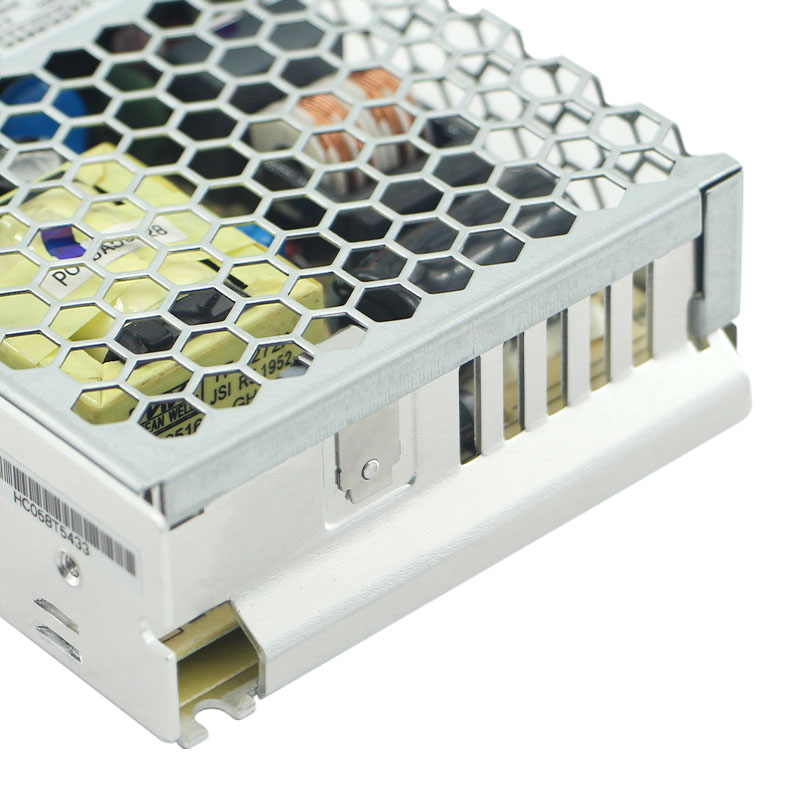

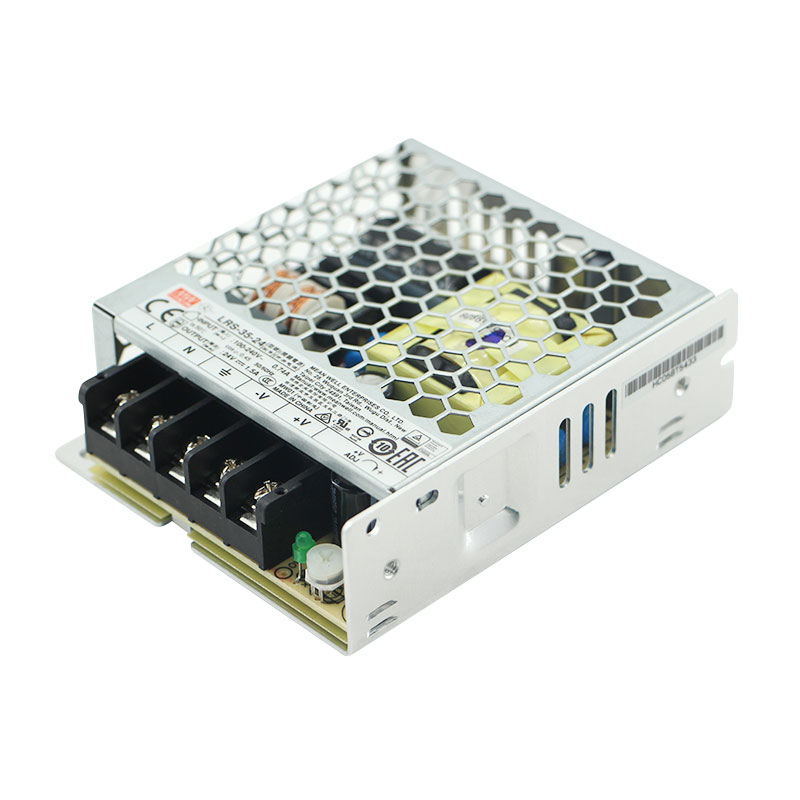

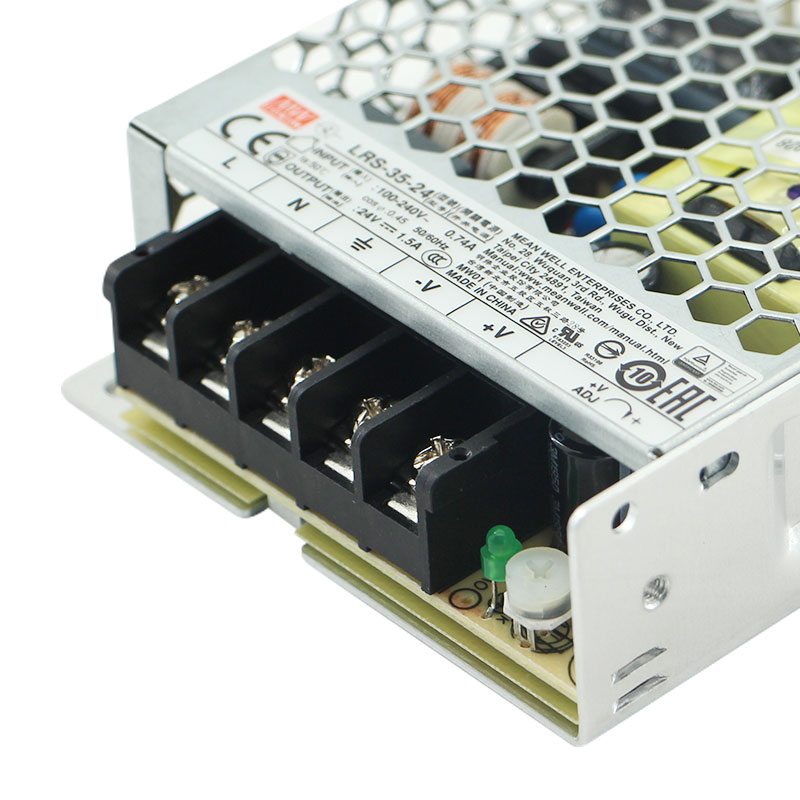

Check the 35W Mean Well LRS-35 Single Output Switching Mode Power Supply, with the 30mm of low profile design, adopting the full input range from AC85V to AC264V, you can choose the various output products from DC5V to DC48V, the highest efficiency rate can reach to 89%, the metallic mesh case enhances the heat dissipation and allows the working temperature keeps between -30℃ through 70℃ under air convection without a fan. delivering an extremely low no-load power consumption less than 0.2W,  the LRS 35 has complete protection functions and 5G anti-vibration capability. you can use them for the LED Lights indoor.

  • Universal AC Input / Full Range
  • Withstand 300VAC Surge Input For 5 Seconds
  • No Load Power Consumption<0.2W
  • Miniature Size And 1U Low Profile
  • High Operating Temperature Up To 70℃
  • Protections: Short Circuit / Over Load / Over Voltage
  • Cooling By Free Air Convection
  • Compliance To IEC/EN 60335-1(PD3) And IEC/EN61558-1, -2-16 For Household Appliances
  • Operating Altitude Up To 5000 Meters
  • Withstand 5G Vibration Test
  • High Efficiency, Long Lifespan And High Reliability
  • Intuitive LED Indicator Light For Power On
  • Over Voltage Category III
  • 100% Full Load Burn-In Test

Quick Links:

Mean Well LRS-35 Series Specification Document


Features:

  • Model: LRS-35
  • Size: 99*82*30mm(L*W*H)
  • Input Voltage Range: 85-264VAC
  • Frequency Range: 47-63Hz
  • Efficiency: 82%(DC5V), 86%(DC12V), 86%(DC15V), 88%(DC24V), 88%(DC36V), 89%(DC48V)
  • AC Current: 0.7A/115VAC, 0.42A/230VAC
  • Output Voltage Range: DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
  • Rated Current: 7A(DC5V), 3A(DC12V), 2.4A(DC15V), 1.5A(DC24V), 1A(DC36V), 0.8A(DC48V)
  • Rated Power: 35W(DC5V), 36W(DC12V), 36W(DC15V), 36W(DC24V), 36W(DC36V), 38.4W(DC48V)
  • Working Temp: -30℃-+70℃
  • Vibration: 10-500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
  • Safety Standards: UL62368-1, TUV EN62368-1, EN60335-1, EN61558-1/-2/16, GB4943.1, BSMI CNS14336-1, EAC TP TC 004, etc
  • Over Load Protection
  • Over Voltage Protection
  • Over Temp Protection
  • 3 Years Warranty


Includes:

1*Mean Well LRS-35 Switching Power Supply

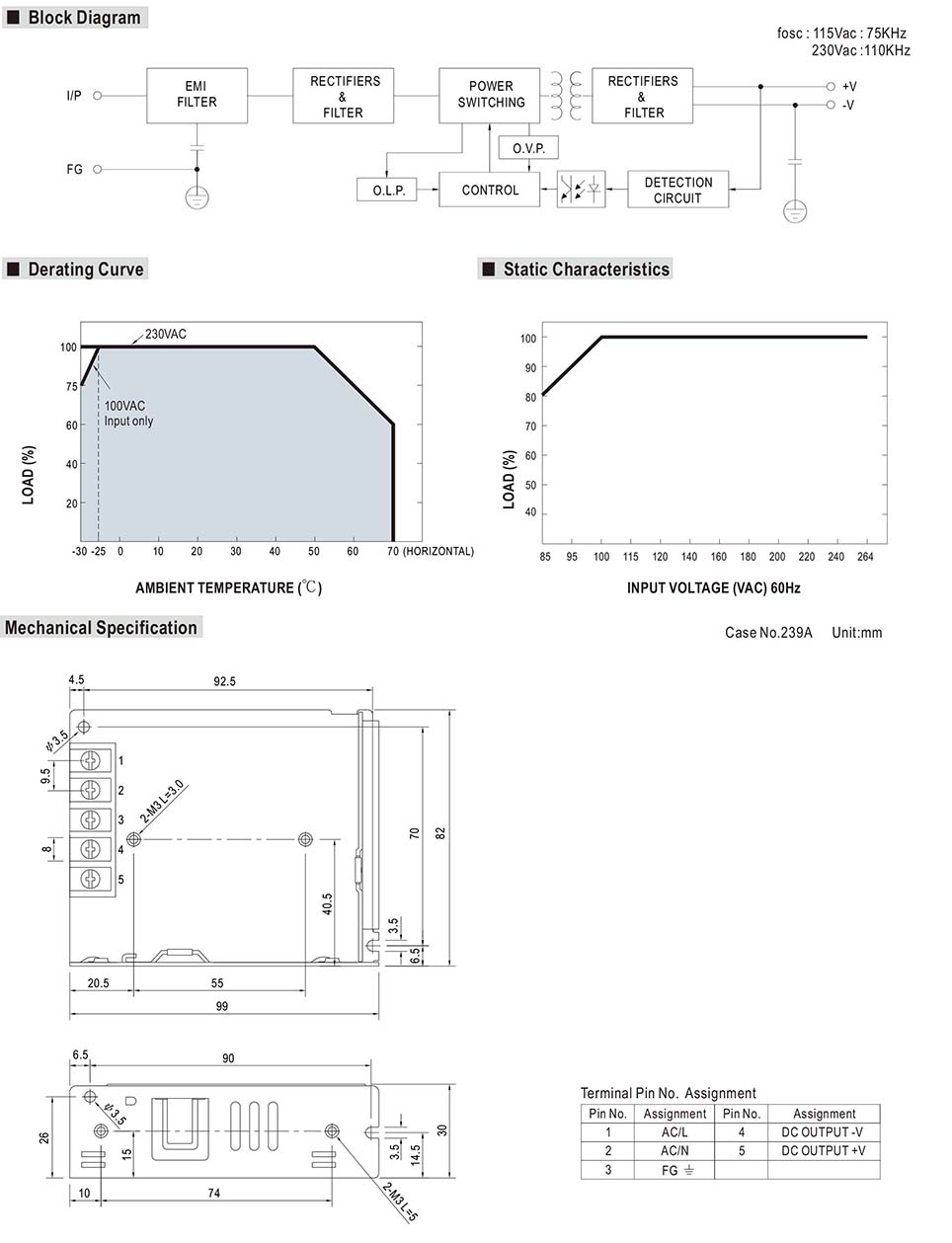

Switching Mode Power Supply Converter
