Out Of Stock
Reward Points: 23
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP9035

The 90mm 3 Inches width Strip Lighting Channel, allows being recessed into the ceiling or wall as the main lighting in modern office design, schools, stores, supermarkets, hospitals, etc. The standard length is 1 meter and the max length 2.5meter per piece, and can be cut to any size for your project. Made of 6063-T5 aluminum alloy with silver anodized surface treatment, anti-oxidation resistance, and better heat dissipation, a longer lifespan than other similar products. The inner width is 64.2mm and is compatible with 140mm/280mm/560mm LED Modules or the max-width of Flexible LED Strips not over 64mm. There is only one type of diffuser available, the PC opal matte diffuser, which is made of Japanese import brand stable material, anti-yellowing, and perfect light distribution, for smooth light output. End caps are included, you could connect the LED Lights to LED Dimmable Transformer to light up or adjust the brightness. The L and T shape connectors are sold separately, you can purchase them for the interior design to reconnect them for the various shapes of modern office design.


  • Model: ALP-9035
  • Material: 6063-T5 Aluminium Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver(Default), White, Black

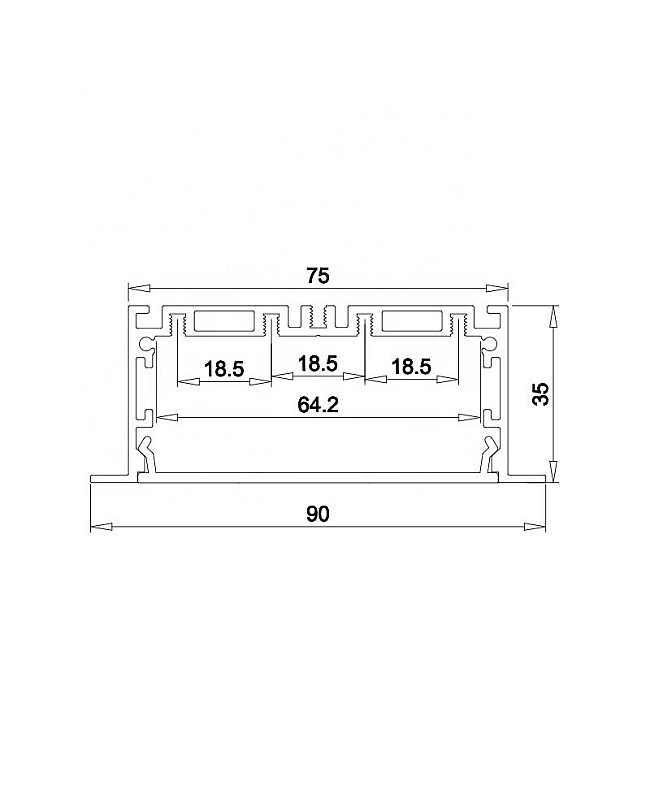

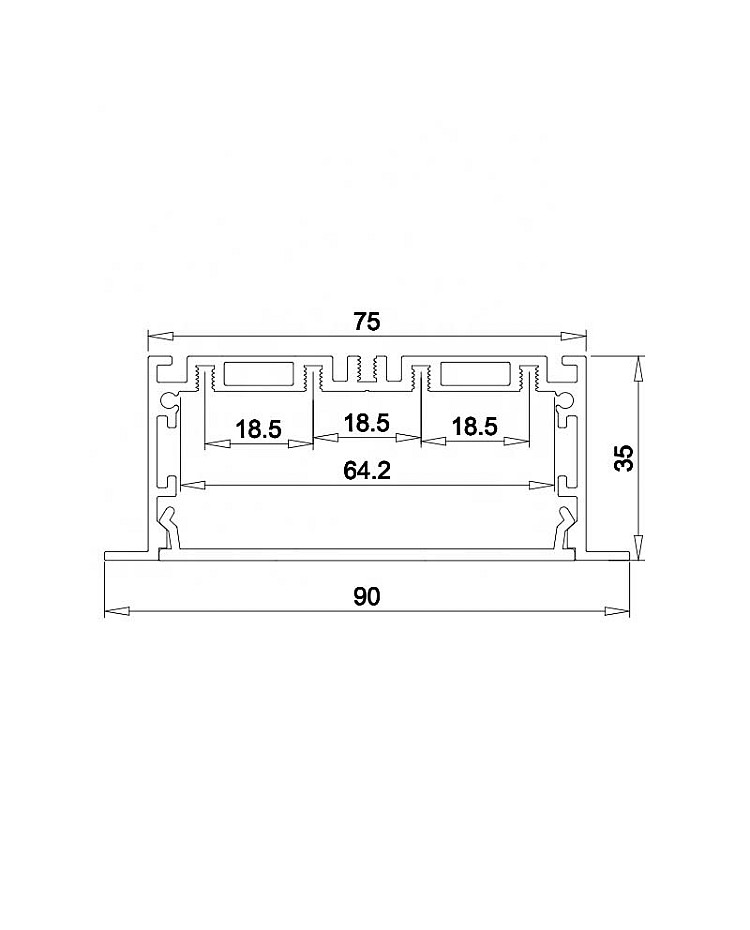

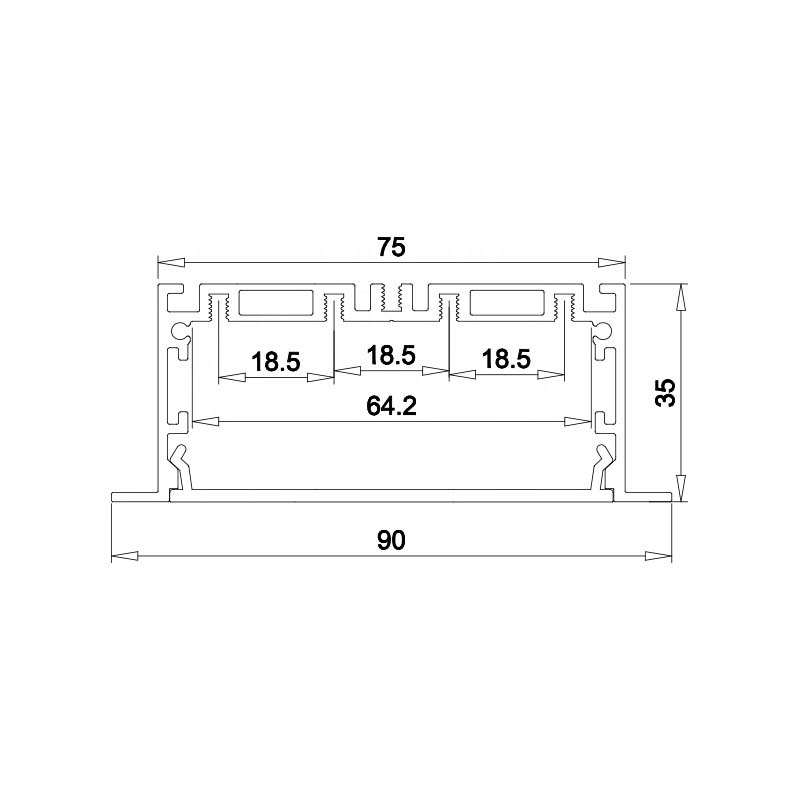

  • Size: 90*35mm(W*H)
  • Standard Length: 1Meter
  • Other Lengths Available: 1.5M, 2M, 2.5M
  • Custom Length Available: YES
  • Inner Width: 64.2mm
  • Compatible 140mm/280mm/560mm LED Modules
  • Max Power: <45W/M
  • Diffuser: PC Opal Matte Diffuser
  • Installation: Recessed Mounting
  • Applications: Modern Office, Schools, Stores, Supermarket, Hospital, etc
  • End Caps And Spring Clips Included
  • L and T Shape Connectors Sold Separately
  • 5 Years Warranty

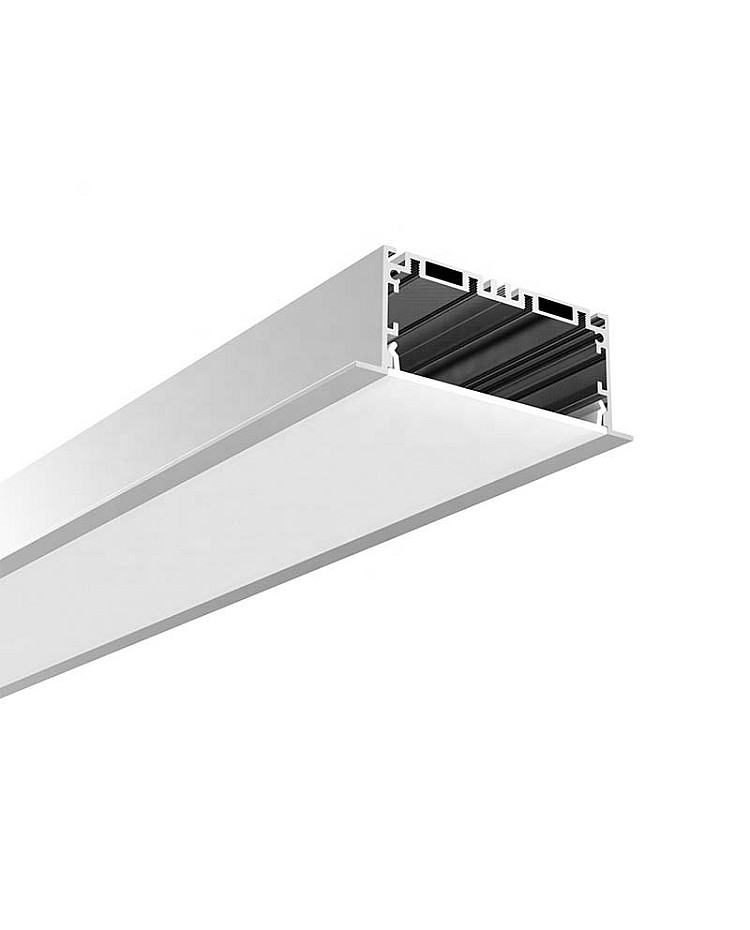

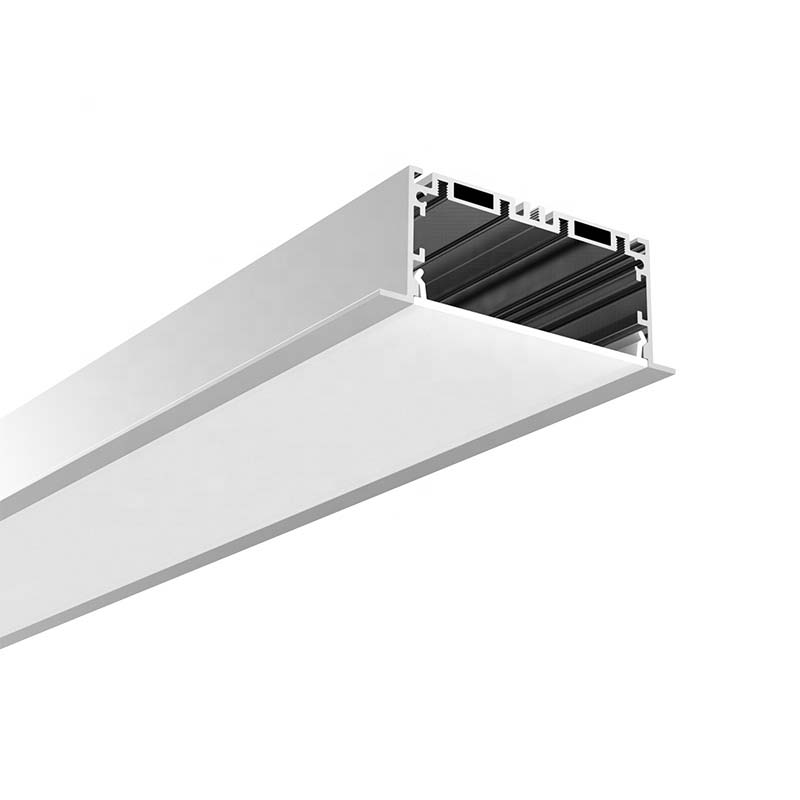

Strip Lighting Channel With Diffuser

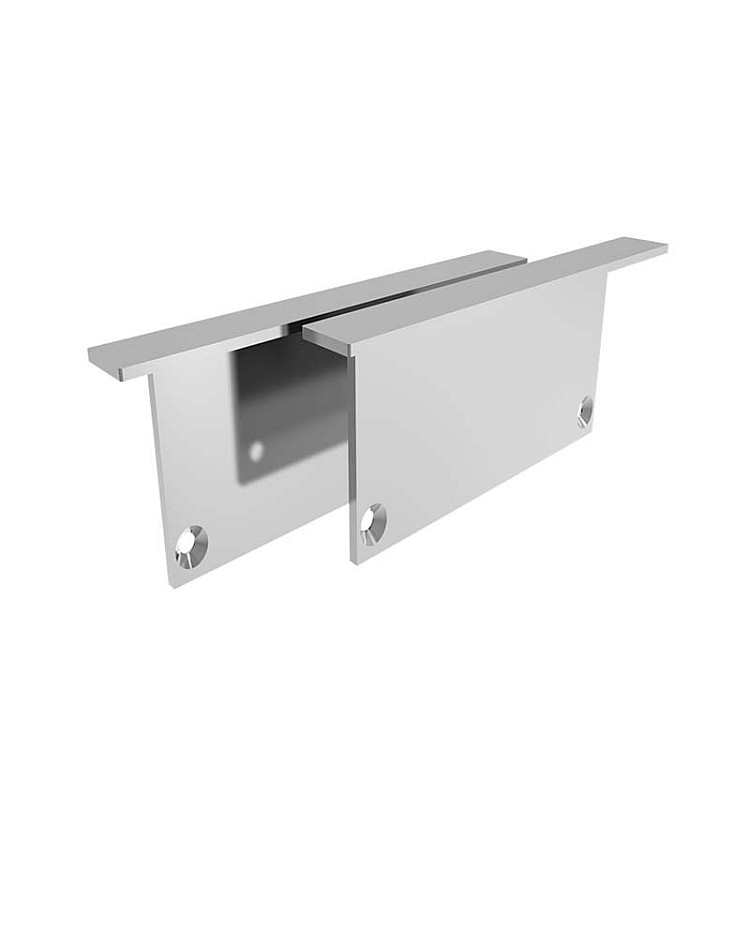

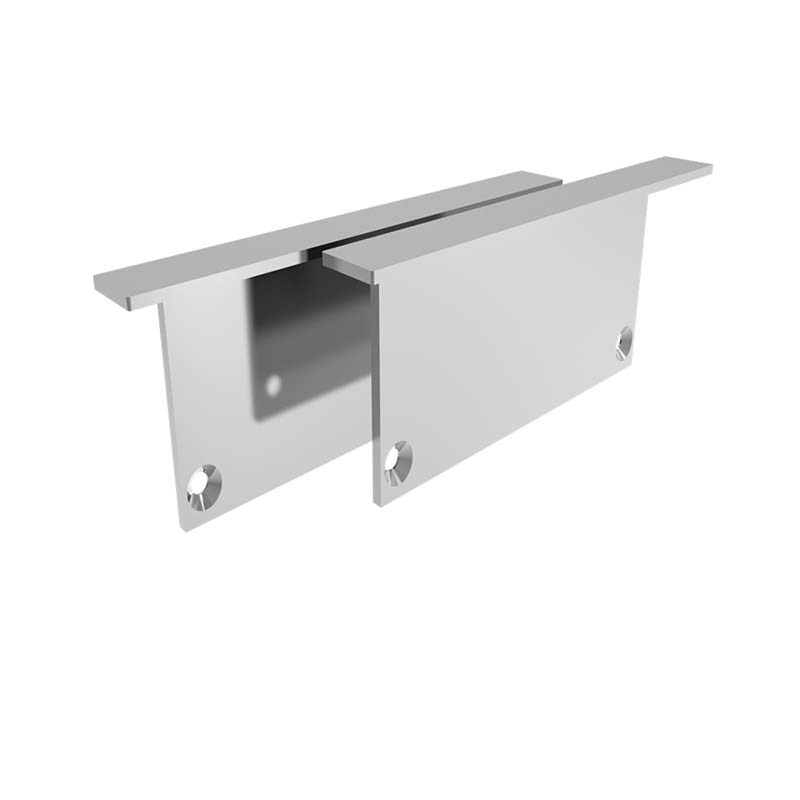

End Caps

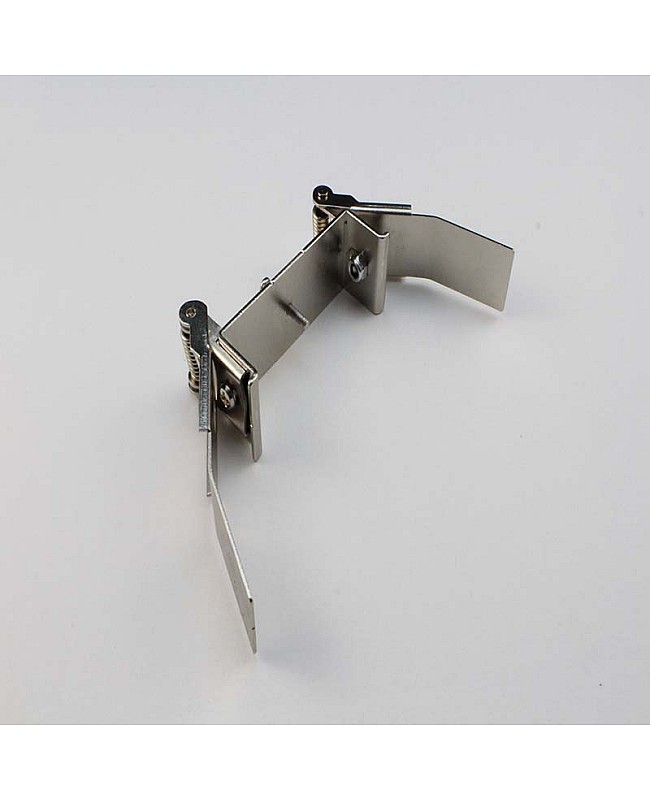

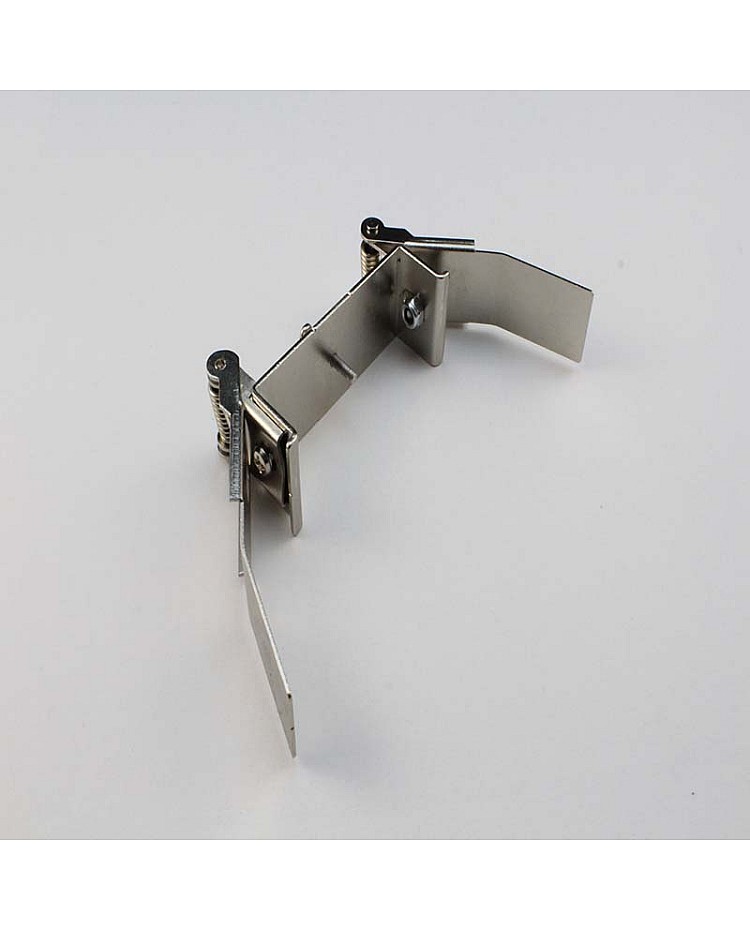

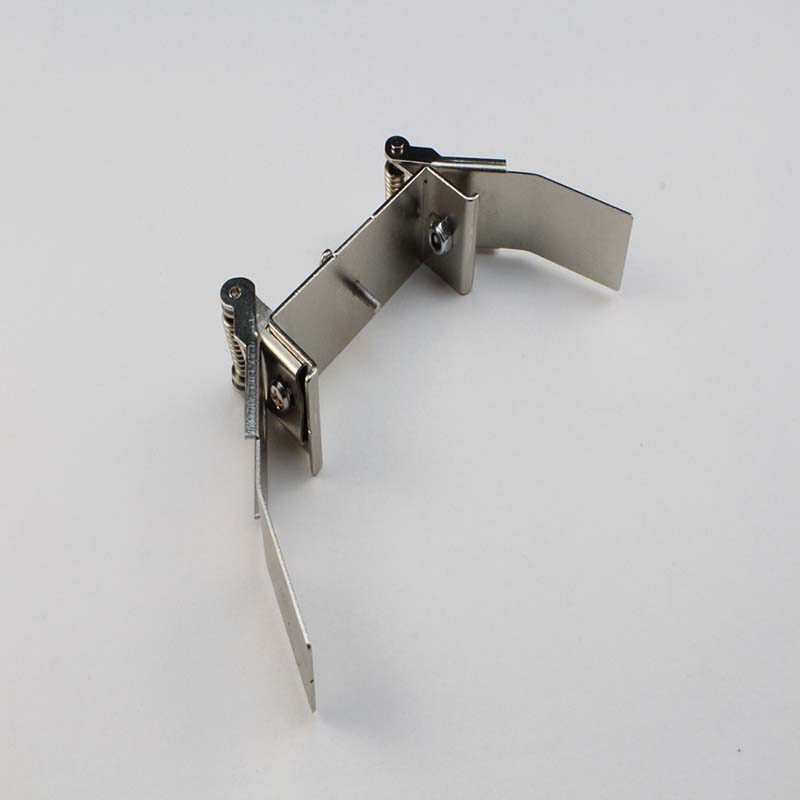

Spring Clips

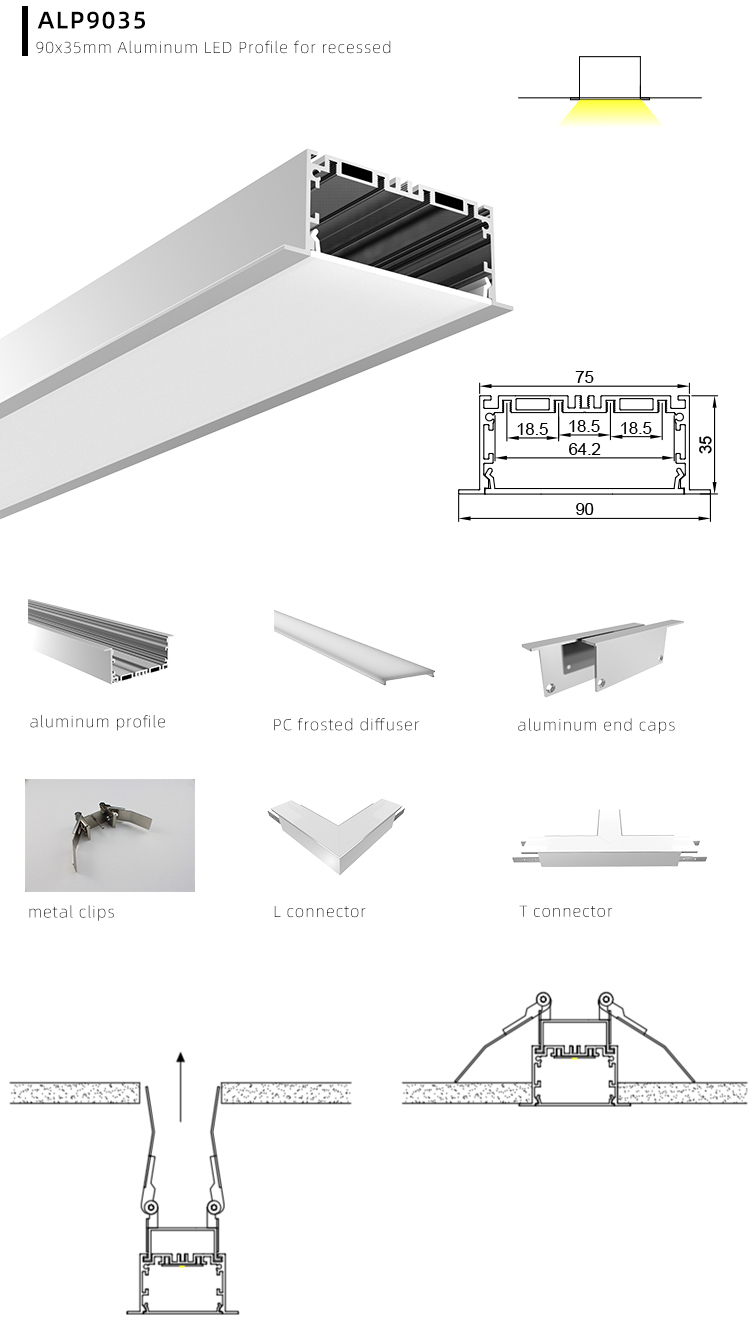

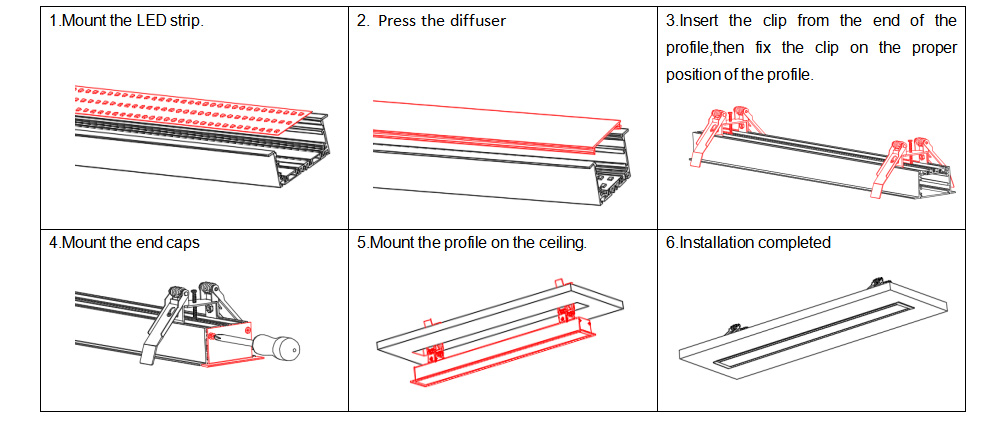

LED Strip Channel And Diffuser 3 Inches LED Light Channel
