In Stock
$26.70 $13.90 Sale -48% OFF
Reward Points: 14
-
+
  • Brand: MiBoxer
  • Product Code: FUT036SA

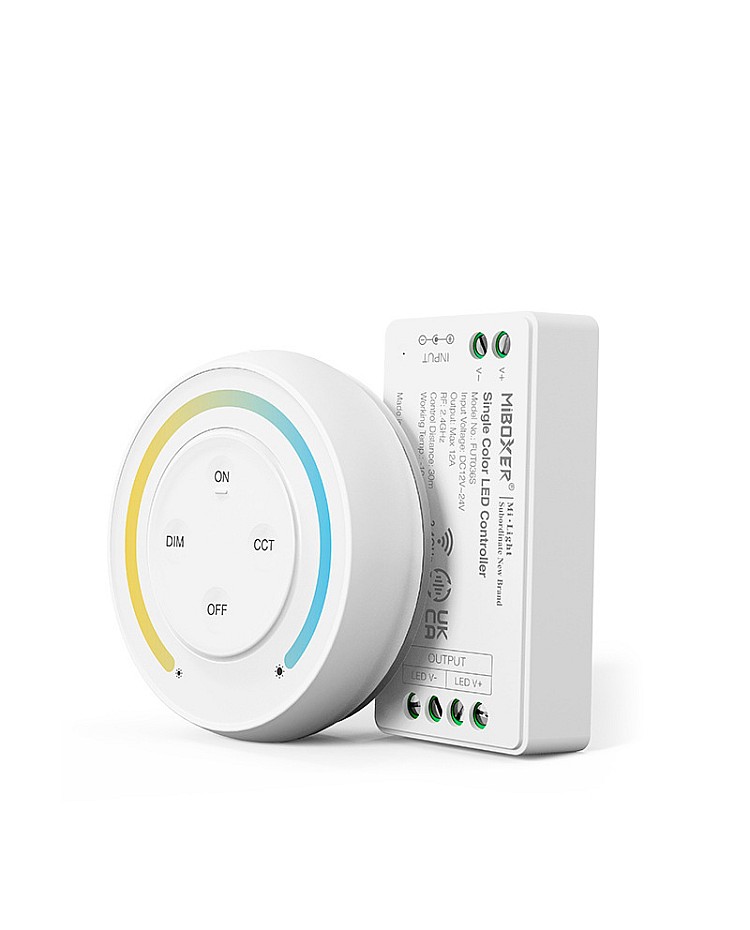

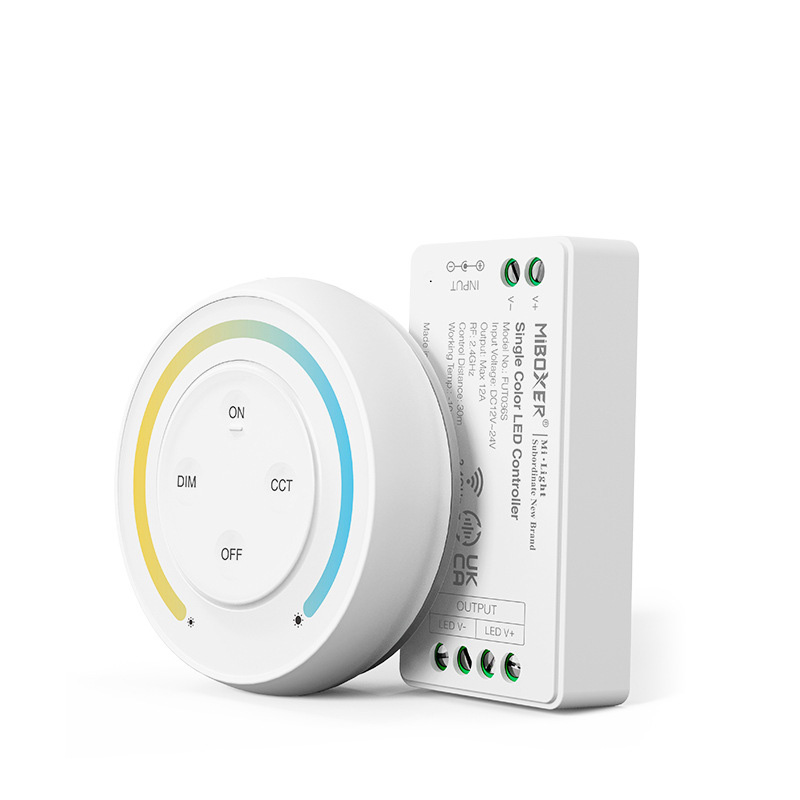

Check the MiBoxer FUT036SA PWM Dimmer, which comes with a 2.4G Remote Control, you can use them for the Single Color LED Lights or Strip Lights, working in DC12V or DC24V, the max output current is 12A, adopts 2.4G transmitting technology, with strong anti-interference, long-distance transmission, control distance up to 30meters, the 24V LED Dimmer can be controlled by smartphone APP and third-party voice control after adding 2.4G Gateway, can work with Amazon Alexa and Google Assistant. you can use the voice commands to turn ON/OFF and adjust the brightness. you can touch the dimming slider on the Remote Control to adjust the brightness from 1% to 100%, press the buttons to turn ON/OFF the LED Lights. the Remote Control comes with a magnetic base holder, which you can easy to take out and put back. the working frequency of PWM Dimmer switchable, you can choose the 8KHz high frequency or 500Hz low frequency. the MiBoxer Dimmer will receive the signals from the remote control and transmit to other same Dimmers within 30meters, all of the LED Dimmers will work at the same status.

Quick Links:

MiBoxer FUT036SA Manual

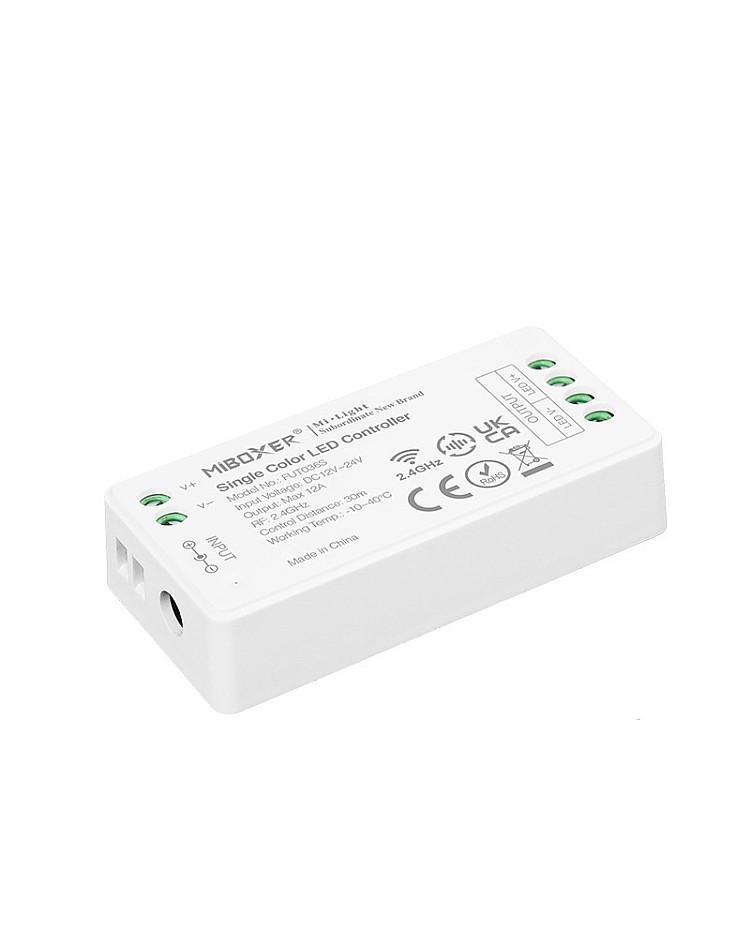

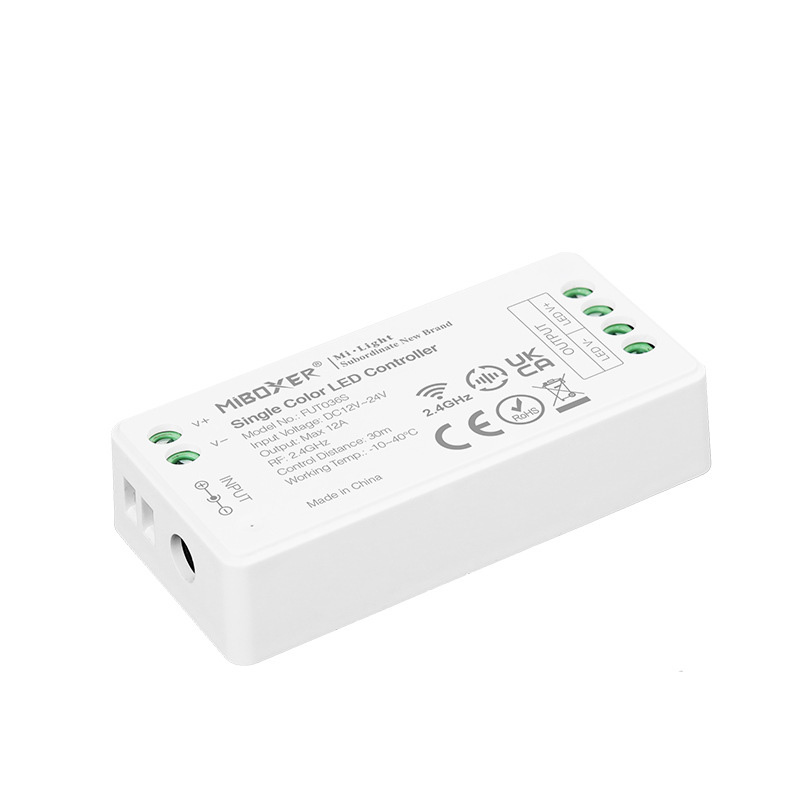

12V LED Dimmer Features:

  • Models: FUT036SA(Single Color), FUT035SA(Dual White)
  • Size: 74.5*36*17mm(L*W*H)
  • Working Voltage: DC12-24V
  • Total Output Current: 12A
  • RF: 2.4GHz
  • Output Connection: Common Anode
  • Control Distance: ≤30m
  • Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
  • PWM High Frequency(8KHz0 And Low Frequency(500Hz) Can Be Switched
  • Signal Transmitting
  • Working Temperature: -10-40℃
  • 2 Years Warranty

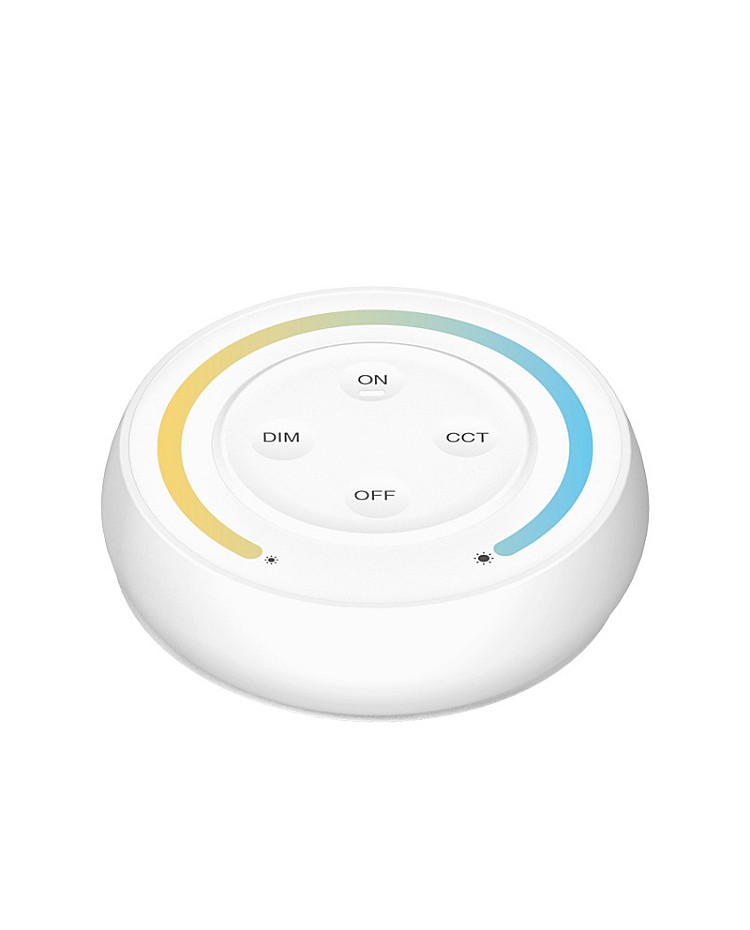

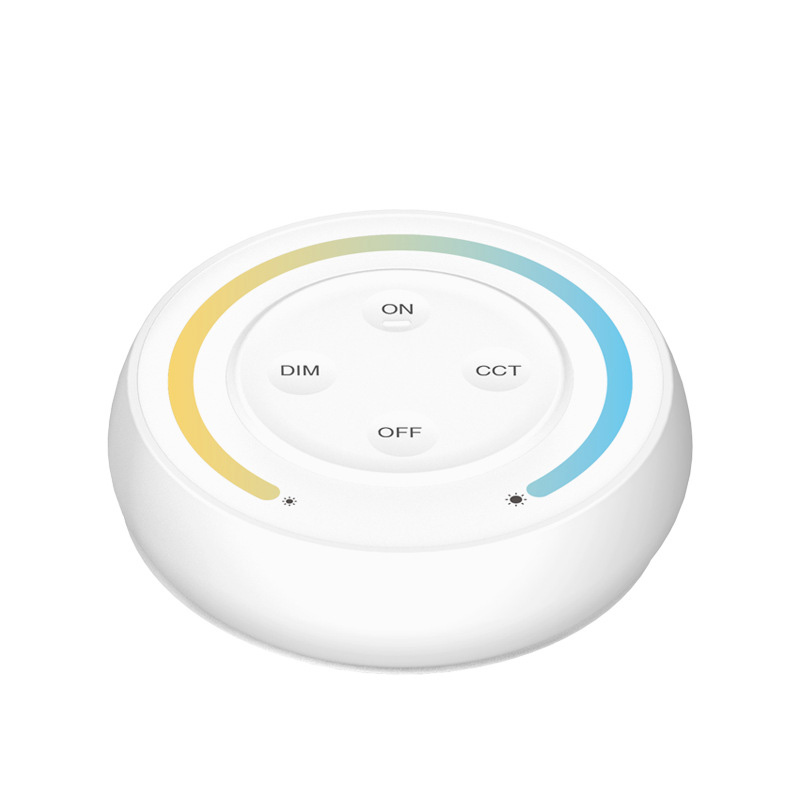

RF Remote Features:

  • Size: Φ70*24mm

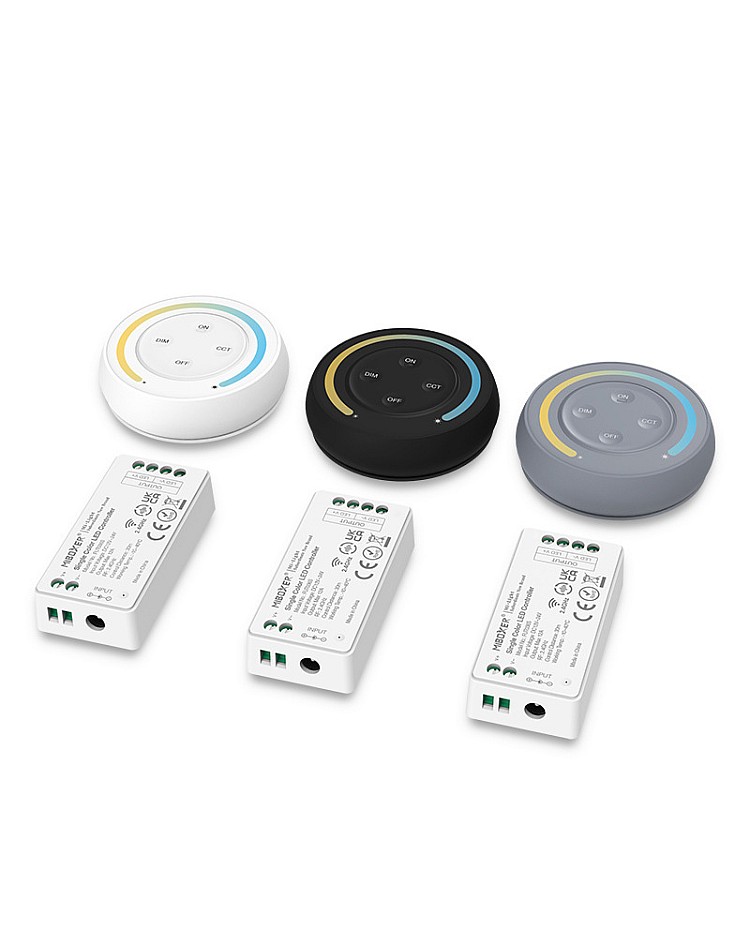

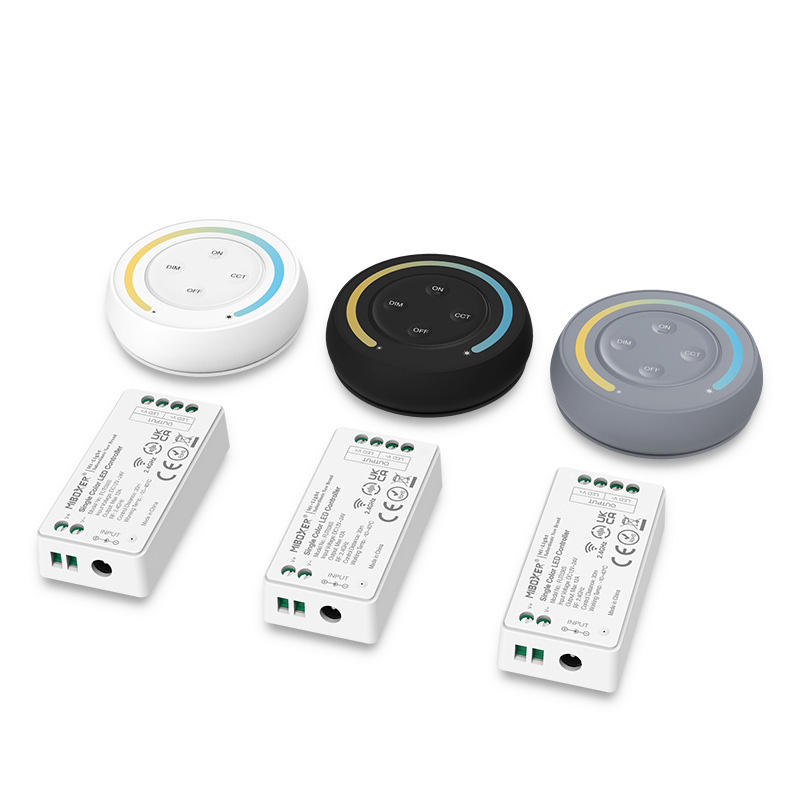

  • Colors: Black, White, Grey
  • Working Voltage: DC3V
  • Powered By 2PCS AAA Batteries
  • Transmitting Power: 6dBm
  • Standby Power: 20uA
  • RF: 2.4GHz
  • Modulation Method: GFSK
  • Control Distance: ≤30m
  • Magnetic Base Holder


Includes:

1*PWM Dimmer

1*2.4G S1 Sunrise Remote

1*User Manual

MiBoxer FUT036SA LED Dimmer PWM 12V DC
