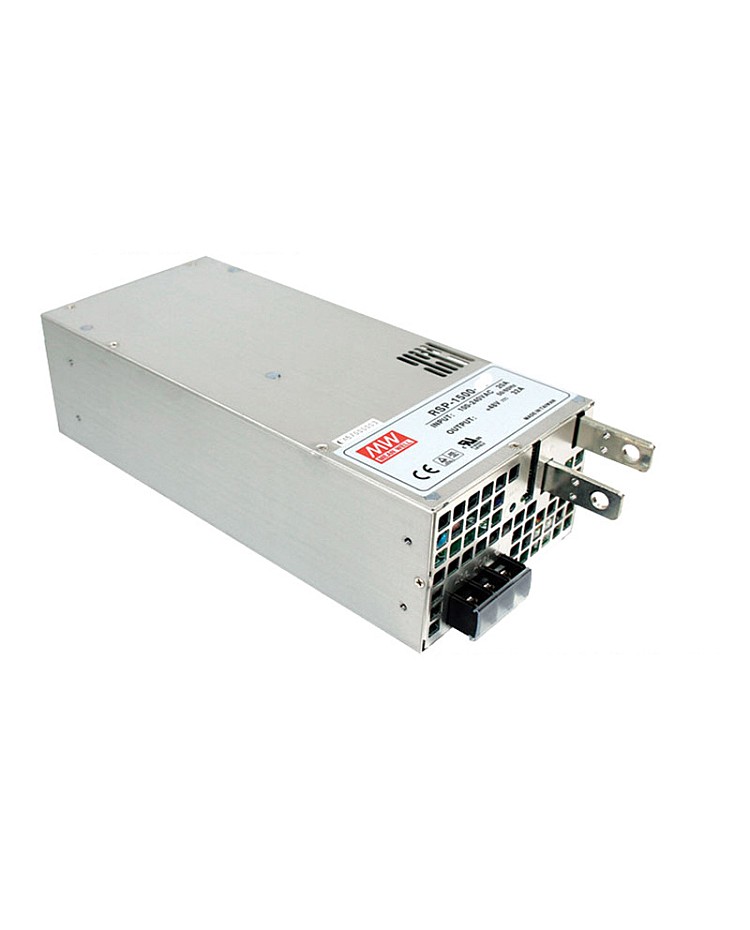

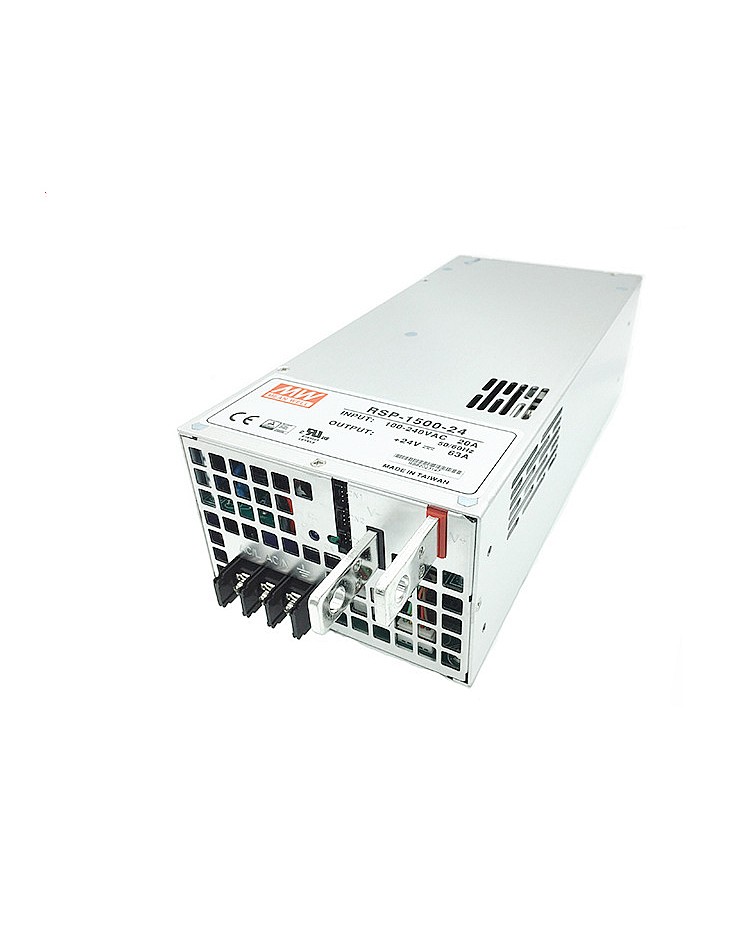

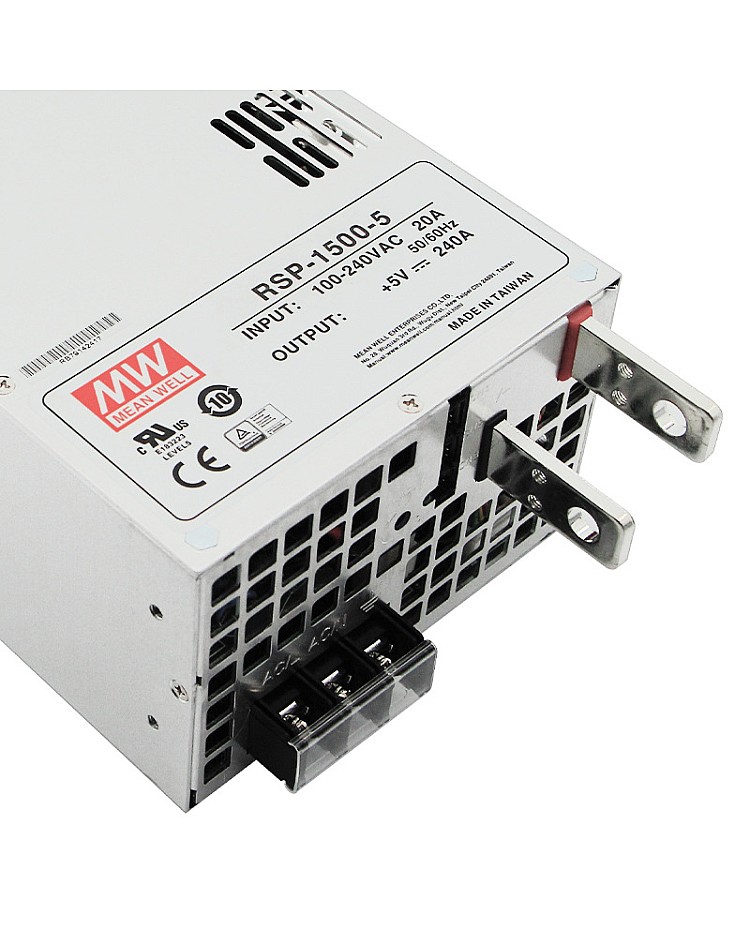

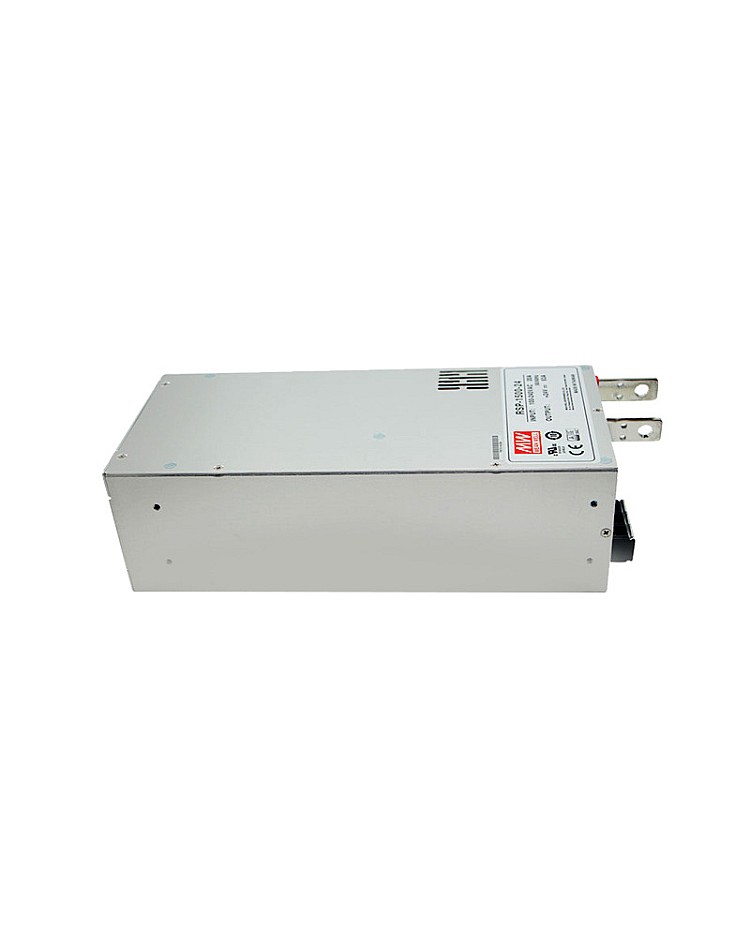

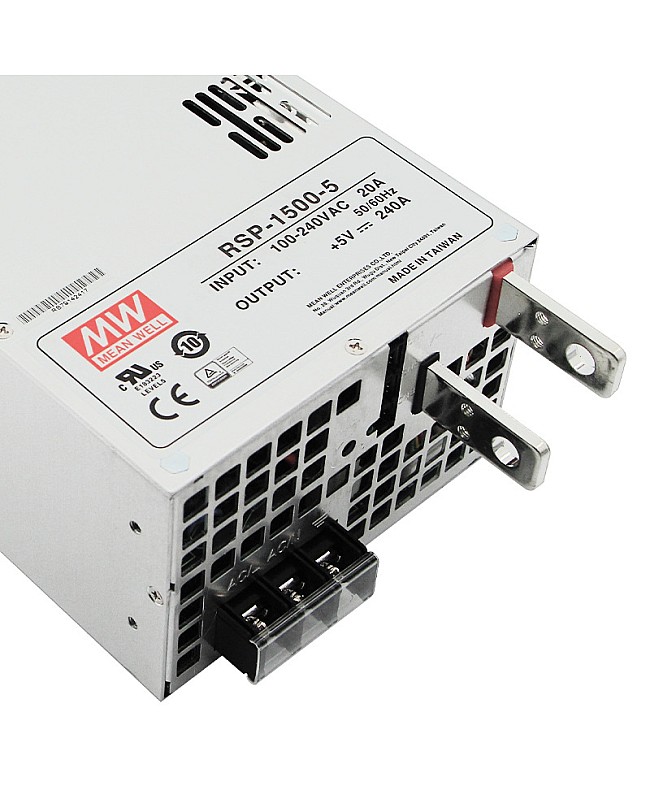

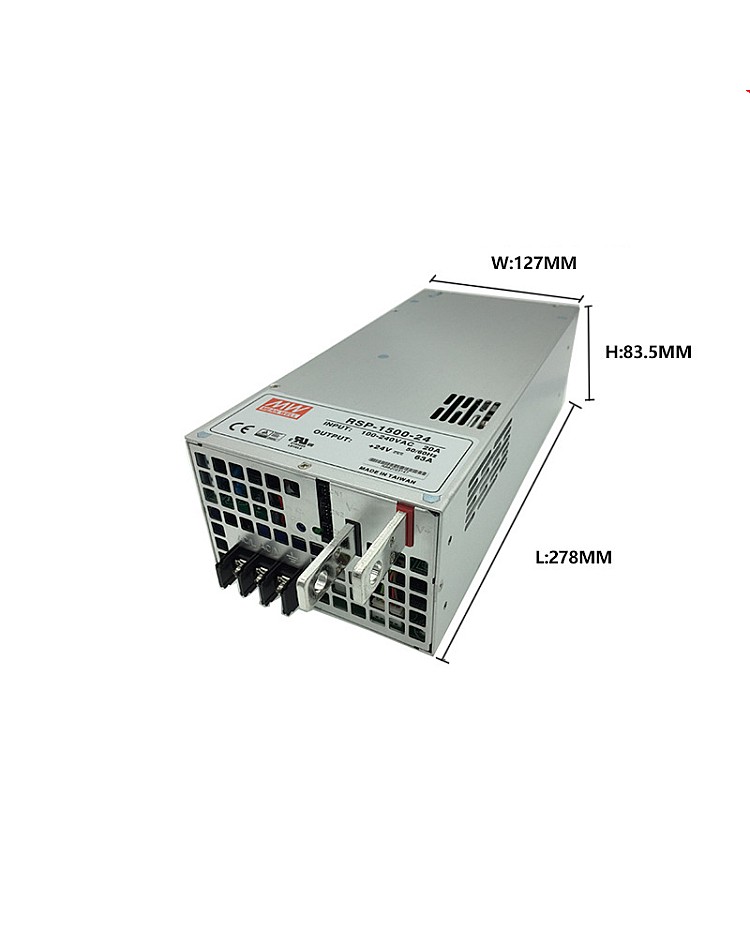

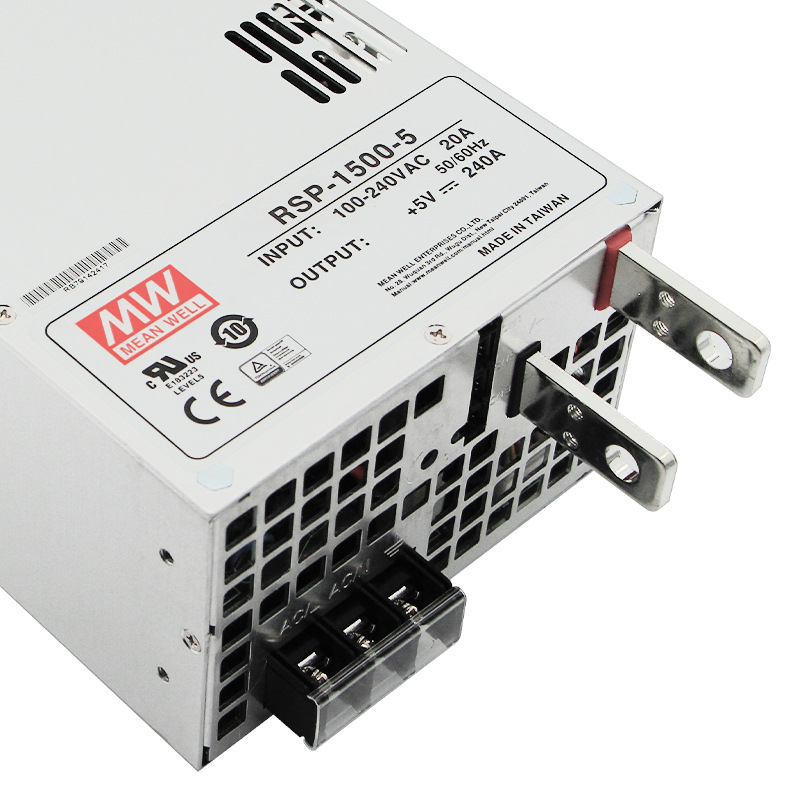

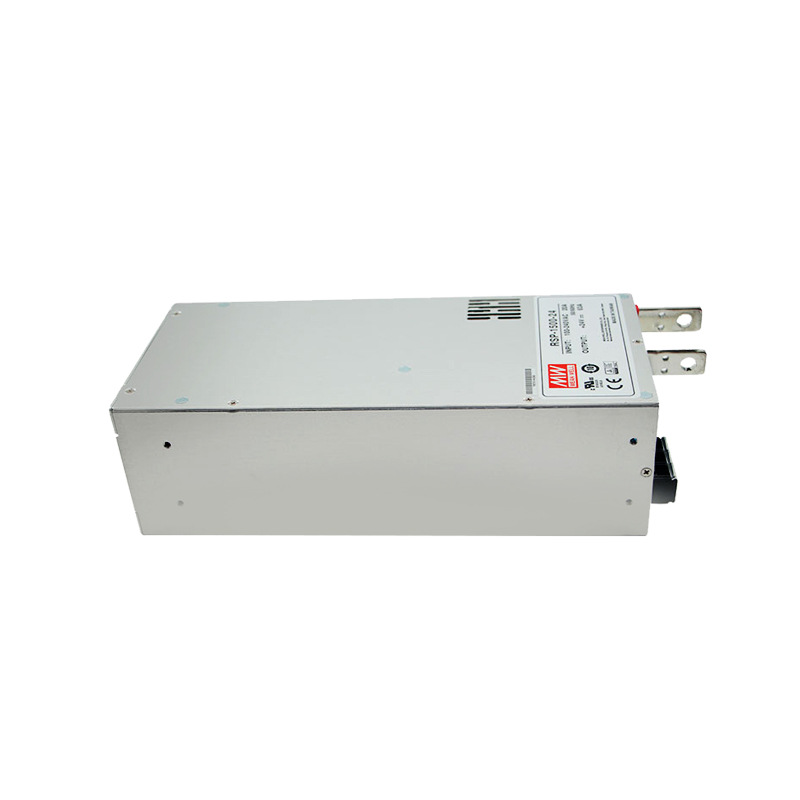

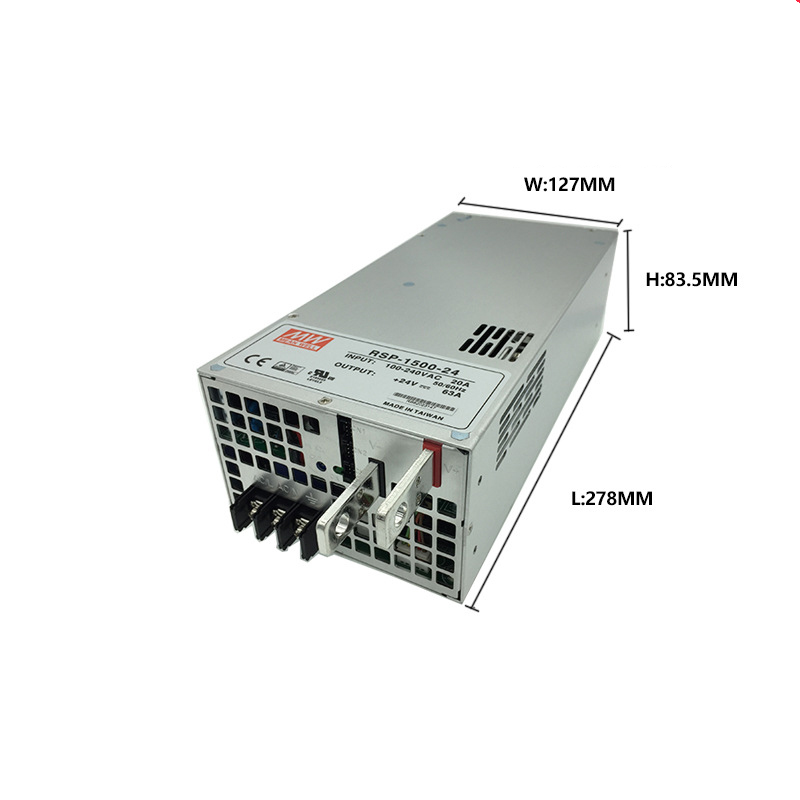

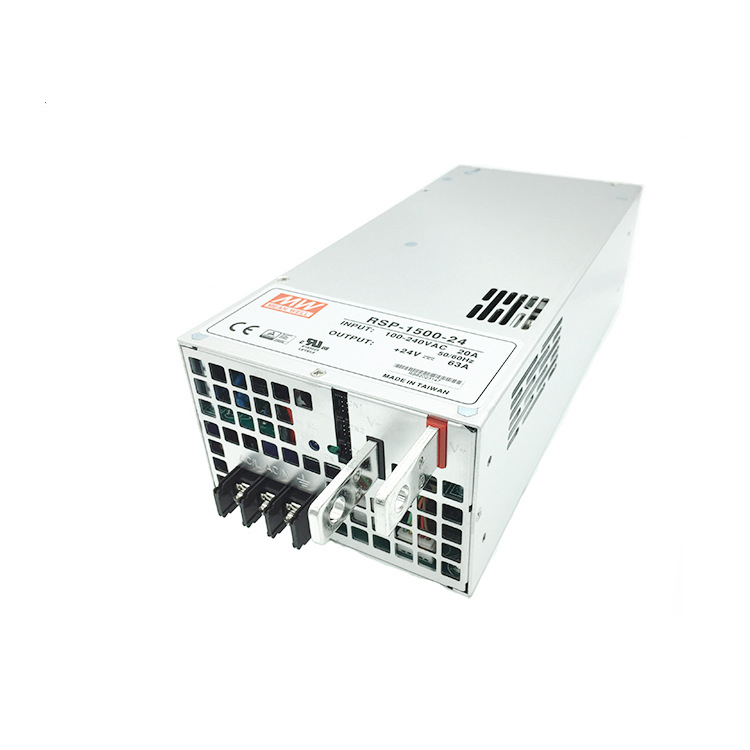

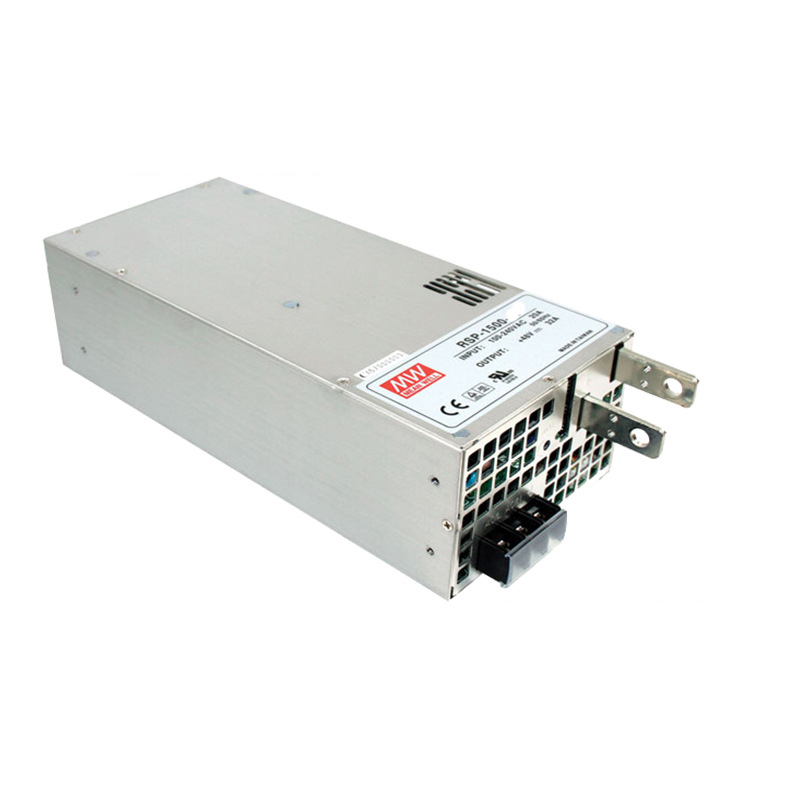

The Mean Well RSP-1500 24V power supply is a single-output, enclosed AC/DC power supply suitable for various applications that require stable and efficient DC power. The output voltage can be selected from 5V, 12V, 15V, and 24V, and the maximum output power reaches up to 1500W. Those series DC power supplies operate with an input voltage range of AC90V to AC264V and offer models with the DC output demanded by the industry. Each model is cooled by the built-in fan, which operates at temperatures up to 70℃. The RSP-1500 offers extensive design flexibility by incorporating various built-in functions, including output programming, active current sharing, remote ON-OFF control, and auxiliary power.
- Universal AC Input/Full Range
- Built-in Active PFC Function
- High Efficiency Up To 91%
- Forced Air Cooling By Built-in DC Fan
- Output Voltage Programmable
- Active Current Sharing Up To 6000W(3+1)
- Built-in Remote ON-OFF Control / Remote Sense / Auxiliary Power / Power OK Signal
- Applications: Factory Control or Automation Apparatus, Test and Measurement Instrument, Laser-Related Machine, Burn-in Facility, Digital Broadcasting, RF Application, etc
Specifications:
- Type: 1500W Single Output DC Power Supply
- Models: RSP-1500-5(DC5V), RSP-1500-12(DC12V), RSP-1500-15(DC15V), RSP-1500-24(DC24V), RSP-1500-48(DC48V)
- Input Voltage: 90- 264VAC
- Frequency Range: 47- 63Hz
- Power Factor:0.95/230VAC, 0.98/115VAC At Full Load
- Efficiency: 80%(RSP-1500-5), 87%(RSP-1500-12), 87%(RSP-1500-15), 90%(RSP-1500-24), 91%(RSP-1500-48)
- AC Current: 17A/115VAC, 8A/230VAC
- Output Voltage: DC5V(RSP-1500-5), DC12V(RSP-1500-12), DC15V(RSP-1500-15), DC24V(RSP-1500-24), DC48V(RSP-1500-48)
- Rated Current: 240A(RSP-1500-5), 124A((RSP-1500-12), 100A((RSP-1500-15), 63A((RSP-1500-24), 32A(RSP-1500-48)
- Current Range: 0-240A(RSP-1500-5), 0-125A(RSP-1500-12), 0-100A(RSP-1500-15), 0-63A(RSP-1500-24), 0-32A(RSP-1500-48)
- Rated Power: 1200W(RSP-1500-5), 1500W((RSP-1500-12), 1500W(RSP-1500-15), 1512W(RSP-1500-24), 1536W(RSP-1500-48)
- Ripple & Noise: 150mVp-p
- Voltage ADJ.Range: 4.5-5.5V(RSP-1500-5), 10-13.5V(RSP-1500-12), 13.5-16.5(RSP-1500-15), 20-26.4(RSP-1500-24), 43-56V(RSP-1500-48)
- SETUP RISE TIME: 1500ms, 100ms At Full Load
- HOLD UP TIME: 10ms At Full Load(RSP-1500-5, RSP-1500-12), 14ms At Full Load(RSP-1500-15, RSP-1500-24), 16ms At Full Load(RSP-1500-48)
- Working Temperature: -20℃-+70℃
- Storage Temp., Humidity: -40℃-+85℃, 10-95% RH Non-condensing
- Working Humidity: 20-90% RH Non-condensing
- Vibration: 10-500Hz, 2G 10min,/1cycle, 60min. Each along the X, Y, and Z axes
- Overload Protection
- Over-Voltage Protection
- Over Temperature Protection
- Safety Standards: UL62368-1, CAN/CSA C22.2 NO.62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004 Approved
- 5 years warranty
Includes:
1 * Meanwell RSP 1500 Power Supply
