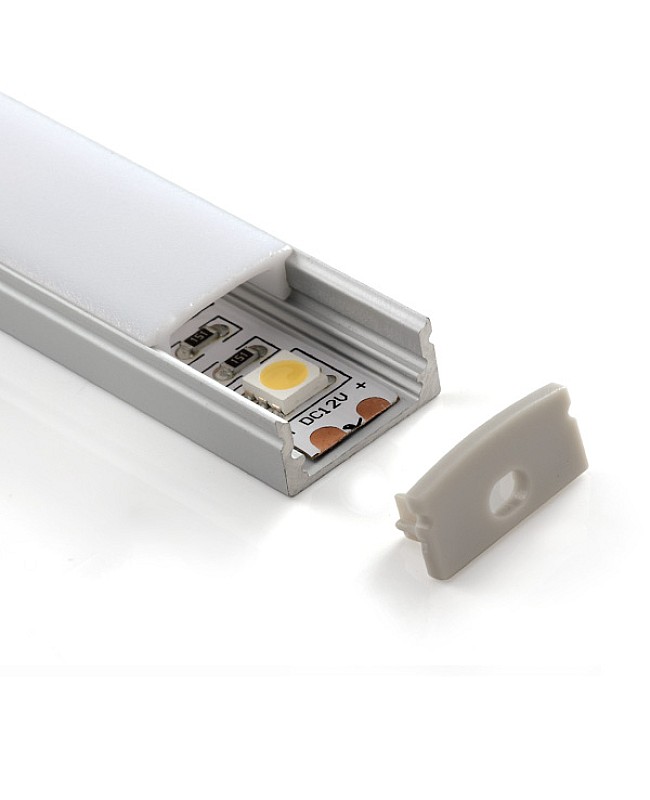

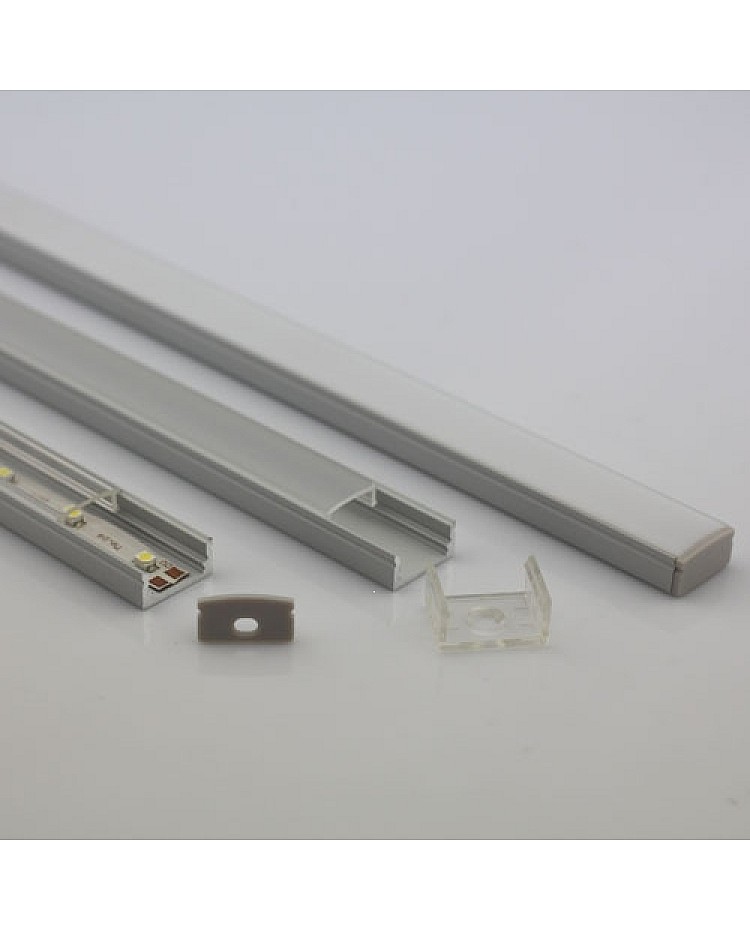

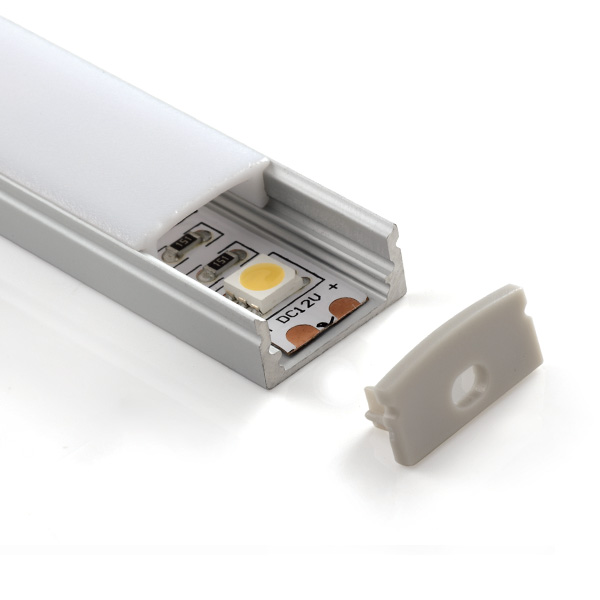

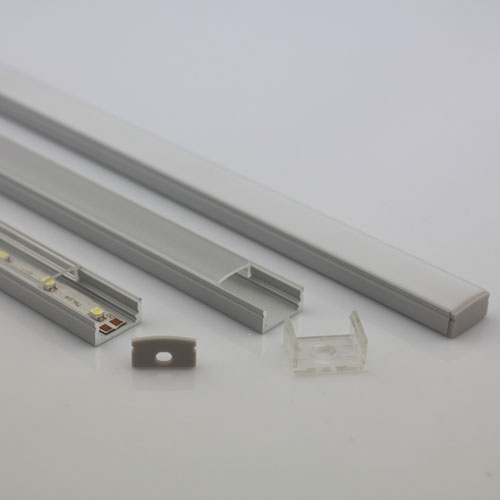

The U-shaped LED tape profiles are an affordable, versatile option for adding lighting to shelves, cabinets, walls, ceilings, and more. The metal and plastic mounting clips are optional for surface-mounted installations. It's easy to accommodate and conceal the LED strips. There are seven diffused covers available that evenly diffuse the lighting. It is constructed from high-quality anodized aluminum material for enhanced oxidation resistance and a longer lifespan. The stock lengths are 2 m, 2.5 m, and 3 m, and can be cut to any length to meet your needs. There are seven different covers available: PMMA series and PC diffused covers. They are made of a stable, anti-yellowing material and have perfect light distribution. The inner width is 12.2 mm, allowing a maximum strip light width of 12 mm. We recommend adding our high-density SMD or COB strip lights to deliver uniform lighting without spots. The lightweight and slim LED aluminum channels can serve as effective heat sinks, enhancing heat dissipation. End caps with and without wire holes are included.
Specifications:

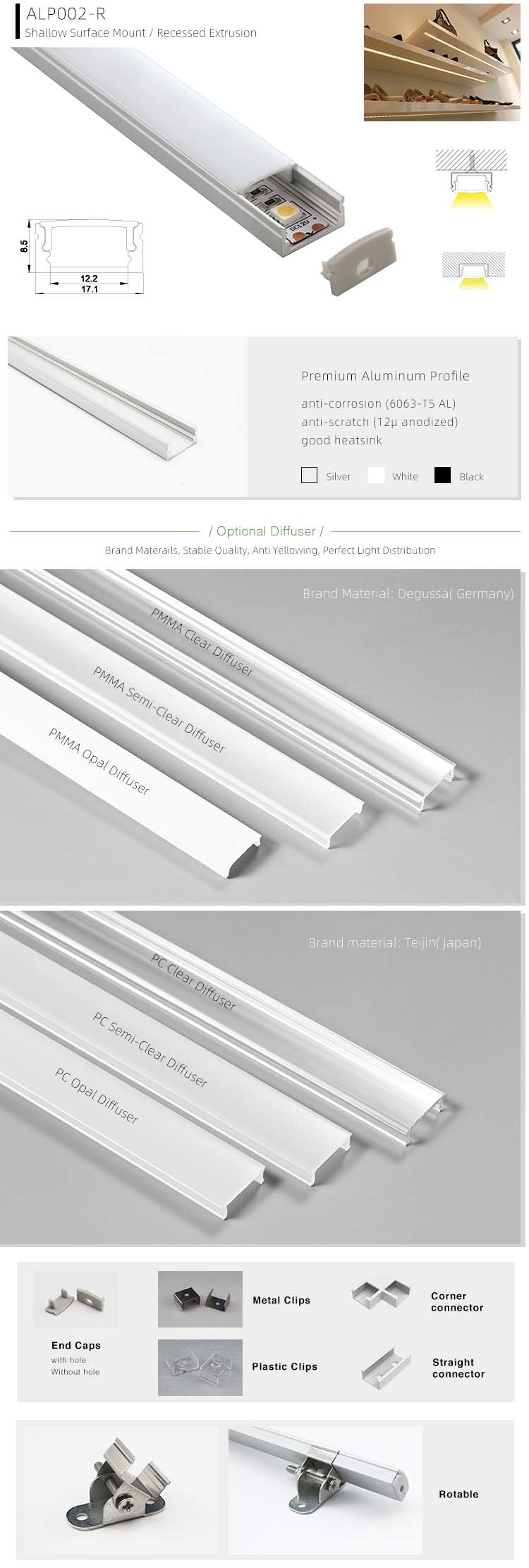

- Model: ALP002-R
- Material: 6063-T5 Aluminum alloy
- Surface Treatment: Anodized or powder-coated
- Color: Silver, white, black

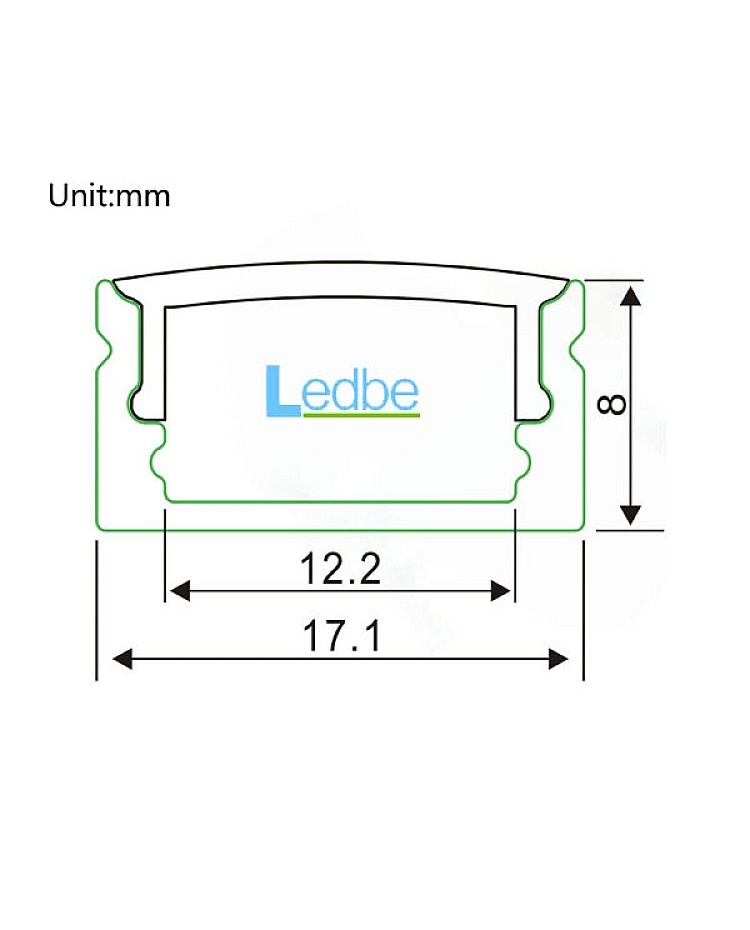

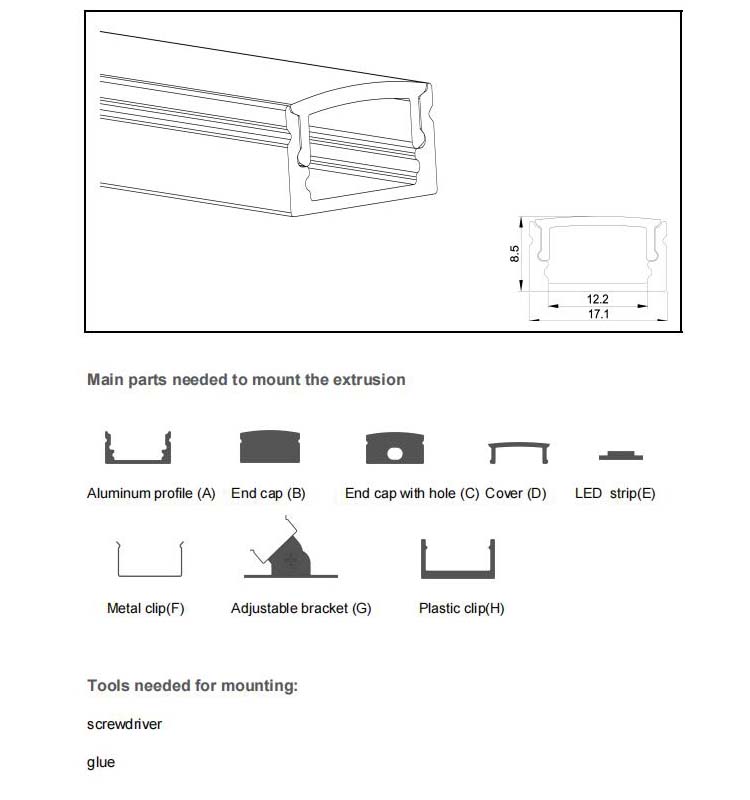

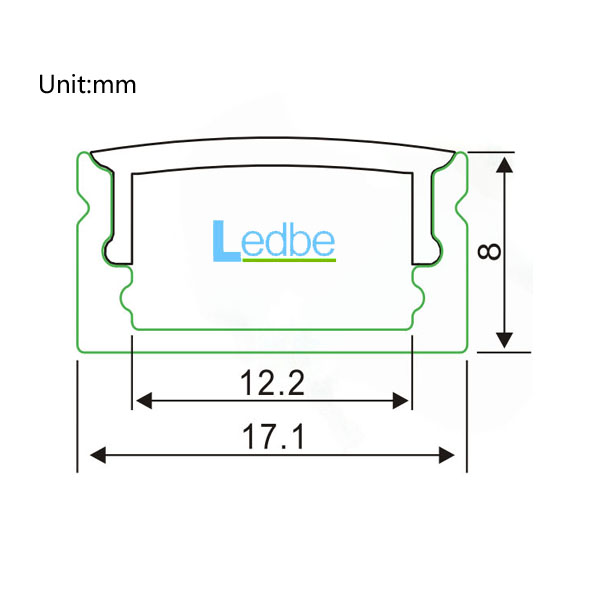

- Size(W*H): 17.1mm x 8mm (0.67" x 0.31")
- Inner Width: 12.2mm (0.48")
- Allows the maximum width of strip lights to be 12mm (0.47")
- Max Power <15W/M

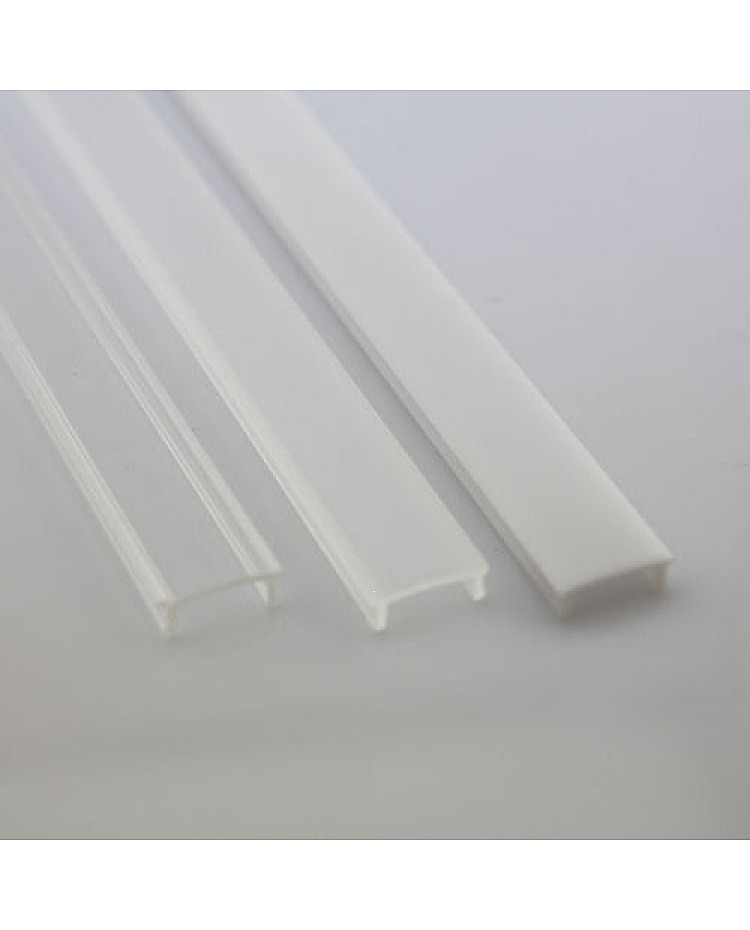

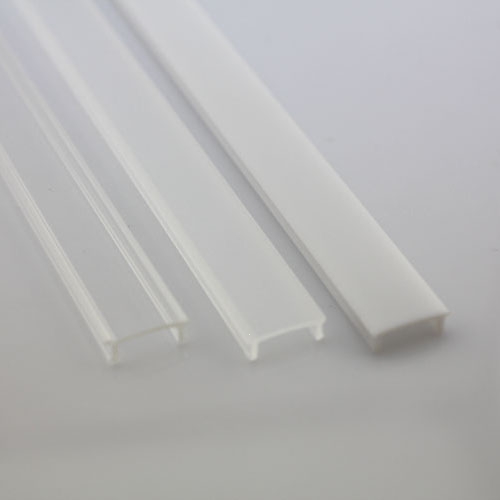

- Covers: PMMA opal matte cover / PMMA semi-clear cover / PMMA clear cover / PC diffused cover
- Lengths Available: 1 m (39"), 2 m (78"), 2.5 m (98"), 3 m (118")
- Custom Length: YES

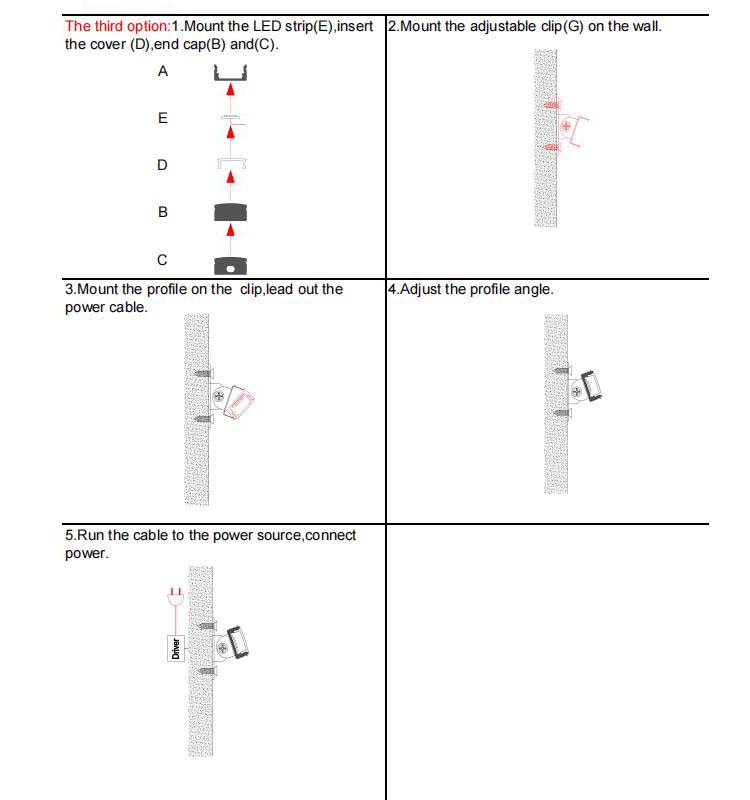

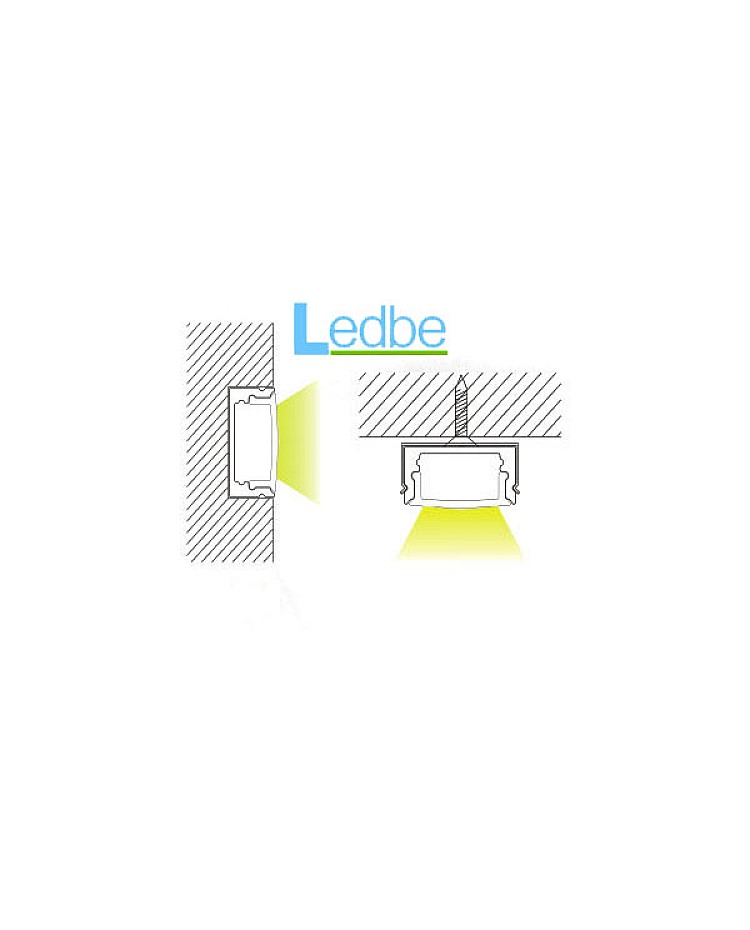

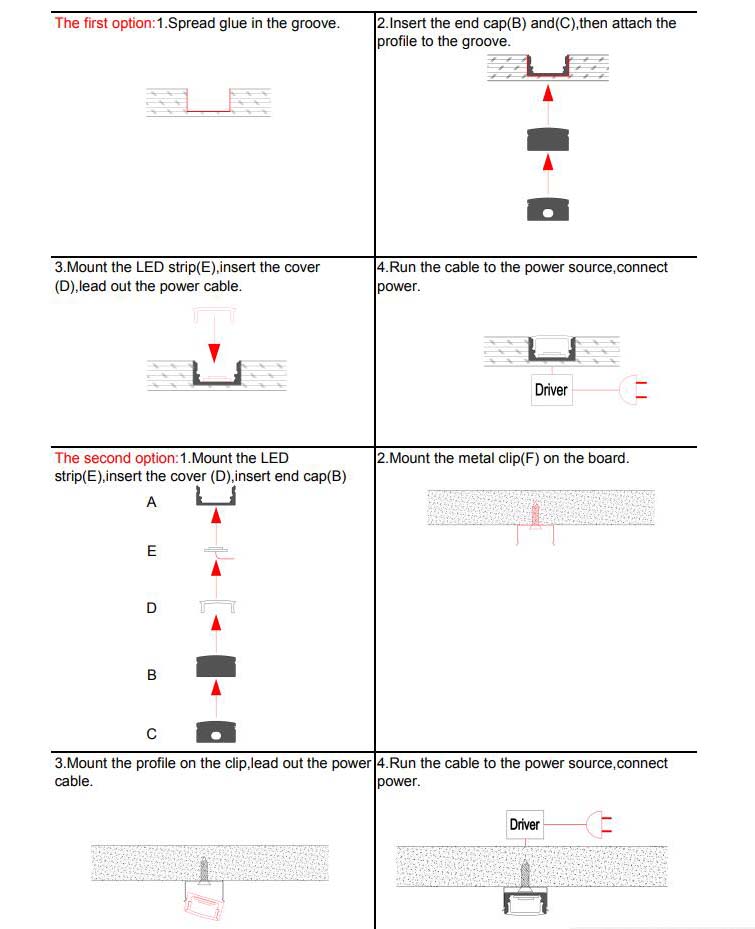

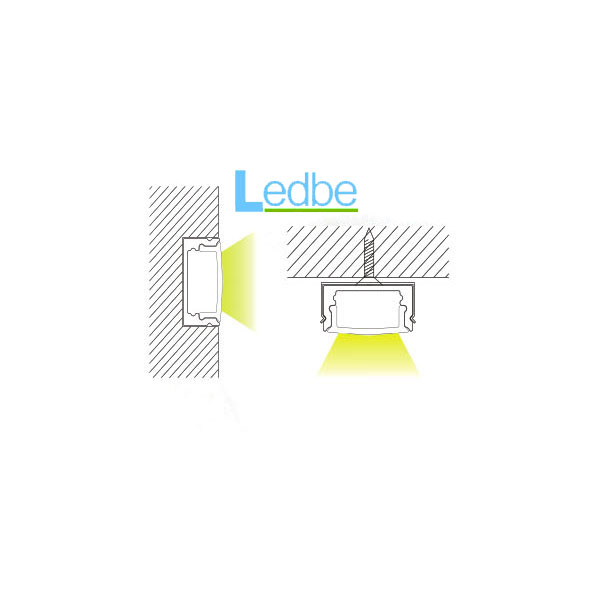

- Installation: Surface mount / recessed

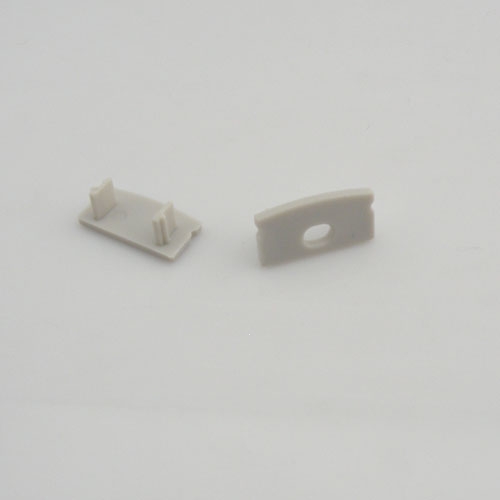

- End caps with/without wire holes and mounting clips included
- LED tape lights and adjustable brackets are sold separately
- 90° and 180° connectors sold separately
- Certifications: CE, ROHS
- 5-year warranty
Package:
1 * LED aluminum profile with diffuser

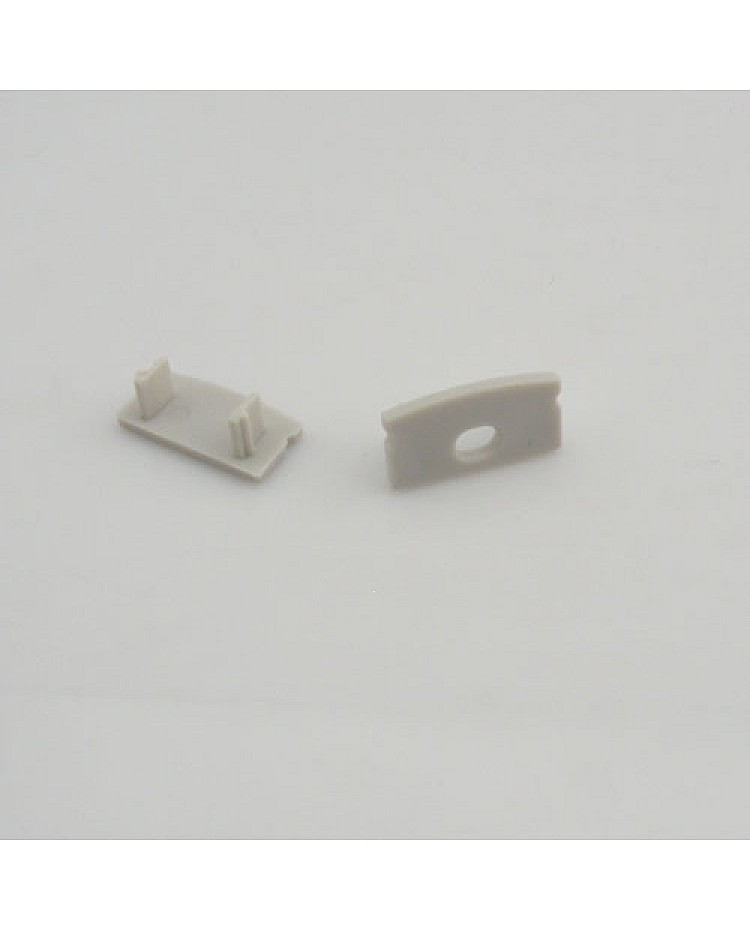

End caps(with and without holes)

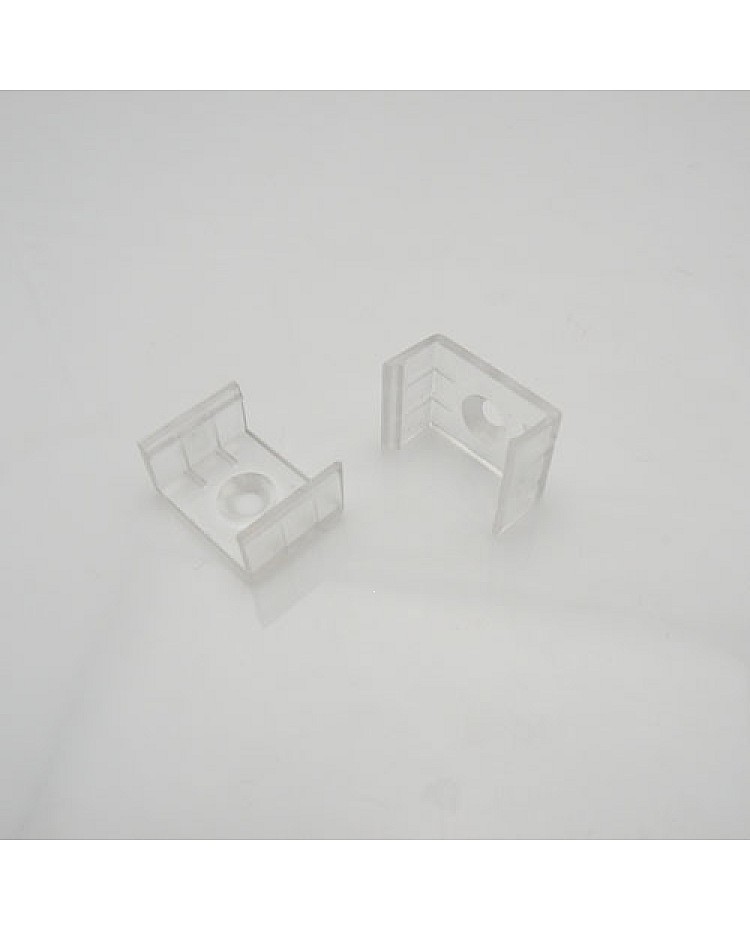

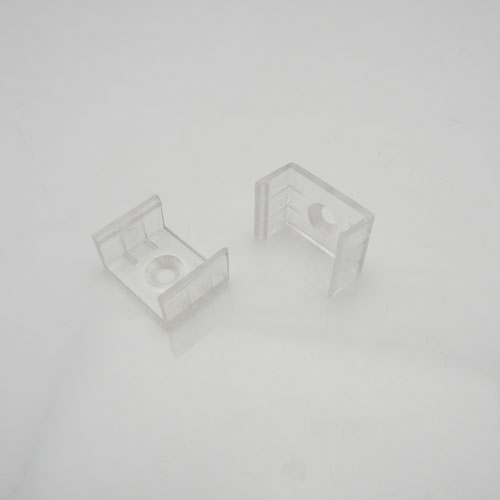

Mounting clips
Applications:

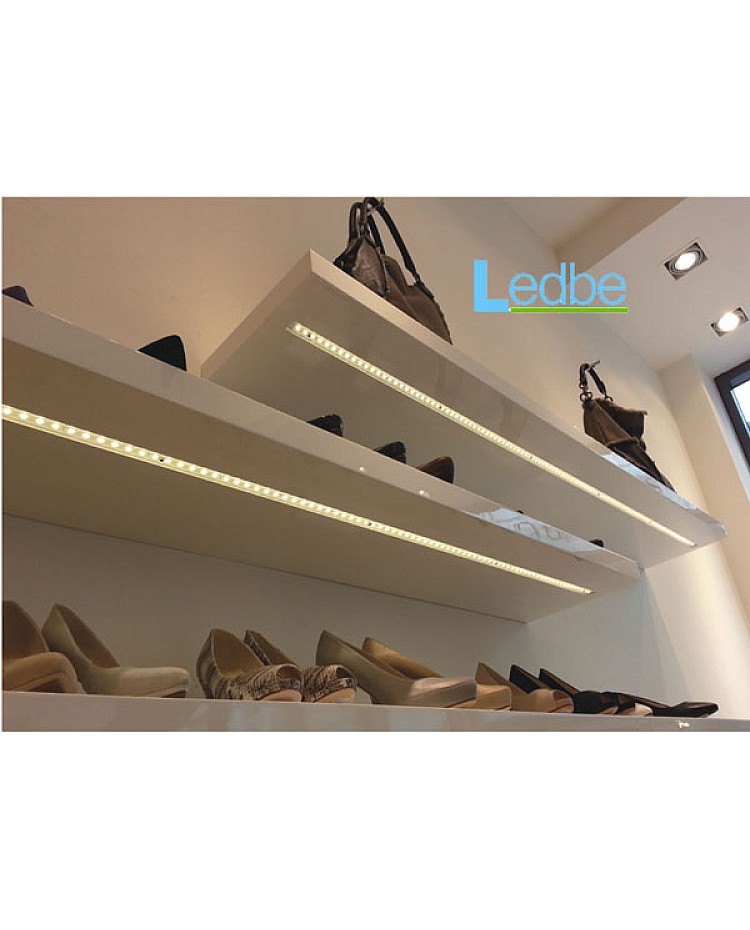

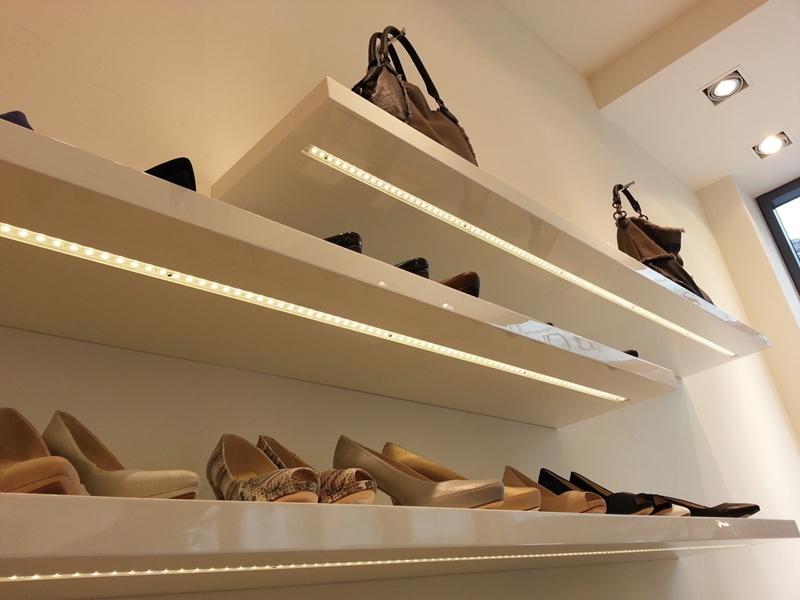

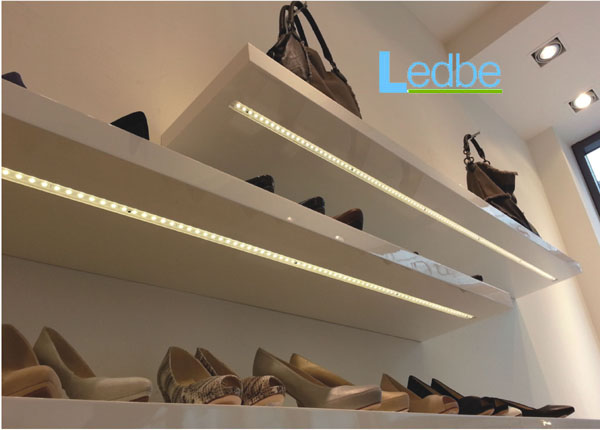

- For Furniture Projects: Bookcase lighting
- Recessed wall and ceiling for architectural, retail, and home projects
- Residential decoration lighting
- Backlight or supplementary lighting
- Home or office lighting: wardrobe, cabinet, kitchen wall, house wall
