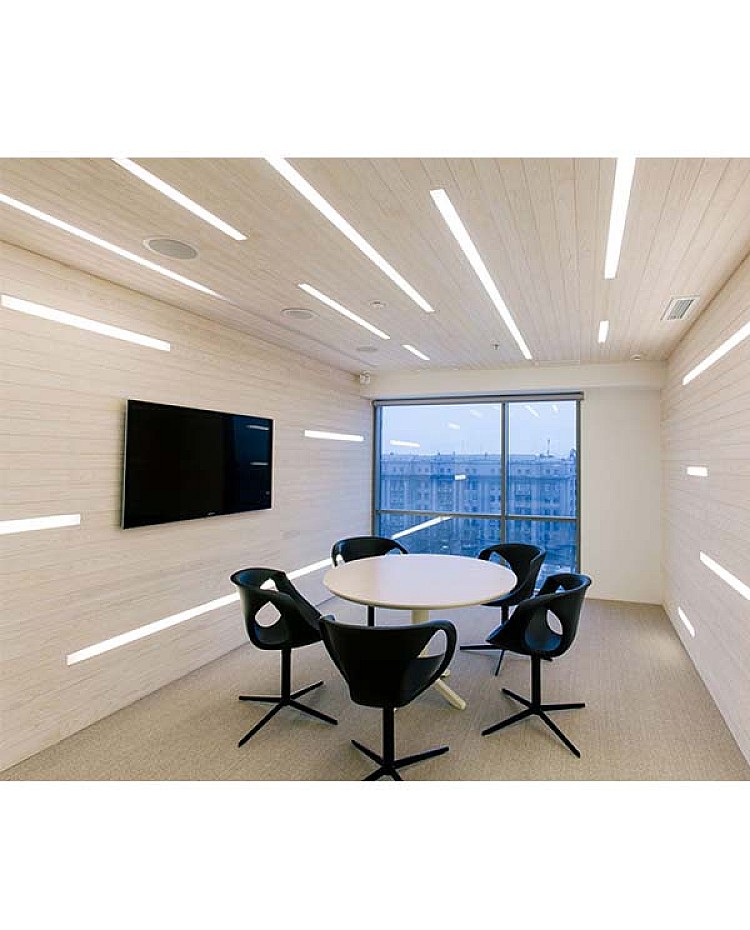

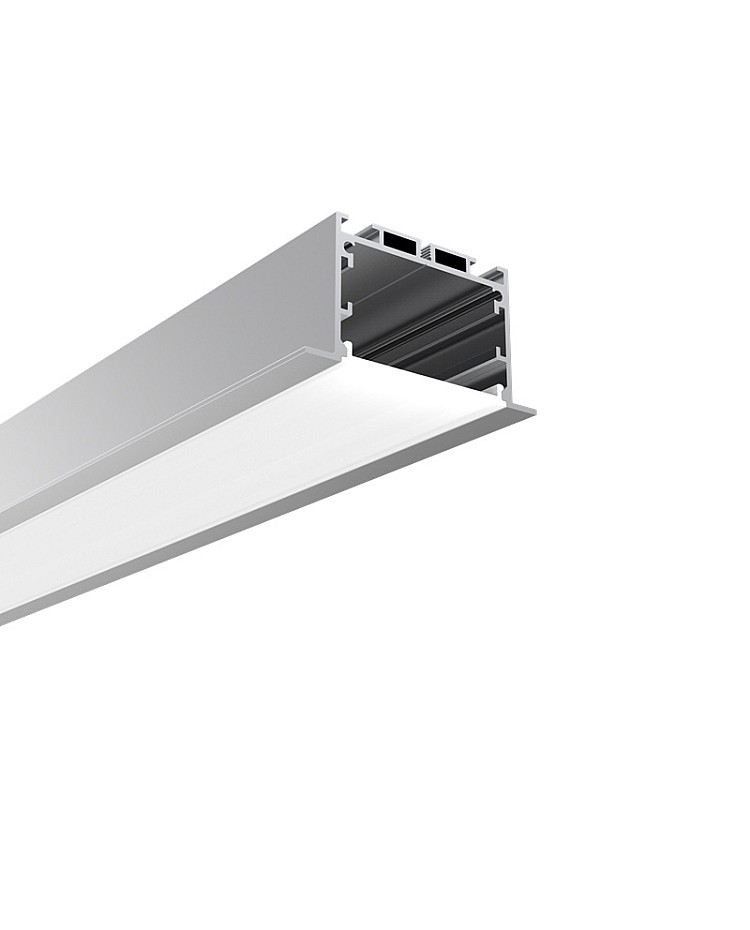

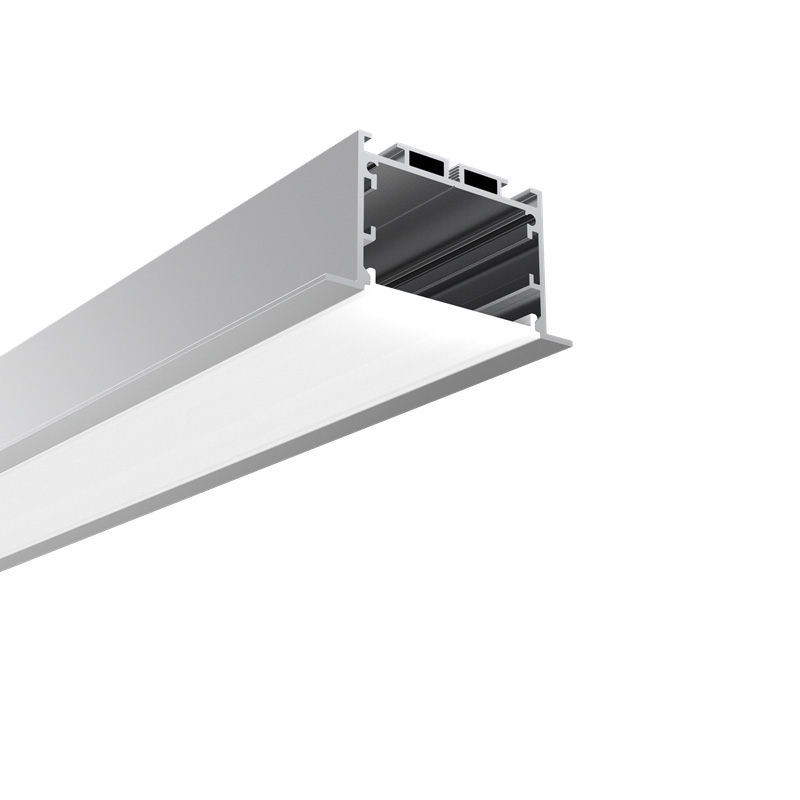

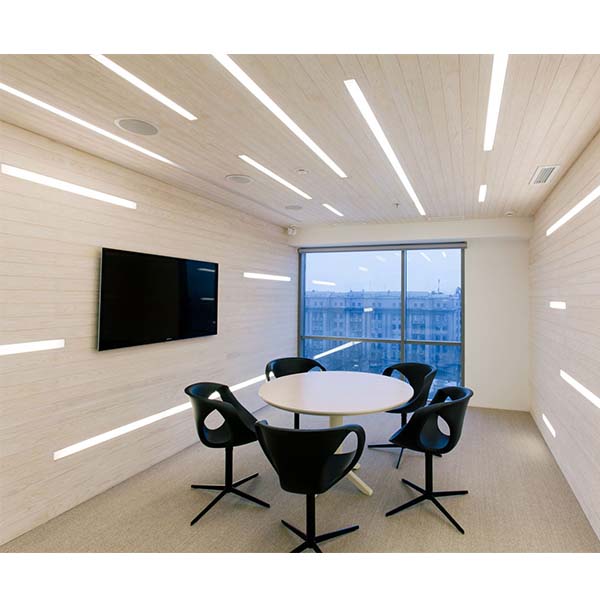

The 2.56” recessed aluminum LED profiles are a sleek and stylish solution for illuminating ceilings and can be easily installed on ceilings, creating seamless linear lighting. It is designed for commercial and residential architectural projects and is ideal for statement ceiling lighting, retail displays, office task lighting, and other applications that require a bold, seamless line of light. The recessed installation method ensures a flush, professional finish that integrates effortlessly with drywall, plaster, cabinetry, millwork, and other surfaces, creating a clean, minimalist aesthetic.
Extruded from 6063-T5 aluminum alloy and has anodized surface treatment, offering superior corrosion resistance and durability for a longer lifespan. The mid-size LED profile can serve as a heat sink, delivering exceptional thermal performance, ensuring stable LED strip operation, and extending LED strip lifespan. The standard lengths are 1m and 2m, with a maximum length of 6m per piece. We can help you cut to a custom length for free, too.
The inner width is 32mm / 1.53" and allows the maximum width of strip lights to be 32mm. You can add multiple lines or wide-board COB and high-power SMD LED strip lights as the light source. The PC diffuser will spread the lighting evenly for ultra-soft, homogeneous illumination without hot spots or dark areas.

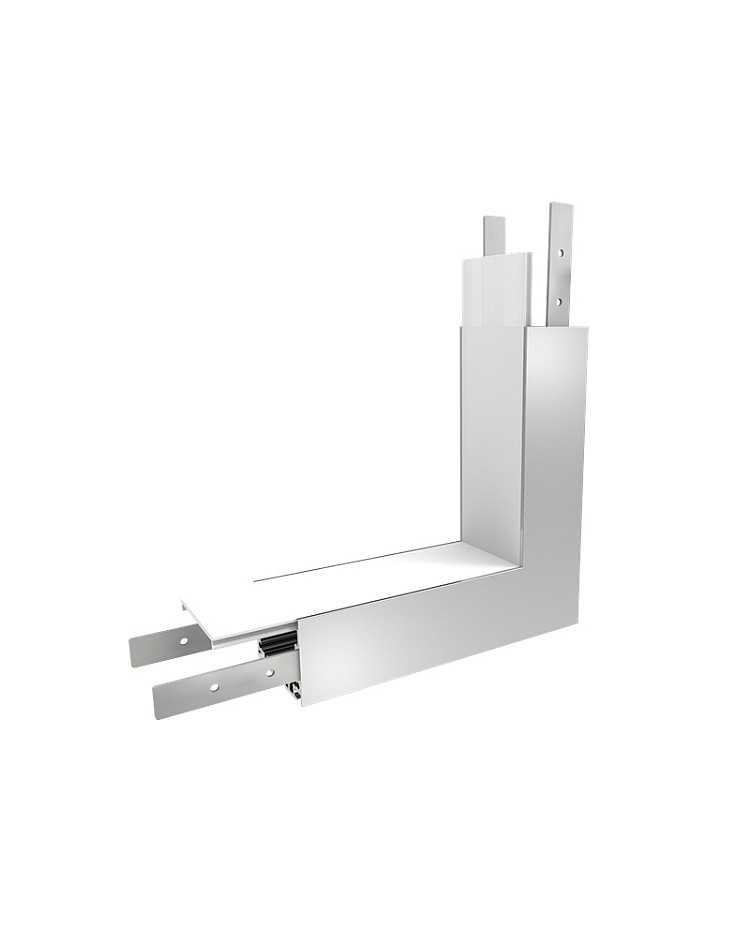

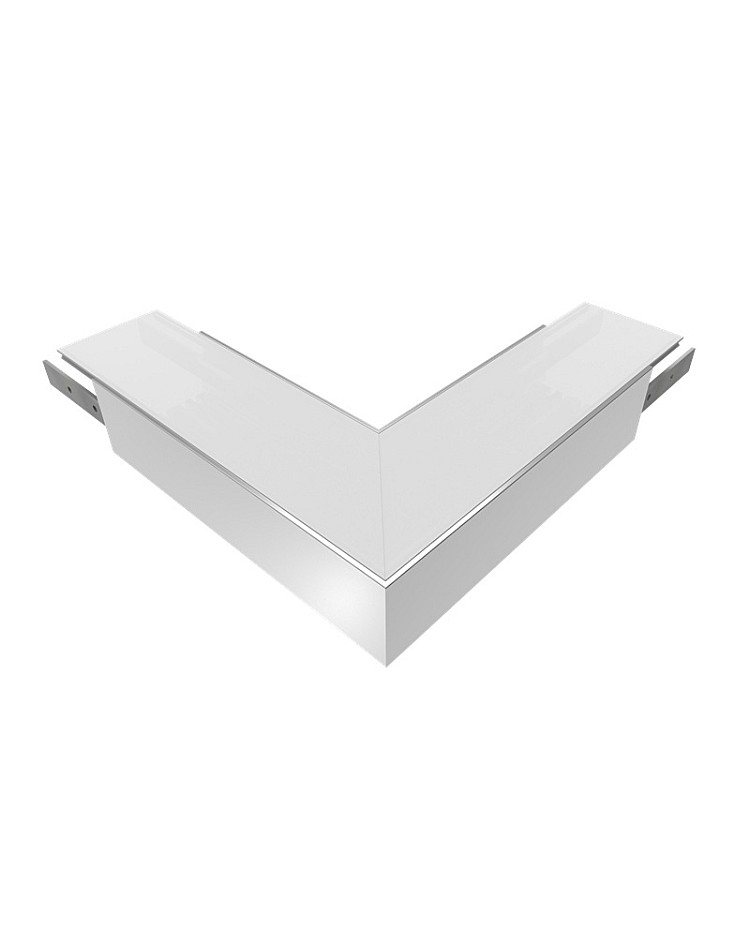

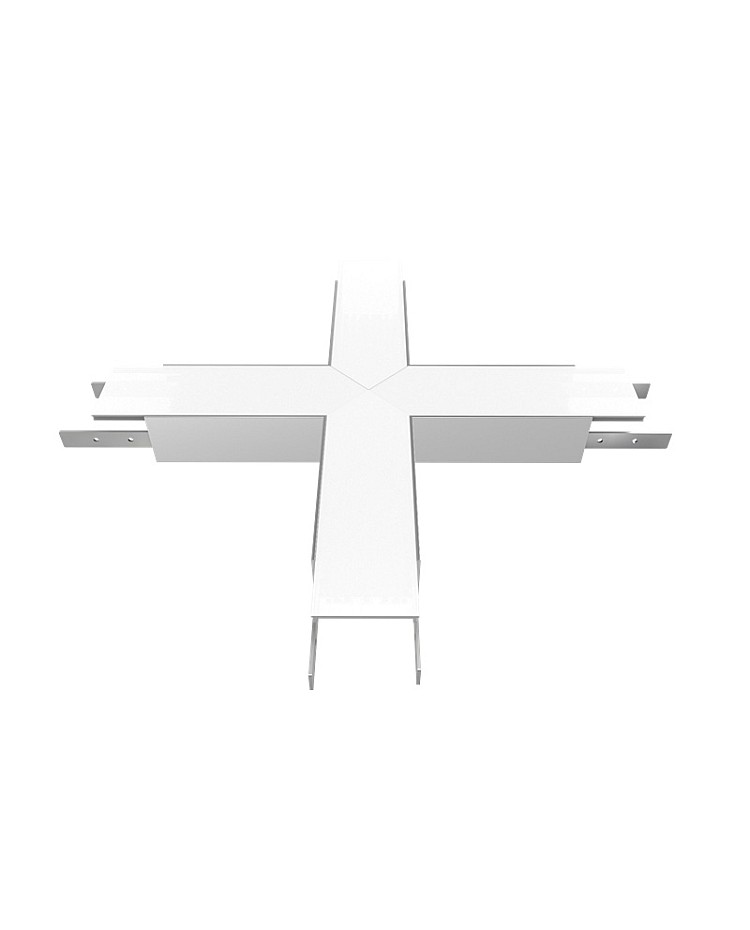

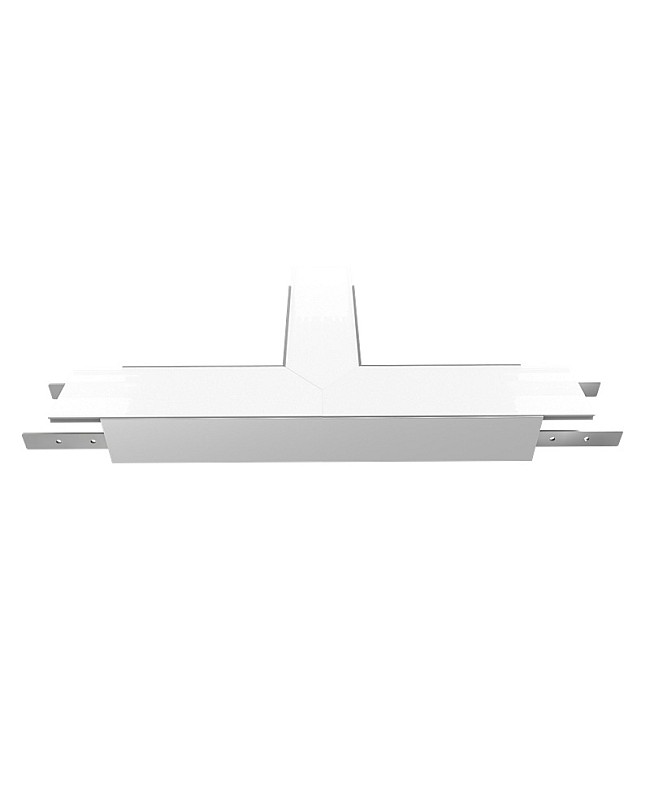

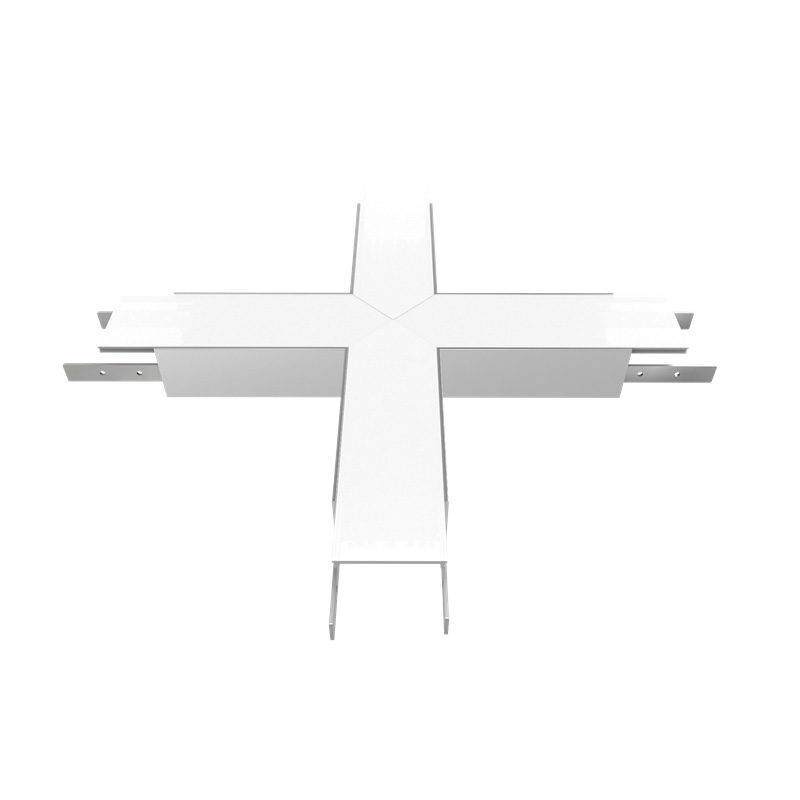

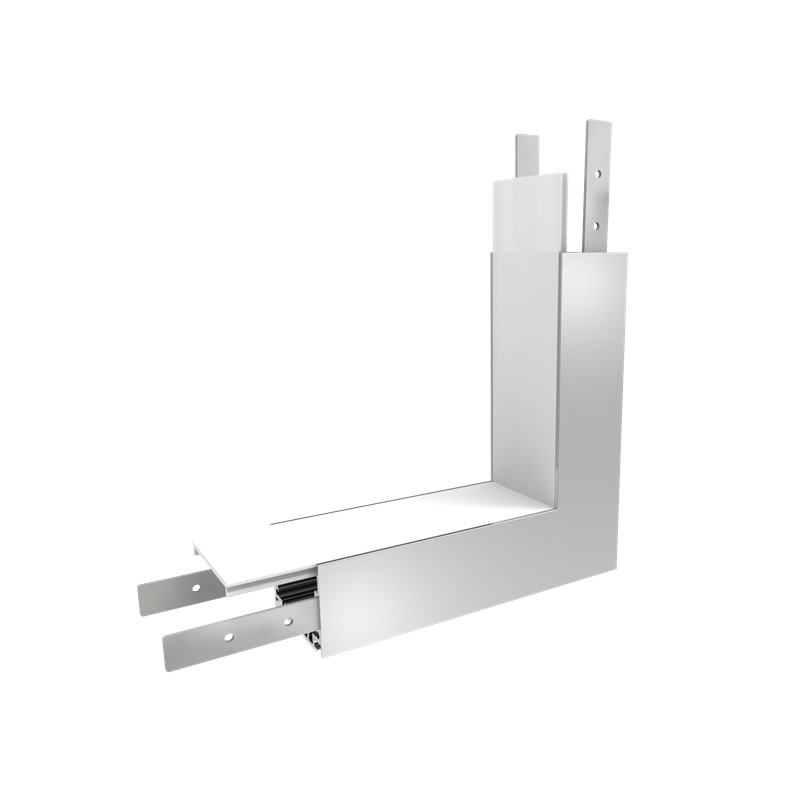

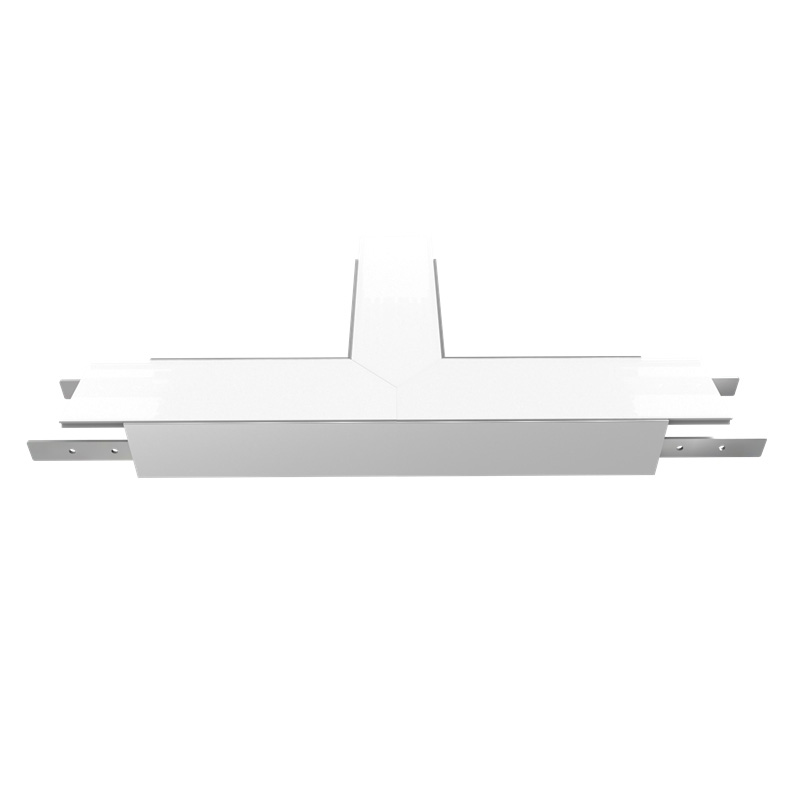

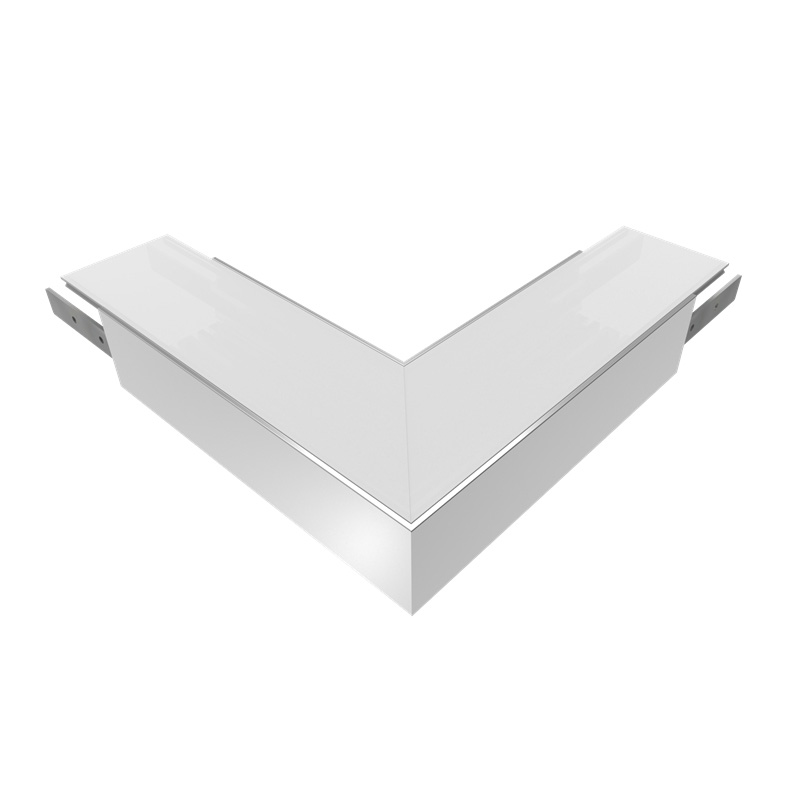

There are cross (“X”), L, and T pre-made connectors available for creating complex, continuous, intricate geometric layouts and grid patterns. There are three types of joiners (90°, 90° vertical, 180°) available for seamless end-to-end connections and directional changes without gaps.
Specifications:
- Material: Aluminum alloy 6063-T5
- Surface Treatment: Anodized
- Model: ALP045-R
- Color: Silver, White, Black

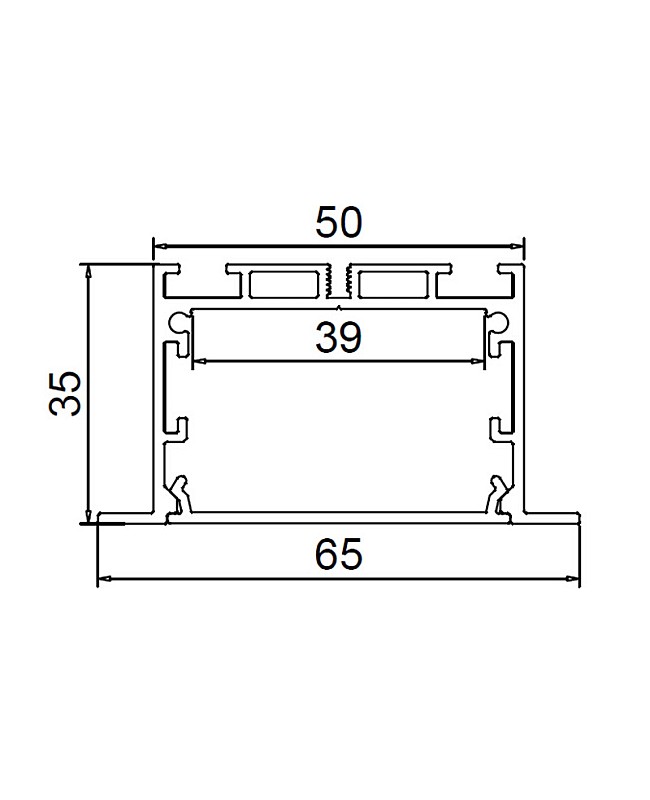

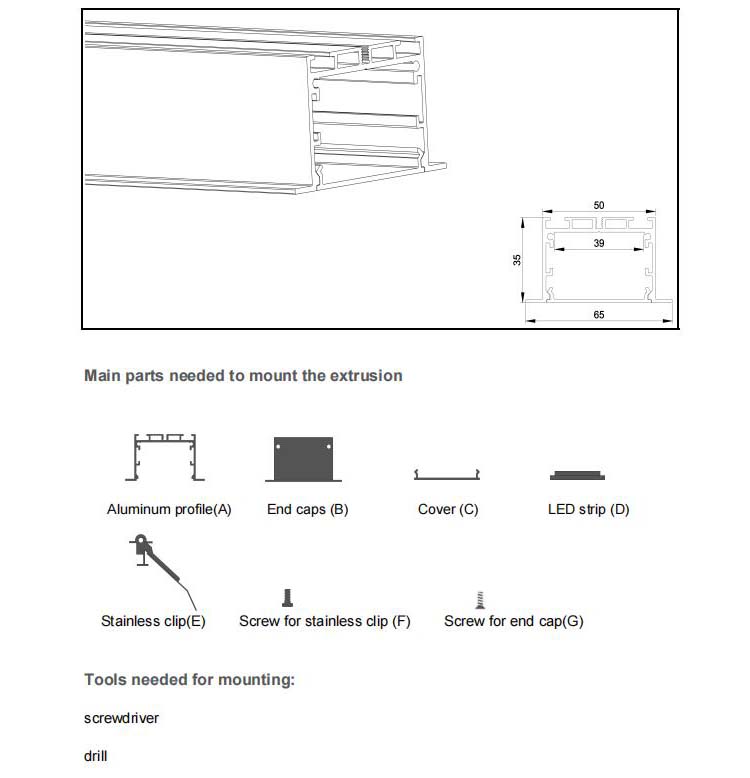

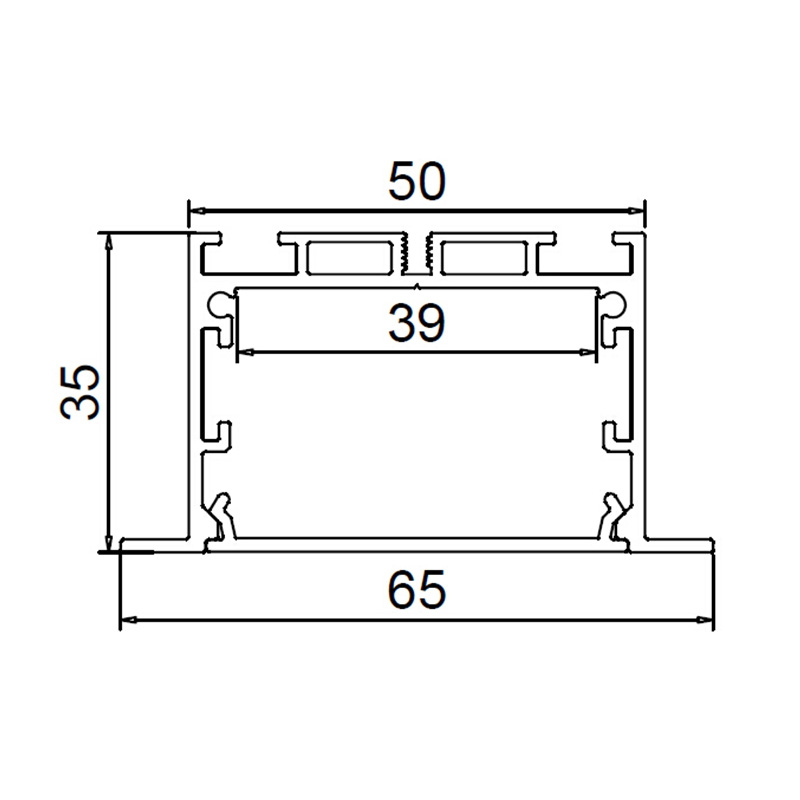

- Size ( Width x Height ): 65 x 35mm / 2.56" x 1.38"
- Cover: PC diffused cover
- Lengths available: 1 m ( 39.37" ), 2 m ( 78.74" )
- Custom length available: YES
- Inner width: 39mm / 1.53"
- Maximum power: <35W/Meter

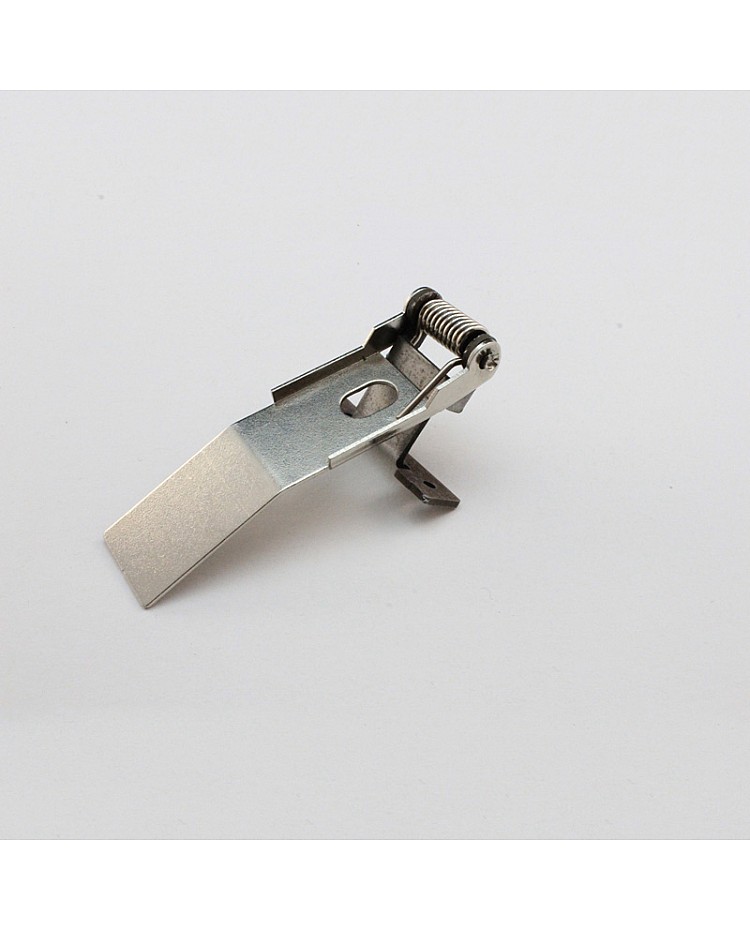

- End caps and stainless clips included
- Cross ( X ), T, and L pre-made connectors sold separately
- 90°, 90° vertical, and 180° joiners sold separately

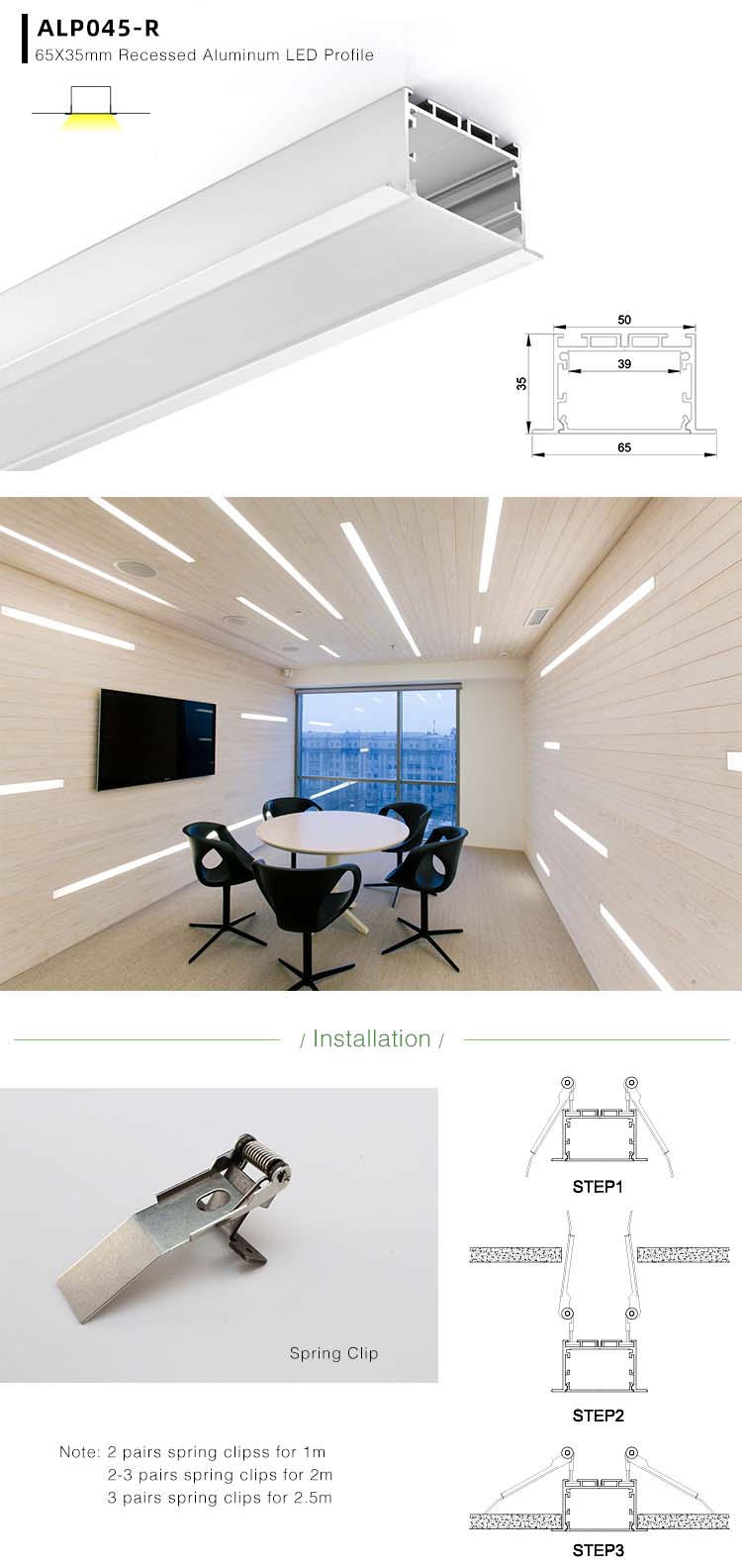

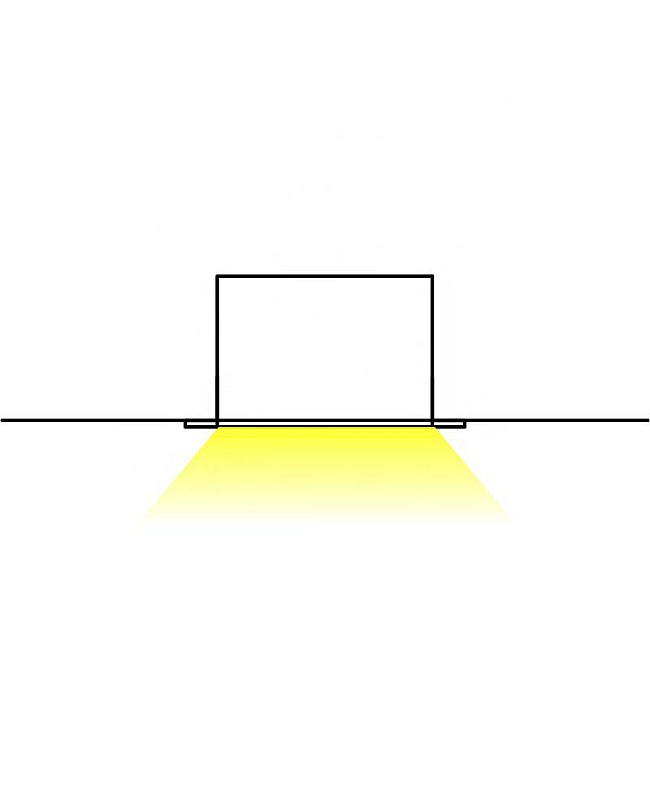

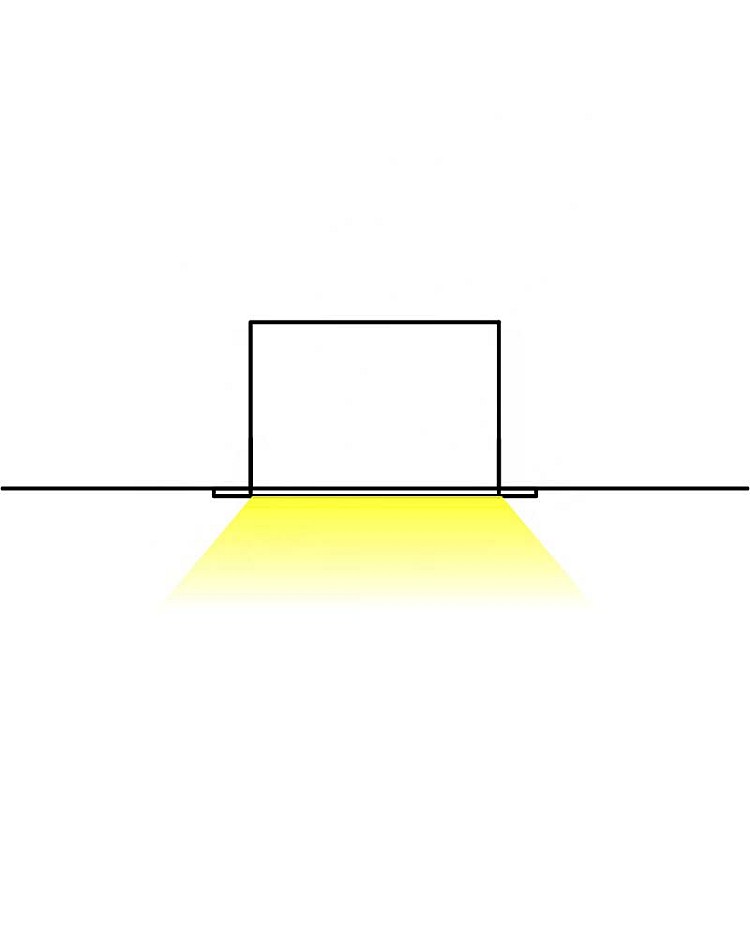

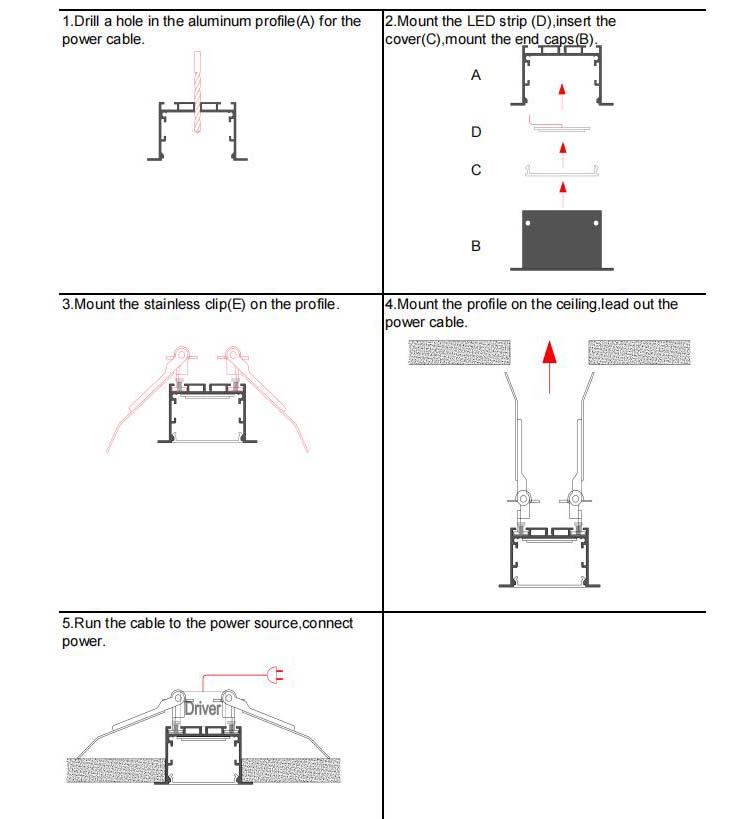

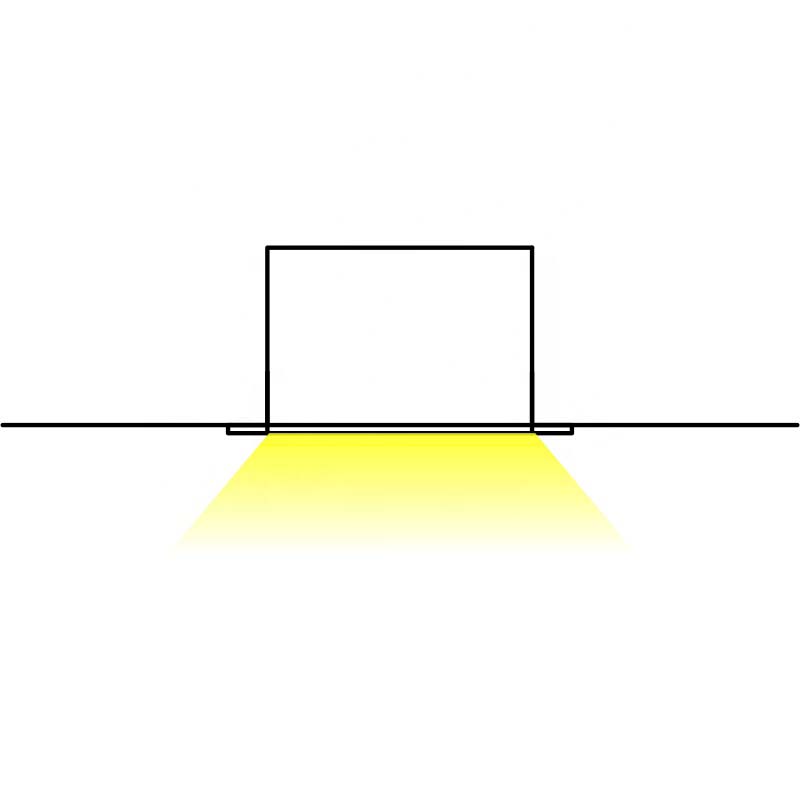

- Installation: Recessed
- Warranty: 5 years
Includes:
1 * LED ceiling profiles with diffuser

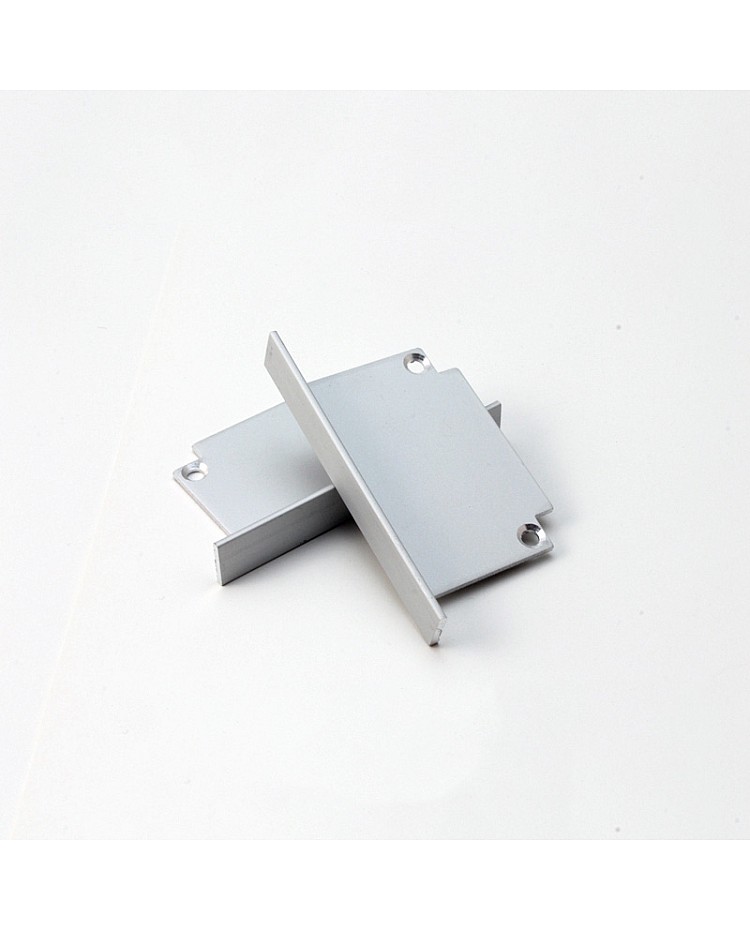

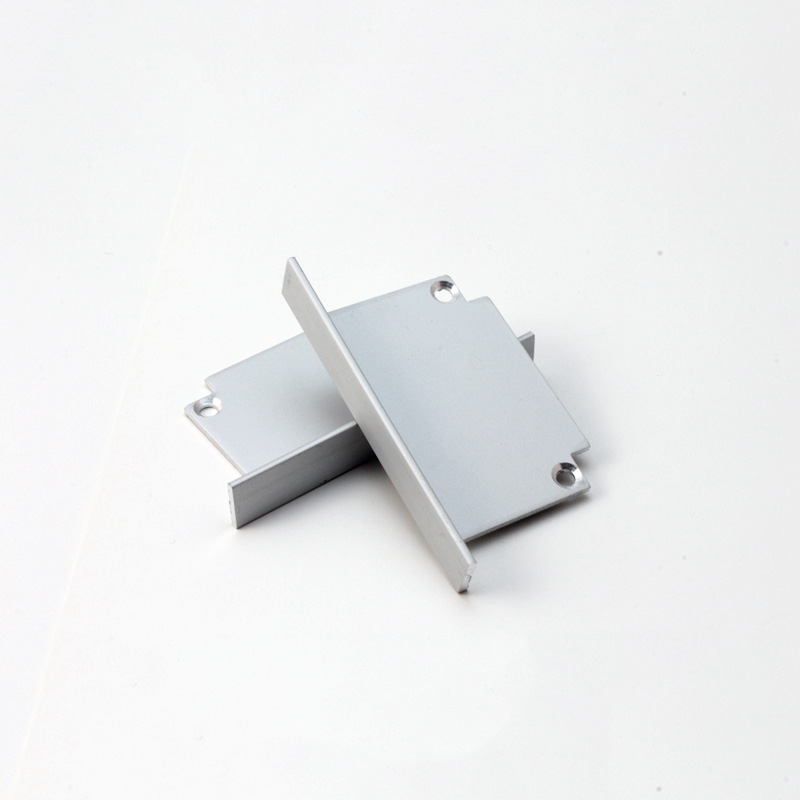

End caps

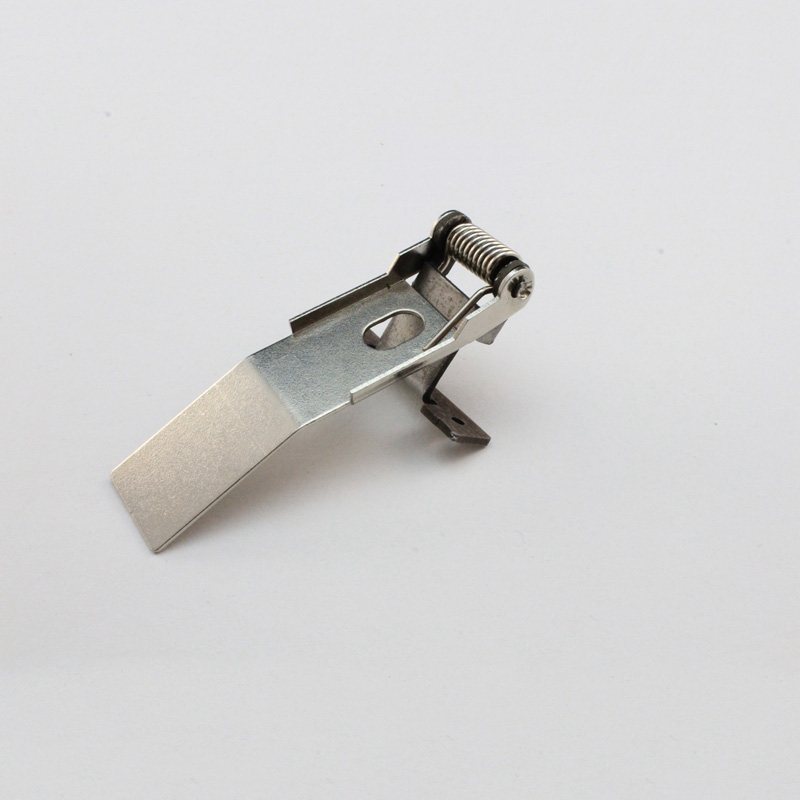

Stainless clips
