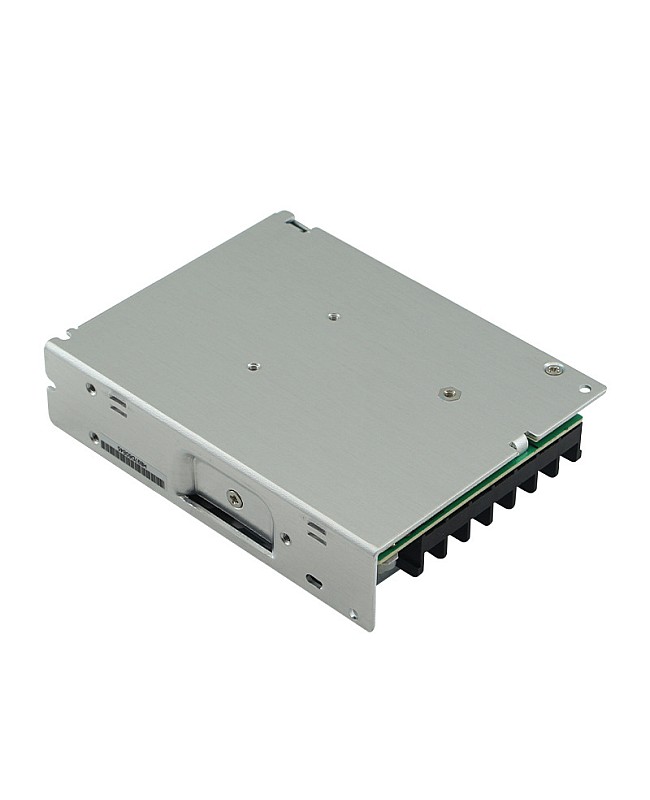

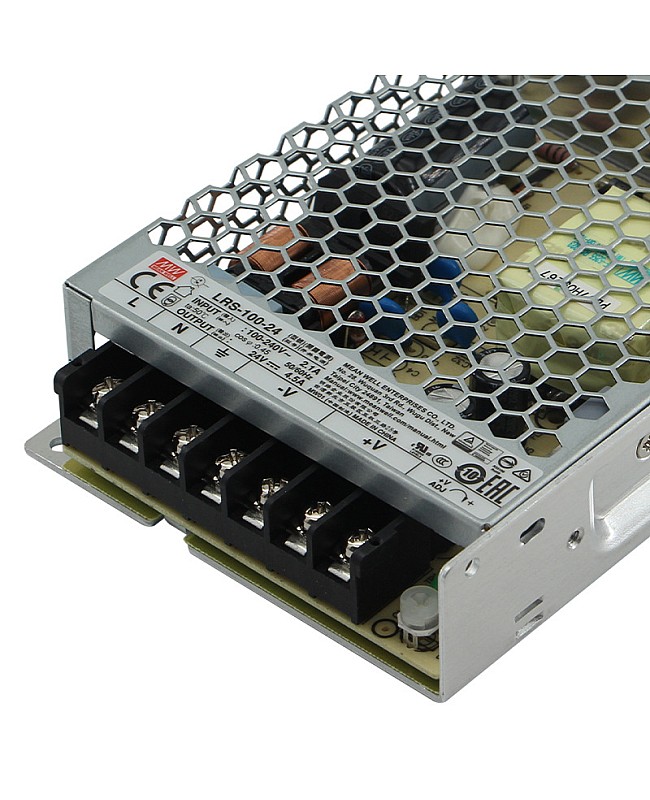

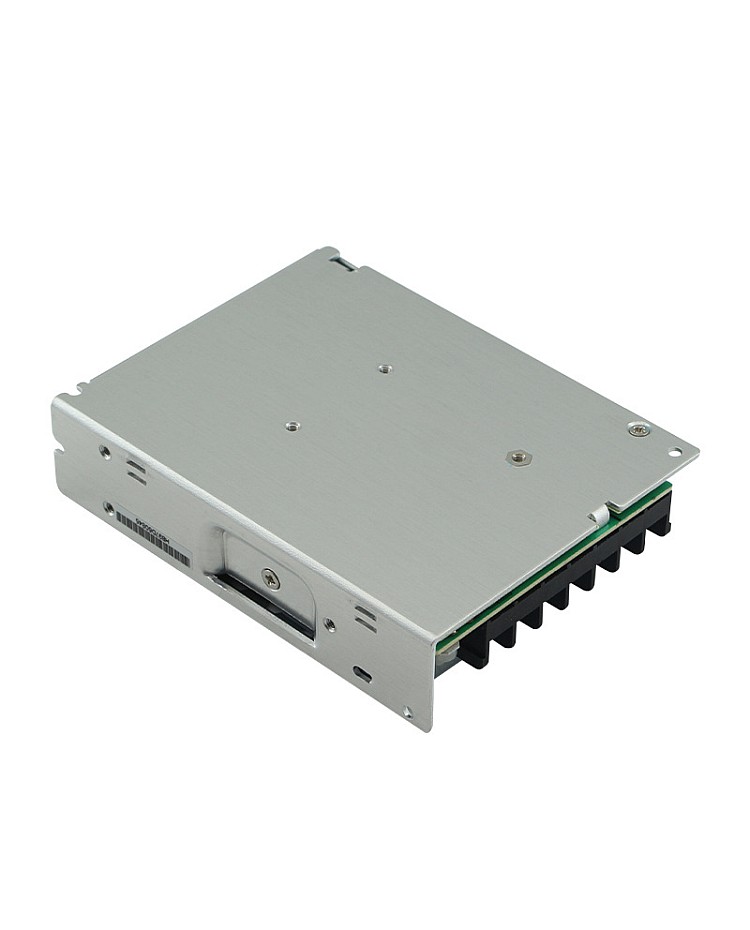

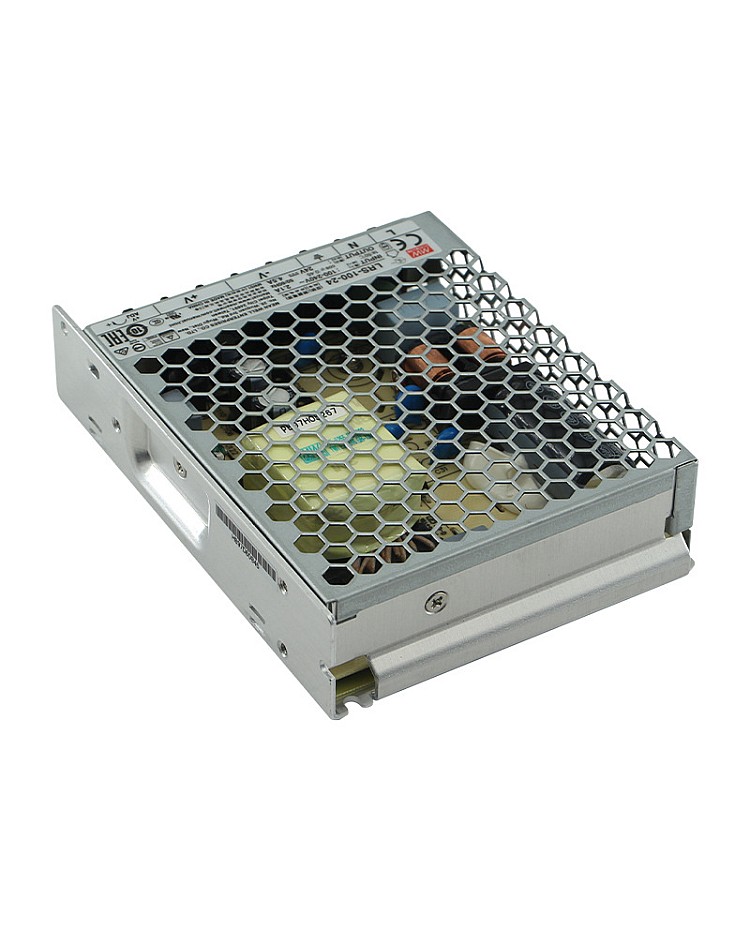

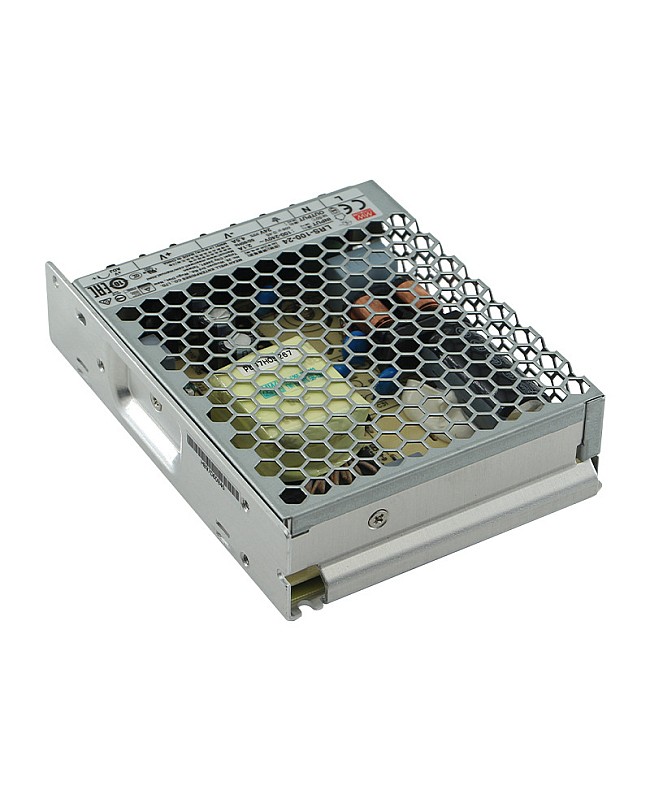

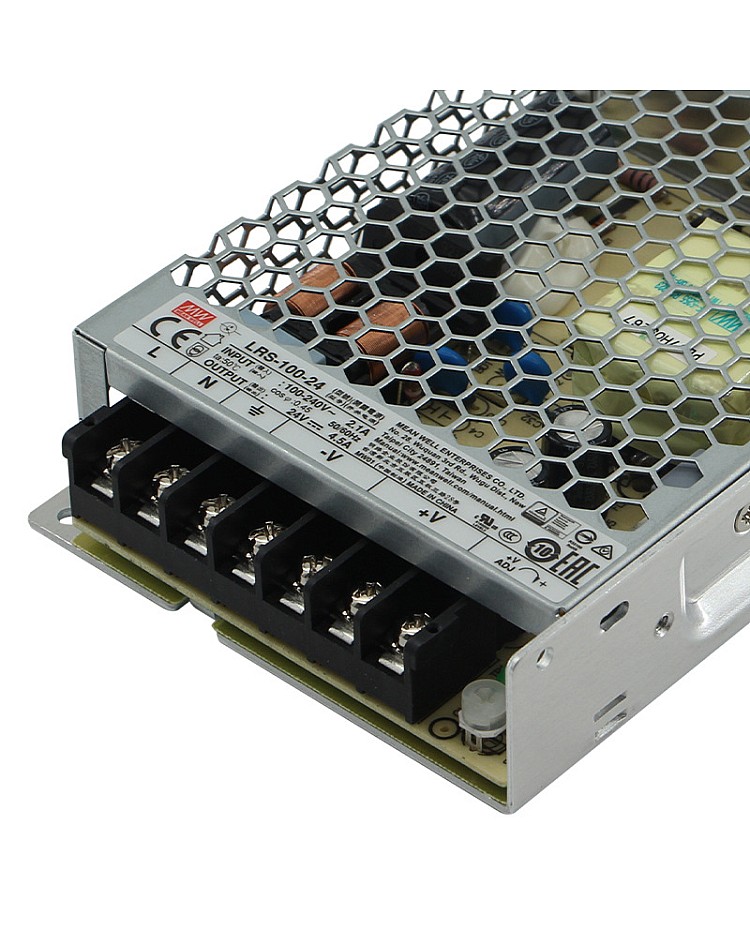

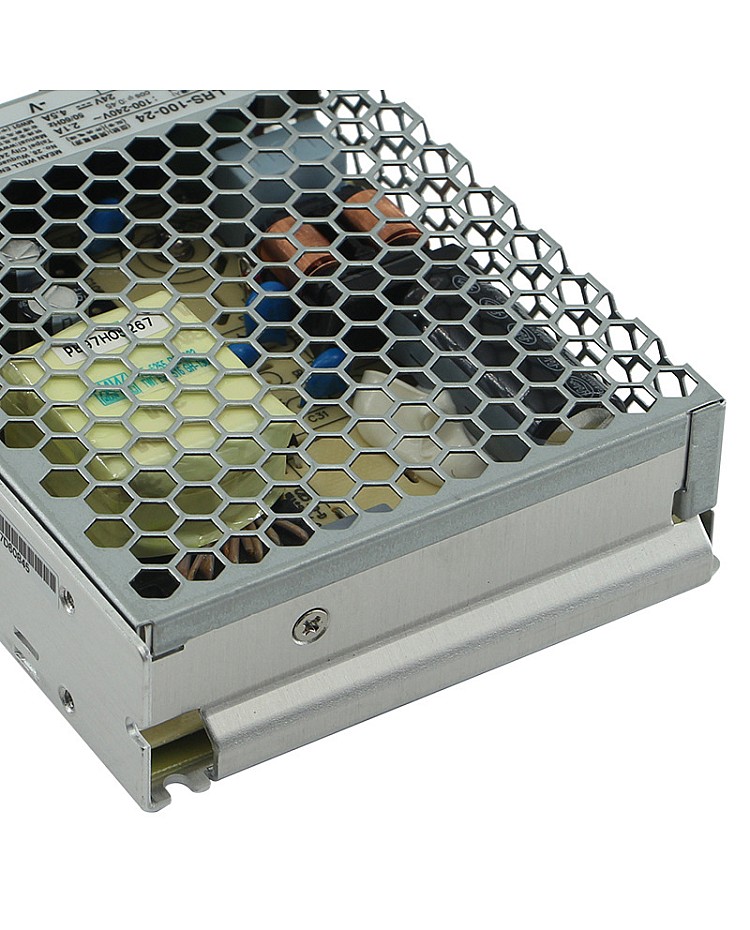

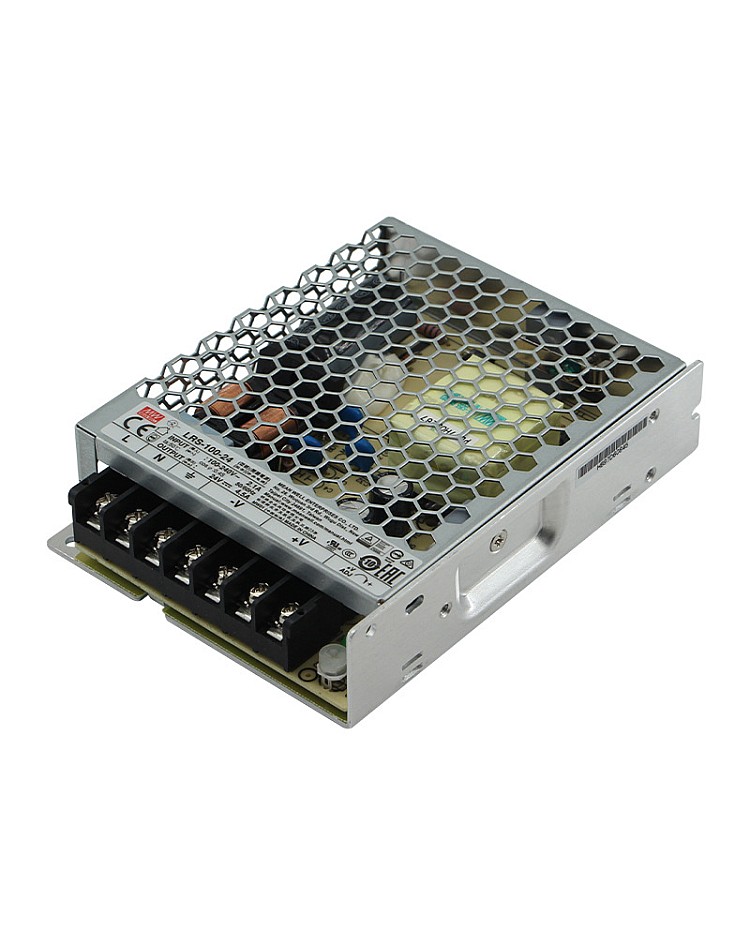

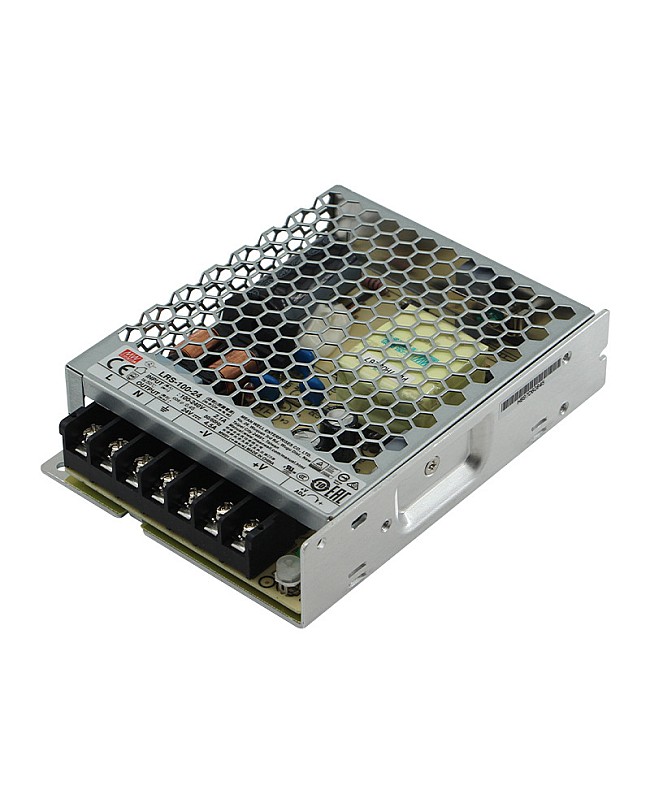

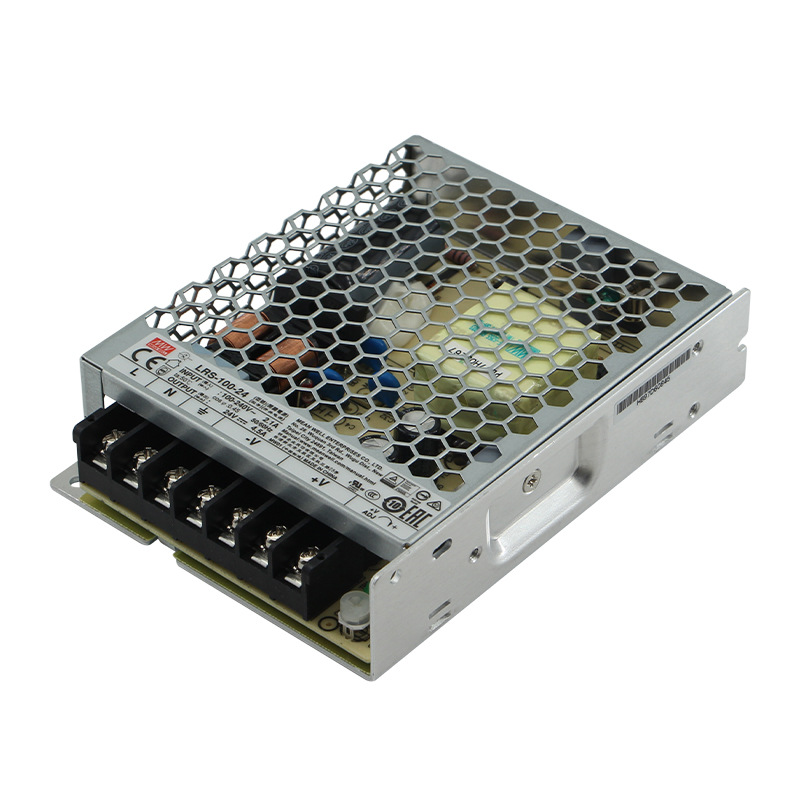

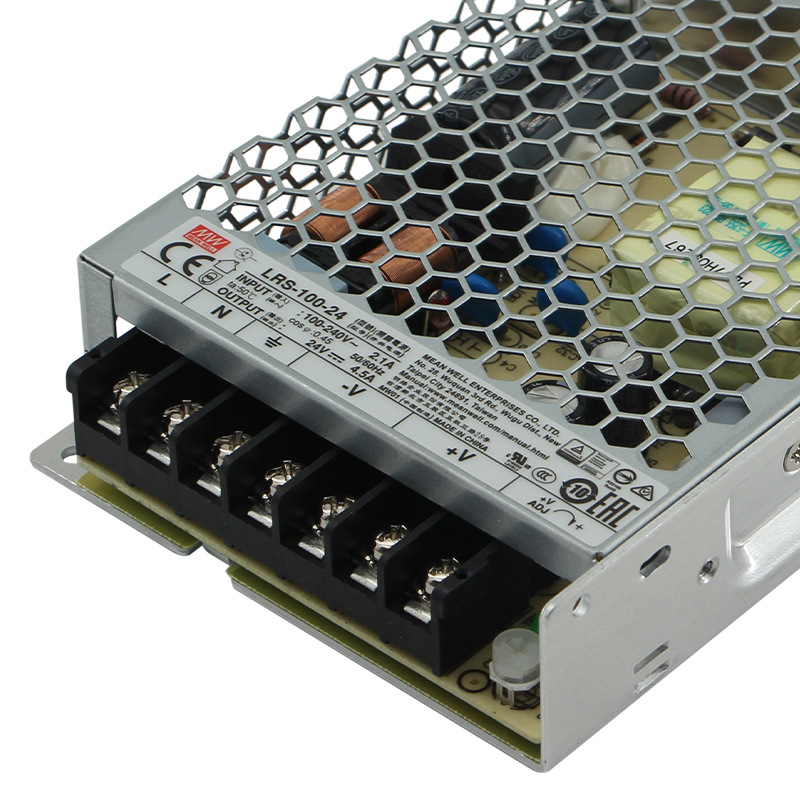

Check the Meanwell LRS-100 Series 100W LED Driver, which is the single-output enclosed Power Supply with 30mm of low profile design, adopting the full range 85-264VAC input, you can choose the various output voltage products from DC3.3V to DC48V. in addition to the high efficiency up to 91%, the design of the metallic mesh case enhances the heat dissipation that the whole series LED Drivers operate from -30℃ through 70℃ under air convection without a fan. delivering an extremely low no-load power consumption less than 0.3W. has complete protection functions and 5G anti-vibration capability, it's complied with the international safety regulations such as TUV EN2368-1, EN60335-1, EN61558-1/-2-16, UL62368-1 and GB4943.

  • Universal AC Input/Full Range
  • Withstand 300VAC Surge Input For 5 Second
  • Protections: Short Circuit / Overload / Over Voltage
  • Cooling By Free Air Convection
  • Miniature Size And 1U Low Profile
  • Compliance To IEC/EN 60335-1(PD3) And IEC/EN61558-1, 2-16 For Household Appliances
  • Operating Altitude Up To 5000 Meters
  • Withstand 5G Vibration Test
  • LED Indicator For Power On
  • No Load Power Consumption<0.3W
  • Over Voltage Category III
  • 100% Full Load Burn-In Test
  • High Operating Temperature Up To 70℃
  • High Efficiency, Long Lifespan And High Reliability
  • 3 Years Warranty

Quick Links:

Mean Well LRS-100 Specification Document


  • Model: LRS-100

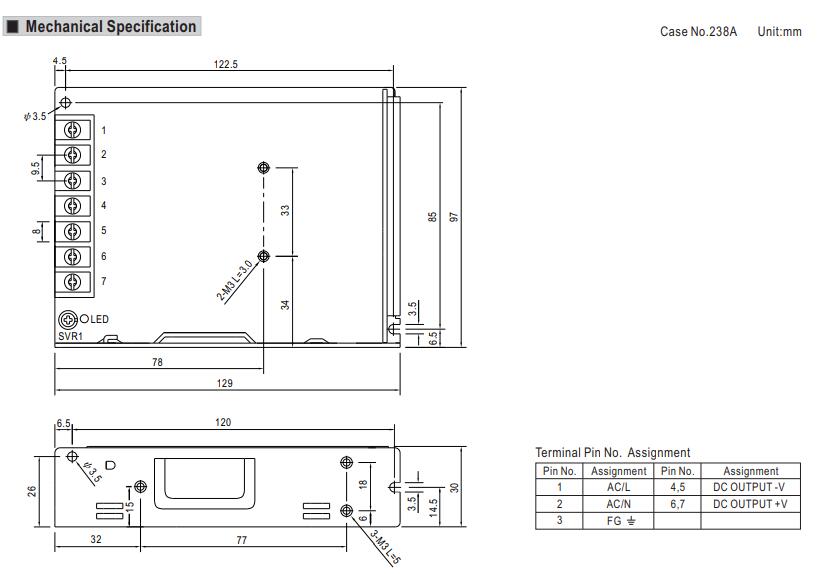

  • Size: 129*97*30mm(L*W*H)
  • Input Voltage: 85-264VAC
  • Frequency Range: 47-63Hz
  • AC Current: 1.9A/115VAC, 1.2A/230VAC
  • Efficiency: 84.5%(DC3.3V), 86%(DC5V), 88%(DC12V), 88.5%(DC15V), 90%(DC24V), 90.5%(DC36V), 91%(DC48V)
  • Output Voltage: DC3.3V, DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
  • Rated Current: 20A(DC3.3V), 18A(DC5V), 8.5A(DC12V), 7A(DC15V), 4.5A(DC24V), 2.8A(DC36V), 2.3A(DC48V)
  • Rated Power: 66W(DC3.3V), 90W(DC5V), 102W(DC12V), 105W(DC15V), 108W(DC24V), 100.8W(DC36V), 110.4W(DC48V)
  • Working Temperature: -30℃-+70℃
  • Vibration: 10-500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
  • Safety Standards: UL 62368-1, TUV EN62368-1, EN60335-1, EN61558-1/-2-16
  • Over Load Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • 3 Years Warranty


1*Meanwell LRS-100 LED Driver
