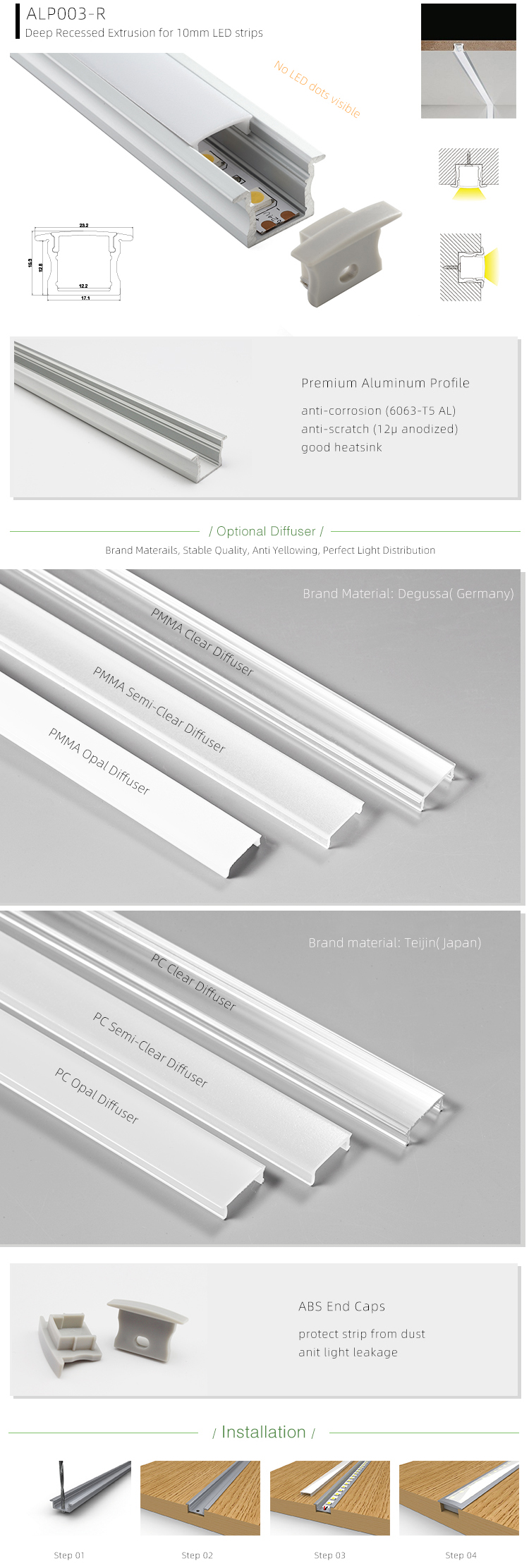

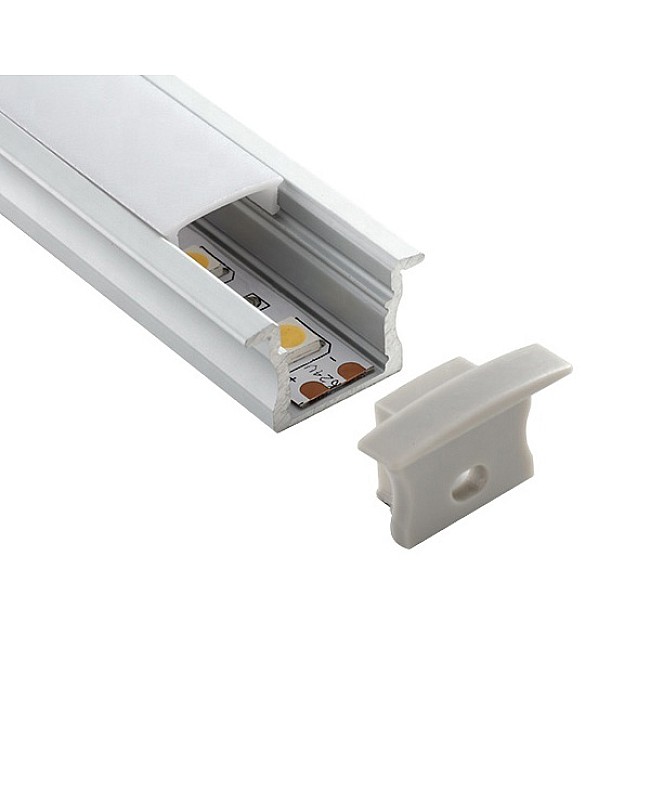

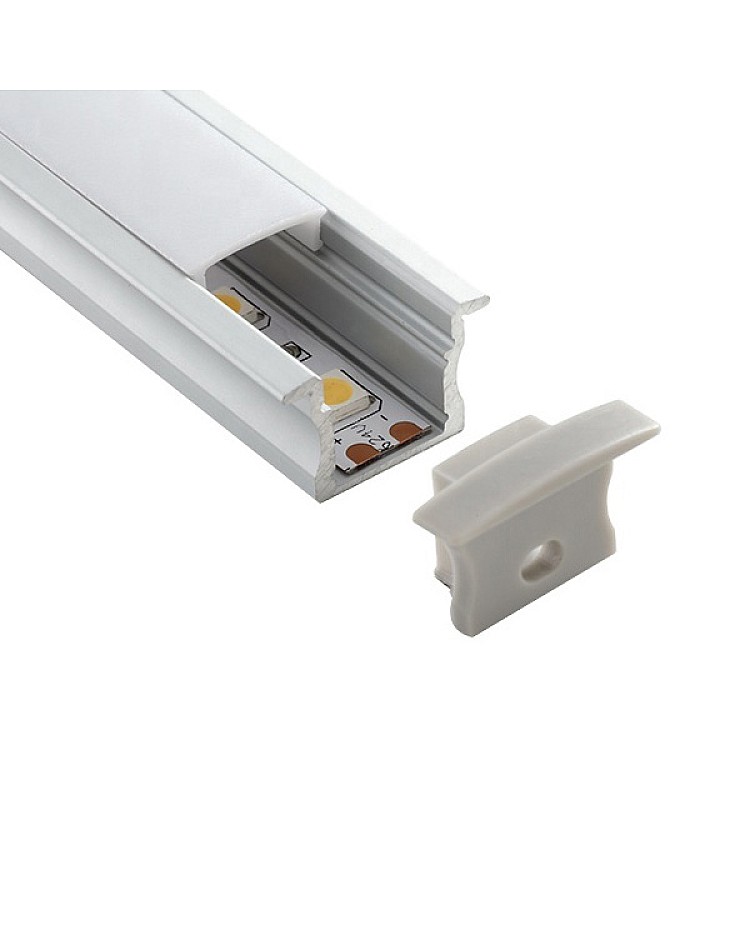

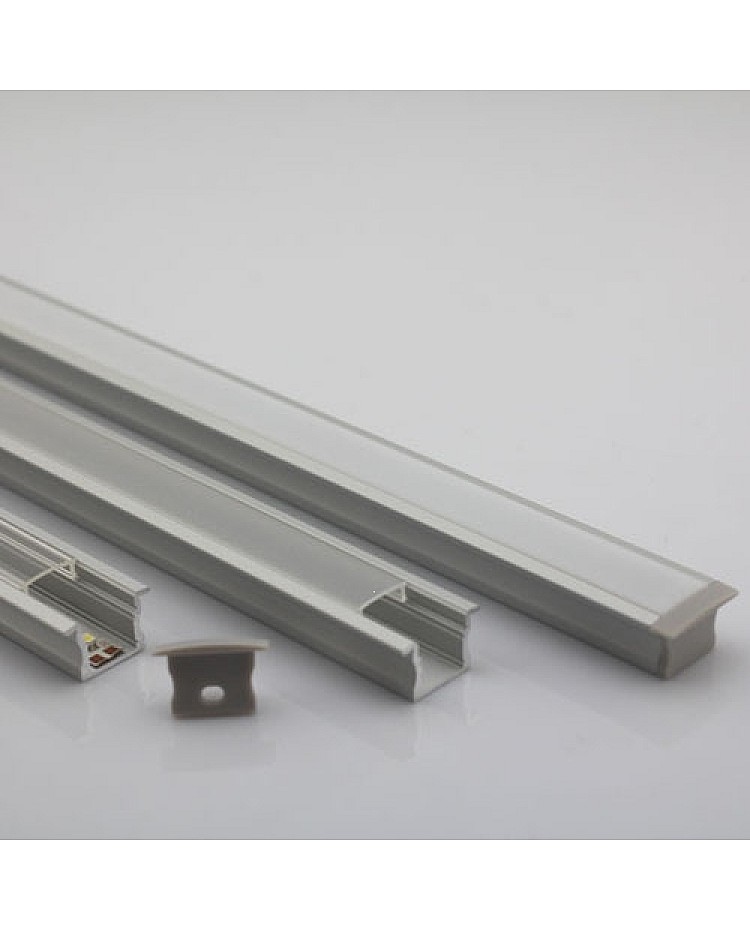

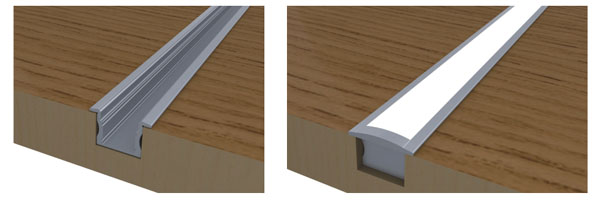

The 15mm recessed LED Stripe Profile is designed to provide a neat and professional look for Wardrobe Lighting. These Aluminum profiles have flanges for easy recess into the surface of wardrobes, cabinets, kitchen walls, hallways, and other areas. The 15mm deep design provides more distance between the LED Lights and the diffuser, reducing light dots and creating a smooth lighting effect. The LED Profiles are made of high-quality anodized aluminum material, with anti-oxidation resistance and a longer lifespan. It comes with diffuser lenses to help spread the light evenly and reduce glare. Four types of covers are available: PMMA opal matte cover, PMMA semi-clear cover, PMMA clear cover, and PC diffused cover. They are made of stable material, anti-yellowing, and with perfect light distribution. The Aluminum Stripe Profiles are designed to dissipate heat away from the LED Strips, helping to extend their life. The standard lengths are 1 m and 2 m, with a maximum length of 3m. It can be cut to any size that fits your needs. The LED Profil with a deep structure can work with higher-wattage LED Stripes. The inner width is 12.2 mm, allowing for a maximum width of 12 mm for Strip Lights. Recommend adding high-density SMD or COB Strip Lights without hot spots.
Specifications:
- Material: Anodized Aluminium Alloy(6063-T5)
- Surface Treatment: Silver Anodized
- Color: Silver(Default), White, Black

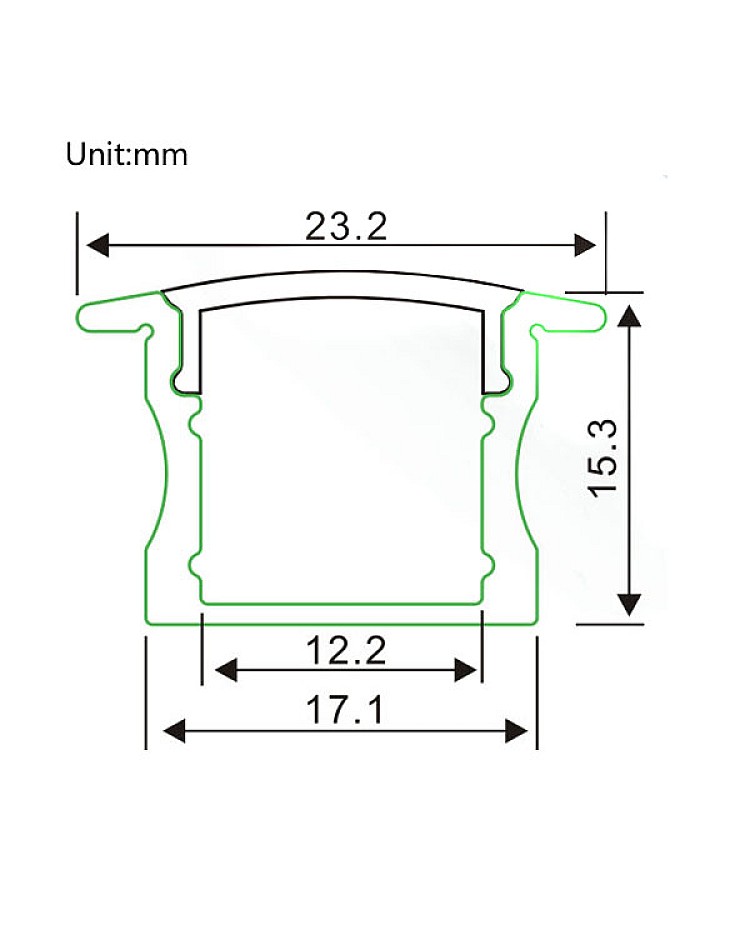

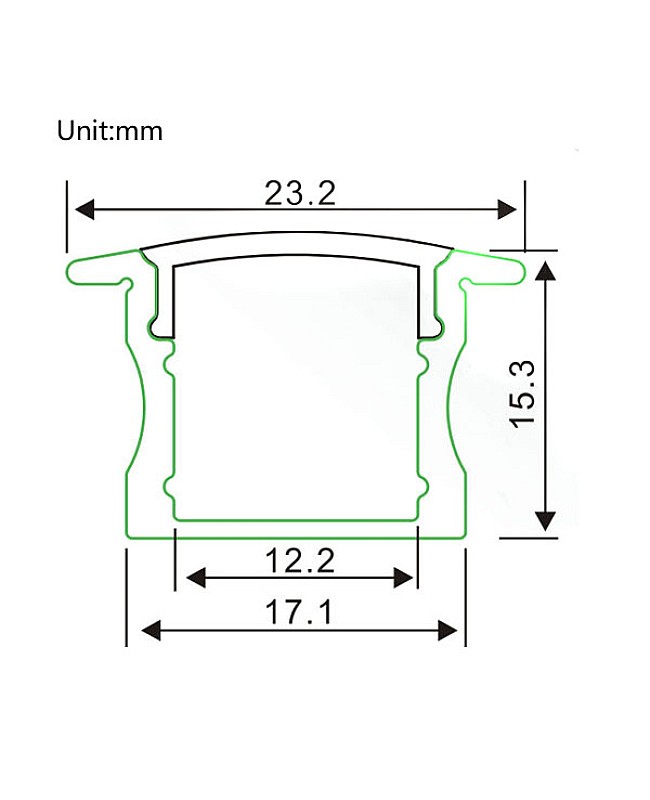

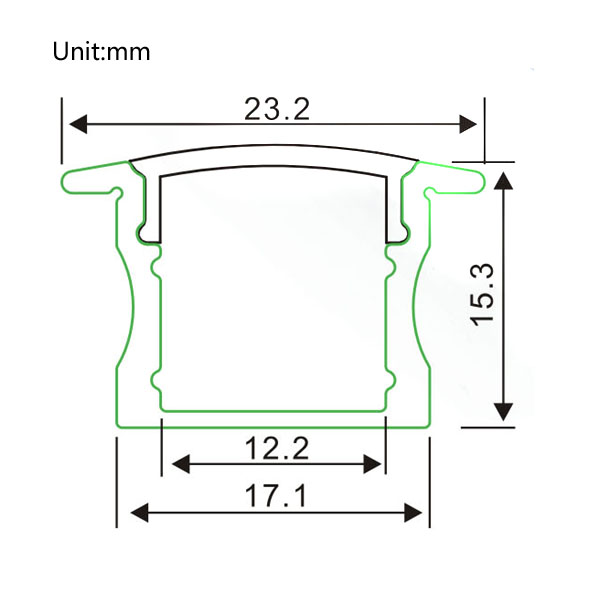

- Size: 23.2mm(W)*15.3mm(H)
- Inner Width: 12.2mm
- Allows The Max Width Of LED Strips To Be 12mm
- Recommend Work With SMD Or COB Strip Lights
- Max Power: <15W/Meter

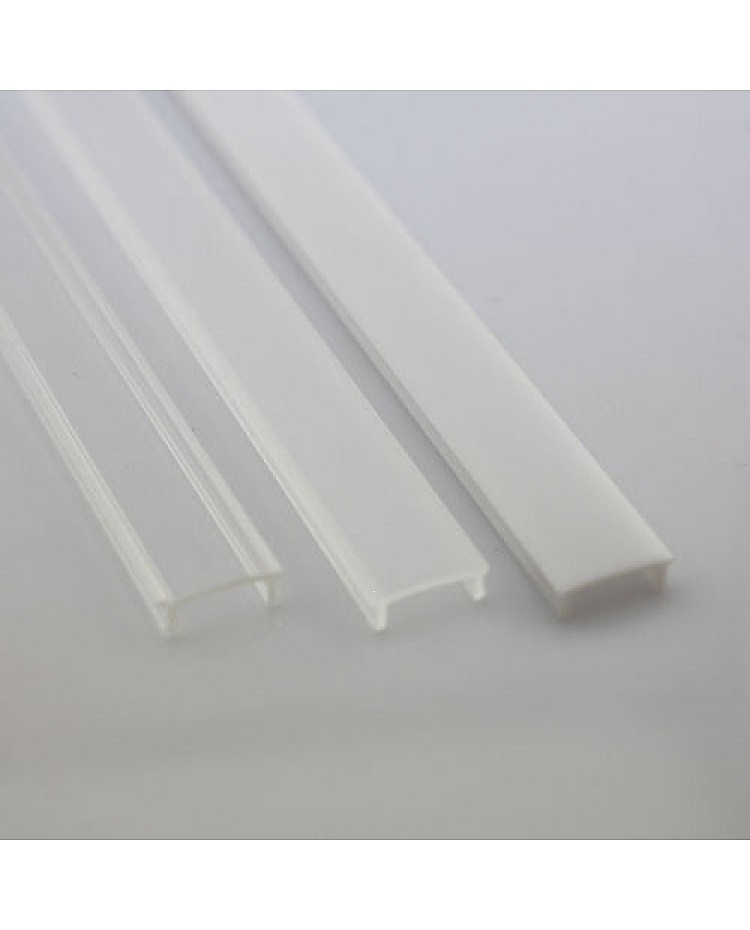

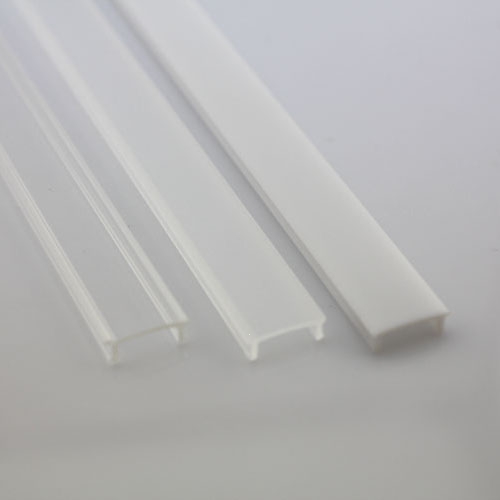

- Covers: PMMA Opal Matte Cover / PMMA Semi-Clear Cover / PMMA Clear Cover / PC Diffused Cover
- Default Length: 1M

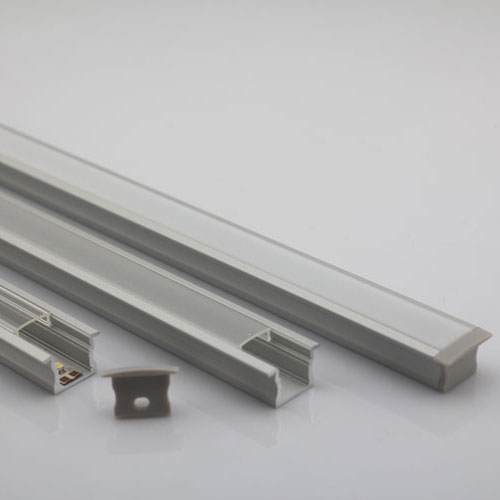

- Other Lengths Available: 1M, 1.5M, 2M, 2.5M, 3M
- Custom Length Available: YES

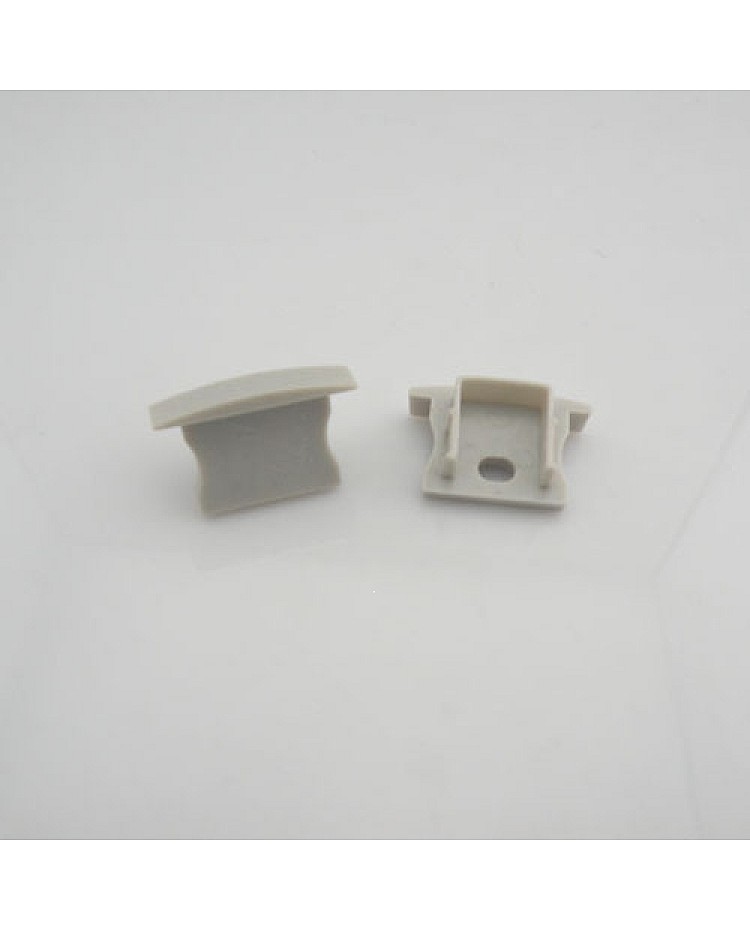

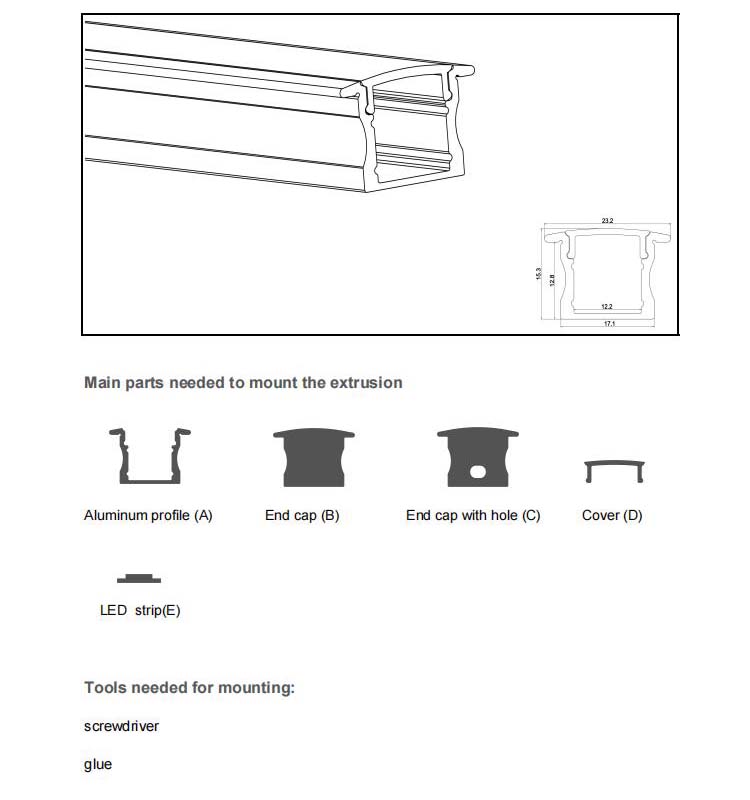

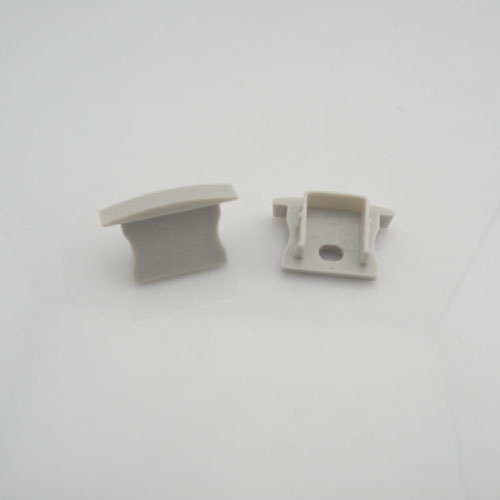

- End Caps With And Without Wire Holes Included

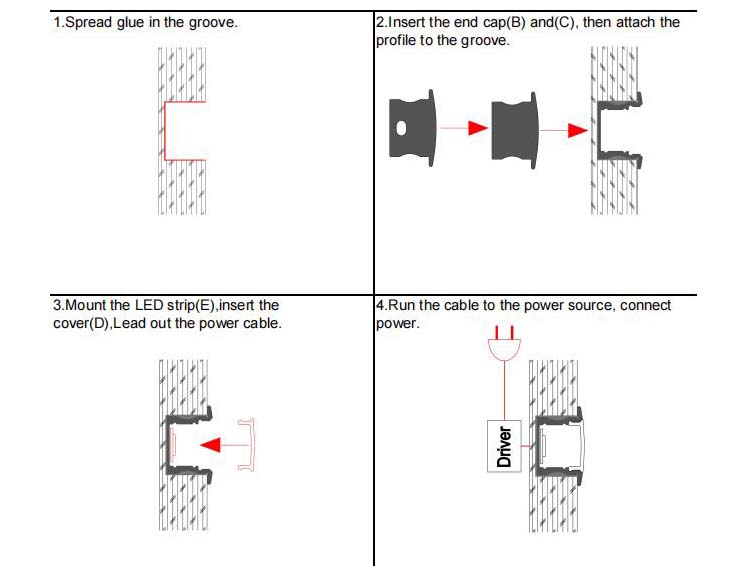

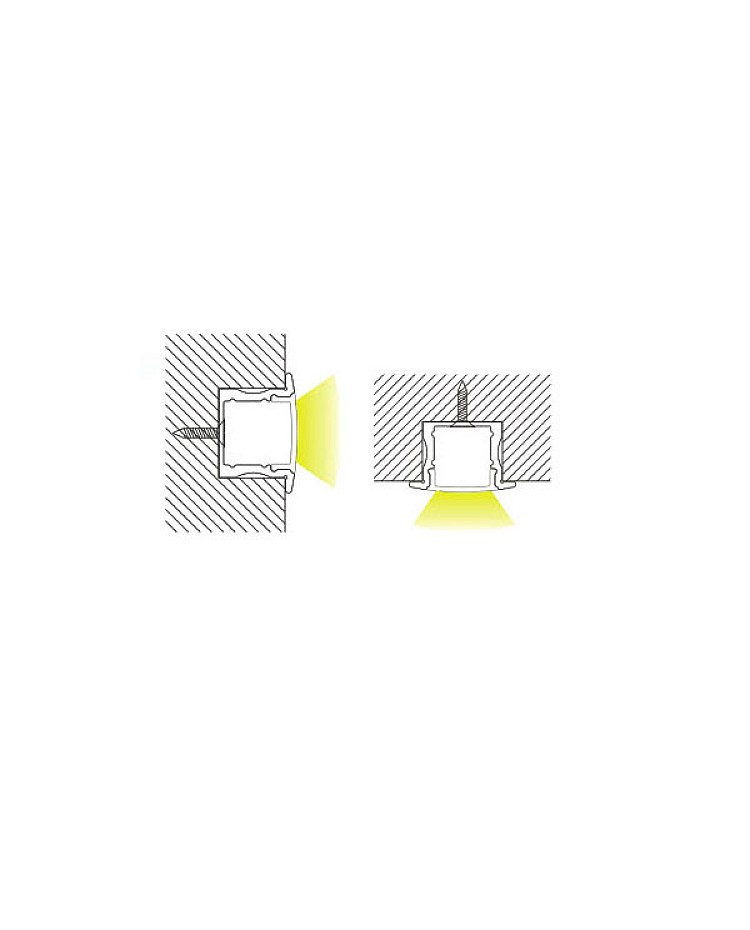

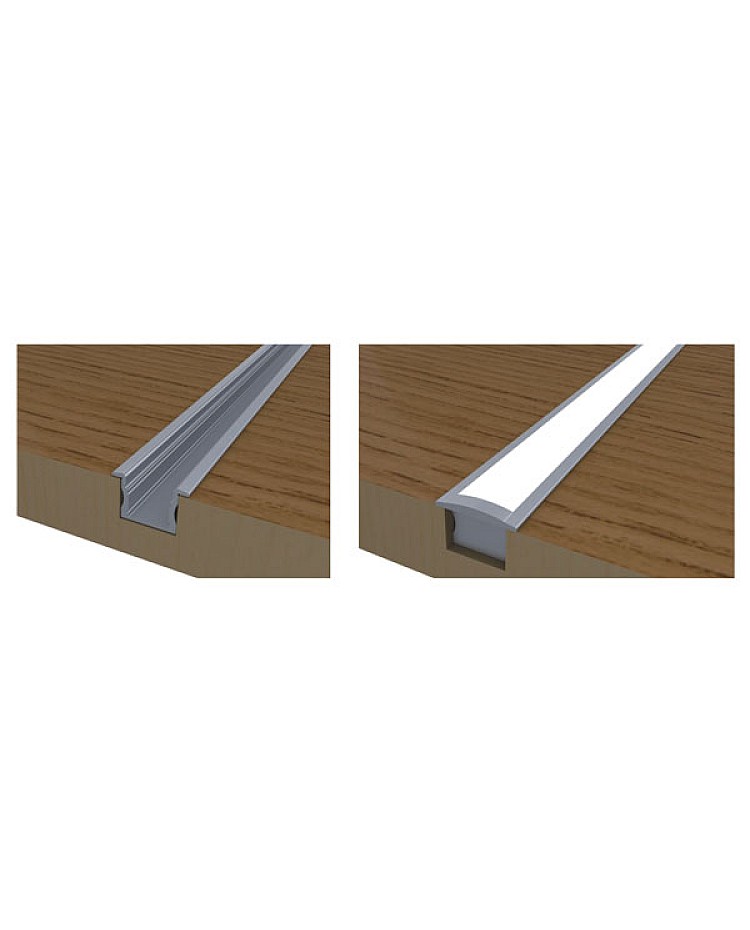

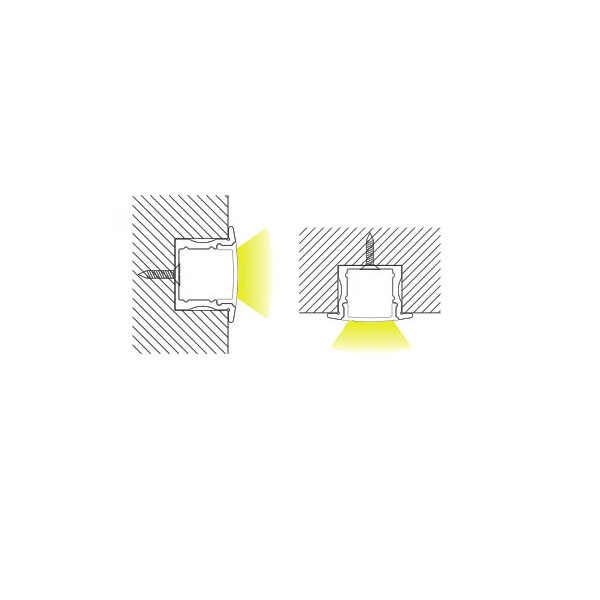

- Installation: Recessed Mounted
- Applications: Home and Office Decoration, Wardrobe, Cabinet, Kitchen Walls, House Hall, Walls, etc
- 5 Years Warranty
Package:

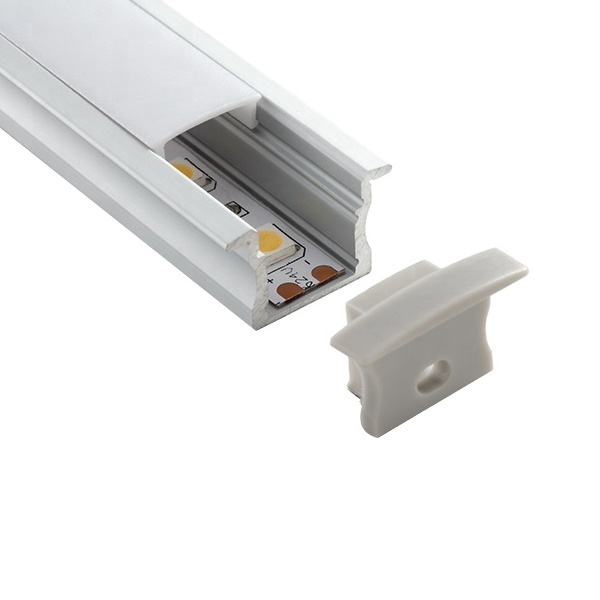

1* LED Stripe Profile With Cover

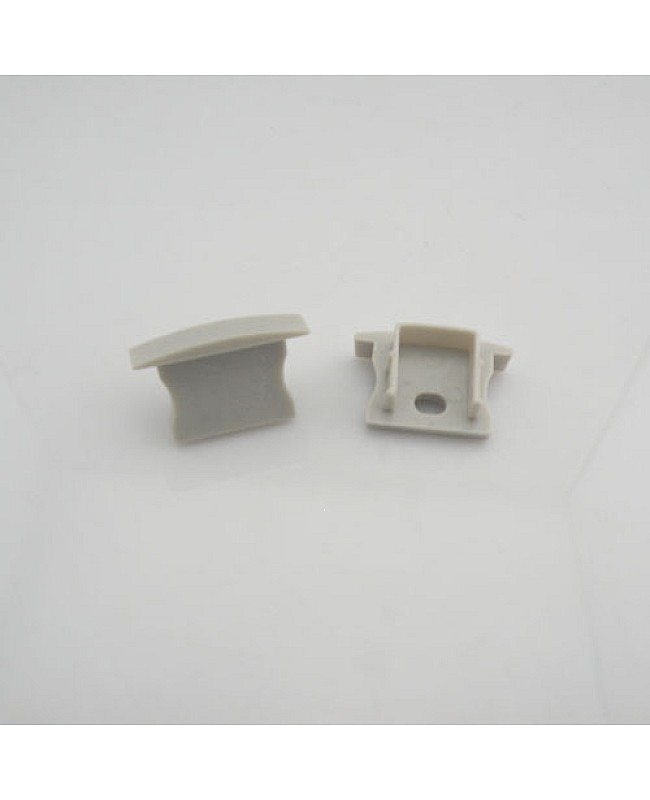

End Caps(With Hole/Without Hole)

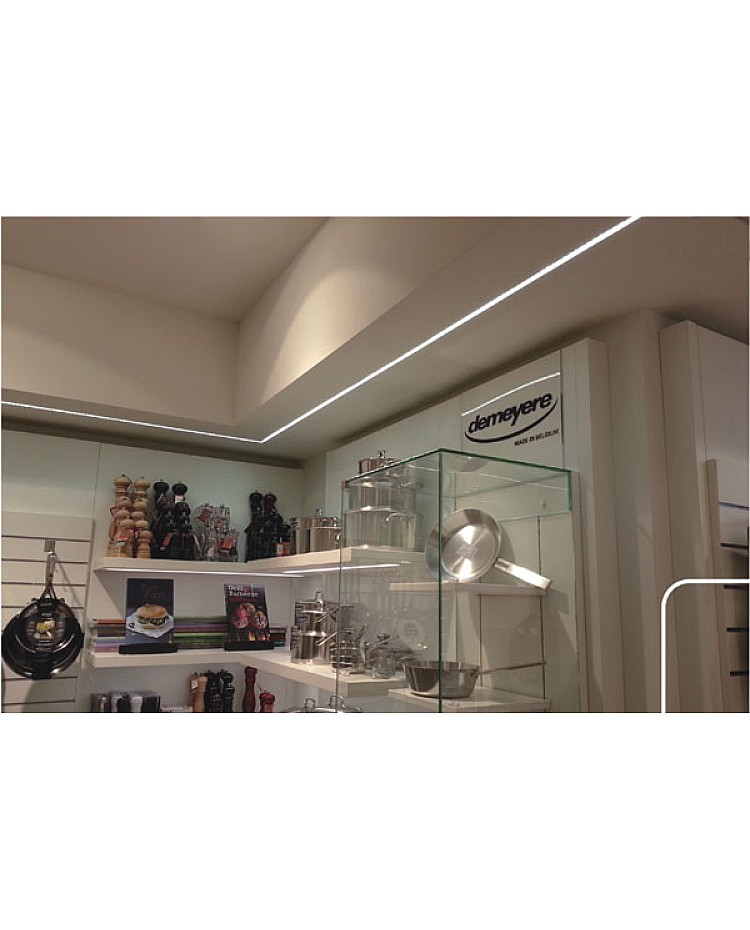

Applications:
- Backlight Or Supplementary Lighting
- Residential Decoration Lighting
- Furniture LED Projects
- Lighting For Special Occasions
- Lighting For Furniture

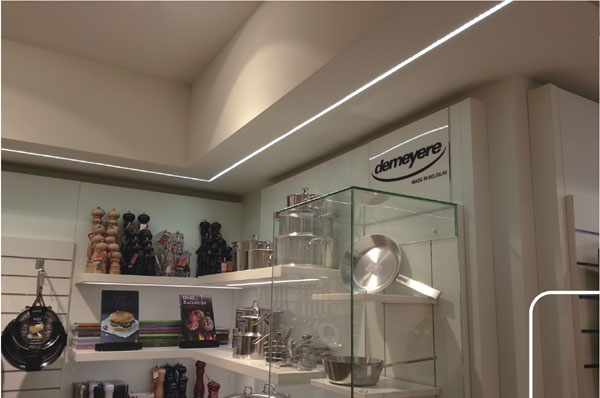

- Recessed In-Wall And Ceiling For Architectural, Retail, And Home Projects
