Check the Meanwell HLG-80H Seris Power Supplies, there are 4 types of different Waterproof Power Supplies available, you can choose the Io And Vo fixed products, Io and Vo adjustable products, 3 in 1 dimming and timer dimming products. the Types of A and AB's voltage and current adjustable through the built-in potentiometer, the universal input voltage range from AC90V to AC305V, you can connect to the public power system directly without an adapter, the HLG-80H Power Supplies are waterproof, you can use them in dry, damp or wet locations, you can use them for the Street Lights, High-Bay Lightings, etc.

  • Constant Voltage + Constant Current Mode Output
  • Metal Housing With Class I Design
  • Built-in Active PFC Function
  • Class 2 Power Unit
  • IP67 / IP65 Rating For Indoor Or Outdoor Installations
  • Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming; Timer Dimming
  • Typical Lifespan > 62,000 Hours
  • Applications: Street Lighting, High-Bay Lights, Parking Space Light, Fishing Lamps, Greenhouse Lights

Quick Links:

Meanwell HLG-80H Series Specification Document


  • Model: HLG-80H

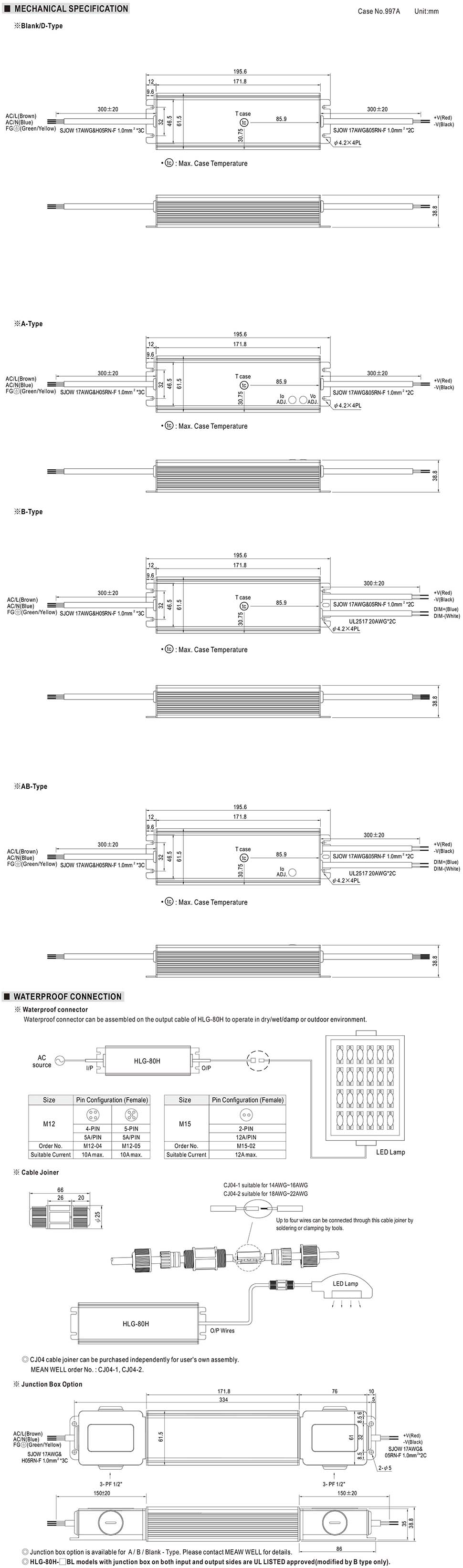

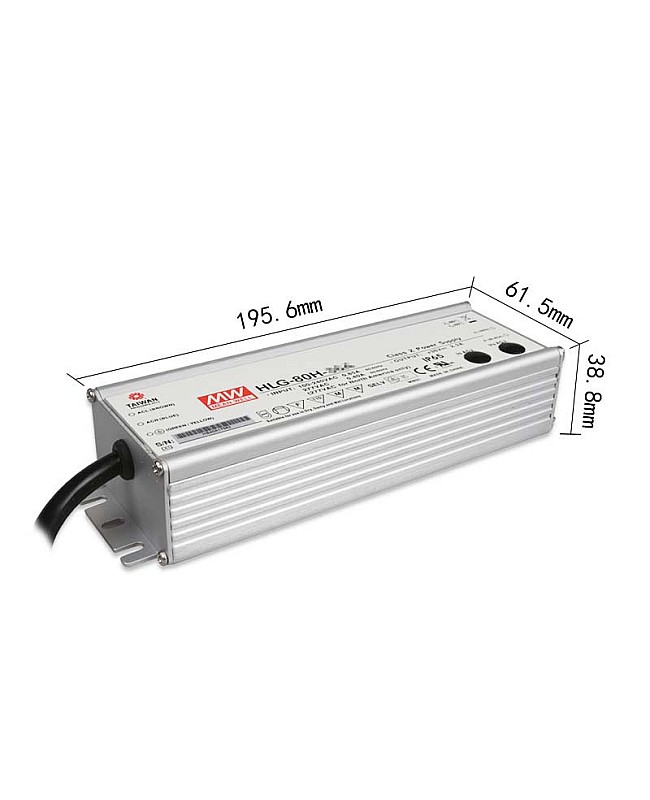

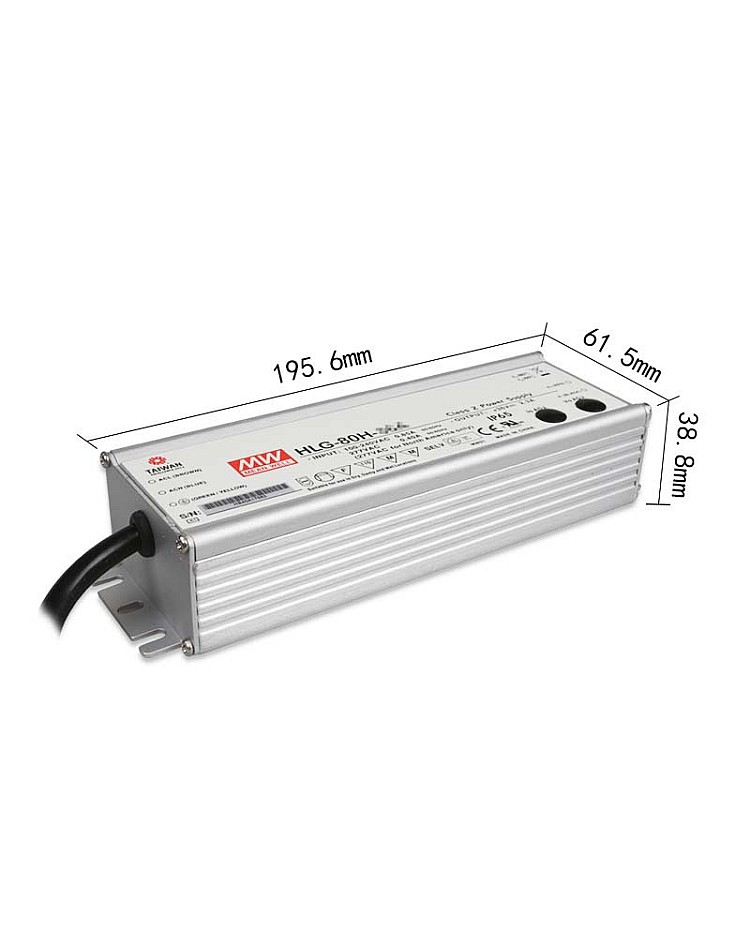

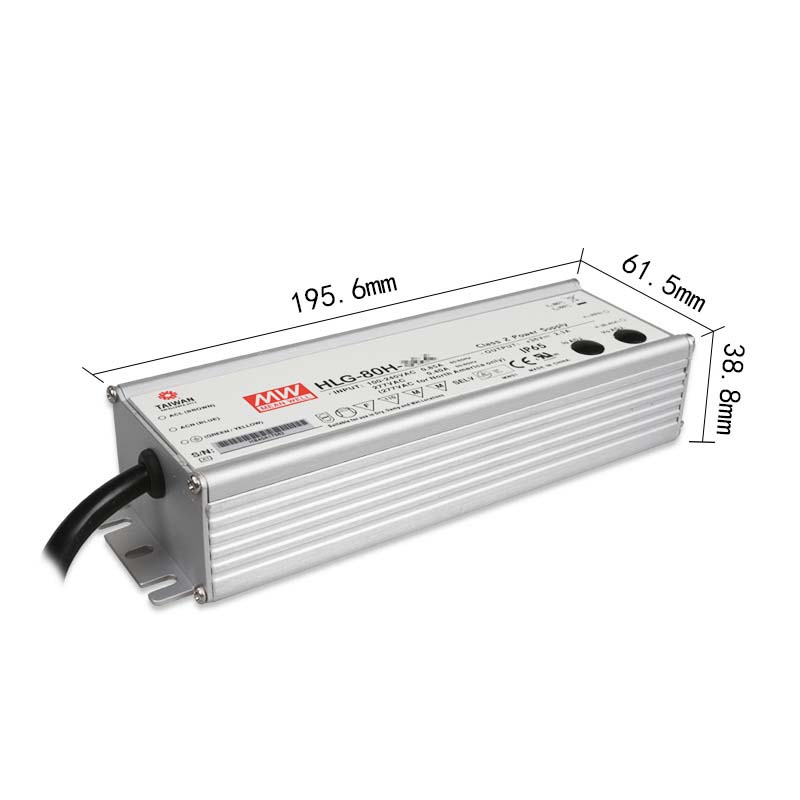

  • Size: 195*61.5*38.8mm(L*W*H)
  • Types:
  • Blank: IP67 Waterproof Level, Voltage And Current Fixed
  • A: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer

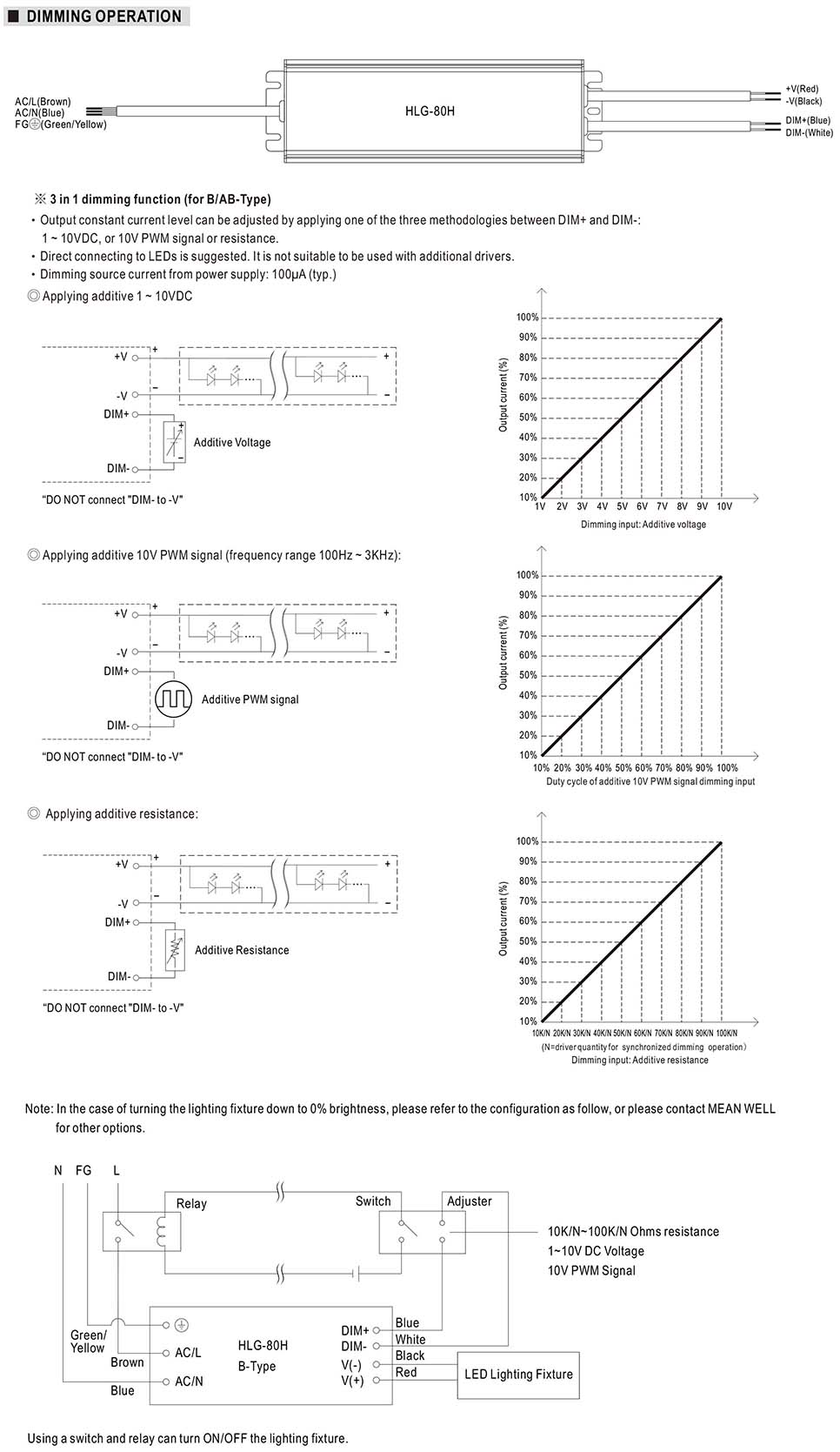

  • B: IP67 Waterproof Level, 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
  • AB: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer & 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
  • D: IP67 Waterproof Level, Timer Dimming Function
  • Input Voltage Range: 90-305VAC
  • Frequency Range: 47-63Hz
  • Power Factor: PF≥0.96/115VAC, PF≥0.96/230VAC, PF≥0.94/277VAC
  • Efficiency: 88%(DC12V), 89%(DC15V), 90%(DC20V), 90.5%(DC24V), 91%(DC30V), 91%(DC36V), 91%(DC42V), 91%(DC48V), 91%(DC54V)
  • AC Current: 0.85A/115VAC, 0.425A/230VAC, 0.4A/277VAC
  • Output Voltage: DC12V, DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
  • Rated Current: 5A(DC12V), 5A(DC15V), 4A(DC20V), 3.4A(DC24V), 2.7A(DC30V), 2.3A(DC36V), 1.95A(DC42V), 1.7A(DC48V), 1.5A(DC54V)
  • Rated Power: 60W(DC12V), 75W(DC15V), 80W(DC20V), 81.6W(DC24V), 81W(DC30V), 82.8W(DC36V), 81.9W(DC42V), 81.6W(DC48V), 81W(DC54V)
  • Current Adjustable Range(For A/AB Type Only Via Built-in Potentiometer): 3-5A(DC12V), 3-4A(DC15V), 2.4-4A(DC20V), 2.04-3.4A(DC24V), 1.62-2.7A(DC30V), 1.38-2.3A(DC36V), 1.17-1.95A(DC42V), 1.02-1.7A(DC48V), 0.9-1.5A(DC54V)
  • Voltage Adjustable Range( For A/AB Type Only Via Built-in Potentiometer): 10.8-13.5V(DC12V), 13.5-17V(DC15V), 17-22V(DC20V), 22-27V(DC24V), 27-33V(DC30V), 33-40V(DC36V), 38-46V(DC42V), 43-53V(DC48V), 49-58V(DC54V)
  • Working Temperature: -40℃-+80℃
  • Vibration: 10-500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
  • Safety Standards: UL8750(Type "HL"), CSA C22.2 No.250.0-08, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 Independent, GB19510.1, GB19510.14, EAC TP TC 004, KC61347-2-13(Except For AB-Type), IP67 Or IP65 Approved
  • Short Circuit Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • 7 Years Warranty


1*Meanwell HLG-80H Series Power Supply

Mean Well HLG-80H-12 Mean Well HLG-80H-24
