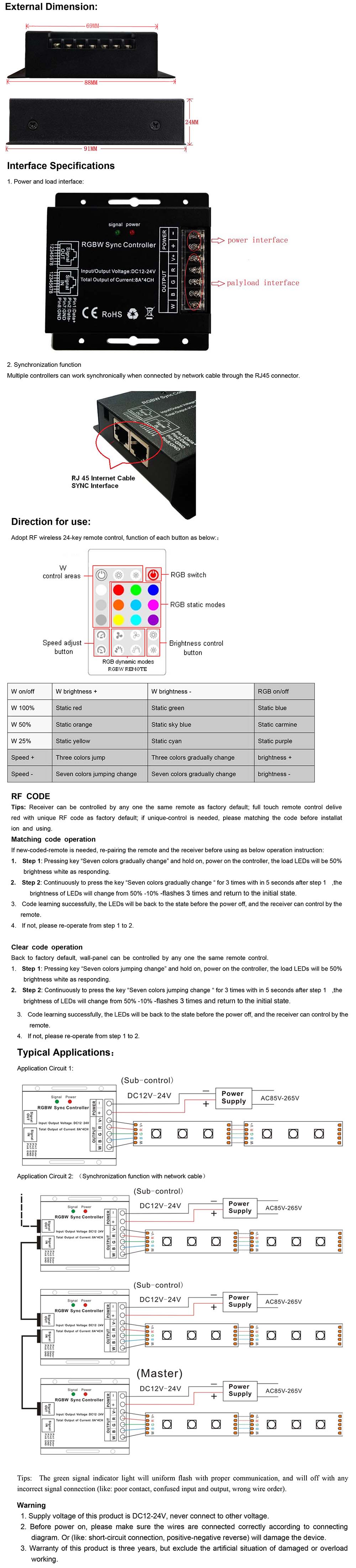

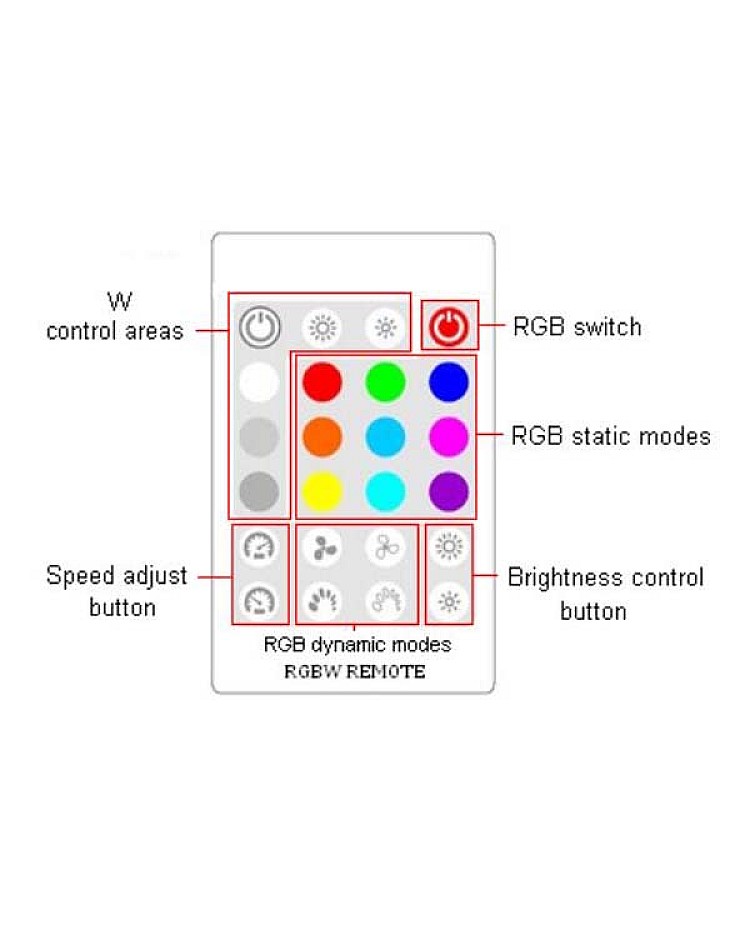

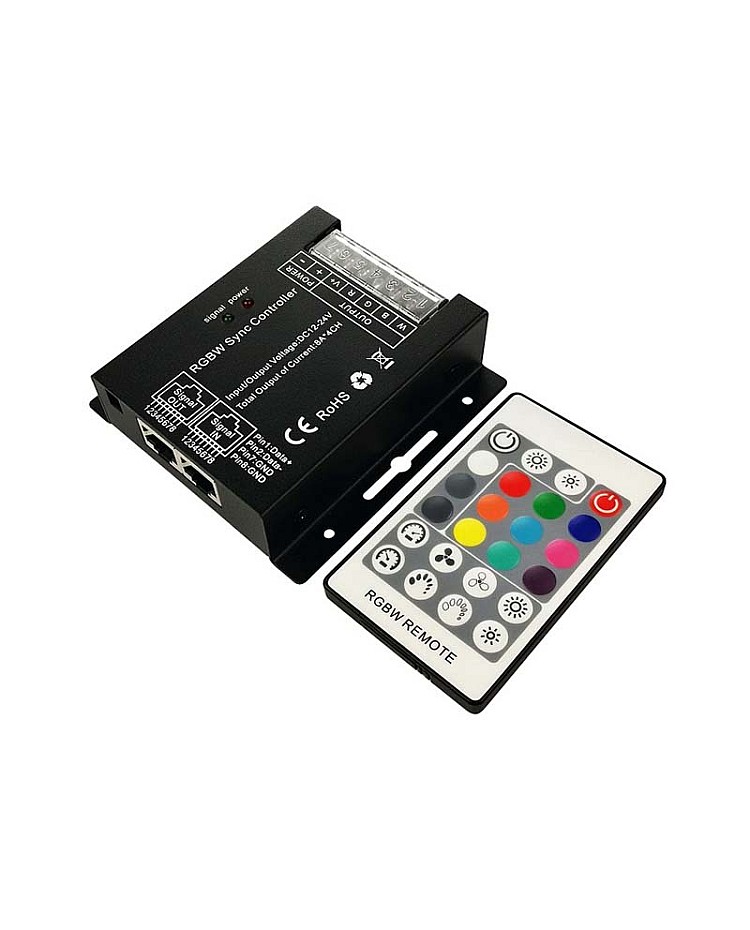

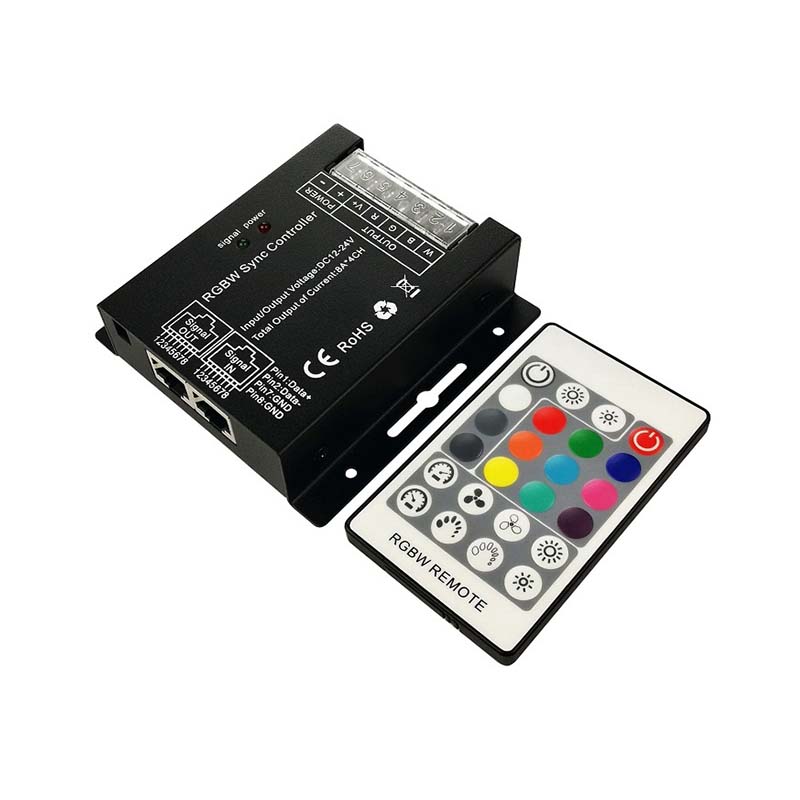

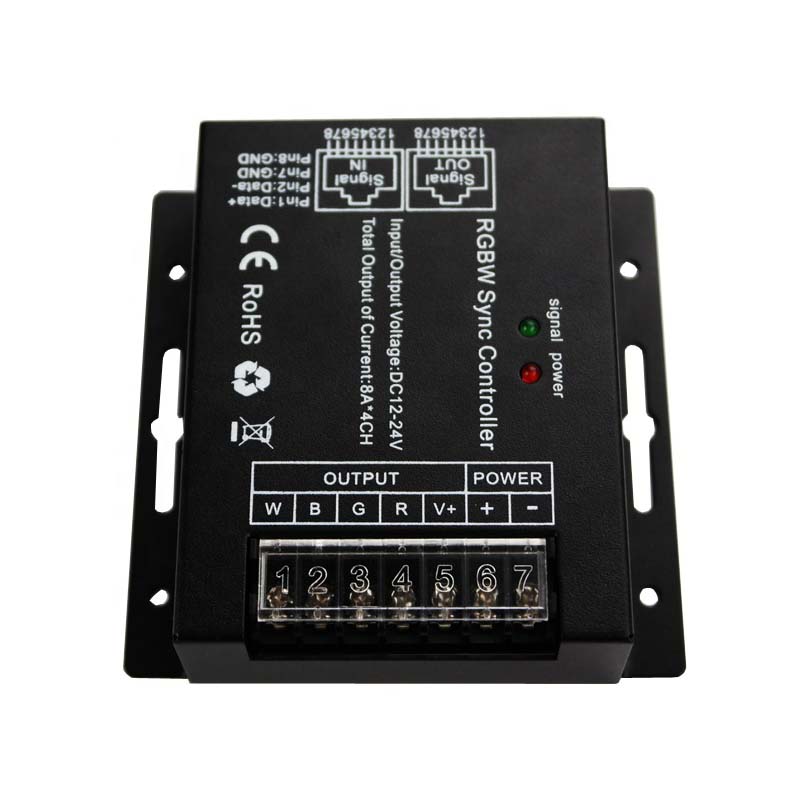

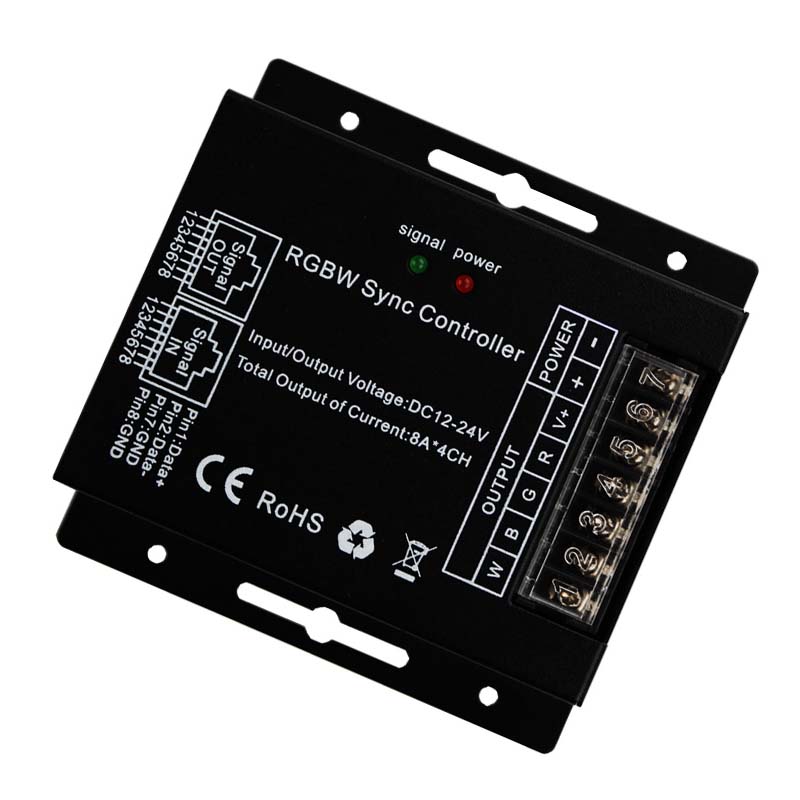

The RGBW LED Controllers with 24 Keys RF Remote Controls are enclosed in a black metal shell for better heat dissipation. It adopts the advanced PWM digital control technology and is designed for the constant voltage RGBW LED Lights. It has four output channels designed, the max output current of each channel is up to 8A, and the max loading power is up to 768W when working in 24V. The 24 keys RF Remote Control includes 13 working modes, nine static colors, and four dynamic modes. The RGB and W each have a control area, and the brightness of static color and the speed of dynamic changes are adjustable independently. The LED RGBW Controller with dual RJ45 network cable ports to achieve changes synchronically. The maximum network cable is up to 80 meters.


  • Working Temperature: -20℃-60℃
  • Size: 91*88*24mm(L*W*H)
  • Connecting Mode: Common Anode

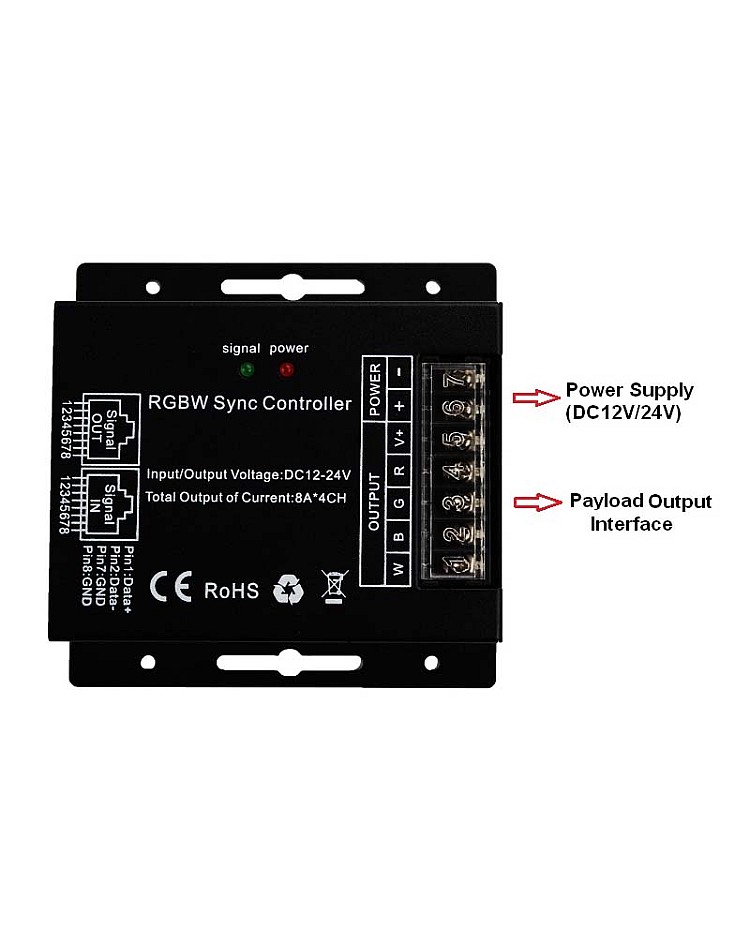

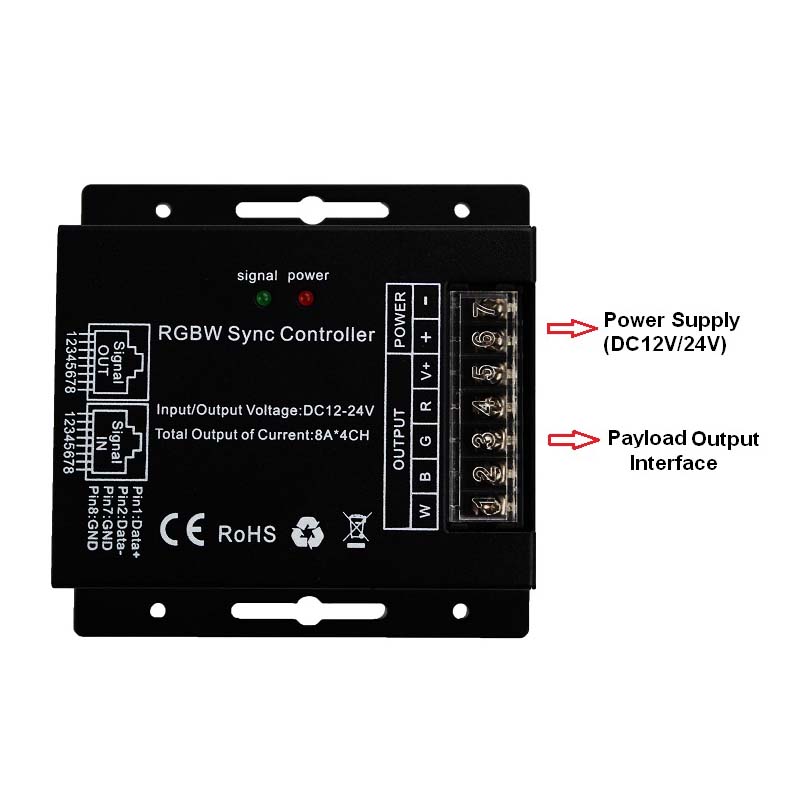

  • Working Voltage: DC12-24V
  • Output Channels: 4
  • Output Current: <8A(Each Channel)
  • Max Output Power: 384W(12V), 768W(24V)
  • RF Frequency: 433.9MHz
  • Output Gray: 256 Levels(With Continuous Reception)
  • 24 Keys RF Remote Control Included

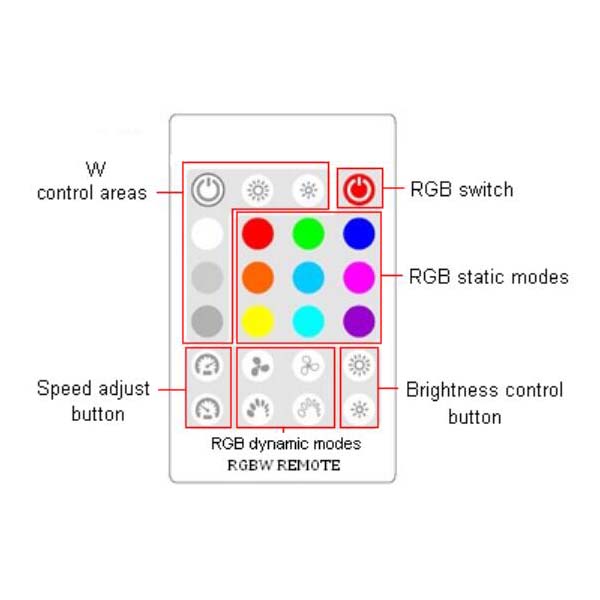

  • 13 Working Modes In Total, 9 Static Colors And 4 Dynamic Modes
  • Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable

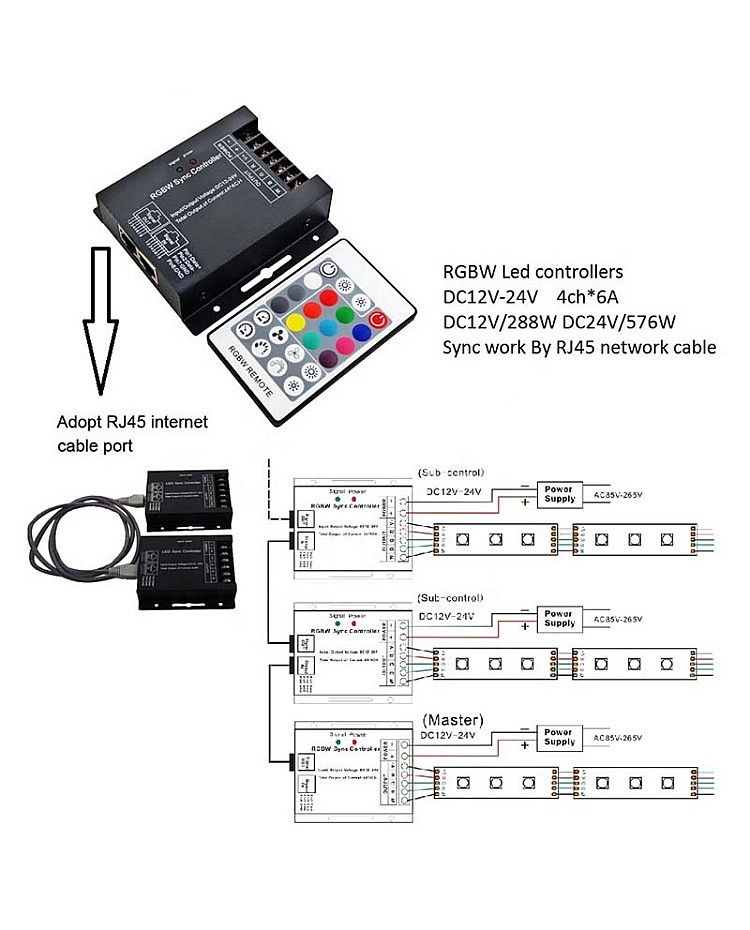

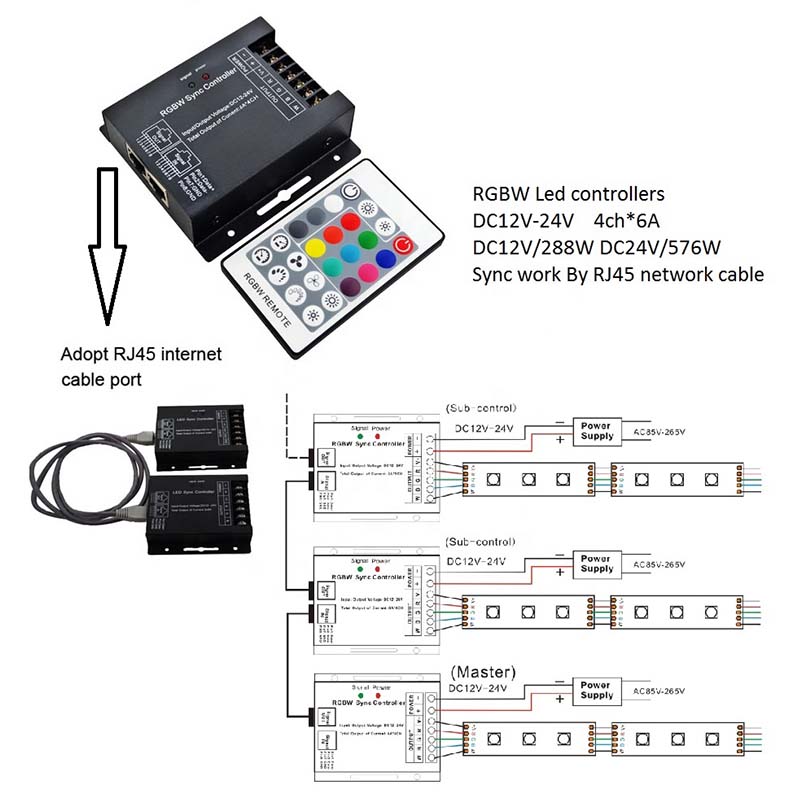

  • Come With Dual RJ45 Ports To Achieve Synchronization Function
  • Weight: 300g
  • 3 Years Warranty


1*RGBW LED Controllers

1*24 Keys RF Remote Control
