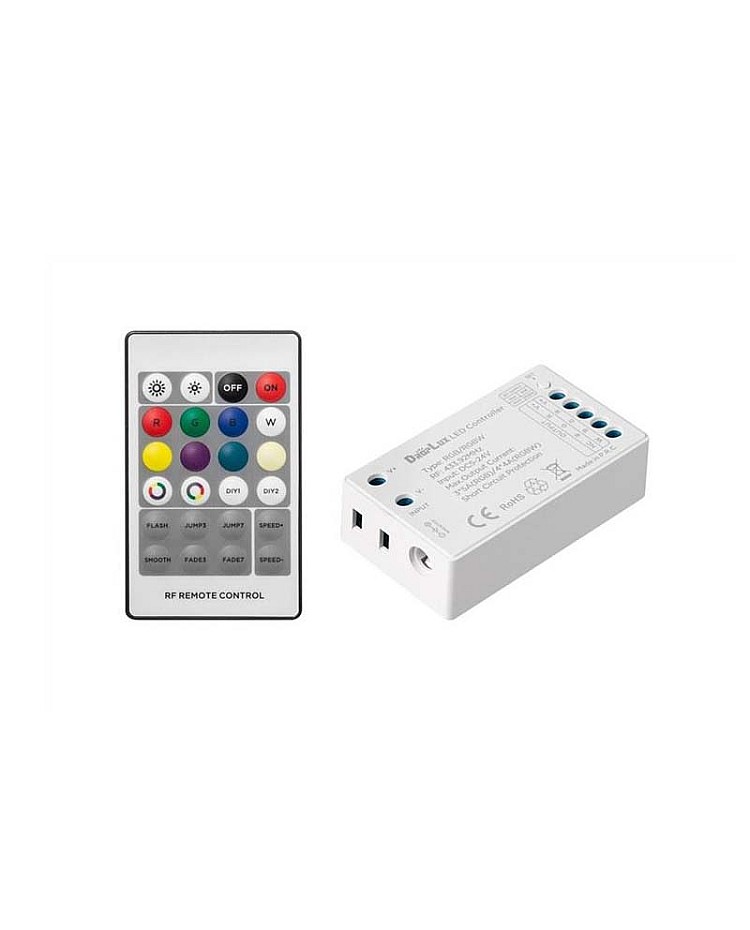

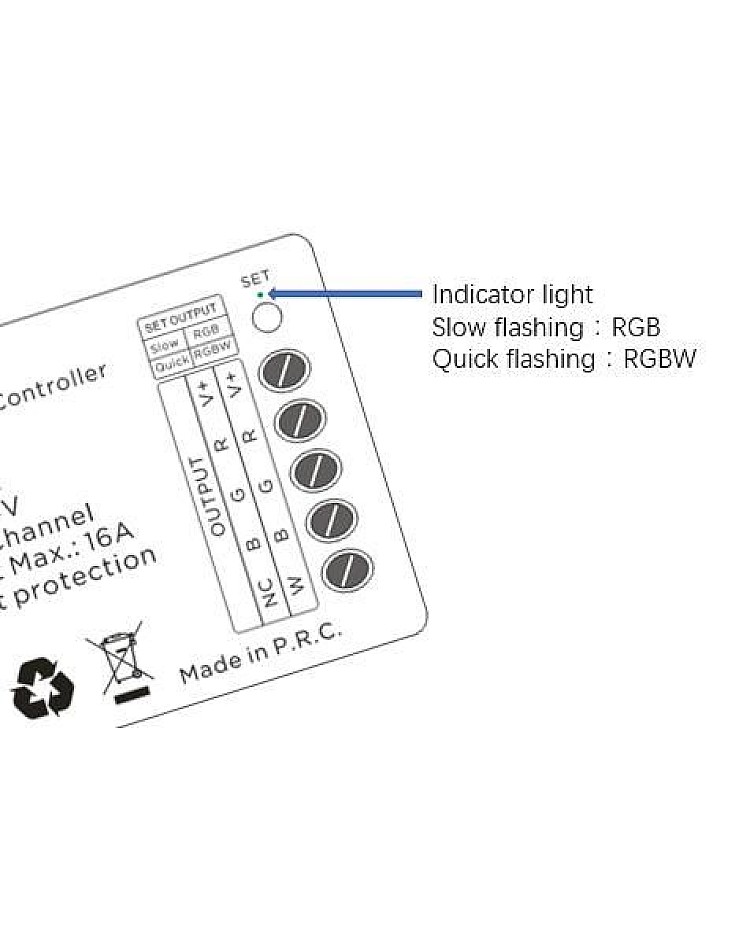

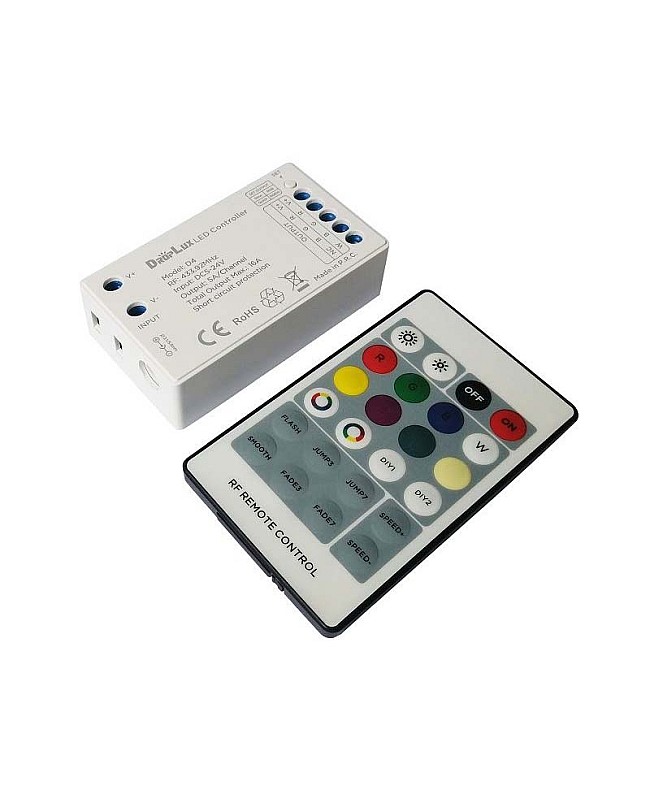

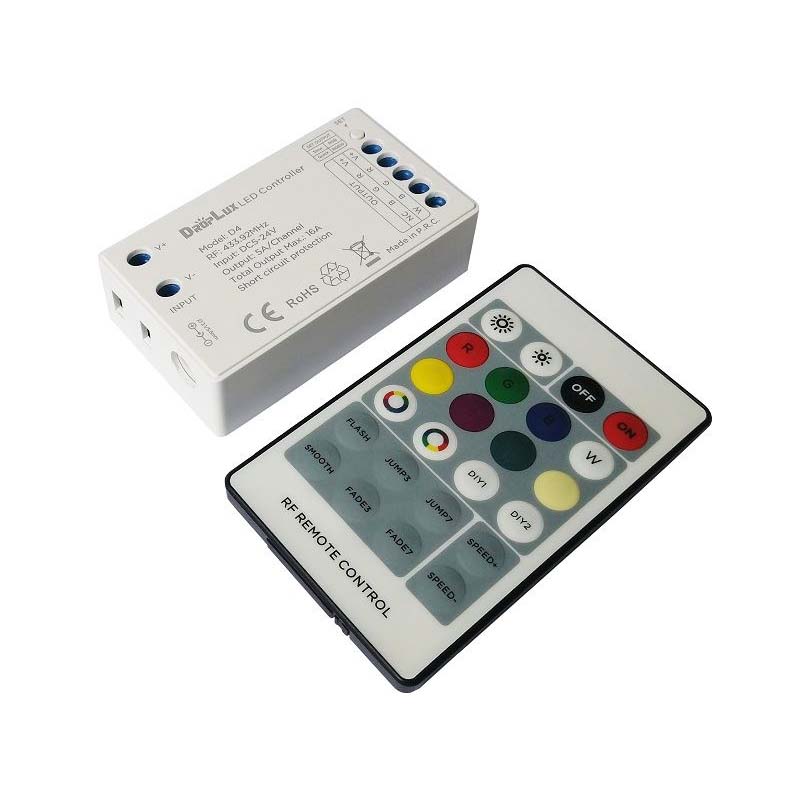

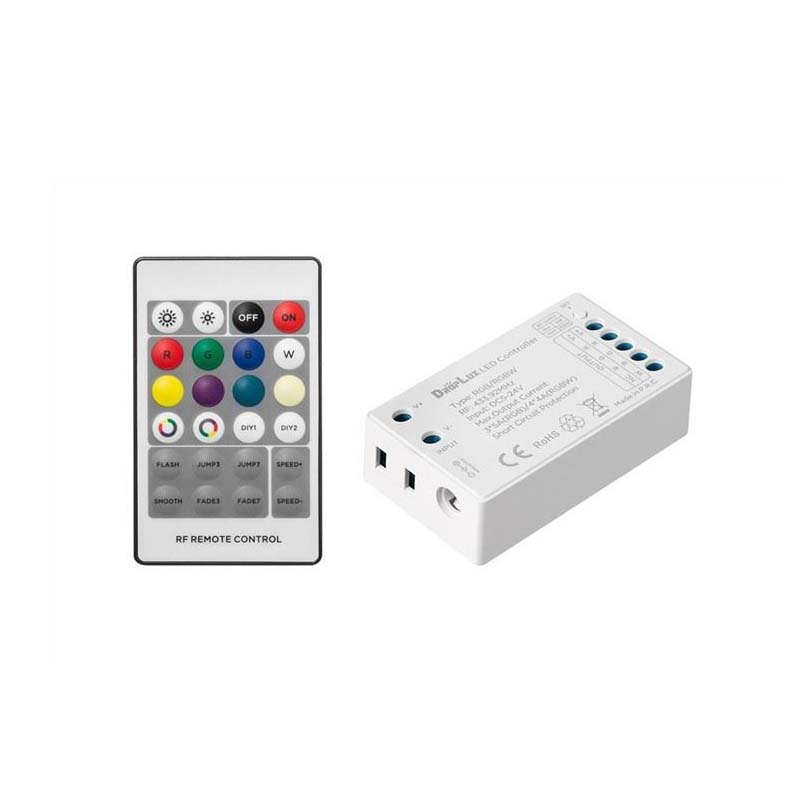

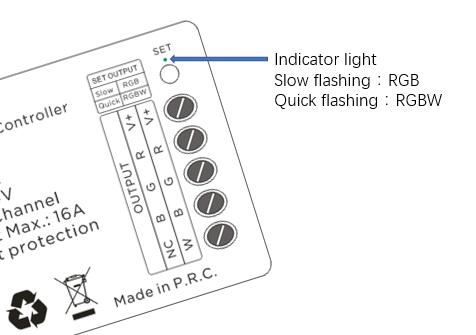

Check the 5V RGB Controller with the 24 Keys RF Remote, which designed for the constant voltage LED Product, the working voltage is DC5V, DC12V or DC24V. the LED Controller designed for RGB and RGBW LED Lights if works with RGB LED Lights, both Remote Control and Receiver are 2 in 1 for RGB and RGBW, with 3 output channels, the max output current of each channel is 5A, the max output power up to 360W, if works with RGBW LED Products, with 4 output channels, the max output current of each channel is 4A, the max output power up to 384W. the 2 in 1 LED Light Controller with the advanced micro control units, you can use to control the Point Source Light, Flexible LED Strips or other LED Lights, comes with the 24 Keys RF Remote to control the light ON or OFF, the max control distance up to 20meters, adopts color balance key to achieve 1024 colors and can be saved as DIY modes, can adjust the brightness of static color and change the style and speed of dynamic modes. there is a set button on the LED Controller, press it to switch the output type from RGB to RGBW, the indicator light will show you the working status, the indicator flashes slowly means working in RGB, if flashes quickly mean works in RGBW mode.

5V RGB Controller Features:

  • Working Temperature: -20℃-60℃
  • Size: 70*40*20mm(L*W*H)
  • Working Voltage: DC5V-24V
  • Static Power Consumption: <1W
  • Connecting Mode: Common Anode
  • Grayscale: 1024 Levels(RGB Each)
  • Speed Stage: 100Grade

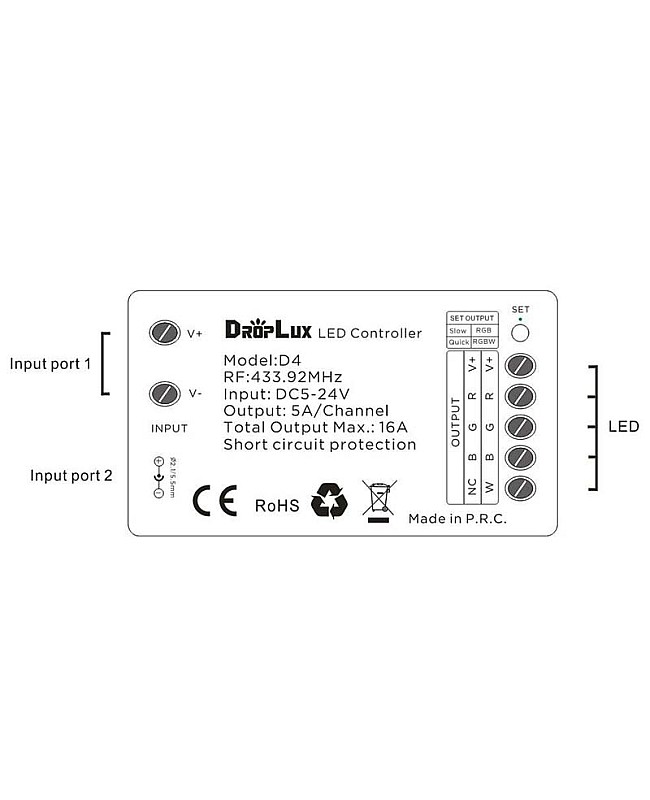

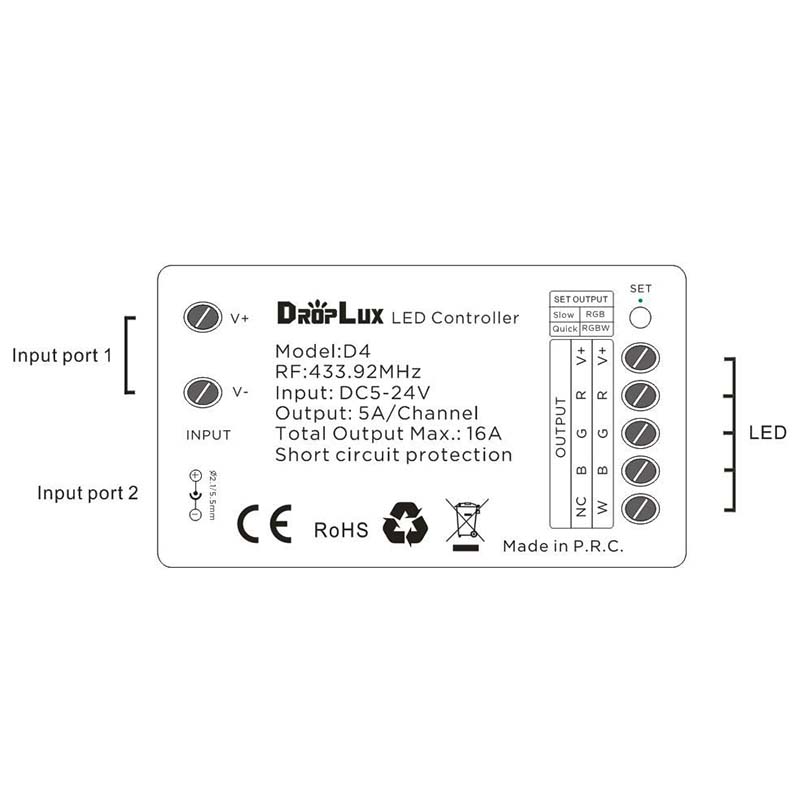

  • Output: 3Channels(RGB)/4Channels(RGBW)
  • Max Output Current: 5A Each Channel(RGB) / 4A Each Channel(RGBW)
  • Max Output Power: RGB: 75W(DC5V)/180W(DC12V)/360W(DC24V); RGBW: 80W(DC5V)/192W(DC12V)/384W(DC24V)
  • RF Frequency: 433.92MHz
  • Remote Distance: 20M
  • PWM Frequency: 1.95KHz
  • Memory Function: YES
  • Short Circuit Protection: YES
  • Weight: 70g
  • 3 Years Warranty

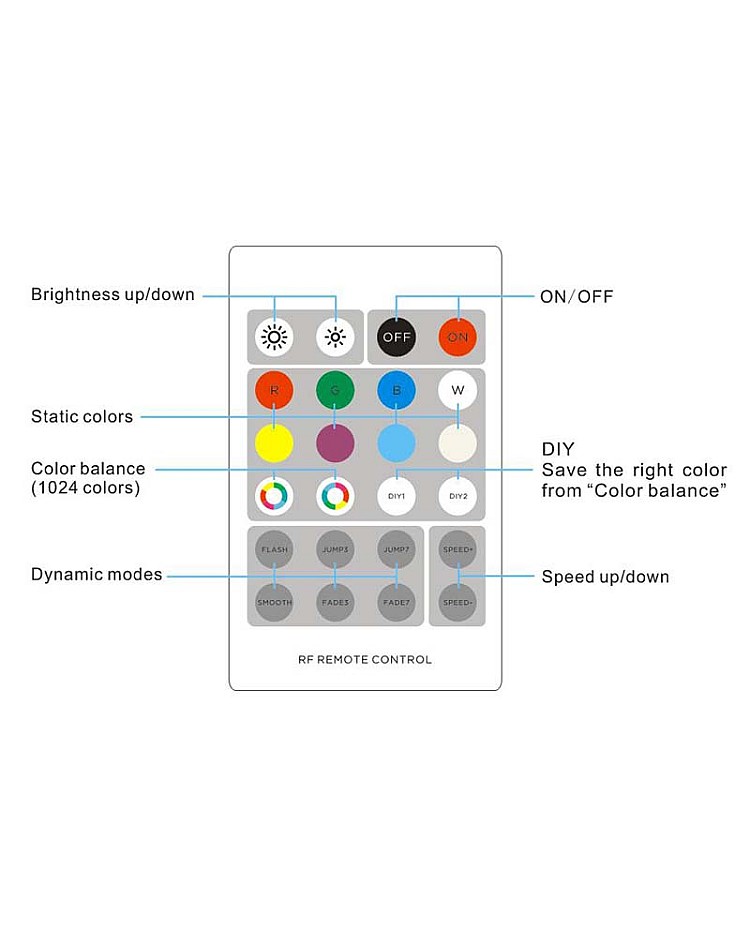

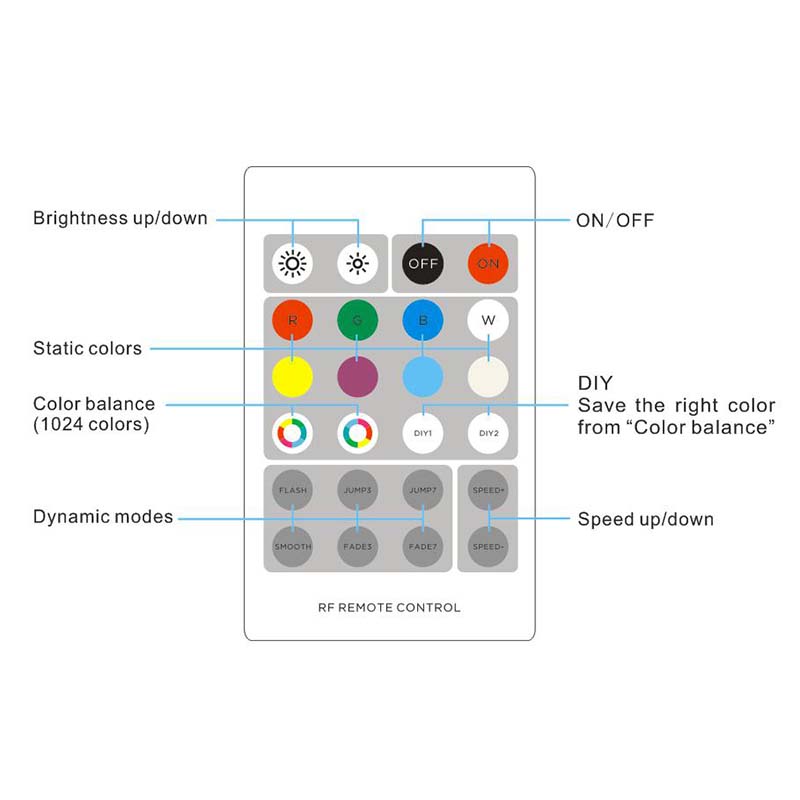

RF 24 Keys Remote Control Features:

  • Size: 85*51*6mm
  • Working Voltage: DC3V(CR2025)
  • Standby Current: 3.3uA
  • Working Current: 12mA
  • Standby Power: 9.9uW
  • Working Power: 36mW
  • RF Distance: <20m
  • RF Frequency: 433.92MHz
  • Weight: 25g


1*RGB/RGBW DC5V Controller

1*RF Remote With 24 Keys
