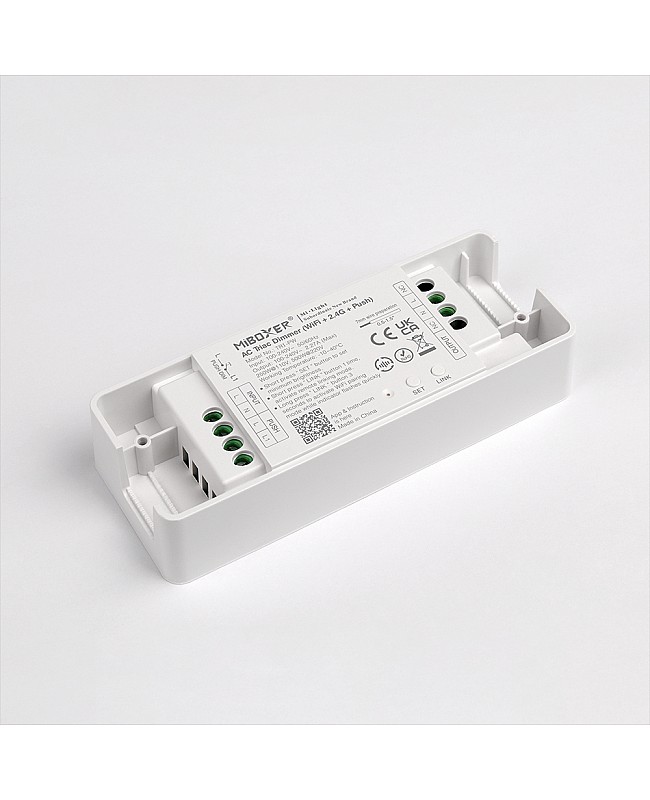

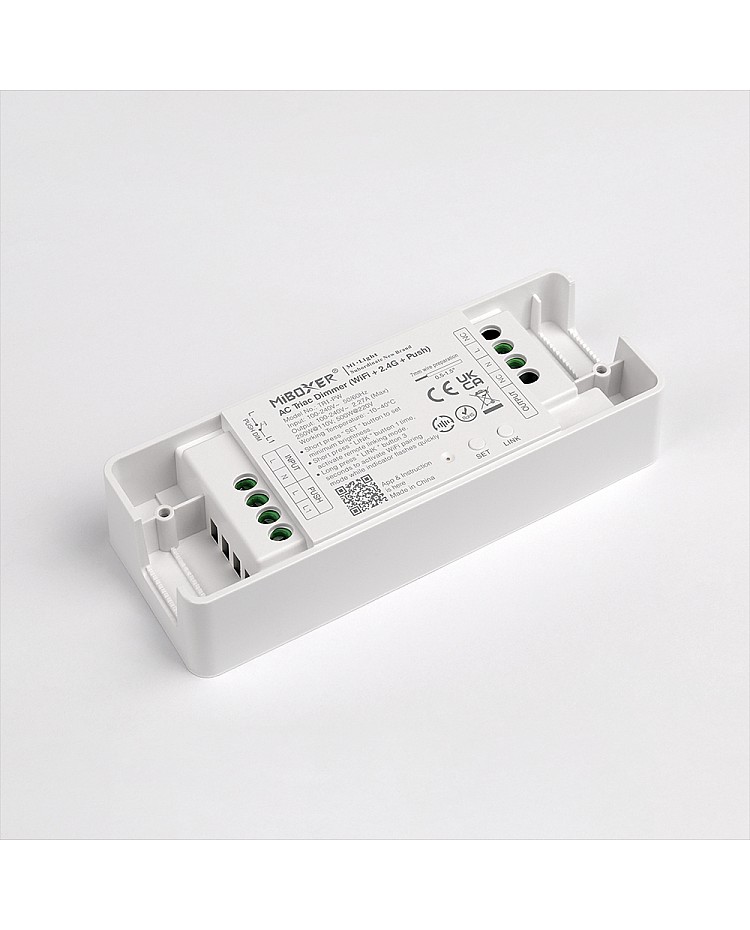

The MiBoxer 500W series RF Push AC Triac Dimmers simplify the management of your traditional lighting. They support remote control of traditional incandescent lamps, halogen lamps, and triac Dimmable LED Lamps to adjust the brightness. The input voltage ranges from AC100V to AC240V, and the power does not exceed 500W. By utilizing cutting-edge phase-cut technology, those Triac Dimmers enable you to adjust the brightness of your lights easily and guarantee a seamless and accurate dimming experience, ensuring that your lights transition smoothly to your desired illumination level. After connecting to a wireless gateway(TRI-PR needs 2.4G Gateway, and TRI-PZ needs Zigbee 3.0 Gateway.), the Tuya Smart Phone APP and third-party voice commands can control the RF Push Dimmers to achieve wireless dimming, group control, timing control, one key execution, automation, etc.


Features:

  • Type: AC Triac Dimmers

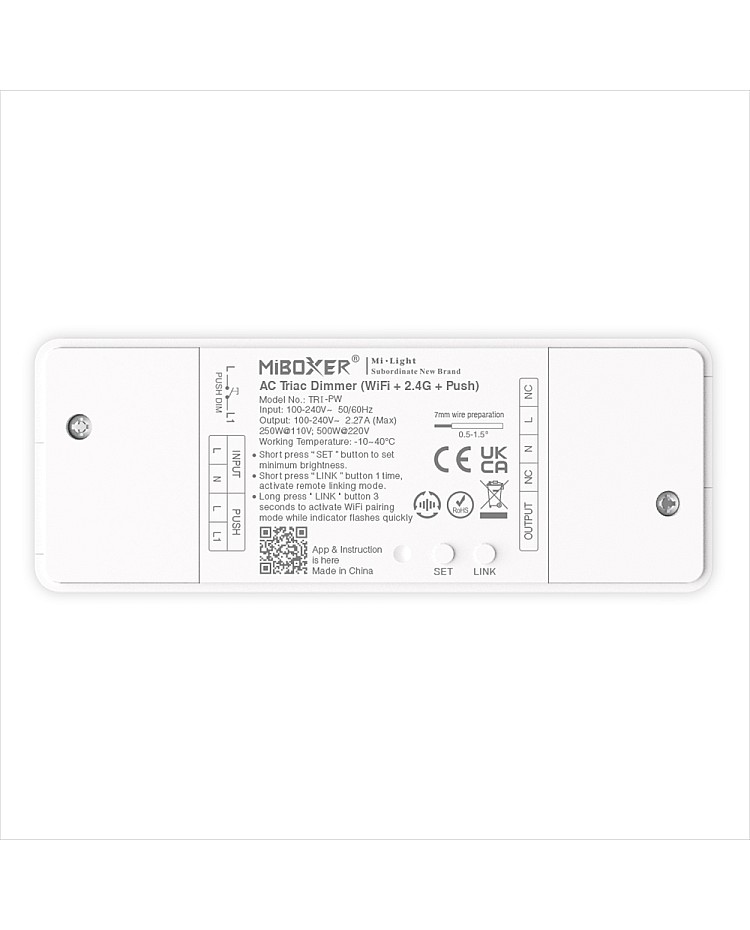

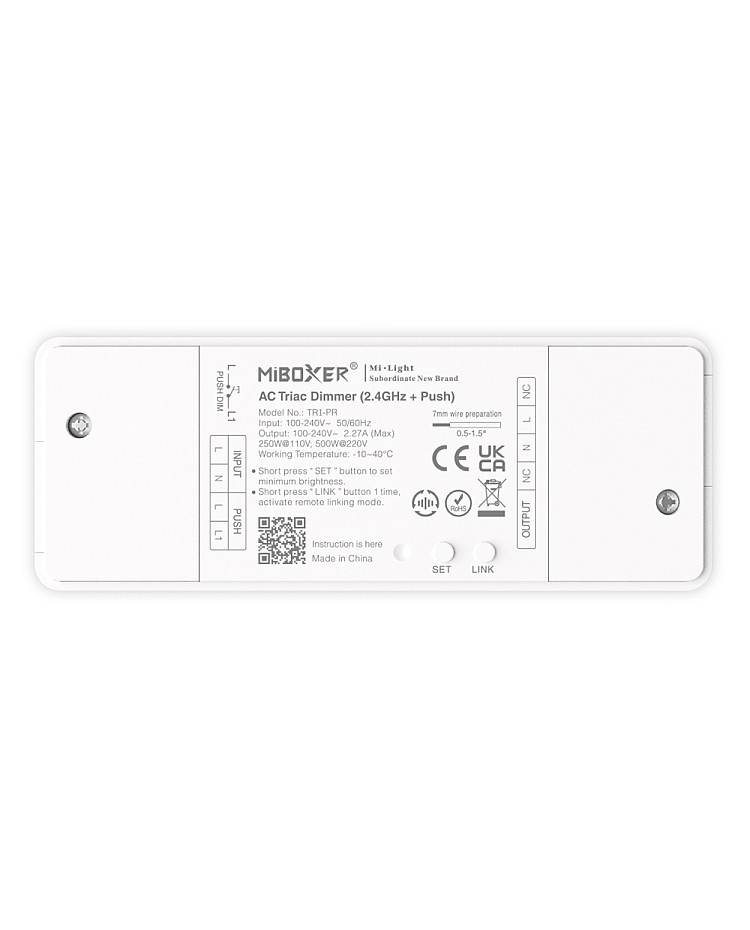

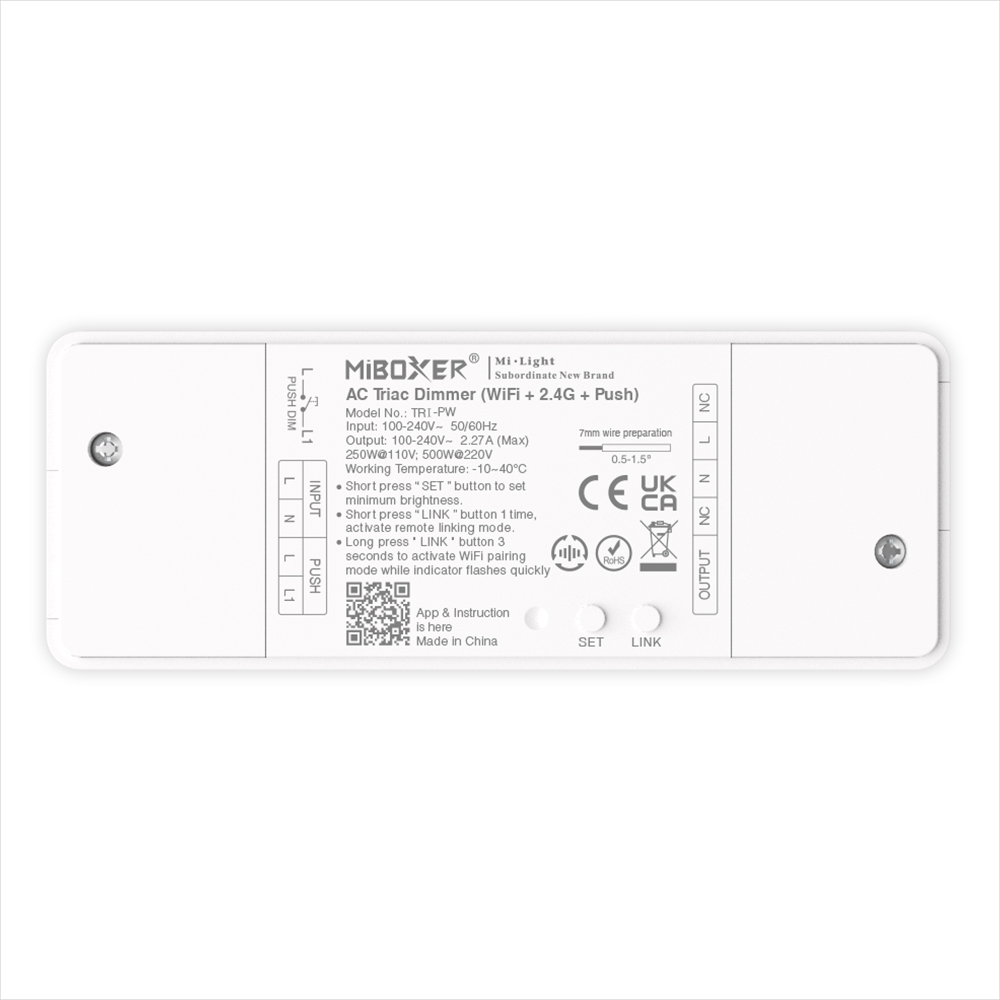

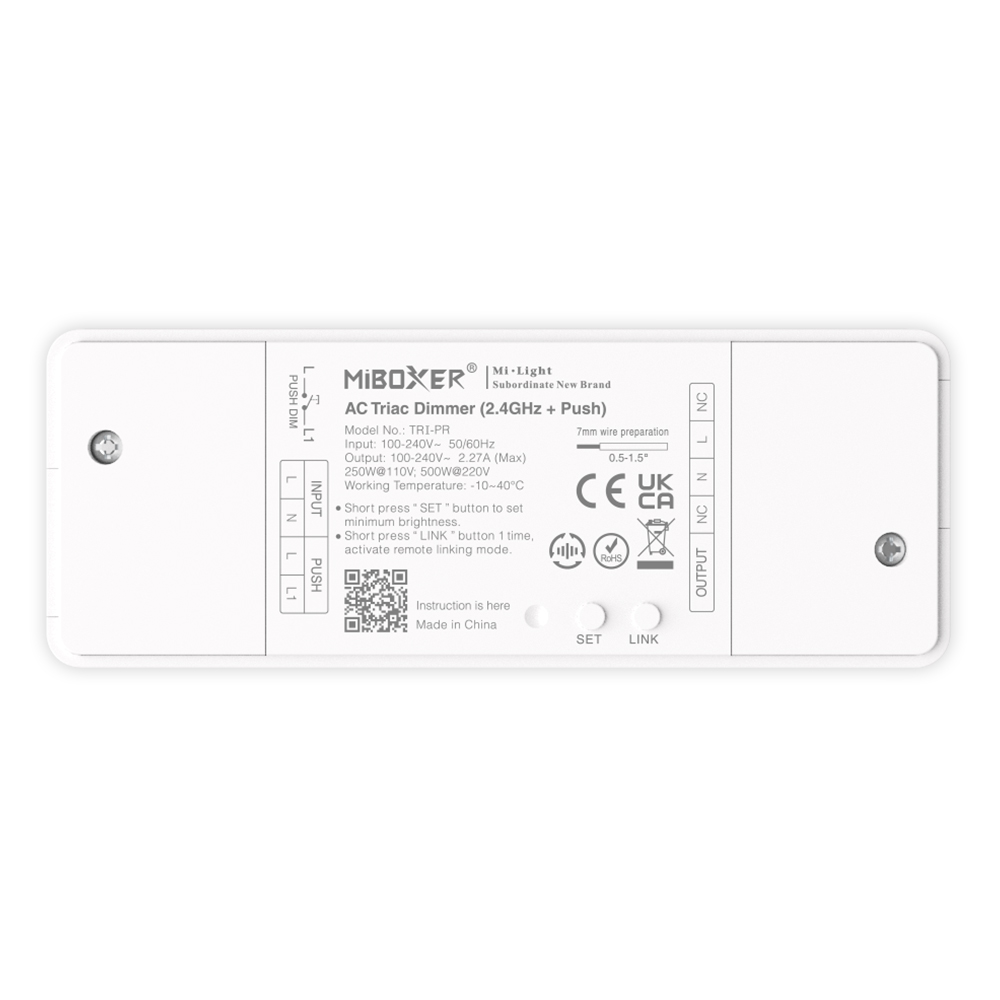

  • Model: TRI-PR(2.4G+Push) / TRI-PZ(Zigbee 3.0 + 2.4G + Push) / TRI-PW(WiFi + 2.4G + Push)

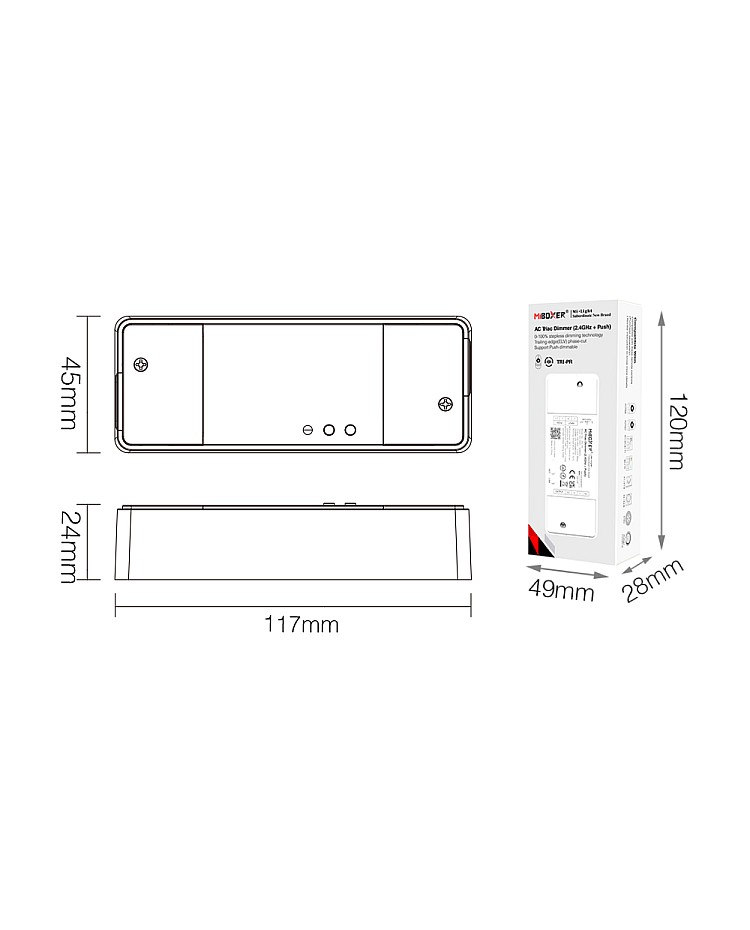

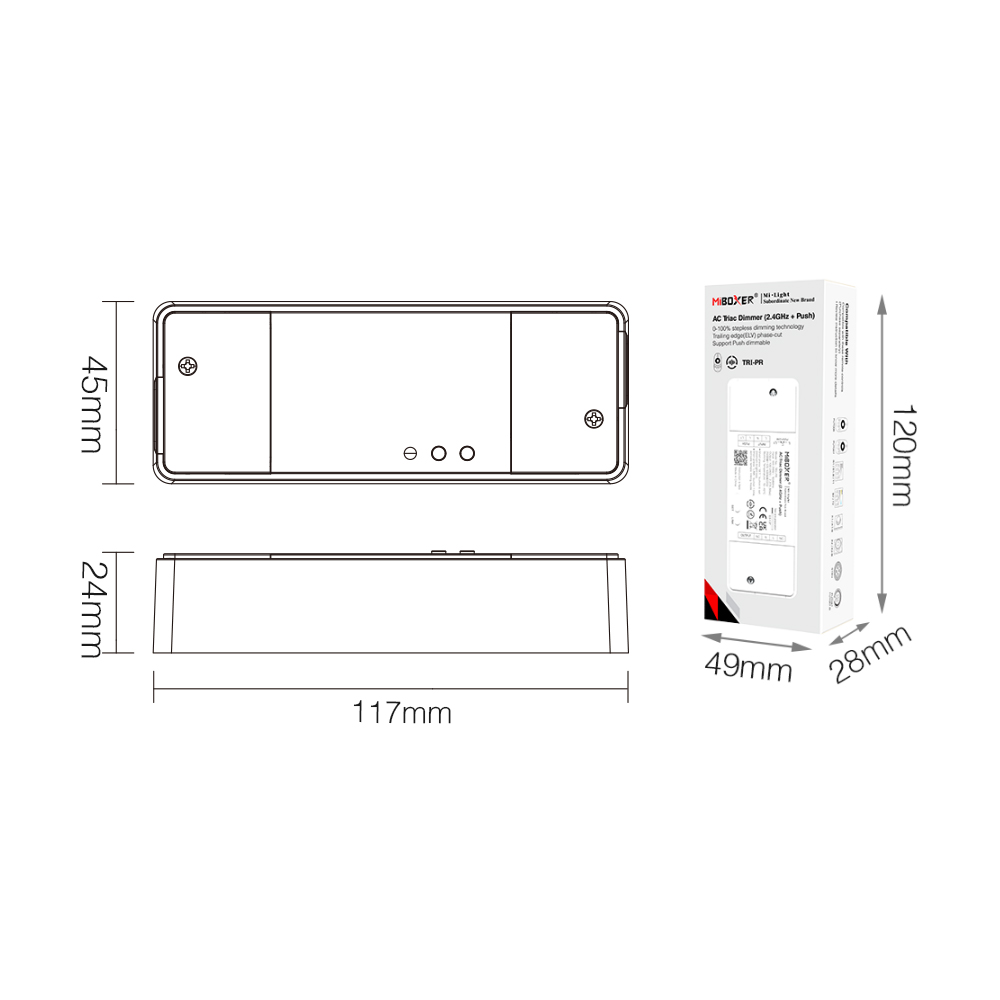

  • Size: 117*45*24mm(L*W*H)
  • Input Voltage: AC100-240V; 50/60Hz
  • Output Voltage: AC100-240V
  • Output Current: 2.27A Max
  • Output Power: 250W(AC110V) / 500W(AC220V)
  • Trailing Edge(ELV) Phase-Cut Technology
  • Dim Method: RF Wireless Dimming / Push Dimming
  • Compatible With MiBoxer 2.4G Remote Controls: T1, T2, B1, B5, B2, K3S, K3, C1, FUT006, FUT007, FUT094, S1W+, S1, K1, K2, K2S, FUT087,
  • 2.4G RF Control Distance: ≤30M
  • Smart Tuya Smart Phone APP Control(2.4G Gateway Or Zigbee 3.0 Gateway Needed)
  • Support Third-party Voice Control(2.4G Gateway Or Zigbee 3.0 Gateway Needed)
  • IP Rate: IP20 Non-waterproof
  • Over Heat / Load Protection
  • Applications: Single Color Triac Dimming LED Light, Traditional Filament Lamp, Halogen Lamp
  • Working Temperature: -10-40℃
  • 2 Years Warranty

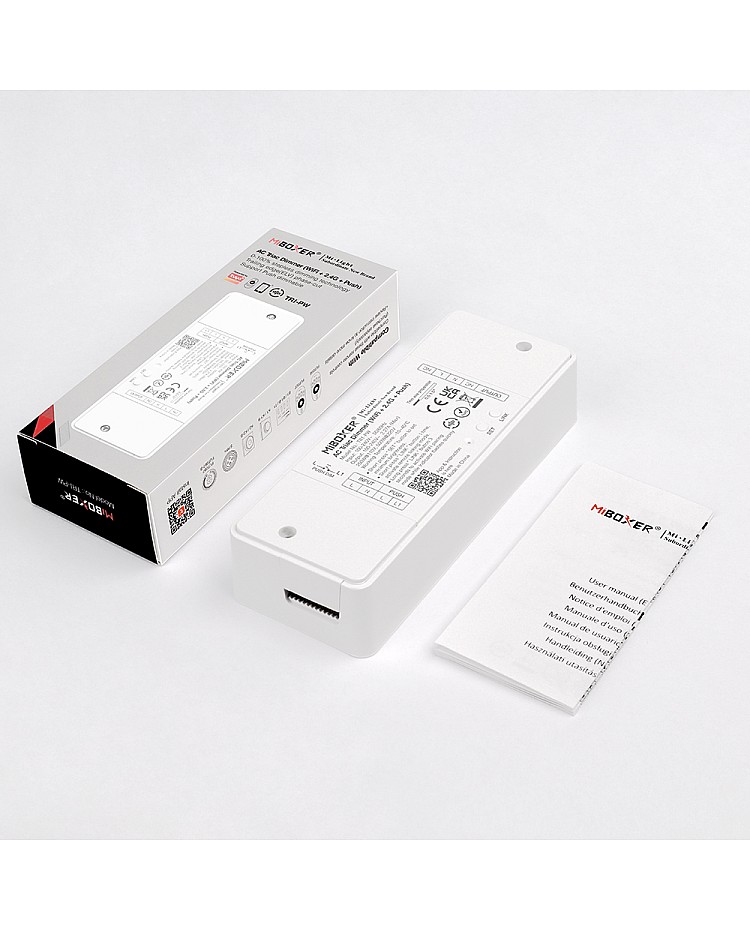

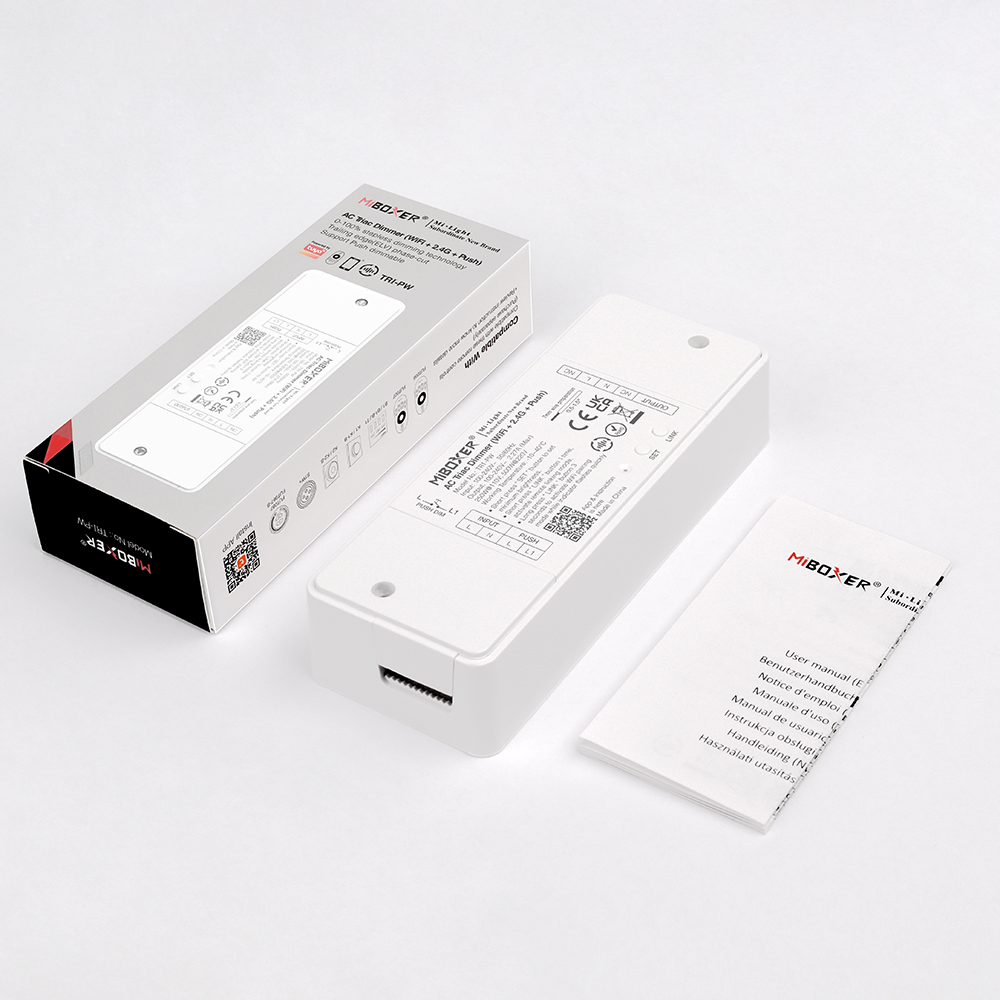

Includes:

1*RF Push AC Triac Dimmer
