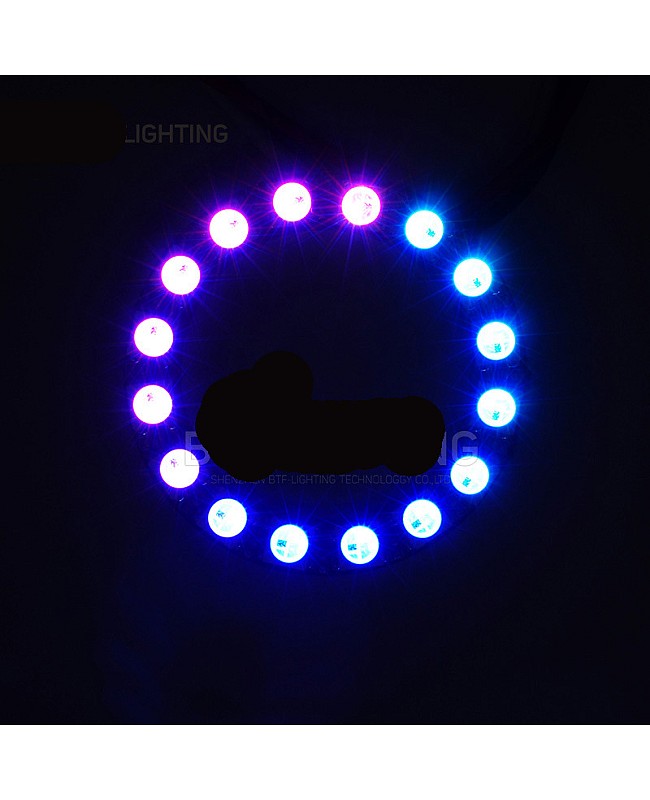

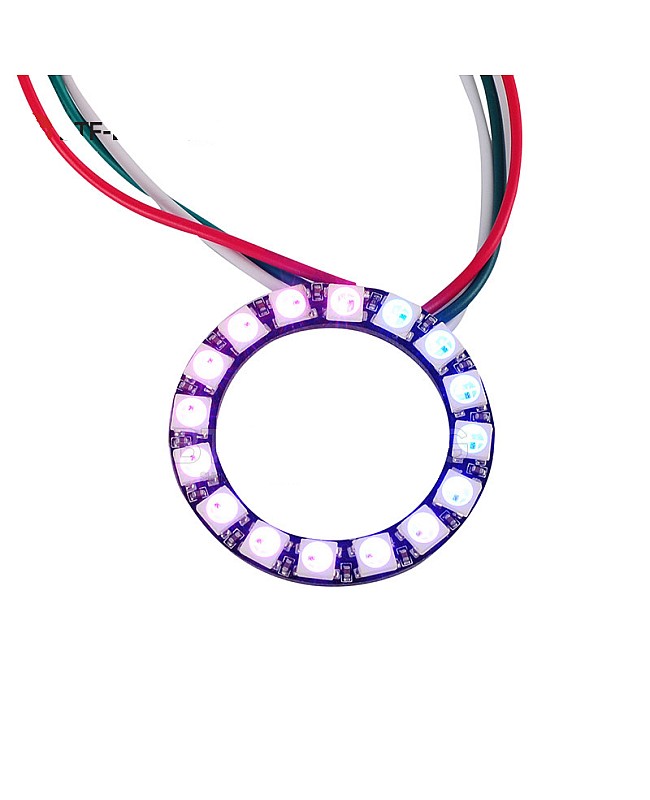

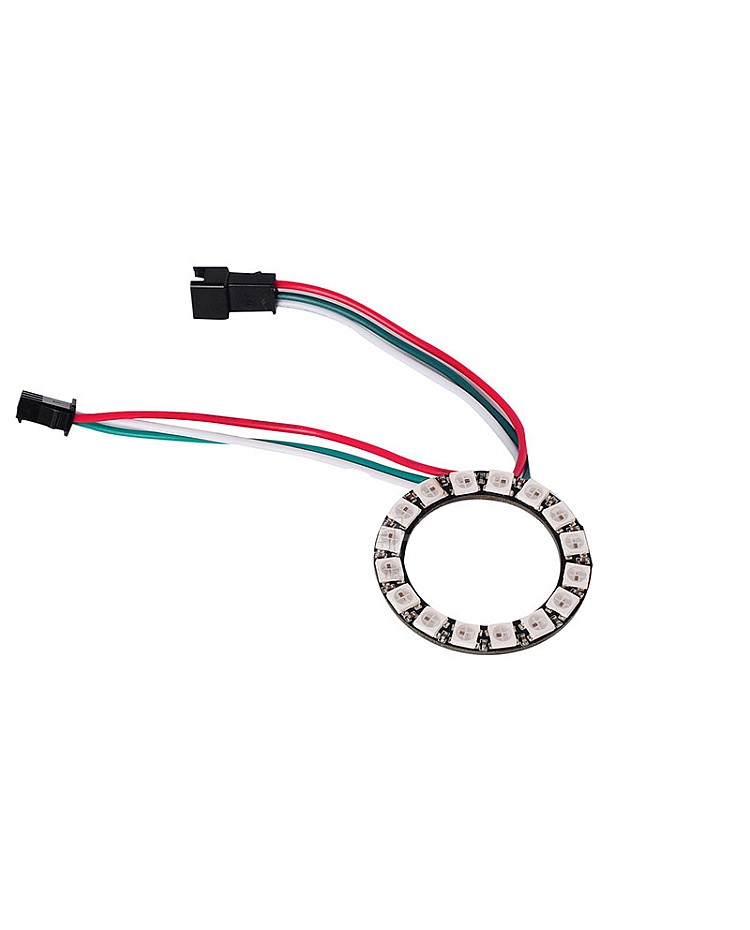

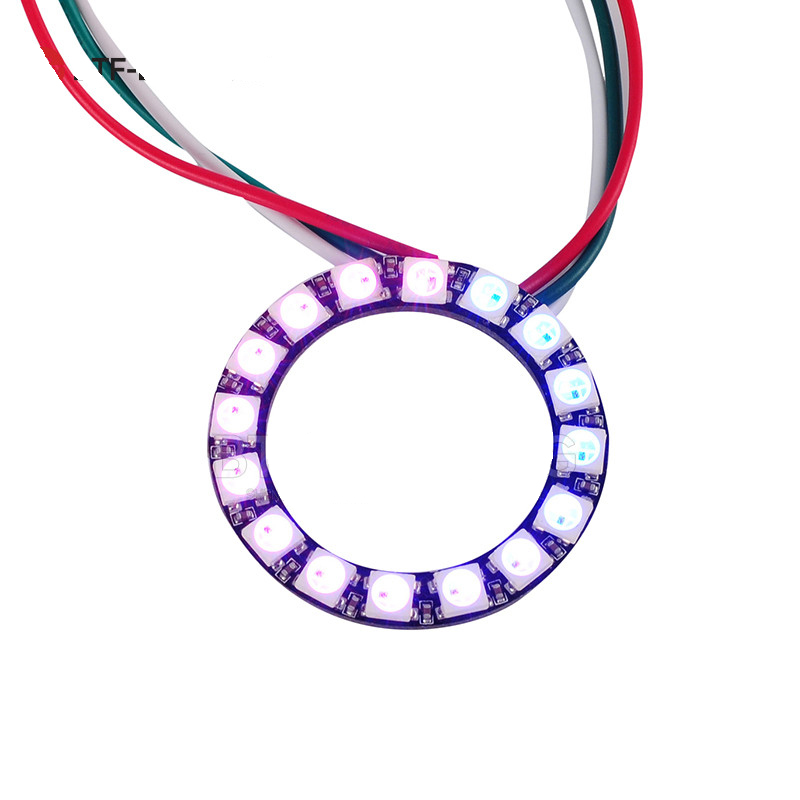

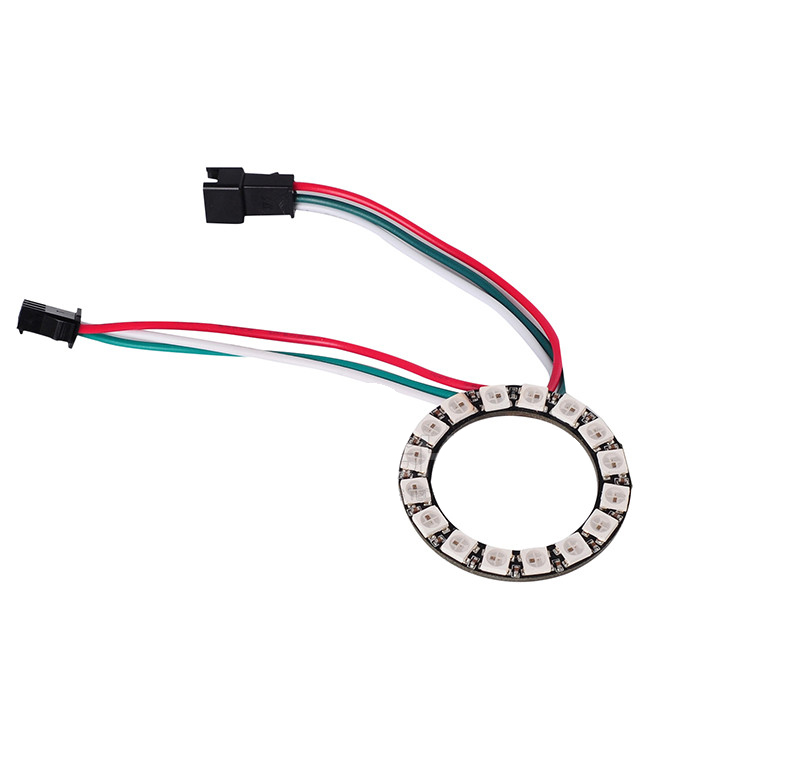

Check the Individually Addressable WS2812B Pixel LED Ring Panel, which uses 16PCS RGB SMD LEDs as the light source, each LED built-in the WS2812B IC, each LED is separately controlled by the IC for individually addressable function, every one LED Lighting can be controlled, every RGB LED is digitally addressable. can work with Programmable LED Controller to achieve many amazing lighting effects: curtain-up/flow water/raindrop/jump flash and so on hundreds of lighting effects, you also can edit animation effects by Coreldraw/Flash/LEDEidt software. you can use them in the lighting applications in parks, squares, hotels, airports, offices, shopping malls, coffee bars, etc.

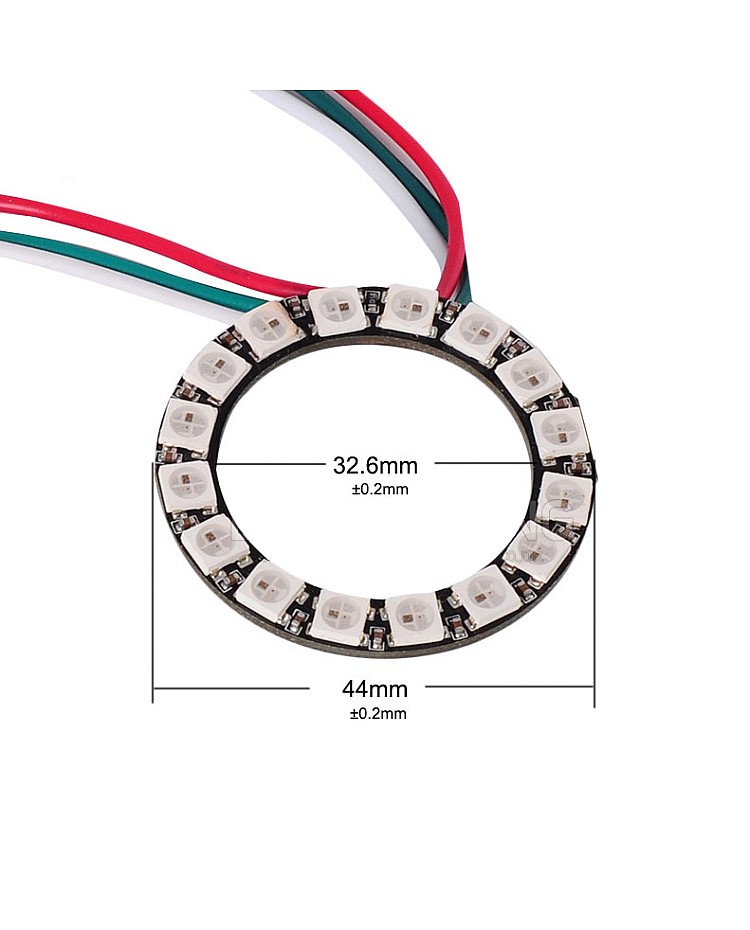

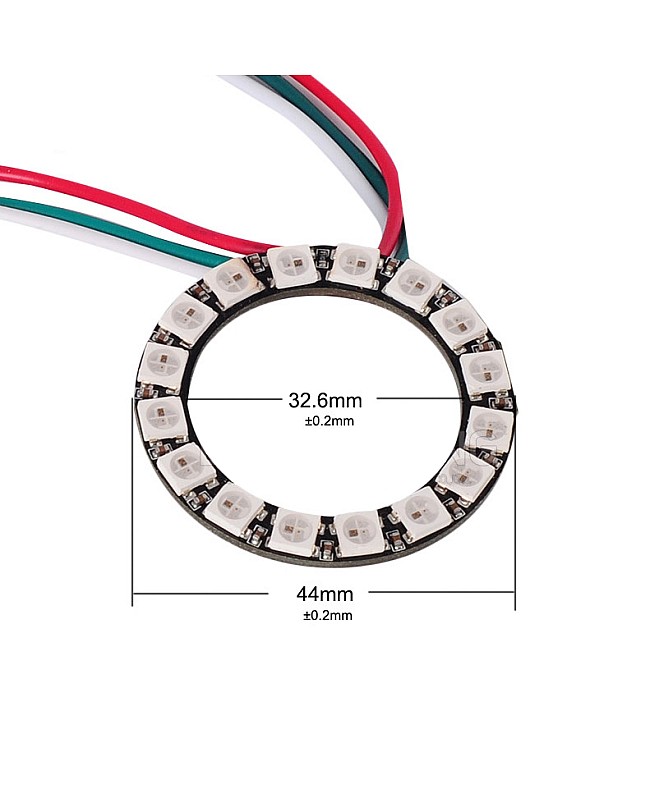

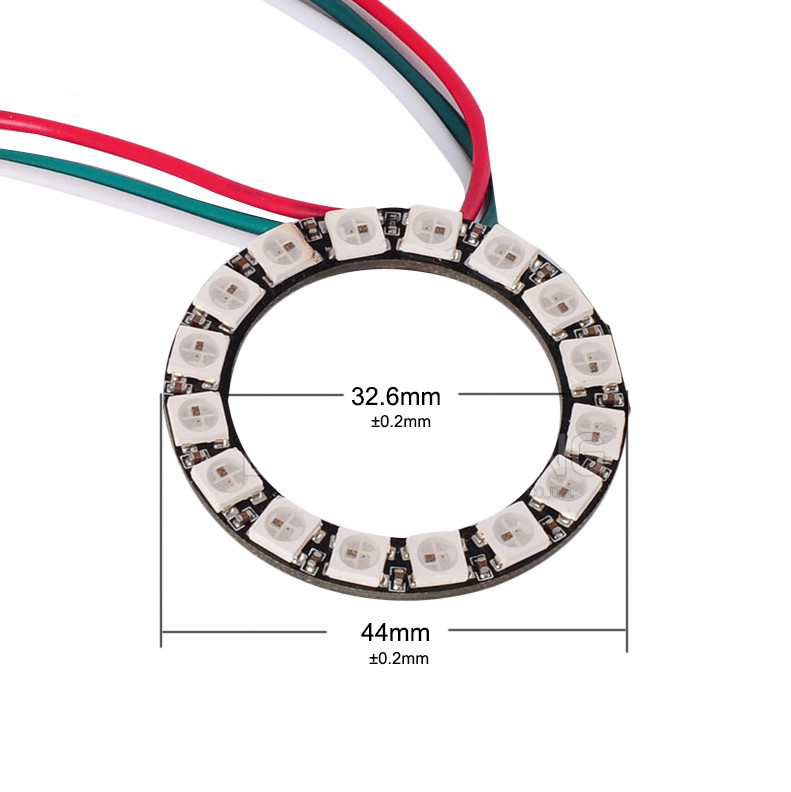

  • Outer Diameter: 44mm±0.2mm
  • Inner Diameter: 32.6mm±0.2mm
  • Working Voltage: DC5V
  • Power: 5W/PC
  • Colors: Full Color
  • LED Type: 5050 SMD LED
  • LED Quantity: 16PCS
  • IC Type: WS2812B(Improved Version Of WS2811)
  • IC Quantity: 16PCS

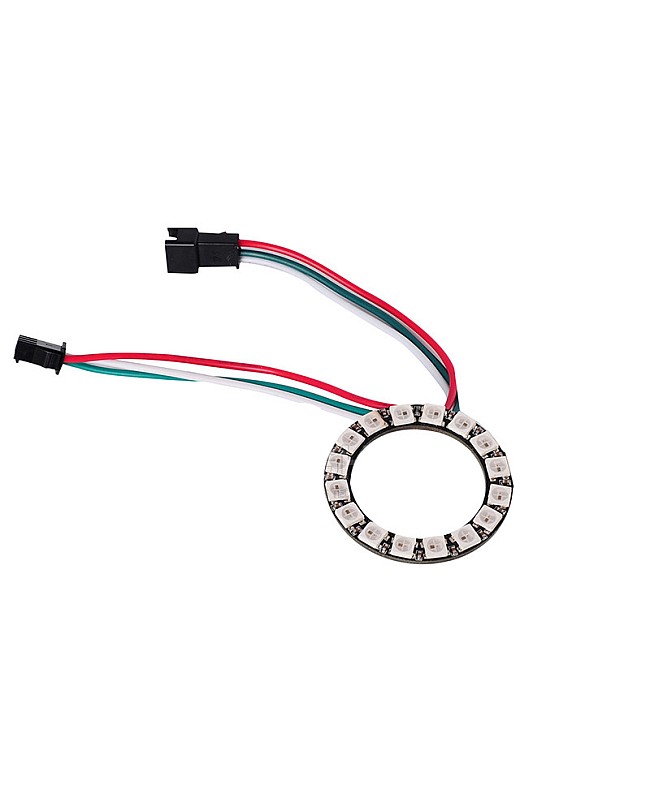

  • Connection: VCC: Red; GND: Black/White; DAT: Blue
  • Grey Scale: 256
  • Bits/Color: 8-Bits/Color
  • FPC Color: Black
  • IP Rating: IP30 Non-Waterproof
  • Dimmable: YES
  • Working Temperature: -20℃-+50℃
  • 2 Years Warranty


1*LED Ring Panel
