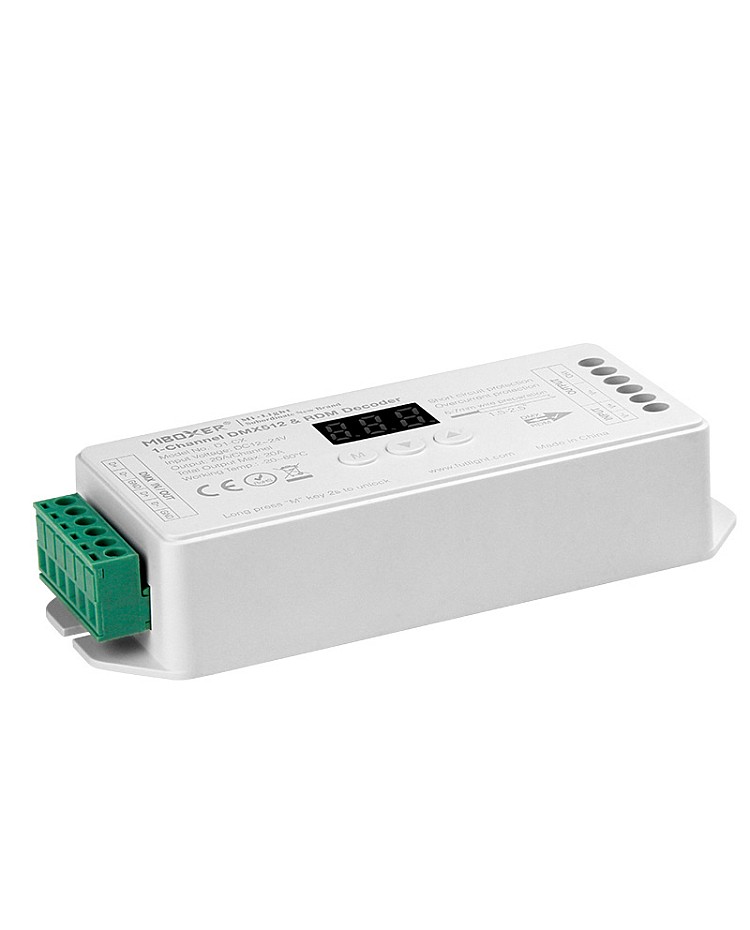

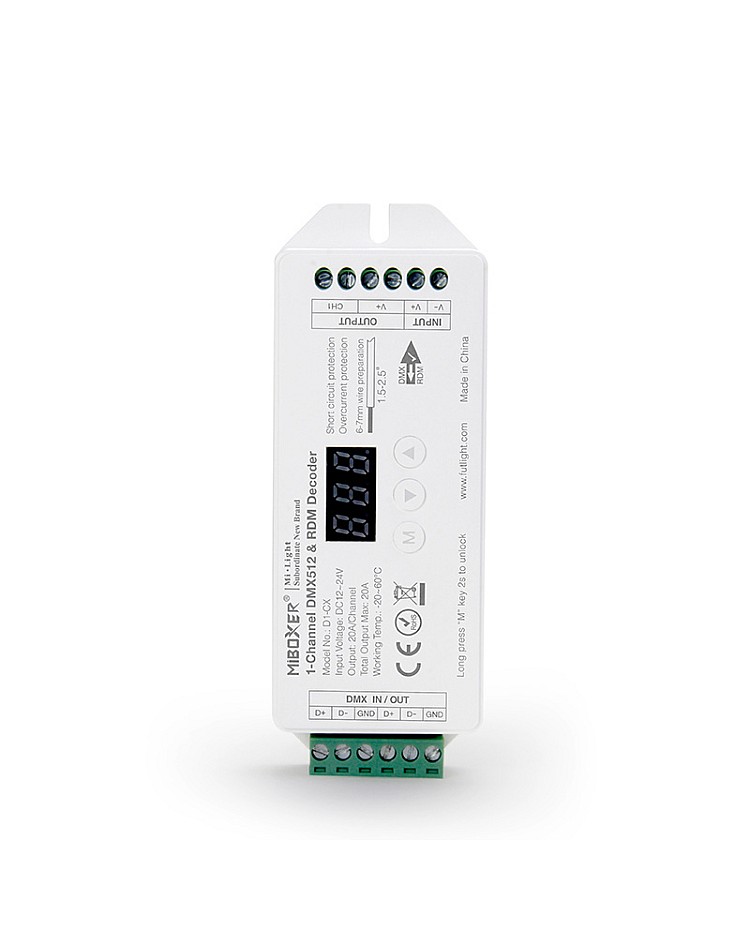

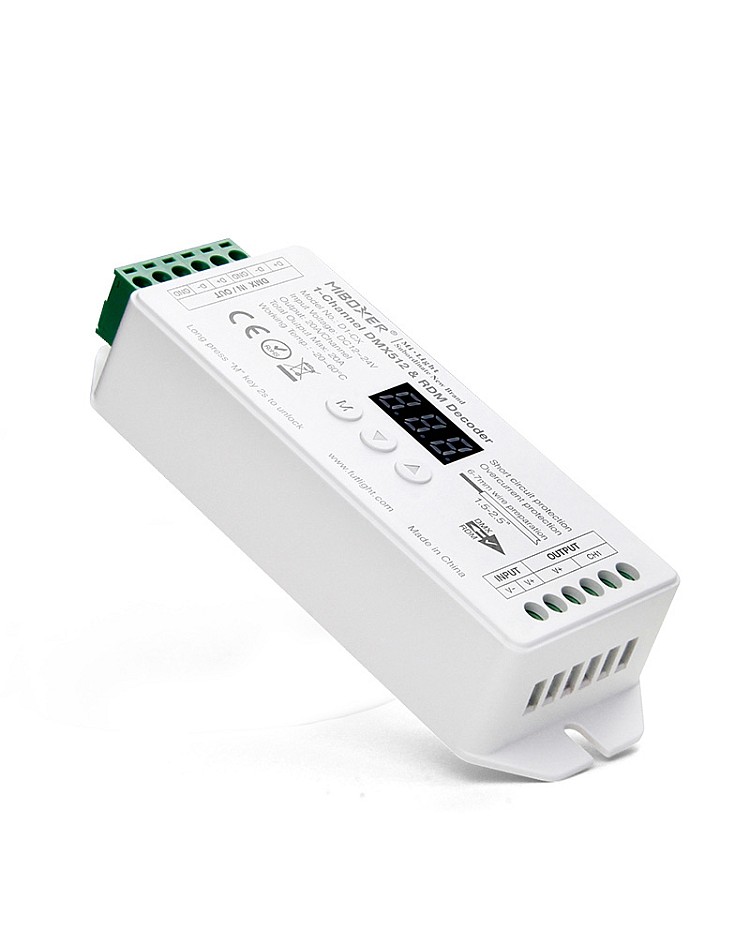

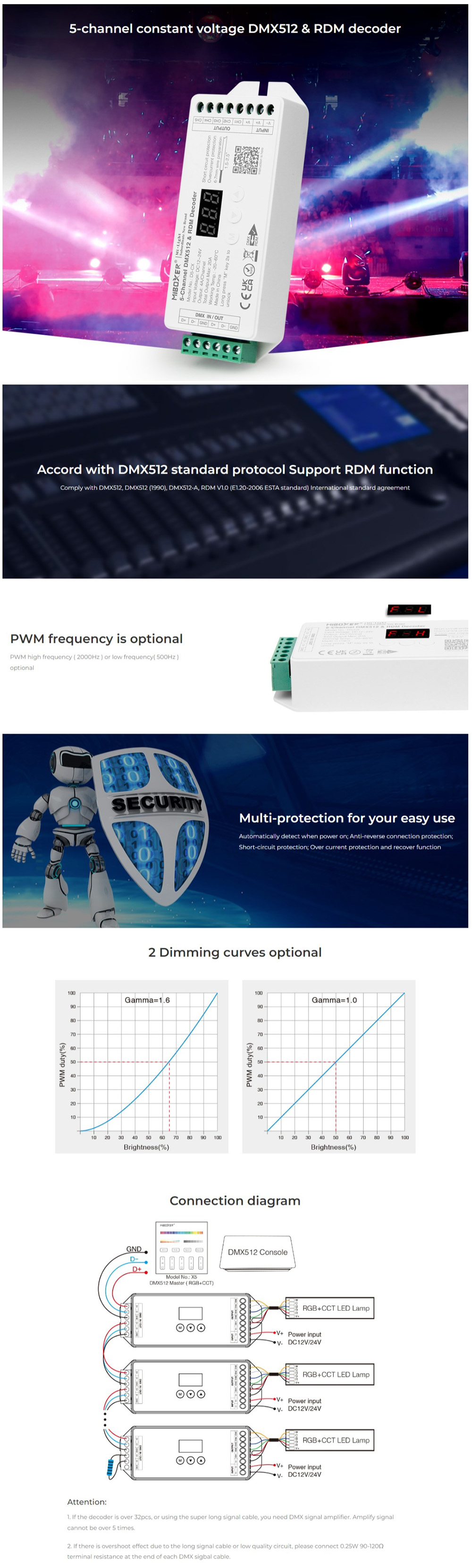

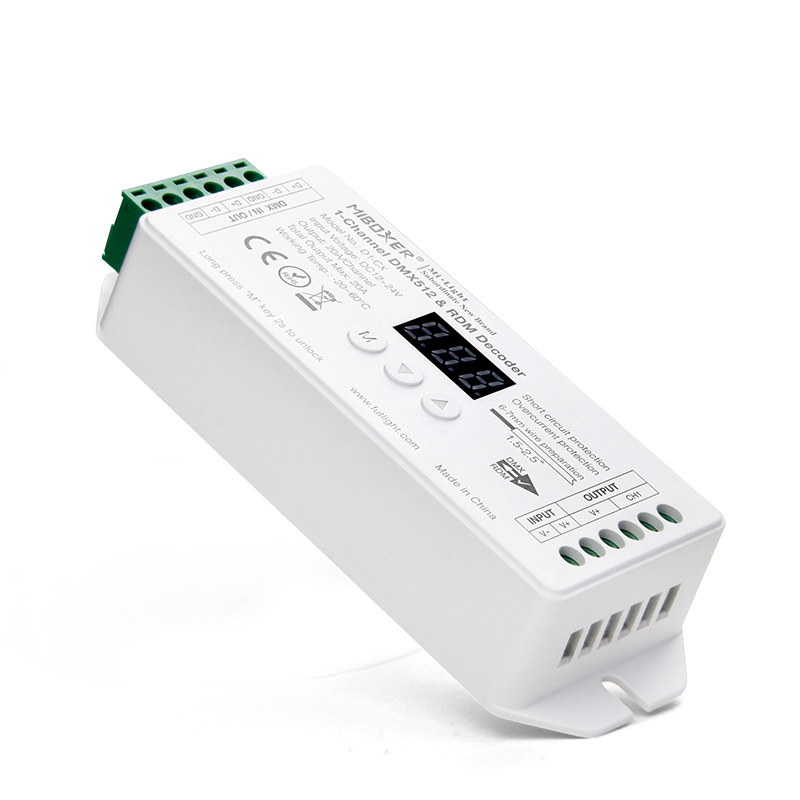

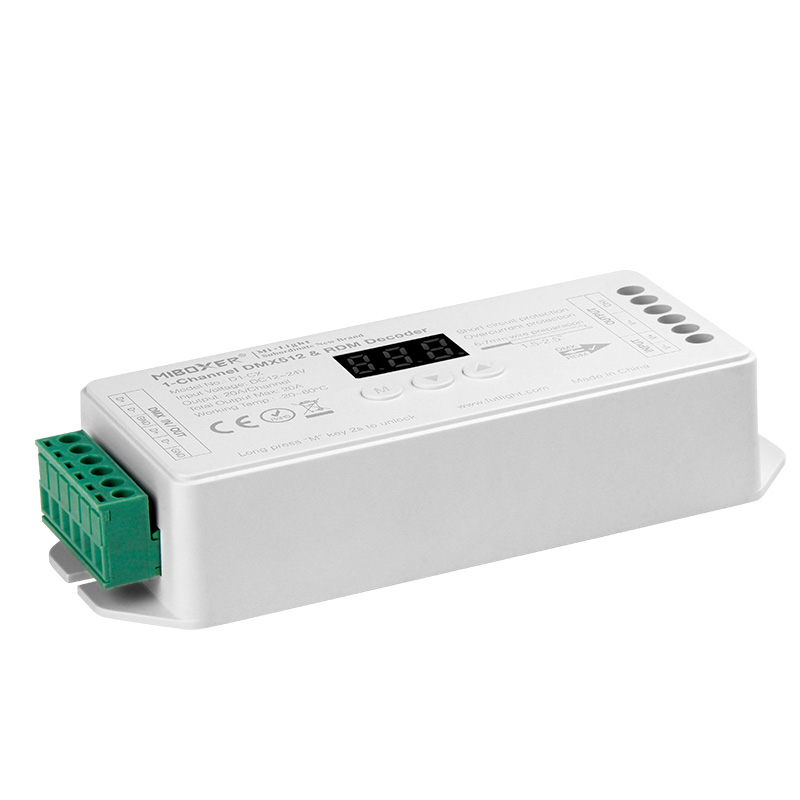

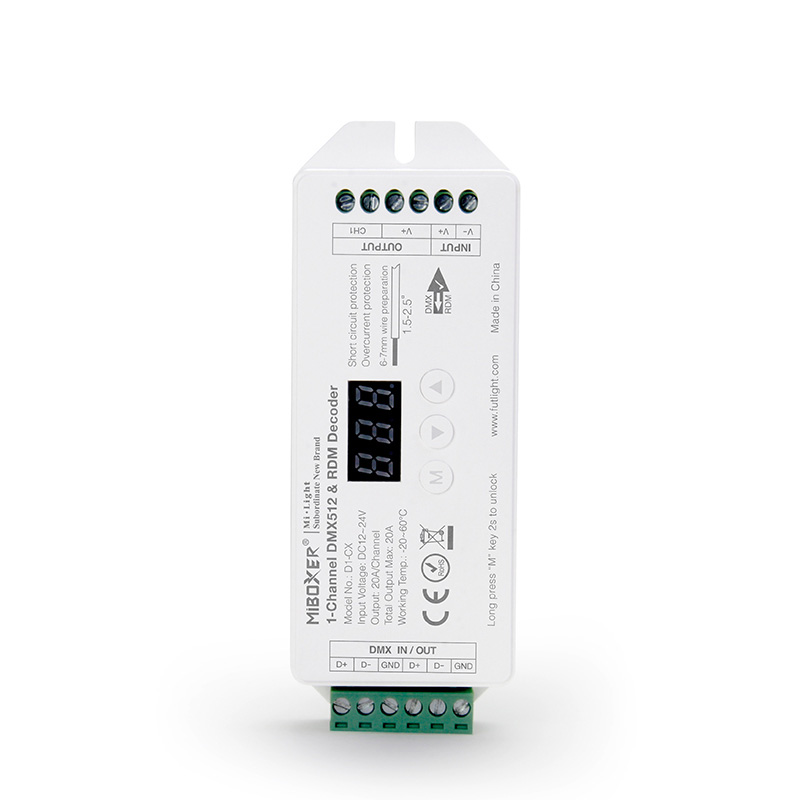

The MiBoxer D-CX series DMX512 decoder complies with DMX512, DMX512(1990), DMX512-A, and RDM V1.0 international standard protocol. Works on DC12V or DC24V, and one-channel to 5-channel products are available. The max output current is up to 20A, and the DMX512 and RDM signals can be received when in unlock status. When the digital display shows 001-512, short-press the Up or Down buttons, and you can change the DMX initial address. Long press, you can change quickly. The PWM frequency is optional. High PWM frequency(2000Hz) or low frequency(500Hz) is optional; you can press the button to switch. Dimming curves and smoothness settings are available, and you can press the buttons to switch. The MiBoxer RDM decoder has multi-protection and is designed for easy use. The IP rating is IP20 non-waterproof, only for indoor use.
Quick Links:
MiBoxer D1-CX To D5-CX User Manual
Specifications:
- Model: D1-CX(1 Channel), D2-CX(2 Channels), D3-CX(3 Channels), D4-CX(4 Channels), D5-CX(5 Channels)
- Size: 130*49*27mm(L*W*H)
- Input Voltage: DC12-24V
- Output Current: 4A(5-Channels), 5A(4-Channels), 6A(3-Channels), 10A(2-Channels), 20A(1-Channel)
- Total Output Current: 20A
- Input Signal: DMX512, RDM
- Comply With DMX512, DMX512(1990), DMX512-A, RDM V1.0
- PWM Frequency Optional: High Frequency(2000Hz)/Low Frequency(500Hz)
- 2 Dimming Curves Optional: Logarithmic Dimming/Linear Dimming
- IP Rating: IP20 Non-Waterproof
- Automatically Detect When Power On
- Anti-Reverse Connection Protection
- Short-Circuit Protection
- Overcurrent Protection And Recovery
- Working Temperature: -20-60℃
- 2 Years Warranty

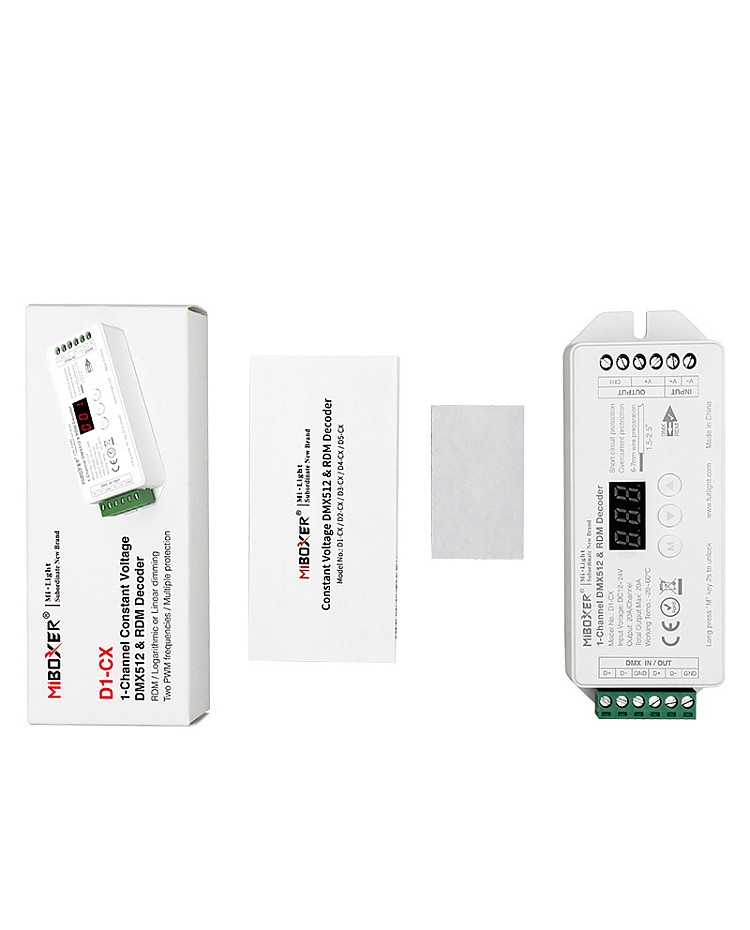

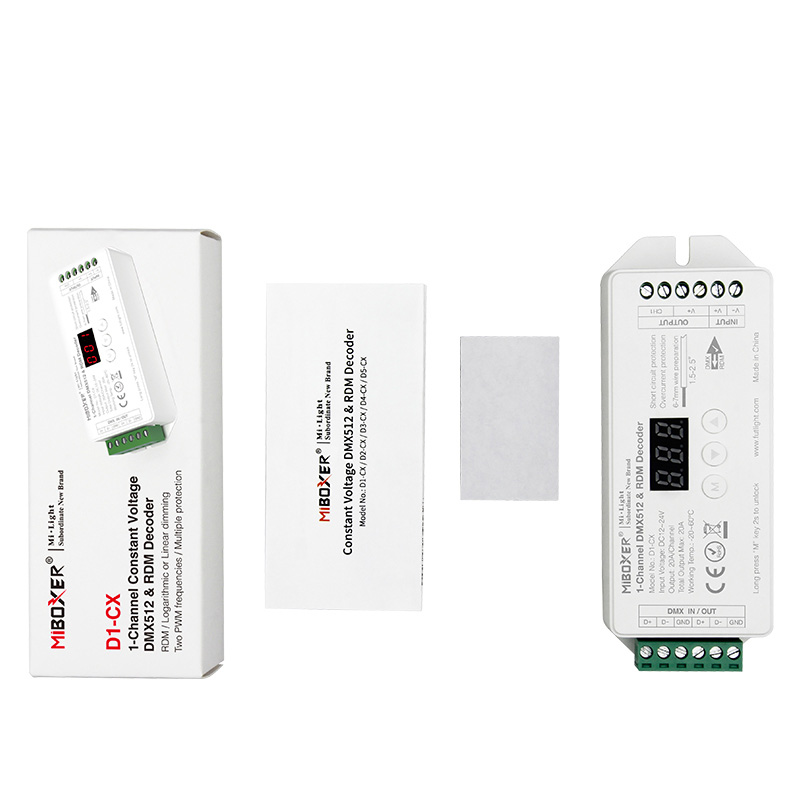

Includes:
1 * DMX 512 Decoder
