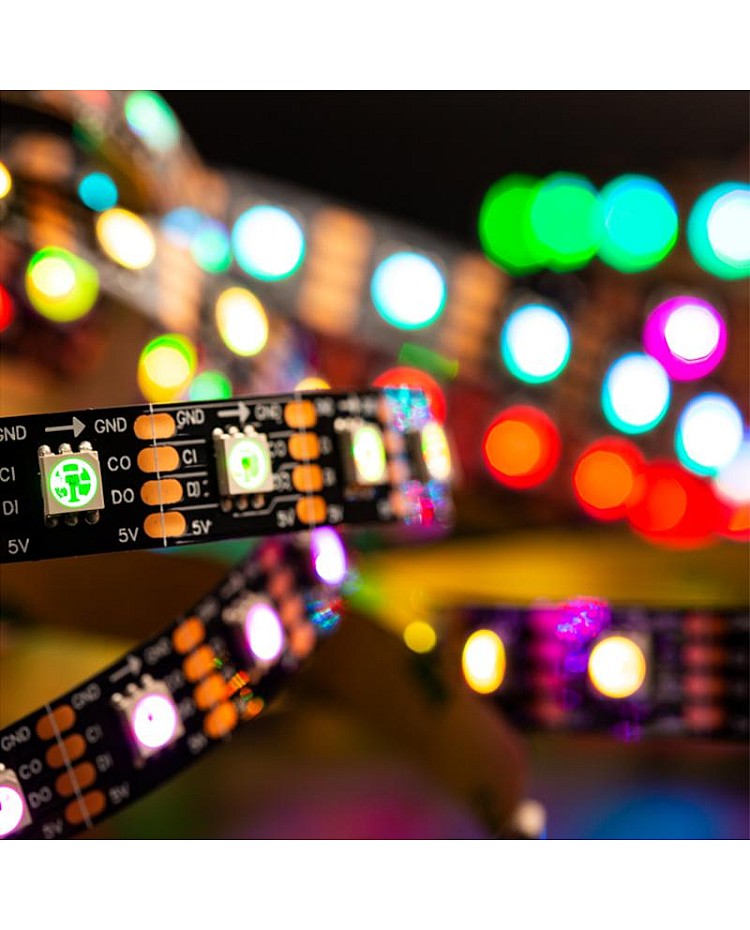

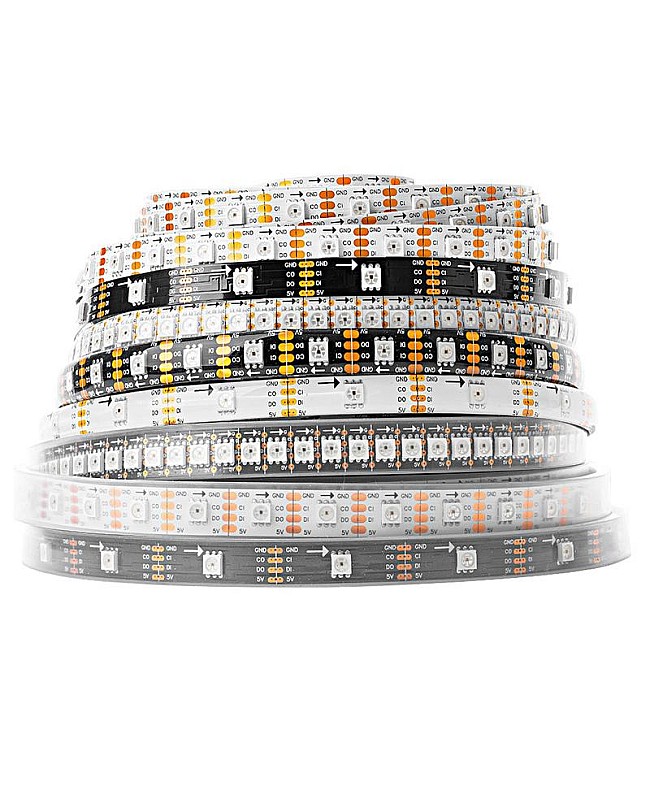

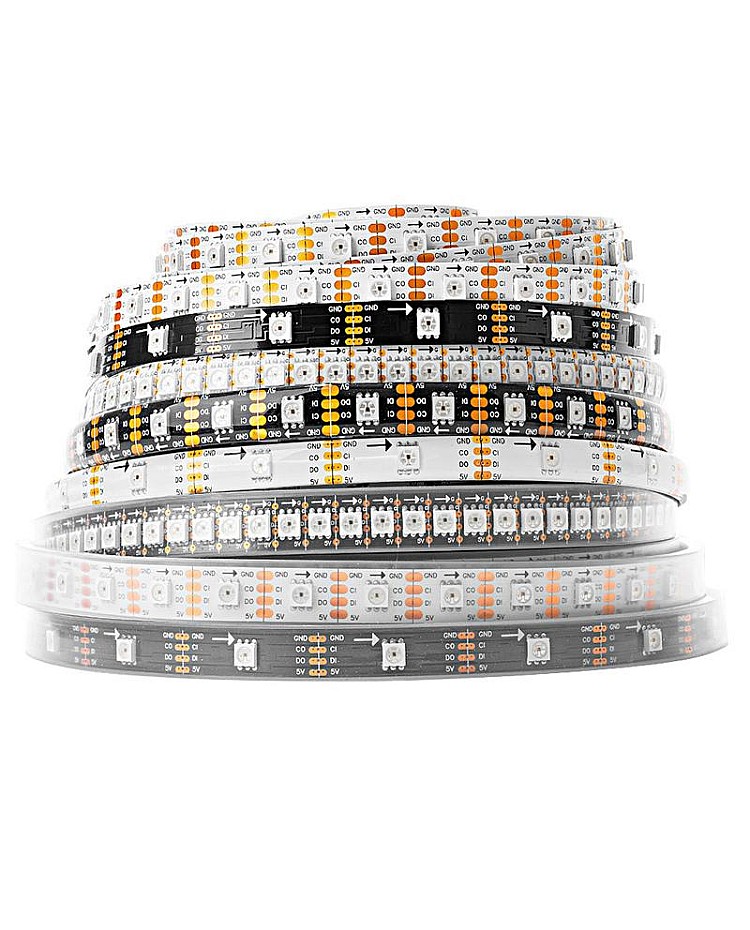

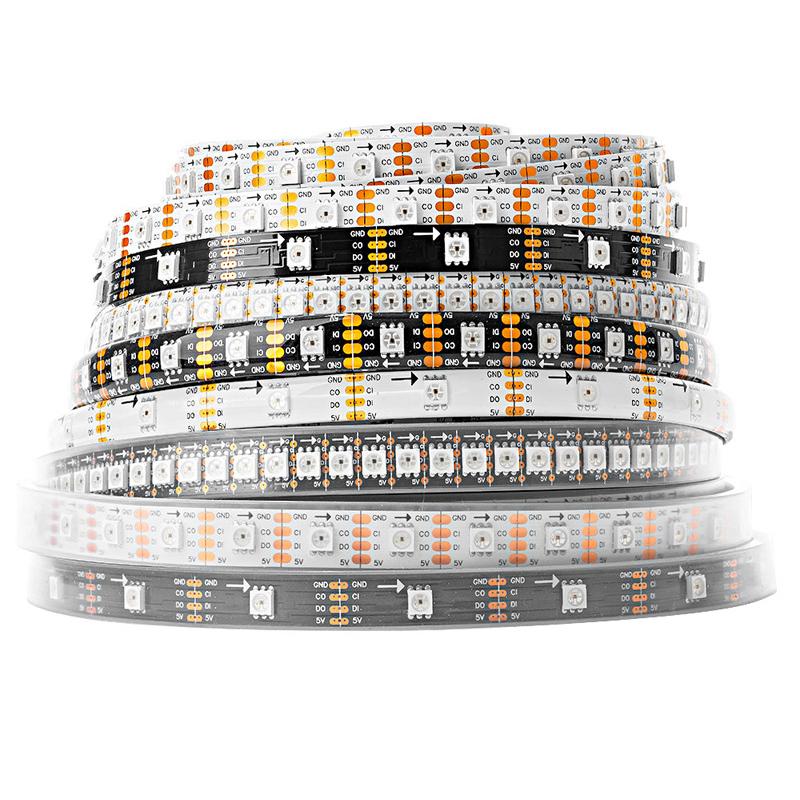

The SK9822 5V LED Strips, which with individually addressable designs, use the high-quality 5050 RGB SMD LEDs as the light source, the LED built-in SK9822 IC, with two signal wires design, the DATA and CLOCK, more stable than a single signal wire and faster, intensity and reliability, can work with our Addressable LED Light Controllers to achieve the thousands of amazing lighting effects, easy to appear the significant effect like curtain-up, flow water, raindrop, jump, flash, etc. You can edit the animation effect with CorelDRAW, Flash, or LED Edit software for DIY effects. There are three types of LED quantities and three types of waterproof levels of products available, allowing you to choose from 30 LEDs per meter, 60 LEDs per meter, or 144 LEDs per meter. IP30, IP65, and IP67 Waterproof SK9822 LED Strips are available, and you can use the IP30 and IP65 Strip for outdoor lighting applications. The back of both of them is covered with double-sided adhesive tape, making it easy to install and use. You can install the IP67 Addressable LED Tapes for outdoor projects in wet, damp, or waterlogged locations. Every LED is cuttable, allowing you to trim it to any desired length for your project easily. The 4-pin JST Connector and 4-pin JST-SM Connector are easy to connect to the DreamColor Addressable LED Strip Controllers.
Note:

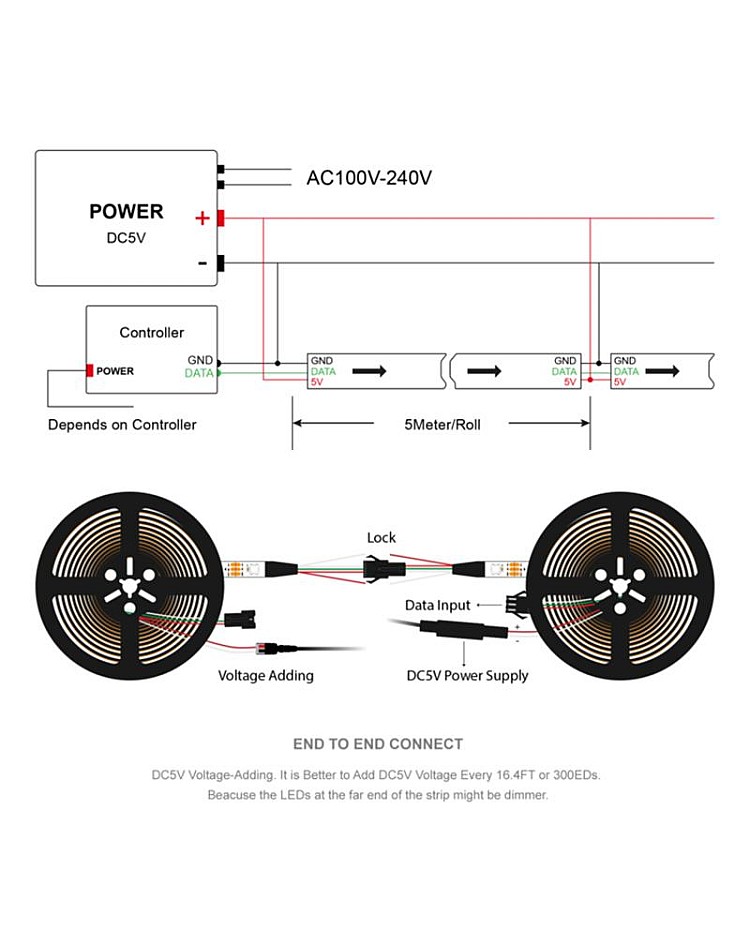

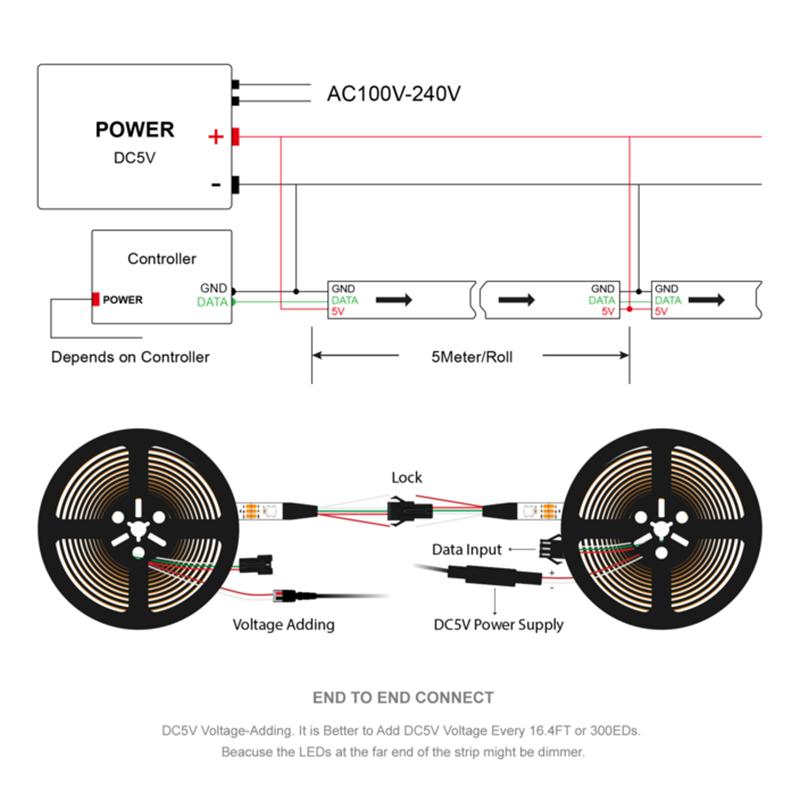

The LEDs at the far end may be dimmer due to the added resistance and voltage drop. We recommend adding the same working voltage every 5 meters (16.4 ft) according to the actual situation to maintain the same brightness.
Specifications:
- Working Voltage: DC5V
- IC Type: Built-in SK9822
- LED Type: 5050 RGB SMD LEDs

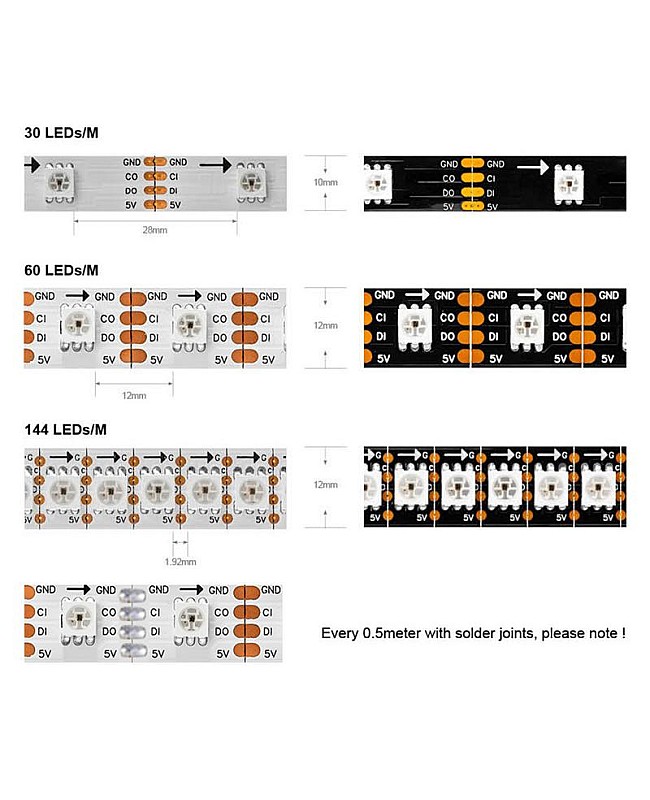

- LED Quantity: 30LEDs/M, 60LEDs/M, 144LEDs/M
- Colors: Full Color(24-Bit)
- View Angle: 120°
- Grayscale Levels: 256
- Wavelength: Red: 650nm; Green: 520nm; Blue: 460nm
- Colors Of PCB Board: White/Black
- Power: 0.3W/LED
- Length: 1M, 5M

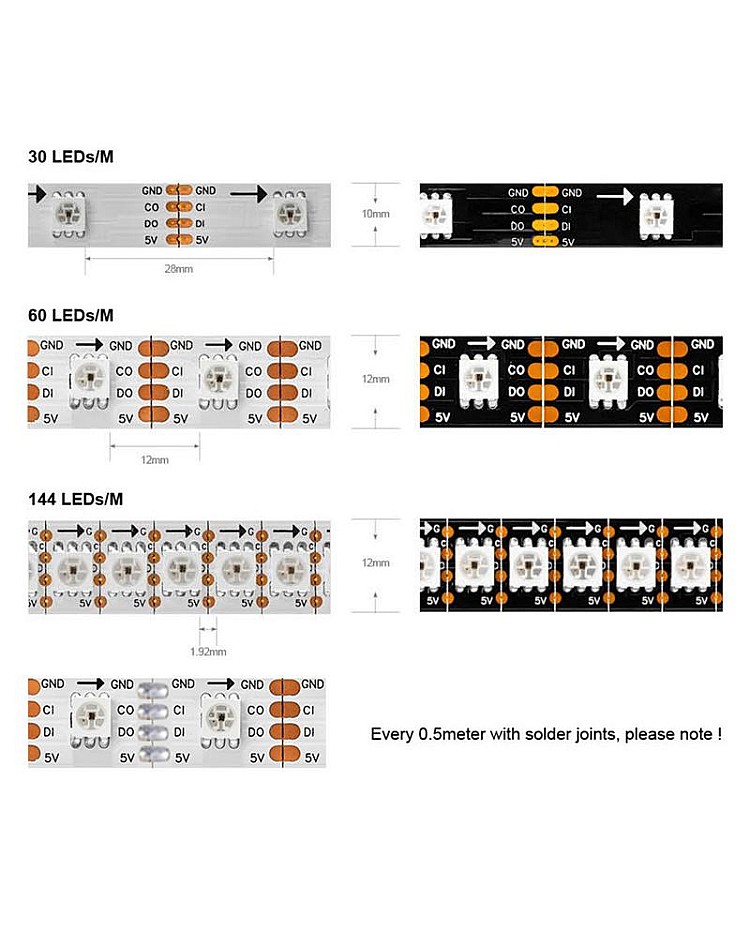

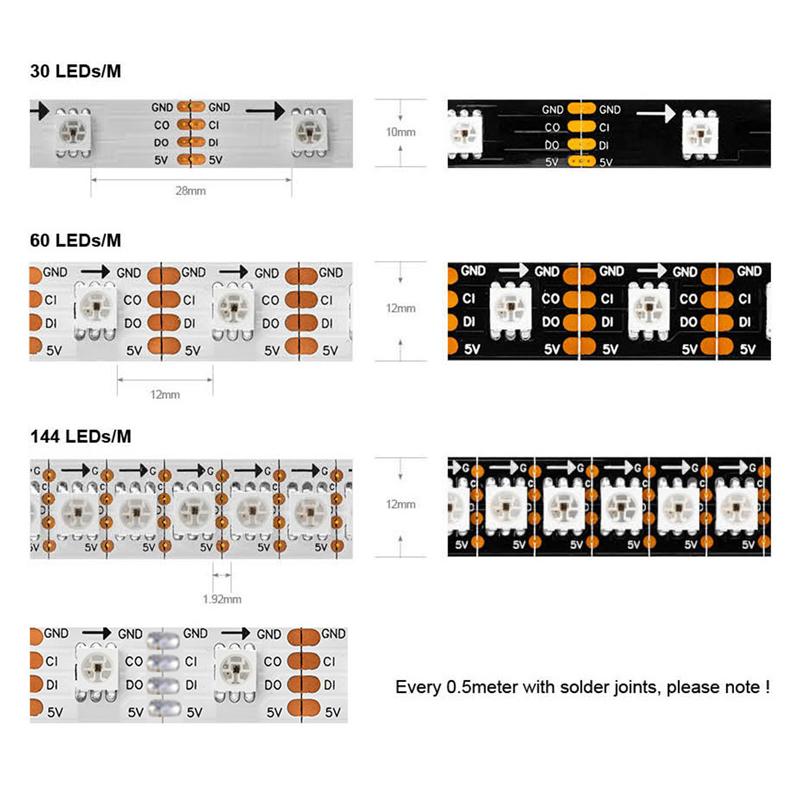

- Width: 10mm(30LEDs/M), 12mm(60LEDs/M, 144LEDs/M)

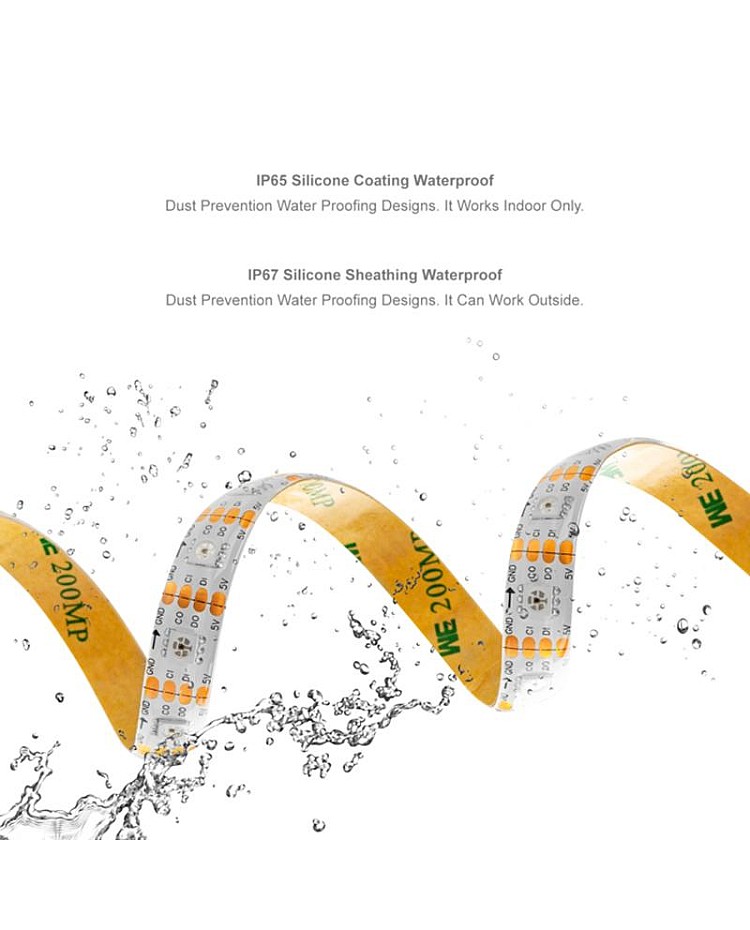

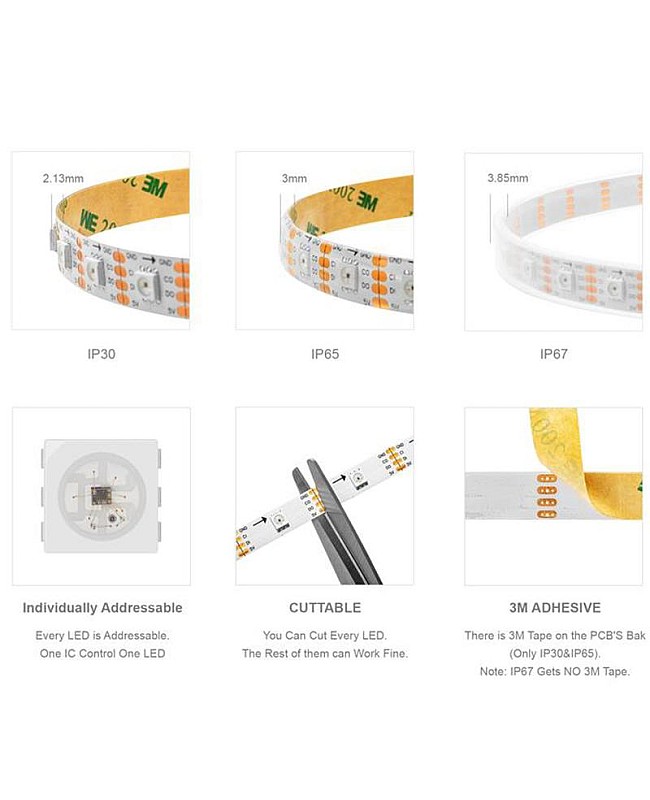

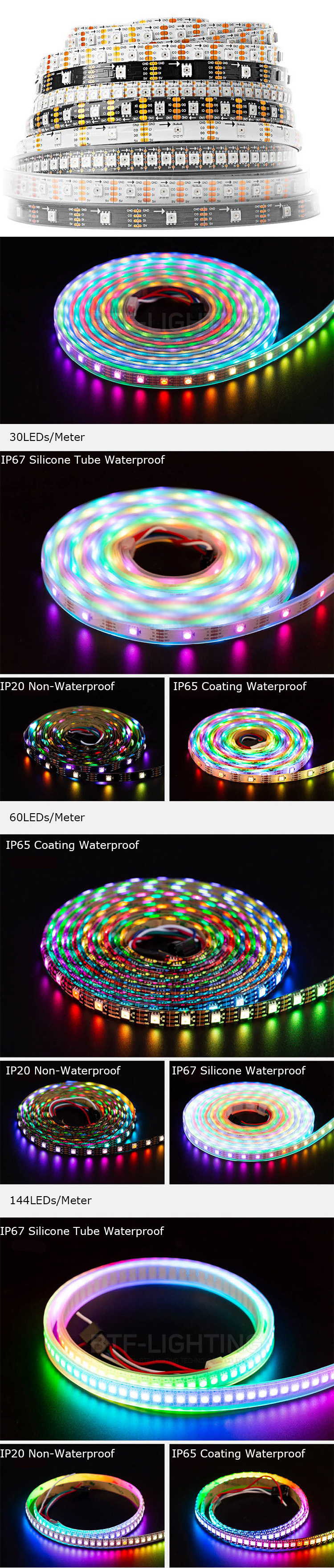

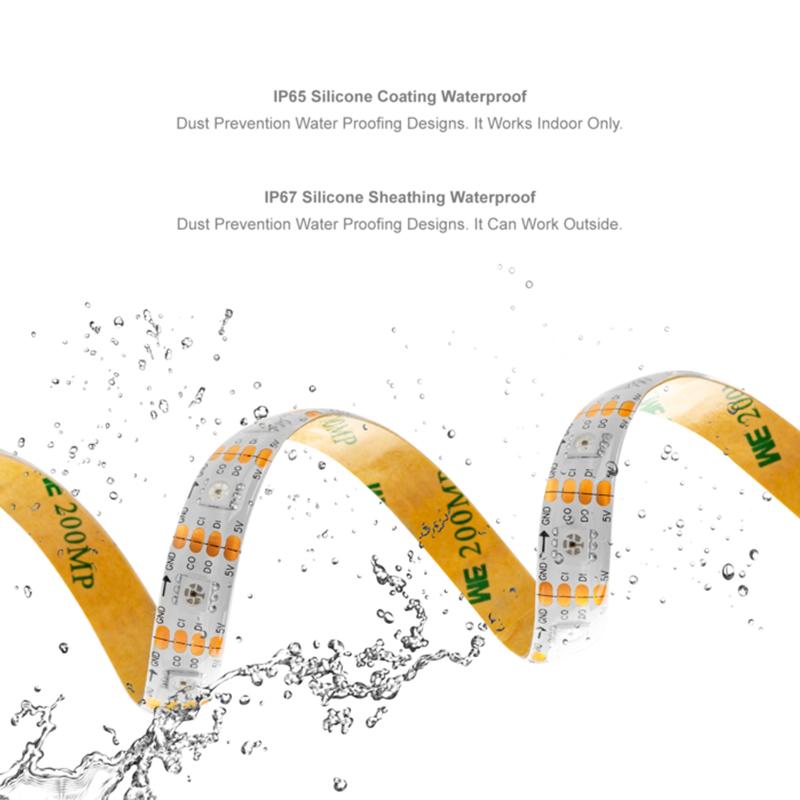

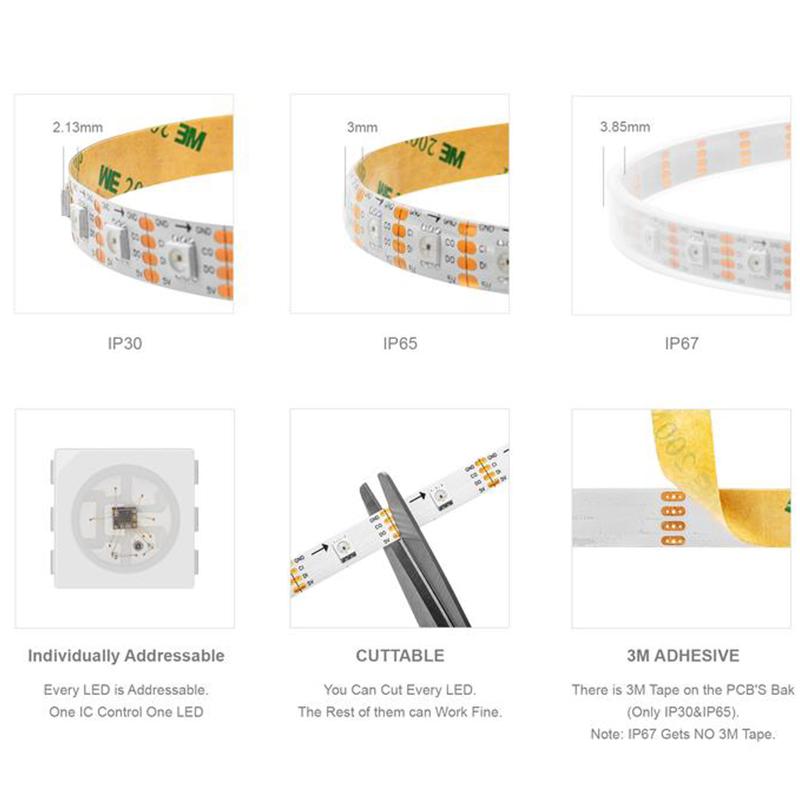

- Waterproof Levels: IP30 Non-waterproof, IP65 Coating Waterproof, IP67 Silicone Tube Waterproof

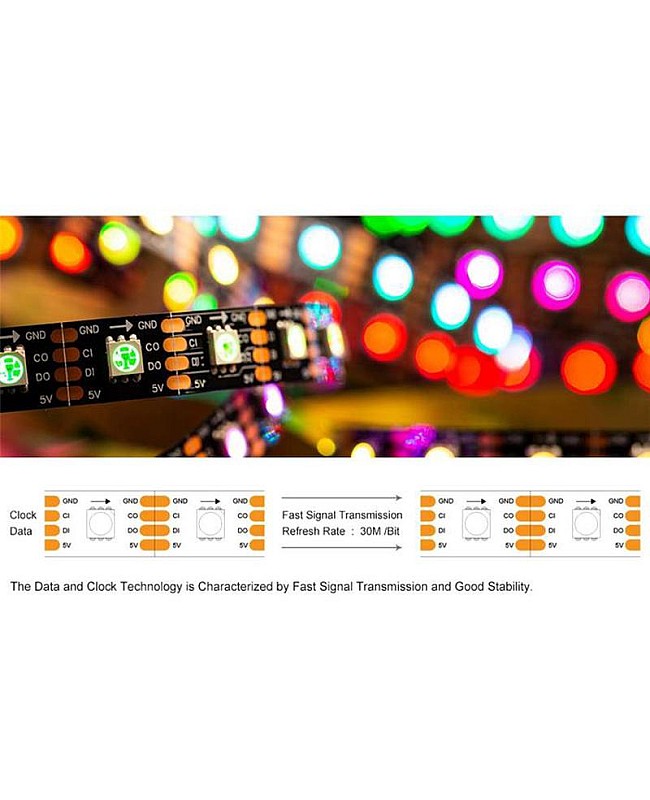

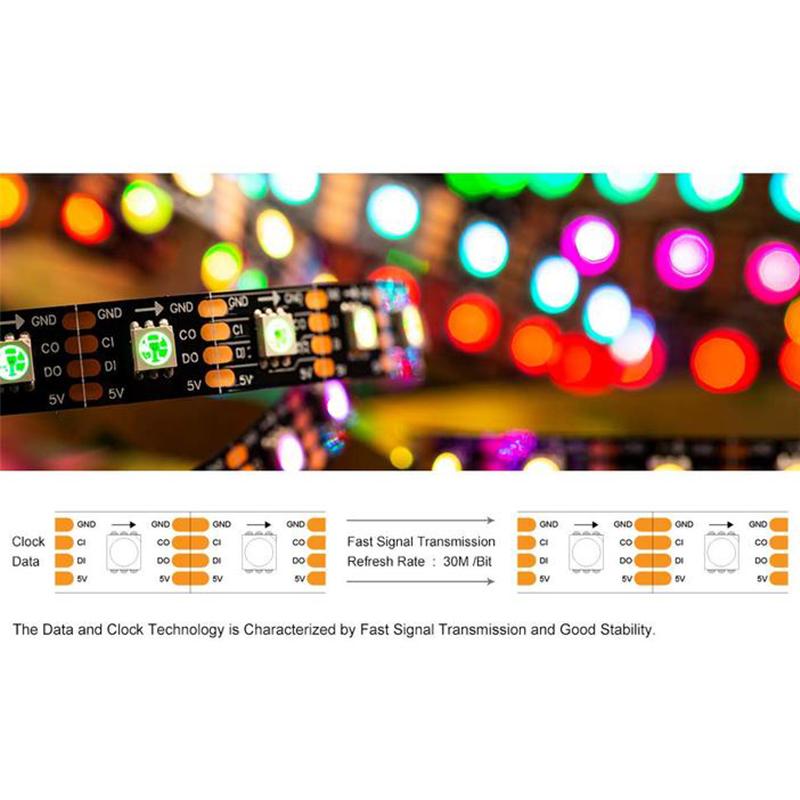

- The Data And Clock Technology Is Characterized By Fast Signal Transmission And Good Stability
- Every LED Is Cuttable

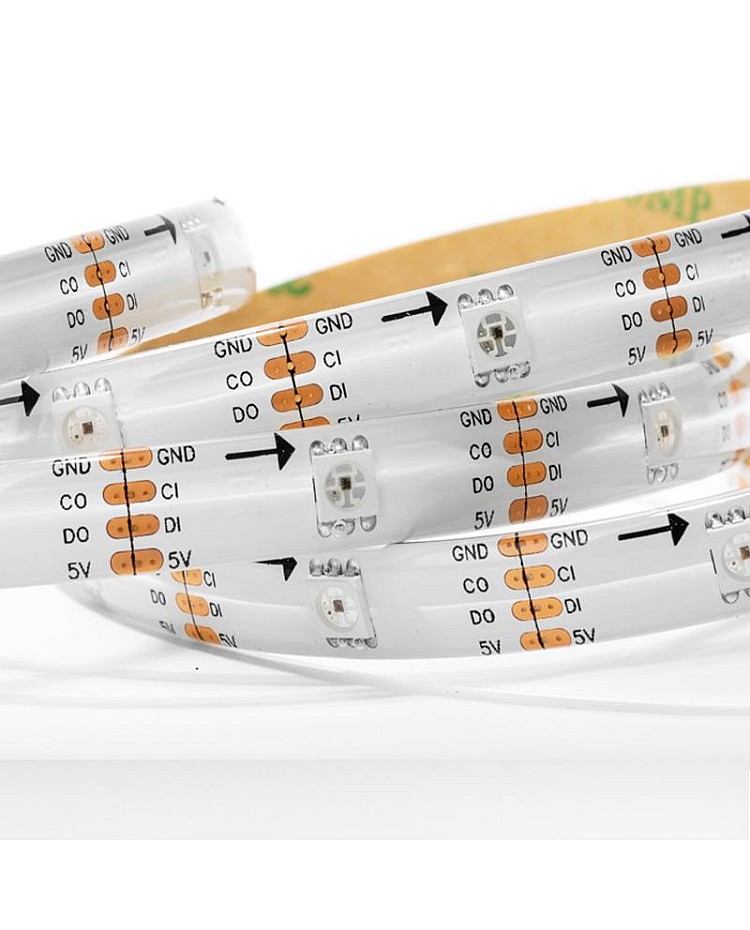

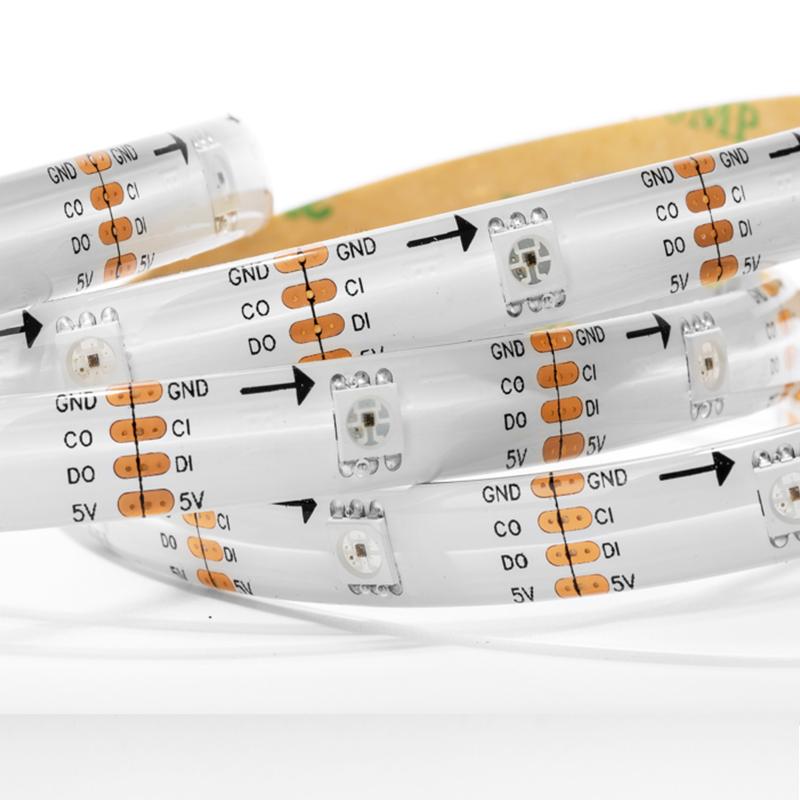

- Pins:
- DO: Data Output
- DI: Data Input
- CO: Clock Output
- CI: Clock Input
- G: GND
- 5V: DC5V V+
- Working Temperature: -20℃-+50℃
- Lifespan: 50,000 Hours
- 2 Years Warranty
Includes:
1 * SK9822 5V LED Strip With 4 Pin Female Connector
