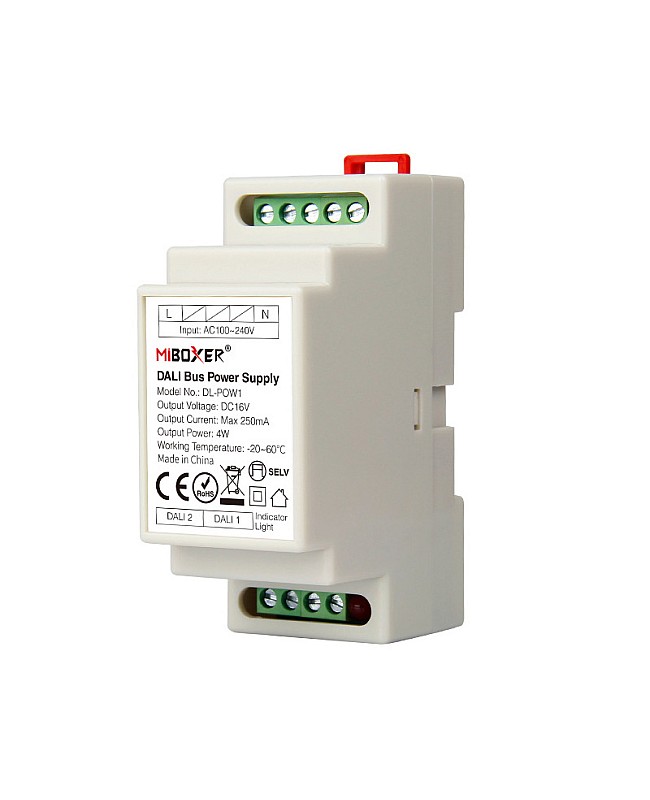

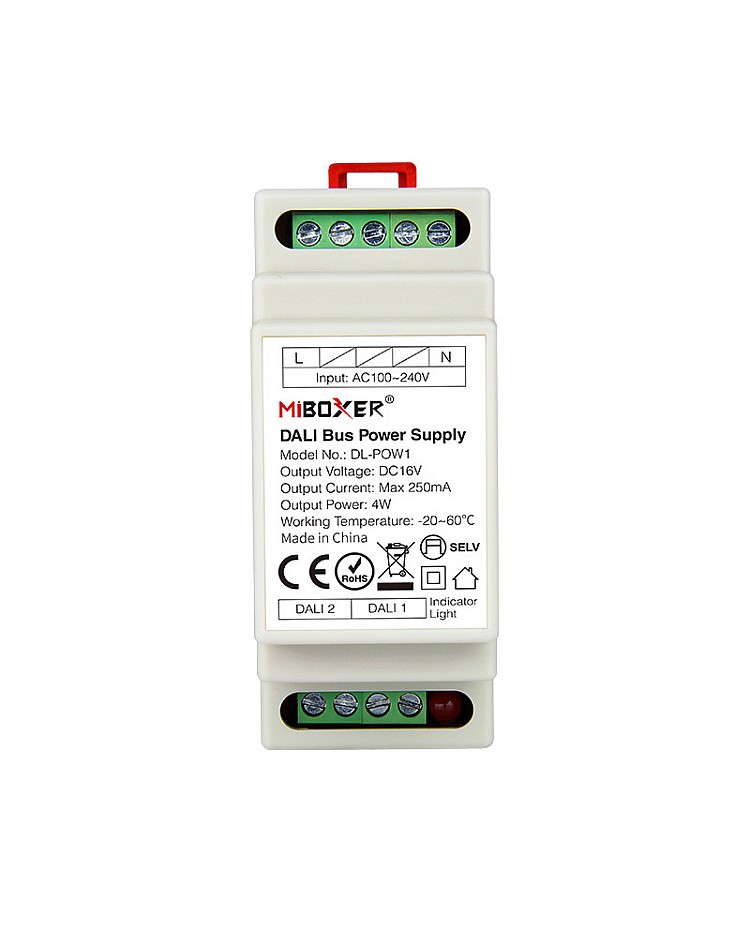

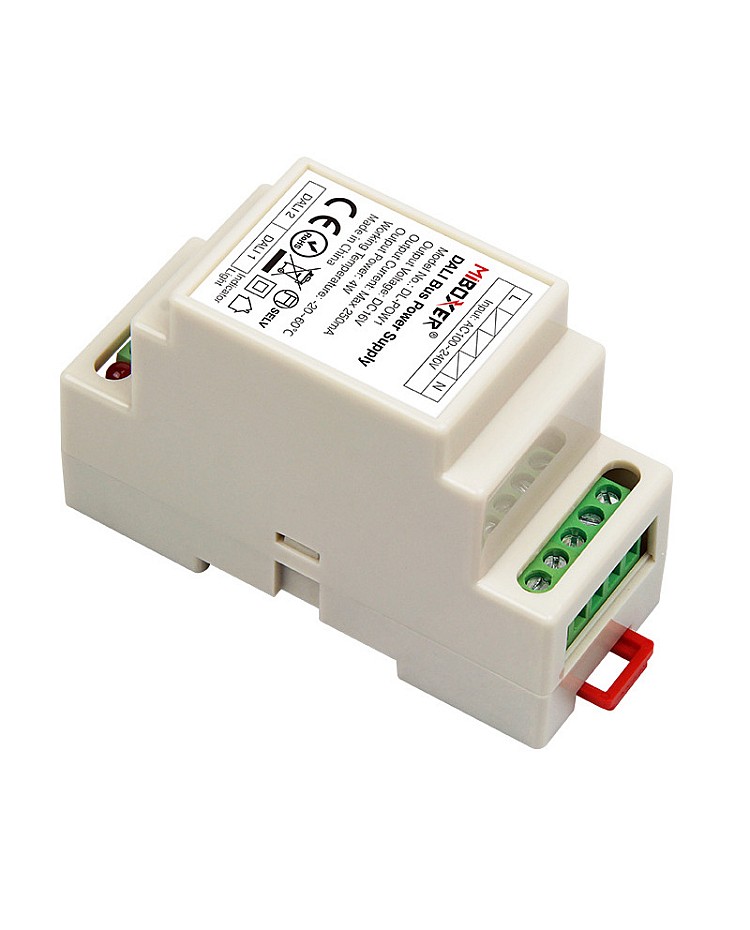

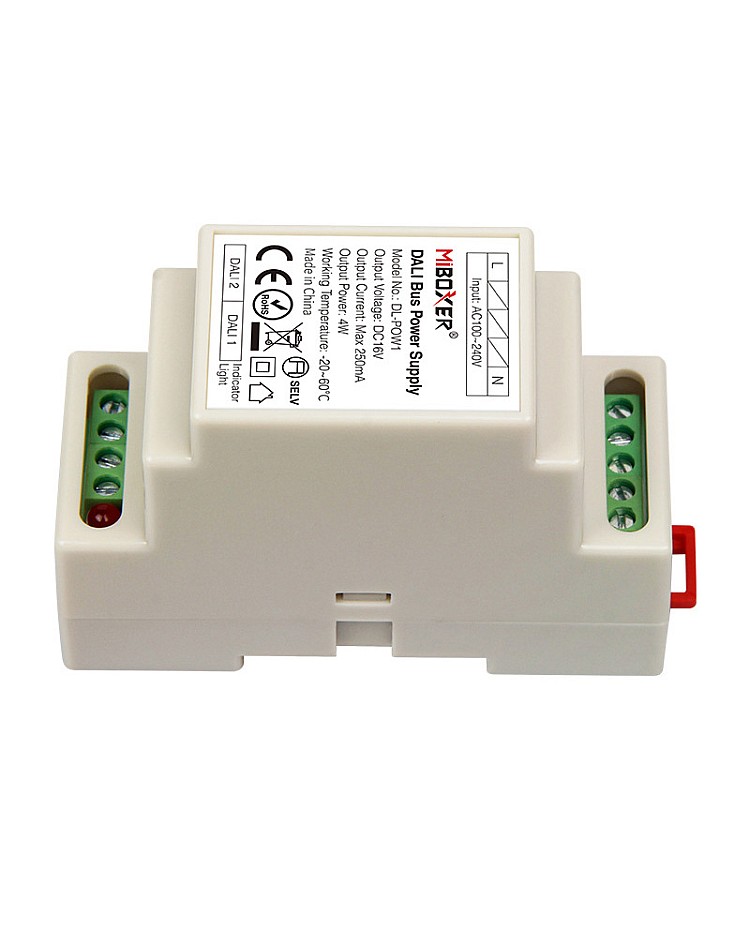

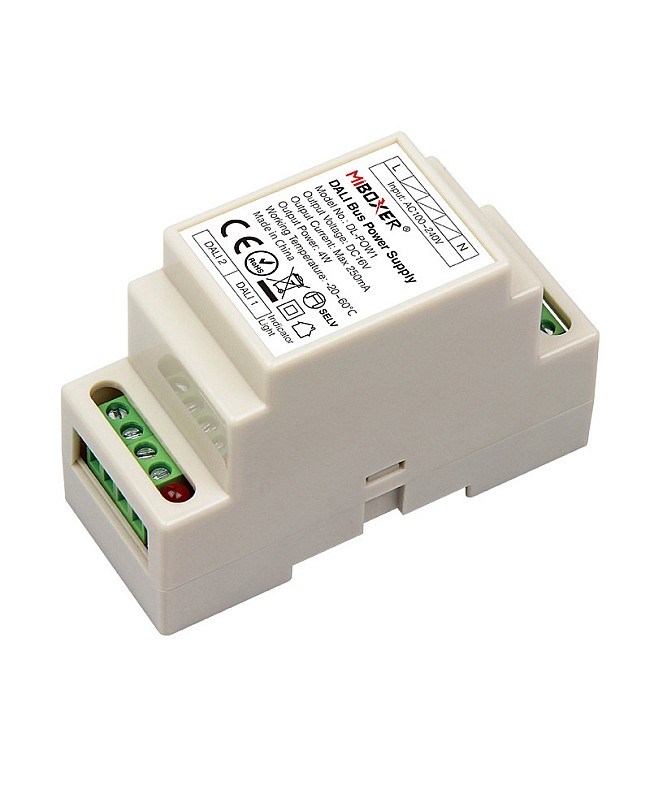

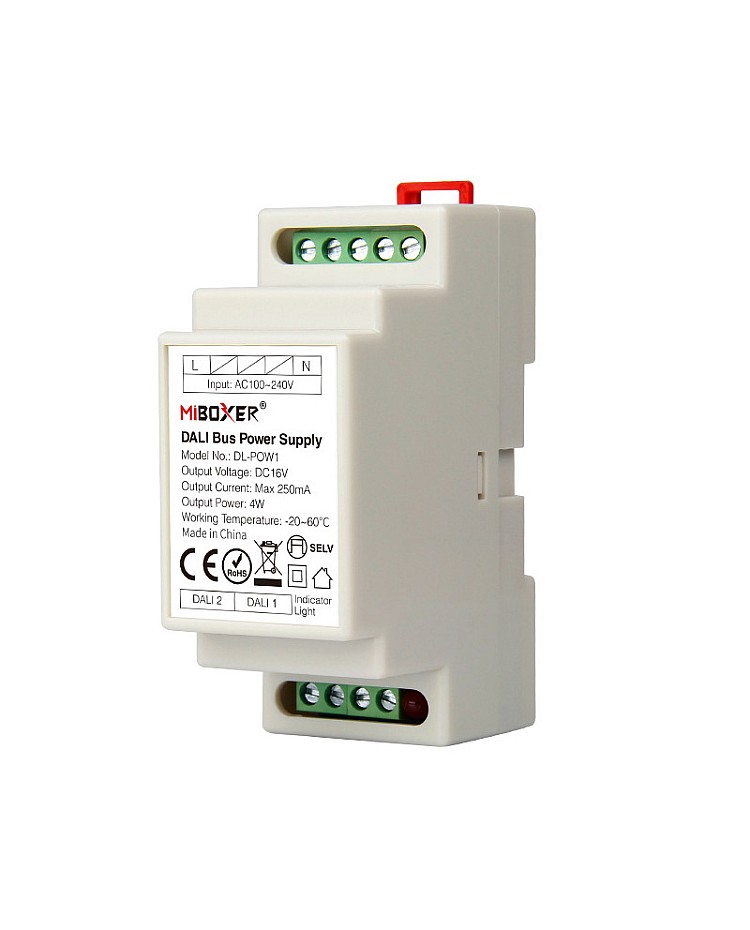

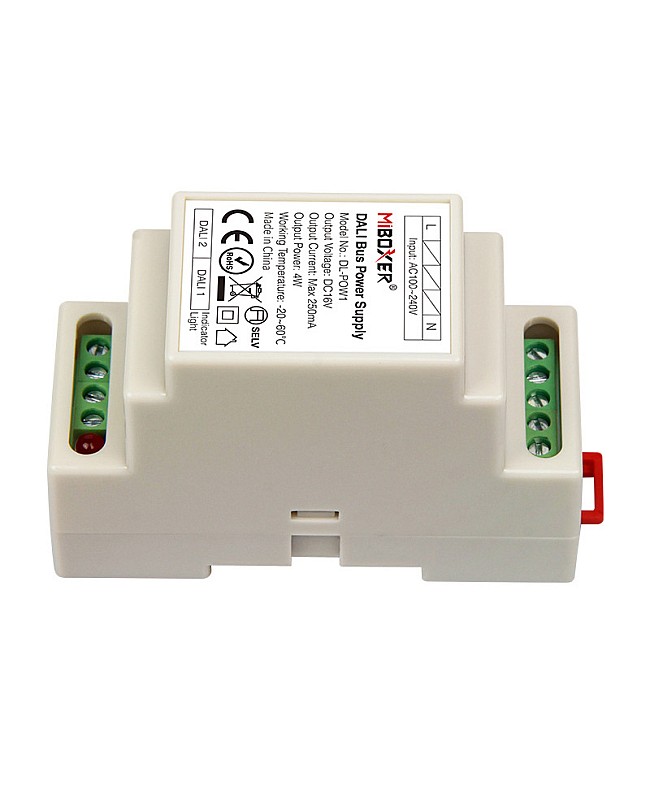

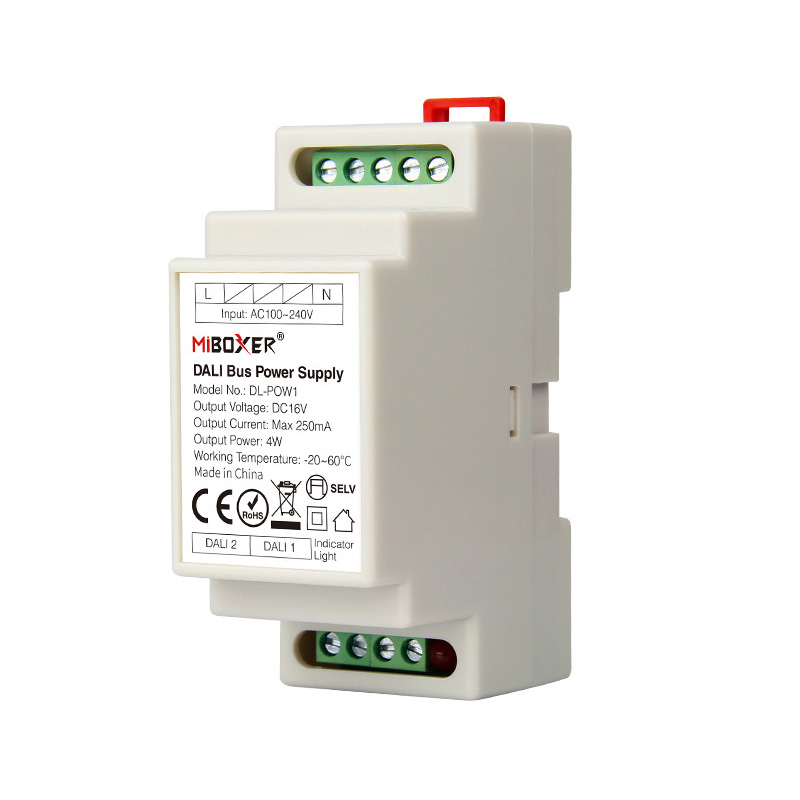

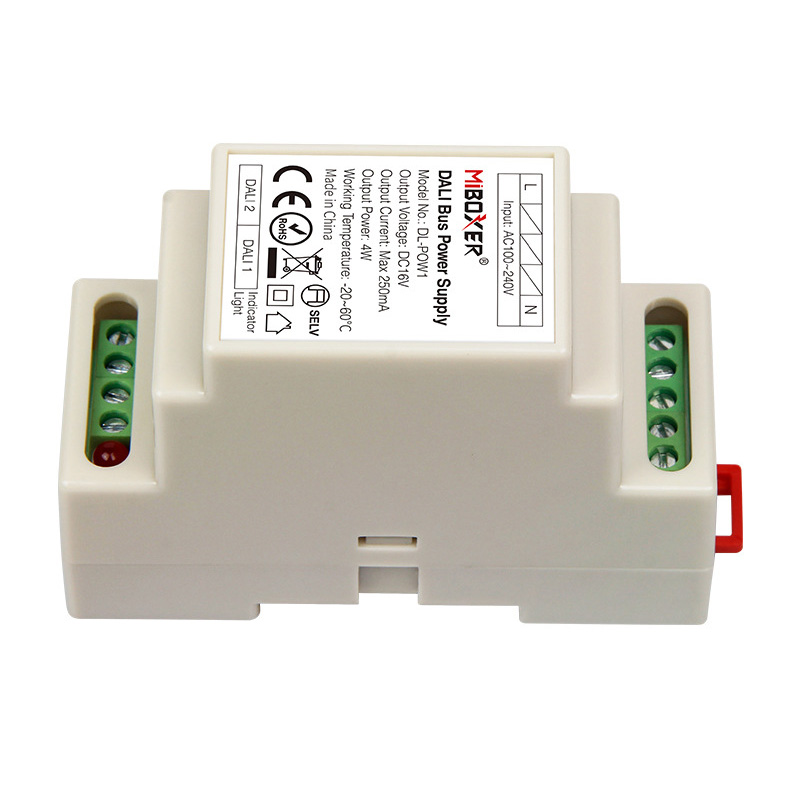

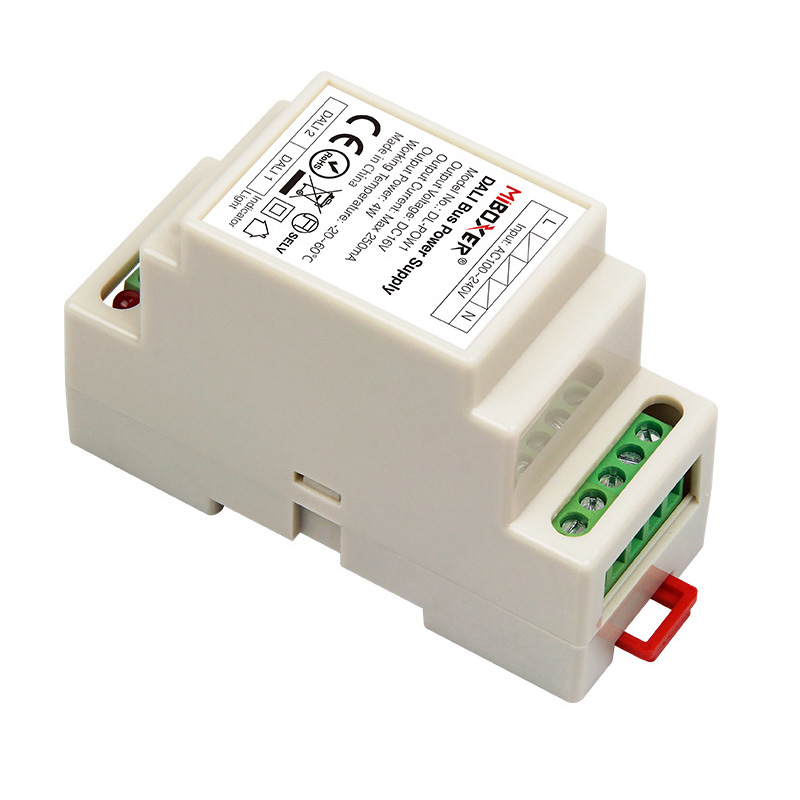

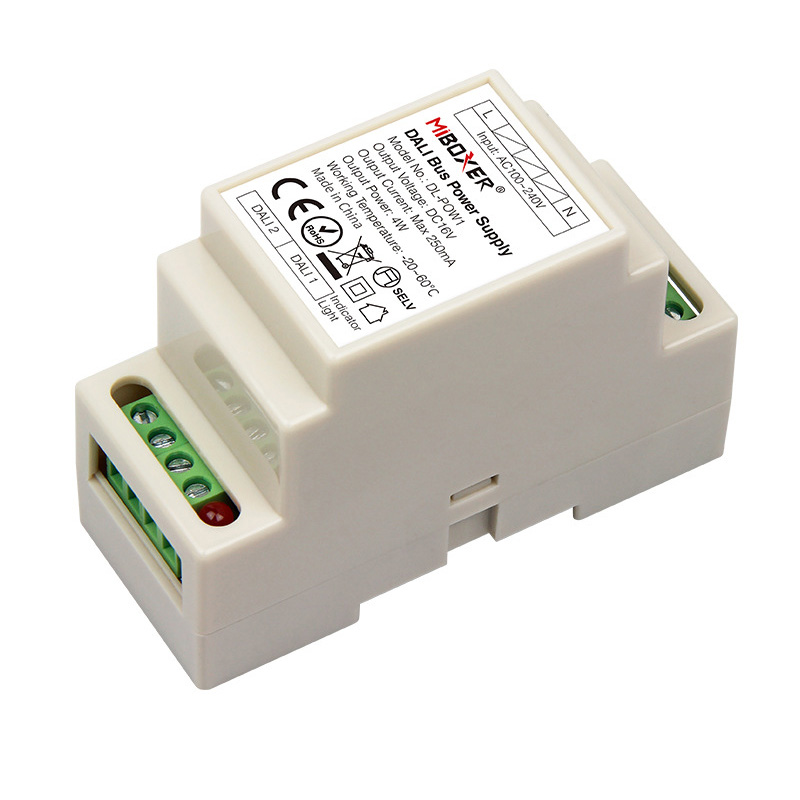

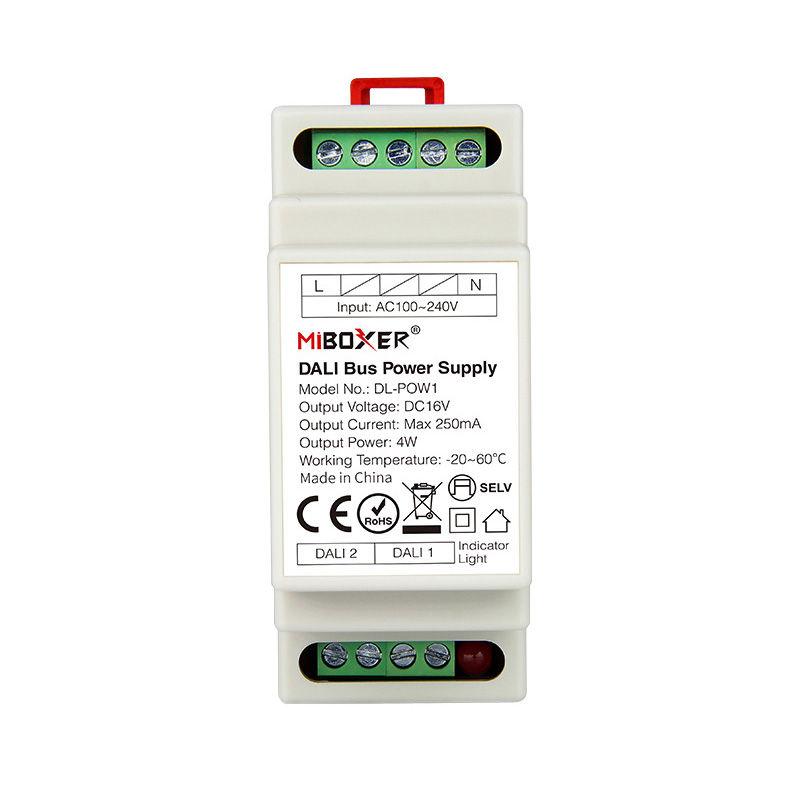

The MiBoxer DL-POW1 DALI Bus Power Supply connects to a digital DALI lighting system. It is made of anti-fire PC material for fire resistance, with multiple protections to ensure working stability. This power Supply can be used with any DALI-certified product or controller. The max output current is up to 250mA, and the universal input voltage ranges from AC100v to AC240V. You can use them anywhere in the world. The compact structure design and 35mm standard rail installation make it easy to integrate into any DALI network.

Quick Links:

MiBoxer DALI Bus Power Supply Manual


  • Size: 92.5*36*59mm(L*W*H)
  • Input Voltage: AC100-240V, 50/60Hz
  • Input Current: 115VAC/≤0.09A, 230VAC/≤0.05A
  • Leakage Current: <0.5mA/230VAC
  • Inrush Current: Cold Start 10A At 230VAC
  • Setup Time: 115VAC<2500ms, 230VAC<1500ms(At Full Load)
  • Output Voltage: DC16V
  • Output Current: 250mA Max
  • Max Rated Power: 4W
  • Ripple & Noise: 0.2Vp-p(At Full Load)
  • Working Temperature: -20℃-+60℃
  • Working Humidity: 20-95% RH, Non-condensing
  • Safety & EMC
  • Isolation Resistance: I/P-O/P: 100MΩ/500VDC/25℃/70%RH

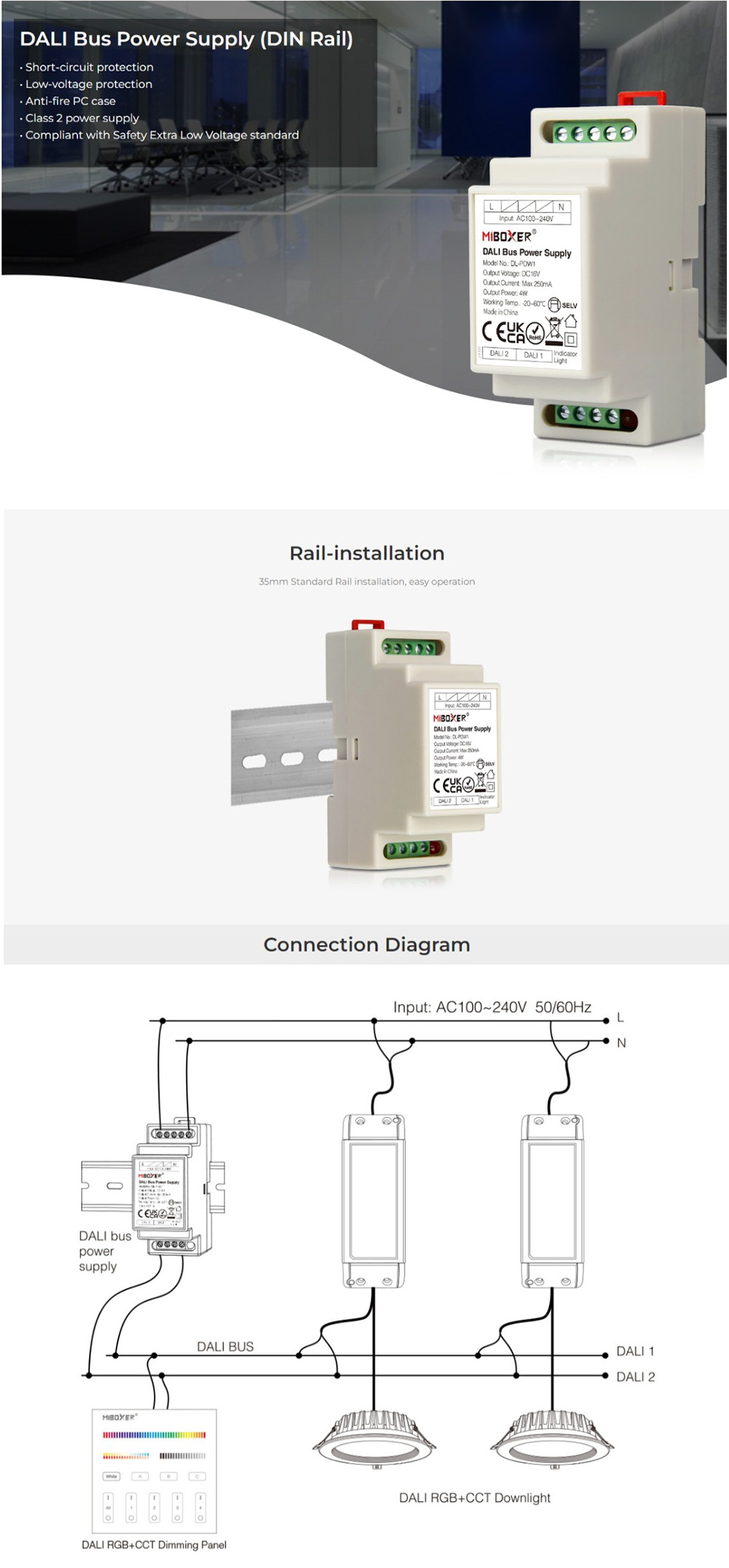

  • 35mm Standard Rail Installation
  • Short Circuit Protection
  • Low Voltage Protection
  • Anti-Fire PC Case
  • Class 2 Power Supply


1*MiBoxer DALI Bus Power Supply
