In Stock
$3.99
Reward Points: 4
-
+
  • Brand: Ledbe
  • Product Code: WS2815

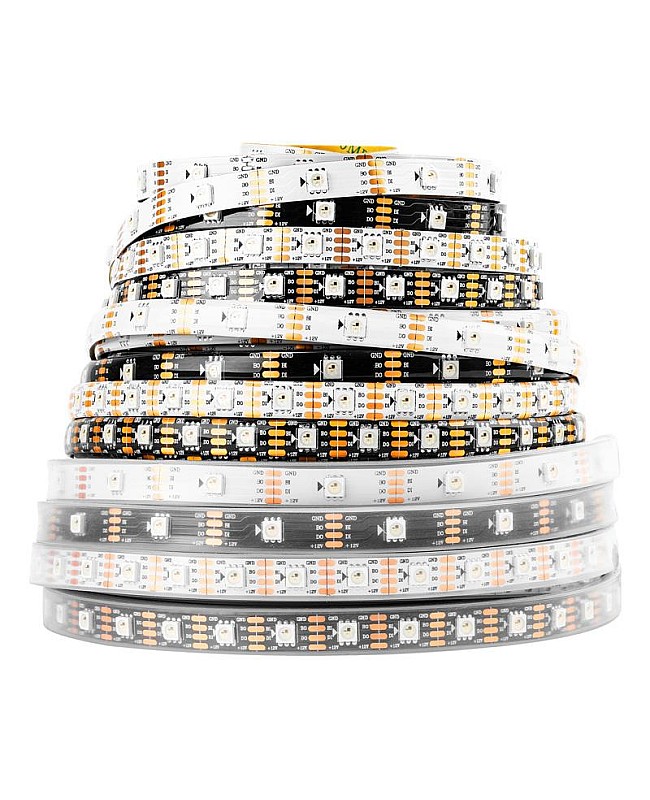

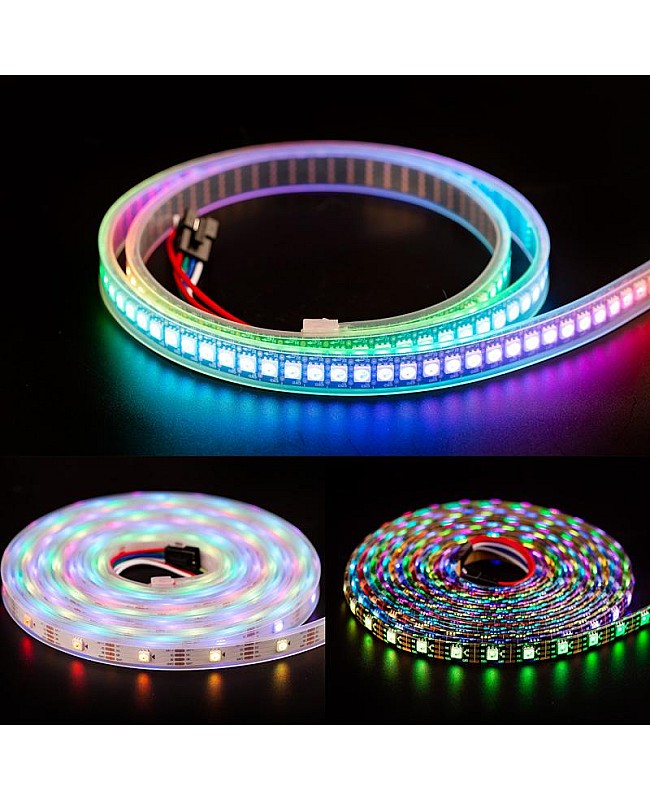

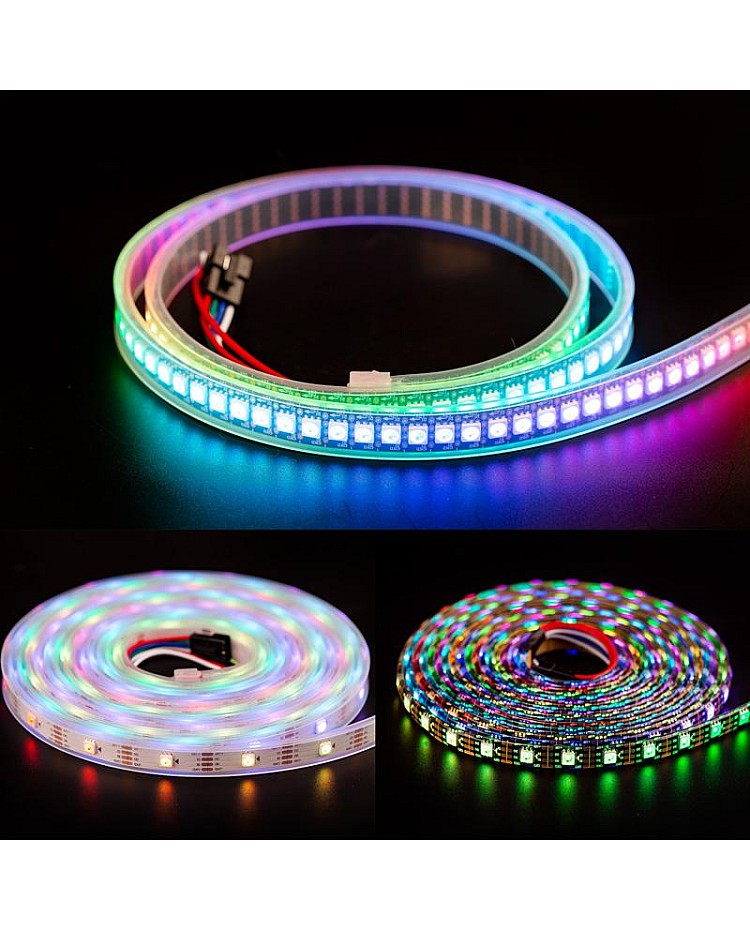

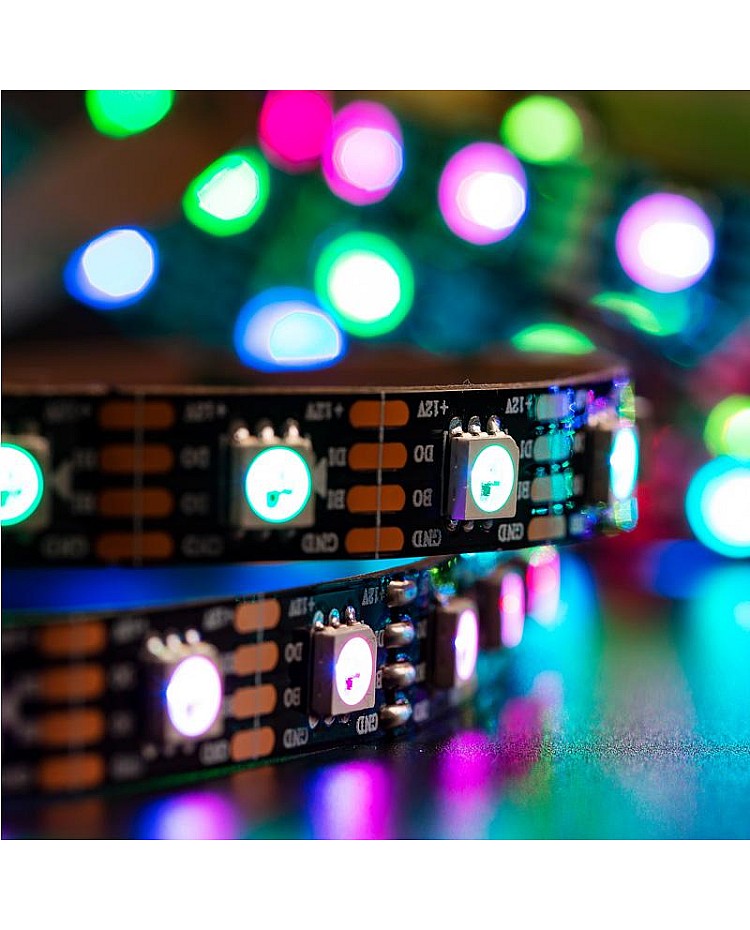

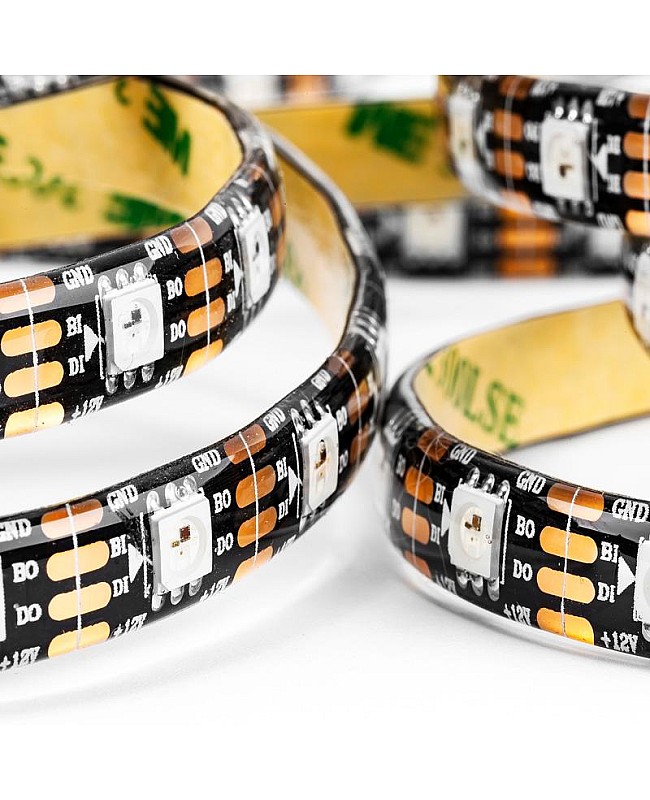

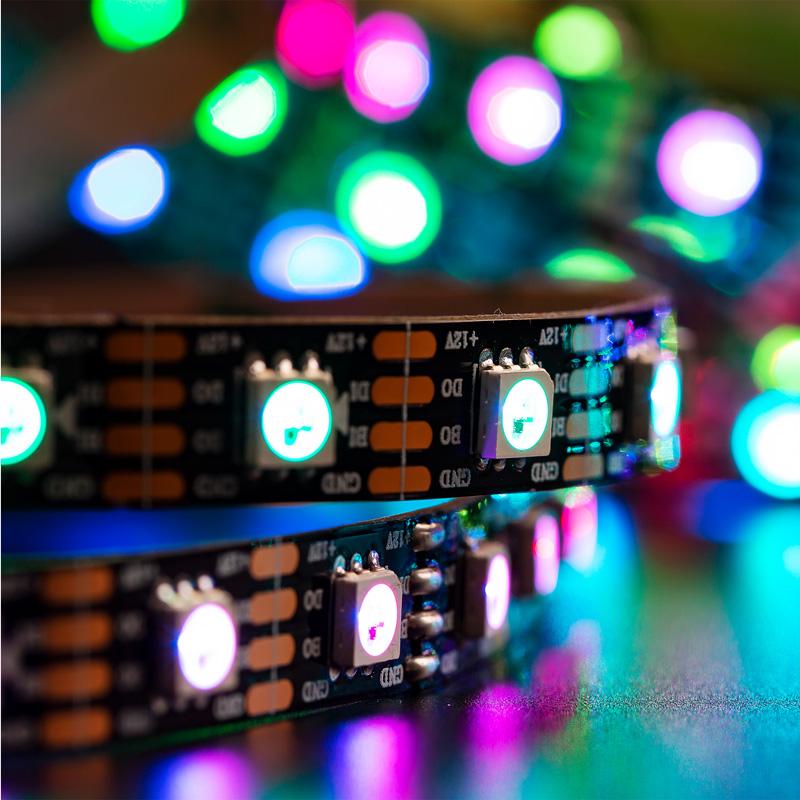

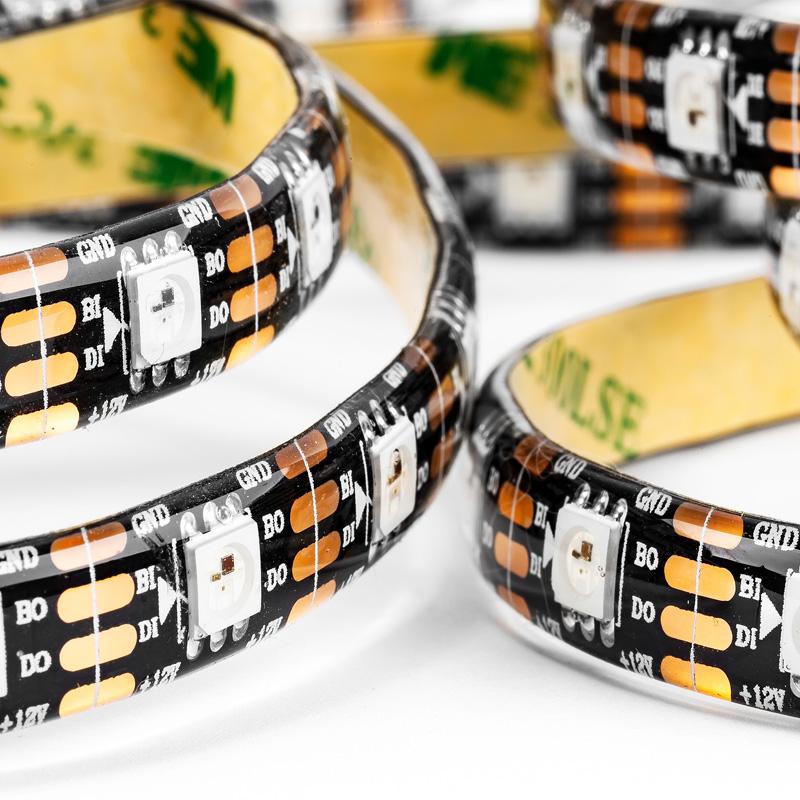

The Dual Signal Individually Addressable WS2815 LED Strips are perfect for creating unique lighting displays. Utilize high-quality 5050 RGB SMD LEDs as the light source, enabling you to control each LED individually for more intricate lighting effects. With a dual signal wire design, continuous transmission is ensured even in the event of a signal break. Various LED quantities and lengths of products are available: 30 LEDs/m, 60 LEDs/m, and 144 LEDs/m; the length you can choose is 1 m or 5m. The WS2815 Strip Lights operate on DC 12V and are compatible with Digital LED Controllers like SP108E, SP105E, SP107E, and K-1000C, among others, to achieve thousands of fantastic lighting effects, including curtain-up, flowing water, raindrops, and jump flash. You can edit the animation effect for DIY effects with CorelDRAW, Flash, and LED Edit software. Every LED is cuttable, allowing you to trim it to any desired length for your project easily. Three waterproof levels of products are available: IP30 (non-waterproof), IP65 (coating waterproof), and IP67 (silicone tube waterproof). IP30 and IP65 for indoor projects. The back features double-sided adhesive tape, making it easy to adhere to the desired installation location. The IP67 Addressable LED Strips come with silicone mounting Clips. For outdoor applications, you can mount them in wet, damp, or waterlogged locations. With these LED Lights, you can create stunning visual effects and light displays, making them great for any lighting project.

Note:

The LEDs at the far end may be dimmer due to the added resistance and voltage drop. We recommend adding the same working voltage every 5 meters (16.4 ft) according to the actual situation to maintain the same brightness.


Specifications:

  • Working Voltage: DC12V
  • LED Type: 5050 RGB SMD LEDs

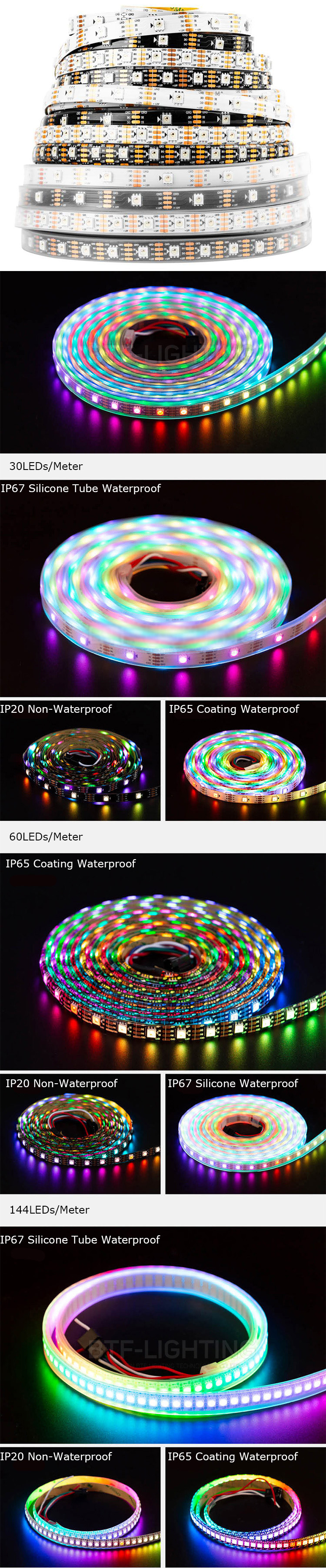

  • LED QTY: 30LEDs/M, 60LEDs/M, 144LEDs/M
  • IC Type: Built-in WS2815(Upgraded Version Of WS2812B)
  • IC QTY: 30PCS/Meter, 60PCS/Meter, 144PCS/Meter
  • Individually Addressable
  • Dual Signal Wires Design: Signal Break-Point Continuous Transmission
  • Emitting Colors: Full Color(24-Bit)
  • Wave Length: R: 650nm; G: 520nm; B: 460nm
  • Color Order: G R B
  • Grayscale Levels: 256
  • View Angle: 120°
  • Power: 0.1-0.3W/LED

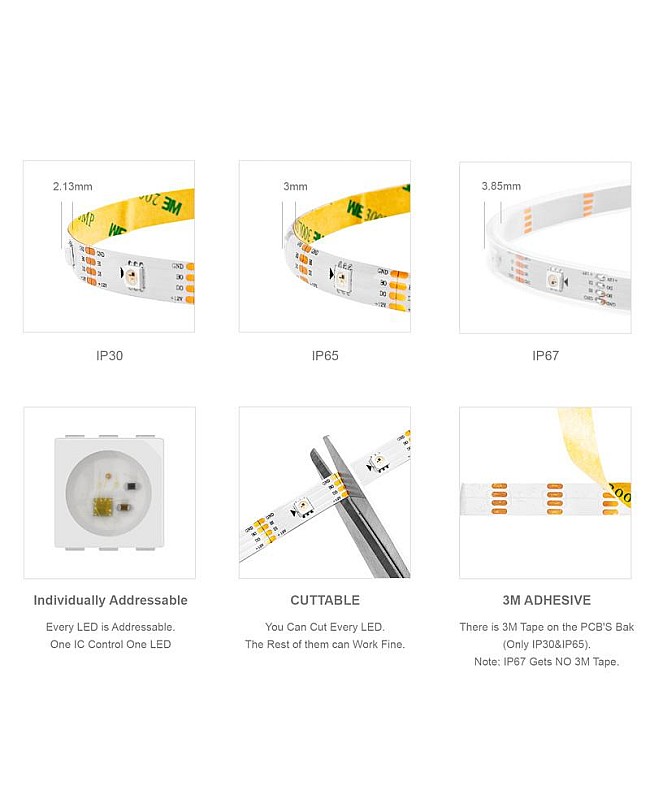

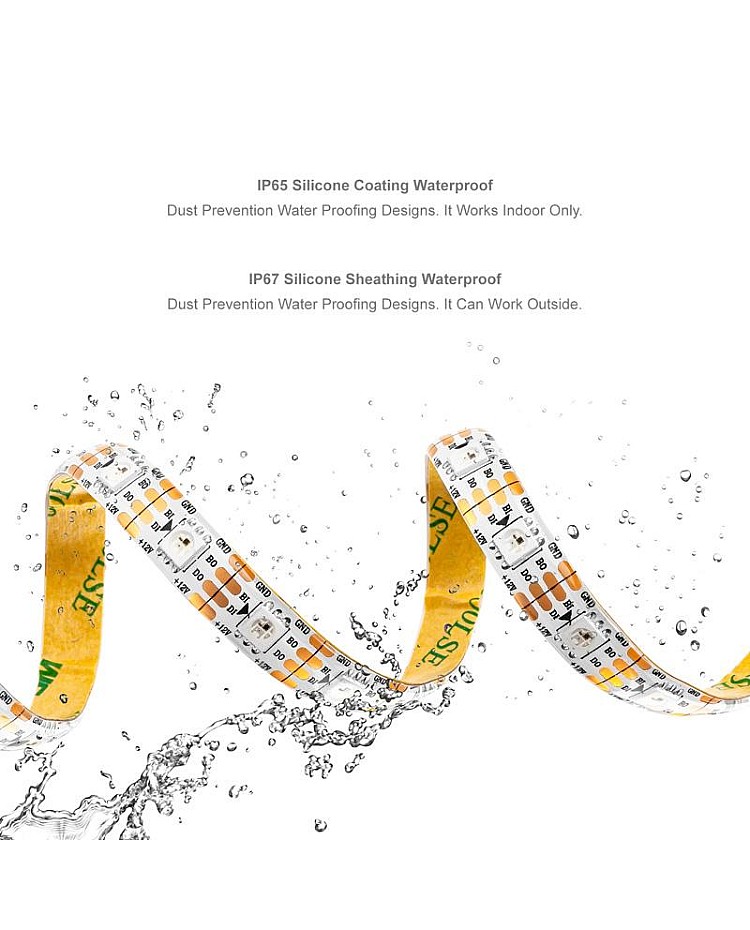

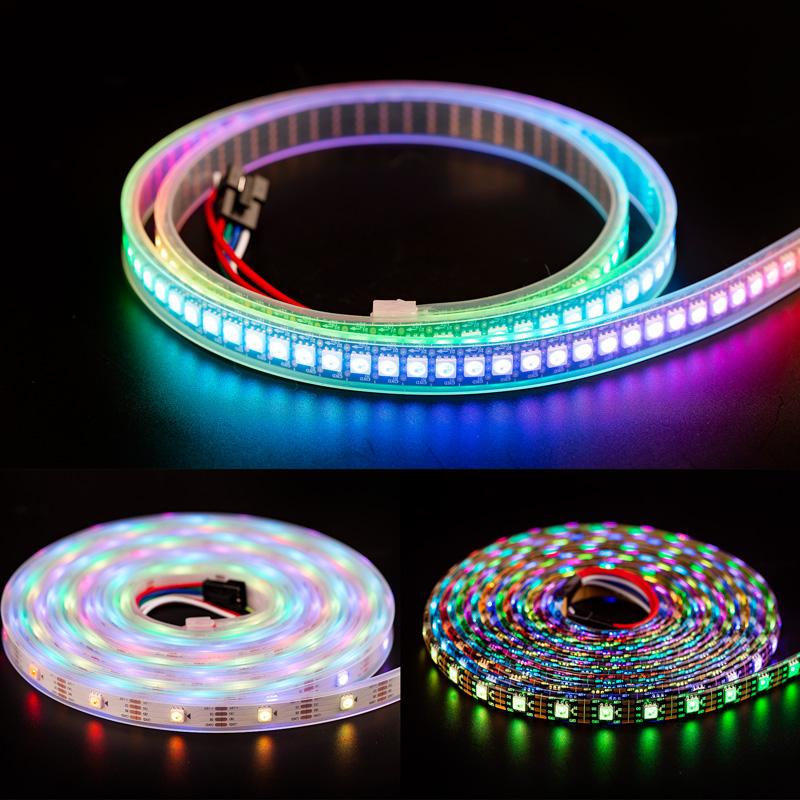

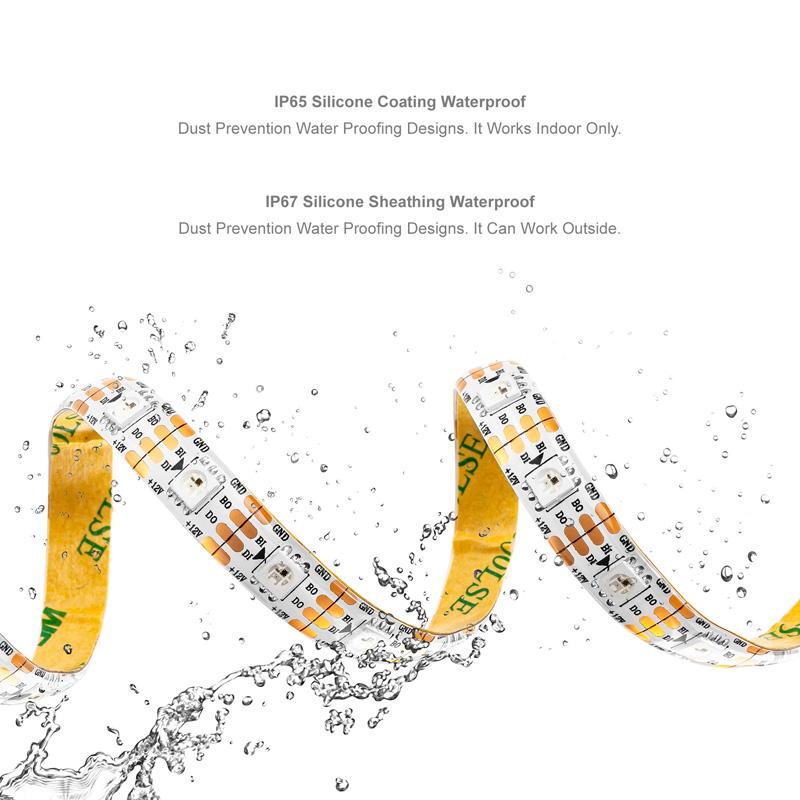

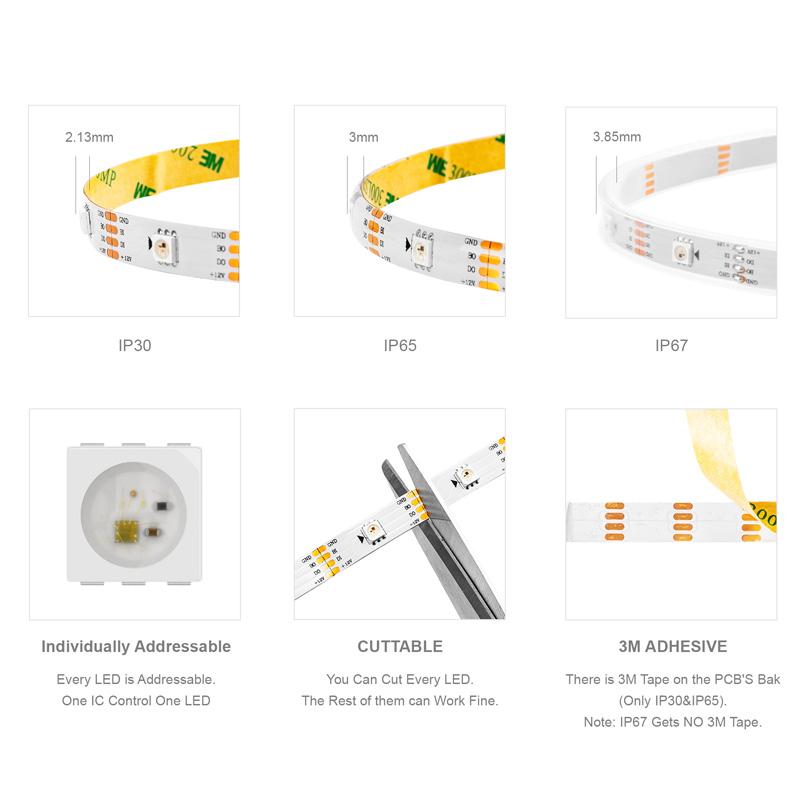

  • Waterproof Level: IP30 Non-waterproof, IP65 Coating Waterproof, IP67 Silicone Tube Waterproof

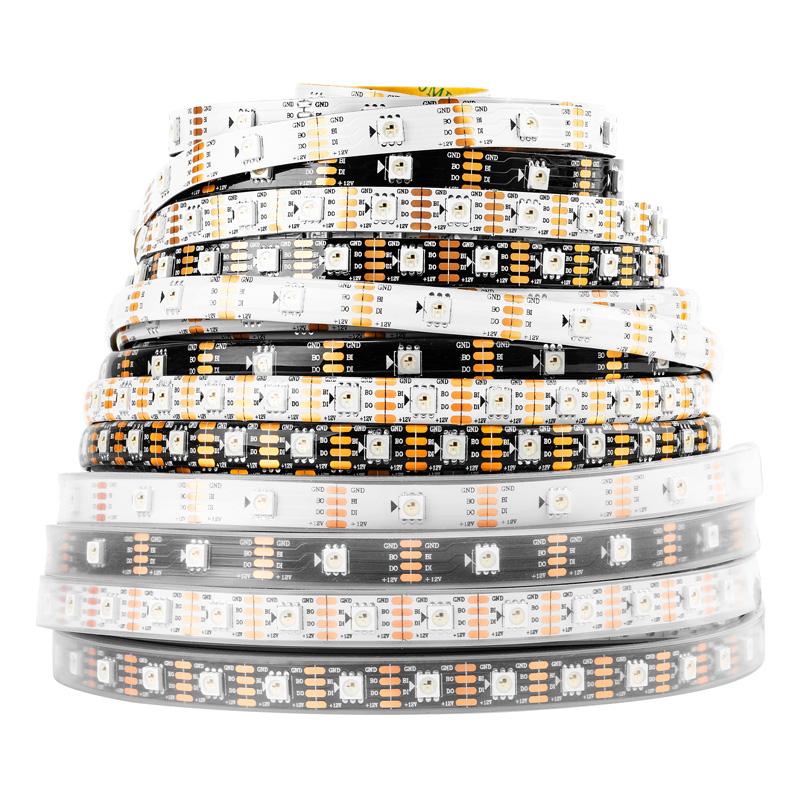

  • Colors Of PCB Board: White/Black
  • Length: 1M, 2M, 3M, 4M, 5M

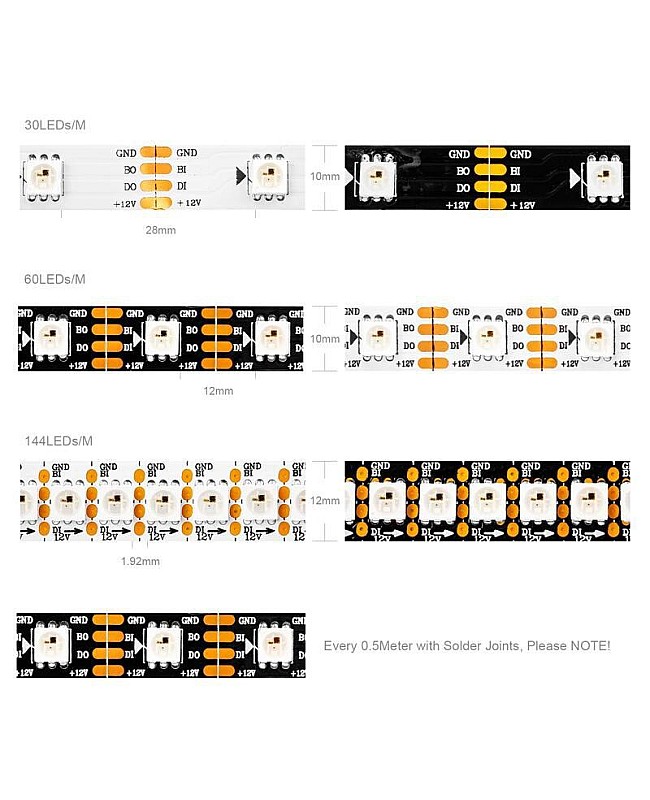

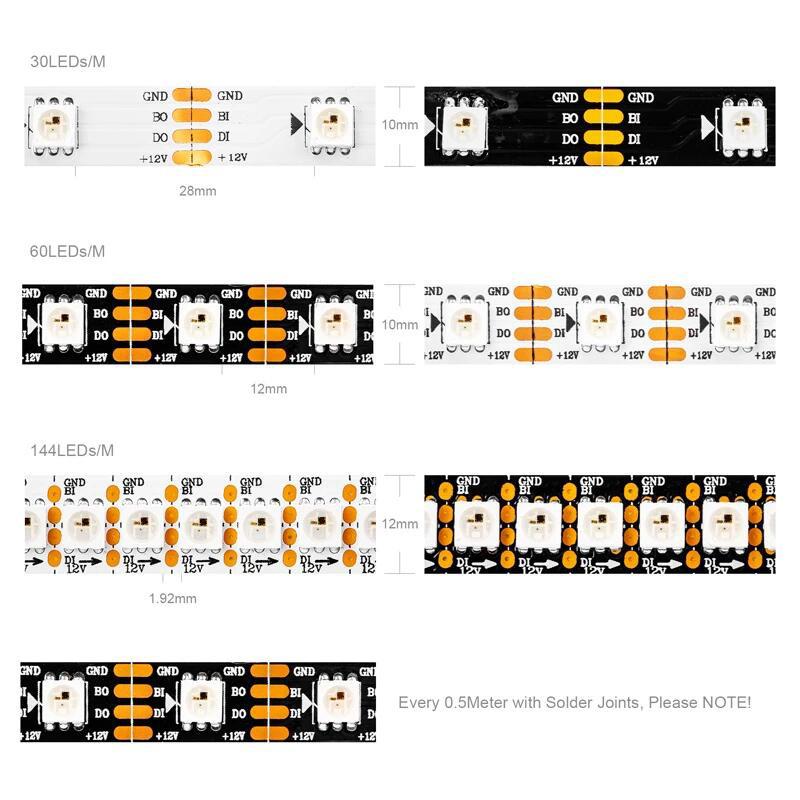

  • Width: 10mm(30LEDs/M, 60LEDs/M), 12mm(144LEDs/M)
  • Compatible With CSY08, SP108E, SP105E, SP107E, K-1000C Smart LED Controllers
  • Lifespan: 50,000 Hours
  • 2 Years Warranty


Includes:

1 * WS2815 LED Strip With 4 Pin Connector

WS2815 LED Strips
