In Stock
$35.90 $22.60 Sale -37% OFF
Reward Points: 23
-
+
  • Brand: MiBoxer
  • Product Code: DP1S

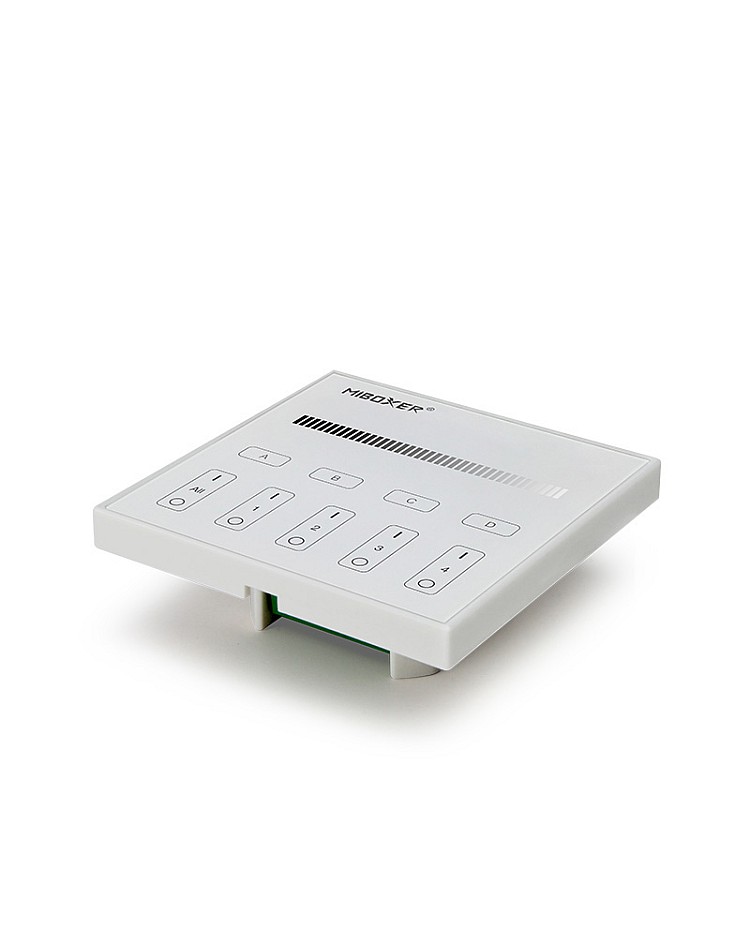

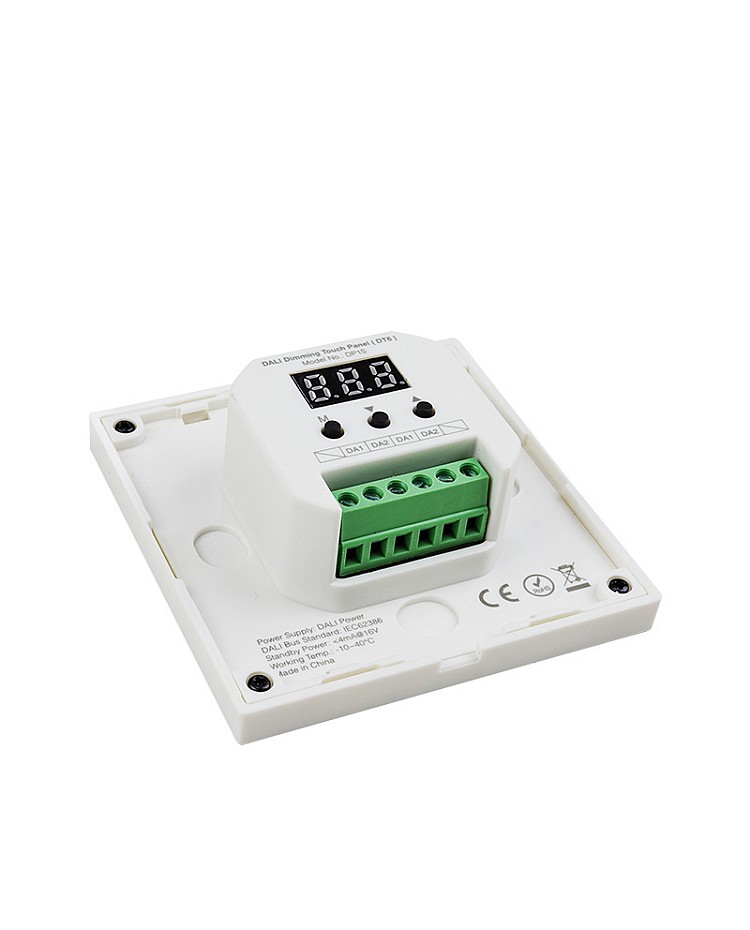

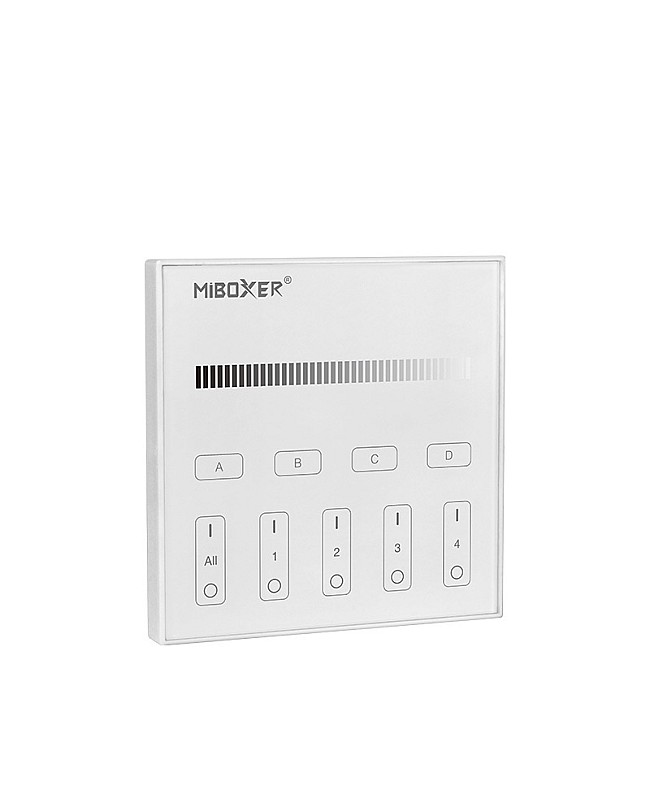

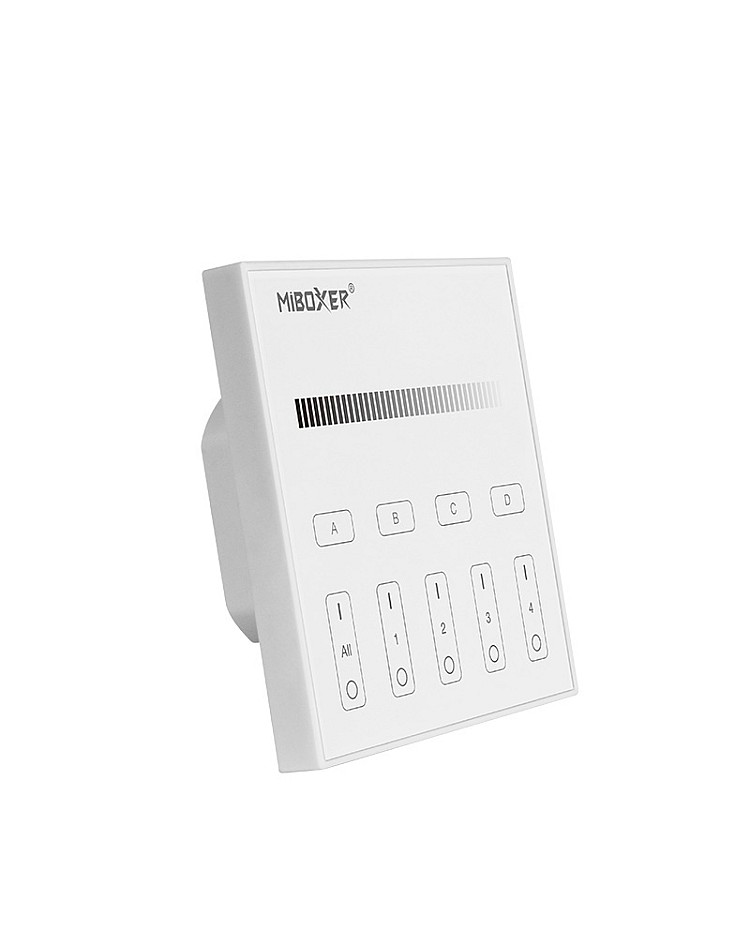

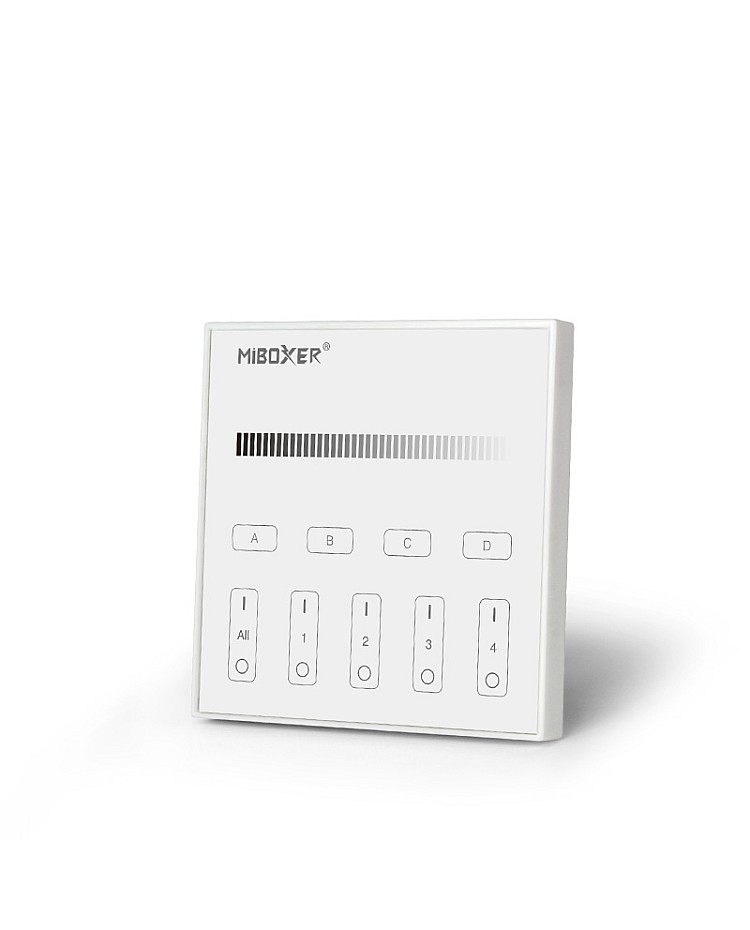

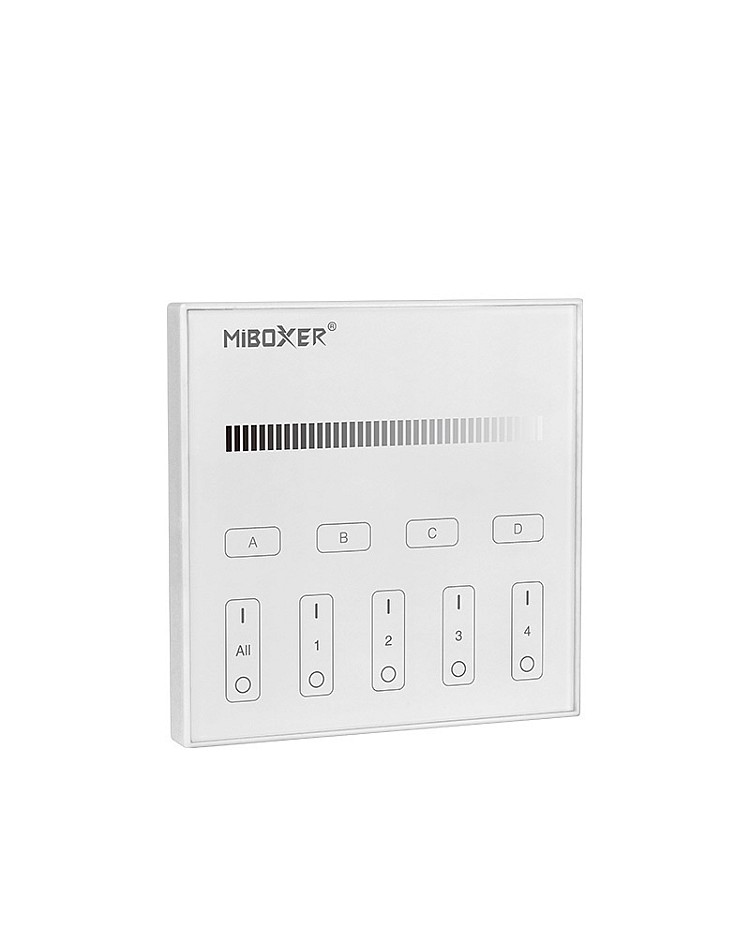

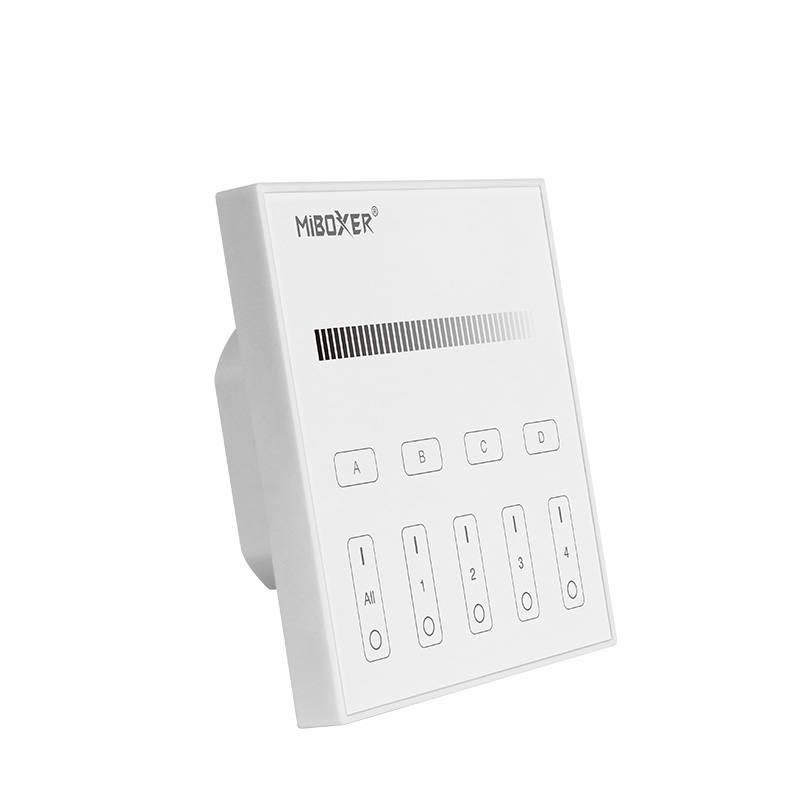

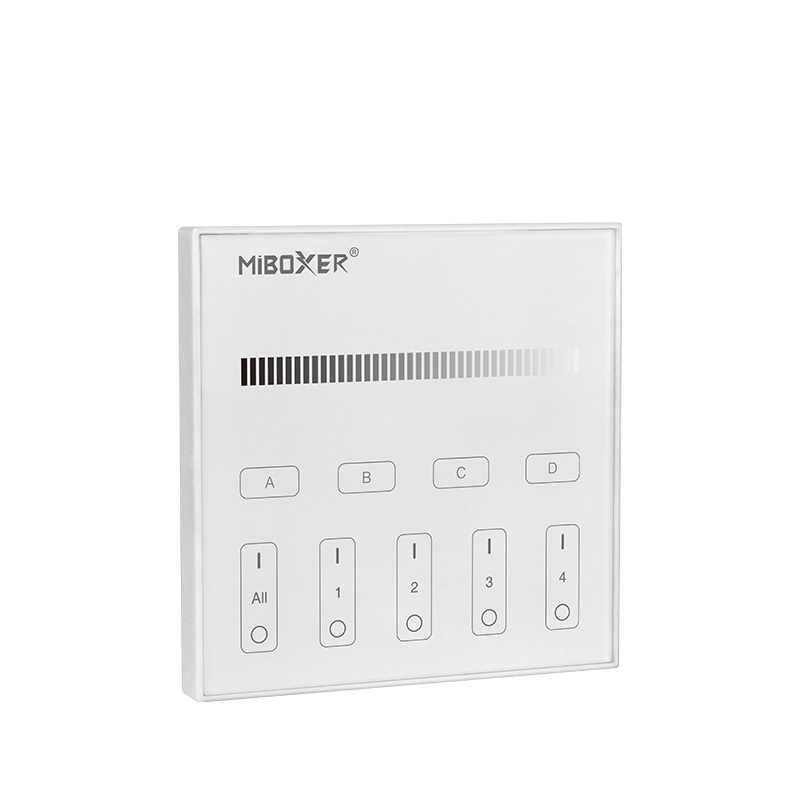

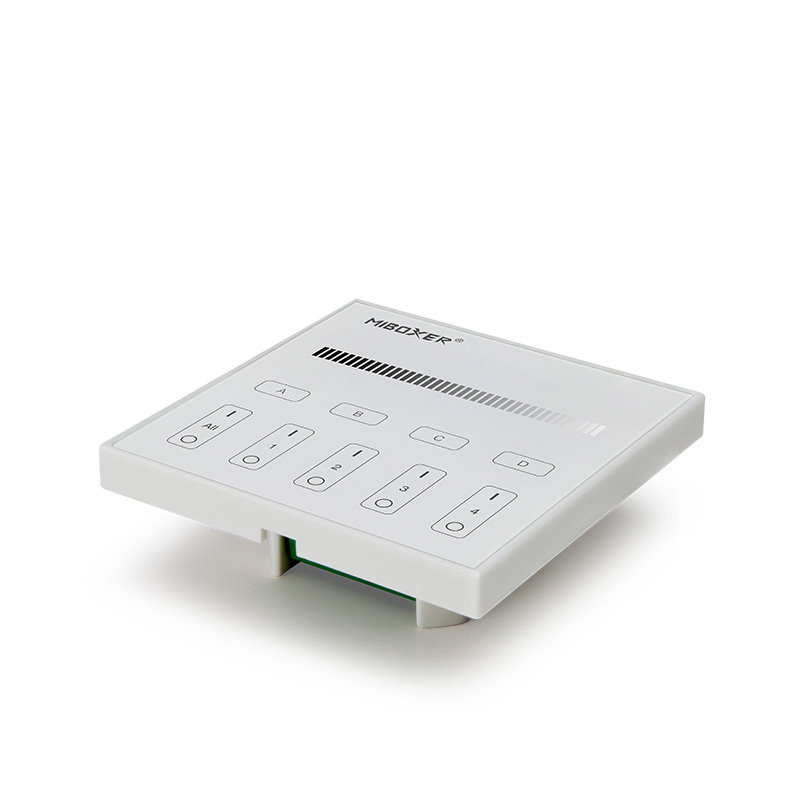

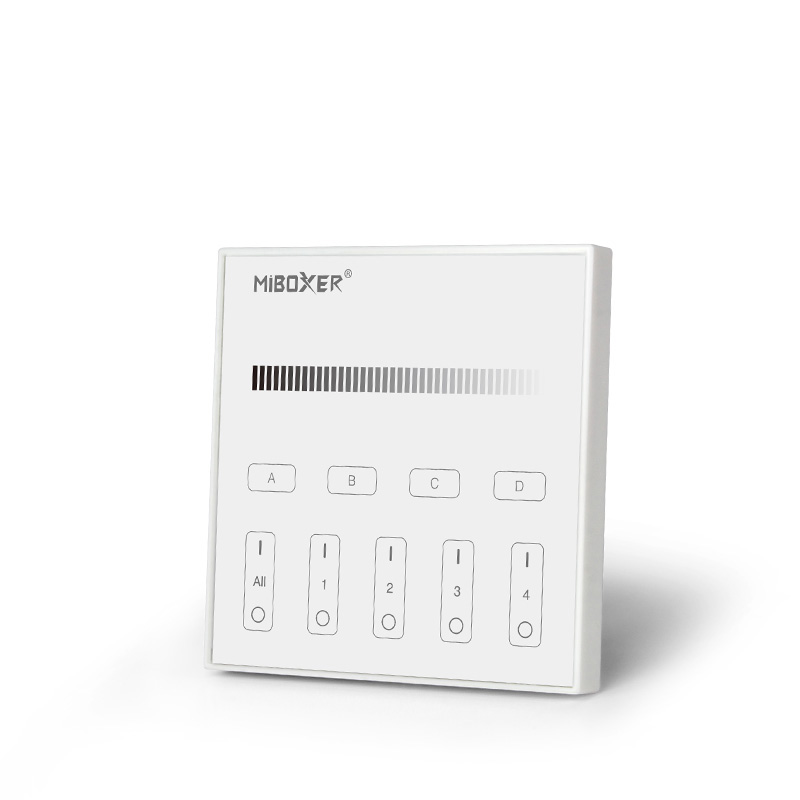

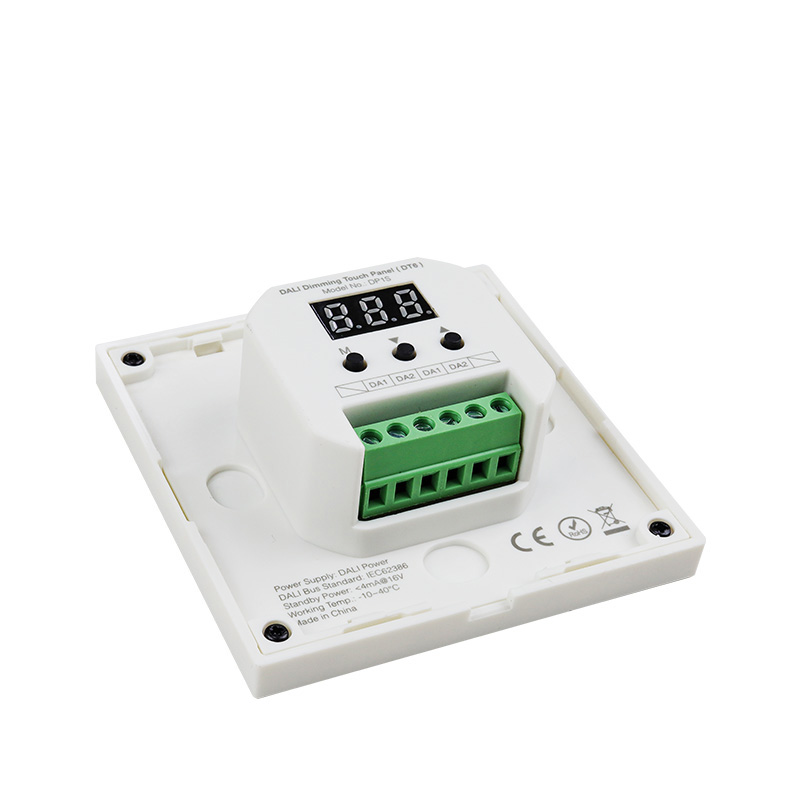

Check the MiBoxer DP1S DALI DT6 Brightness Dimming Panel, which with standard European 86 Type structure, compatible with DALI standard protocol IEC62386, supports single address mode, multicast address mode and broadcast mode, you can control the LED Lamp On/OFF and adjust the brightness. you can set the address via the press button on the backside, unicast address(0-63), multicast address(0-15), broadcast address(255), scene mode(0-15). the LED Display will show you the address clearly. there are 4 scene mode buttons on the DALI Touch Panel, you can set the original DALI scene and support four scene mode to be preserved and selected. there are 4 zones individually control design, you can control each zone separately and adjust the brightness from 1% to 100%, the DALI Panel with sensitive touching design and with high precision capacitive touch screen IC, the touch screen is very stable, when touching the buttons, the LED indicator lamp will flash and with a different sound.

Quick Links:

MiBoxer DP1S Instruction


Features:

  • Size: 86*86*33mm(L*W*H)
  • Power Supply: DALI Power
  • DALI Bus Standard: IEC62386
  • Output Signal: DALI
  • Controlling Type: Dimming(DT6)
  • Standby Current: <4mA@16V
  • 1%-100% Brightness Adjustable
  • Sensitive Touching Panel Design
  • Supports Single Address Mode, Multicast Address Mode And Broadcast Mode
  • Press Button Setting And LED Display
  • 4 Scene Modes Available
  • 4 Zones Individually Control
  • IP Rating: IP20 Non-Waterproof
  • Working Temperature: -10-40℃
  • 2 Years Warranty


Includes:

1*MiBoxer DALI DT6 Dimming Panel

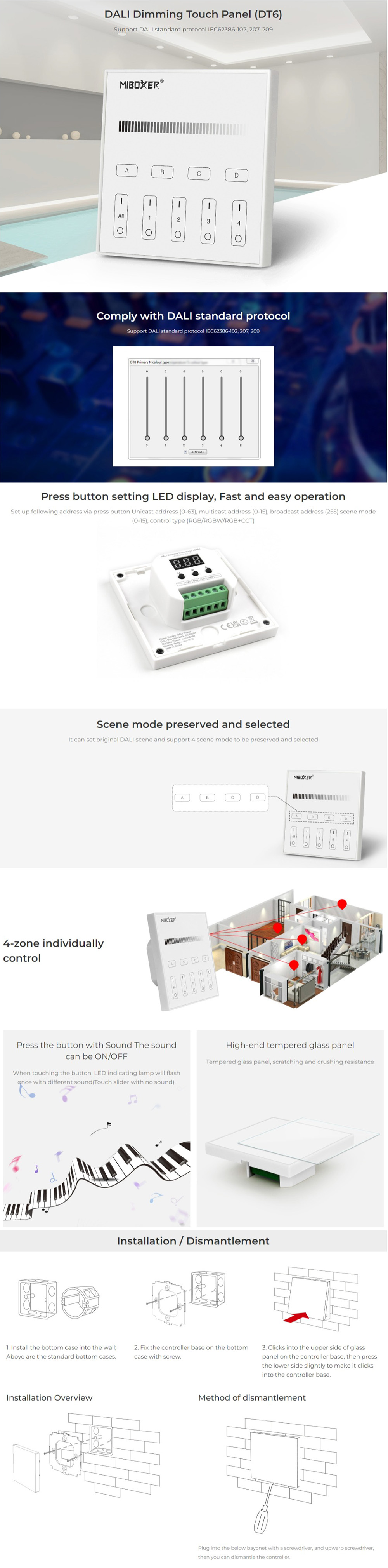

MiBoxer DP1S DALI DT6 Dimming Panel
