In Stock
$42.80 $22.60 Sale -47% OFF
Reward Points: 23
  • Brand: MiBoxer
  • Product Code: DP3S

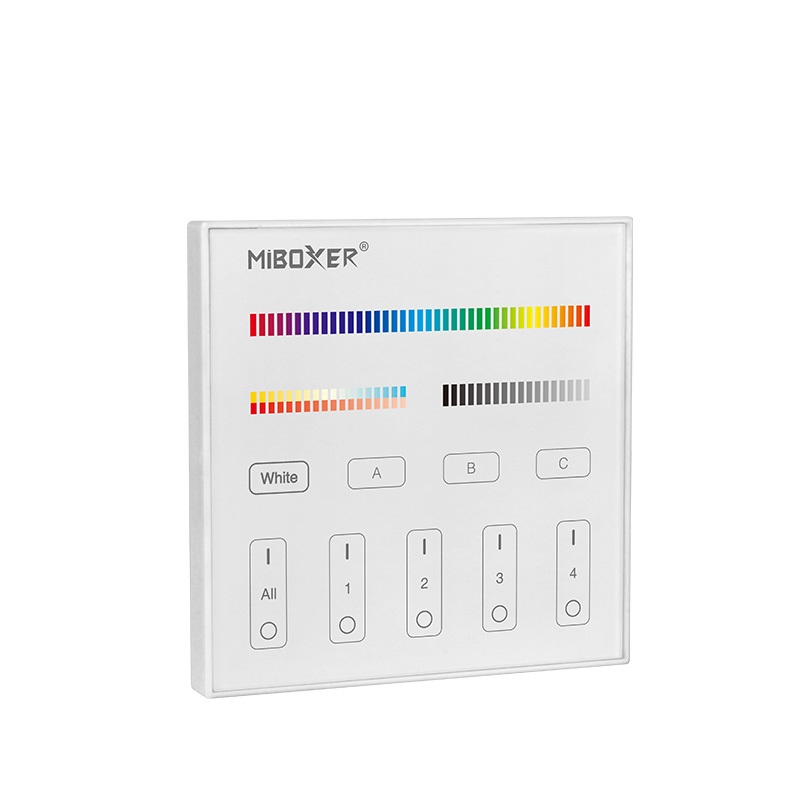

Check the MiBoxer DP3S DALI DT8 3 In 1 Dimming Panel, which with sensitive touching panel and standard European 86-type structure, with 3-in-1 function design for RGB, RGBW and RGB+CCT LED Lights, comply with DALI standard protocol and support DT8 type, you can press the button to set the address and the LED display will show you the address clearly. you can set the unicast address(0-63), multicast address(0-15), broadcast address(255), scene mode(0-15), control type(RGB/RGBW/RGB+CCT). there are 3 buttons to set the scene modes, you can set the original DALI scene. you can press the sliders to set the static color, adjust the color temperature, brightness and saturation of color. there are 4 zones individually control design, you can control each zone separately.

Quick Links:

MiBoxer DP3S Manual


  • Size: 86*86*33mm(L*W*H)
  • Power Supply: DALI Power
  • DALI Bus Standard: IEC62386-102, 207, 209
  • Output Signal: DALI
  • Comply With DALI Standard Protocol And Support DT8 Type
  • Controlling Type: RGB(DT8 Type: xy coordinates), RGBW(DT8 Type: RGBWAF), RGB+CCT(DT8 Type: RGBWAF)

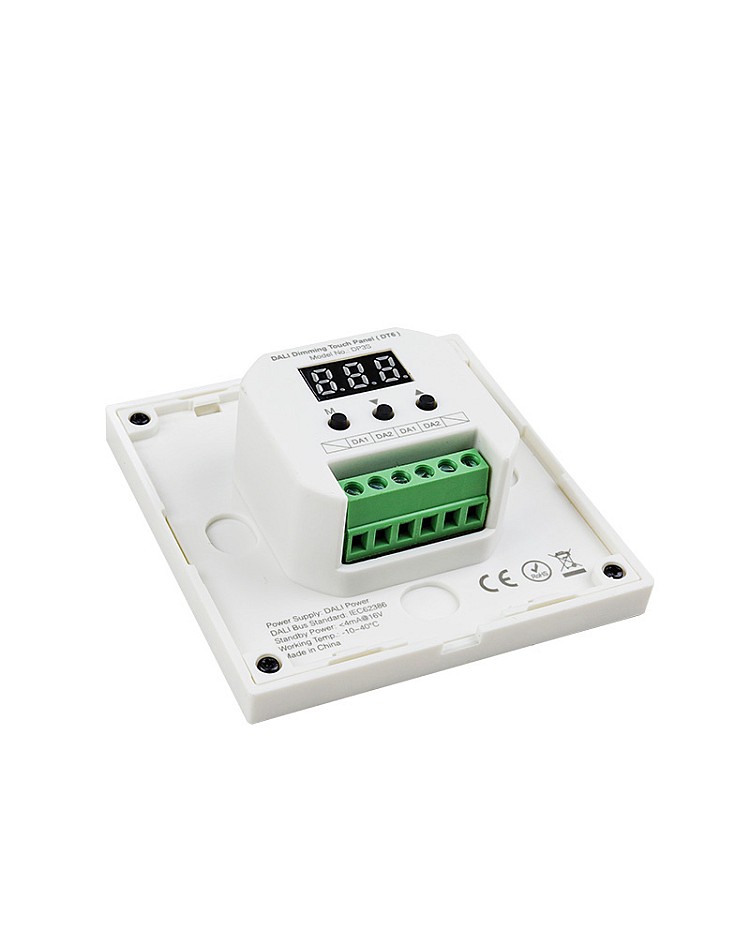

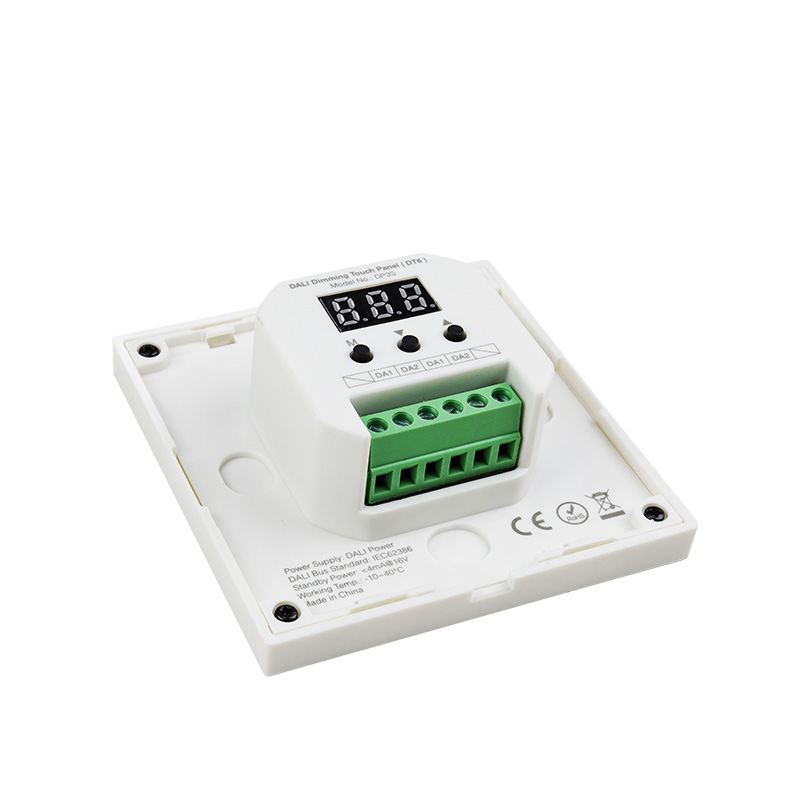

  • Press Button Setting And With LED Display
  • 3 Scene Mode Preserved And Selected
  • 4 Zones Individually Control
  • 16 Million Colors Available
  • Color Saturation Adjustable
  • Color Temperature Adjustable: 2700K-6500K
  • 1%-100% Dimming
  • Standby Current: <4mA@16V
  • Sensitive Touching Panel Design
  • Working Temperature: -10-40℃
  • 2 Years Warranty


1*MiBoxer DP3S DALI RGBWW Dimming Panel

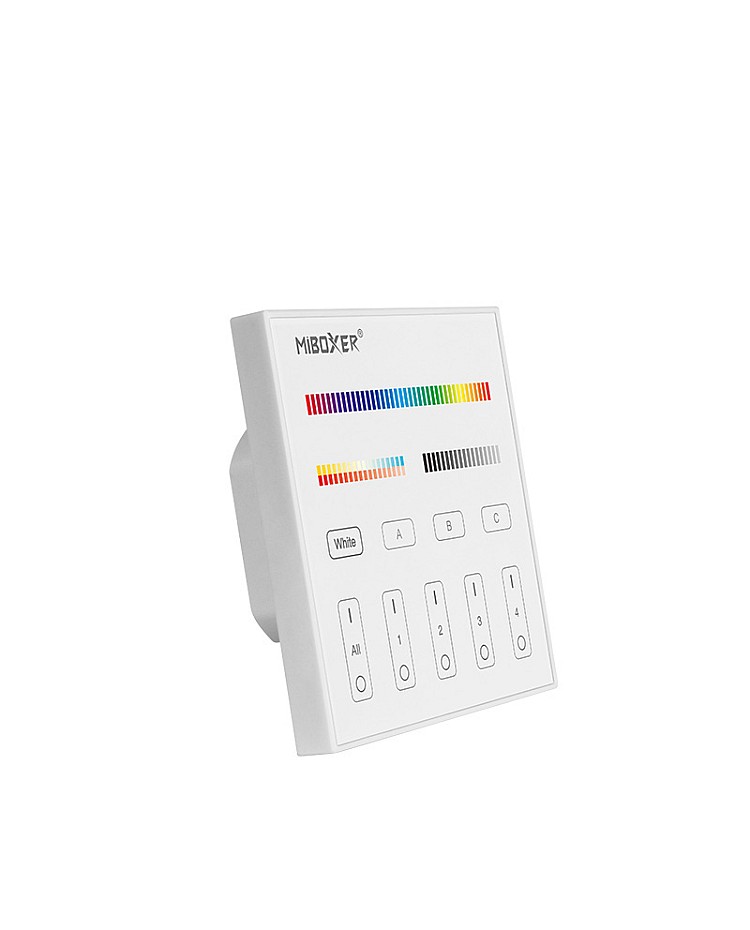

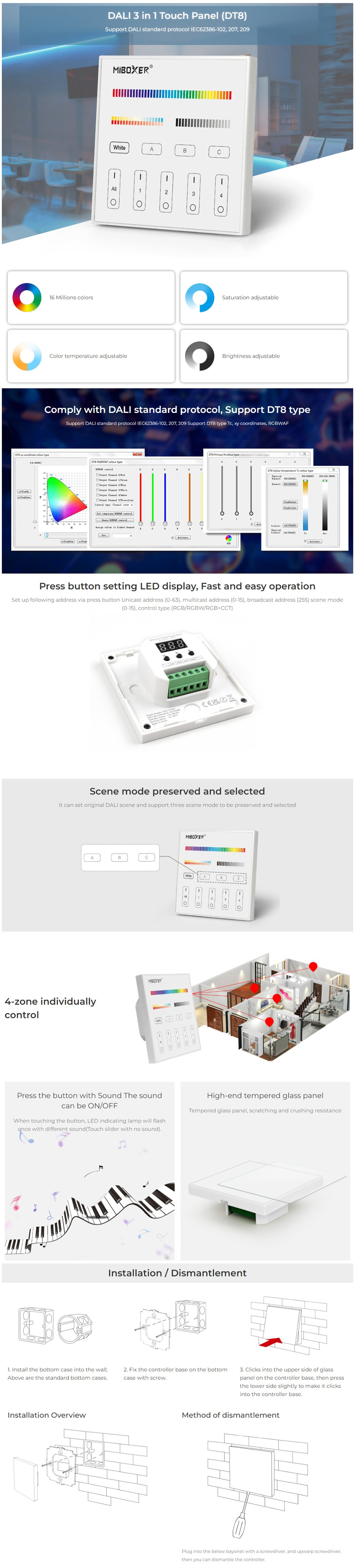

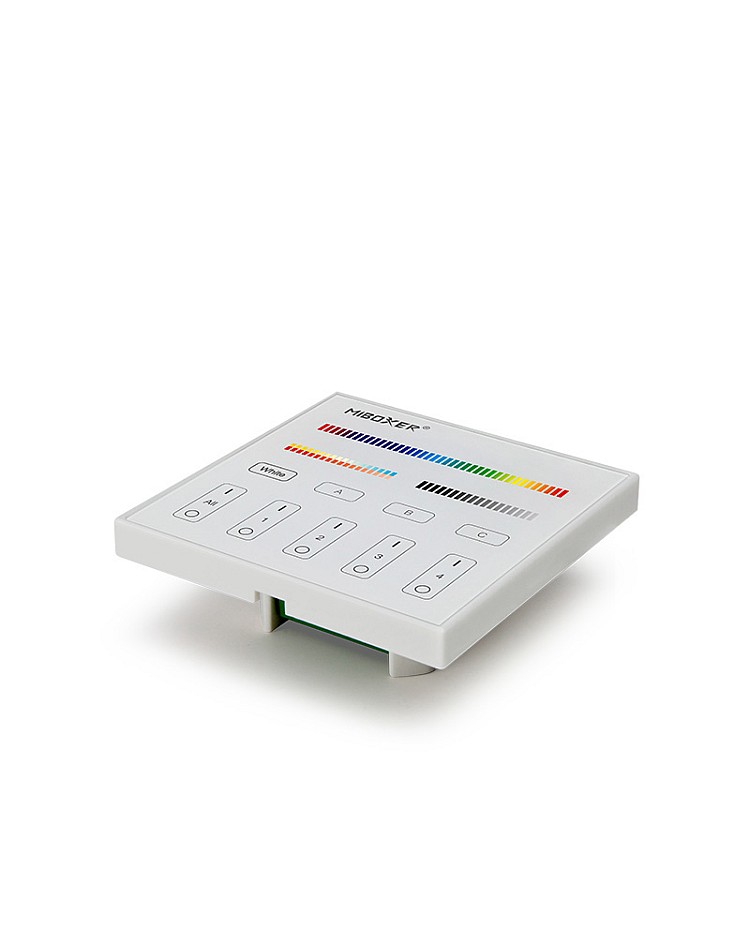

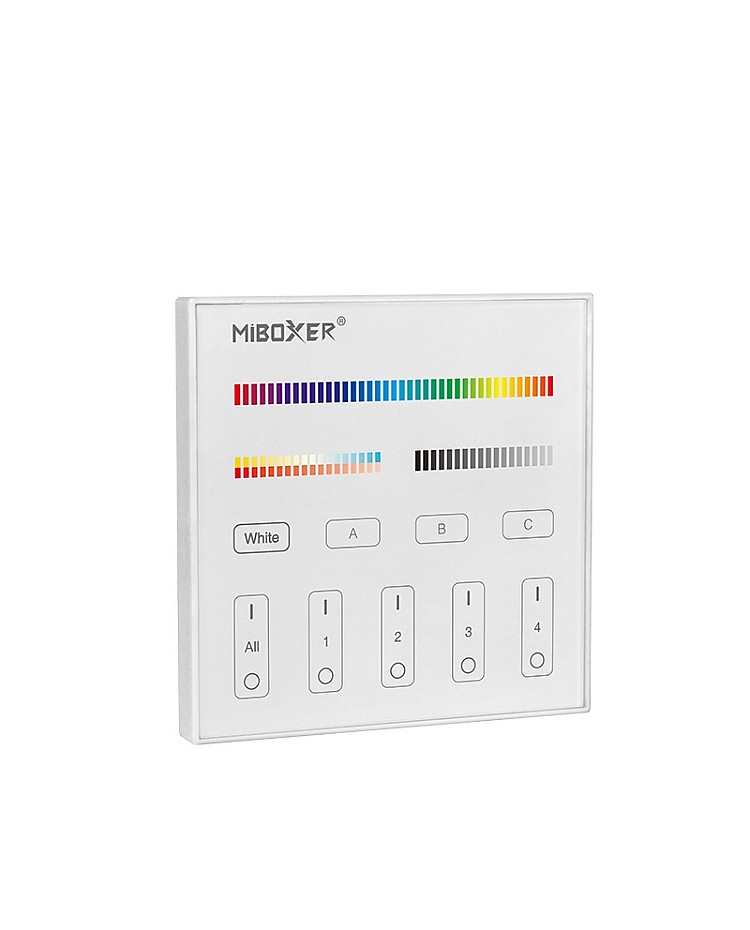

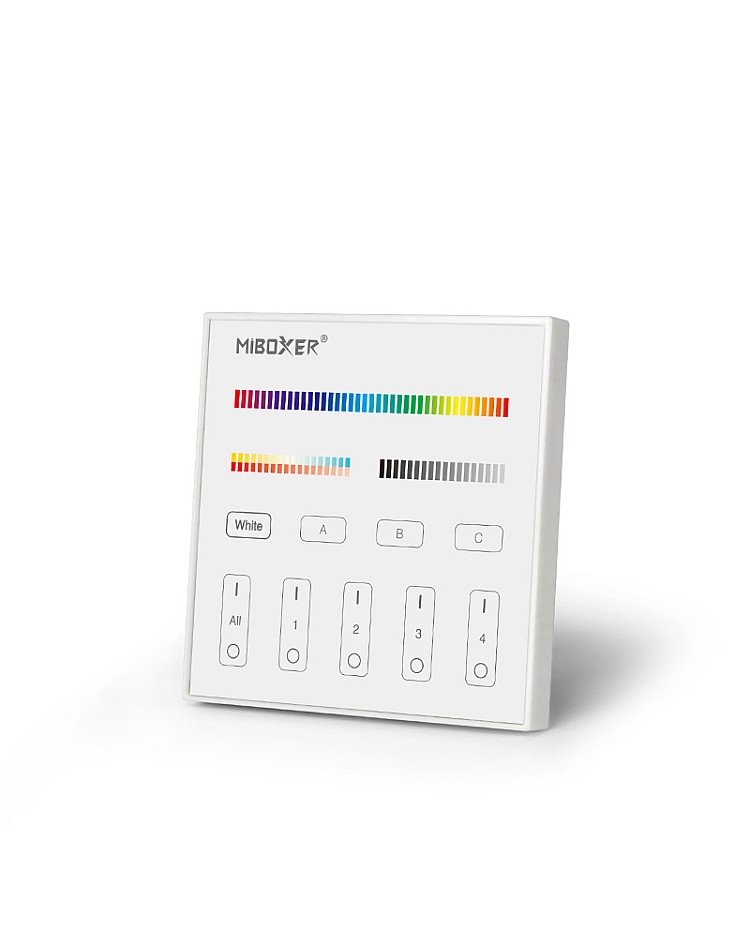

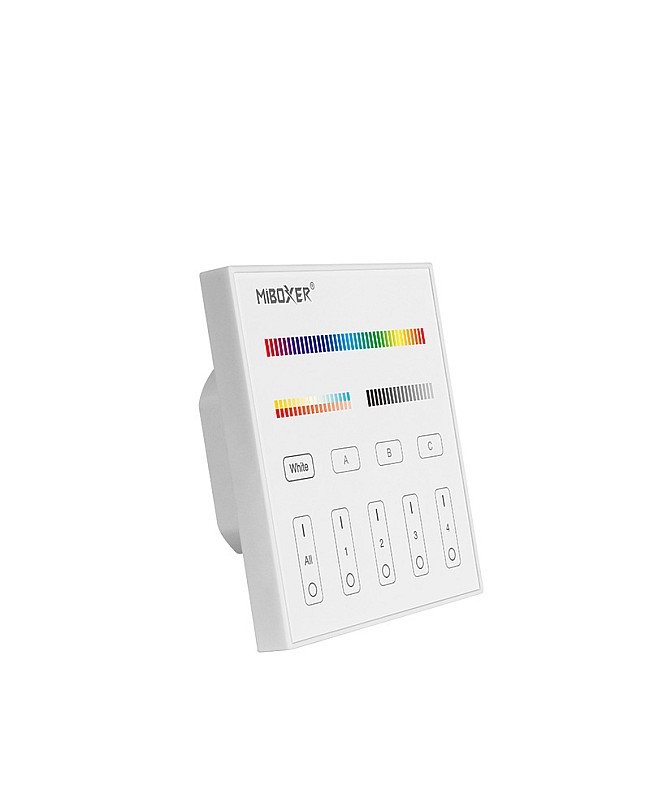

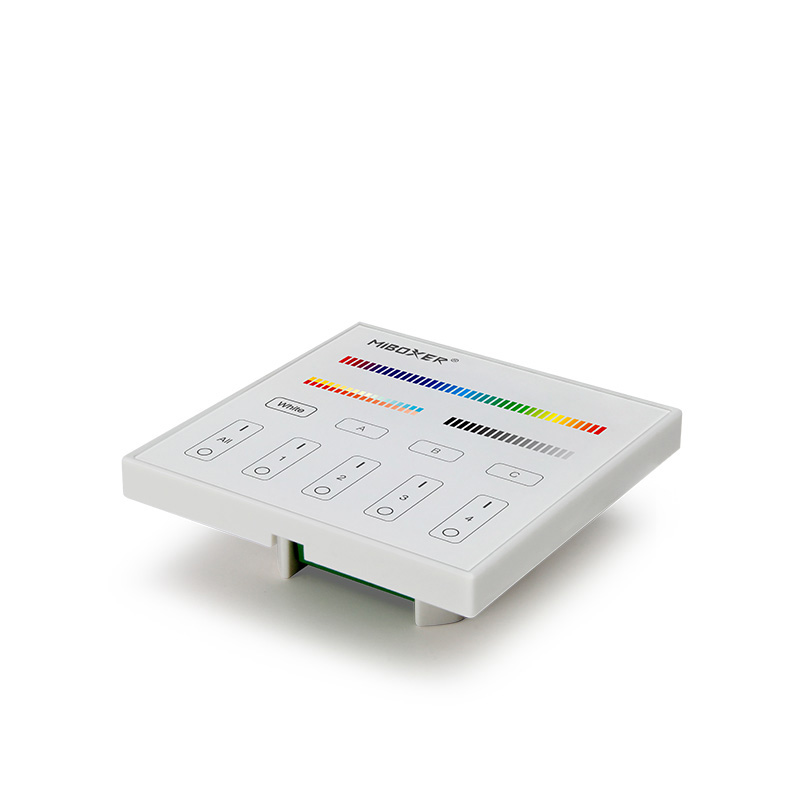

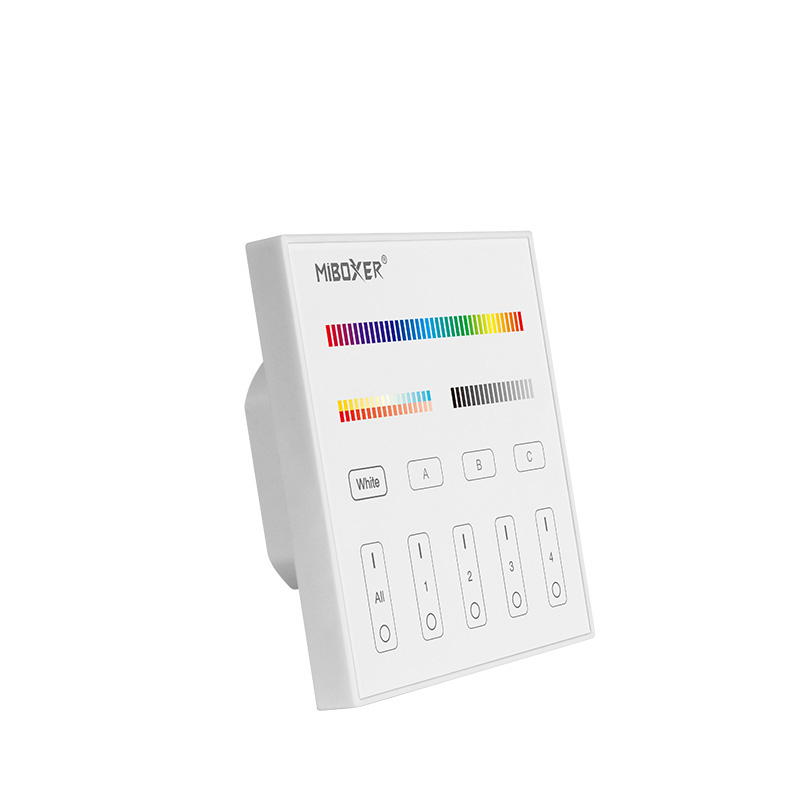

MiBoxer DP3S RGBWW DALI DT8 Dimming Panel
