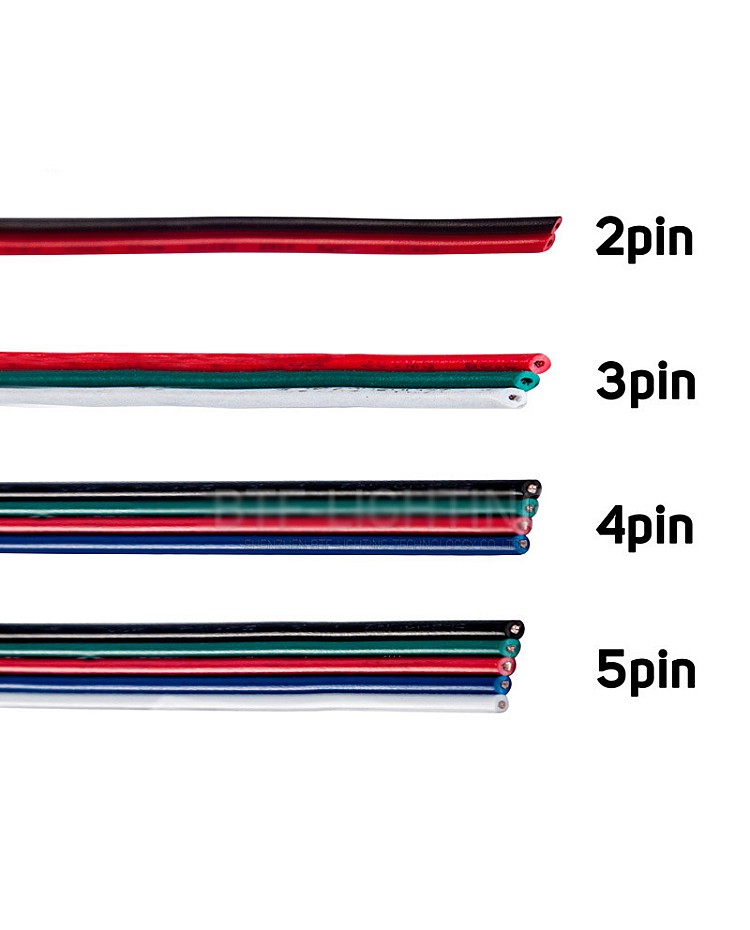

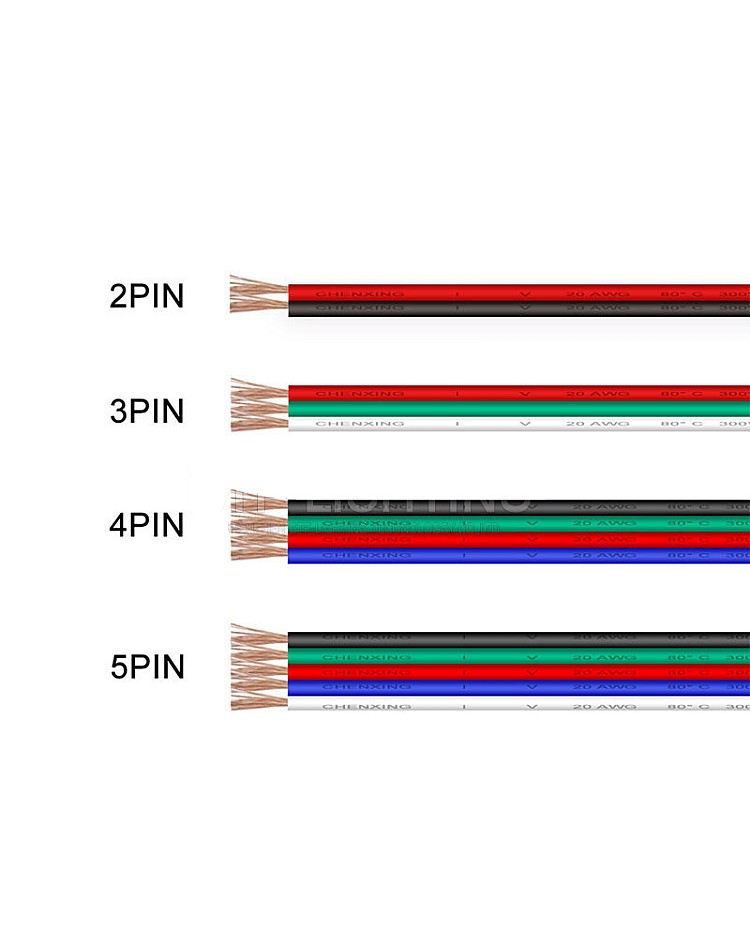

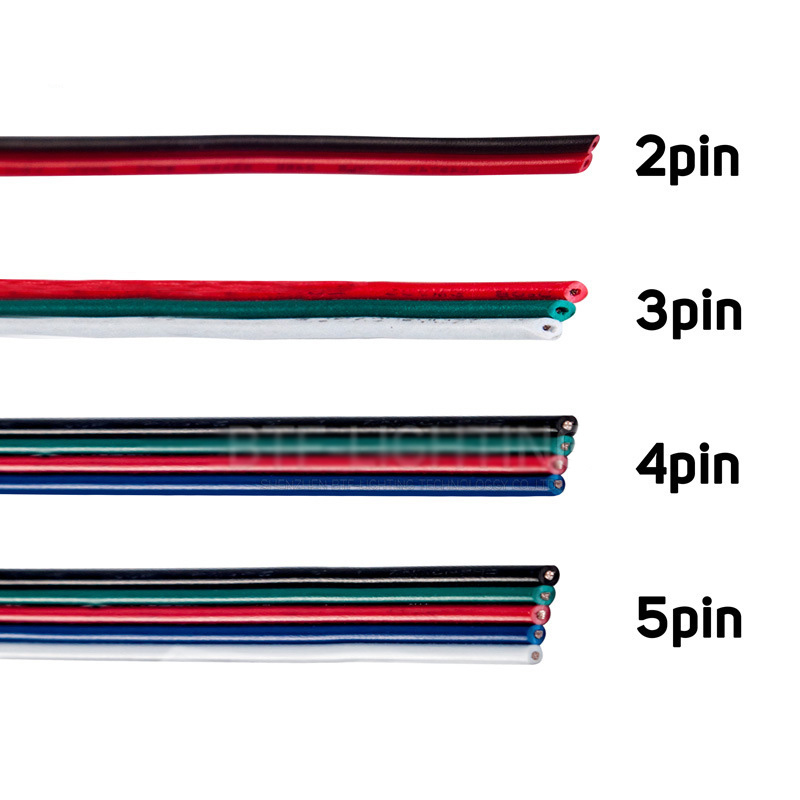

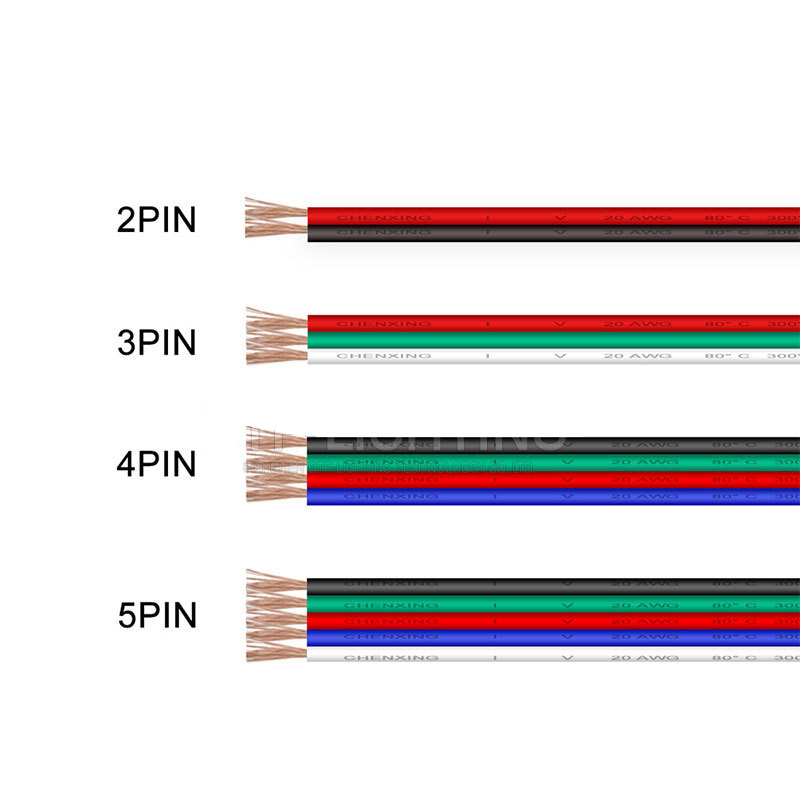

The extension LED light cable, each wire contains many high-quality pure copper thin wires stranded, the outer layer made of PVC insulation materials for strong tensile strength, super soft, easy to bend without breaking. There are four types of products available: 2PIN, 3PIN, 4PIN, and 5PIN. You can use 2Pin for single-color LED strips, 3Pin for CCT LED strip lights, 4Pin for RGB LED lights, and 5Pin for RGBW. Ten meters per reel, you can cut to any length for your project.
Specifications:

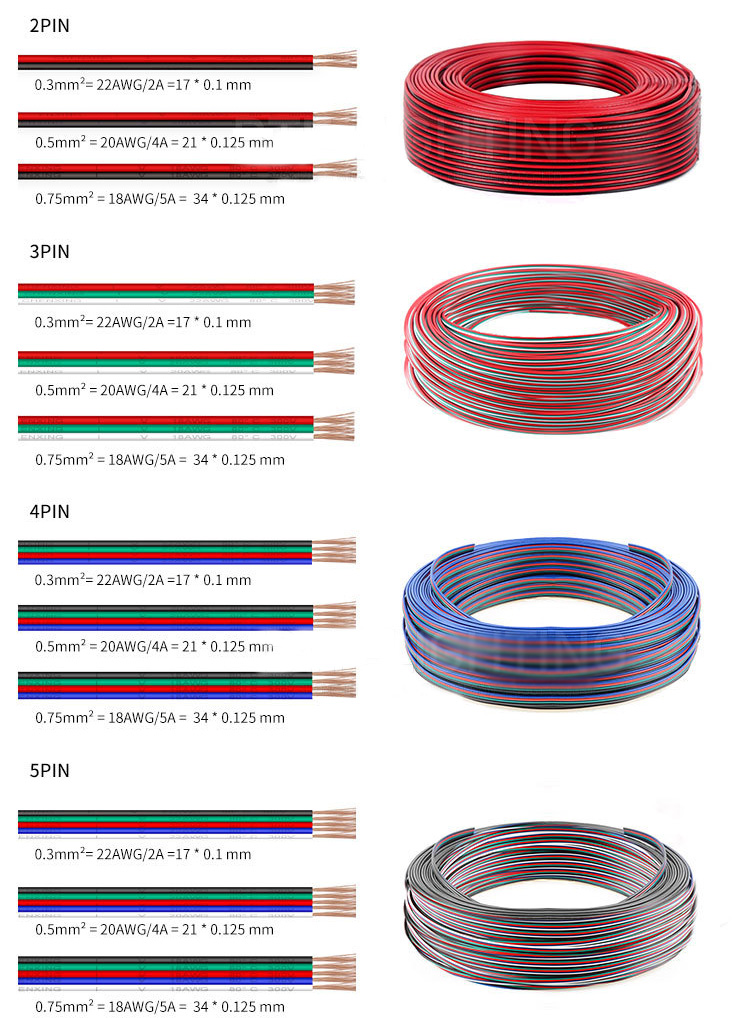

- Size: 2Pin/3Pin/4Pin/5Pin
- Wire Gauge: 22AWG, 20AWG, 18AWG

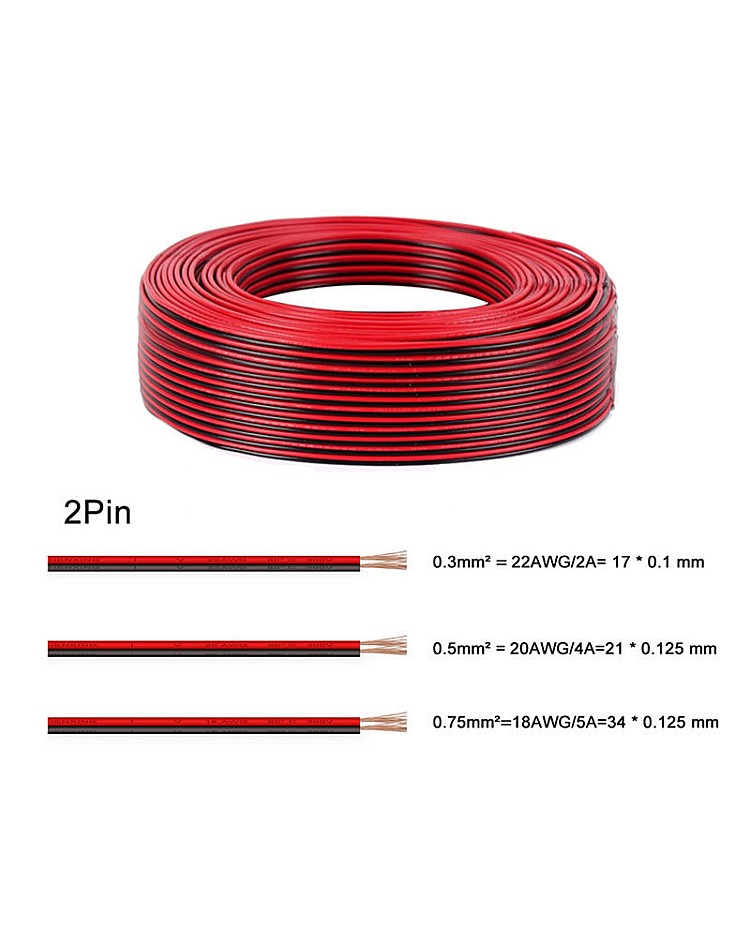

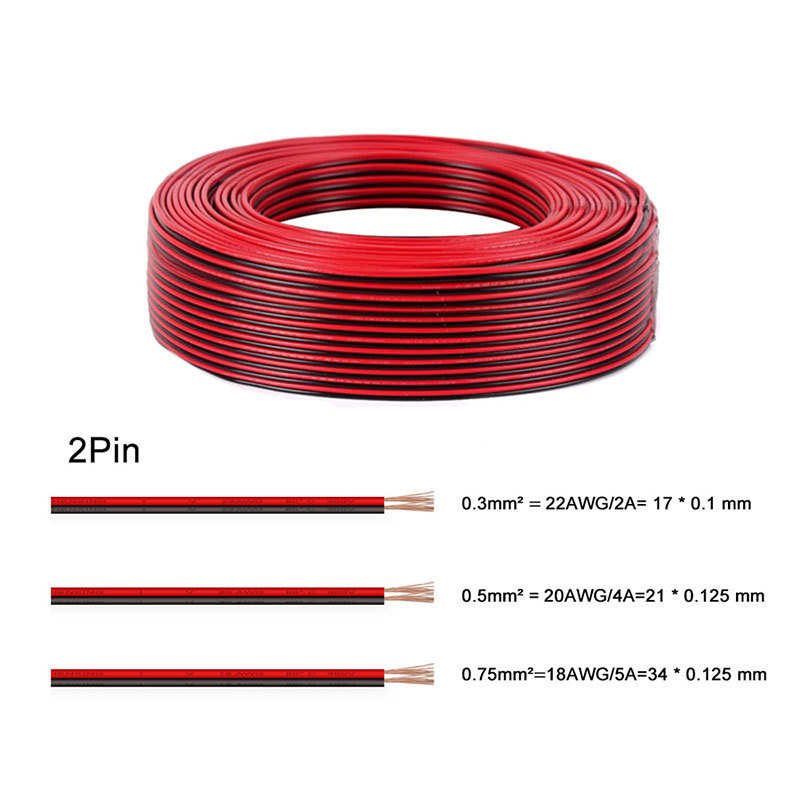

- 2PIN:
- 22AWG/2A=0.3㎜²=17*0.1mm
- 20AWG/4A=0.5㎜²=21*0.125mm
- 18AWG/5A=0.75㎜²=34*0.125mm

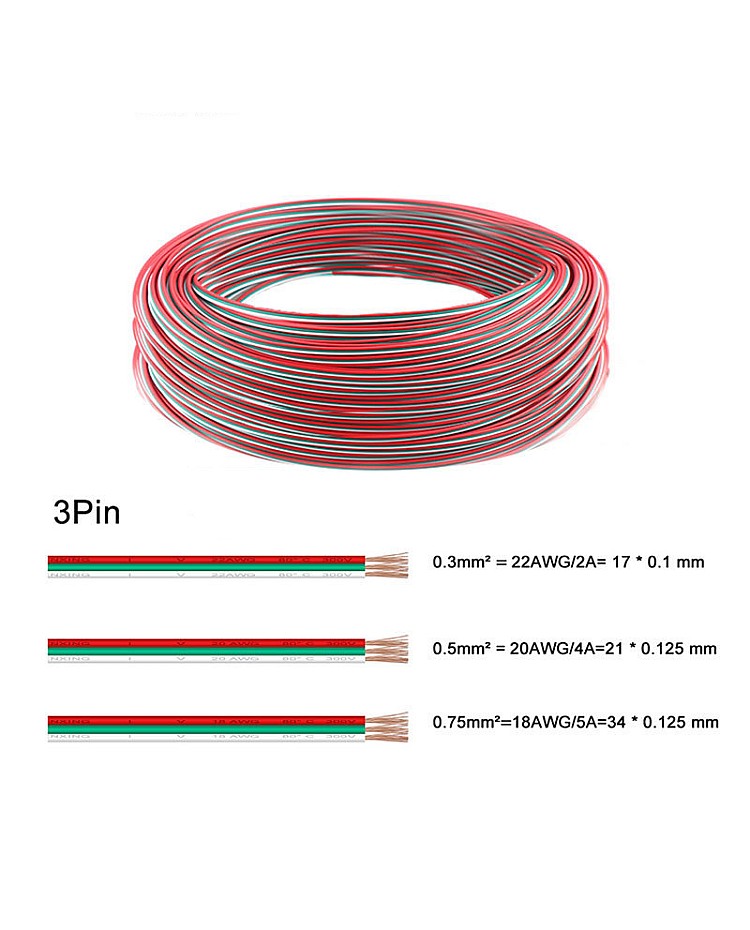

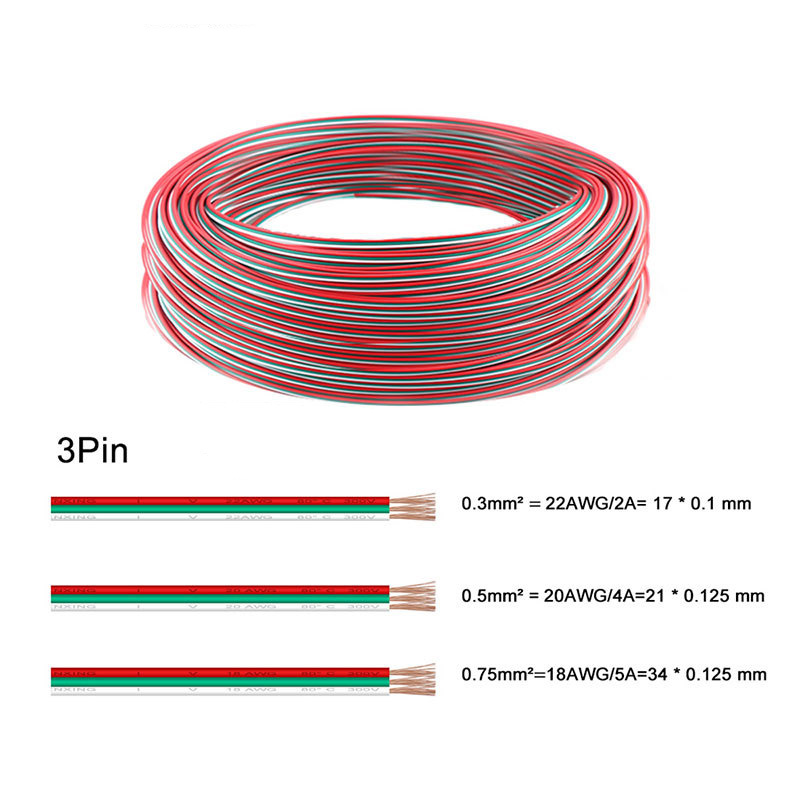

- 3PIN:
- 22AWG/2A=0.3㎜²=17*0.1mm
- 20AWG/4A=0.5㎜²=21*0.125mm
- 18AWG/5A=0.75㎜²=34*0.125mm

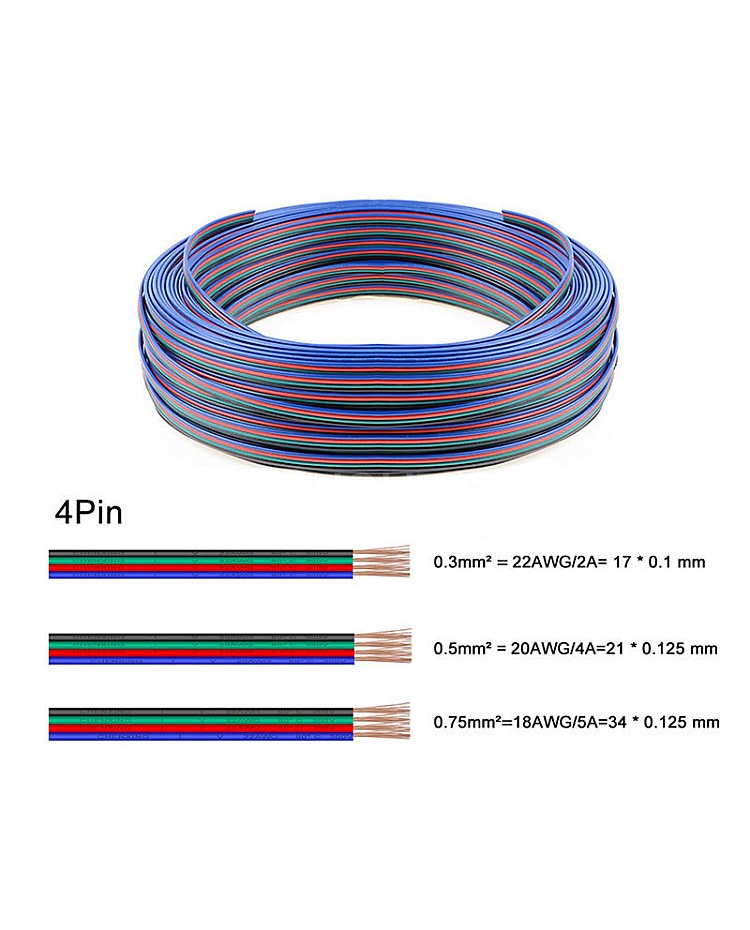

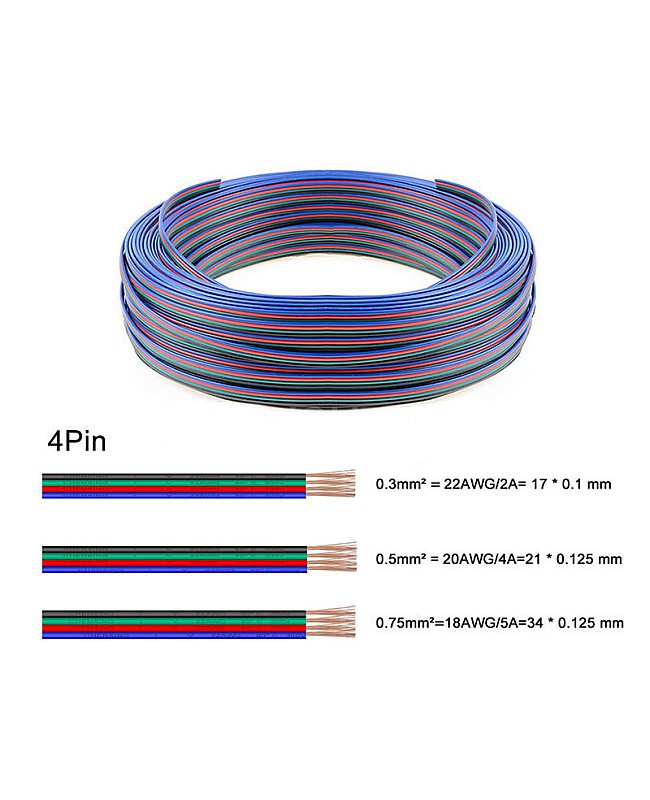

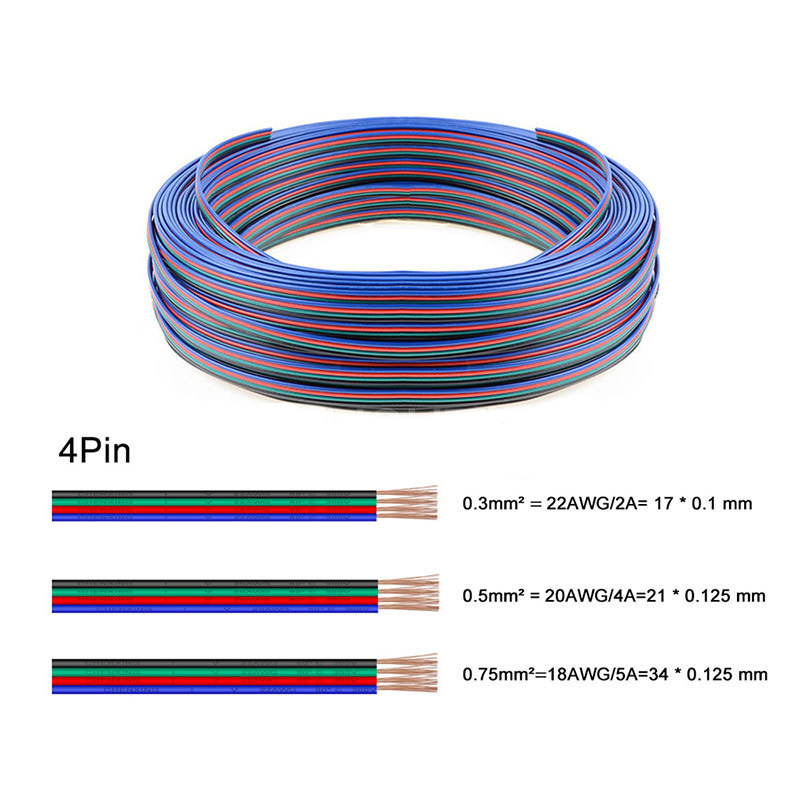

- 4PIN:
- 22AWG/2A=0.3㎜²=17*0.1mm
- 20AWG/4A=0.5㎜²=21*0.125mm
- 18AWG/5A=0.75㎜²=34*0.125mm

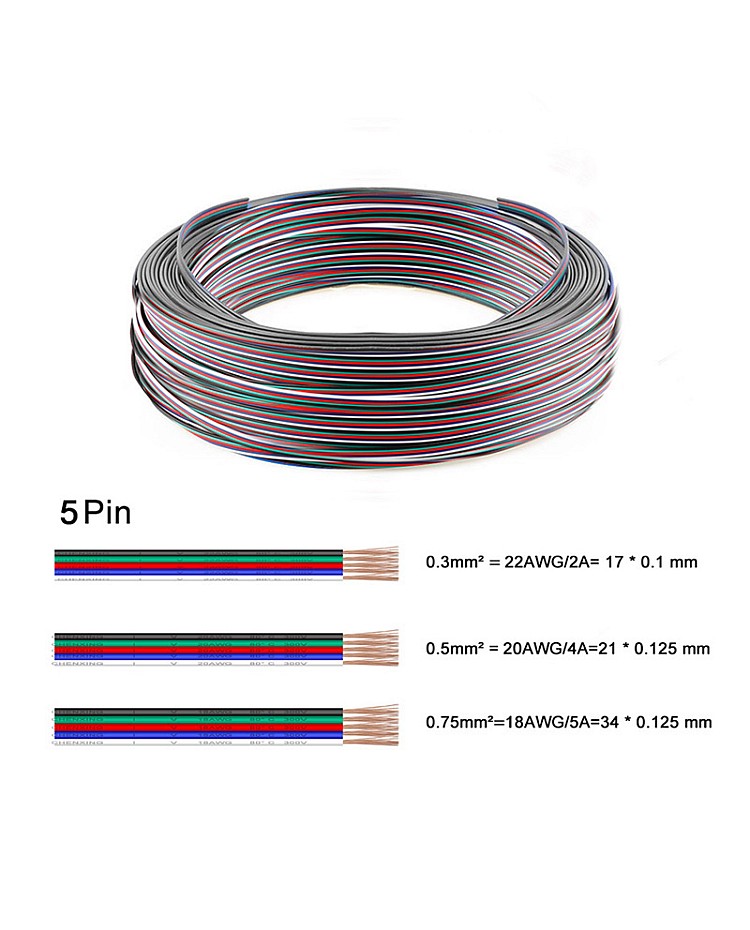

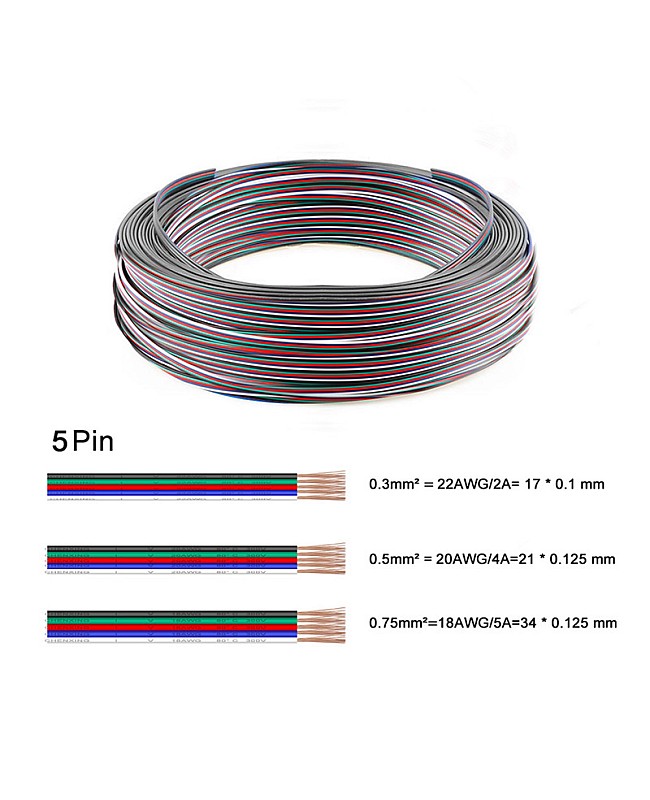

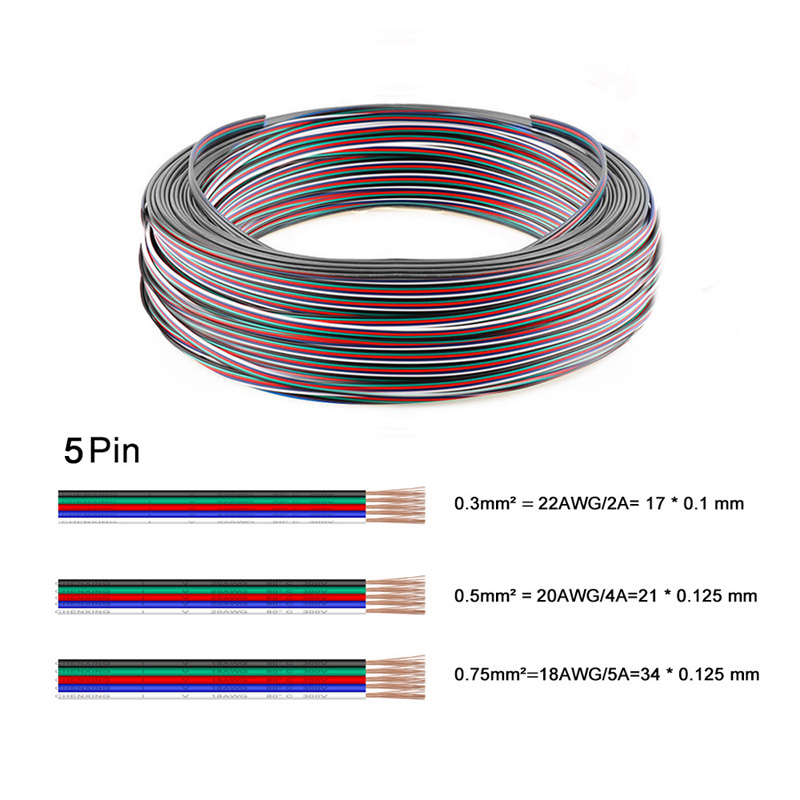

- 5PIN:
- 22AWG/2A=0.3㎜²=17*0.1mm
- 20AWG/4A=0.5㎜²=21*0.125mm
- 18AWG/5A=0.75㎜²=34*0.125mm
- 6PIN:
- 22AWG/2A=0.3㎜²=17*0.1mm
- 20AWG/4A=0.5㎜²=21*0.125mm
- 18AWG/5A=0.75㎜²=34*0.125mm
- Working Temperature: 0℃-+40℃
- Storage Temperature: -20℃-+60℃
- Length: 10 Meters
Includes:
1 * ED Light Cable(10Meters/Reel)
