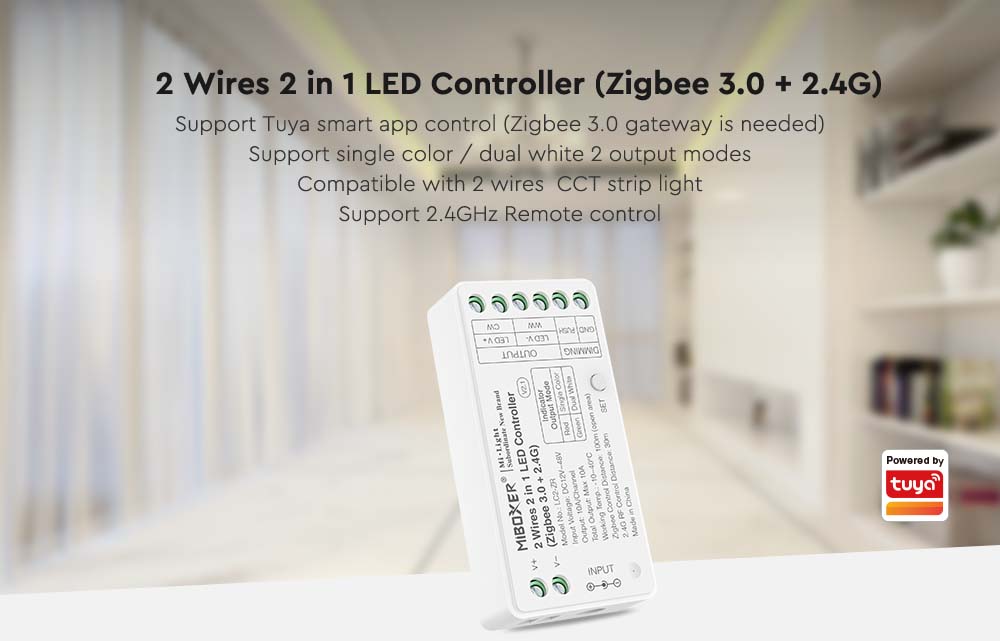

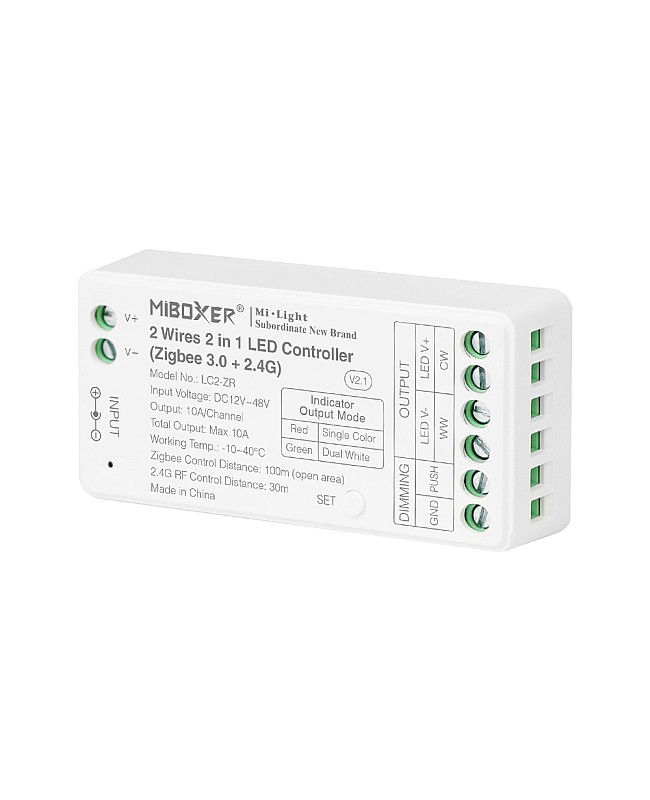

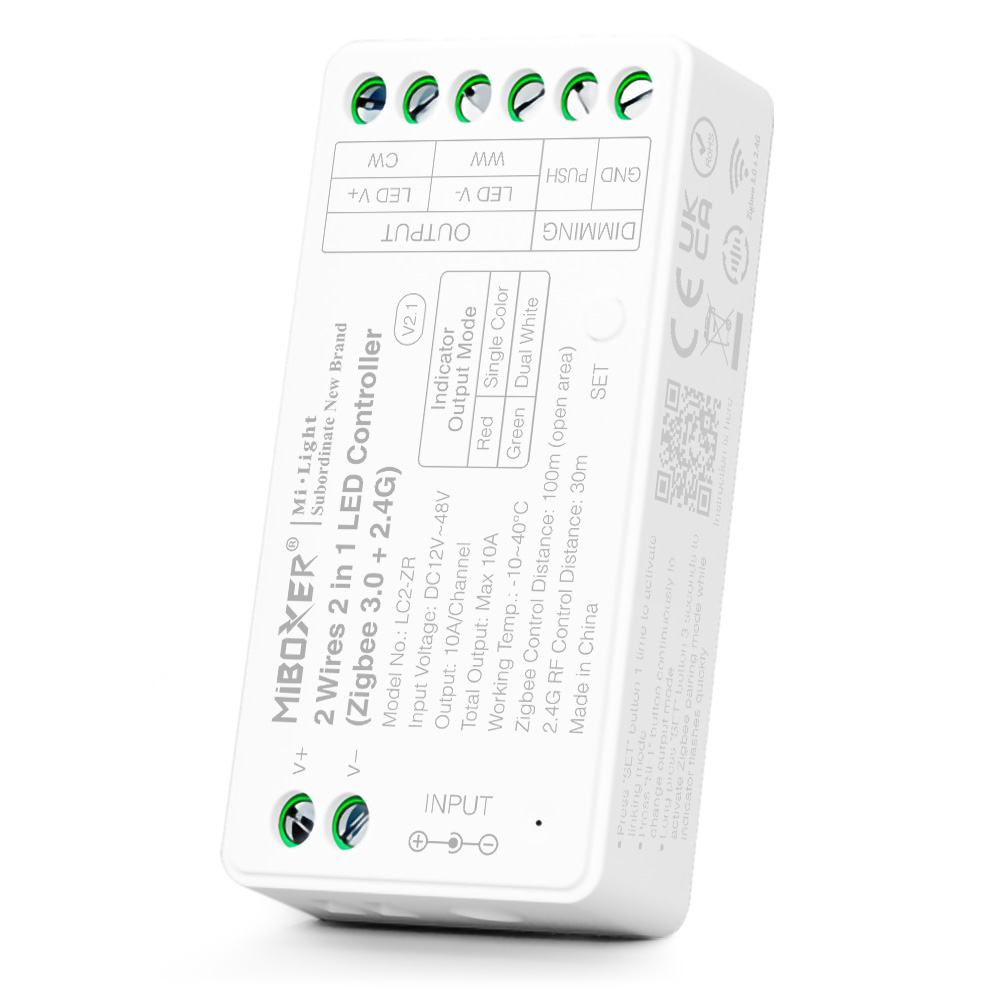

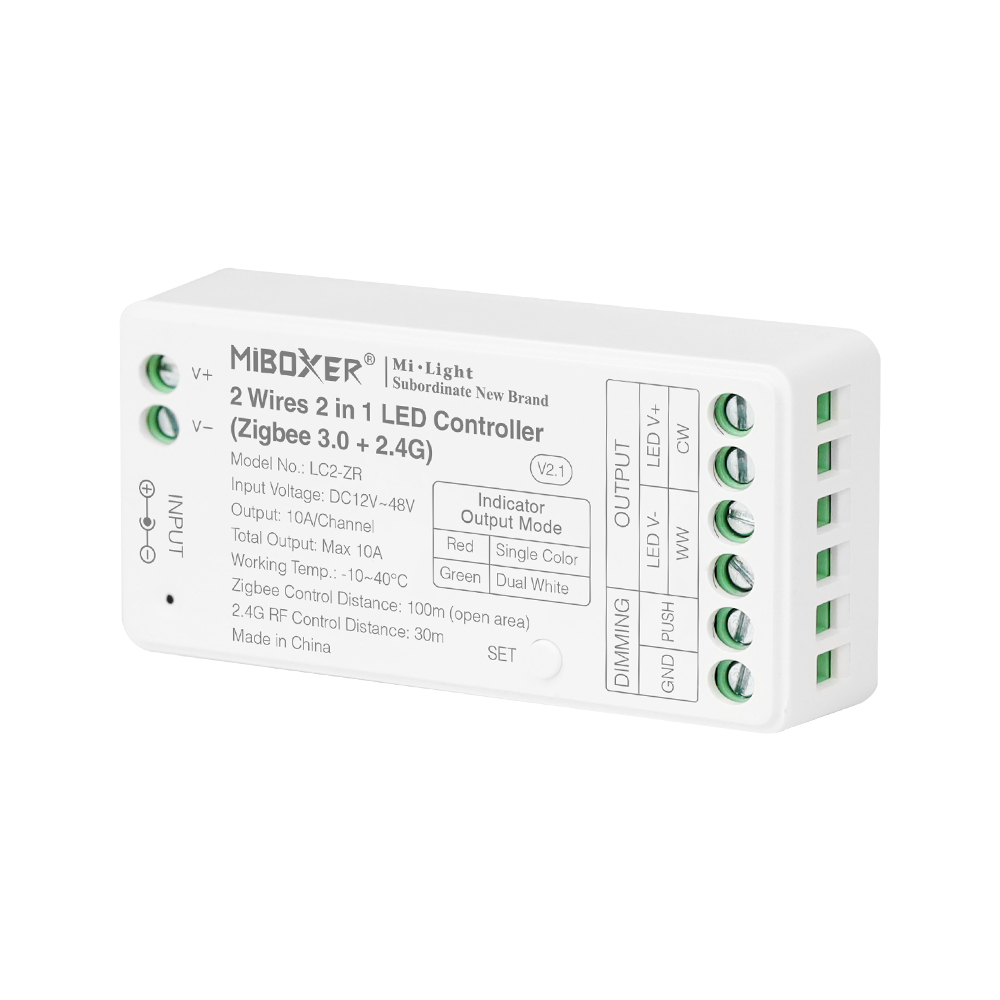

The MiBoxer LC2-ZR Wireless DC Dimmer, which integrates Zigbee 3.0 and 2.4G communication technology modules, can be controlled by Zigbee 3.0 Remote Controls and 2.4G Remote Controls to adjust the color temperature and brightness. The color temperature can adjust from 2700K to 6500K, and stepless dimming brightness from 1% to 100%. There is a button " SET " on the dimmer, and you can press it continuously to switch the output mode from single color to dual white. After being connected to a Zigbee 3.0 Gateway, the MiBoxer DC Light Dimmer can be controlled by a smartphone APP and third-party voice control. You can use the APP or voice commands to change the LED Light for various scenes. On the APP, you also can achieve other functions like timing, music rhythm, scene customization, etc. the MiLight Dimmer can enter other standard Zigbee 3.0 Gateways like Philips Hue, IKEA TRADFRI, Amazon Echo series, etc., can transmit the signals from the 2.4G Remote Control to another same model within 30 meters, all of them will work synchronously.

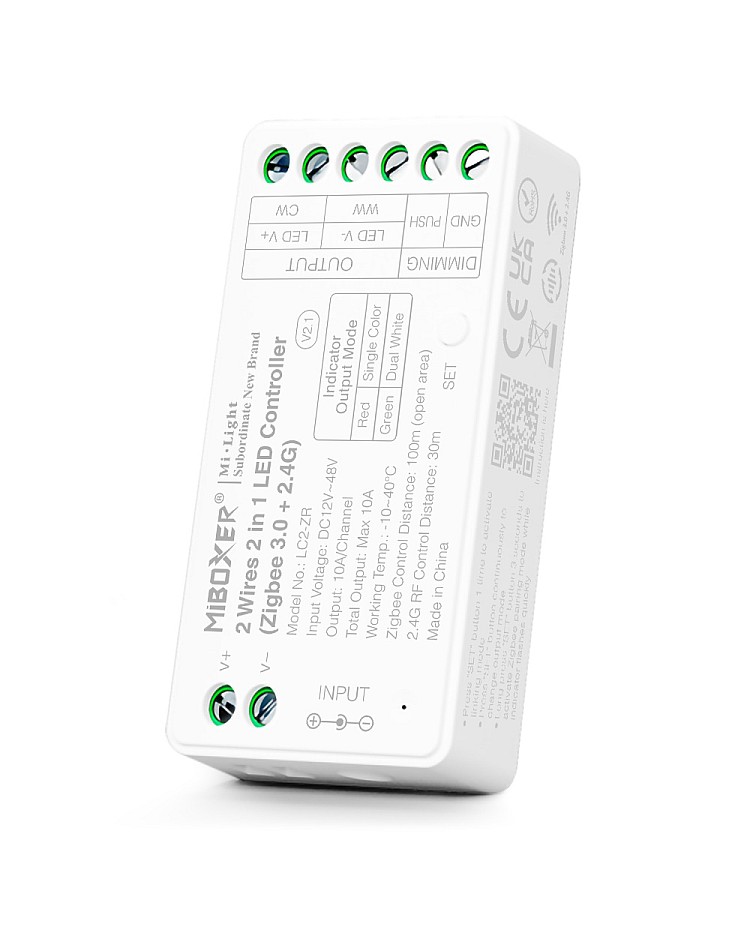

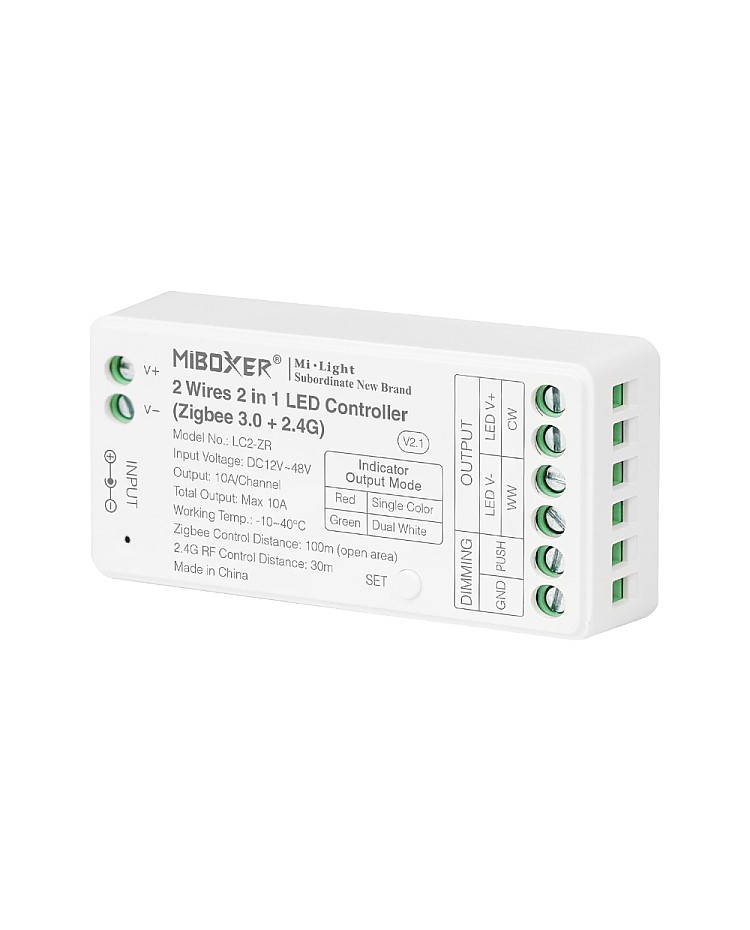

  • Model: LC2-ZR
  • Material: PC

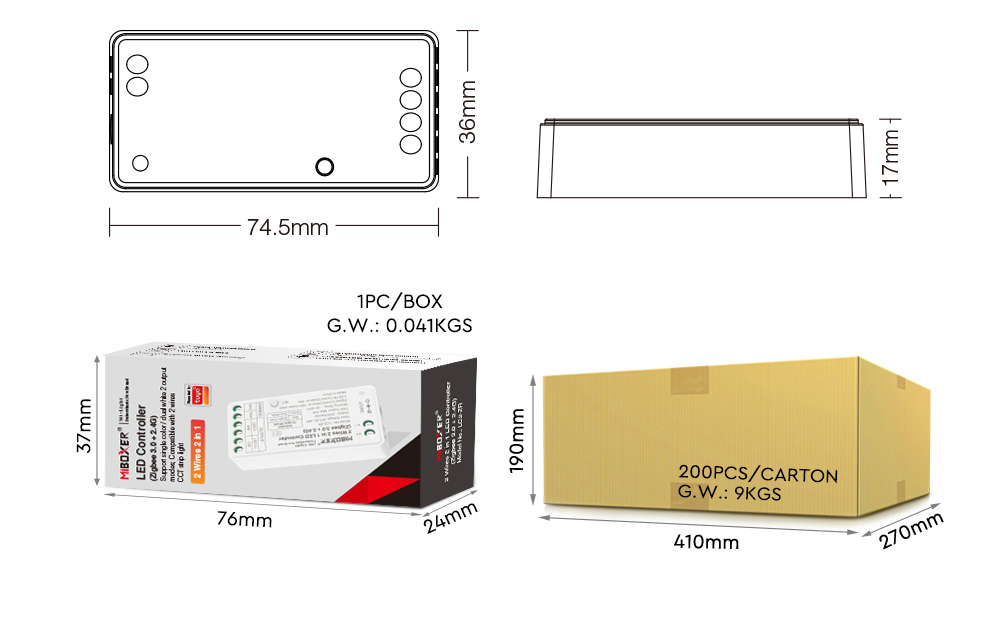

  • Size: 74.5*36*17mm(L*W*H)
  • Working Voltage: DC12-48V
  • Output: 10A/Channel
  • Total Output: MAX 10A
  • Color Temperature Adjustable From 2700K To 6500K
  • Stepless Dimming Brightness From 1% To 100%
  • Single Color / Dual White 2 Output Modes
  • Wireless Technology: Zigbee 802.15.4
  • Zigbee Wireless Frequency: 2.400-2.480GHz
  • Zigbee Control Distance: ≤100m(Open Area)
  • Zigbee 3.0 Remote Controllable(Zigbee 3.0 Gateway Needed)
  • Smartphone APP Controllable
  • APP Name: Tuya Smart
  • Support Third-Party Voice Control
  • Can Work With Amazon Alexa And Google Assistant

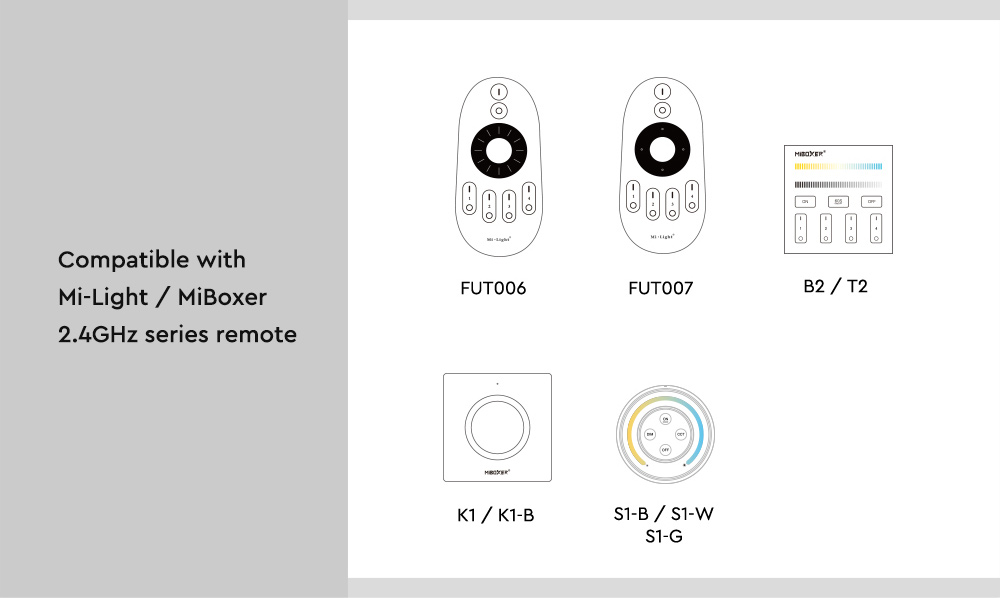

  • Compatible With MI Light And MiBoxer 2.4G Remote Controls
  • 2.4G RF Remote Control Distance: ≤30m
  • Support PUSH Dimming

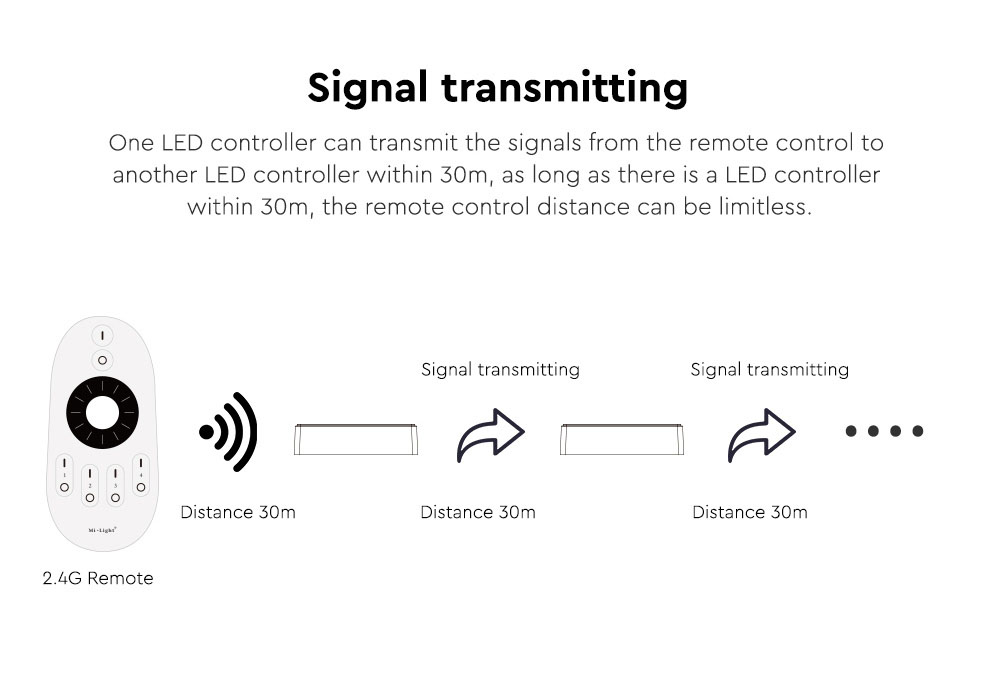

  • Auto Signal Transmitting

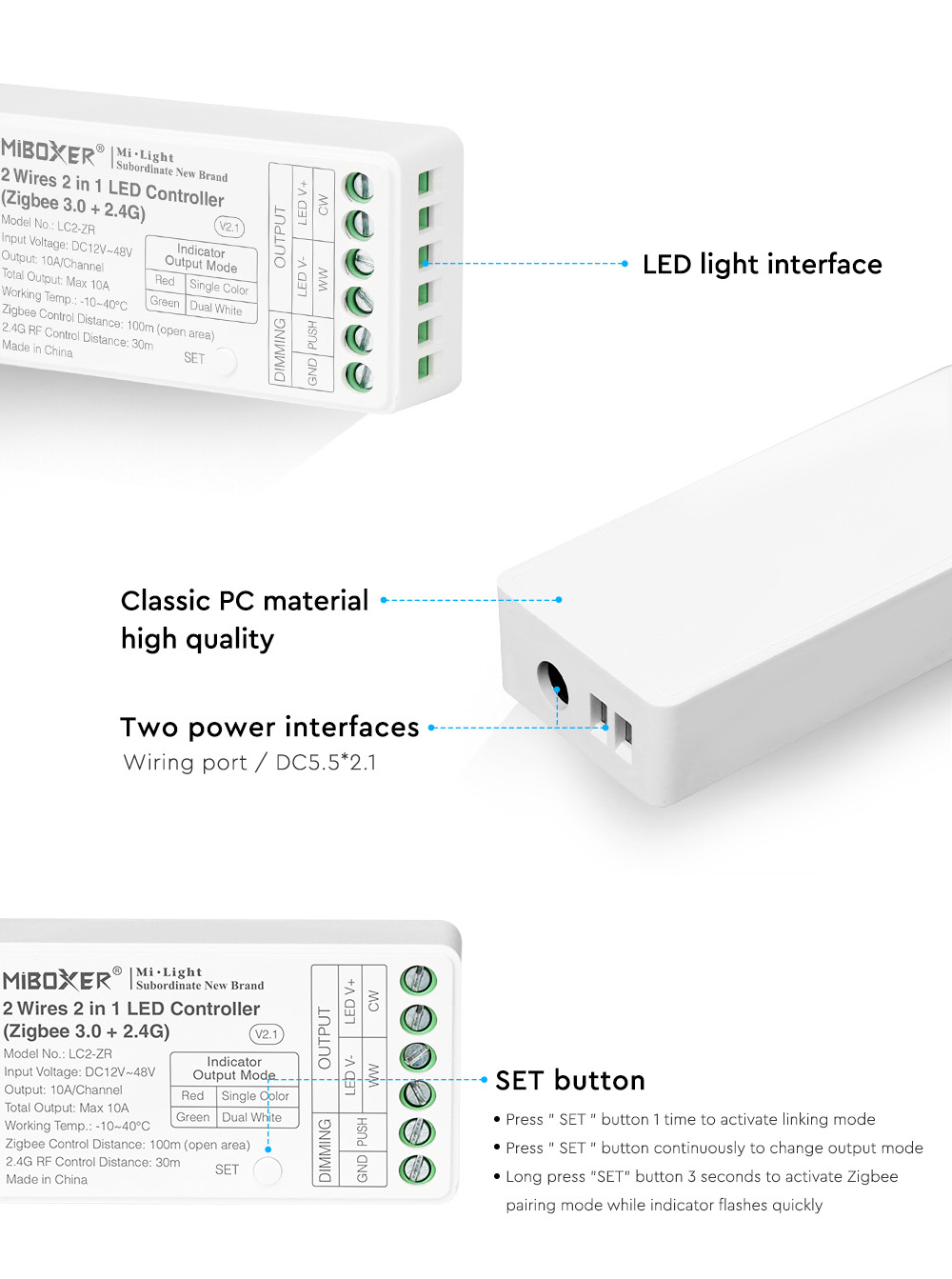

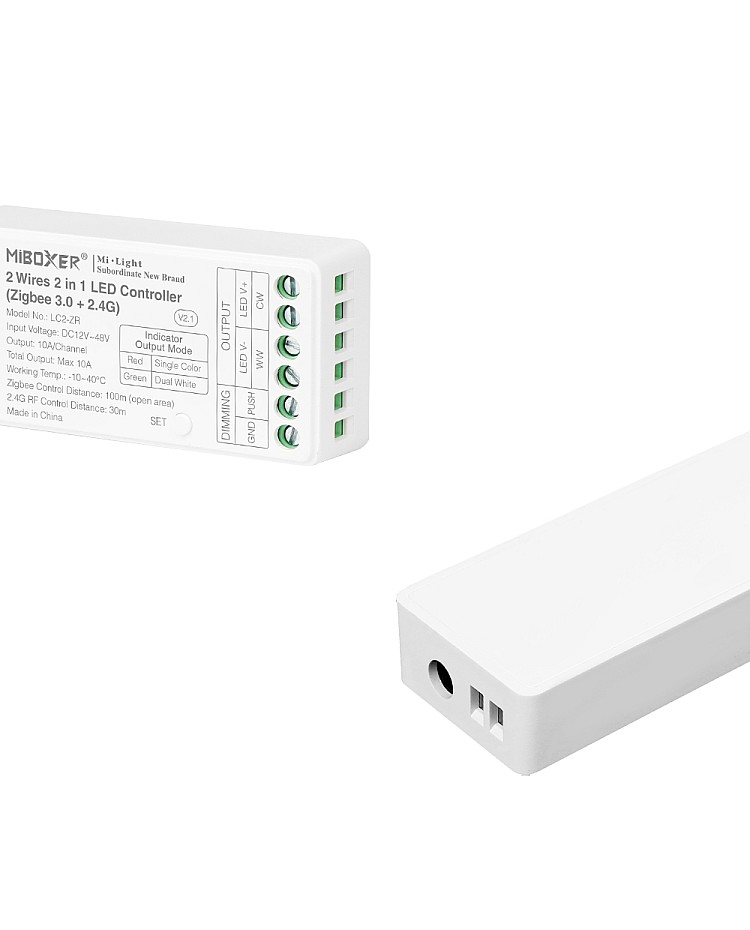

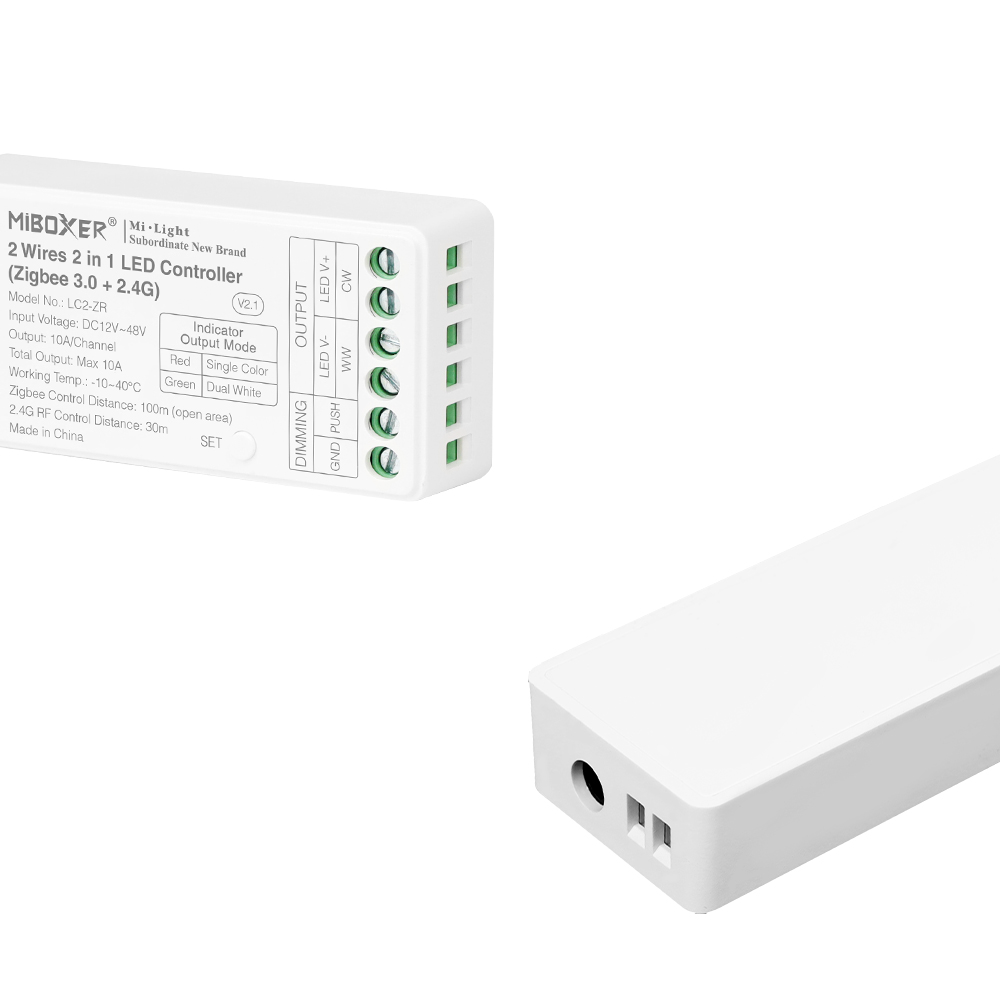

  • Two Port Interfaces: Wiring Port/DC5.5*2.1mm
  • Working Temperature: -10-40℃
  • 3 Years Warranty


1*MiBoxer LC2-ZR DC Dimmer
