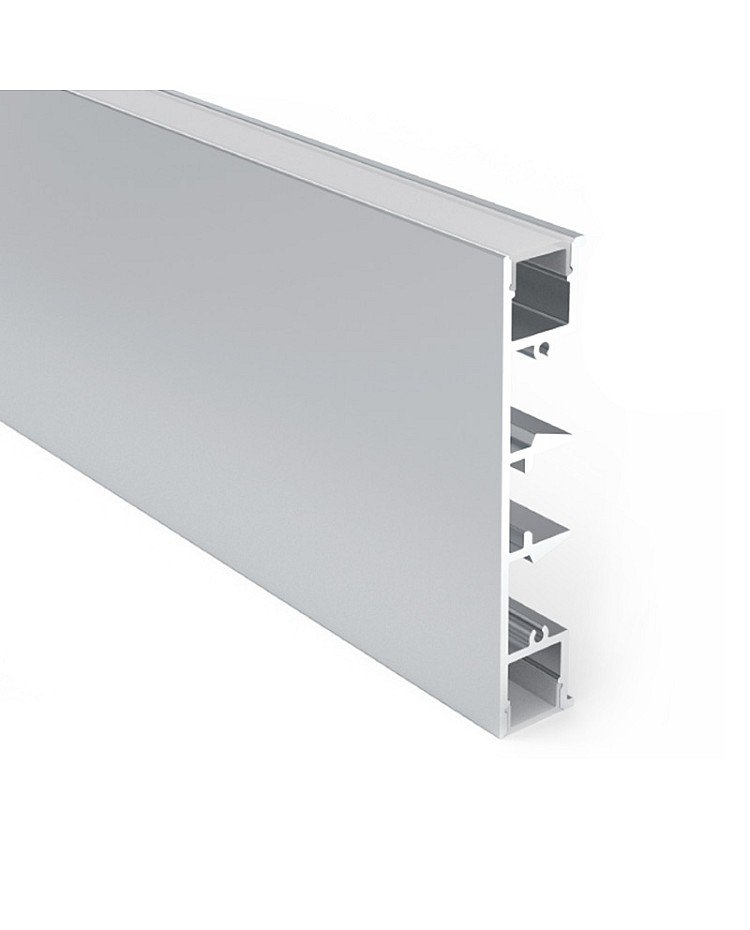

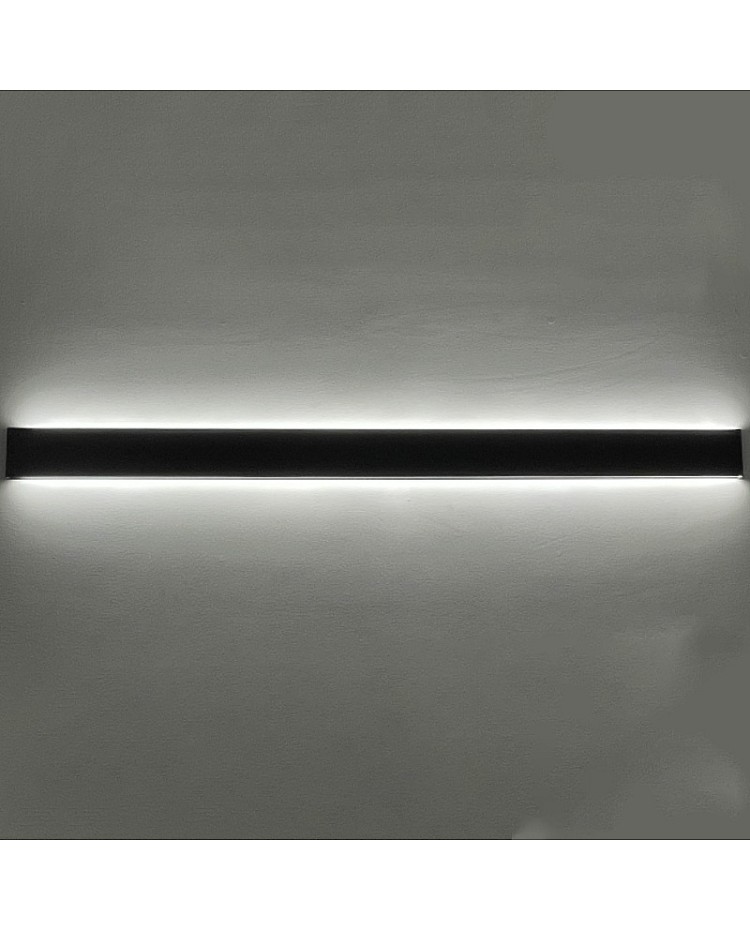

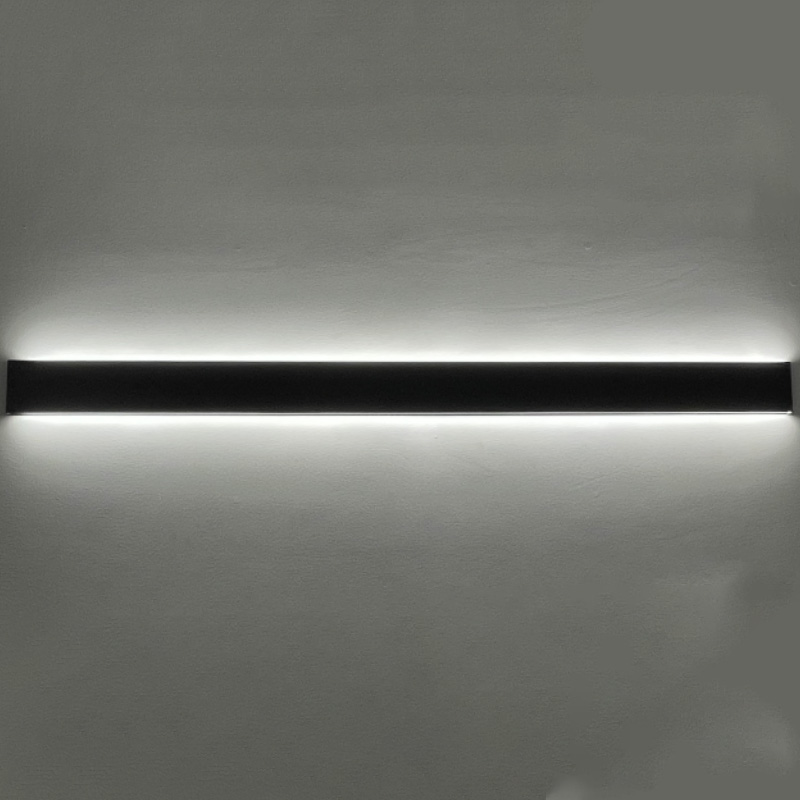

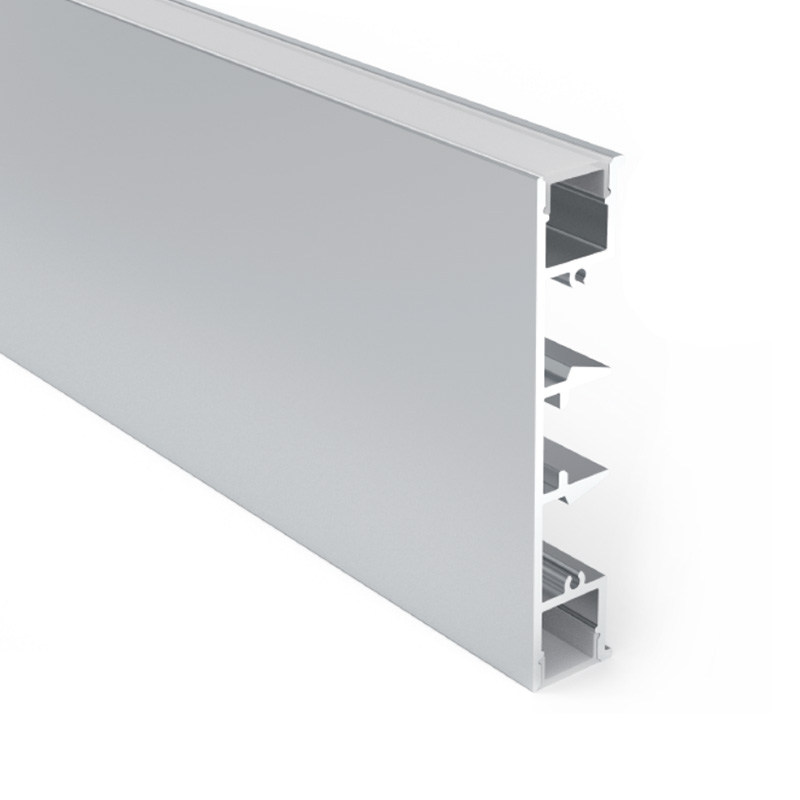

The LED strip light aluminum profiles feature up-and-down lighting and are easy to mount to create an impressive lighting effect, providing a sleek, modern look to your wall light. The LED strip channels are made of 6063-T5 aluminum with a silver surface treatment, offering oxidation resistance and a longer lifespan than similar products. There are three colors available: silver, white, and black. The standard lengths are 1M and 2M, and a custom length is available.
There is only one type of diffuser available: the PC diffused cover, which is made of brand material, is anti-yellowing, has perfect lighting distribution, and has an evenly lit output.
The inner width of the LED channel slots is 10.5mm, which recommends using high-density FCOB LED tapes. The maximum width of the LED strips is 10mm, and the aluminum channels also serve as heat sinks for better heat dissipation. End caps with wire holes are included, making it easy to connect the LED strip lights to the power supply. Three connectors are sold separately; you can purchase them for your lighting project.

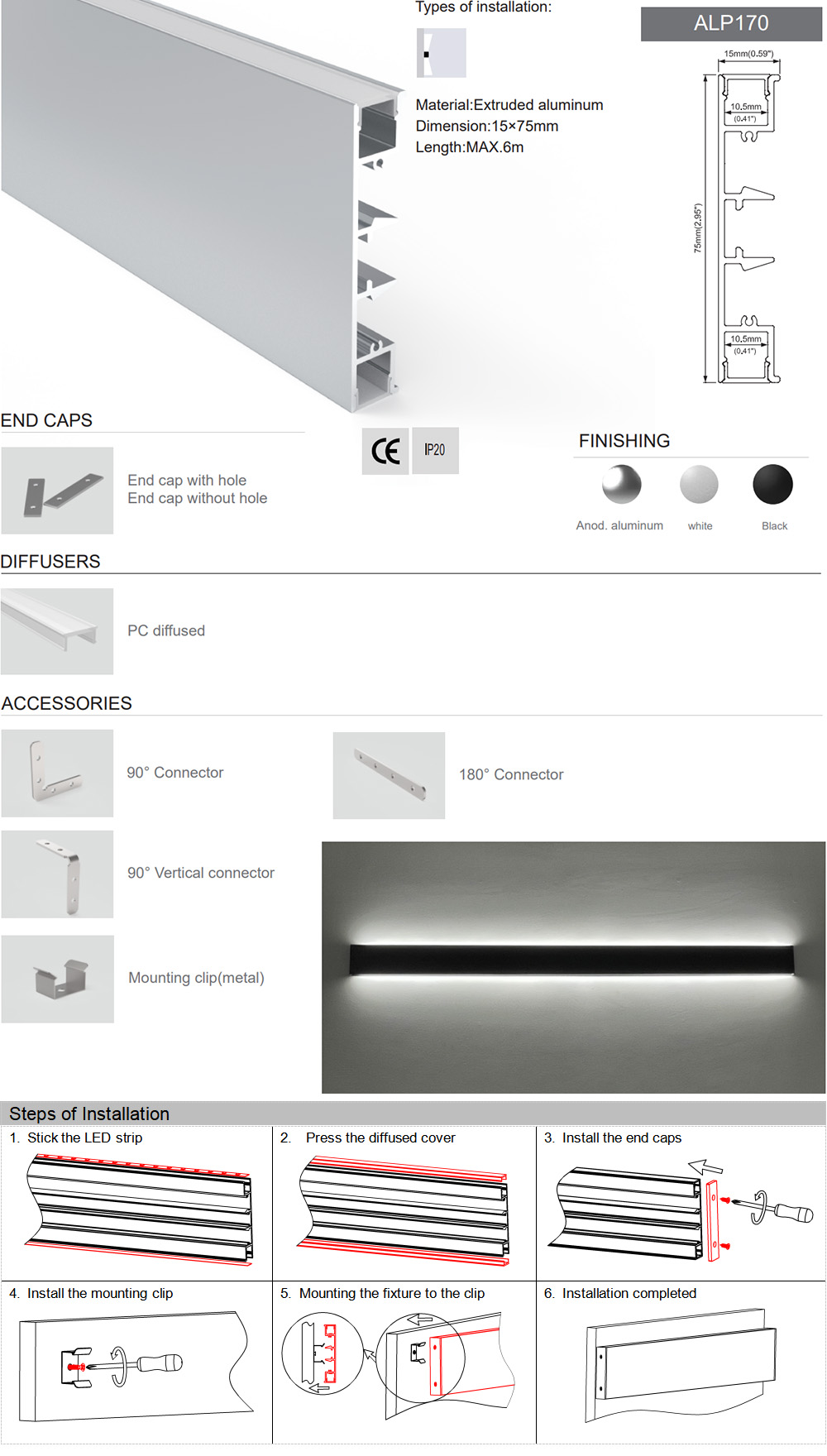

Specifications:
- Model: ALP170
- Material: 6063-T5 Extruded Aluminum
- Surface Treatment: Anodized
- Colors: Silver(Default), White, Black

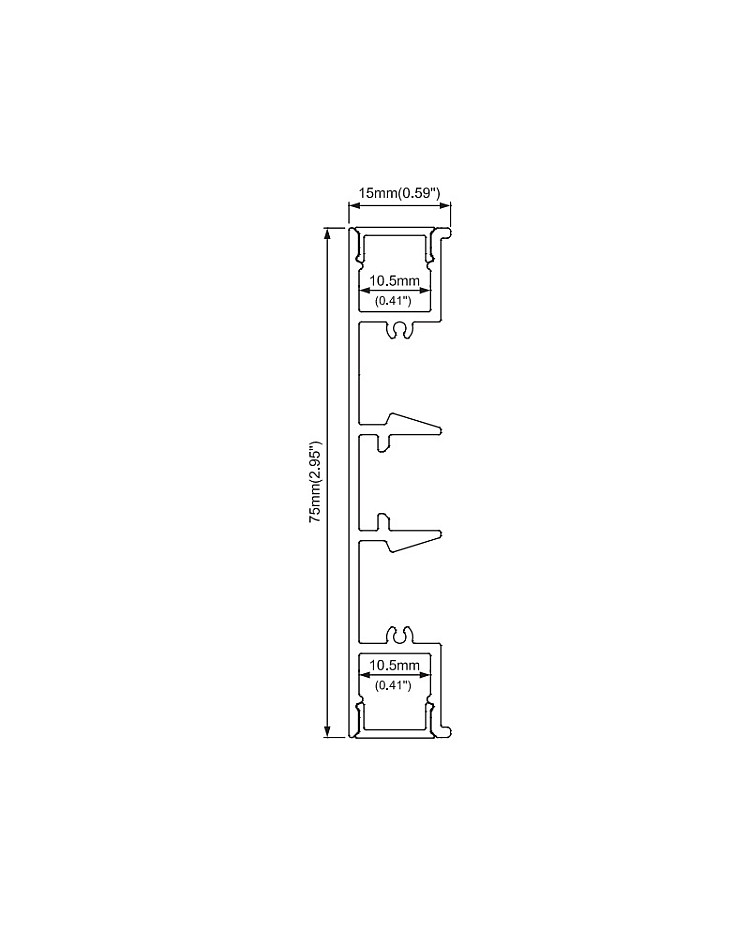

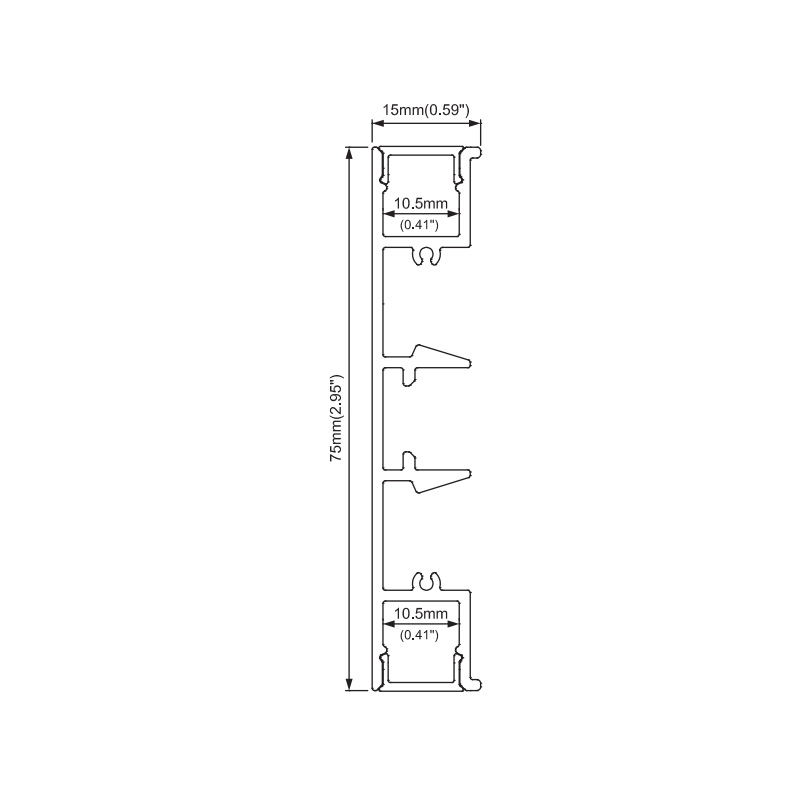

- Size: 75*15mm(H*W)
- Standard Length: 1M
- Other Lengths Available: 0.5M, 1.5M, 2M
- Custom Length Available: YES
- Diffuser: PC Diffused Cover
- Inner Width: 10.5mm
- Max Width Of LED Strips: 10mm
- Max Power: 15*2W/M
- Beam Angle: 100°
- Tolerance: ±1%
- IP Rating: IP20 Non-waterproof
- Installation: Surface Mounted

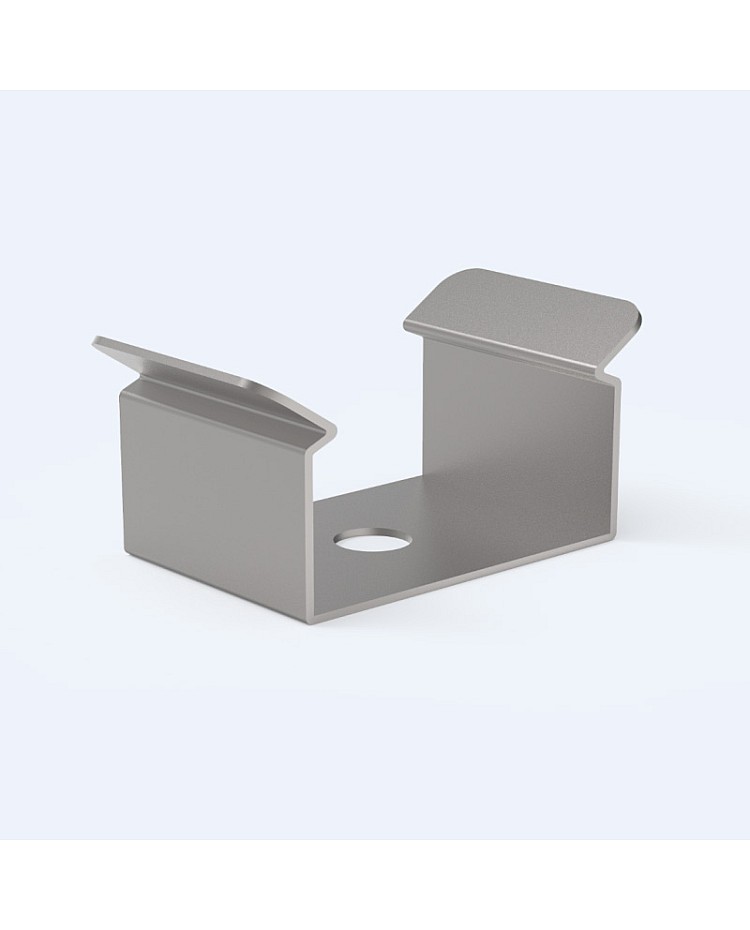

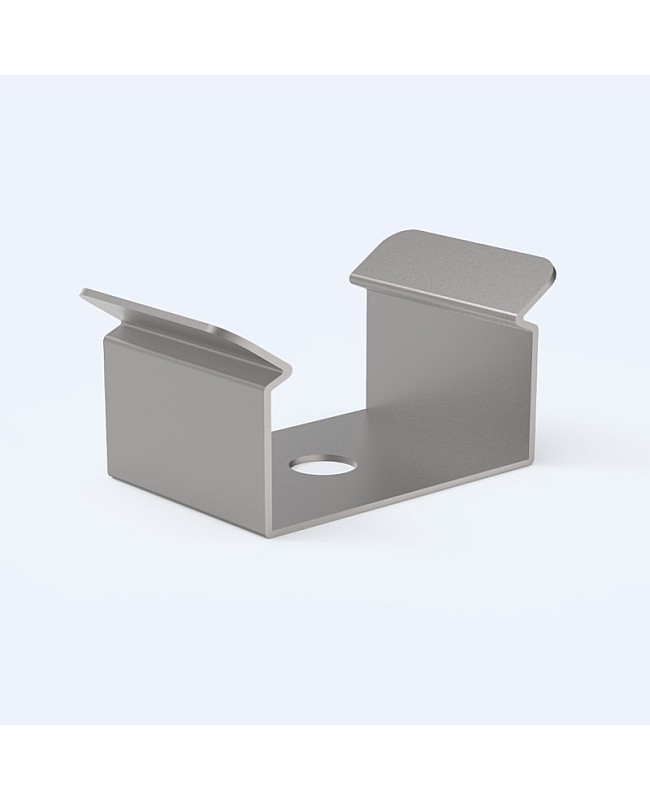

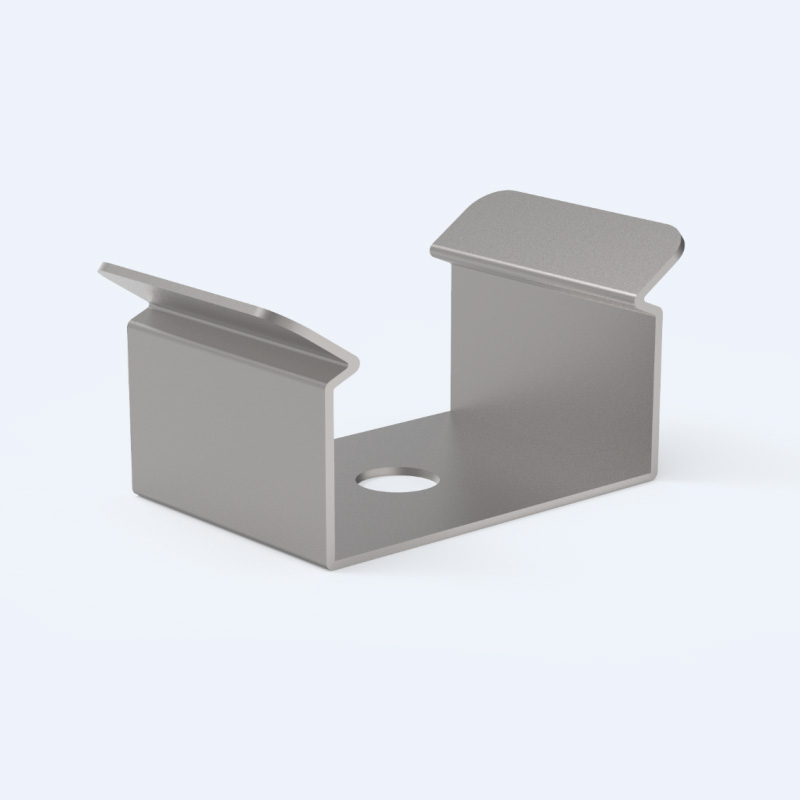

- Metal Mounting Clips Included

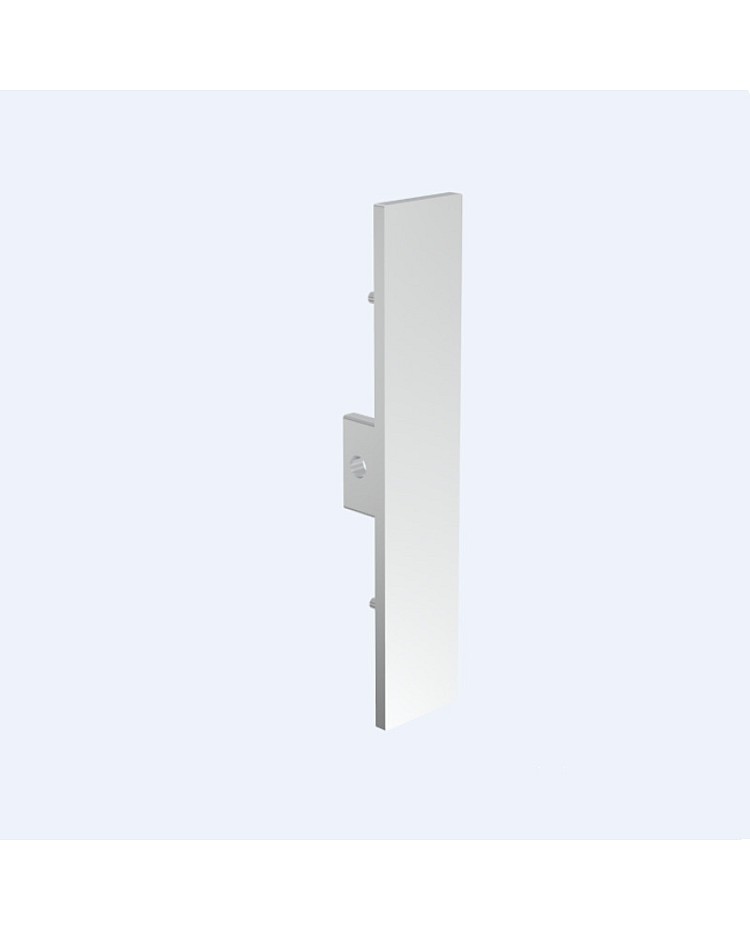

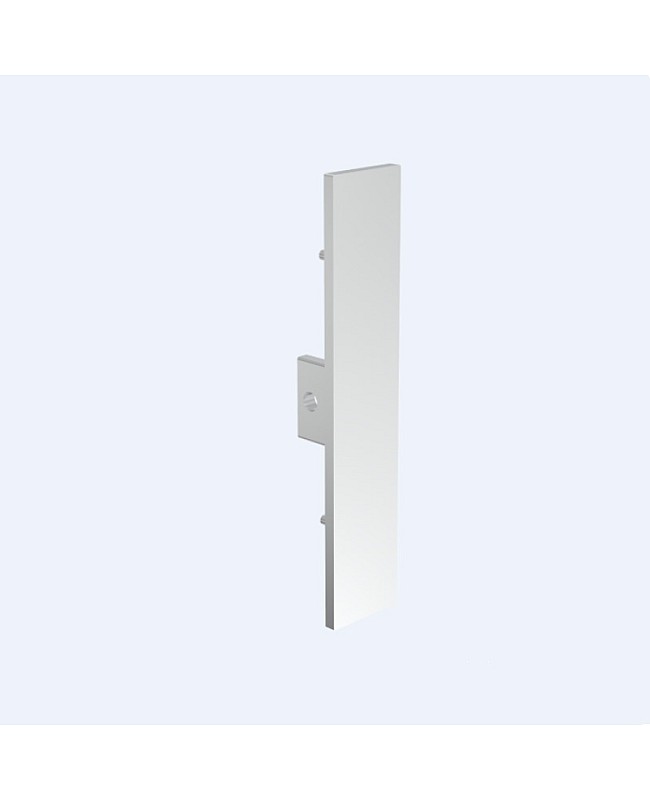

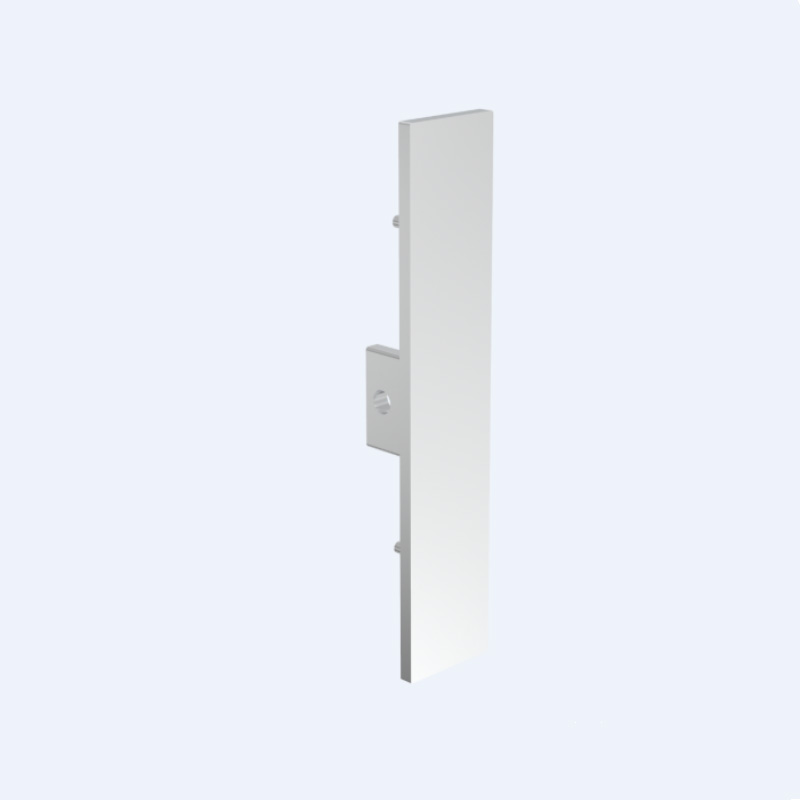

- End Caps With Holes/Without Holes Included
- 180°, 90° And 90° Vertical Connectors Sold Separately
- 5 Years Warranty
Includes:
1 * LED Light Profile With Diffuser
End Caps (With Hole/Without Hole)
Metal Mounting Clips
