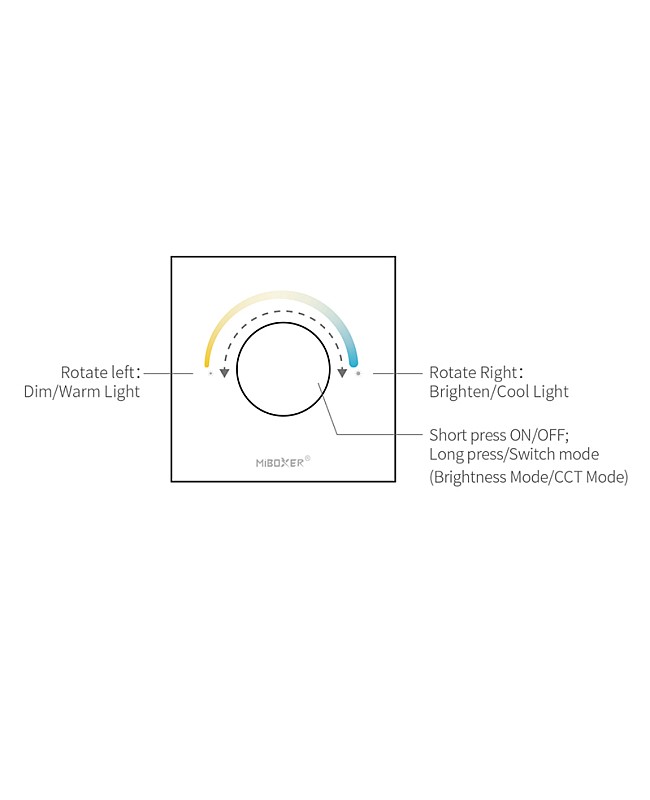

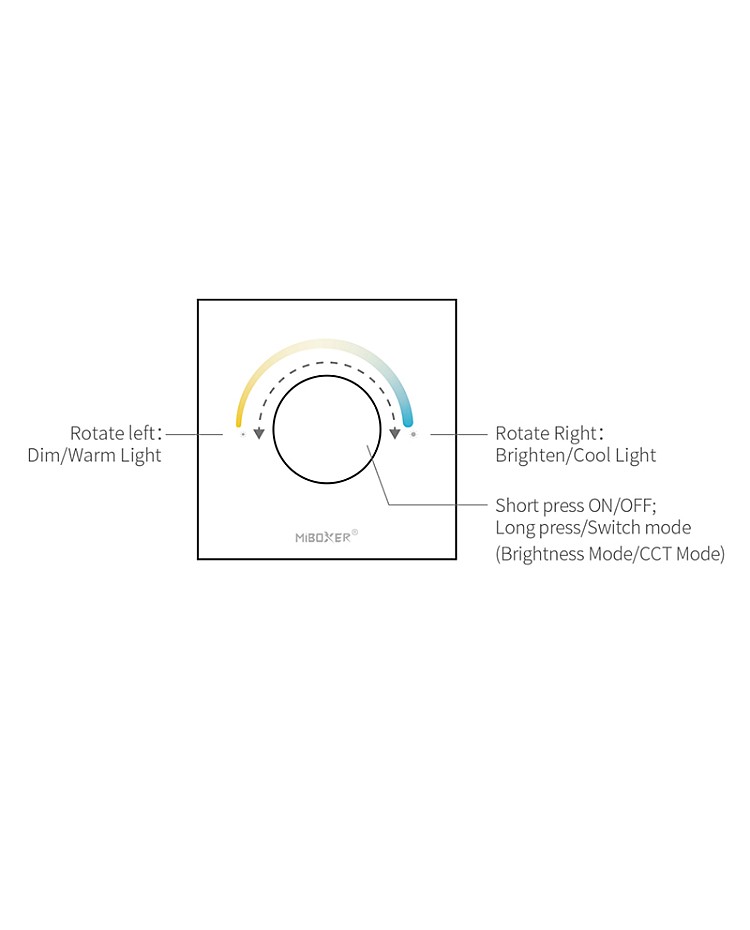

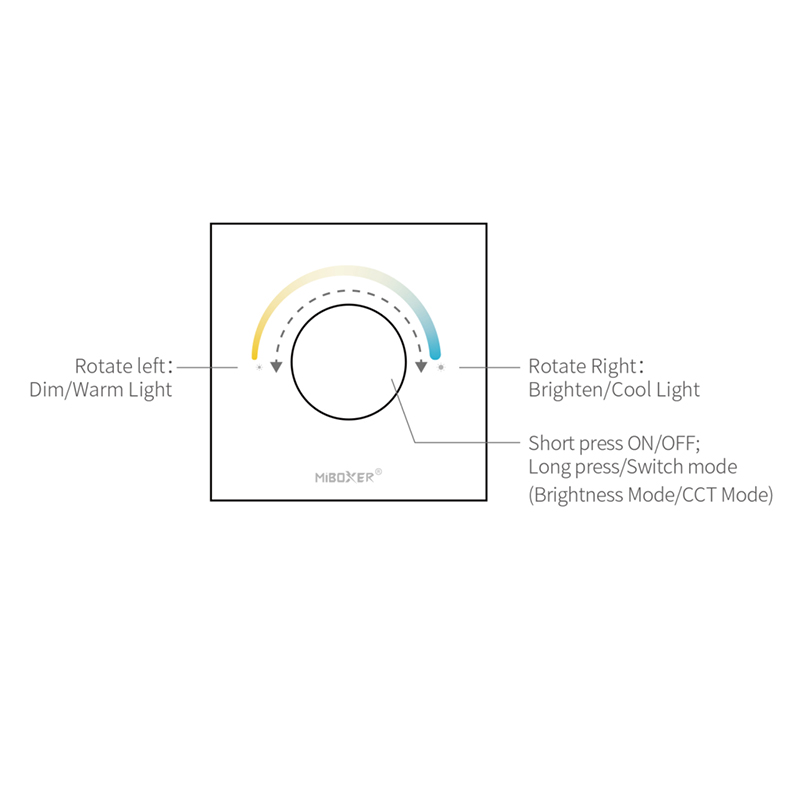

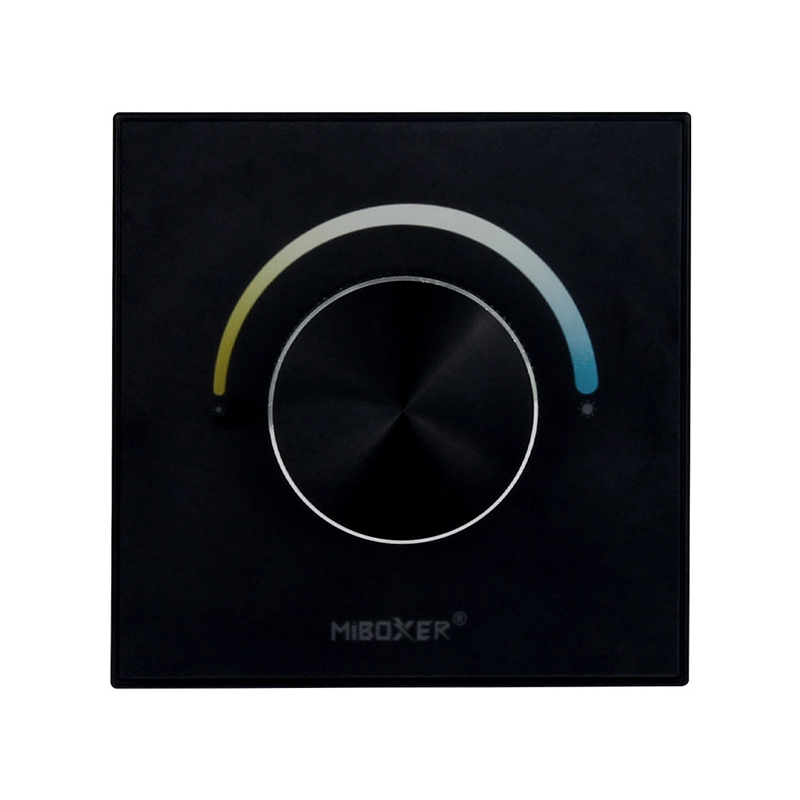

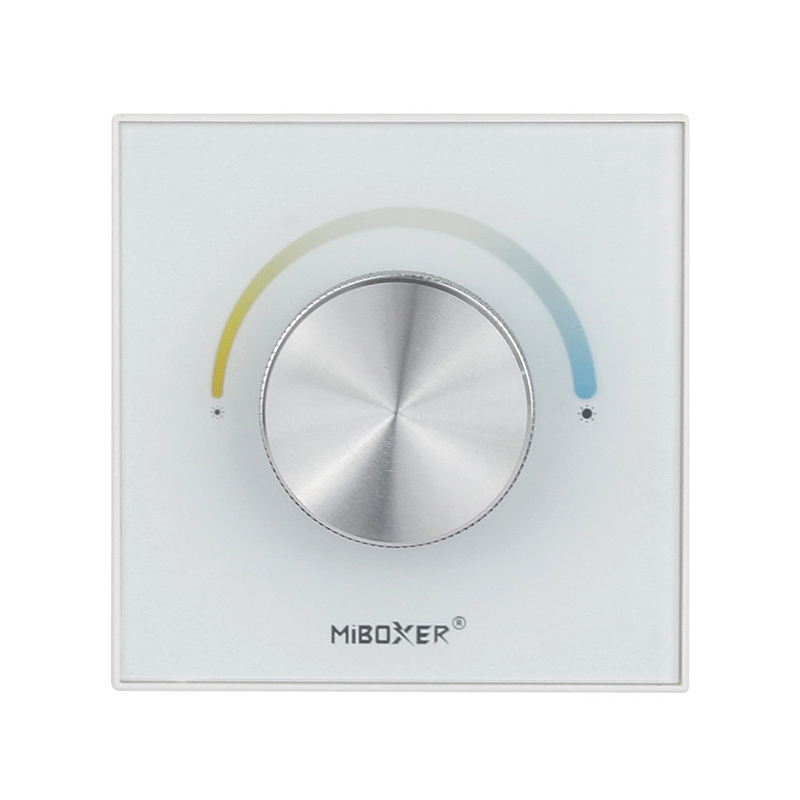

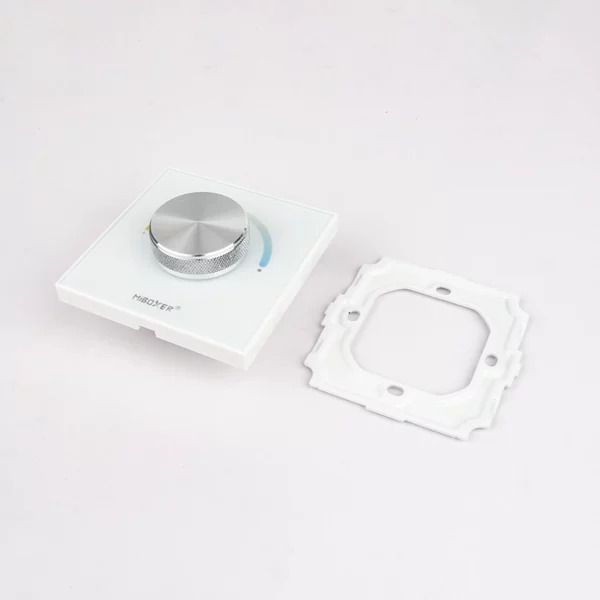

The MiBoxer P0 CCT Panel Controllers are designed for single-color and Tunable White LED Strip Lights, which allow you to adjust the brightness or color temperature for various scenes. The panel controller features a rotating switch, allowing you to adjust the brightness or color temperature steplessly by rotating it. With 4096 levels of smooth dim, the minimum brightness can reach 0.1%. It utilizes 2.4G wireless and remote control technology, ensuring efficient transmission, strong stability, and resistance to interference. They can be widely used in intelligent lighting control for commercial, hotel, and home lighting. The P0 Controller can pair with up to 12 remote controllers and has a control distance of up to 30 meters. The CCT Panel will auto-forward the signal directly to other ones, which makes the remote control distance infinite.
Specifications:
- Type: Tunable White LED Strip Rotating Panel Controller
- Model: P0

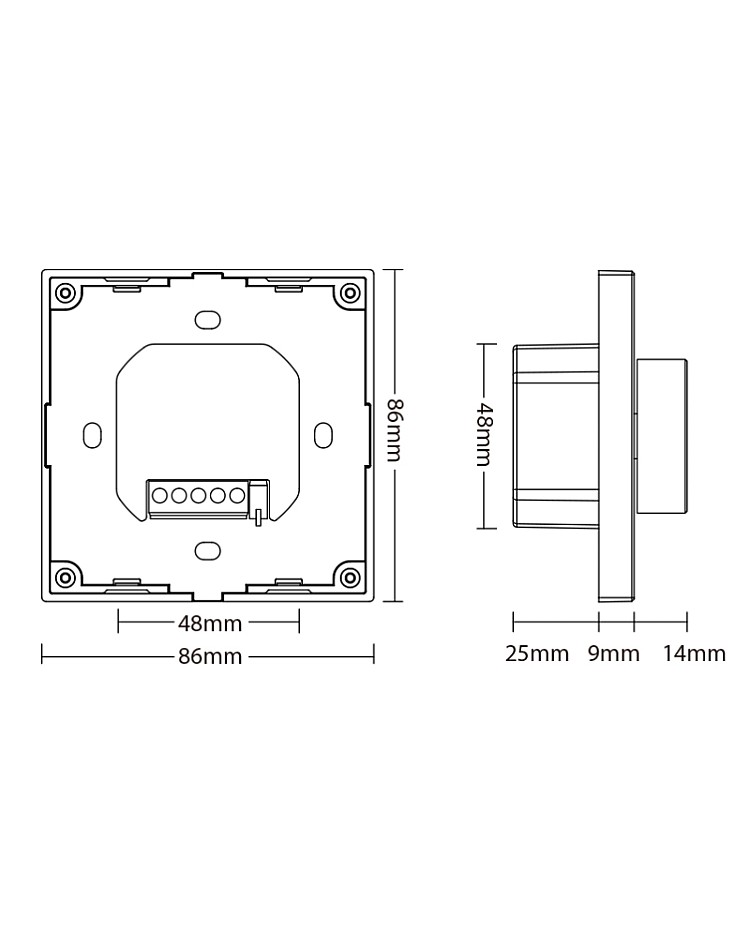

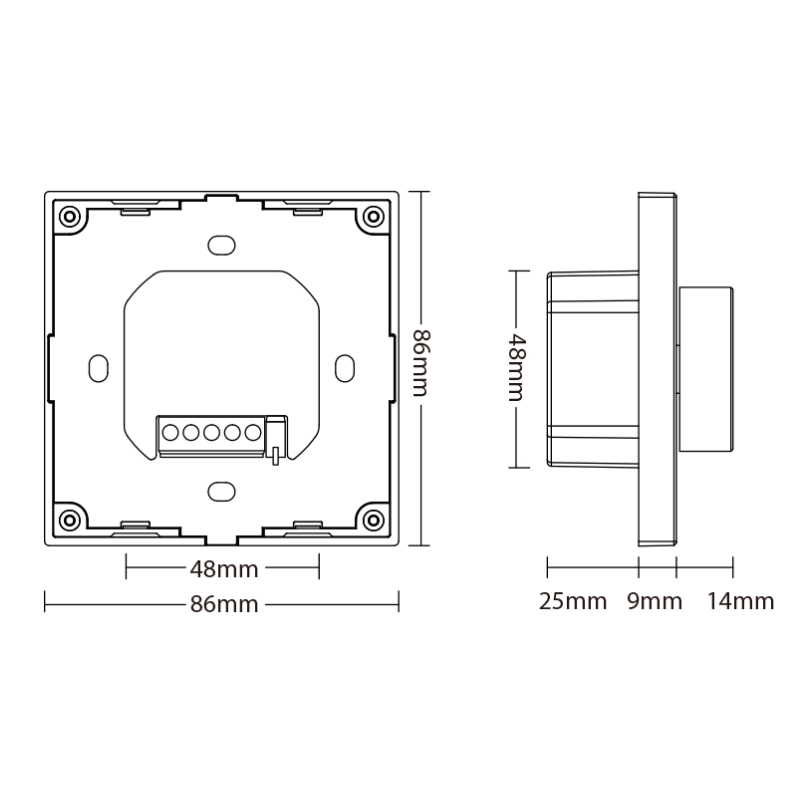

- Size: 86*86*48mm(L*W*H)
- Input Voltage: DC12-48V
- Output Current: 12A Max
- Output Power: 144- 576W
- Output Type: Constant Voltage Output
- Dimming Grayscale: 4096 Levels
- Dimming Range: 0.1%-100%
- Dimming Curve: Logarithmic
- RF: 2.4GHz RF
- Control Distance: ≤30M
- Compatible With MiBoxer Remote Controls: FUT094, FUT006, FUT007, FUT087, B1, T1, B2, T2, K1, K2, K3, C1, C3, Y2
- Support Tuya Smart APP Control(2.4G Gateway Needed)
- Support Third-Party Voice Control: Amazon Alexa And Google Assistant, Yandex Alice, Tmall Genie, Xiaodu, Xiaoai(2.4G Gateway Needed)
- Support Do Not Disturb Mode Setting
- EMC Standard(EMC): ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-3 V2.1.1
- Safety Standard: EN 61347-1: 2015+A1: 2021 EN 61347-2-11: 2001+A1:2019
- Radio Equipment: ETSI EN 300 440 V2.2.1
- IP Rate: IP20 Non-waterproof
- Certification: CE, EMC, LVD, RED

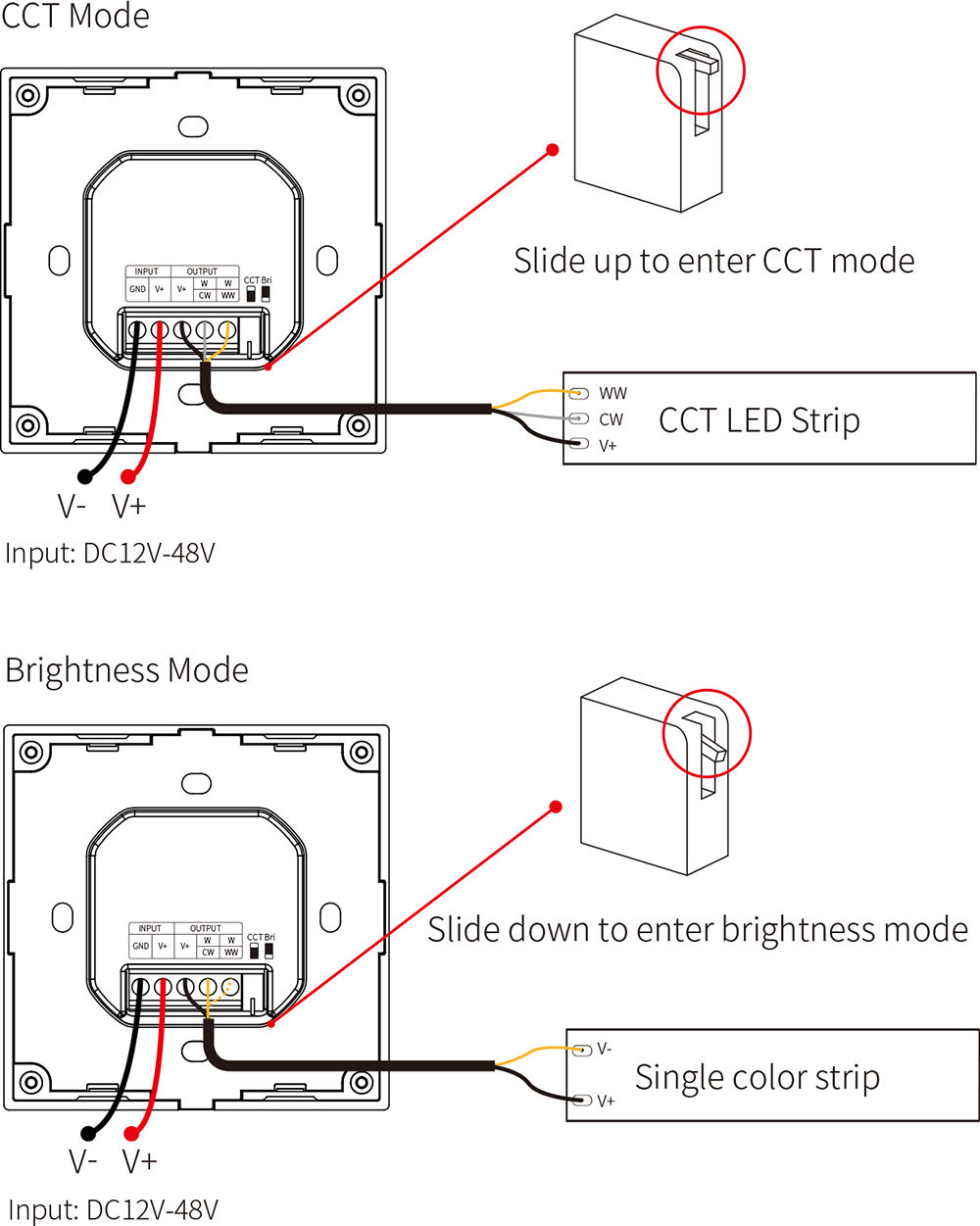

- Applications: Single Color And Dual White LED Strip Lights
- Working Temperature: -10-40℃
- 3 Years Warranty

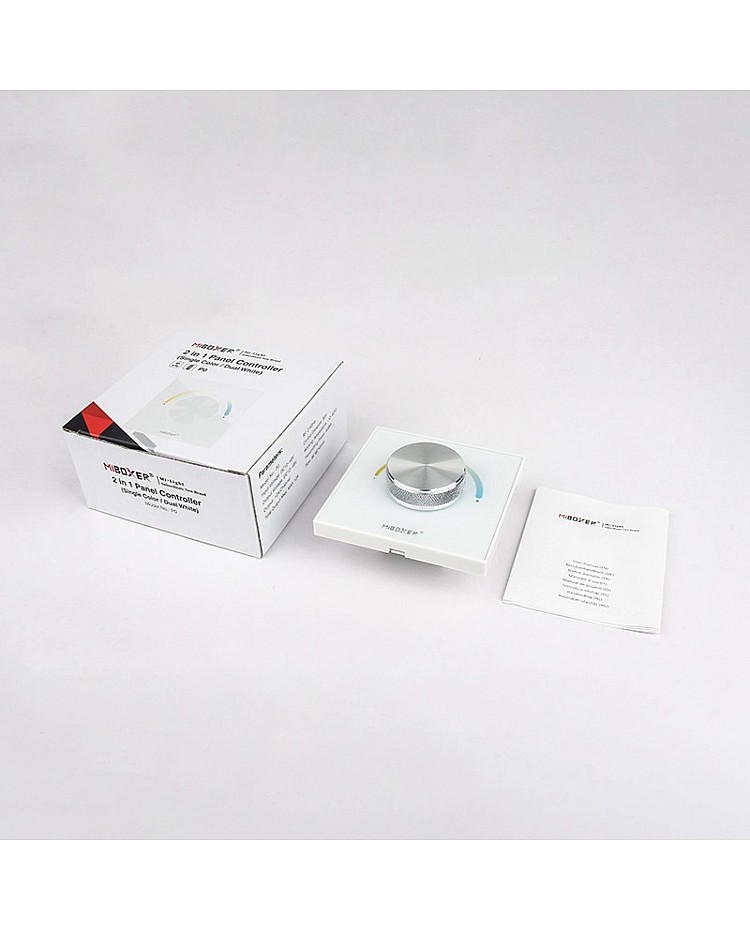

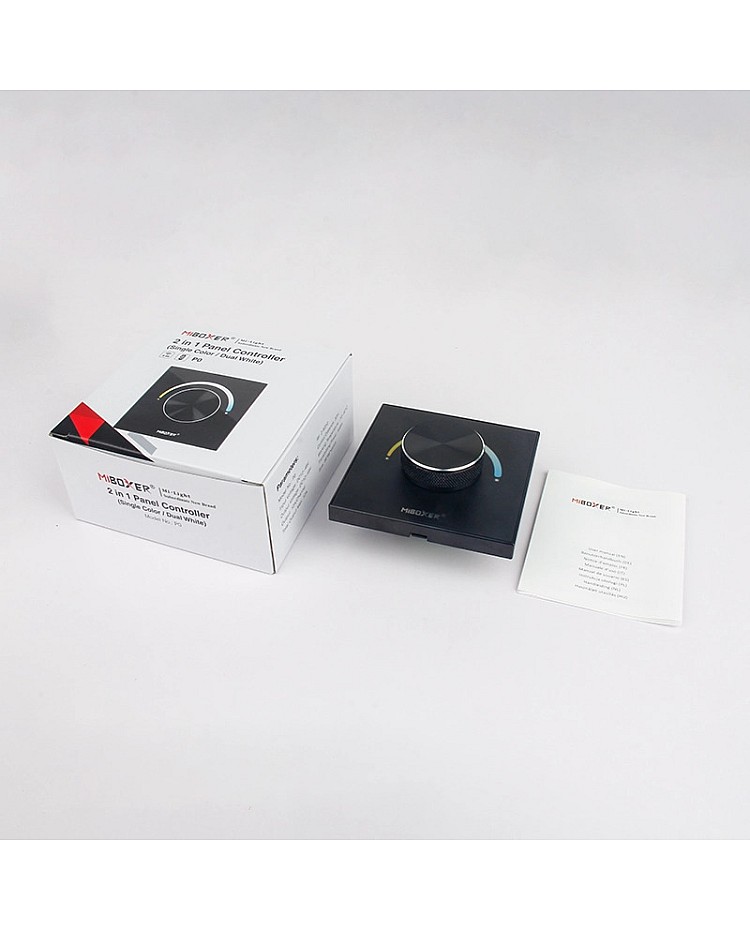

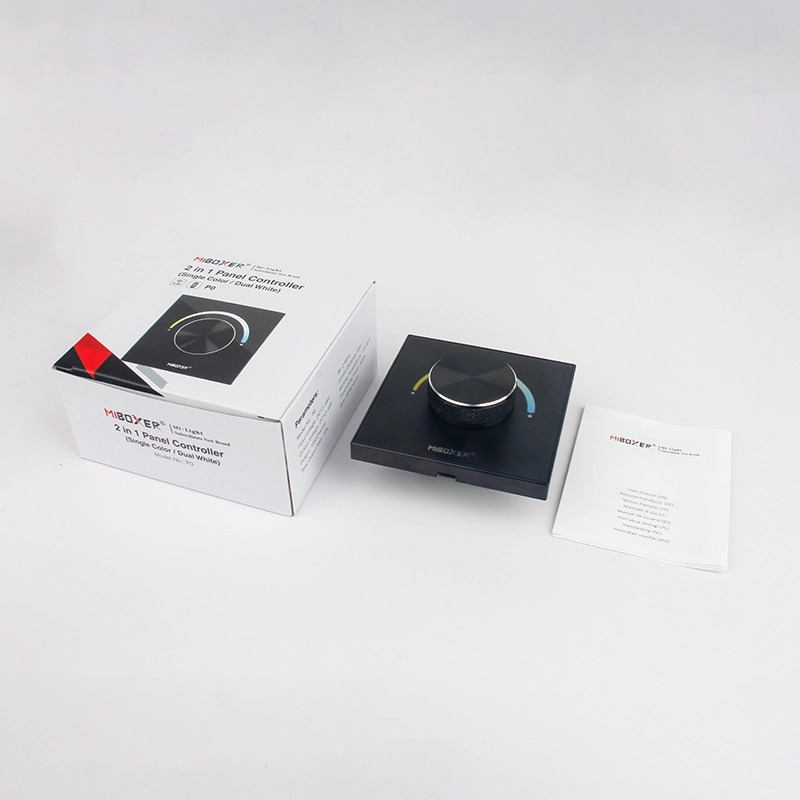

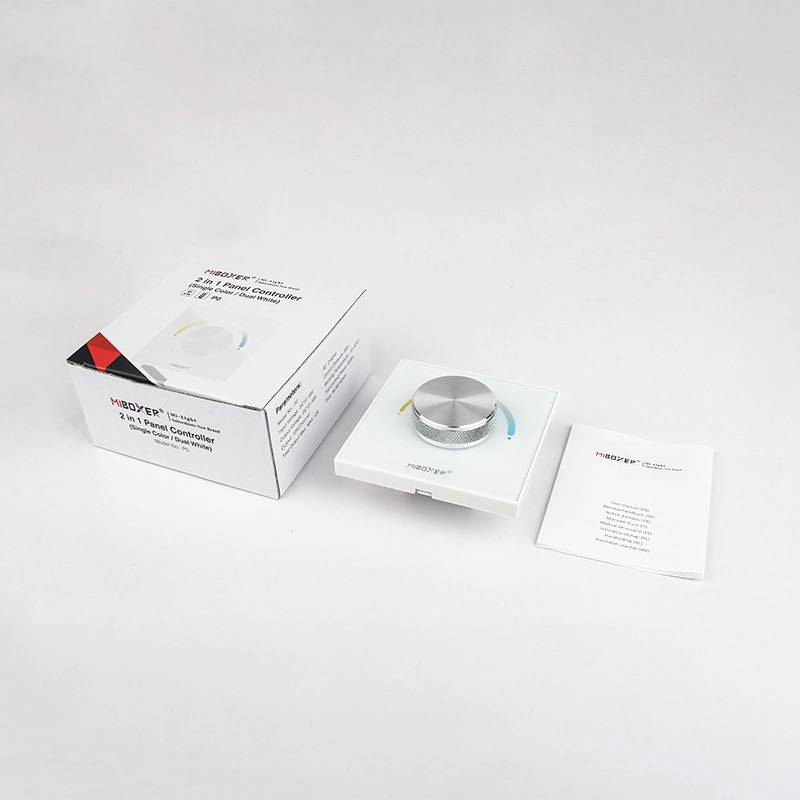

Includes:
1 * P0 Dual White LED Controller
