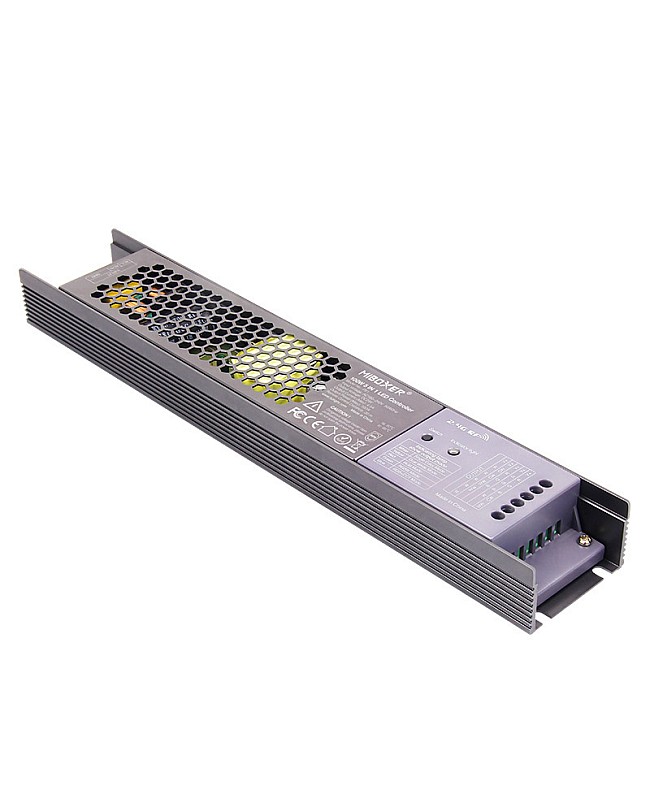

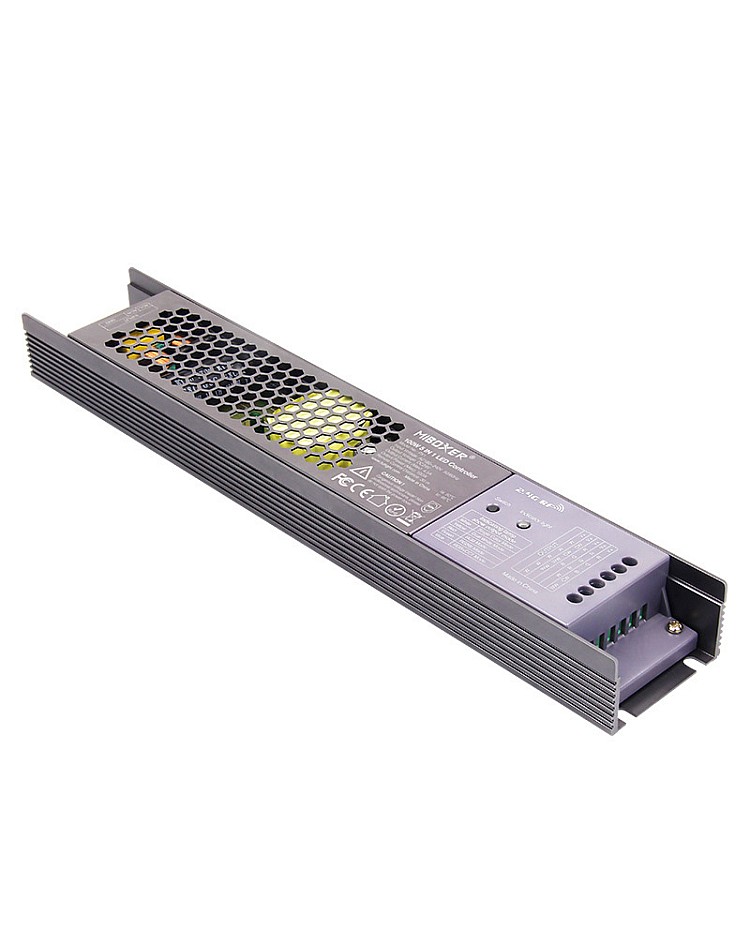

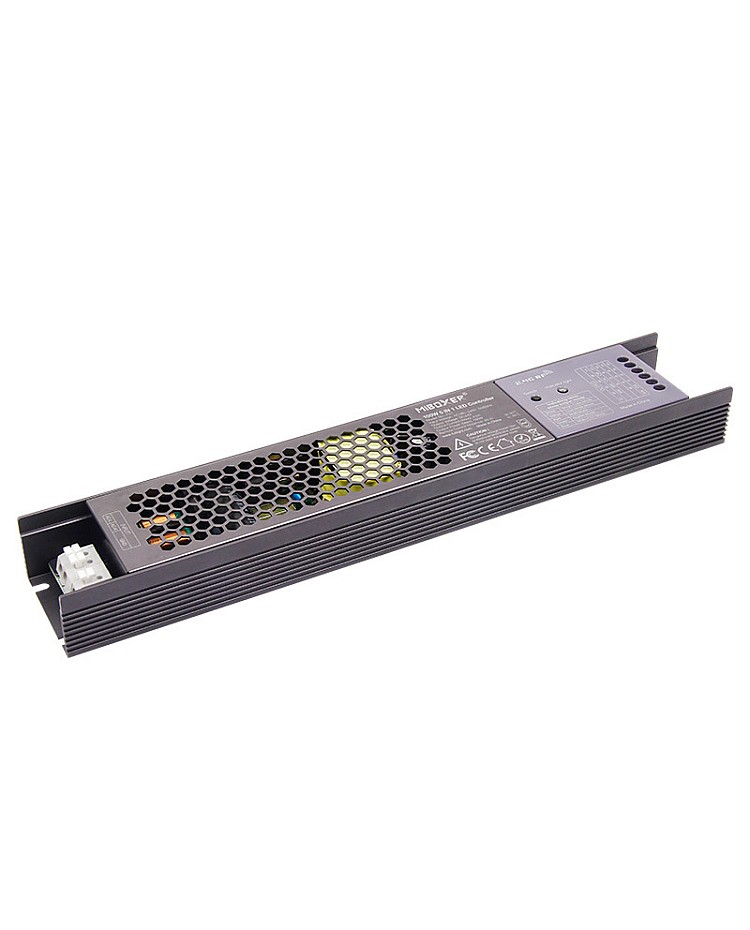

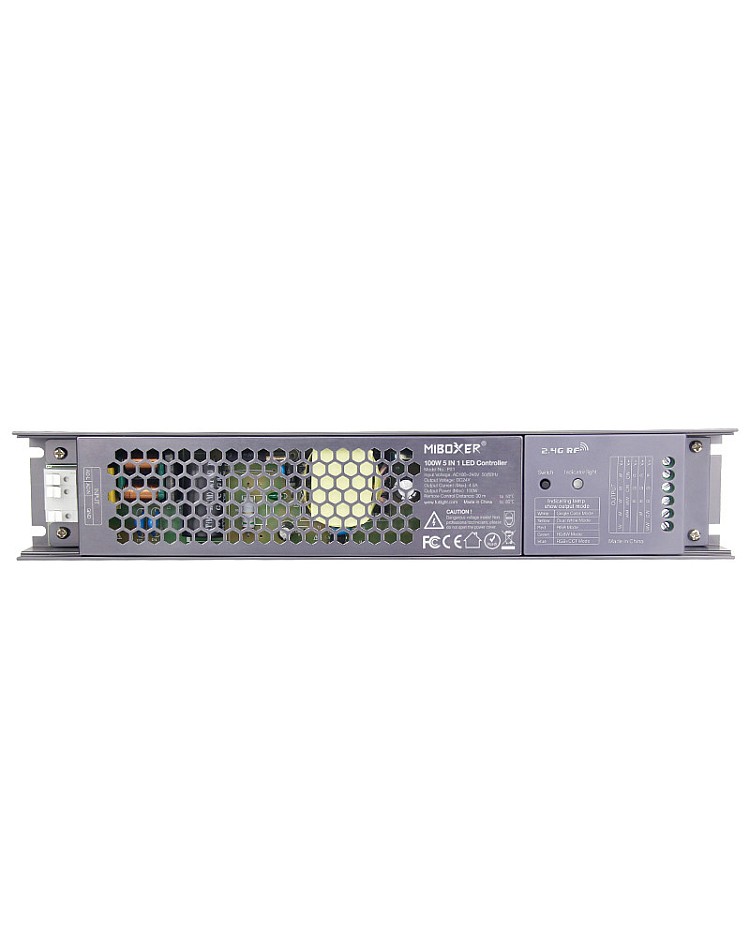

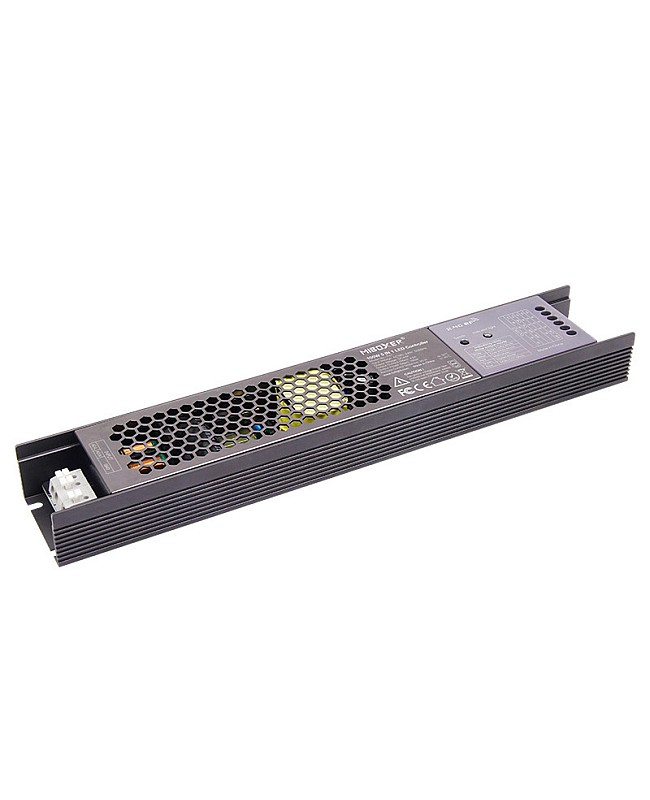

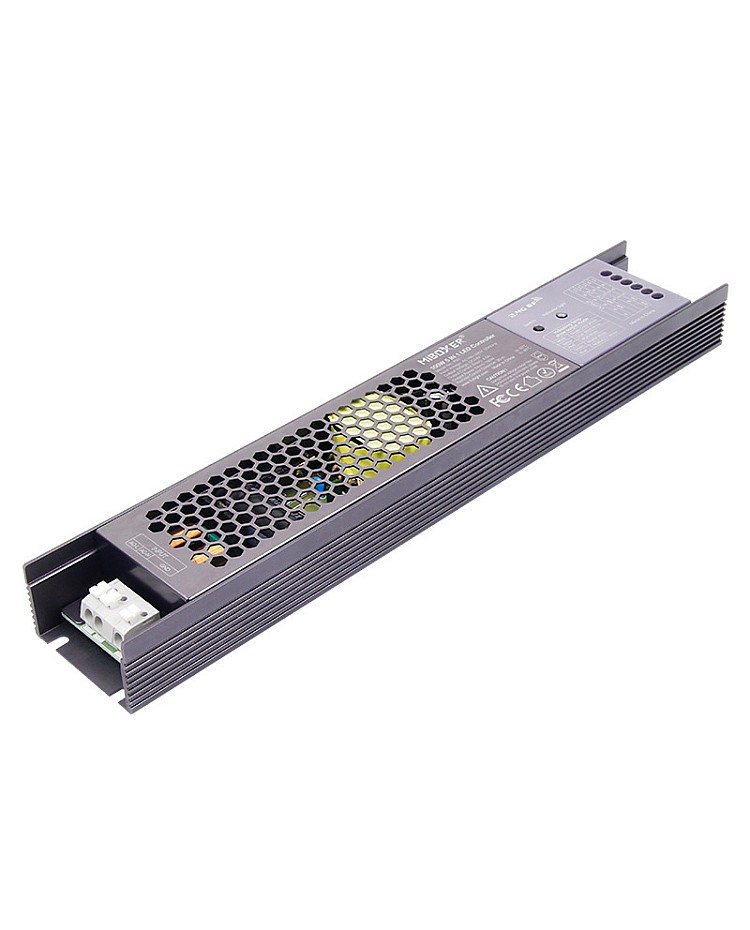

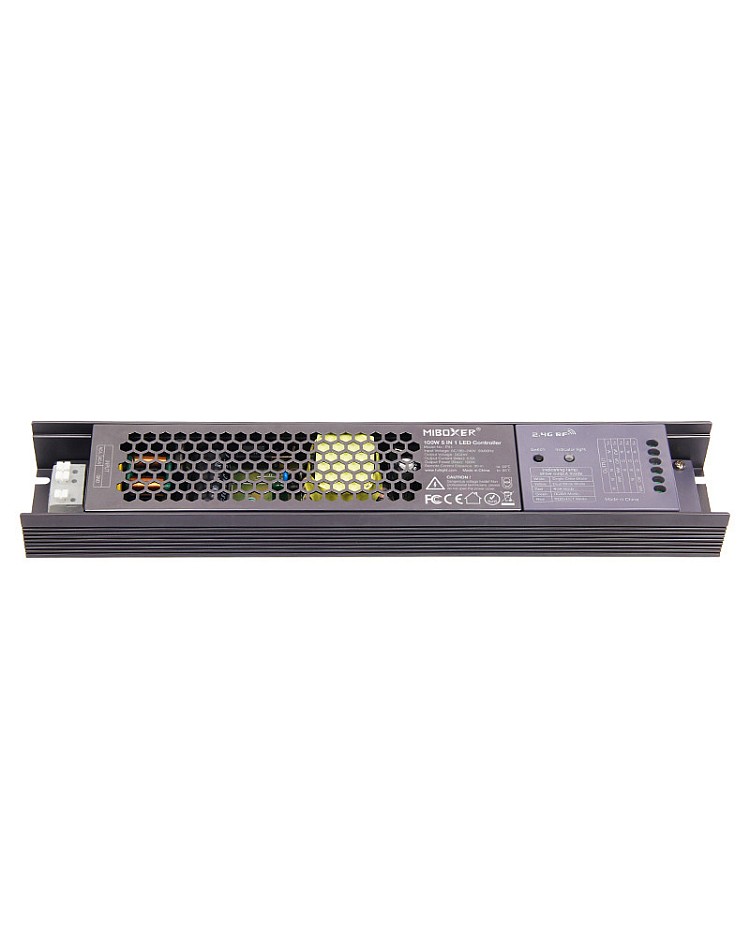

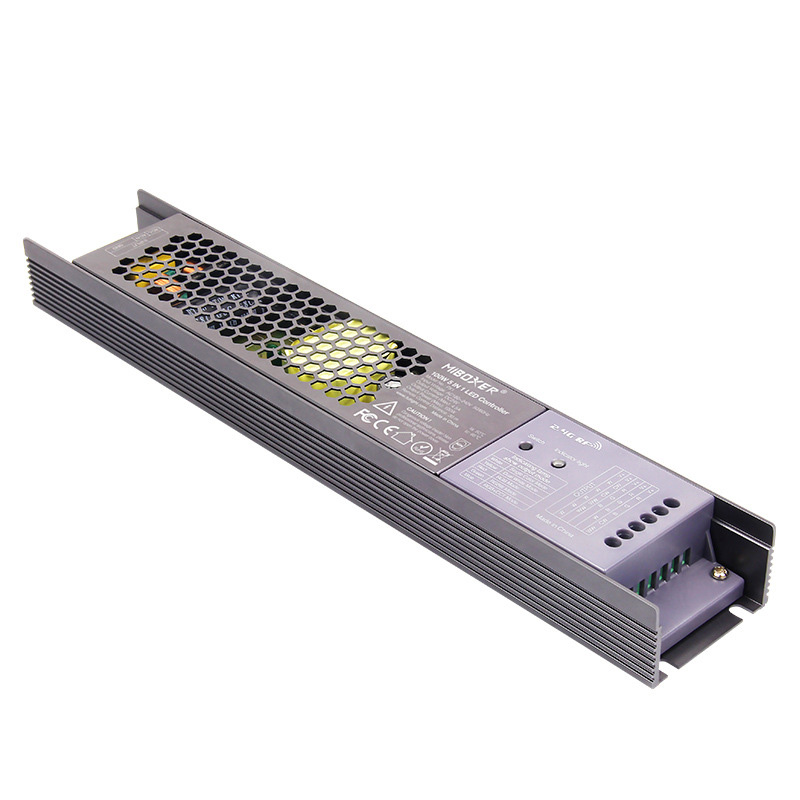

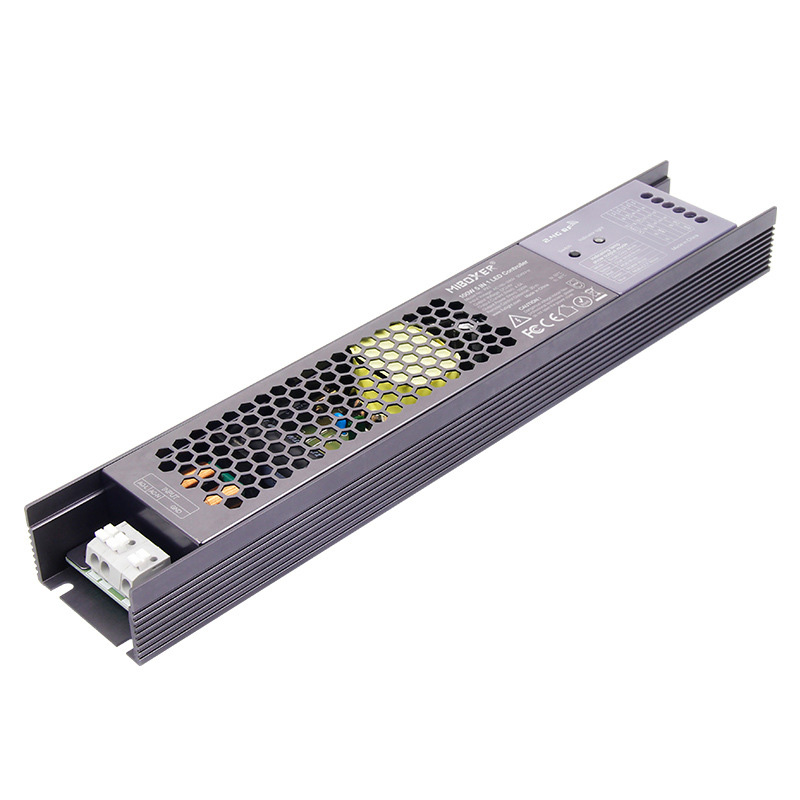

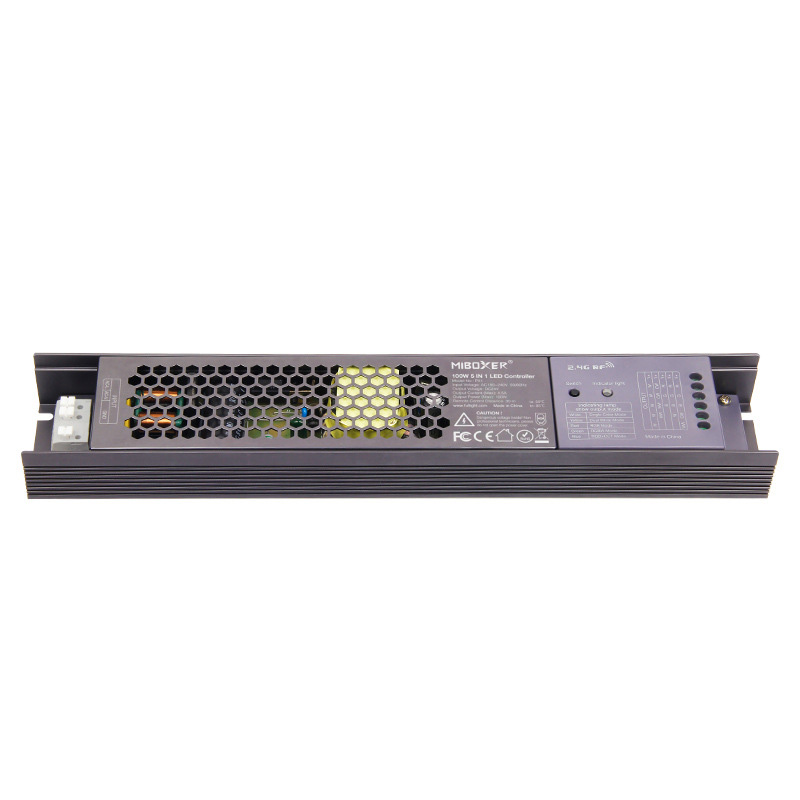

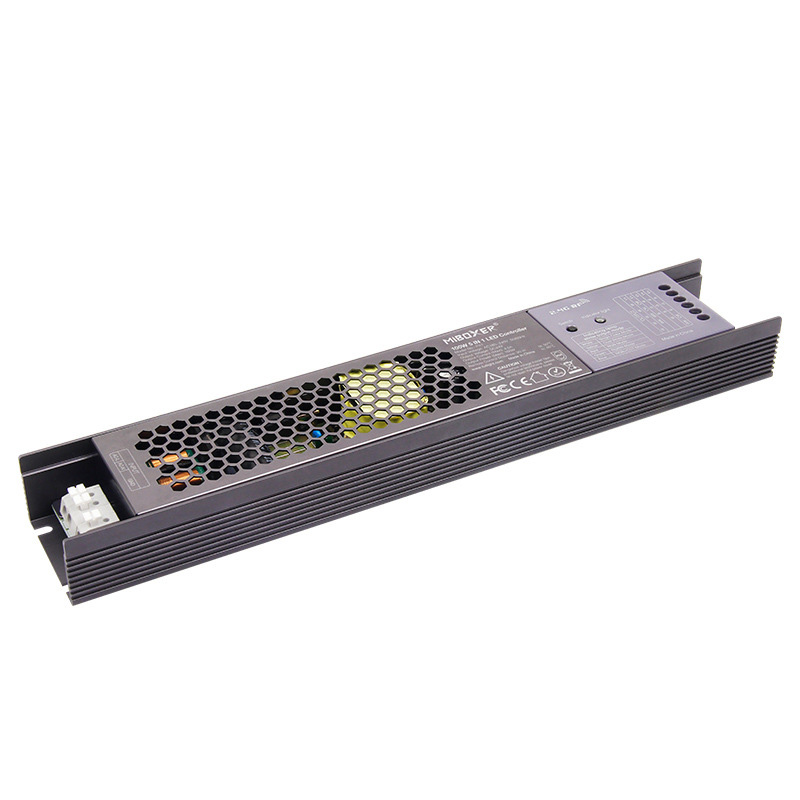

The MiBoxer PX1 LED driver, which with 5 in 1 function design for the singlecolor, CCT, RGB, RGBW, and RGBWW LED strips, the output voltage is DC24V, and max output power is 100W, can be controlled by 2.4F RF remote controls, smartphone APP and third-party voice commands after adding 2.4G gateway, you can adjust the brightness, color temperature and saturation. There are 16 million colors available, and you can set various colors for different scenes. The MiBoxer driver will receive the signals from the remote and transmit them to other LED drivers within 30 meters. All of the drivers will work synchronously. The PX1 LED driver has an aluminum shell and a shell with honeycomb holes for better heat dissipation. There are 6 channels and 5 circuits of LED connector terminals, making it easy to connect to the LED strip lights.
Quick Links:
Specifications:
- Size: 290*51.5*29.5mm(L*W*H)
- Input Voltage: AC180-240V, 50/60Hz
- Output Voltage: DC24V
- Output Current: Max 4.5A
- Output Power: Max 100W
- 5-In-1 Function For Single Color/CCT/RGB/RGBW/RGBWW LED Strips
- Support Smartphone APP And Third-Party Voice Control(WL-BOX 2.4G Gateway Needed)
- Compatible With MiBoxer 2.4G Remote Controls: FUT089, FUT092, FUT088, FUT087, FUT096, FUT006, FUT007, FUT091, B8, B4, T4, B3, T3, B2, T2, B1, T1, B0
- 16 Million Colors Available
- Saturation Adjustable
- Brightness And Color Temperature Adjustable
- Auto-Transmitting Function
- Auto-Synchronization Function
- PF: >0.5
- IP Rating: IP20 Non-Waterproof
- Remote Control Distance: ≤30m
- Ta: 50℃
- Tc: 85℃
- 2 Years Warranty
Includes:
1 * MiBoxer PX1 24V LED Driver
