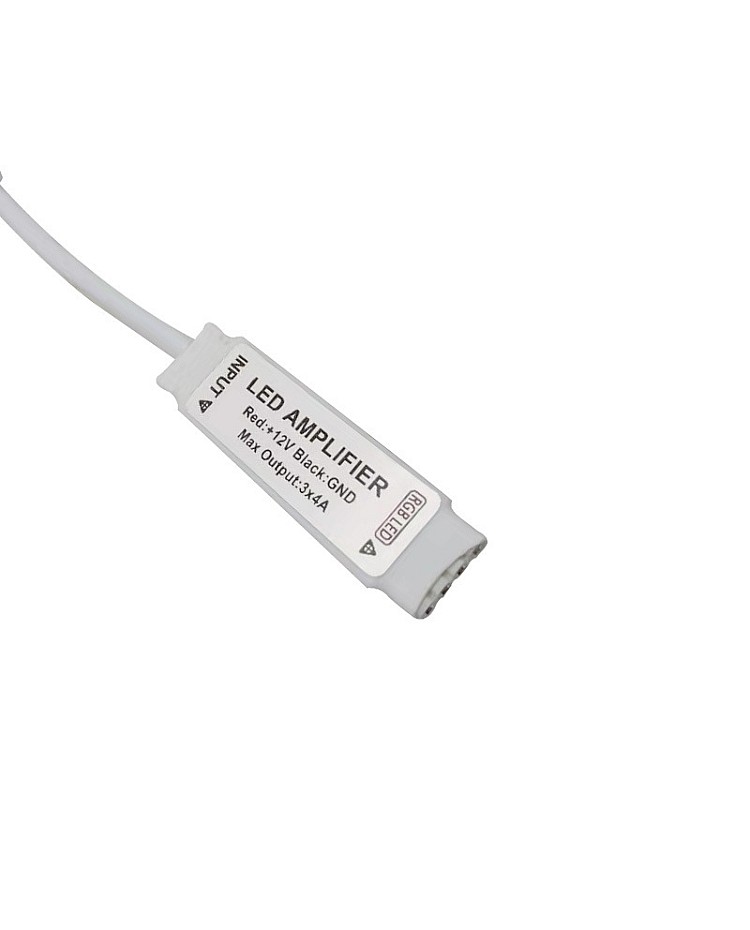

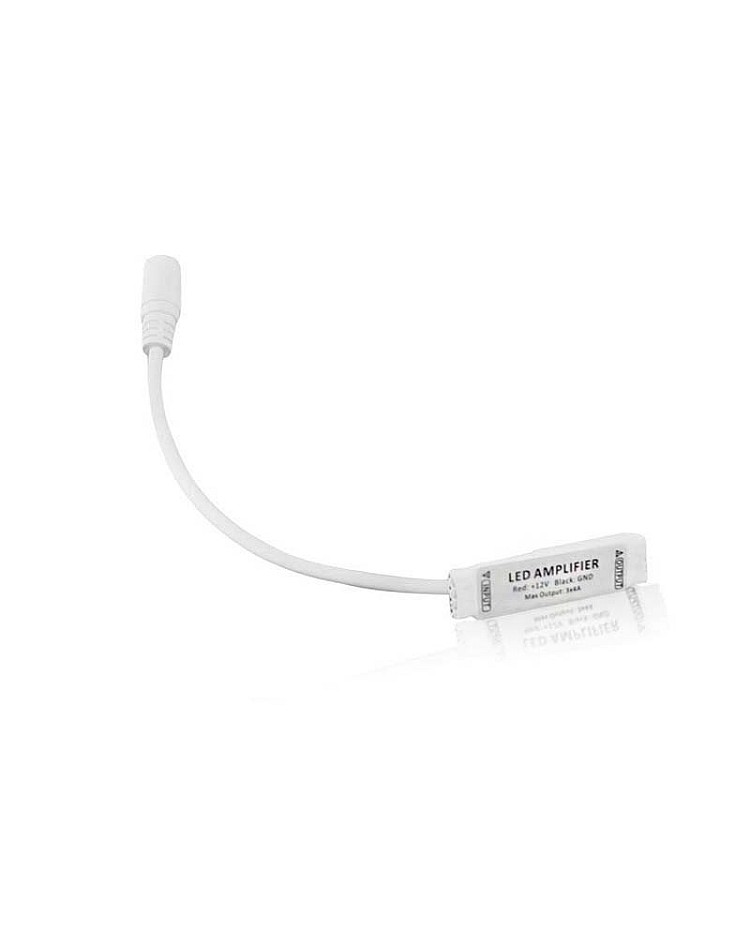

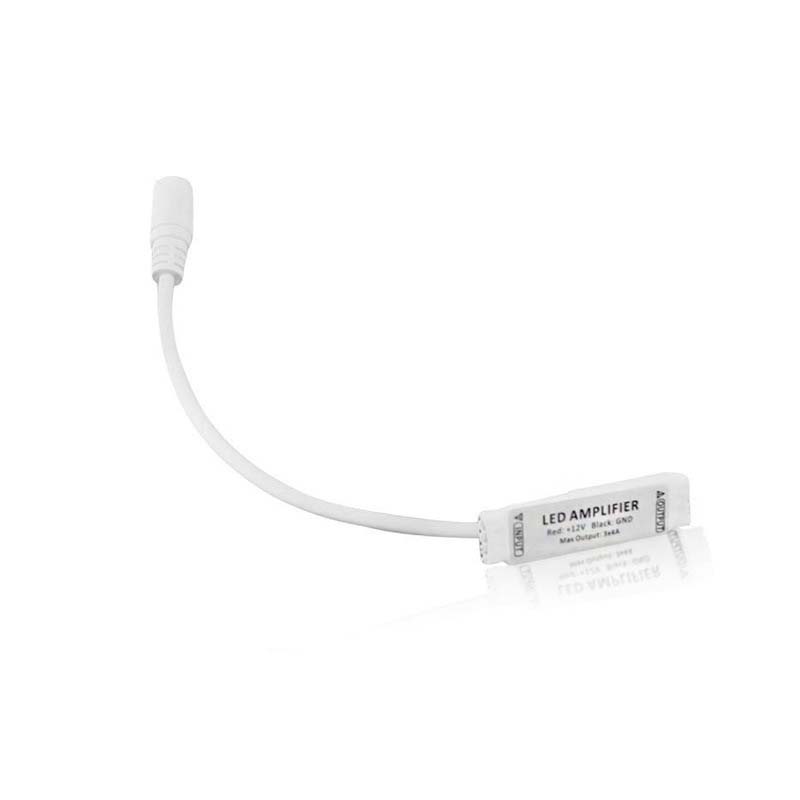

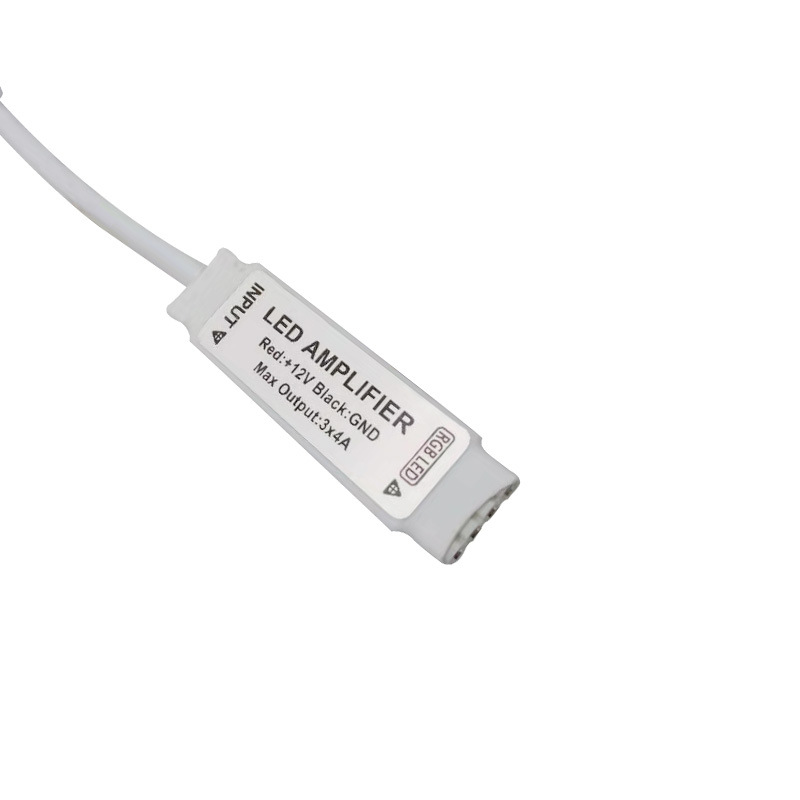

Mini RGB LED Amplifier

Mini RGB LED Amplifier
Product Code: TY-L-A-006
Availability: In Stock
Price: $5.48
Qty:     - OR -   Add to Wish List
Add to Compare
Item NO TY-L-A-006
Manufacturer Ledbe
Item Type Mini LED Amplifier
Working temperature -20 ℃-60 ℃
Voltage DC5V,DC12V,DC24V
Output 2A*3Channels
Connecting mode common anode
Demension L35mm*W14mm*H4mm
Weight 50g
Static power consumption <1w
Power 60w(DC5V),144w(DC12V),288w(DC24V)
Current 6A
Certificate CE,ROSH
Warranty 1 year
Place of origin       Shenzhen of China



this mini RGB LED amplifier,output 3 channels,max output of each channel is 2amps,can working in DC5V,DC12V

and DC24V,default is DC12V LED amplifier,if you need other voltage product,please let us know.if working in DC12V,

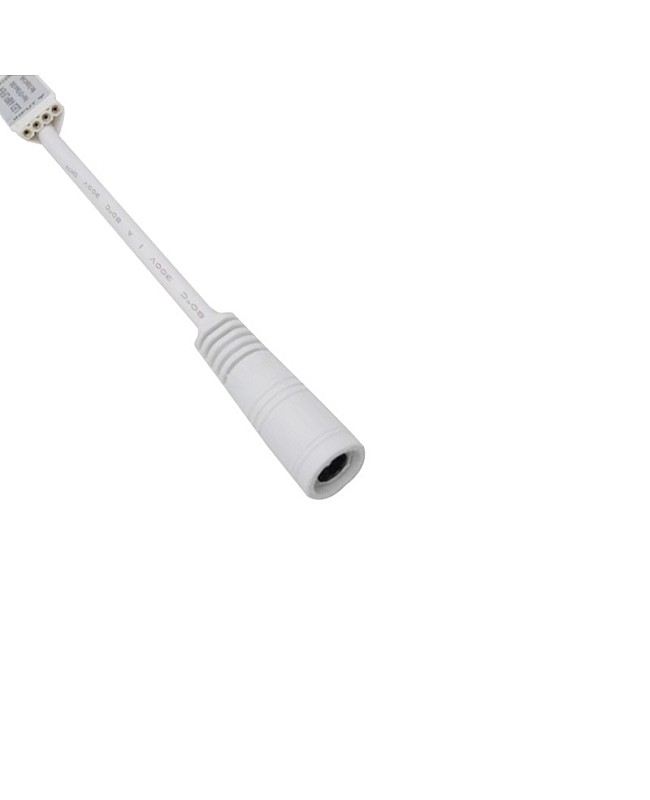

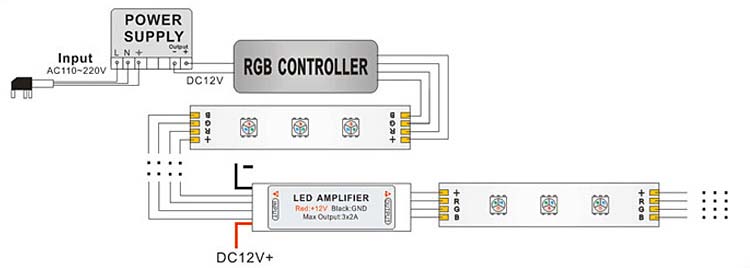

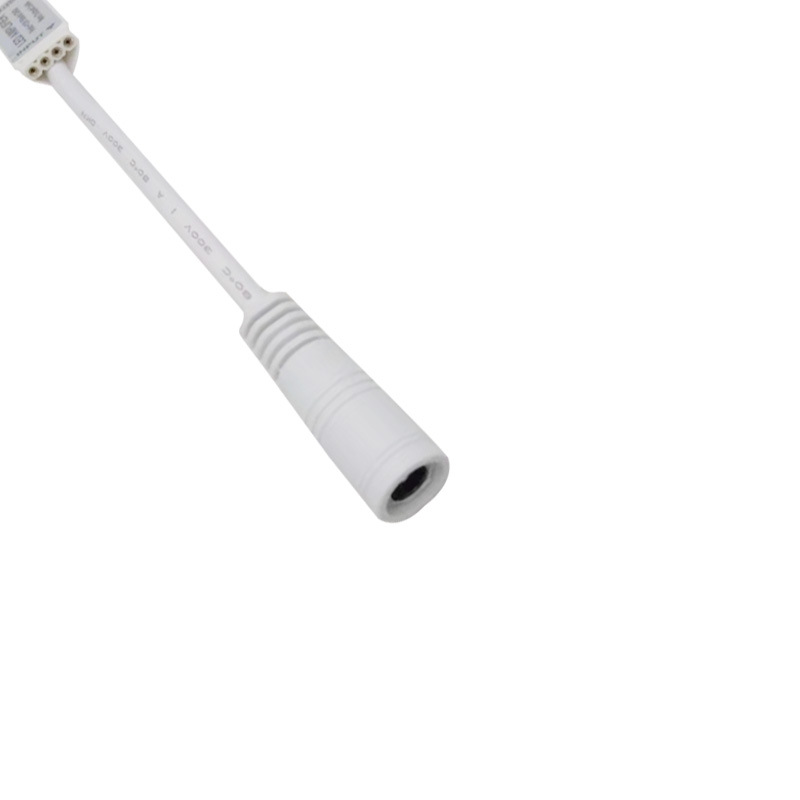

the max output of this mini amplifier is 72w,can support 1reel 5050 60LEDs RGB LED strips.the side with feamle

DC connector connect to RGB strips and power supply,other side connect to color changing ribbon.

easy install and use.



1*mini RGB LED amplifier
