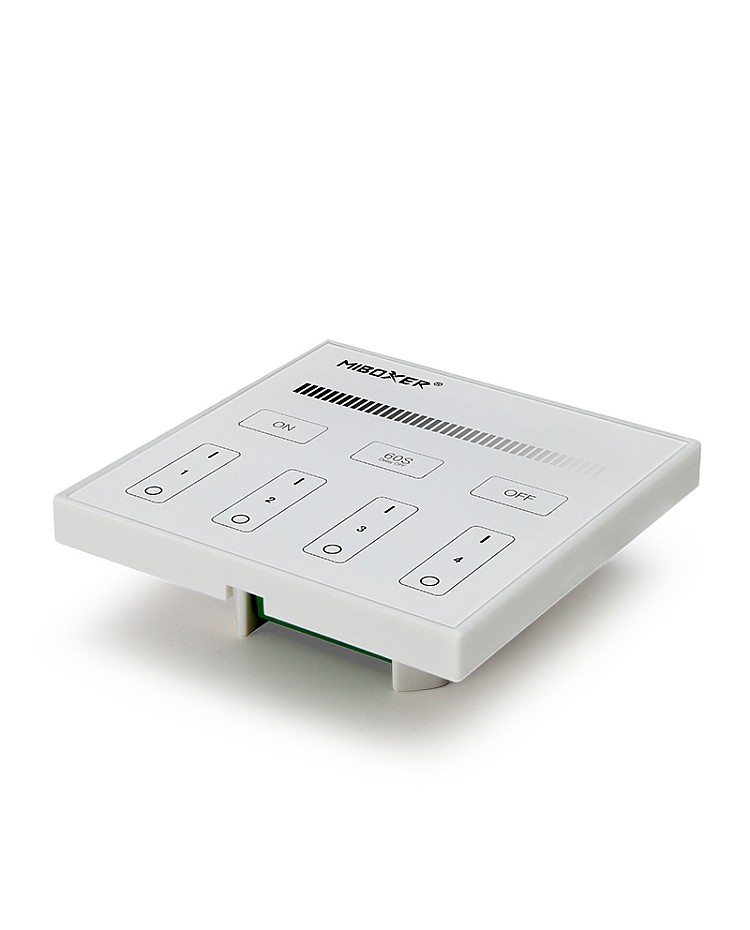

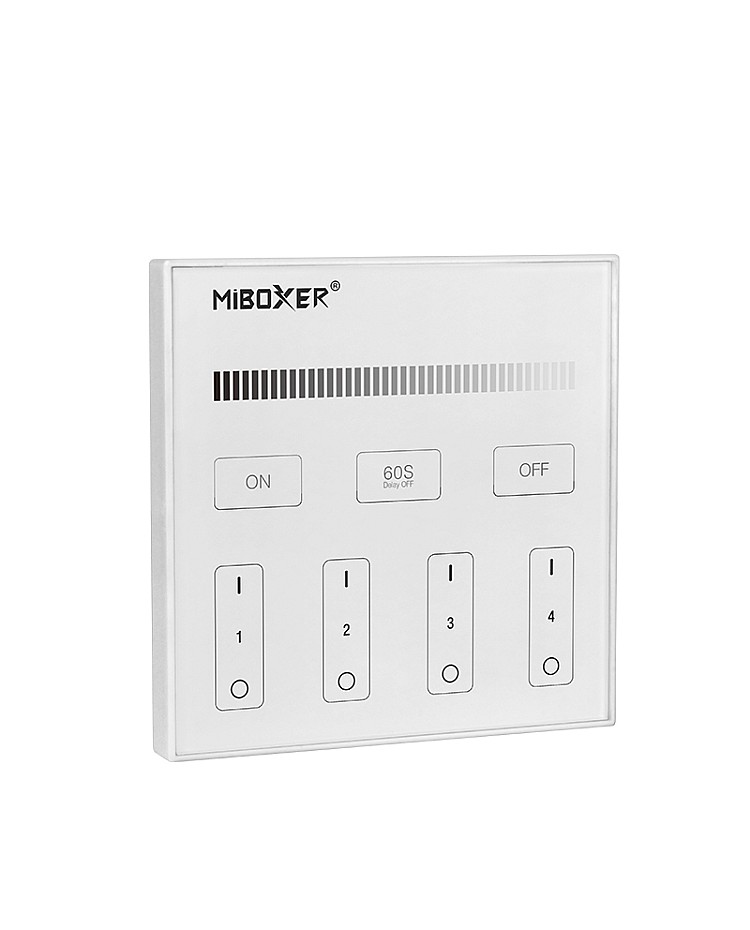

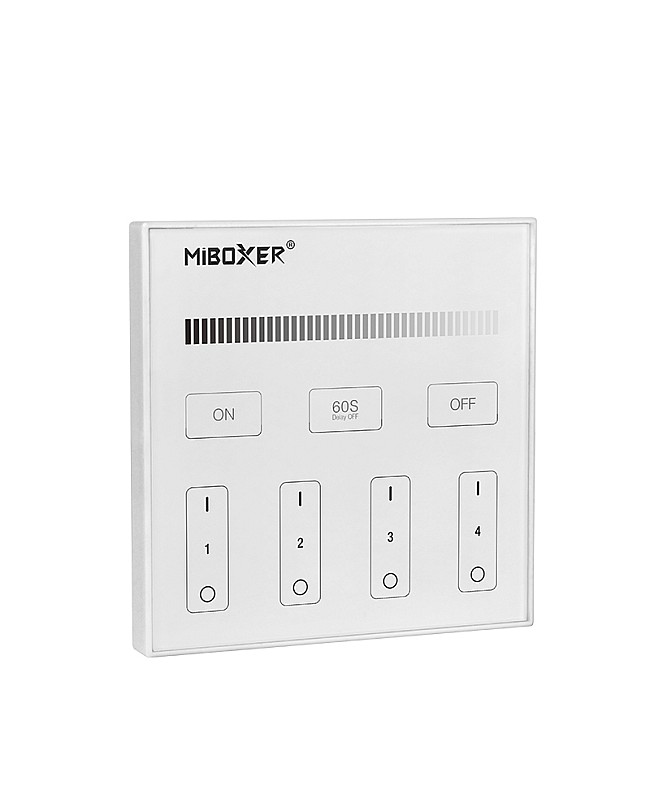

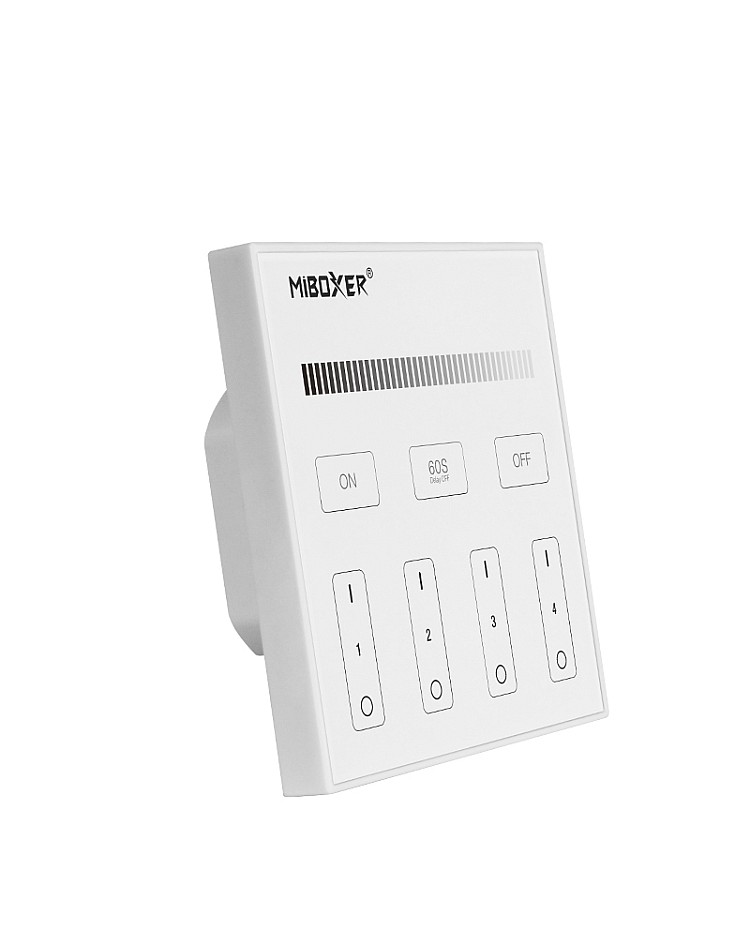

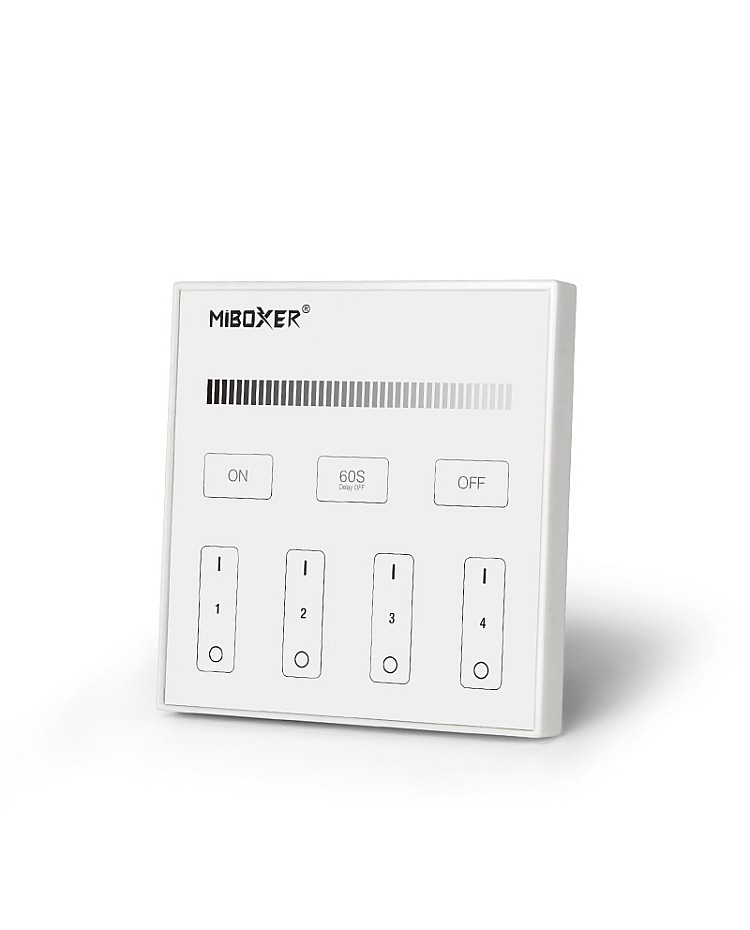

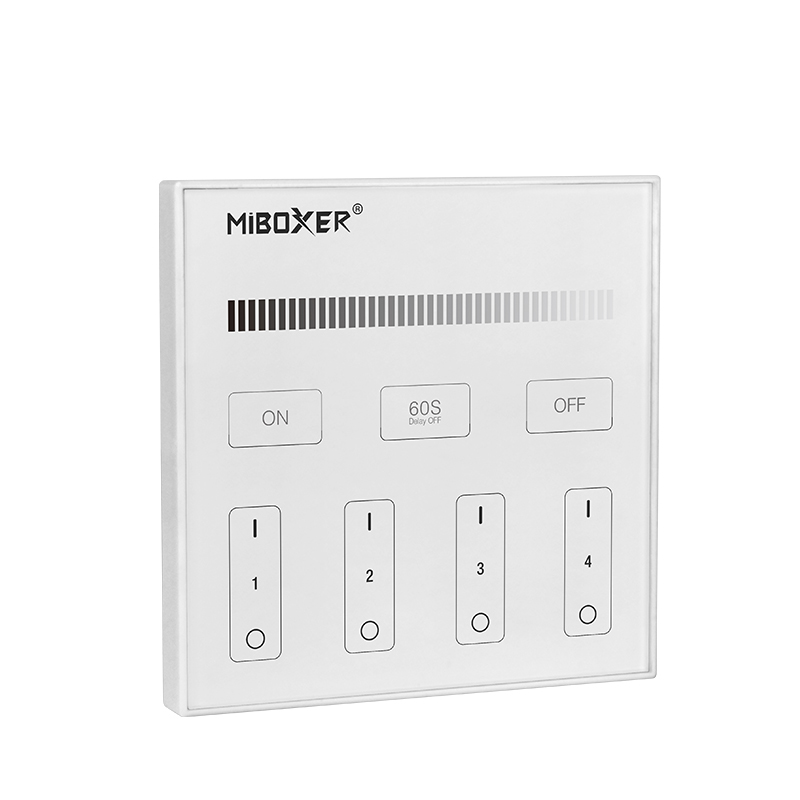

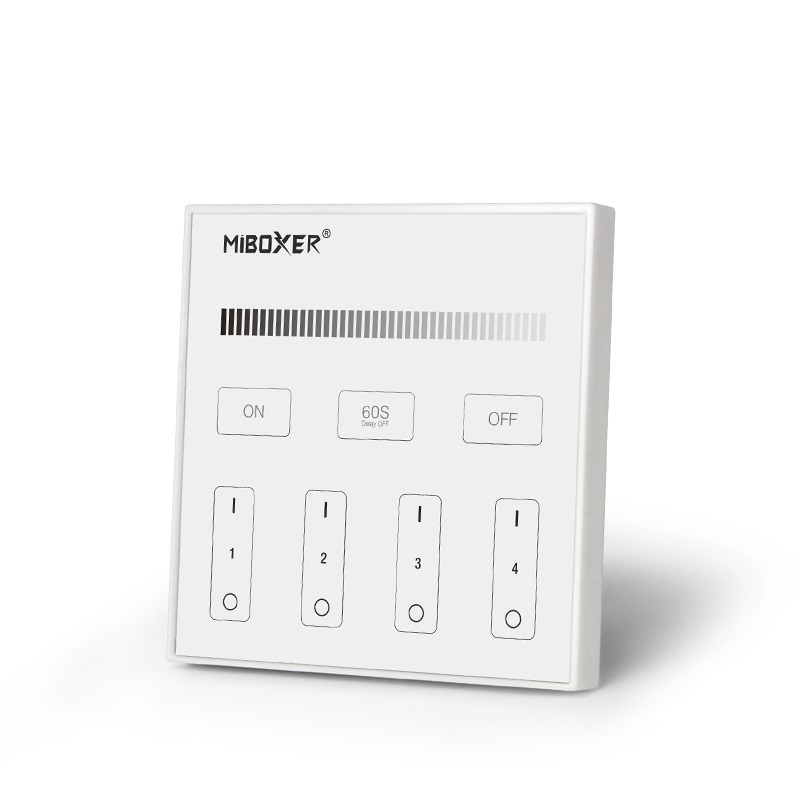

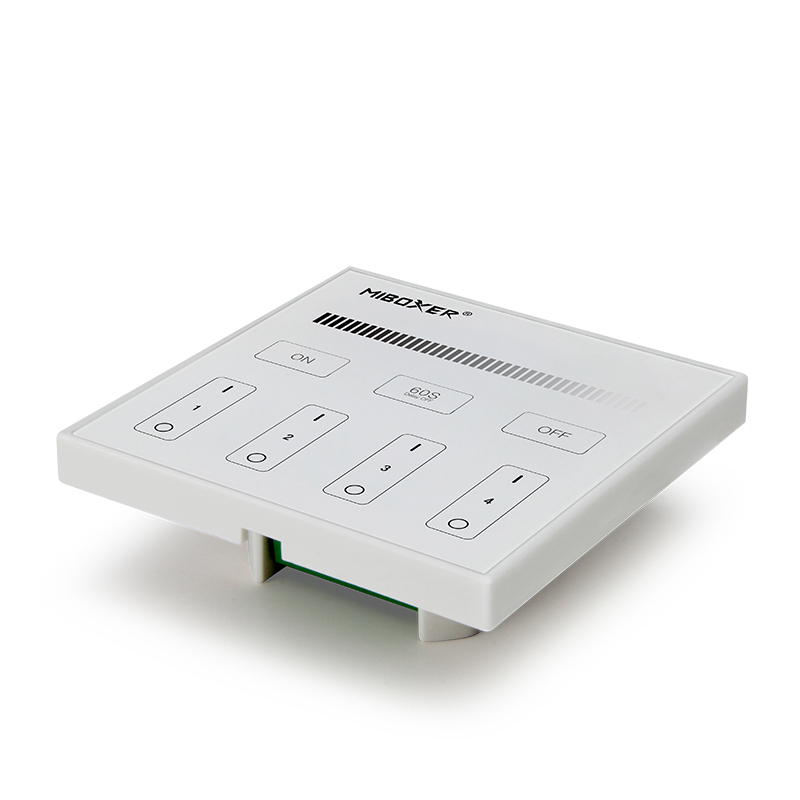

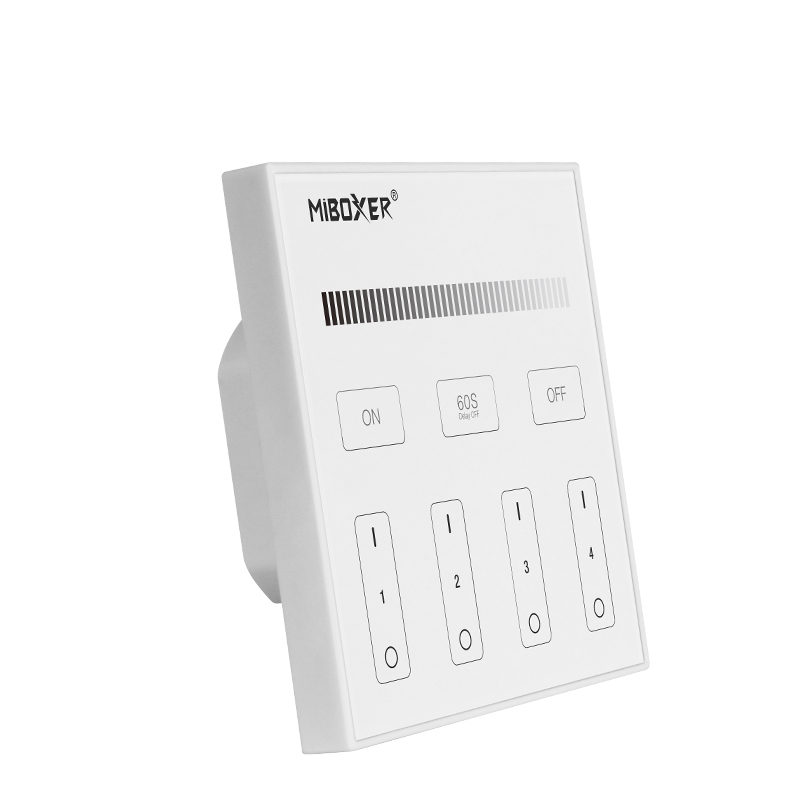

The MiBoxer X1 Monochrome DMX512 Dimmer, which with standard European 86-type structure and works in high voltage AC100V to AC240V, is easy to install and use. The DMX Dimmer with a sensitive touching panel design. The LED indicator light will flash with different sounds when touching the buttons. The DMX Dimmer complies with DMX512, DMX512-1990, DMX512-A, and RDM V1.0 protocols. With 2 output signals, the DMX512 signal and 2.4G signal, you can control the DMX512 Lamps and 2.4G MiBoxer series Lamps. You can touch the slider to adjust the brightness from 1% to 100%. There are 4 zones individually controlled design, and you can control each zone separately. There is a 60S delay OFF function. You can use it to control the LED Light turn-off delay, which will turn off after 60 seconds. The MiBoxer X1 can be controlled by the 2.4G MiBoxer RF Remote Controls and smartphone APP after adding the WL-BOX1 Gateway.

Quick Links:

MiBoxer X1 DMX512 Dimmer Manual


Features:

  • Size: 86*86*26mm(L*W*H)
  • Working Voltage: AC100-240V, 50/60Hz

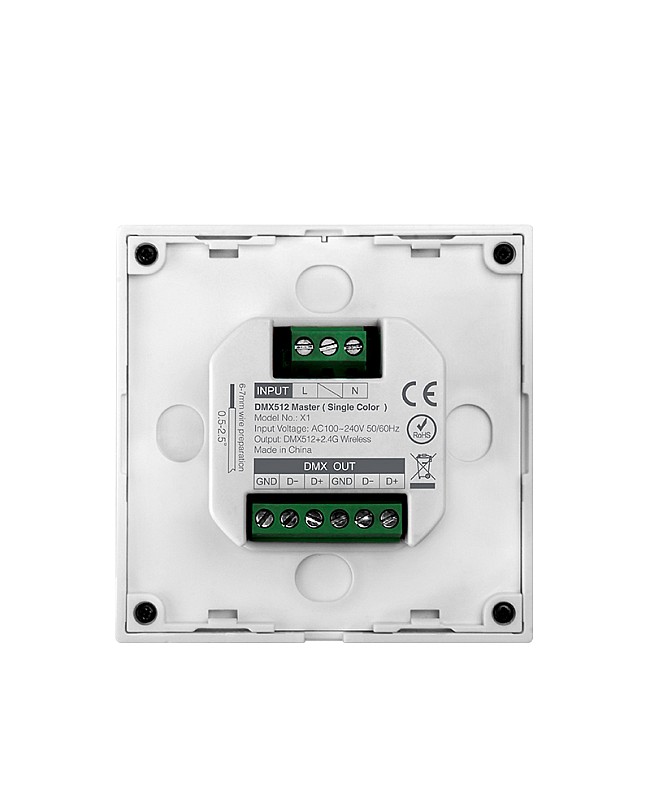

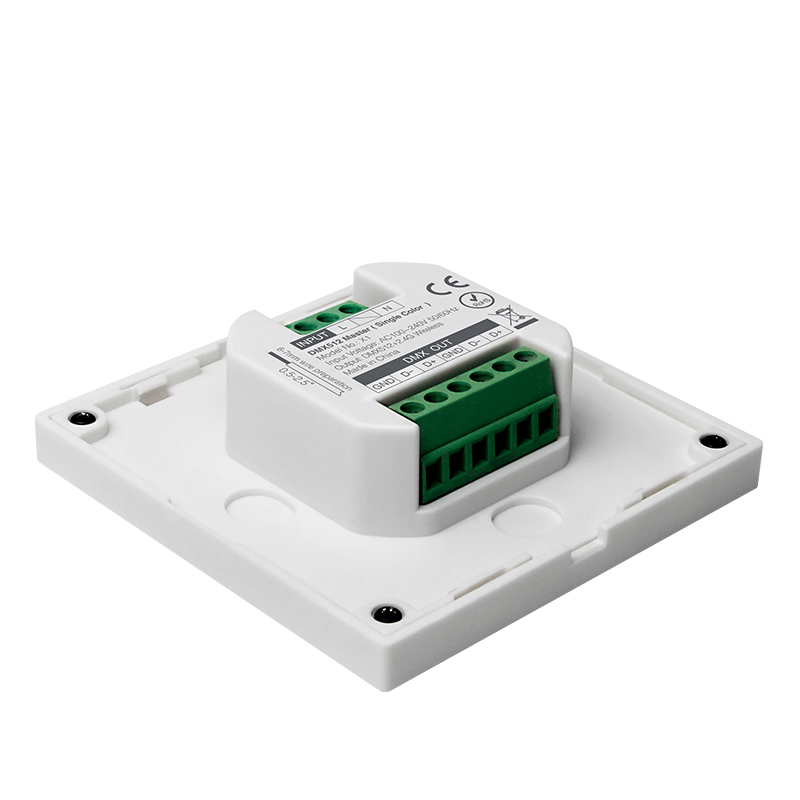

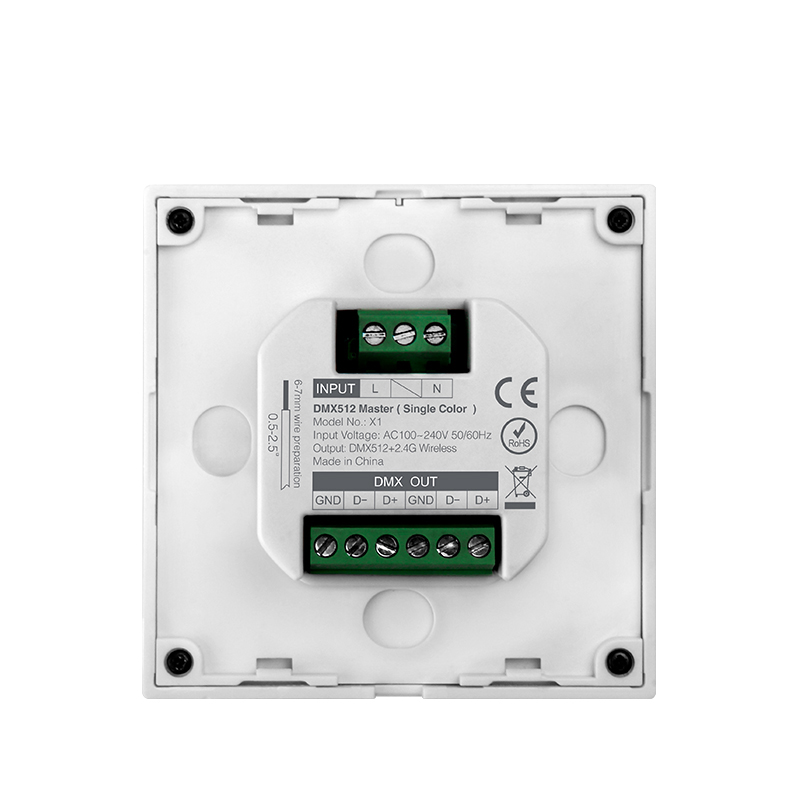

  • Output Signals: DMX512 + 2.4G Wireless
  • RF Transmitting Power: 6dBm
  • RF Control Distance: ≤30m
  • Comply With DMX512, DXM512-1990, DMX512-A, RDM V1.0 Protocols
  • 1%-100% Brightness Adjustable
  • 4 Zones Individually Control
  • 60S Delay OFF Design
  • Compatible With MiBoxer 2.4G Remote Control: FUT006, FUT007
  • Support Smartphone APP Control(WL-Box1 Gateway Needed)
  • With Sensitive Touching Panel Design
  • Working Temperature: -20-45℃
  • 2 Years Warranty


Includes:

1*MiBoxer Monochrome DMX512 Dimmer

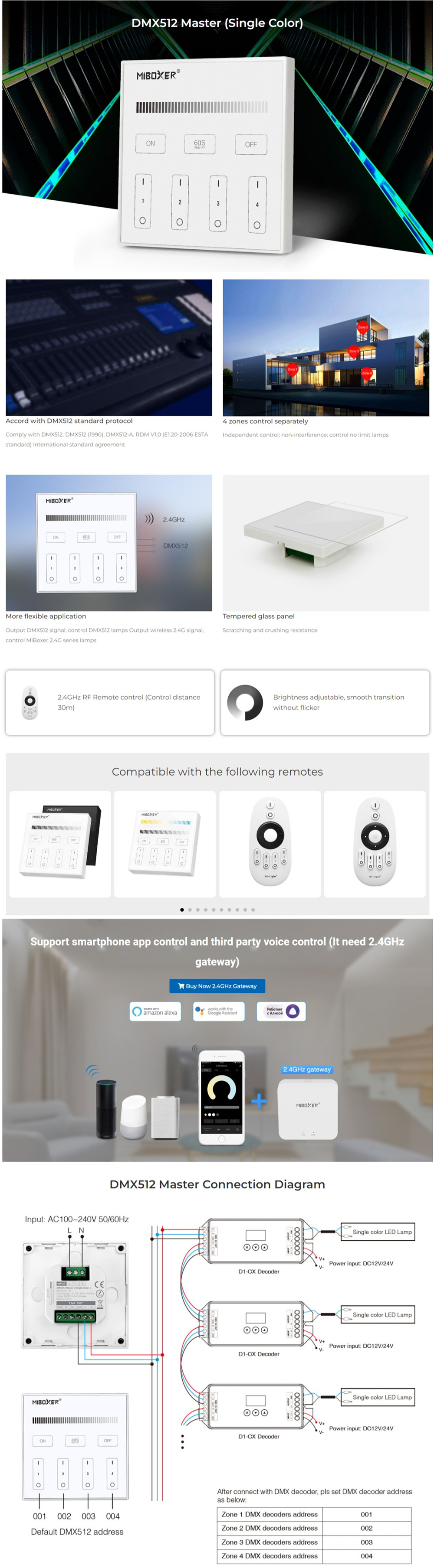

MiBoxer X1 DMX512 Dimmer For Single Color LED Lights
