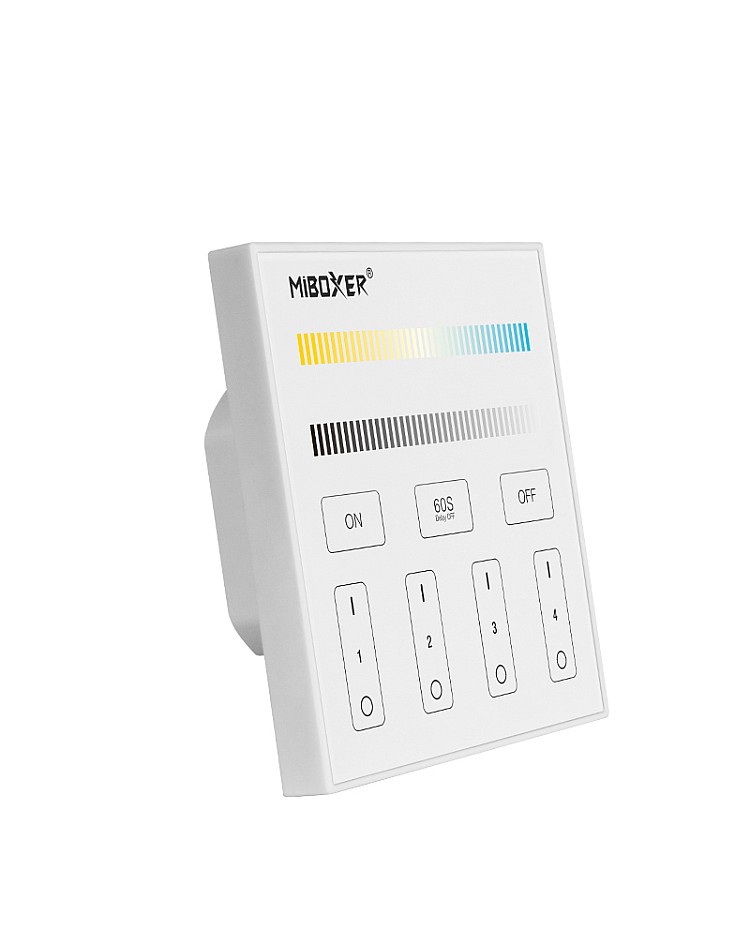

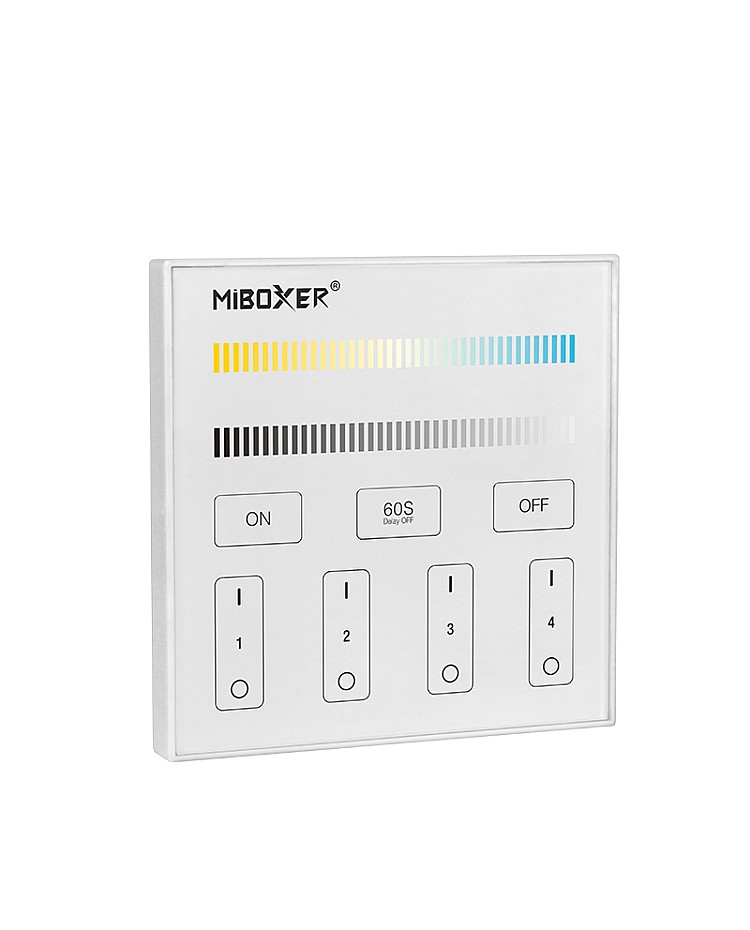

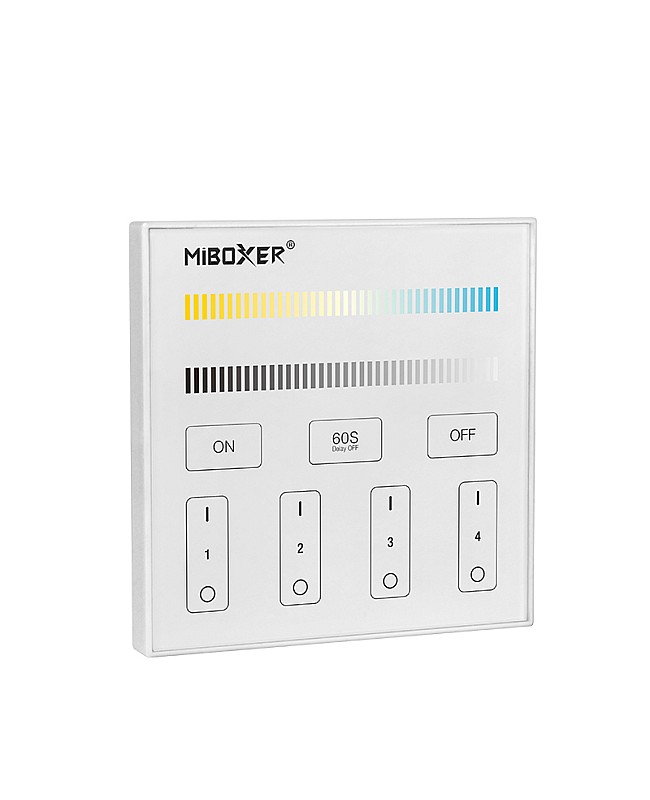

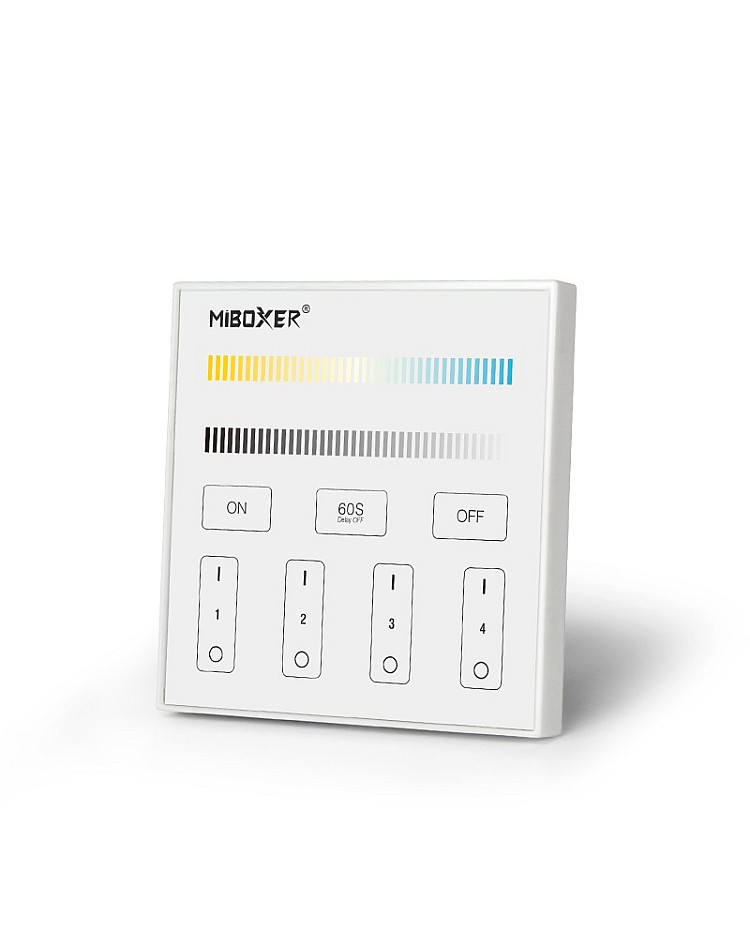

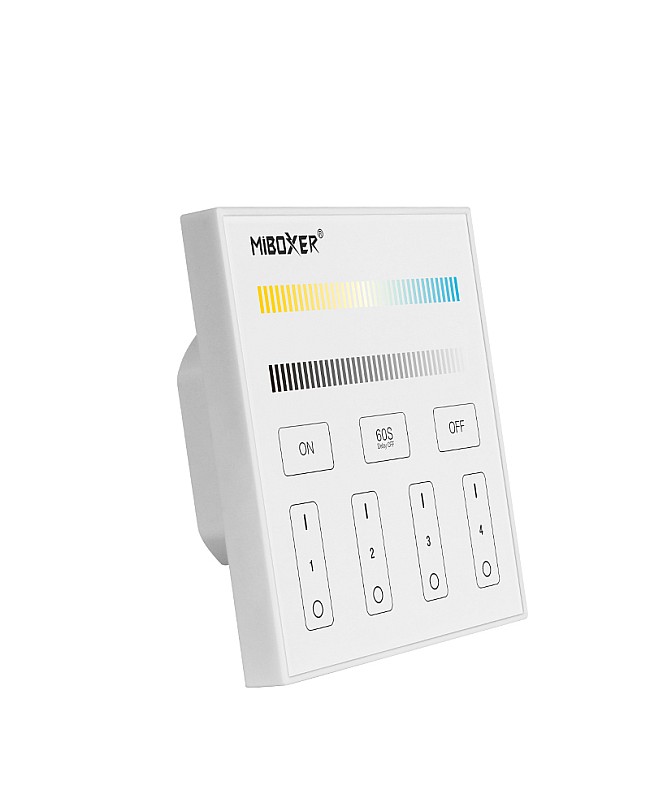

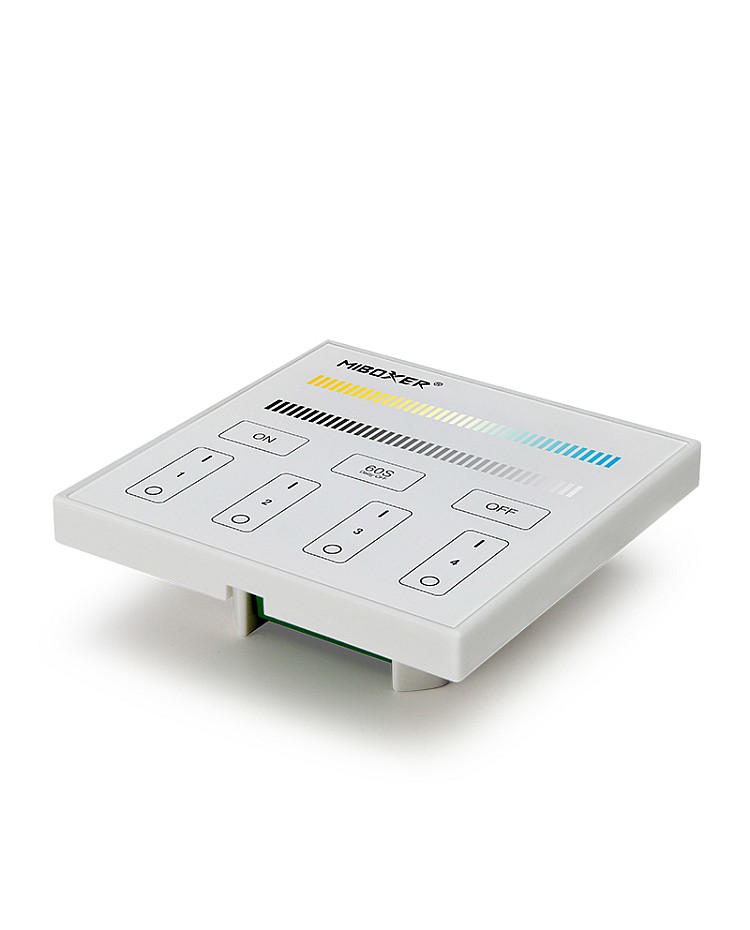

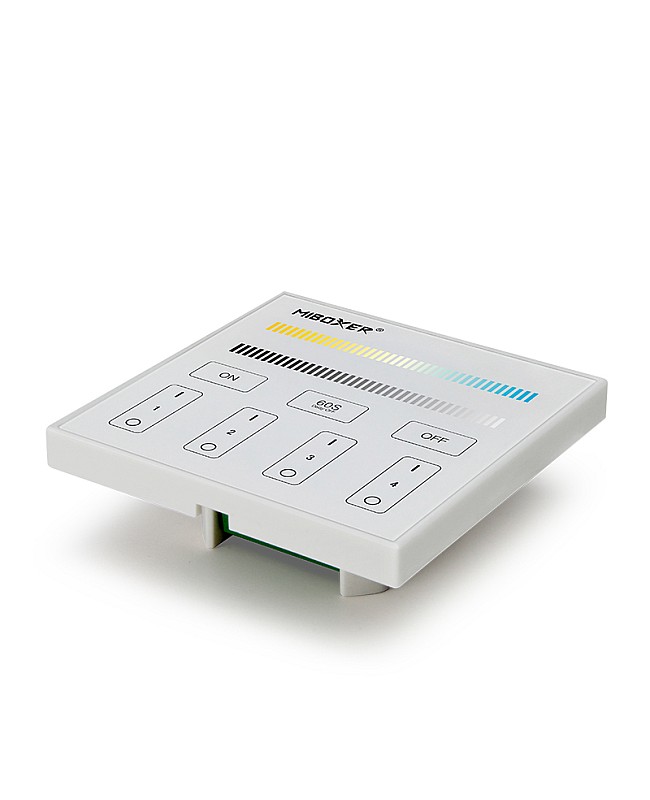

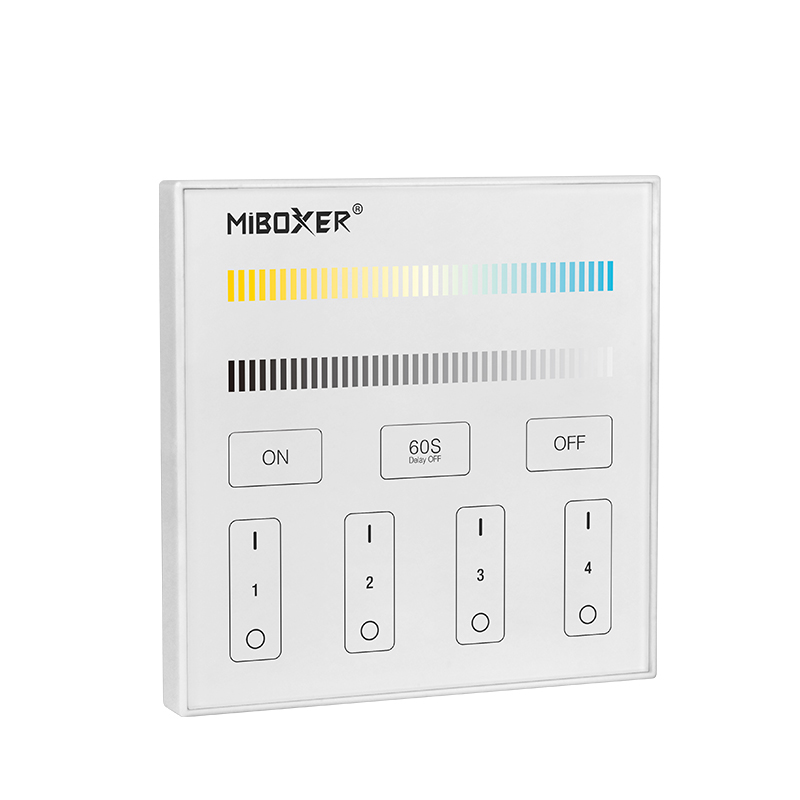

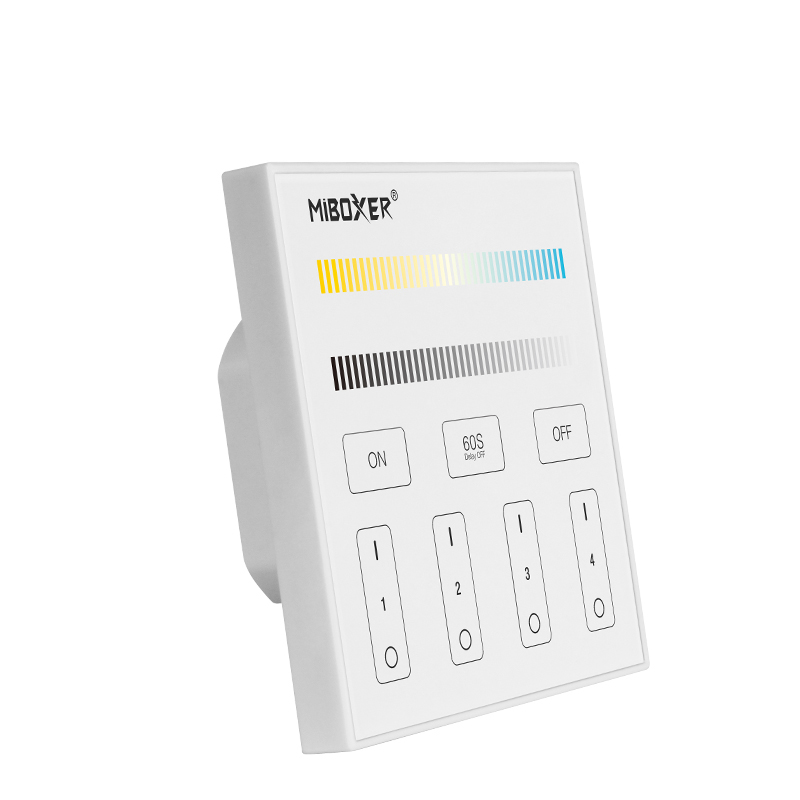

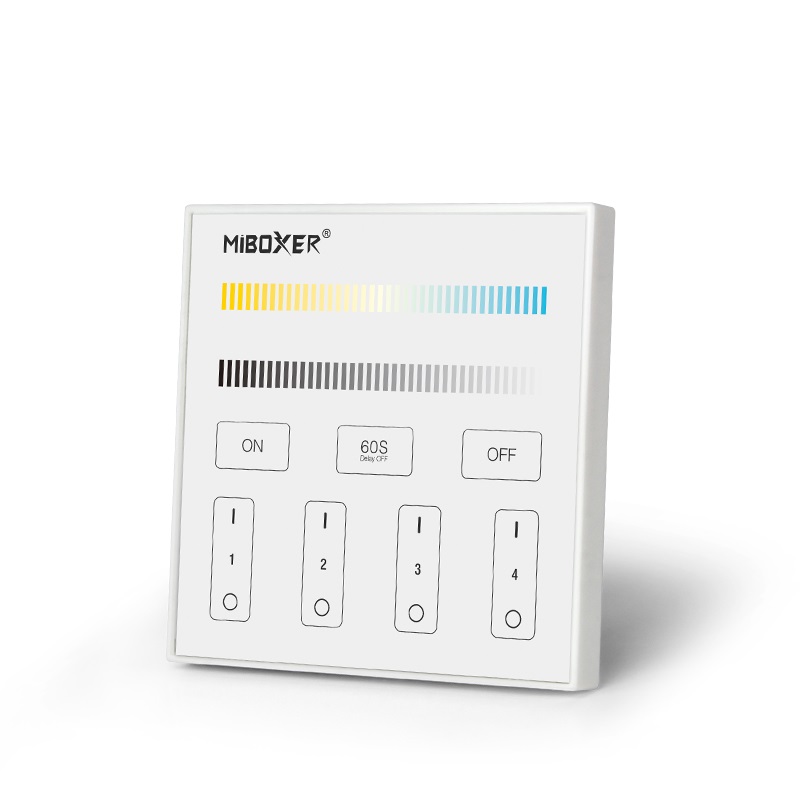

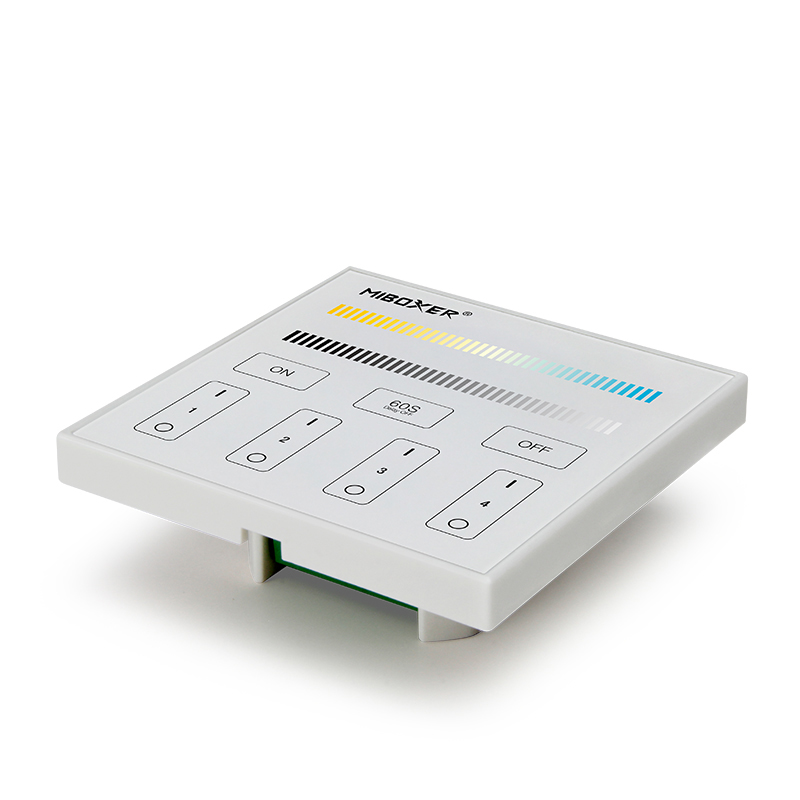

The MiBoxer X2 Color Temperature DMX LED Strip Controller, which with DMX512 signal output and wireless 2.4G signal output design, the DMX signal to control DMX512 Lamps and 2.4G signal to control MiBoxer 2.4G LED Lights. The DMX LED Controller with a standard European 86-type structure and sensitive touching panel design, is easy to install and use. The indicator light will flash when touching the buttons and with different sounds. The MiBoxer X2 can be controlled by 2.4G Remote Controls and a smartphone APP after adding the WLBOX1 2.4G Gateway. You can touch the sliders to adjust the color temperature from warm white to cool white and adjust the brightness from 1% to 100%. There are 4 zones individually controlled design, and you can control each zone separately, with a 60S delay OFF function, touch the button, and the LED Light will turn off automatically after 60 seconds.

Quick Links:

MiBoxer X2 CCT DMX512 Controller


Features:

  • Size: 86*86*26mm(L*W*H)
  • Working Voltage: AC100-240V, 50/60Hz
  • Output Signals: DMX512 + 2.4G Wireless
  • RF Transmitting Power: 6dBm
  • RF Control Distance: ≤30m
  • Comply With DMX512, DXM512-1990, DMX512-A, RDM V1.0 Protocols
  • Brightness And Color Temperature Adjustable
  • Standard European 86-Type Structure
  • 4 Zones Control Separately
  • 60S Delay OFF
  • Support 2.4G RF Remote Control: FUT006, FUT007
  • Smartphone APP Control(WL-BOX1 Gateway Needed)
  • Sensitive Touching Panel
  • Working Temperature: -20-45℃
  • 2 Years Warranty


Includes:

1*MiBoxer DMX512 LED Strip Controller

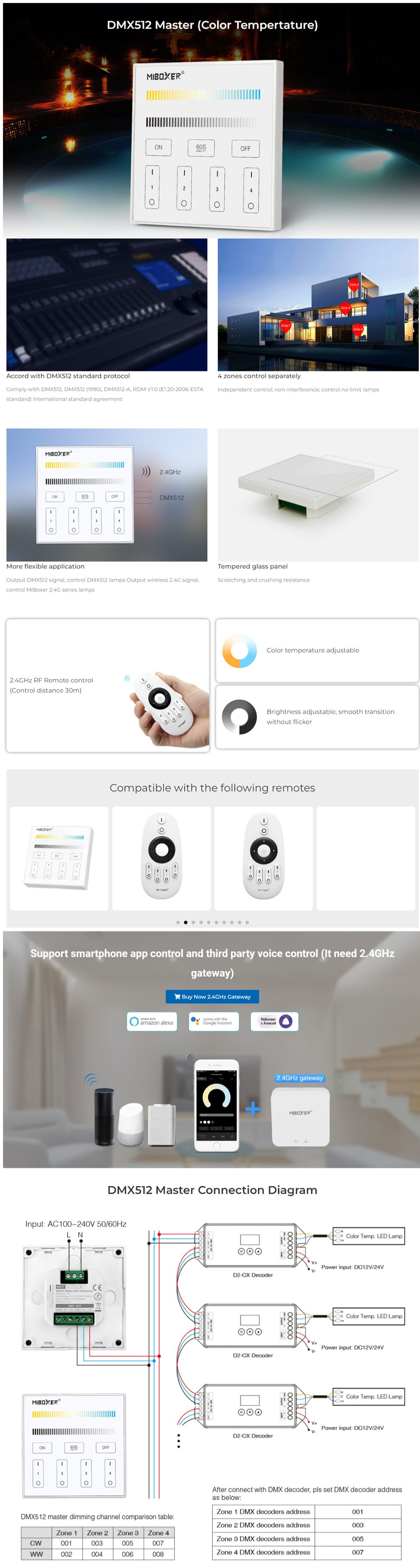

DMX512 3 Channels LED Controller
