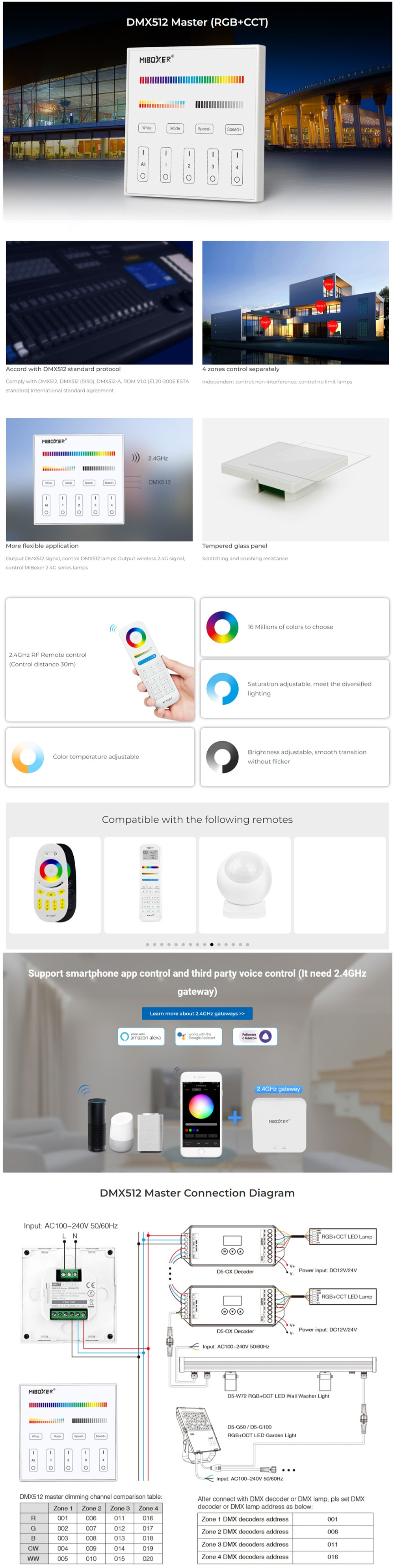

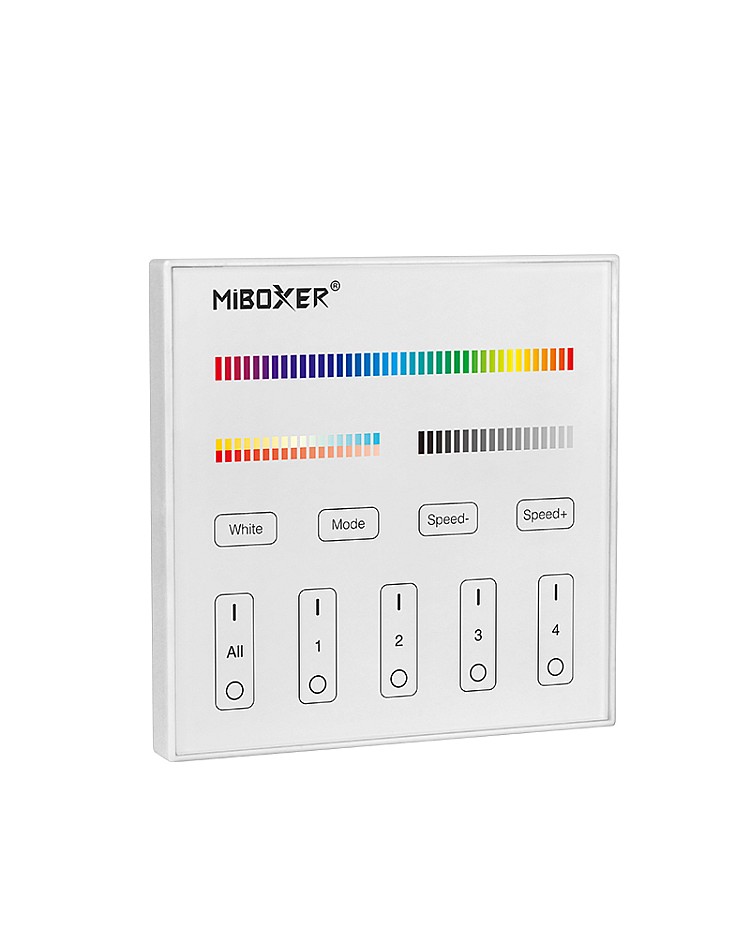

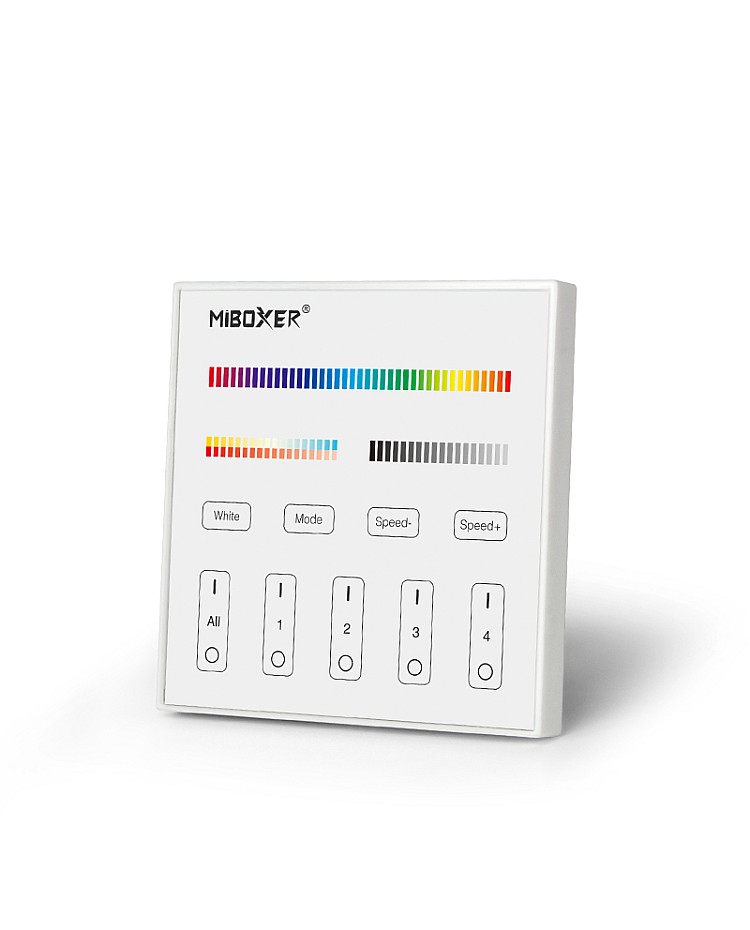

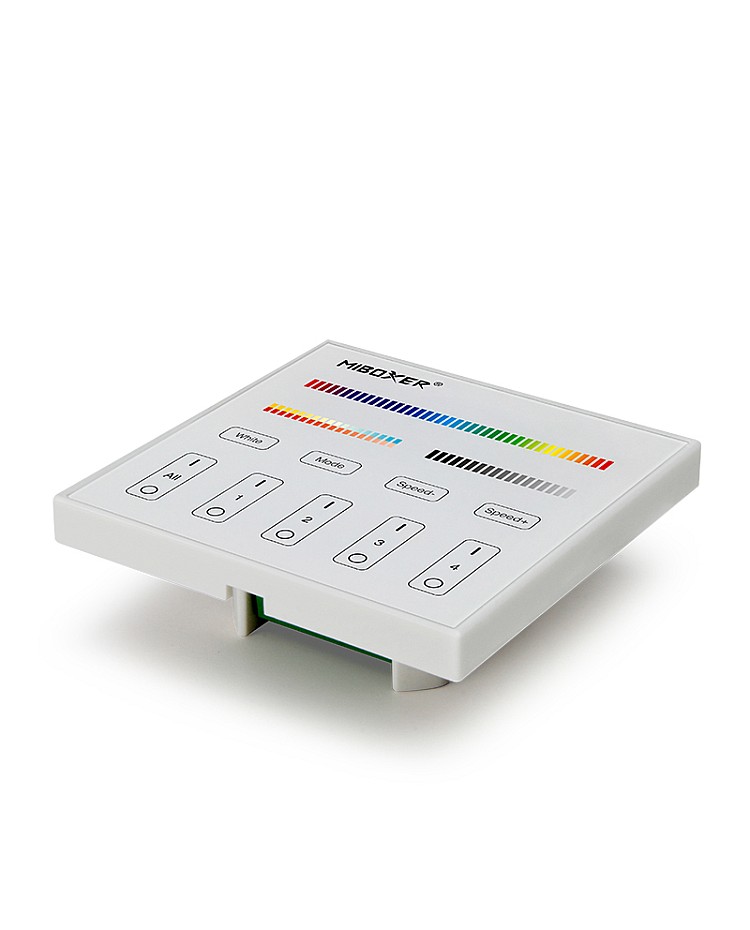

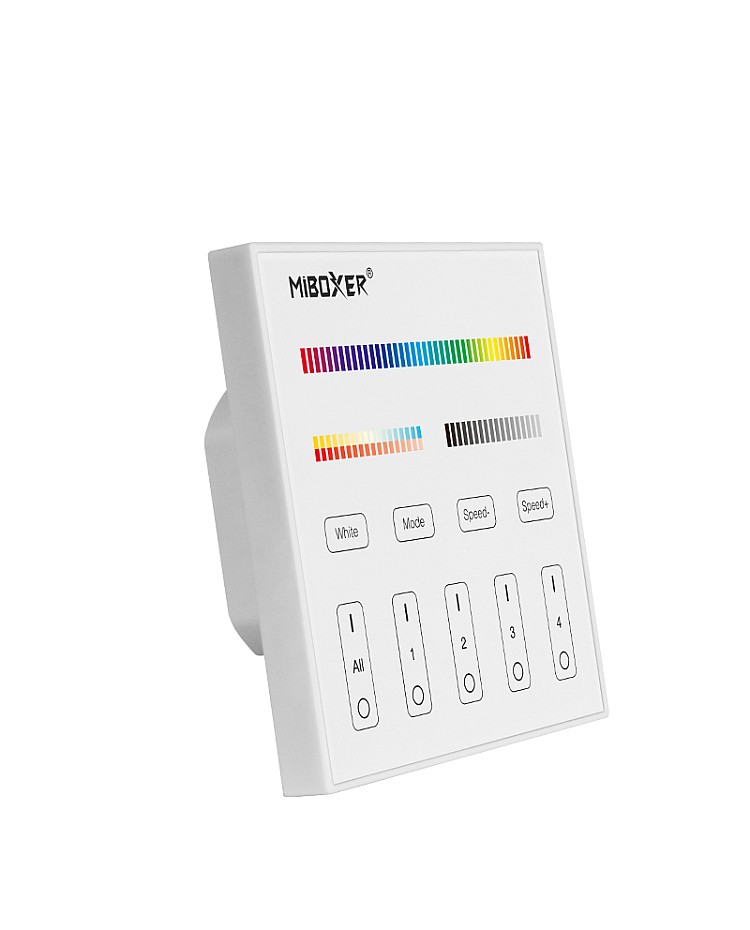

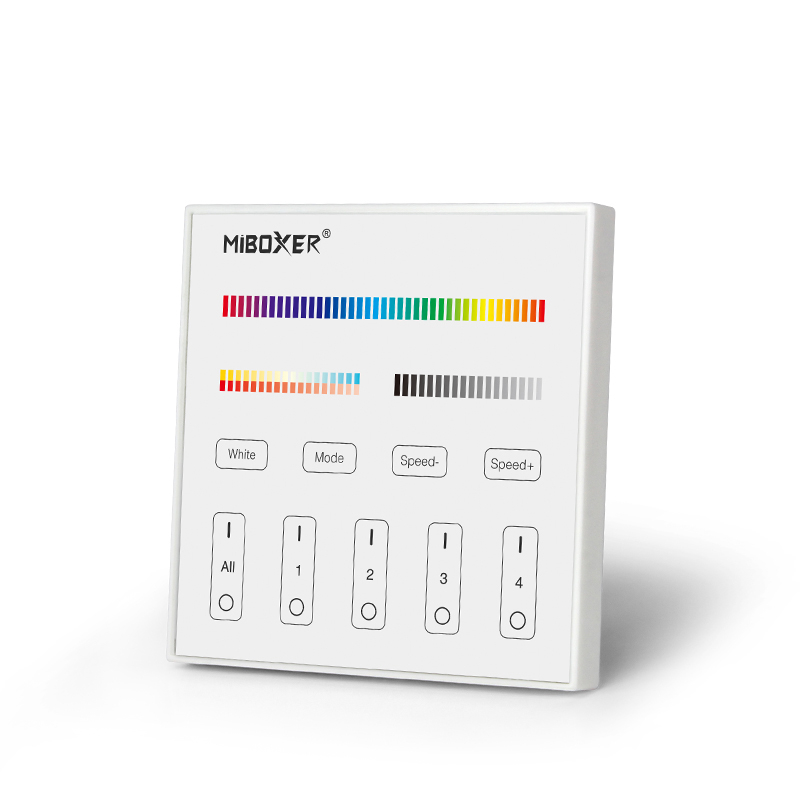

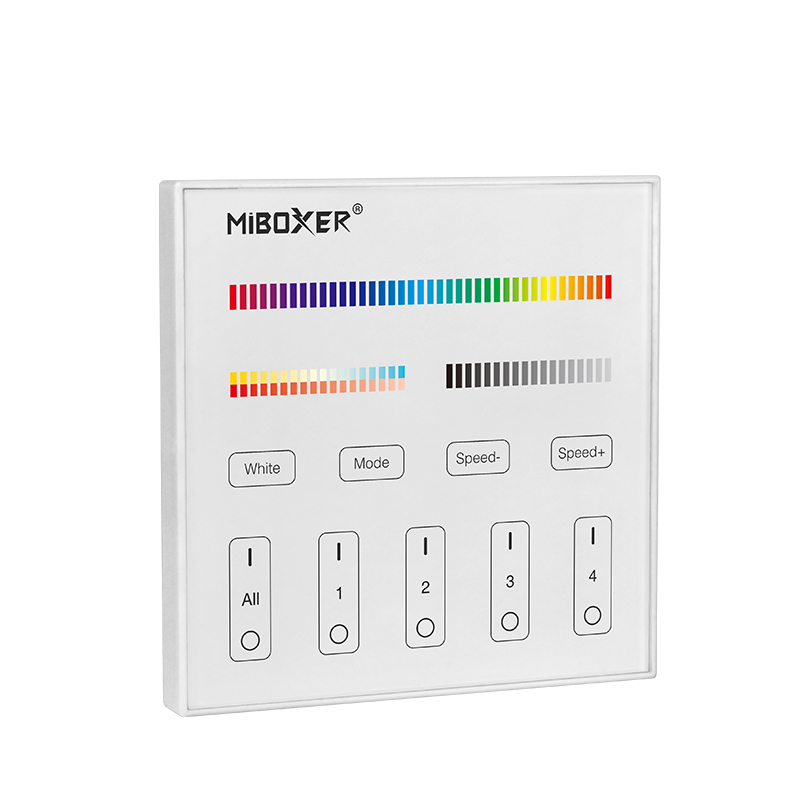

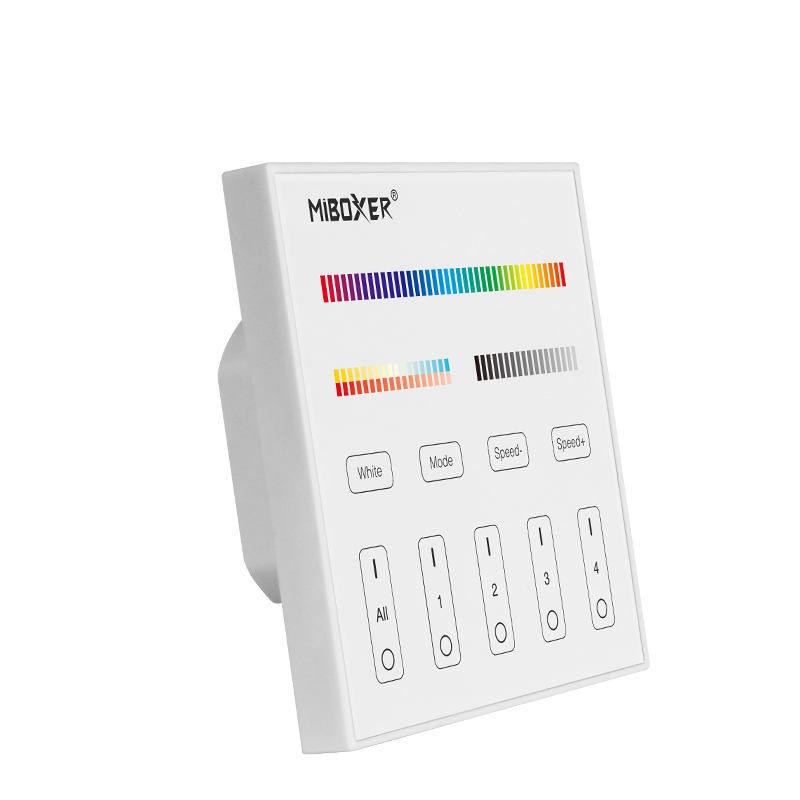

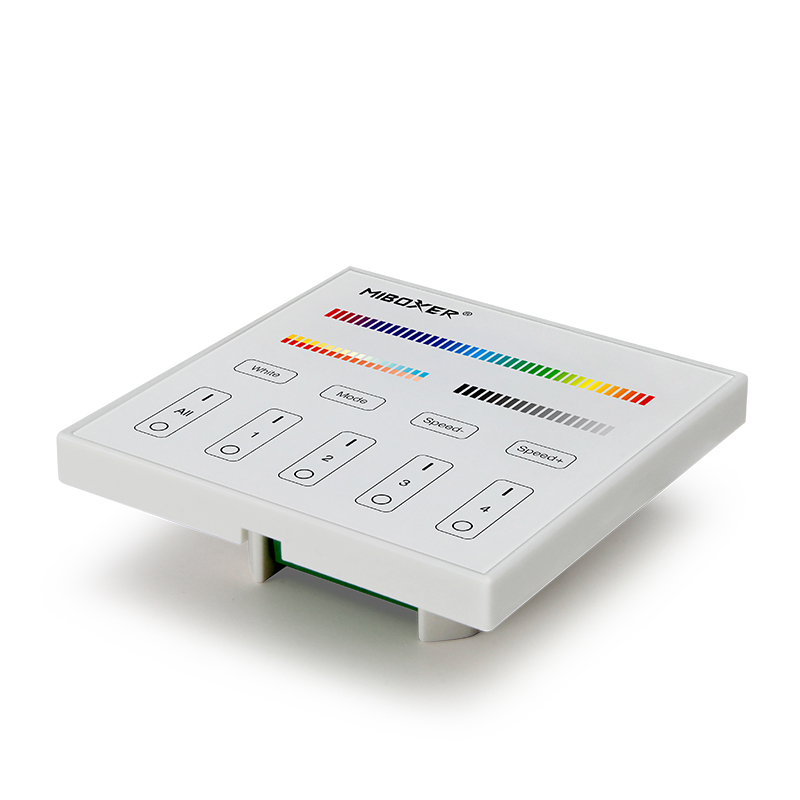

The MiBoxer X5 RGB+CCT DMX Light Controller, which with standard European 86-type structure, easy to install and use. The DMX512 Light Controller complies with DMX 512, DMX512(1990), DMX512-A, and RDM V1.0 standard protocol, with a sensitive touching panel design and high-precision capacitive touch screen IC, the touch screen is very stable. When you touch the button, the LED indicates light with a flash once with a different sound. The DMX Controller with DMX512 signal and wireless 2.4G signal output to control DMX512 LED Lights and MiBoxer 2.4G Lamps. With 4 zones individually control design, you can control each control separately. The MiBoxer X5 DMX512 Controller supports 2.4G Remote Control and smartphone APP control, and you can set the static color and dynamic mode and adjust the color temperature, brightness, and saturation. There are 16 million colors and 9 dynamic modes available to meet the different scenes. Recommend works with MiBoxer D5-CX 5 Channels RGBWW Decoder.

Quick Links:

MiBoxer X5 User Manual


  • Models: X1(For Single Color), X2(For Color Temperature), X3(For RGB), X4(For RGBW), X5(For RGBWW)
  • 86*86*26mm(L*W*H)
  • Input Voltage: AC100-240V, 50/60Hz
  • Output Signals: DMX512 + 2.4G Wireless
  • RF Transmitting Power: 6dBm
  • RF Control Distance: ≤30m
  • Comply With DMX512, DMX512(1990), DMX512-A, RDM V1.0 Standard Protocol
  • 4 Zones Individually Control
  • 16 Million Colors Available
  • Color Temperature, Brightness And Saturation Adjustable
  • 9 Dynamic Modes
  • Compatible With 2.4G Remote Controls: FUT089, FUT092, FUT096
  • Smartphone APP Control(WL-Box1 2.4G Gateway Needed)
  • With Sensitive Touching Panel Design
  • IP Rating: IP20 Non-waterproof
  • Working Temperature: -20-45℃
  • 2 Years Warranty


1*Miboxer DMX512 Light Controller
