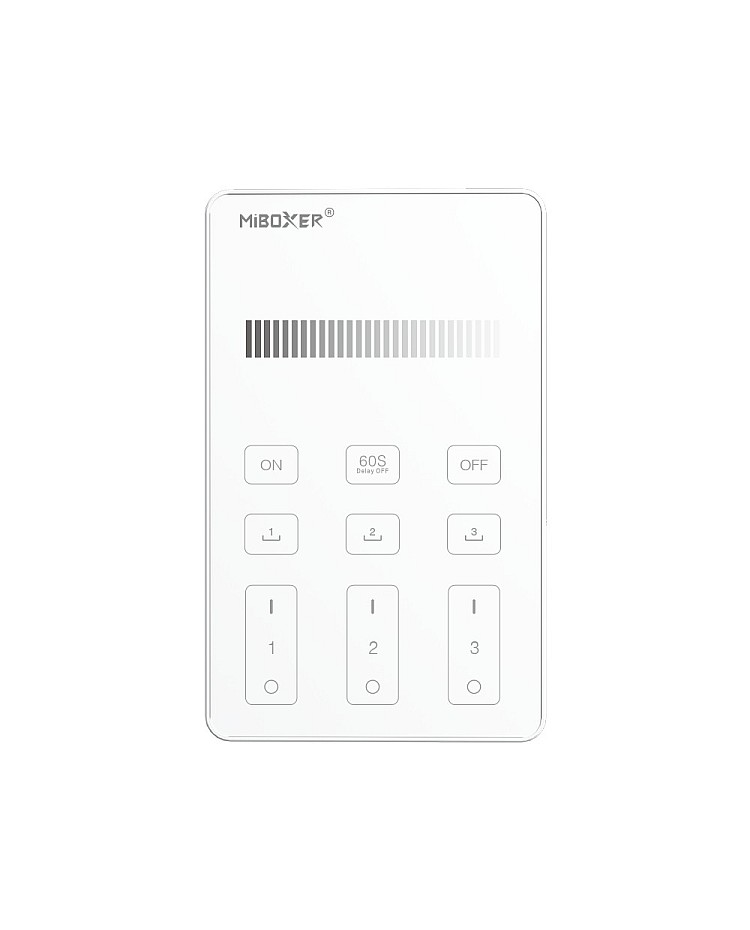

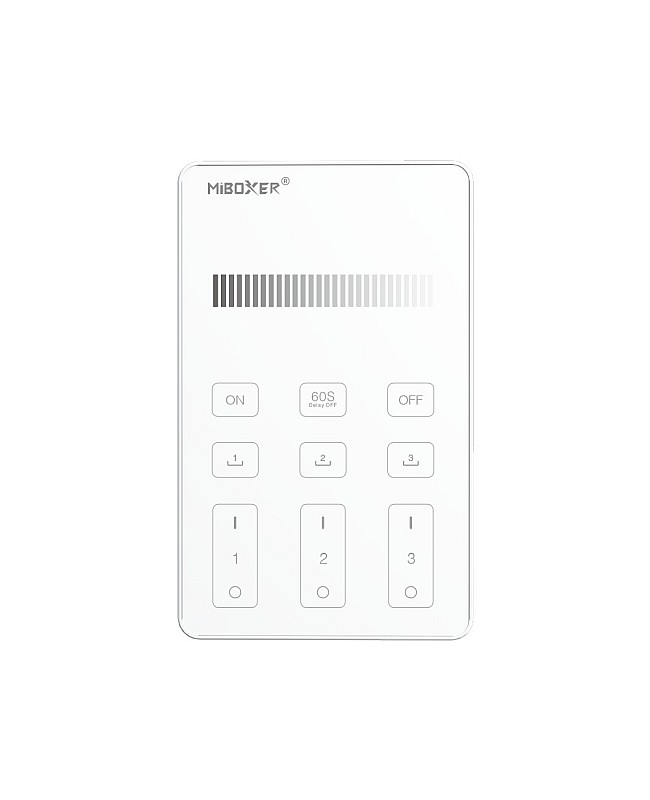

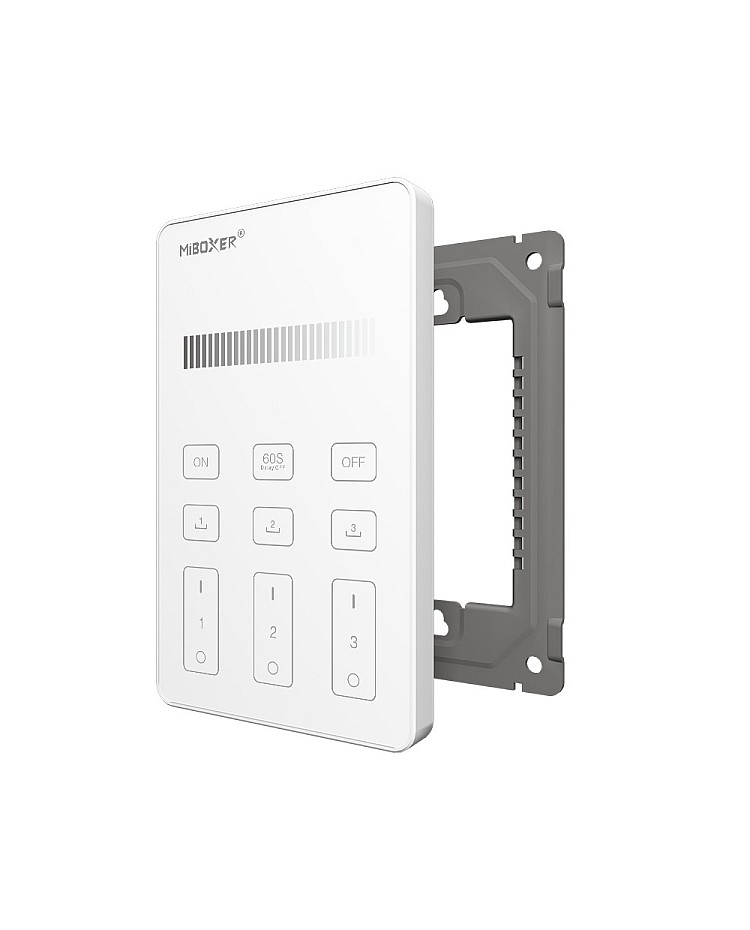

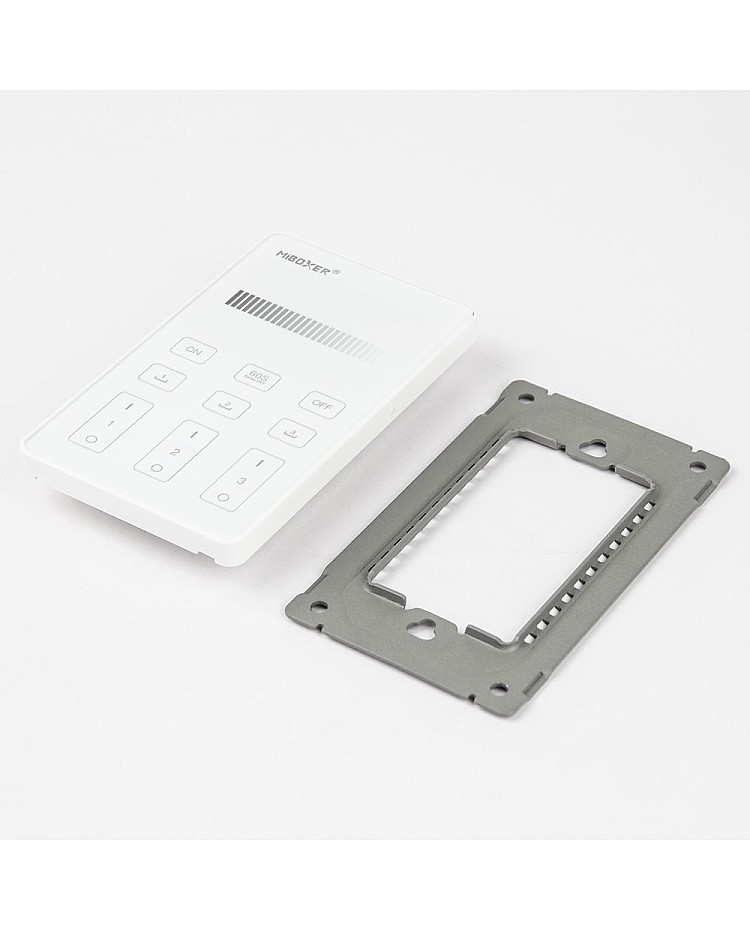

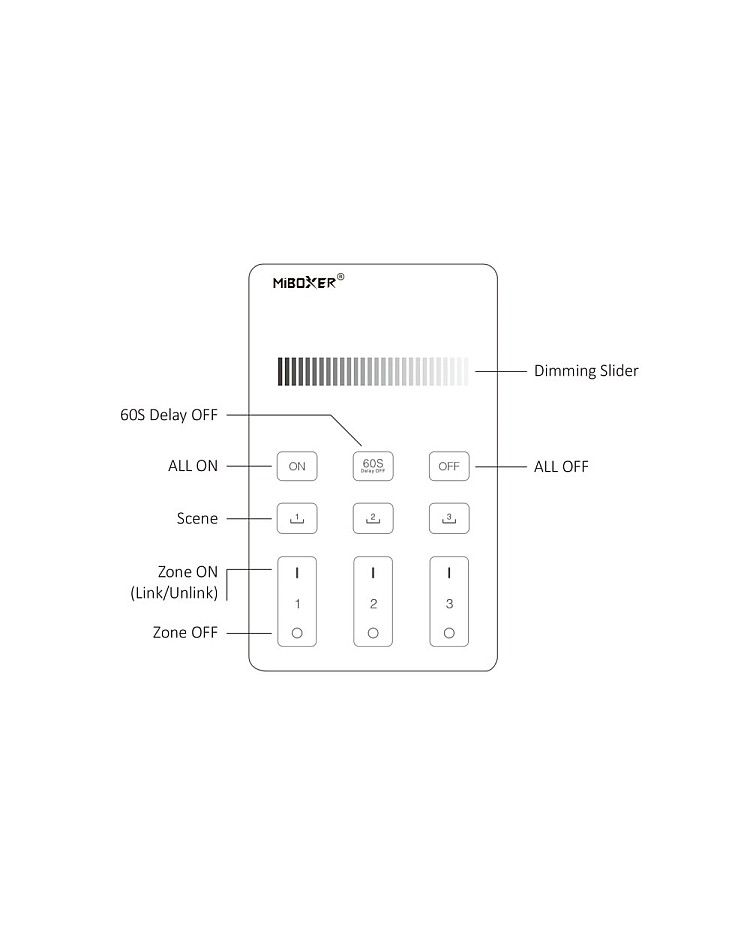

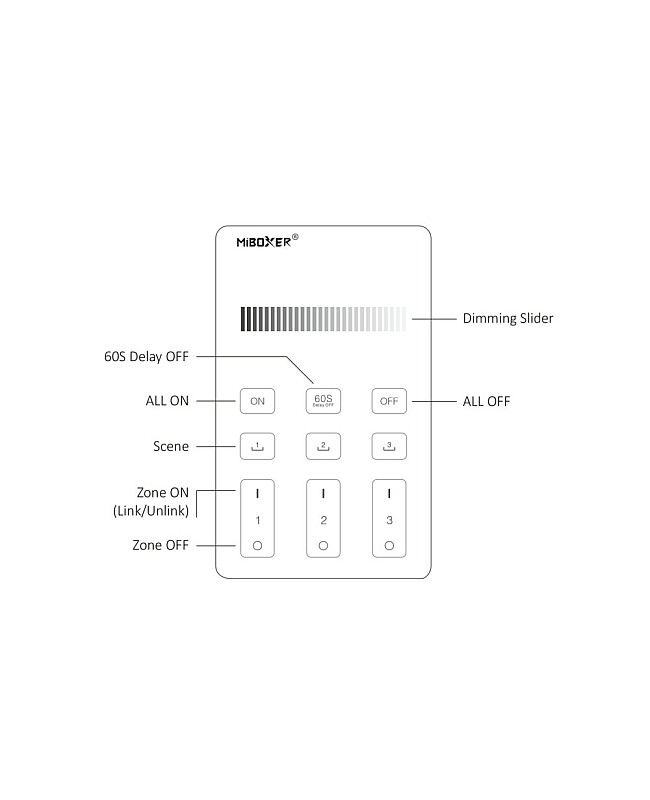

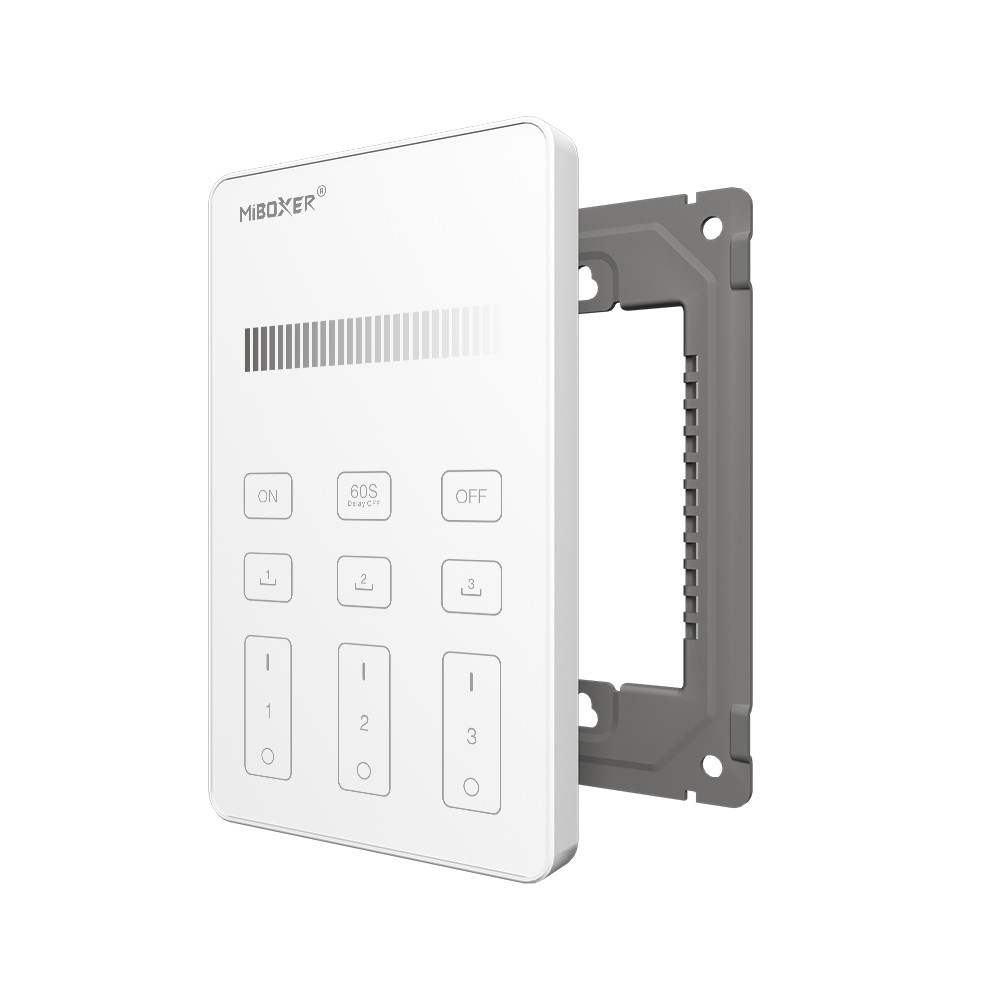

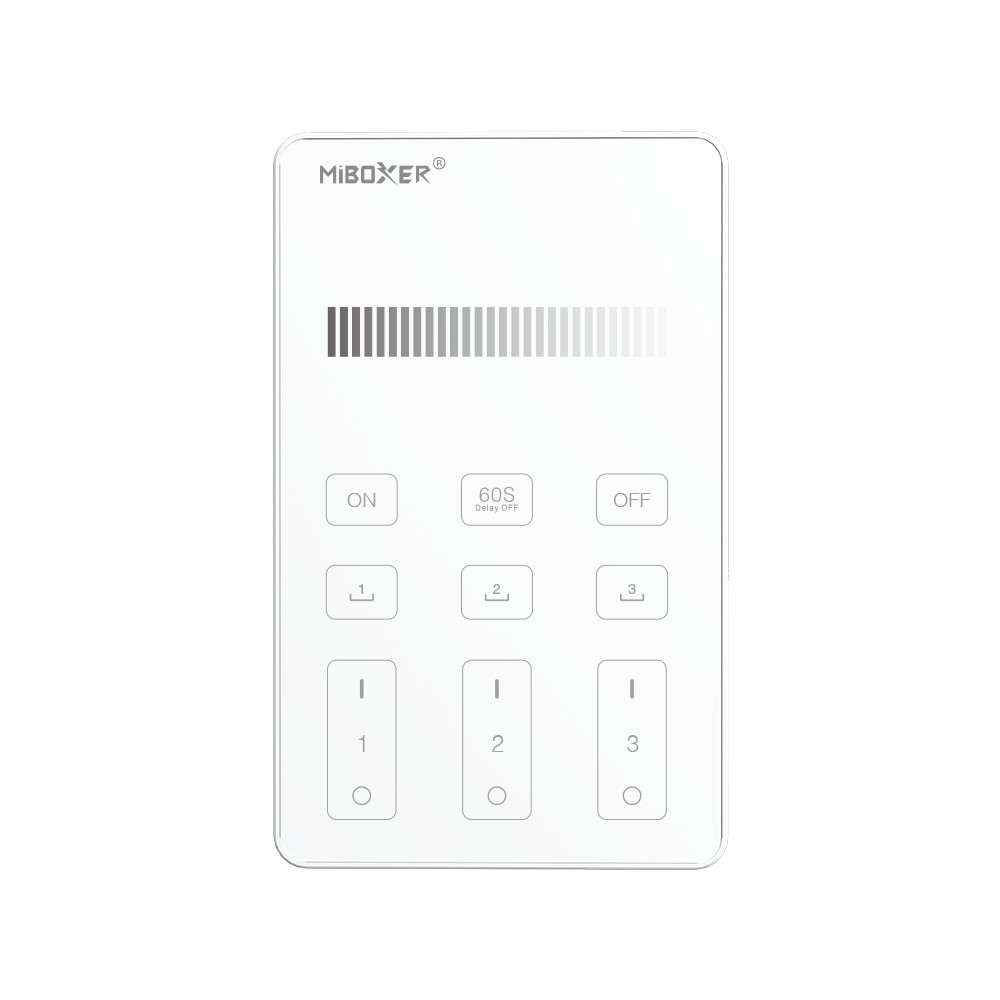

The MiBoxer U1 remote controls are designed for WLED or single-color LED lights. It features a high-precision capacitive touchscreen, ensuring the screen remains very stable and allowing you to conveniently control the lights by touching it. You can touch the screen to turn the device on or off, adjust the brightness, control the lights in groups, and save up to three scenes. The U1 light remote uses a 2.4 GHz RF wireless communication protocol for long-distance control, low power consumption, and high-speed transmission. They can be easily linked to MiBoxer light dimmers.
Specifications:
- Type: Touch Screen Panel Remote Control For WLED Lighting

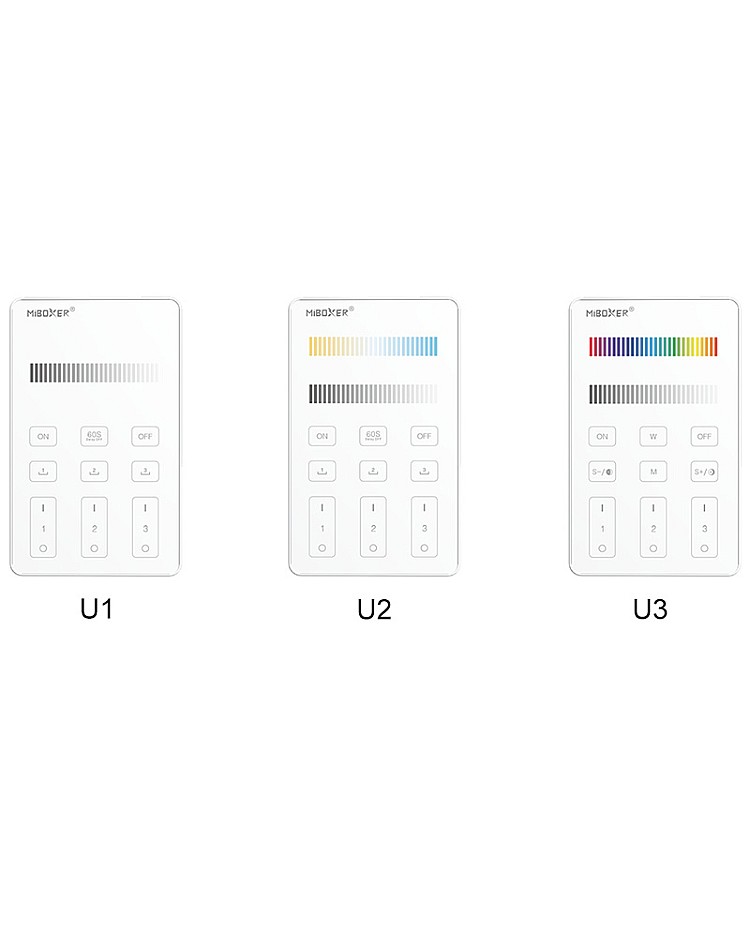

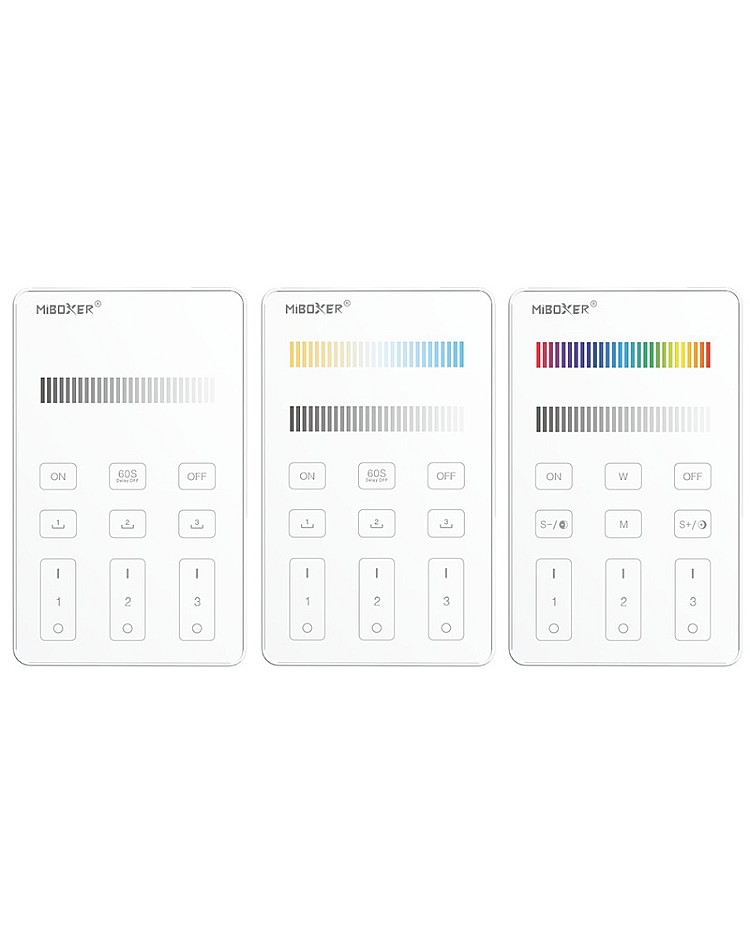

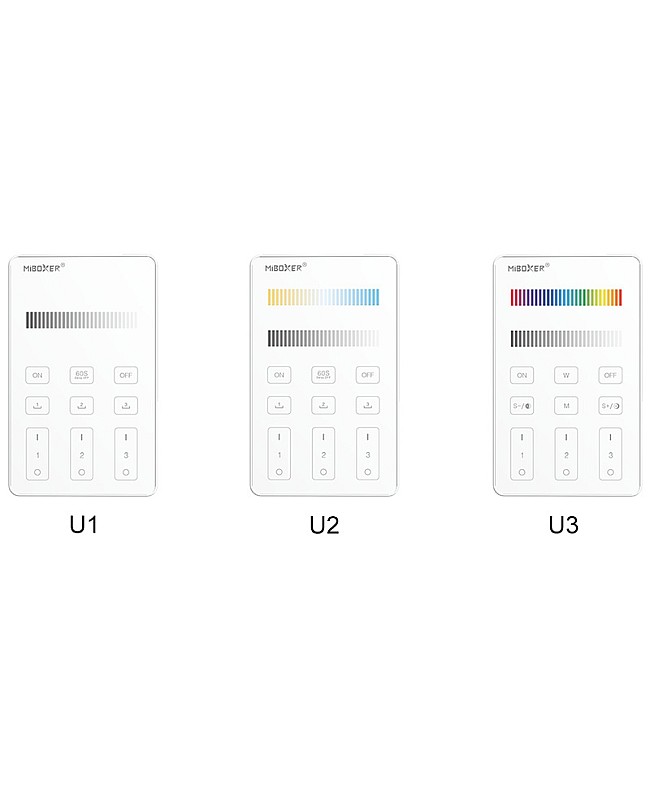

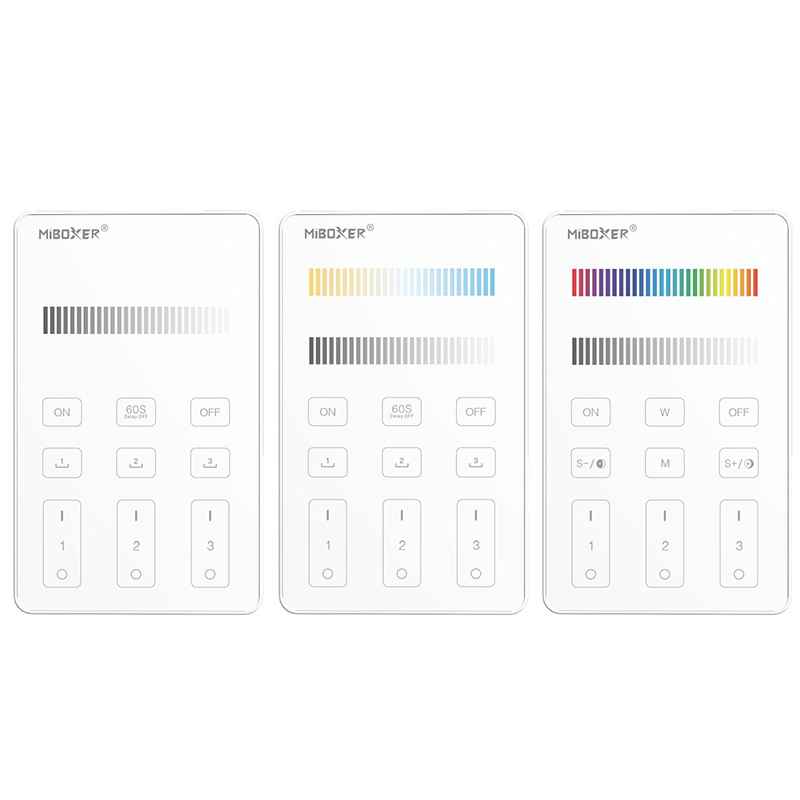

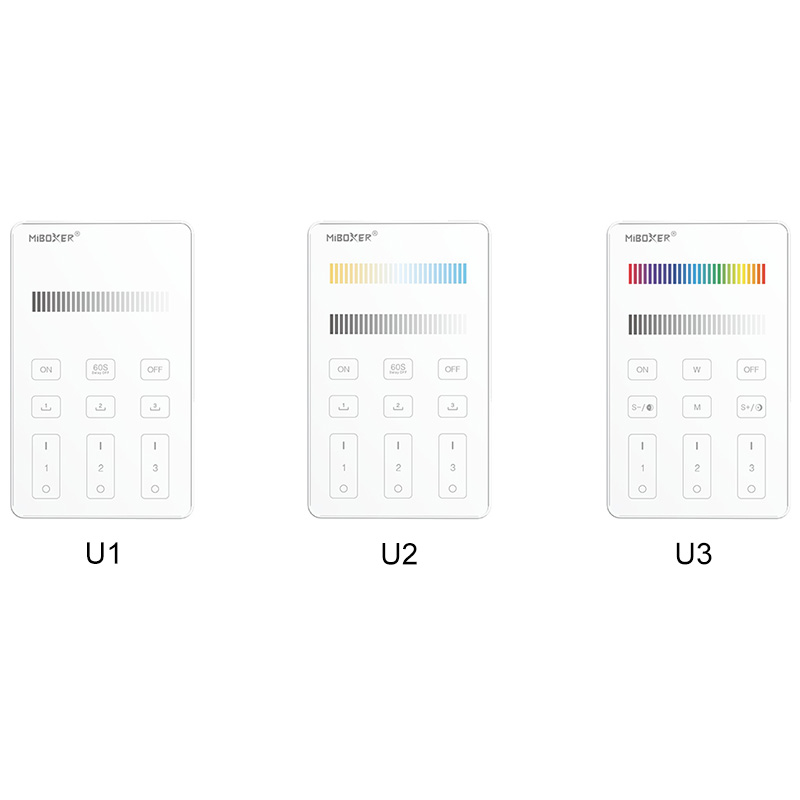

- Model: U1(For Single-color), U2(For CCT), U3(For RGB/RGBW/RGBCCT)

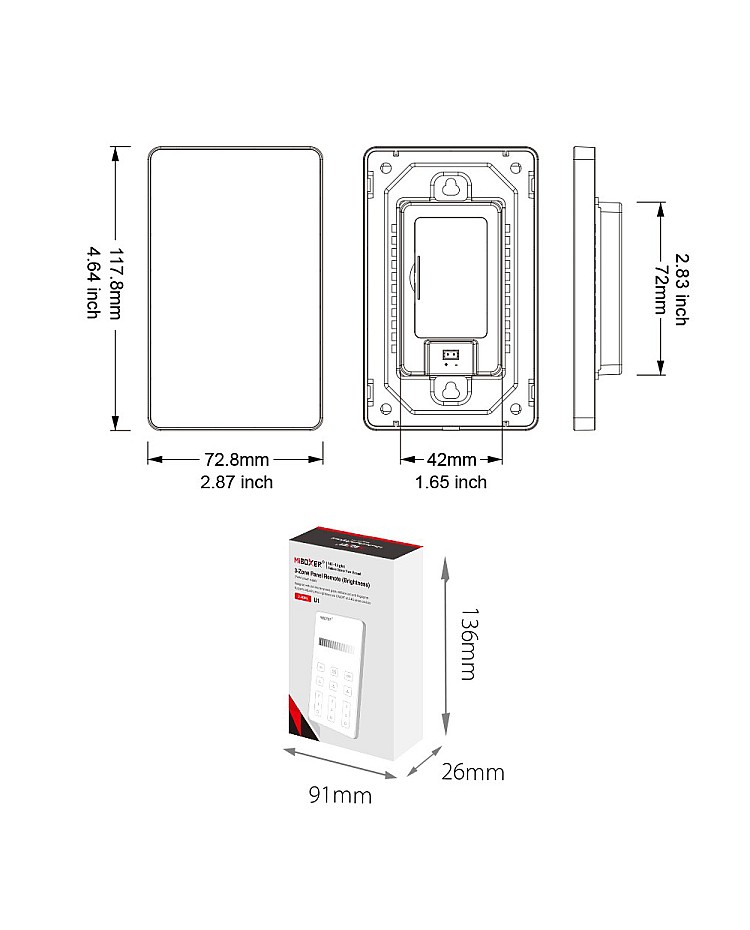

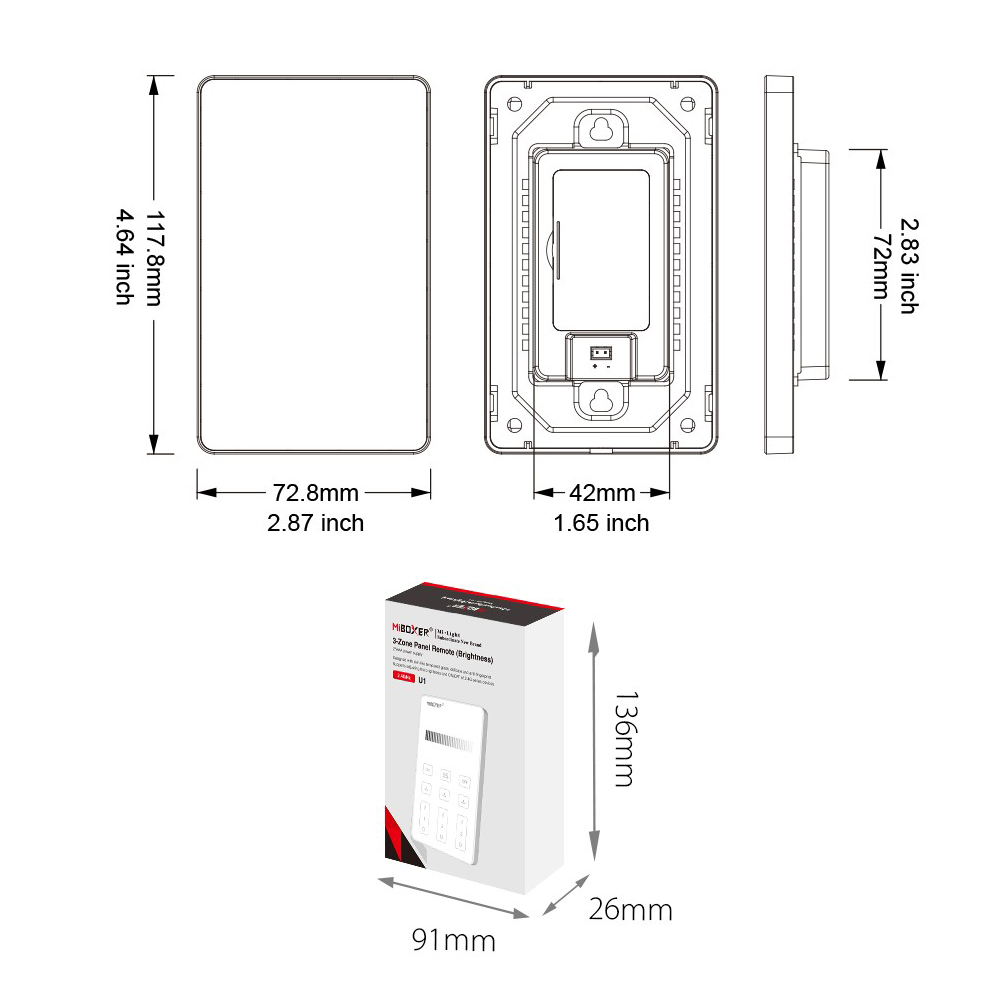

- Size ( W*H ): 72.8mm X 117.8mm ( 2.87 inch X 4.64 inch )
- Input Voltage: DC3V
- Powered By 2PCS AAA Batteries(Not Included)
- Standby Power Consumption: 20μA

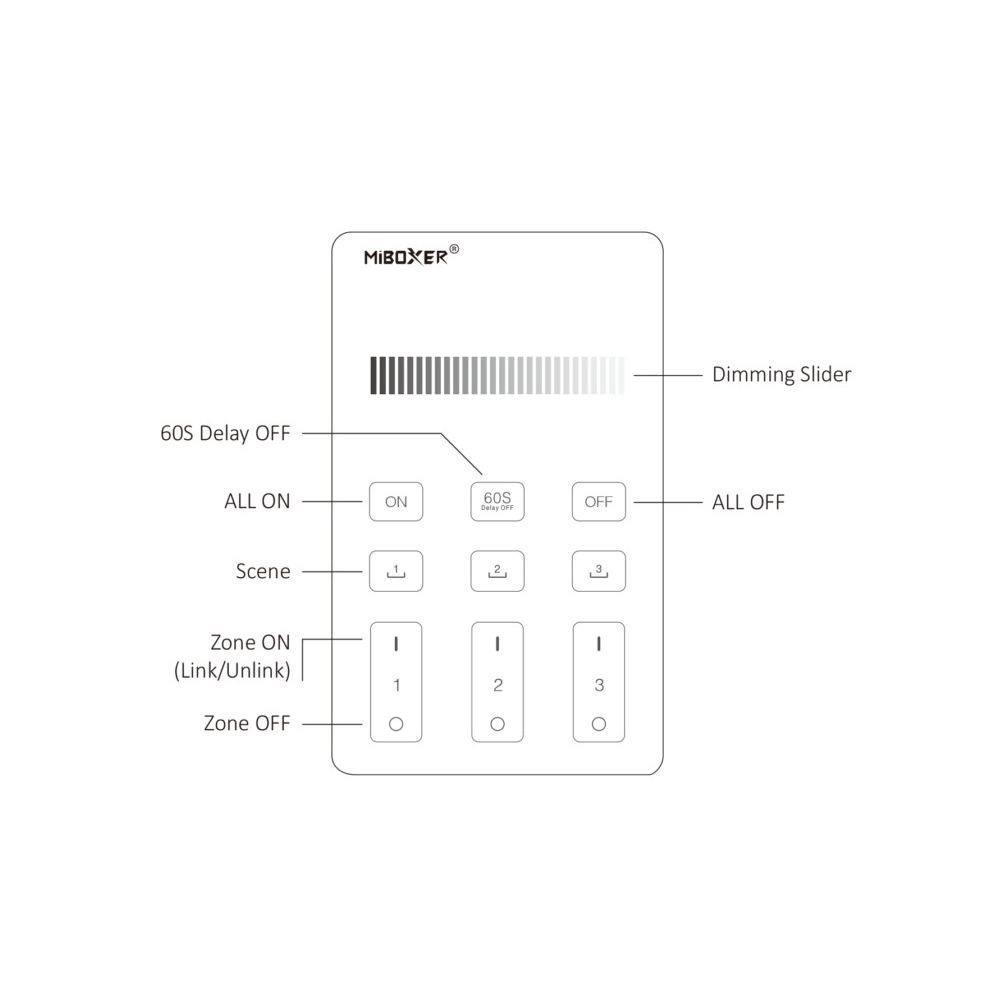

- U1: Brightness adjustable only

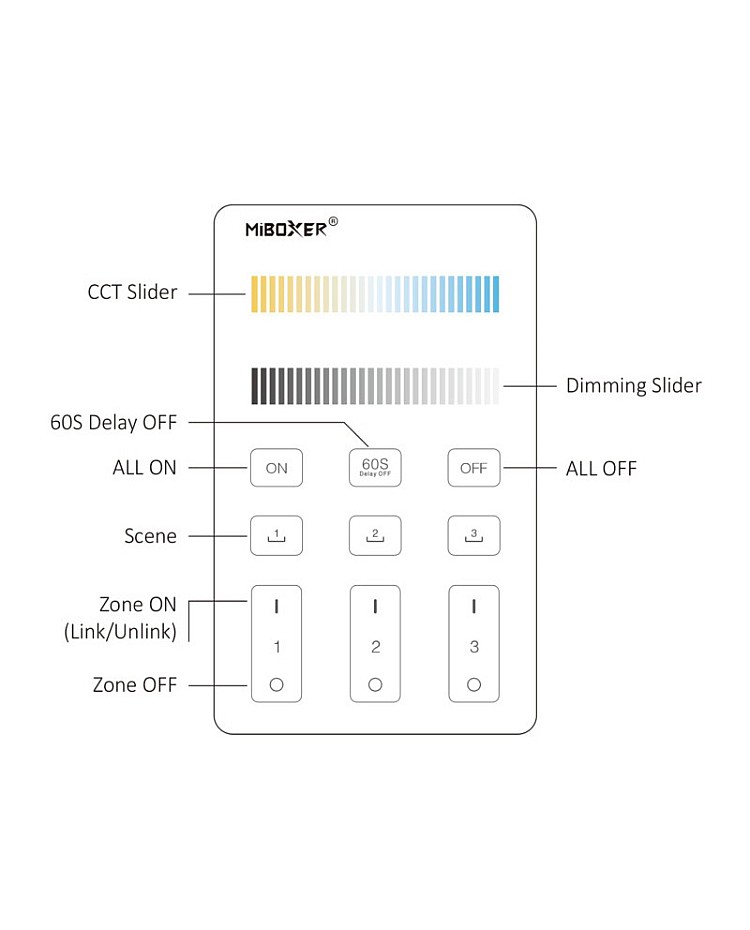

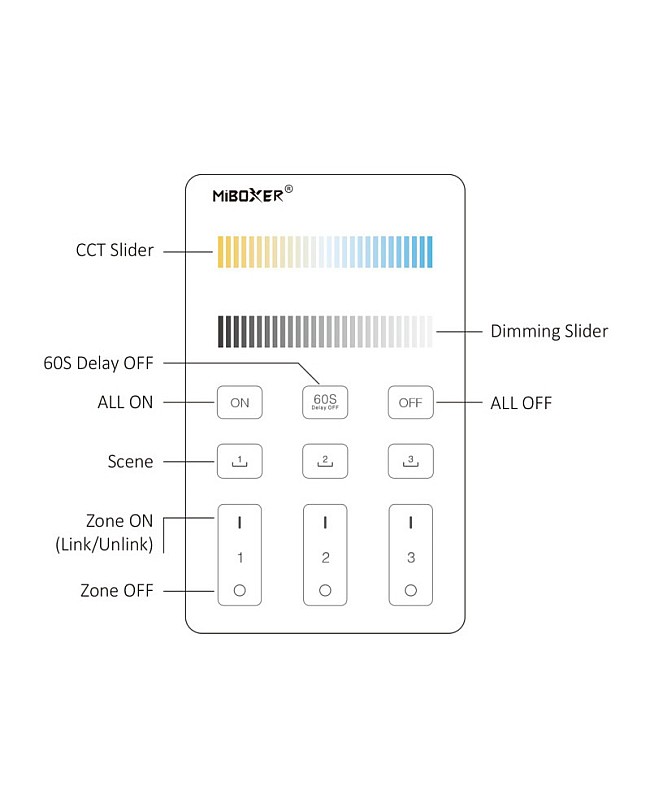

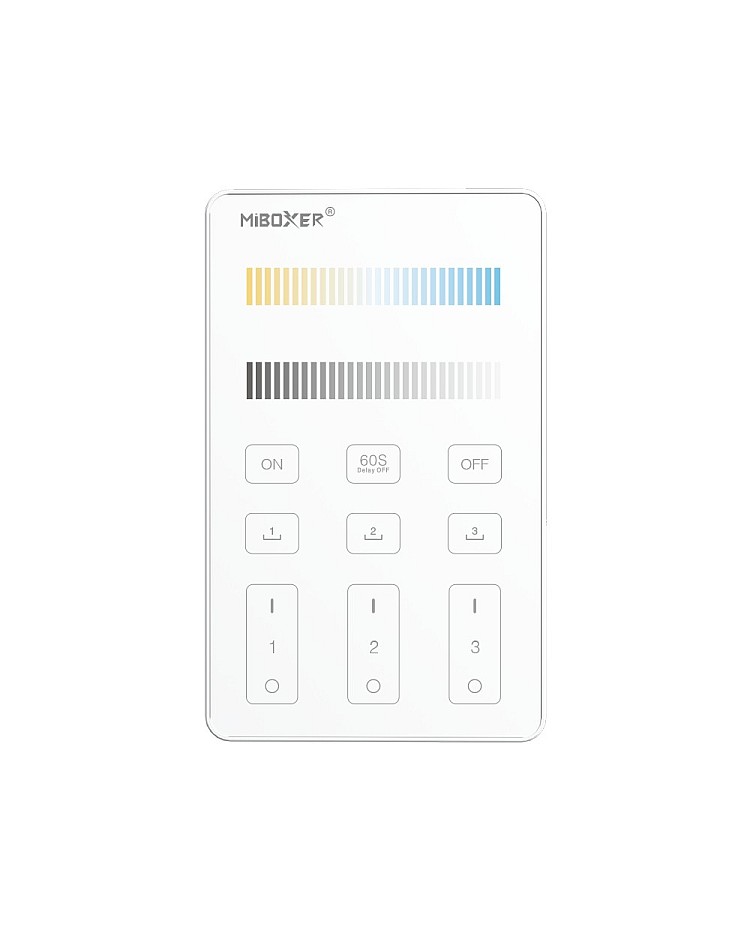

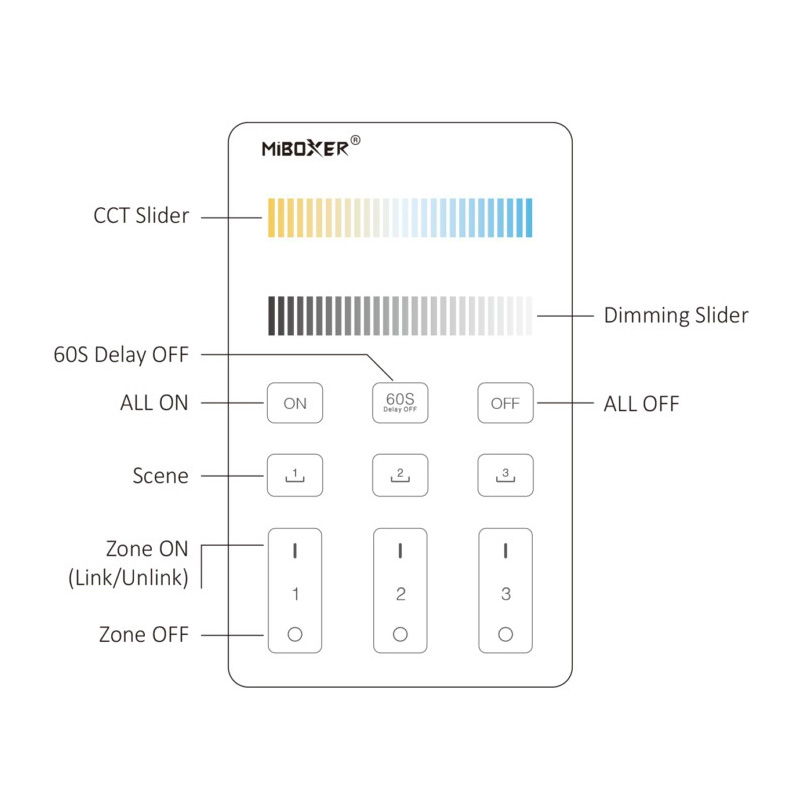

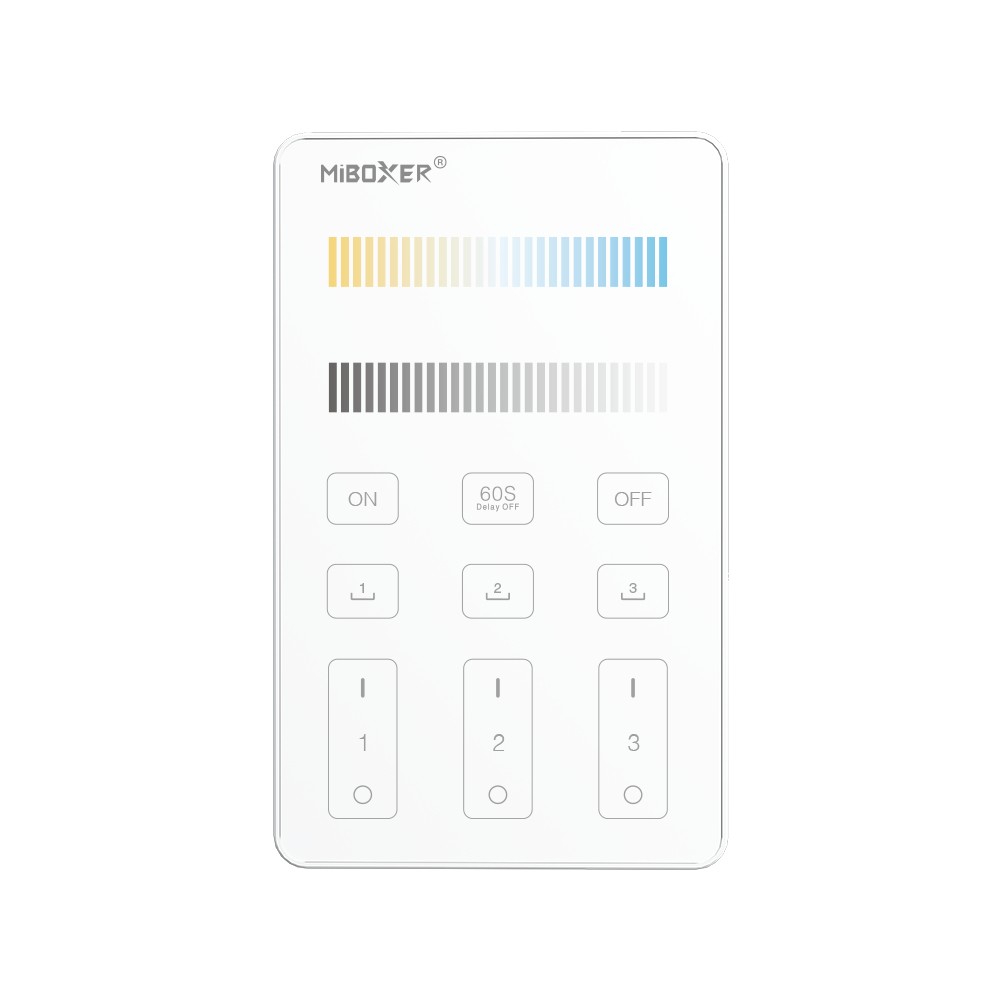

- U2: Dim brightness and color temperature

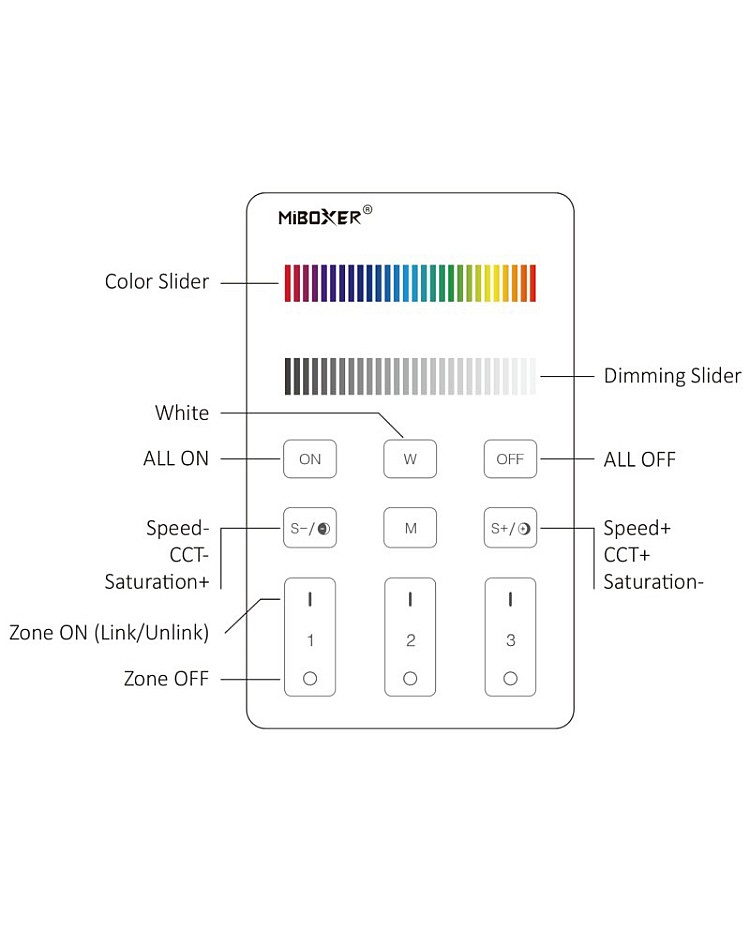

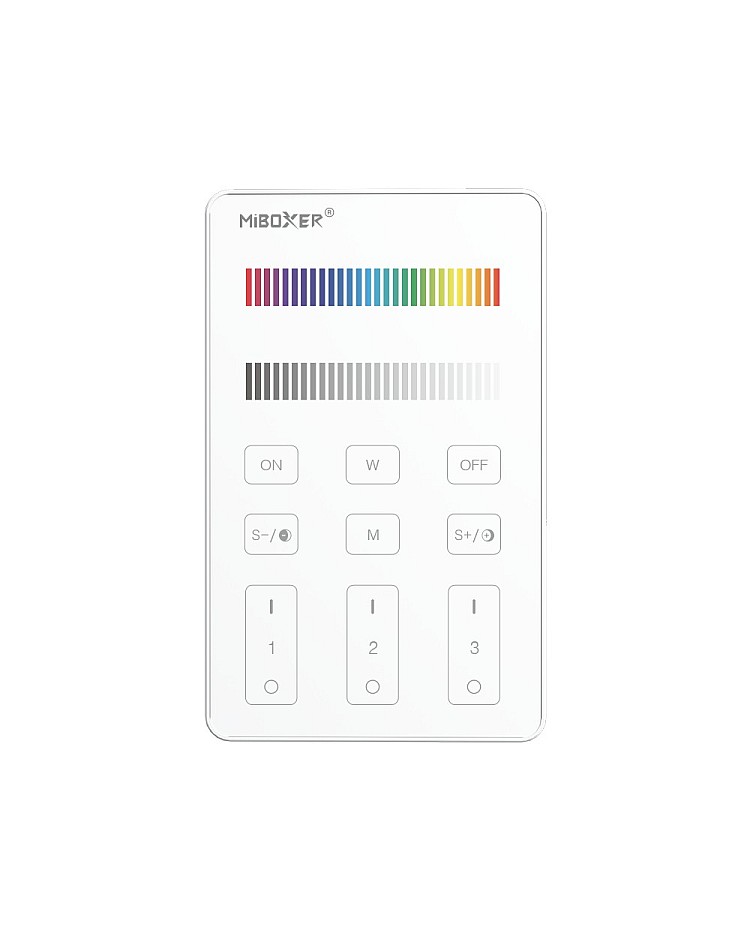

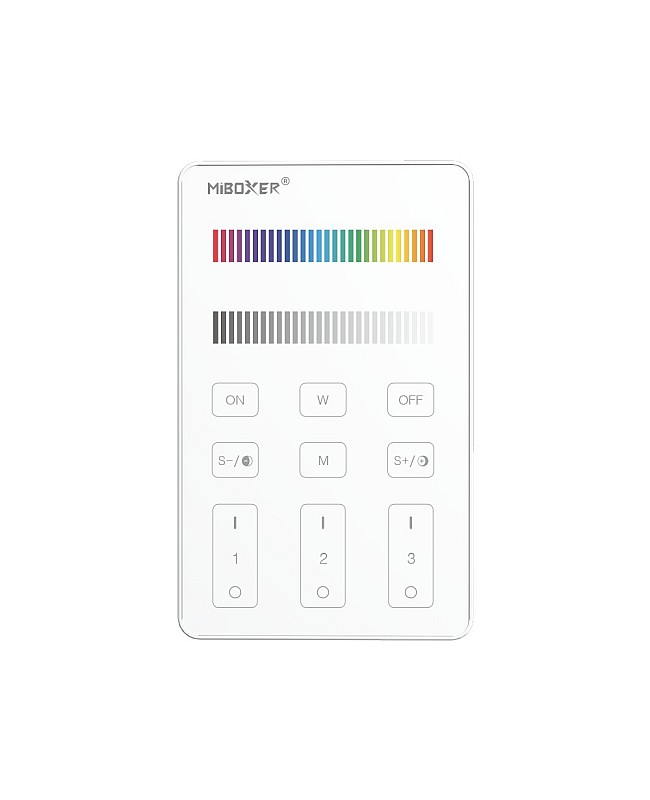

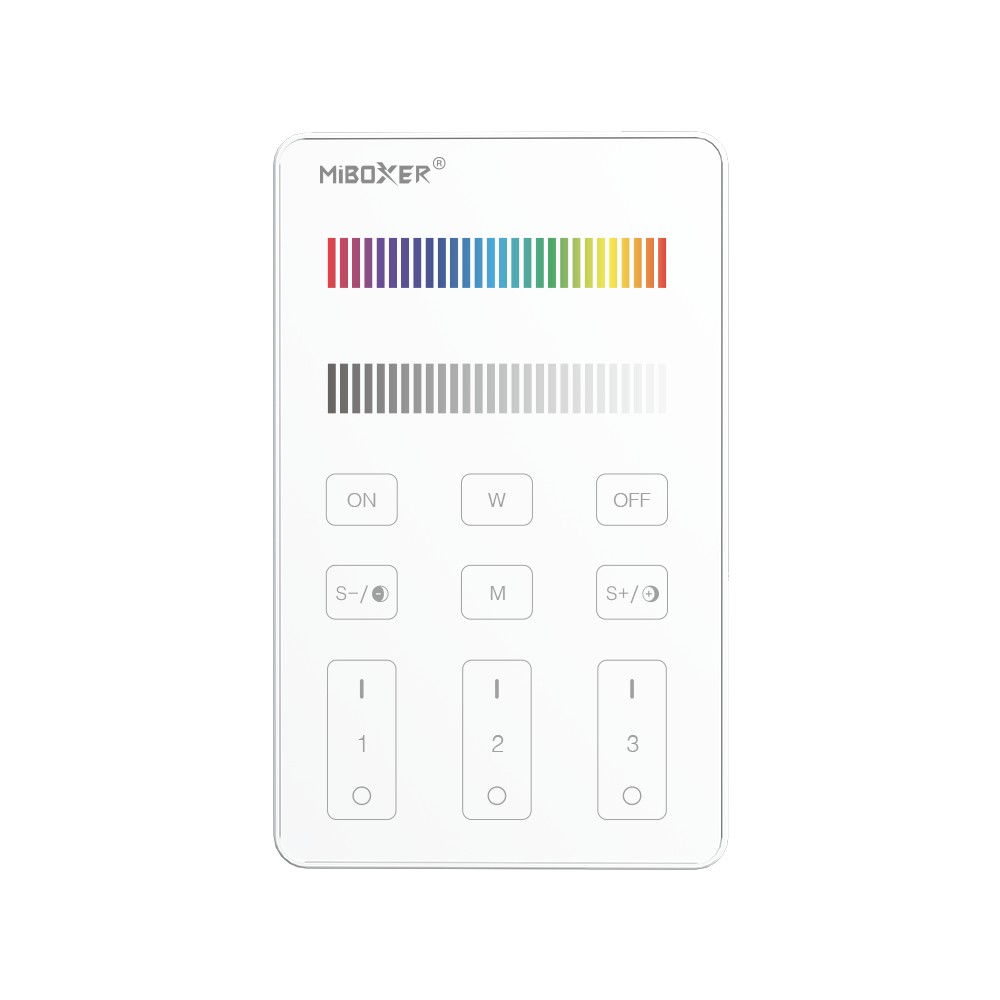

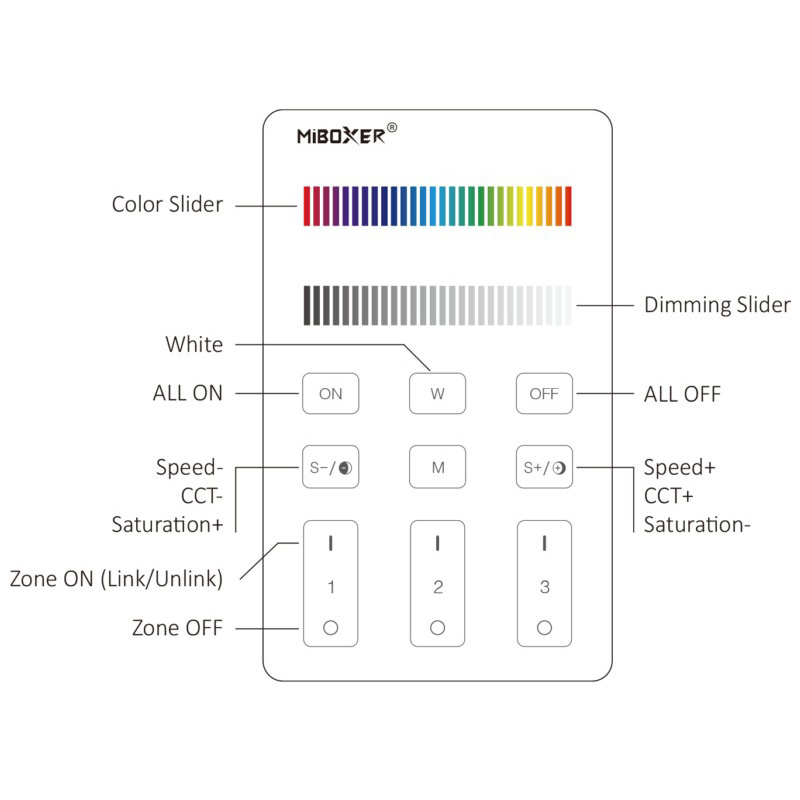

- U3: RGB/CCT/brightness dimmable
- Transmitting Power: 6 dBm
- Brightness Dimmable: 1%-100%
- RF: 2.4GHz
- Modulation Method: GFSK
- Support MiBoxer / Mi-Light Series WLED Dimmers
- 3-Zone Control Design
- Save Scene ( Max 3 Scenes )
- Control Distance: ≤100ft ( 30 meters )
- Working Temperature: 14℉-104℉
- EMC Standard (EMC): ETSI EN 301 489-1 V2.2.3 (2019-11); ETSI EN 301 489-3 V2.3.2 (2023-01)
- Safety Standard (LVD): EN 61347-2-11:2001+A1:2019; EN 61347-1:2015+A1:2021; EN 62493:2015+A1:2022
- Radio Equipment(RED): ETSI EN 300 440 V 2.2.1 (2018-07 )
- Certification: CE, EMC, LVD, RED
- 2 Years Warranty

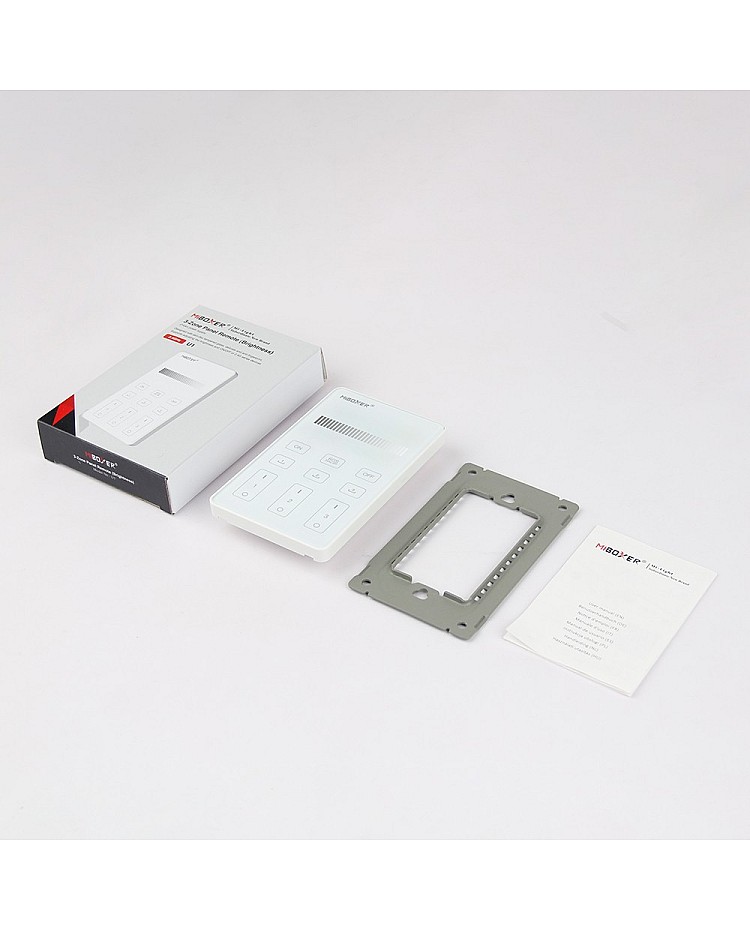

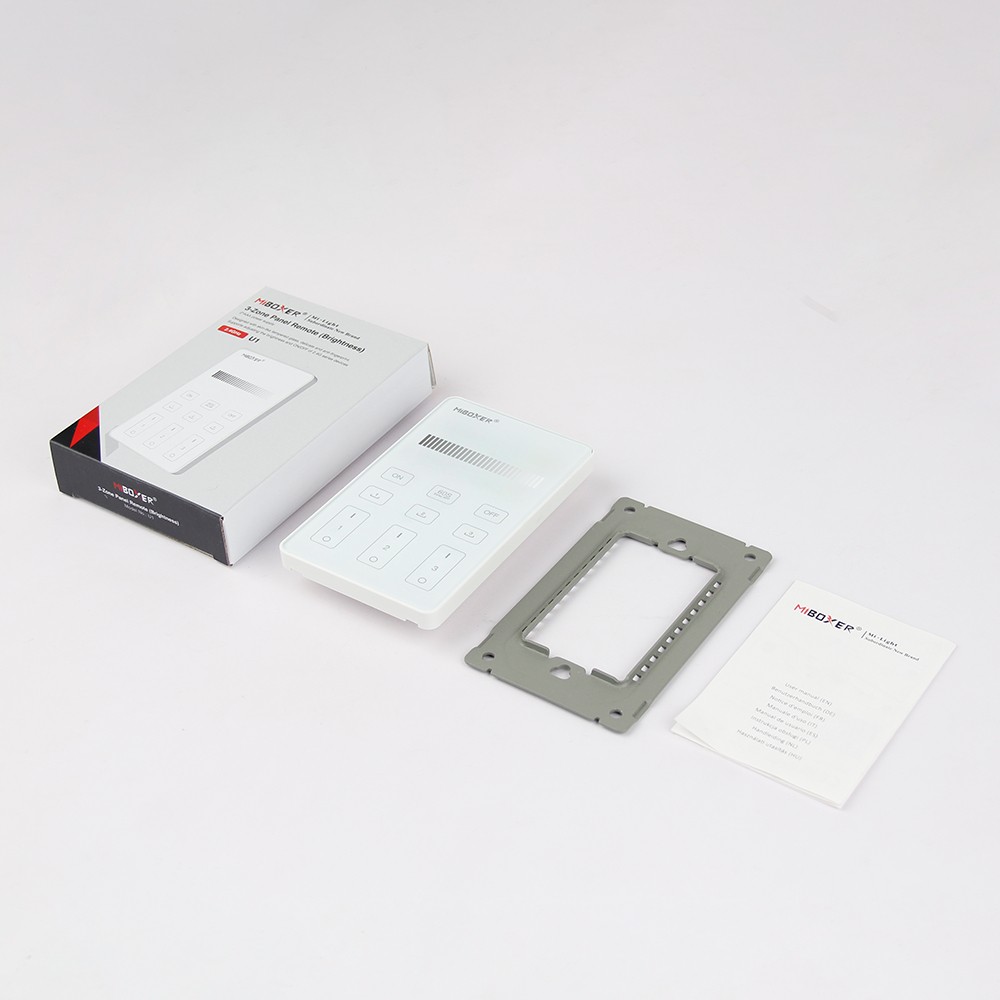

Includes:

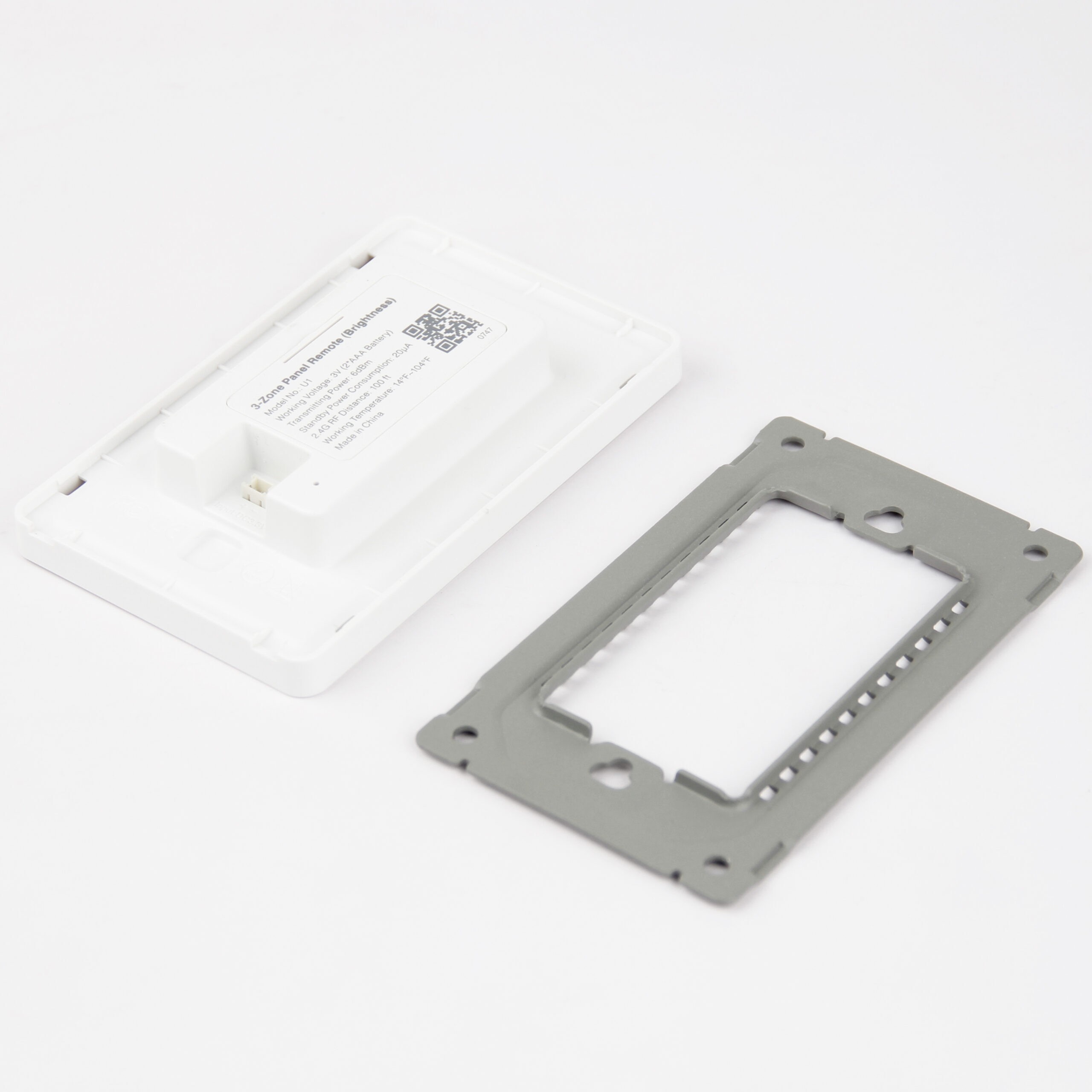

1 * Battery-Powered Panel Remote Control
