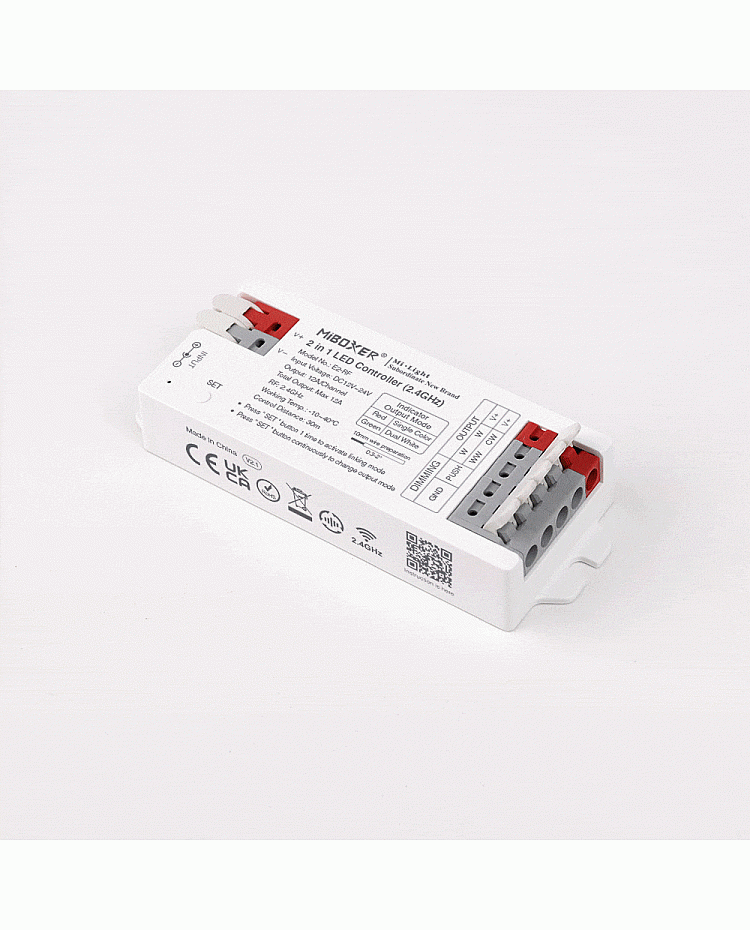

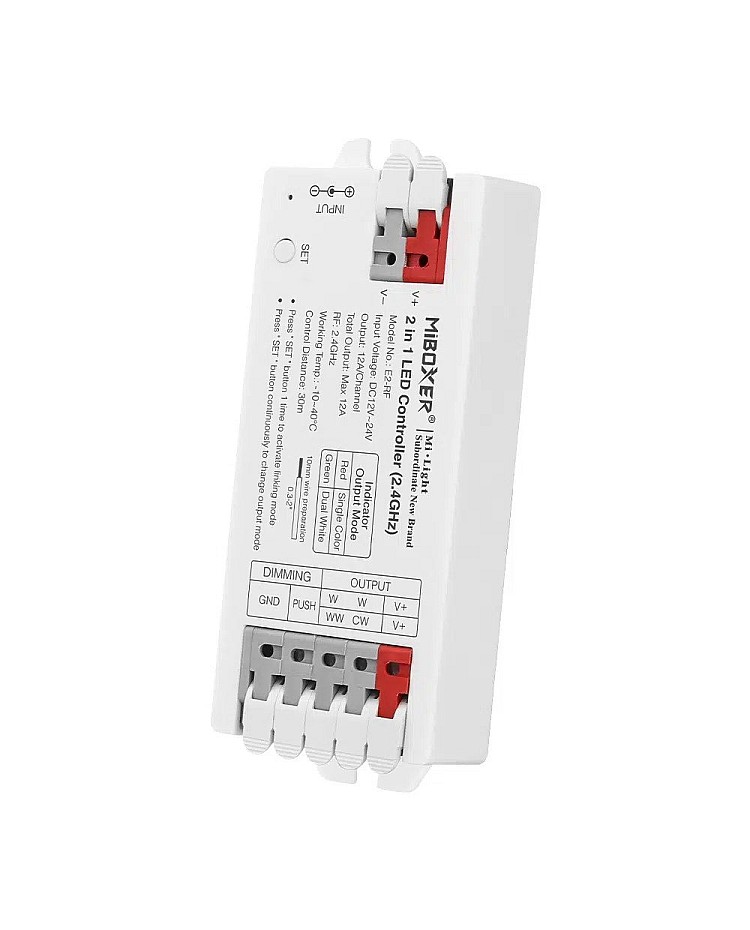

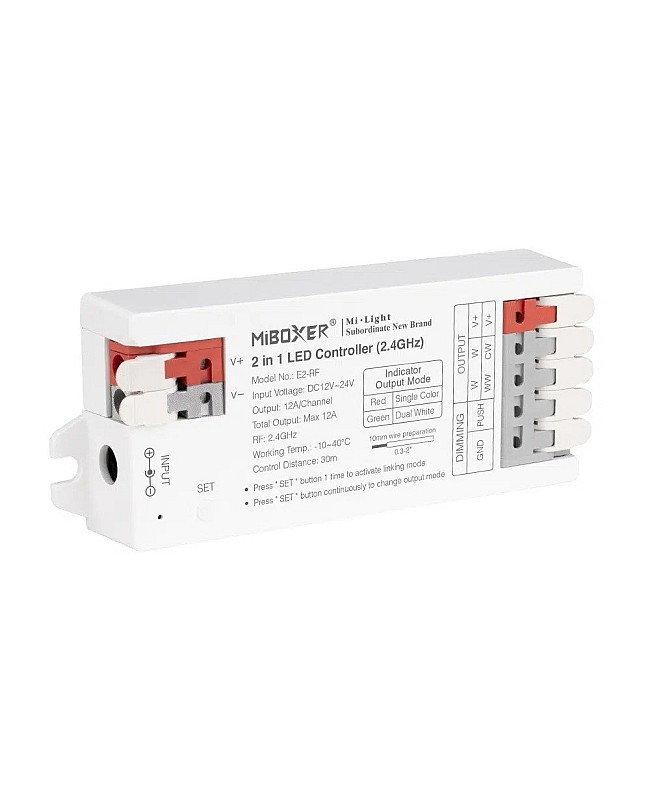

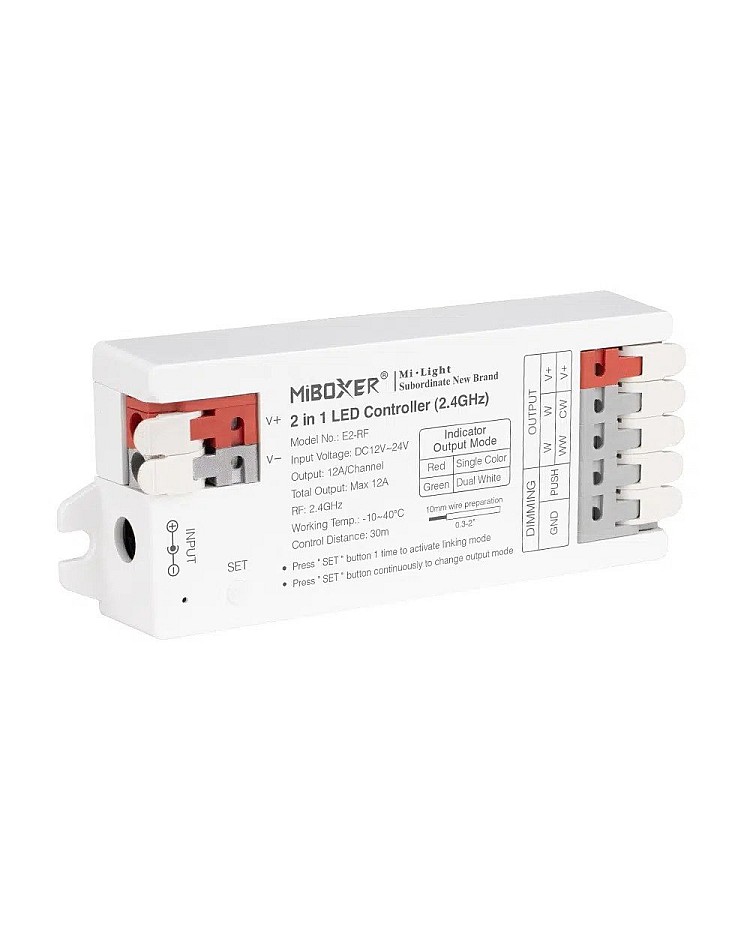

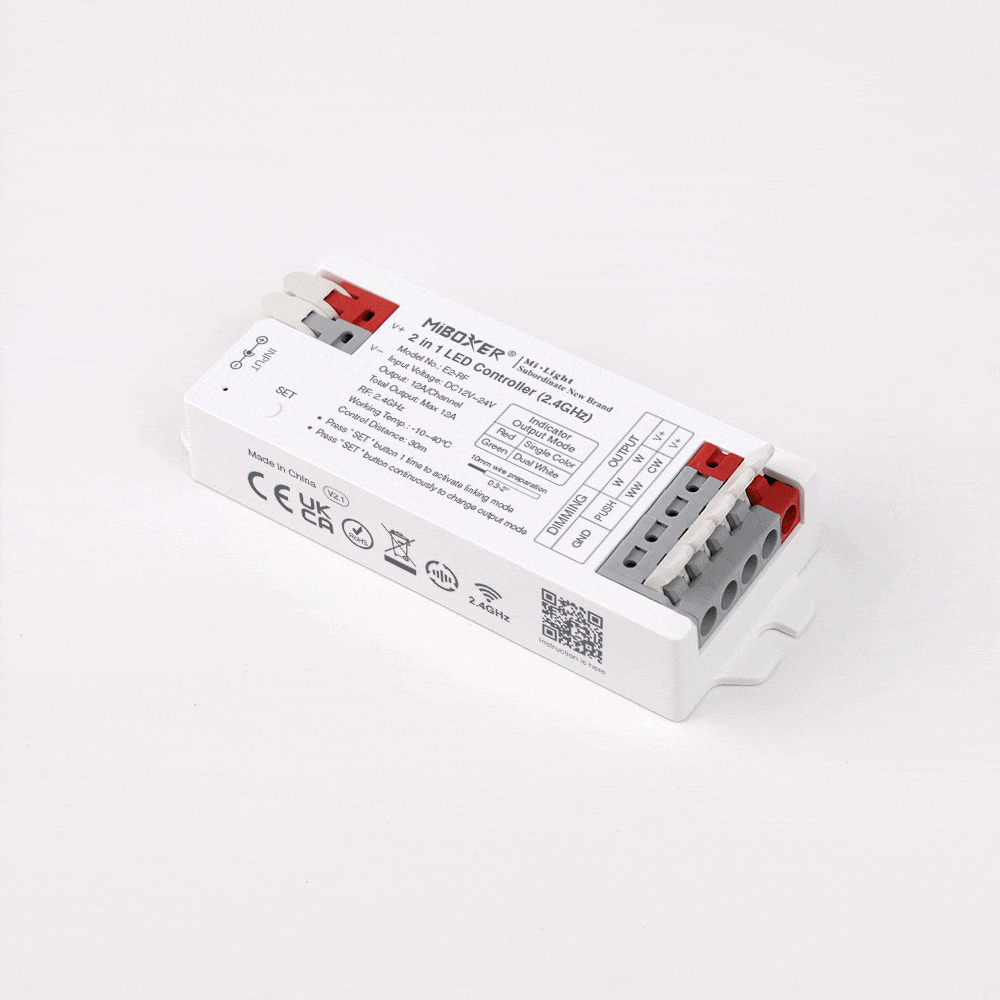

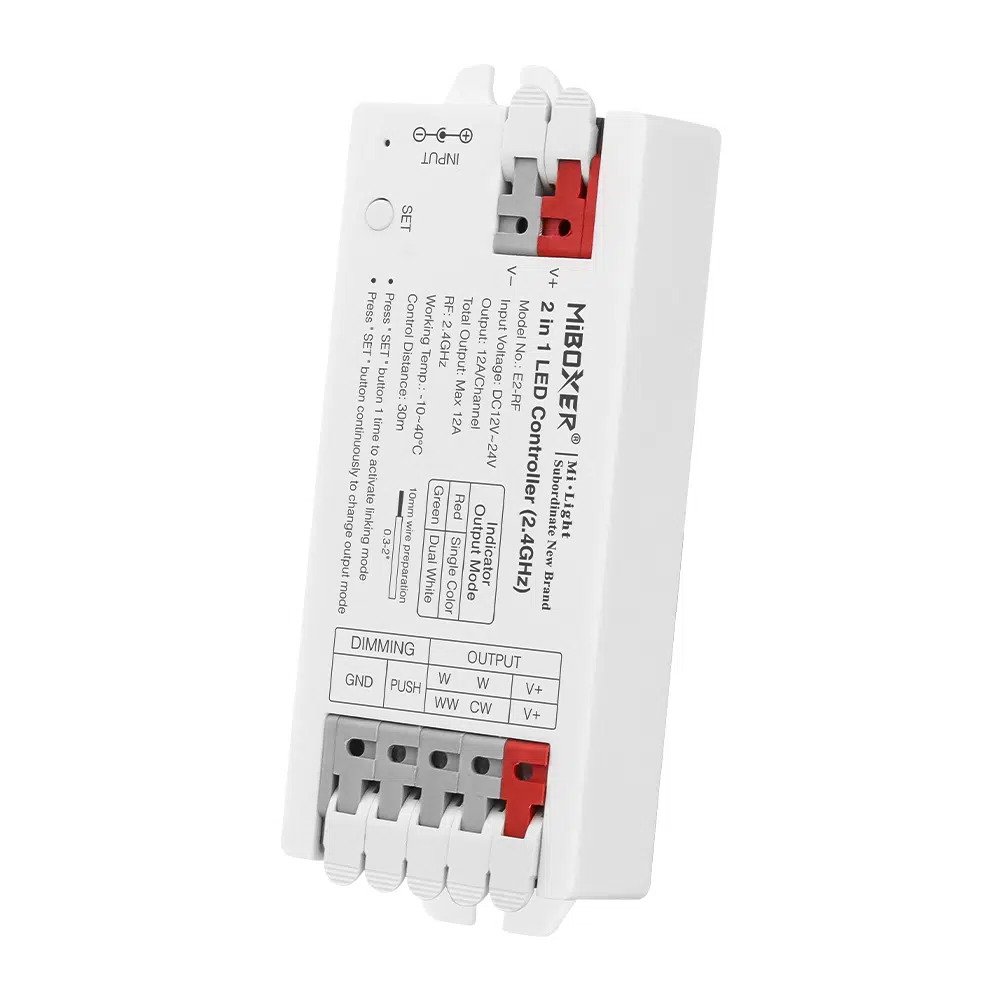

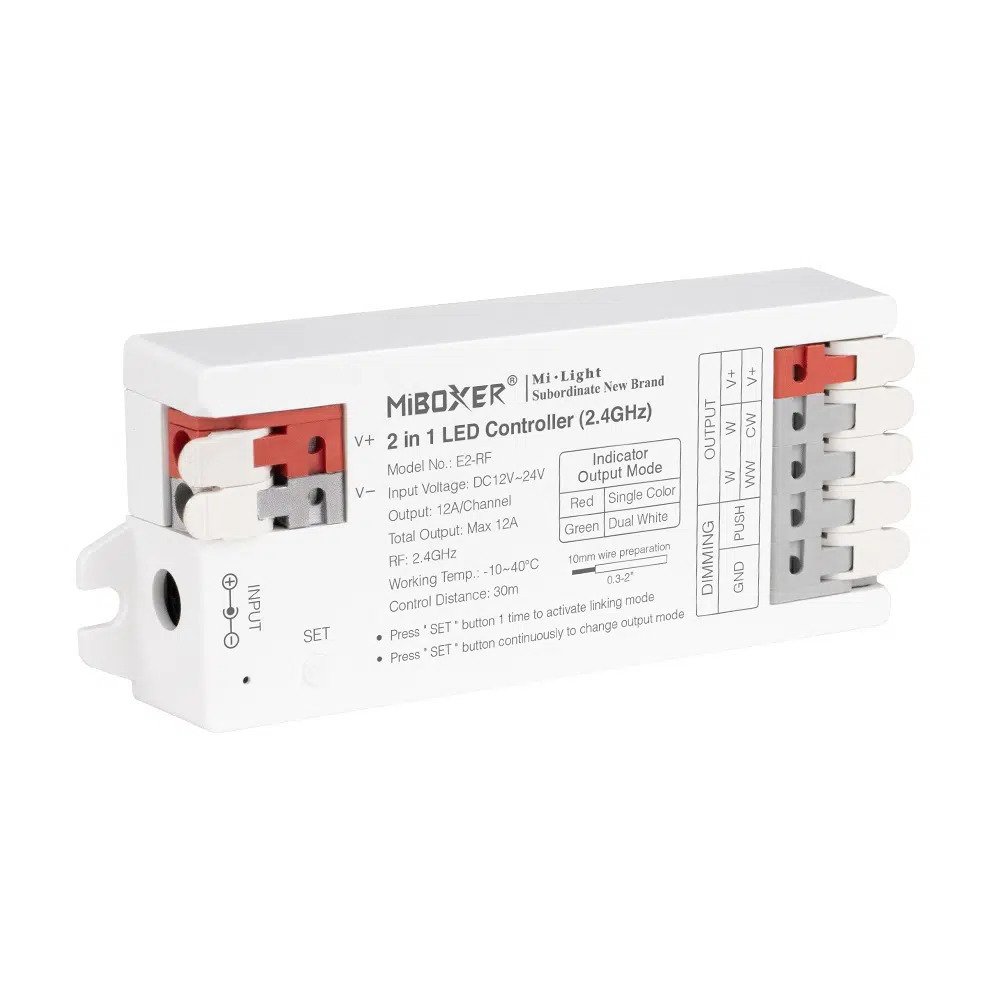

The MiBoxer E2-RF 3 Way Dimmer, with 2 in 1 design for single color and dual white LED Lights, can be controlled by RF Remote Controls, a smartphone APP, and third-party voice commands to adjust the brightness and color temperature for various scenes. With an instant wiring tool-free design, connecting the controller to the power supply and LED lights without tools is super easy. A button " SET " on the controller lets you conveniently switch the output mode from single color LED Stripes to dual white. You can adjust the brightness for the single-color LED Lights and the brightness and color temperature for the dual-white LED Lights. The MiBoxer Remote Dimmers can transmit the signals from the Remote Control to another Dimmer within 30 meters; if there is a dimmer within 30m, the remote control distance can be limitless. After pairing to a 2.4G LED Gateway, smartphone apps, and third-party voice commands can control the Dimmer and work with Amazon Alexa and Google Assistant.
Features:
- Type: 2 In 1 3 Way Dimmer For Single Color/Dual White
- Model: E2-RF
- Size: 100.6*40*17.6mm(L*W*H)
- Input Voltage: DC12-24V
- Output: 12A/Channel
- Total Output: 12A Max
- Color Temperature Adjustable
- Brightness Adjustable
- RF: 2.4GHz
- 2.4G RF Remote Control: FUT006, FUT007, B1, B1-B, T1, B2, T2, K1, K1-B, FUT087, FUT087-B, S1-B, S1-W, S1-G, WL-BOX1
- Control Distance≤30m
- Output Connection: Common Anode
- Switching 2 Output Mode(Single Color/Dual White) Via One Button
- Auto Signal Transmitting
- High Frequency(16KHz)/Low Frequency(250Hz) Can Be Switched
- Support Smartphone APP Control And Third-party Voice Control(2.4G Gateway Needed)
- Can Work With Amazon Alexa And Google Assistant(2.4G Gateway Needed)
- Support Push Dimmable
- Instant Wiring Tool-free
- Two Port Interfaces: Wiring Ports, DC5.5*2.1mm
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
- 2 Years Warranty
Includes:
1*E2-RF 3 Way Dimmer
1*User Manual
