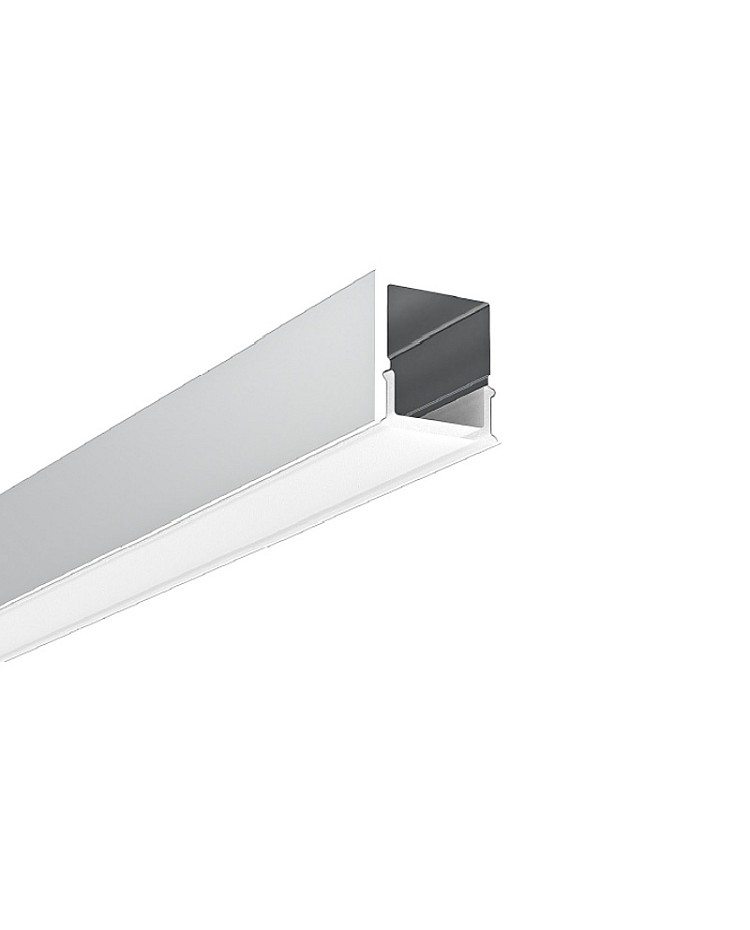

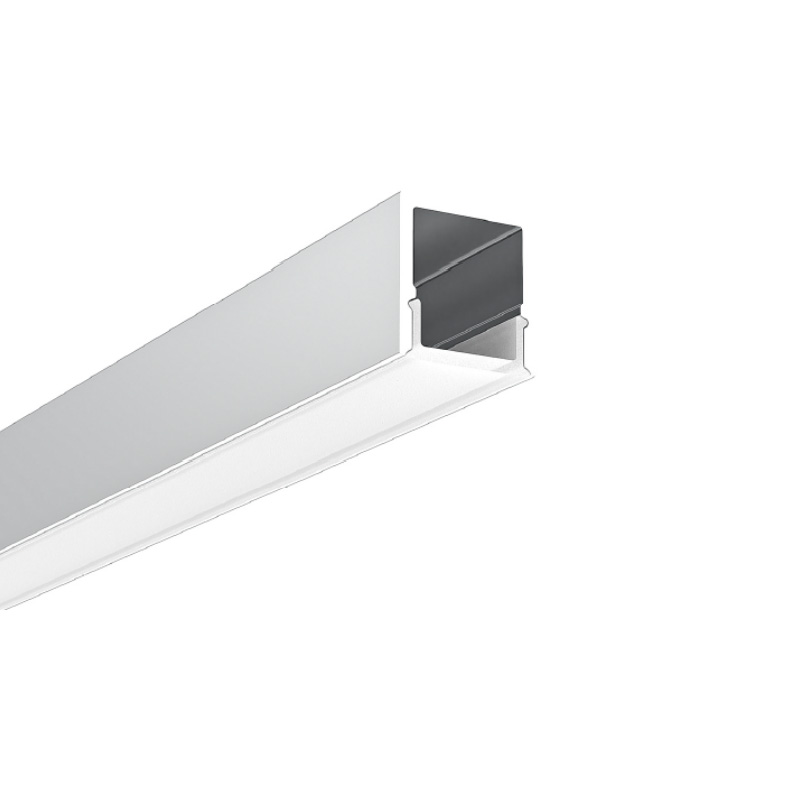

The surface-mounted LED channels are designed to house and conceal up to 10 mm wide LED strip lights. The mini size allows them to be installed in narrow spaces. The PC diffused covers are included, which provide a smooth, even light output while reducing glare, making it ideal for both functional and decorative lighting. Perfect for under-cabinet lighting, display shelves, retail showcases, furniture integration, and architectural accent lighting. The LED channels are made of extruded aluminum material and feature anodized surface treatment, providing anti-oxidation resistance and a longer lifespan. The standard lengths are 1 m and 2 m, and custom lengths are also available. The inner width is 10.5mm, allowing a maximum width of 10 mm for the LED strips. The LED light is easy to install inside, and the aluminum base can serve as a heat sink for improved heat dissipation. We recommend installing the COB LED strip lights with no visible light dots and dark areas. Only one type of diffuser is available: the PC diffused cover, which is made of brand-imported material that is anti-yellowing and features perfect light distribution. End caps and metal clips are included for easy installation.
Specifications:

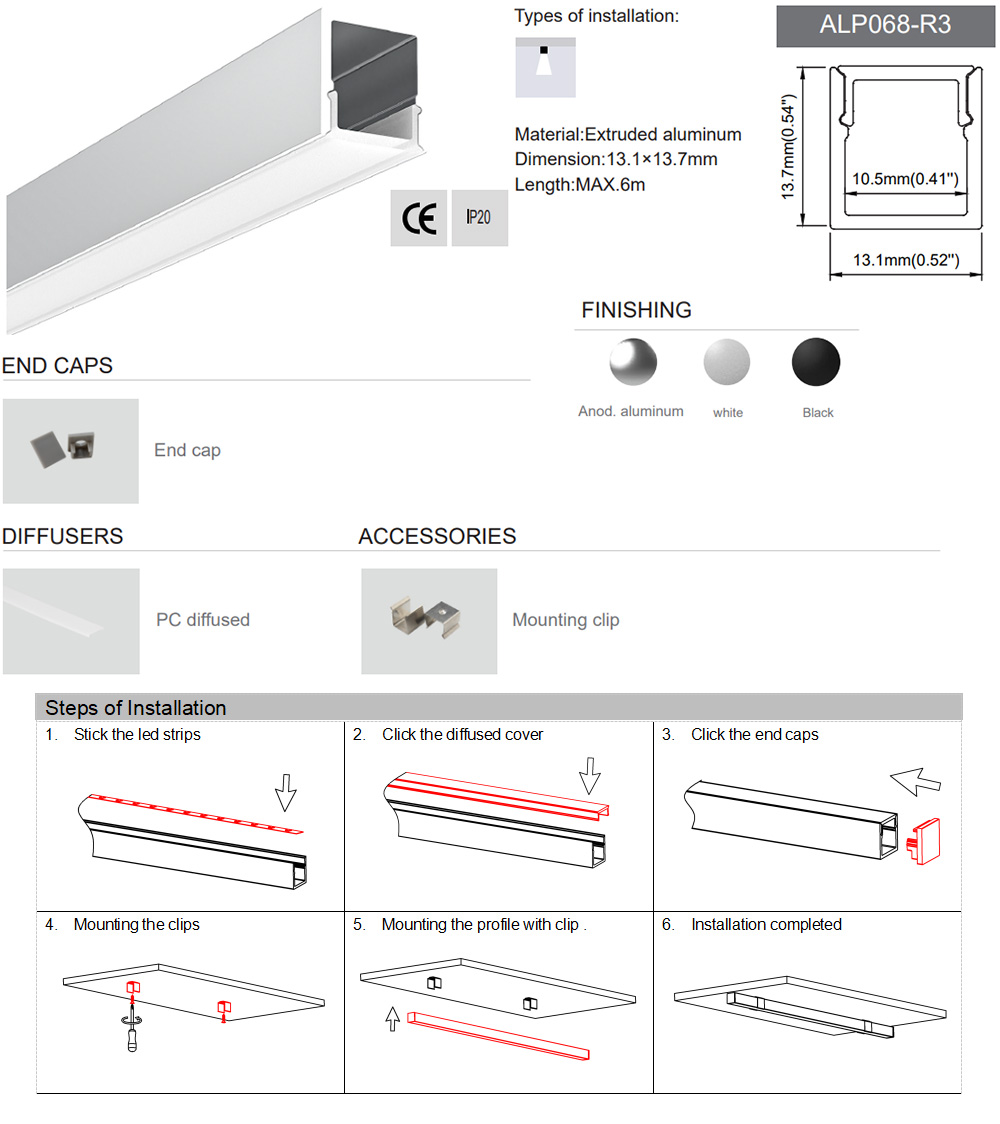

- Model: ALP068-R3
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized
- Colors: Silver

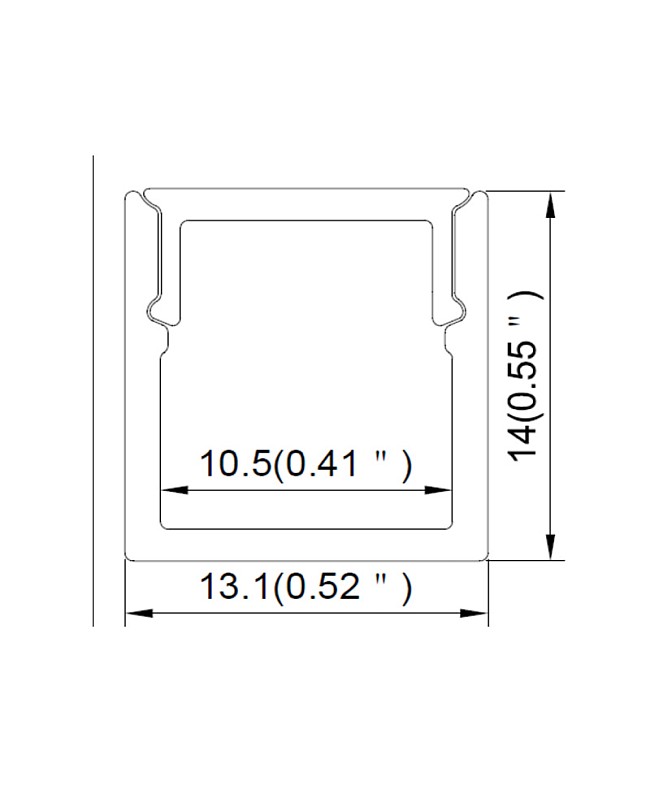

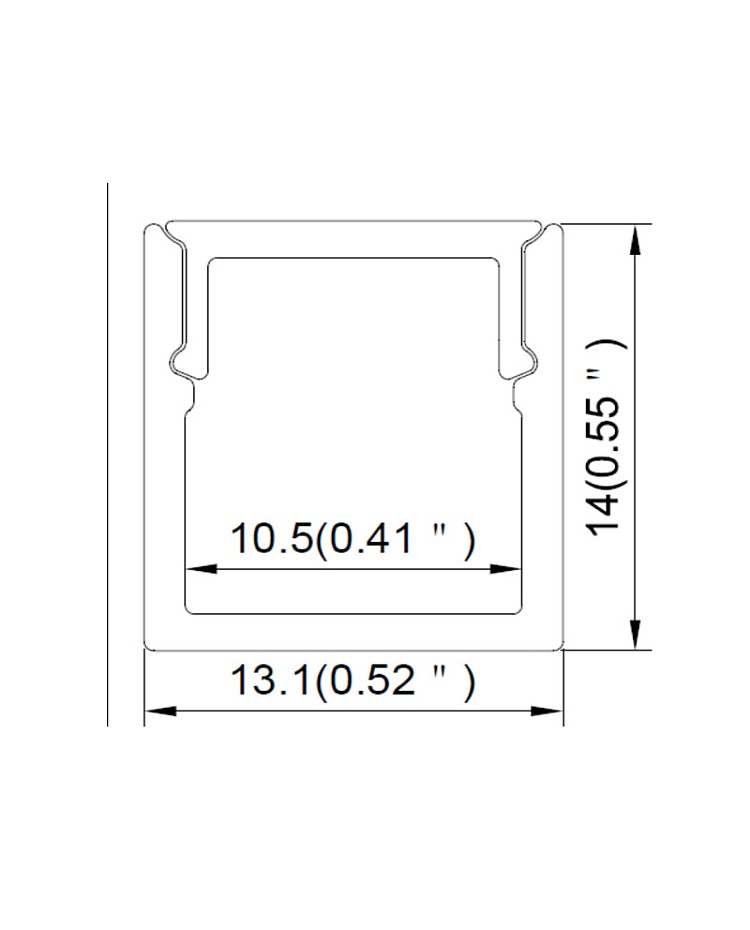

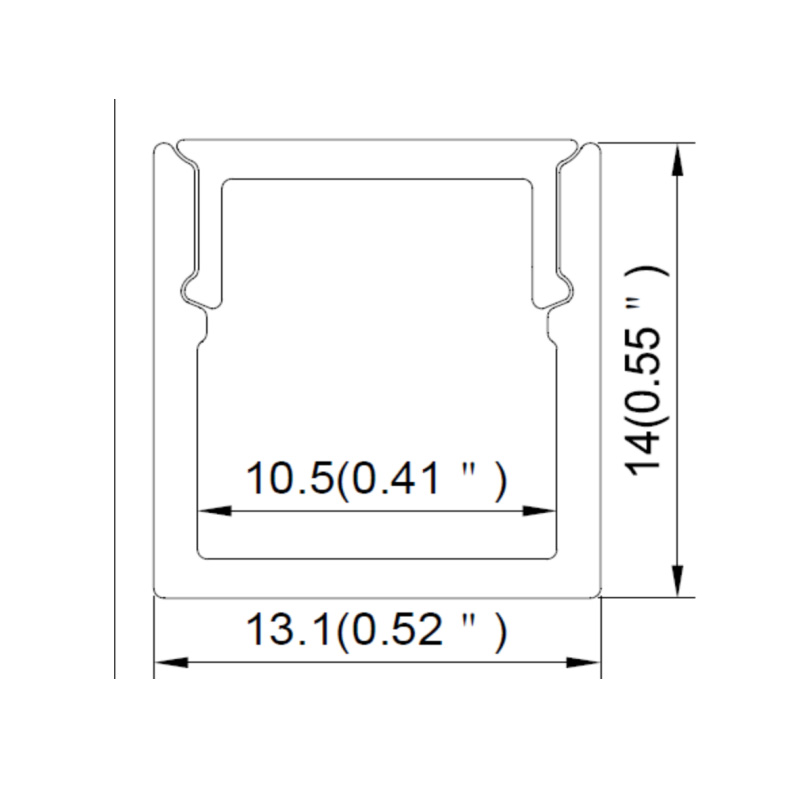

- Size ( W x H ): 13.1 mm x 13.7 mm ( 0.52" x 0.54" )
- Standard lengths: 1 m ( 39" ) , 2 m ( 78" ) , 2.5 m ( 98" ) , 3 m ( 118" )
- Custom length available: YES
- Inner width: 10.5 mm ( 0.41" )
- Max width of LED strips: 10 mm ( 0.39" )
- Max power: 12W/m

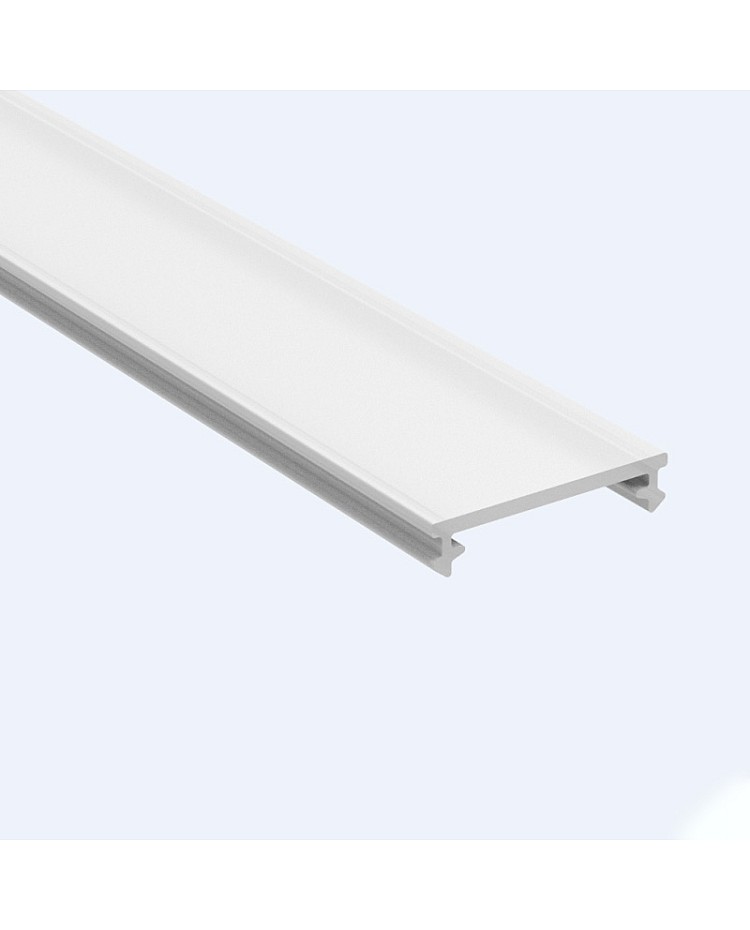

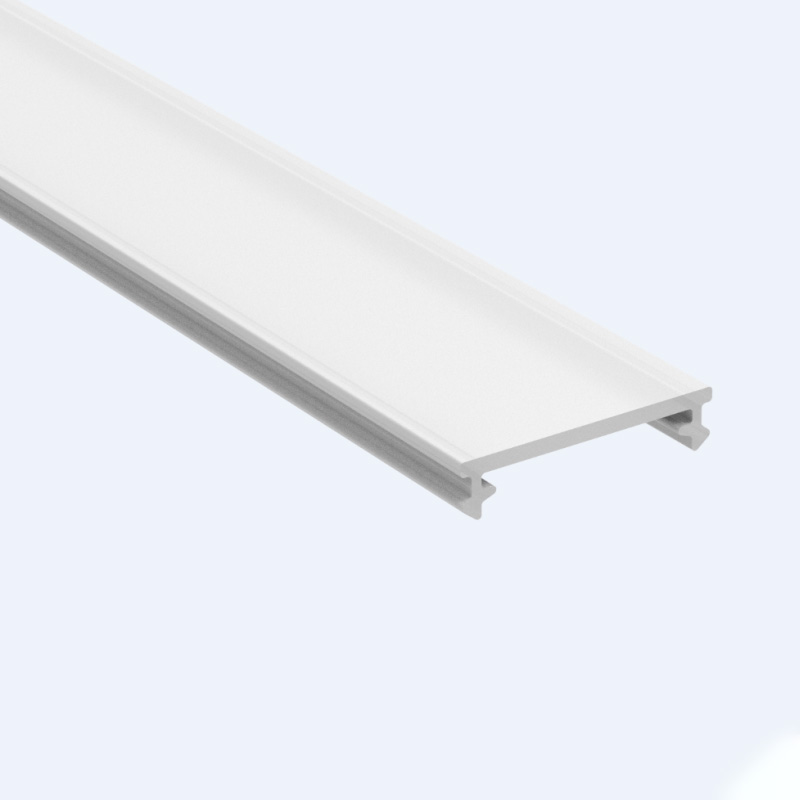

- Diffusers: PC diffused cover, black PC cover
- Beam angle: 100°
- Tolerance: ±1%
- IP rate: IP20 non-waterproof

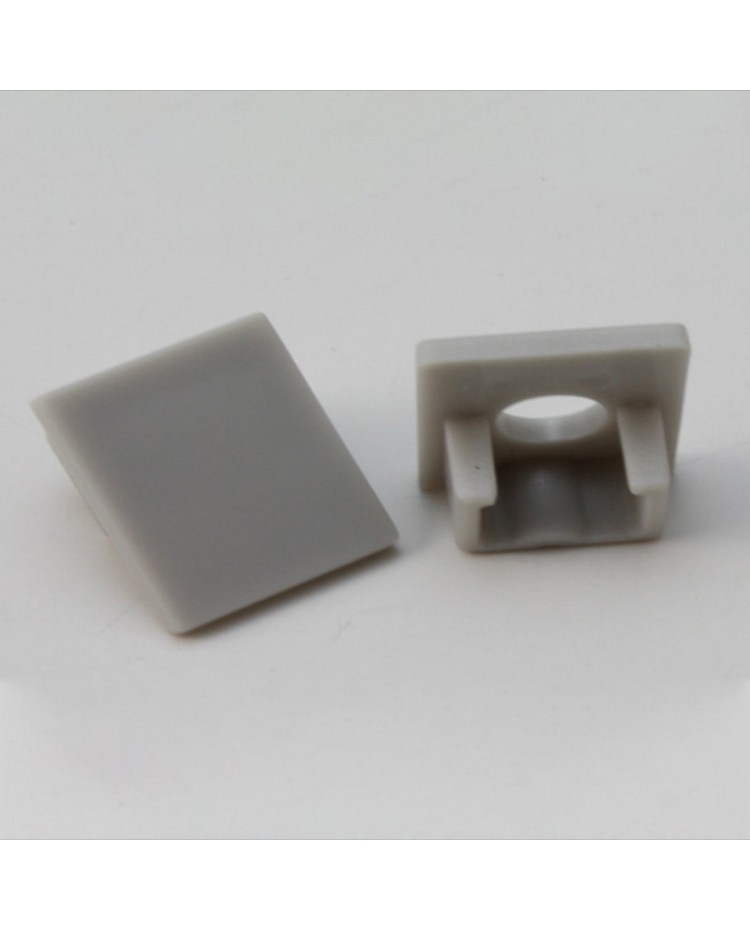

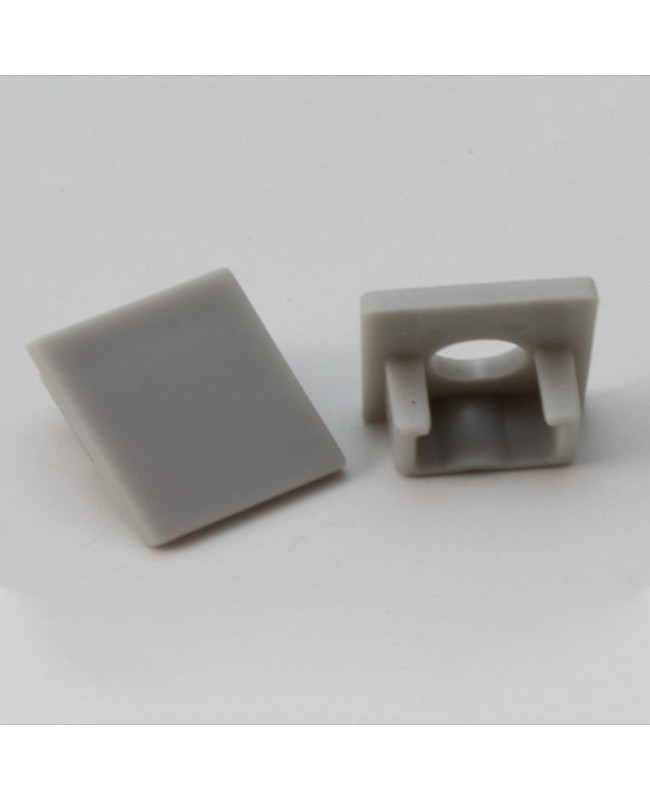

- End caps with and without holes included

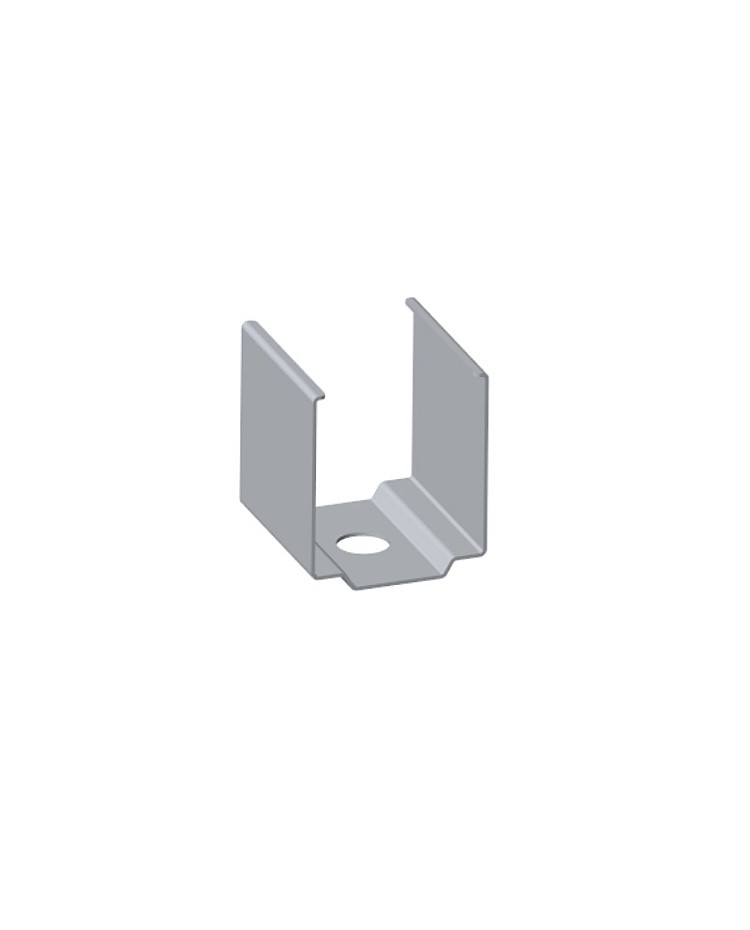

- Metal mounting clips included
- Installation: Surface mounting
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Cabinet * under-shelf lighting
- Accent & decorative lighting
- Display & showcase lighting
- Workstation & desk lighting
- Architectural linear lighting
Includes:
1 * Mini LED channeling with diffuser

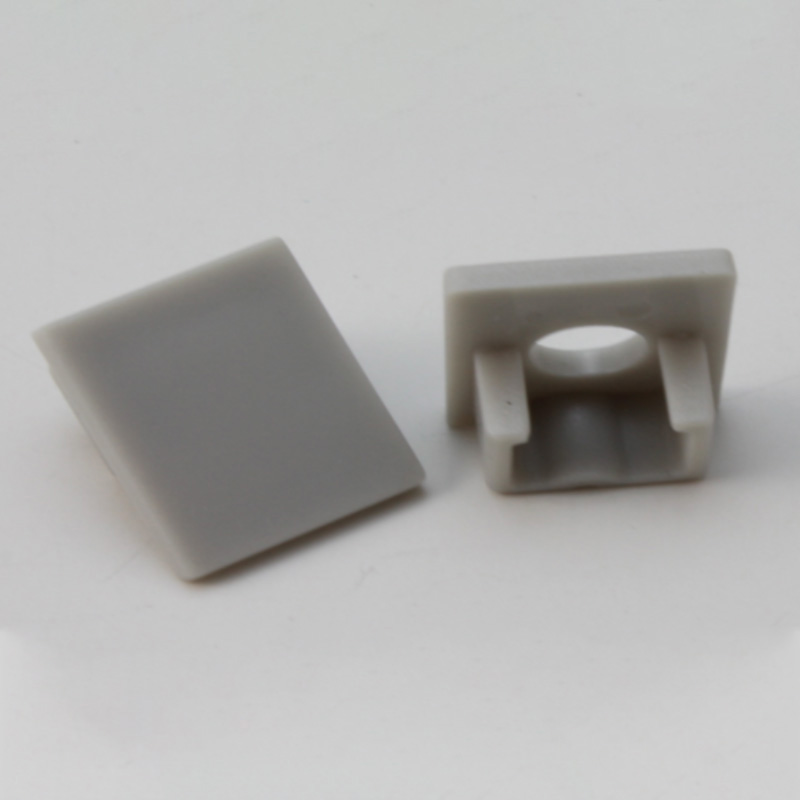

End caps(With and without wire hole)

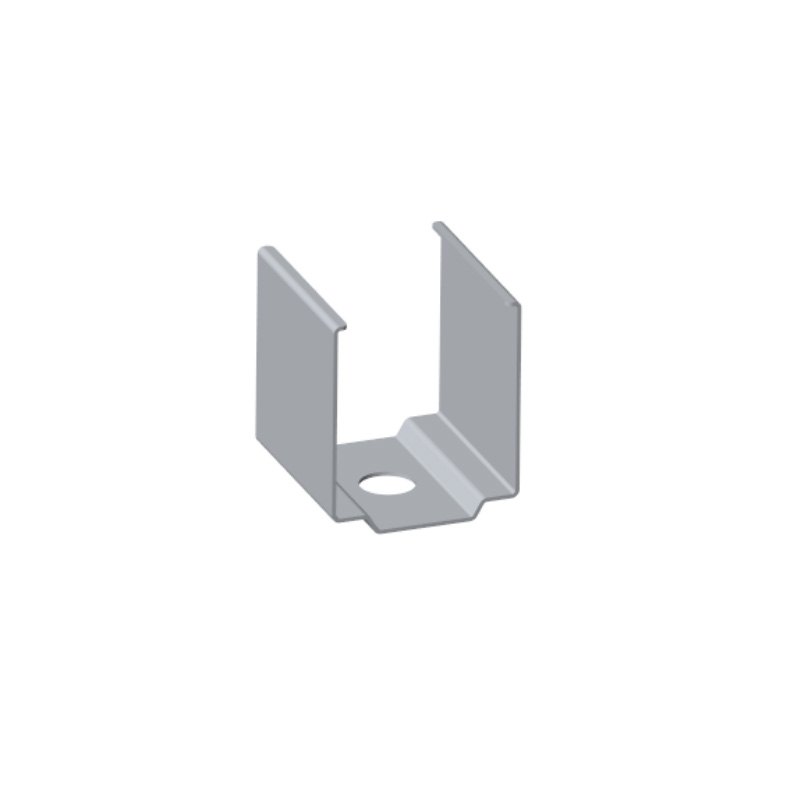

Meal mounting clips
