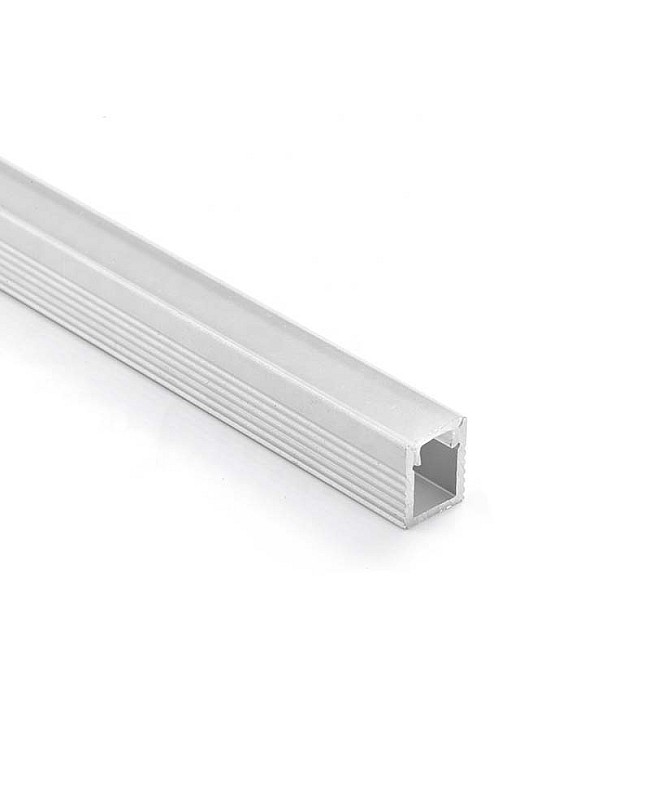

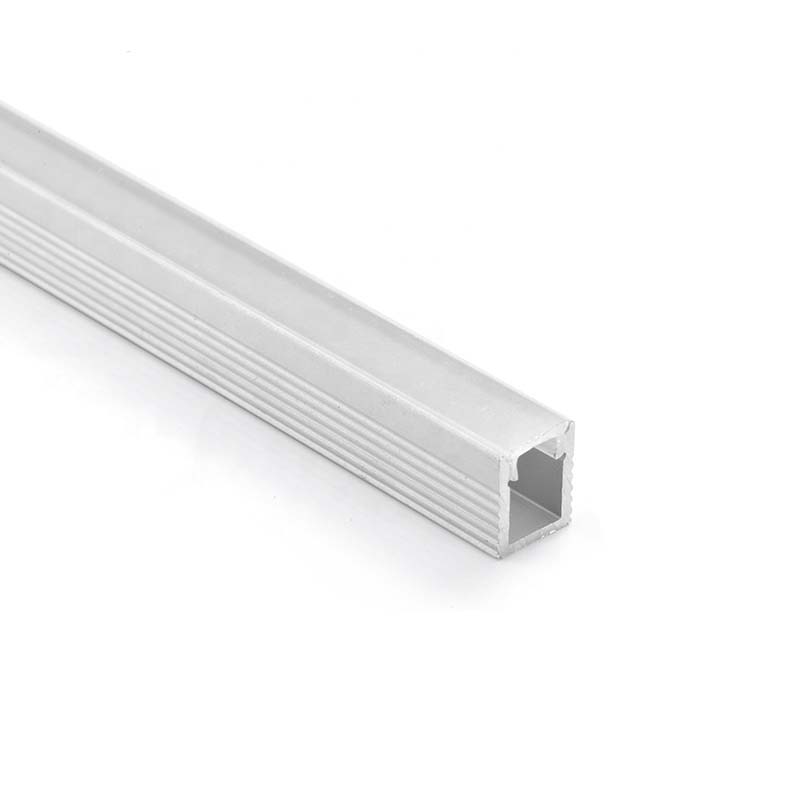

The super-slim LED tape light channel is designed to create subtle, low-profile lighting. With its slim design, it can be easily installed in tight spaces or hidden from view. The inner width is only 5.5 mm, allowing a maximum width of 5 mm for strip lights. We recommend using our 4mm COB LED strip lights as the light source. The LED tape mounting channel is made of 6063-T5 aluminum material with an anodized surface treatment, providing anti-oxidation resistance and a longer lifespan. The standard lengths are 1 m and 2 m; you can cut to any size you need for the project. Only one type of diffuser is available, and you can choose the PC opal diffuser only. The PC diffuser is made of high-quality material, featuring stable quality, and provides smooth, glare-free light diffusion. End caps and metal clips are included.
Specifications:

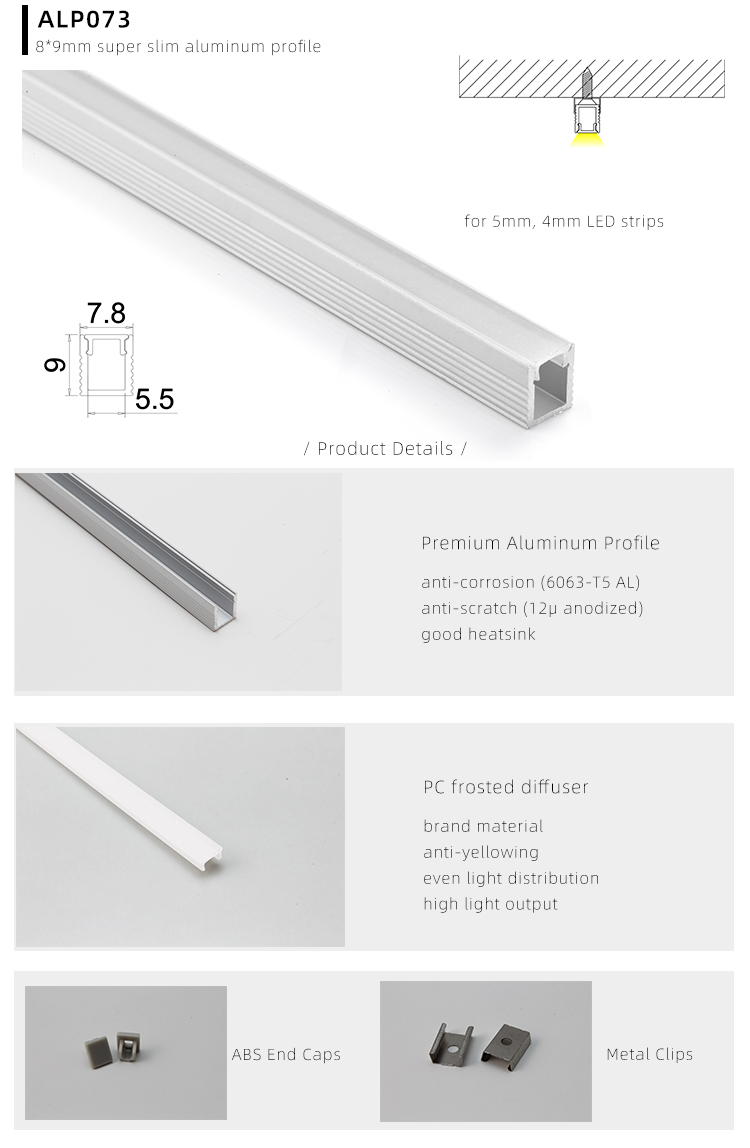

- Model: ALP073
- Material: AL6063-T5 aluminium alloy

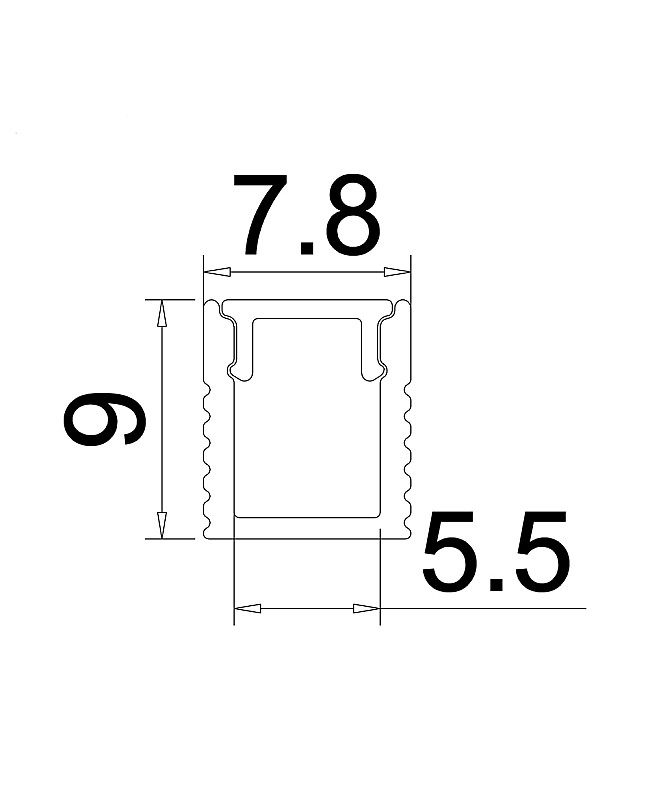

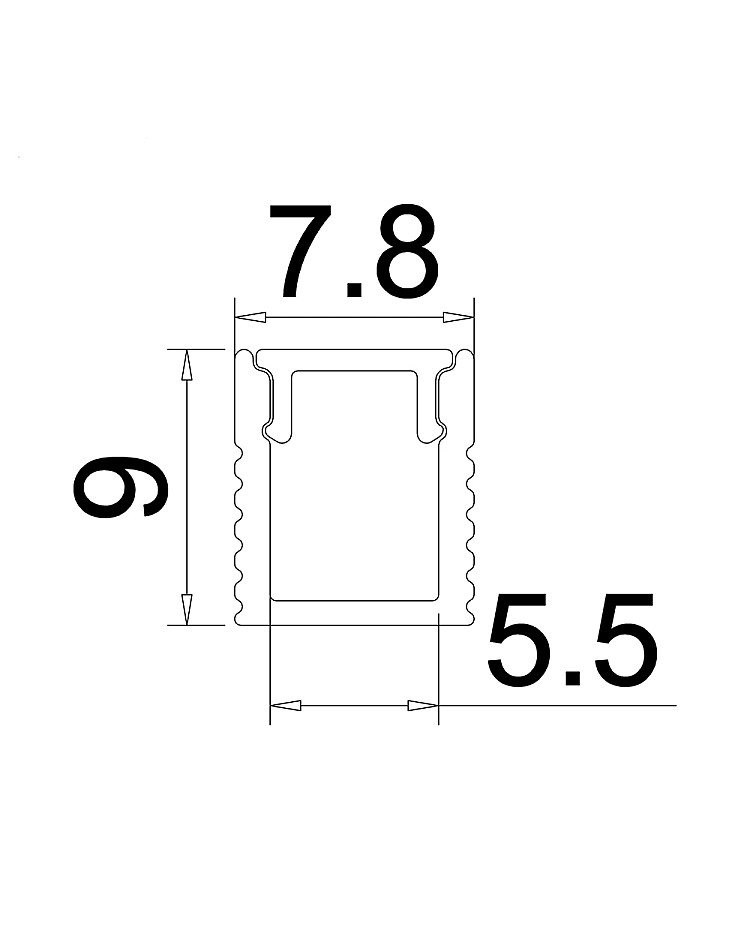

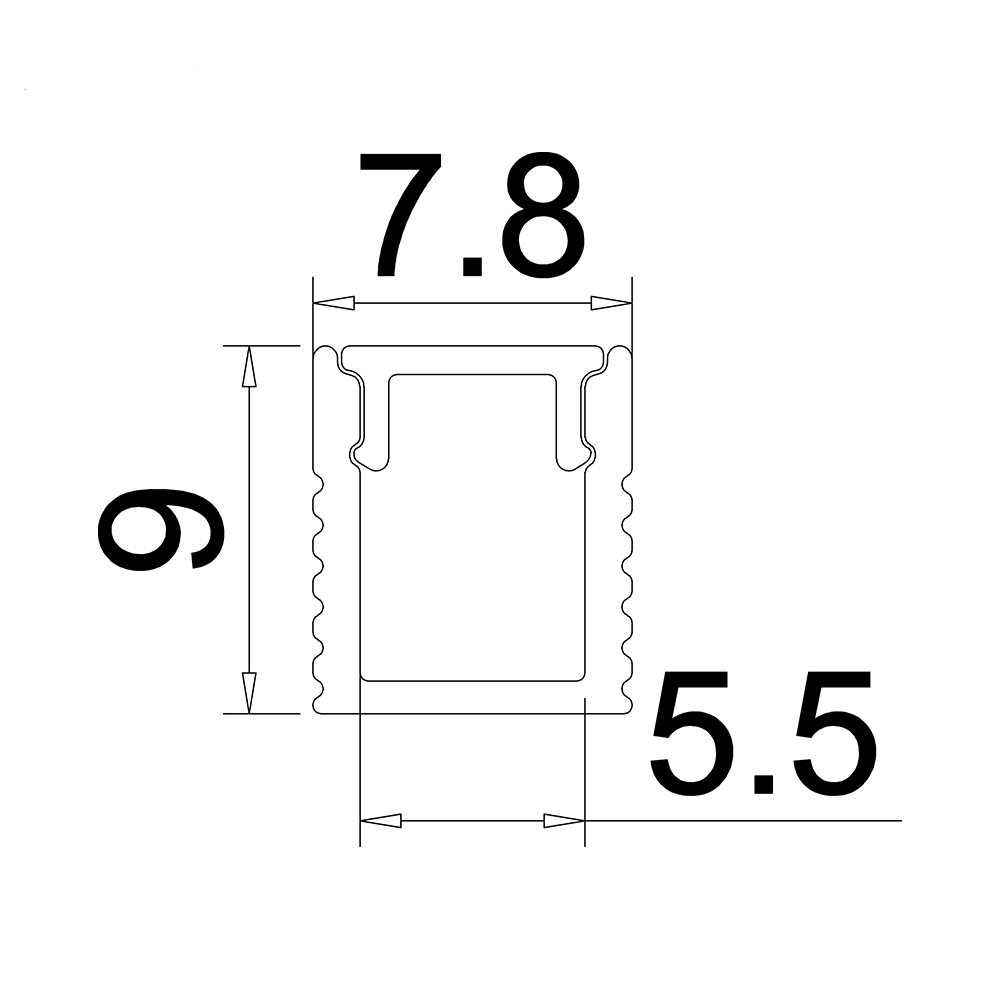

- Size(W*H): 7.8*9mm/0.31"*0.35"
- Surface Treatment: Anodized
- Color: Silver
- Standard Length: 1M (39"), 2M (78")
- Custom Length Available: YES
- Inner Width: 5.5mm/0.22"
- Allows the max width of strip lights to be 5mm/0.2"
- Recommend adding 5MM/4MM flexible COB LED strips
- Max Power: 10W/Meter
- Diffusers: PC opal diffuser
- Beam Angle: 100°

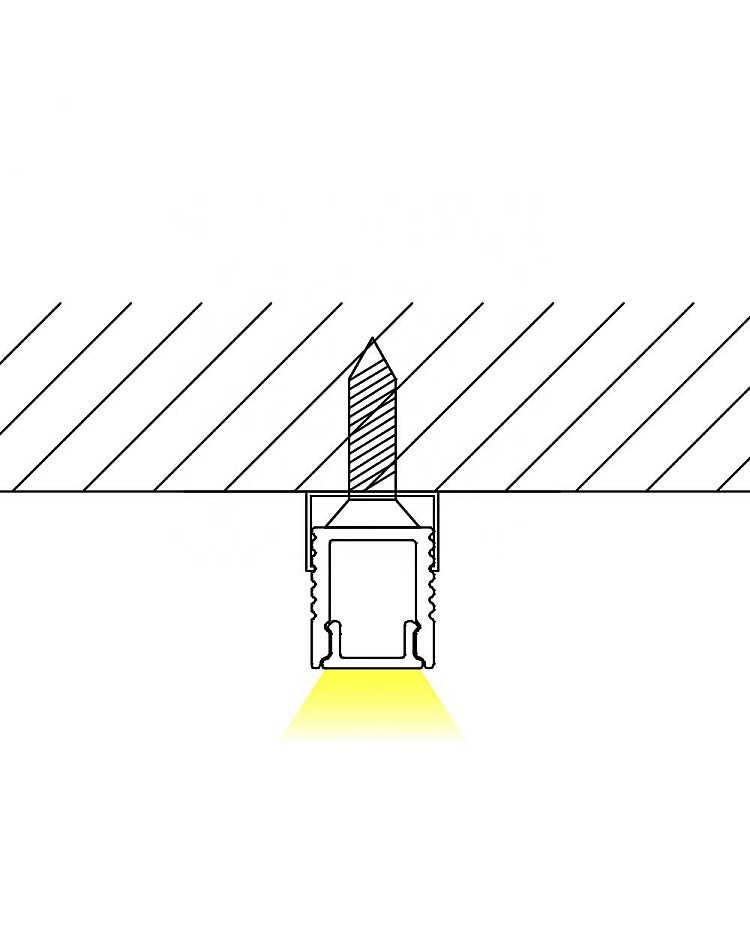

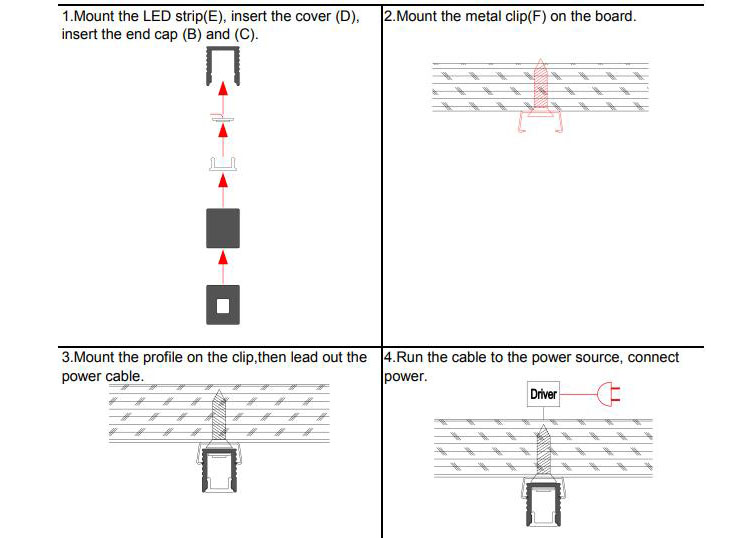

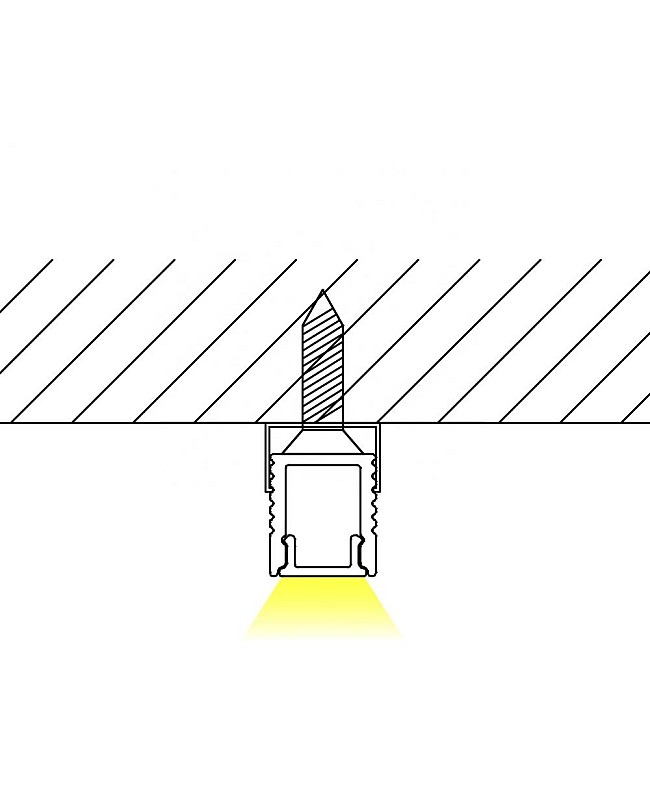

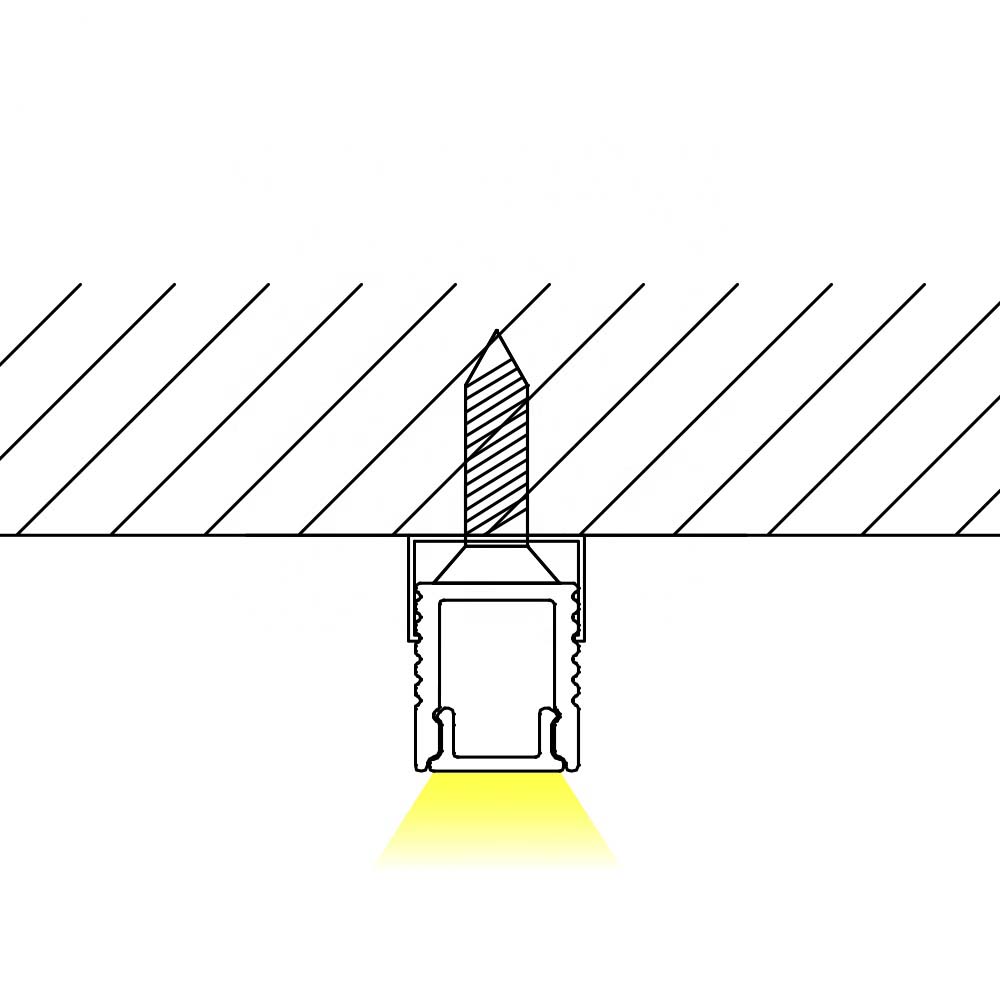

- Installation: Surface mounted
- Applications: Lighting for under cabinets, under shelves
- End caps and metal clips included
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Under-cabinet lighting
- Retail display & signage
- Furniture & shelf illumination

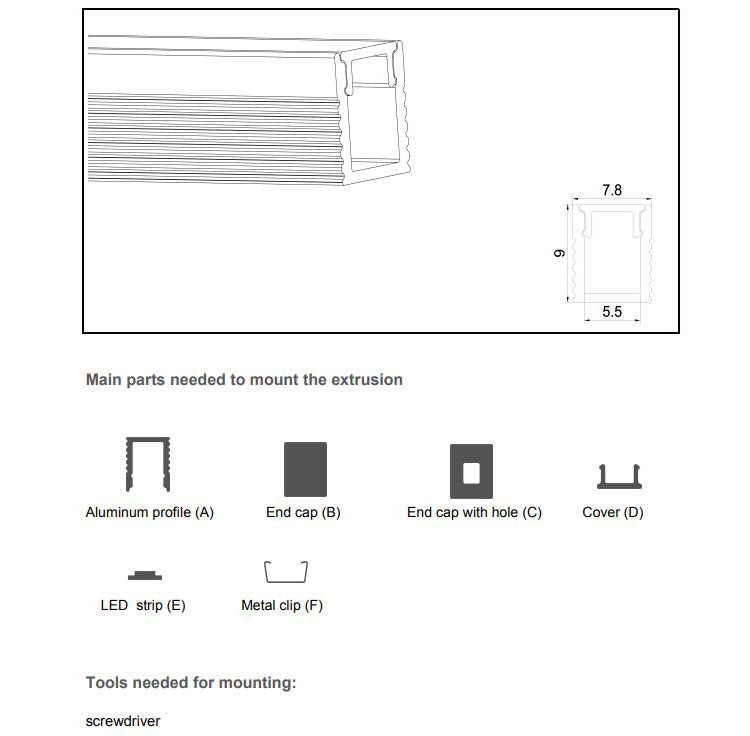

Includes:
1 * LED tape light channel and diffuser

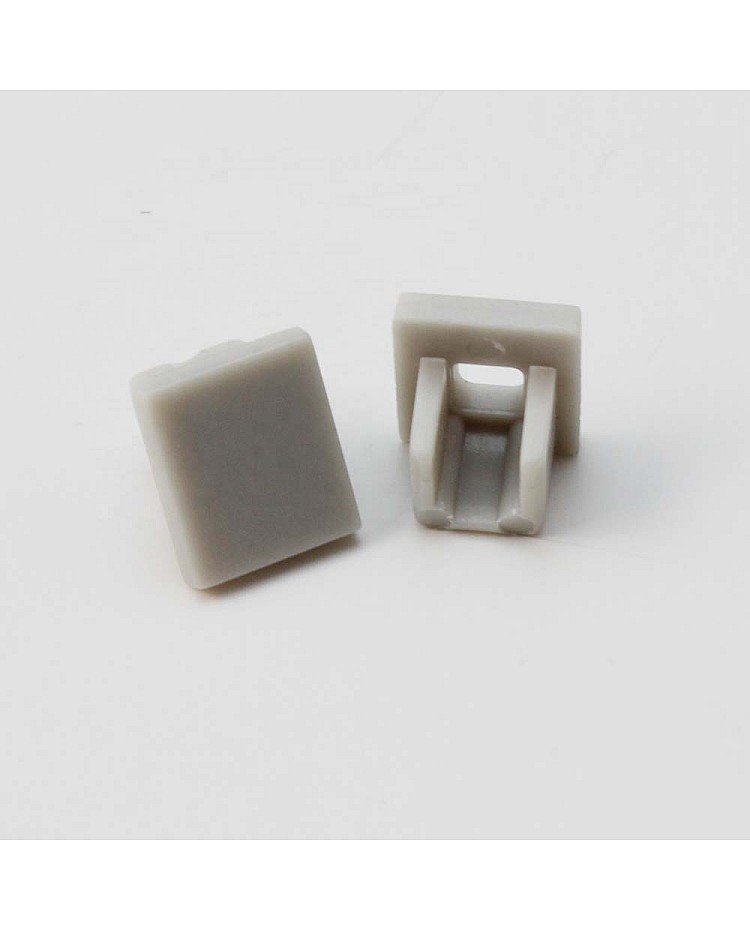

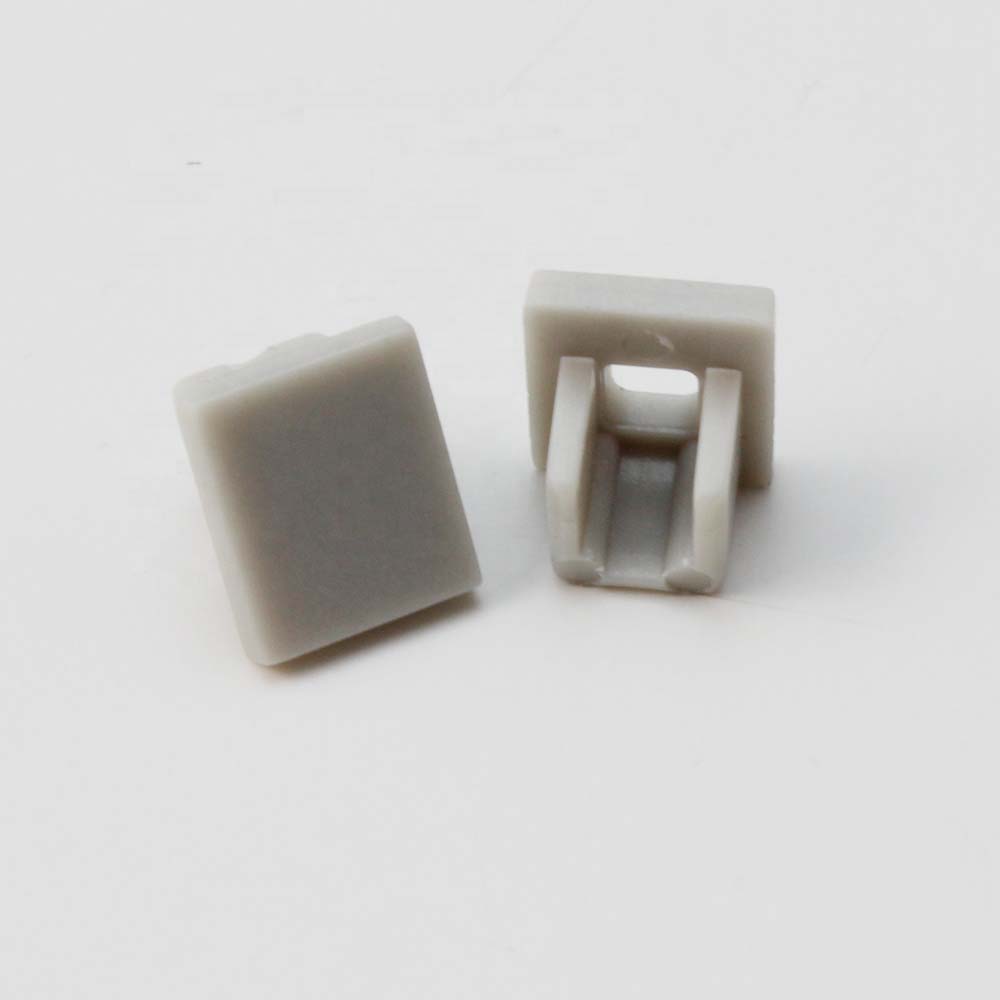

End caps(with and without wire holes)

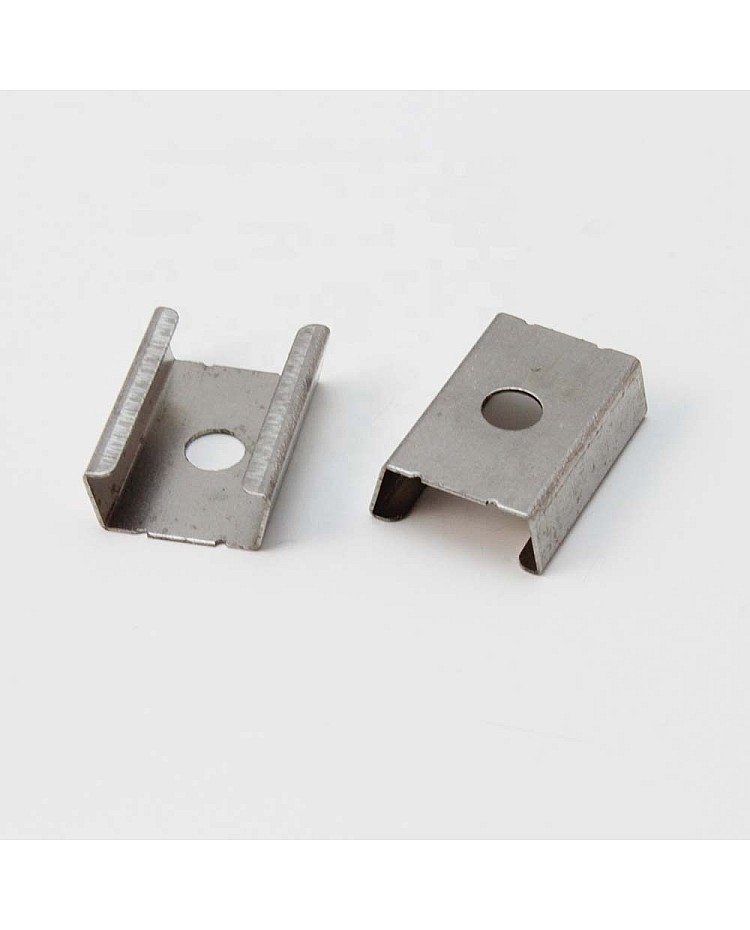

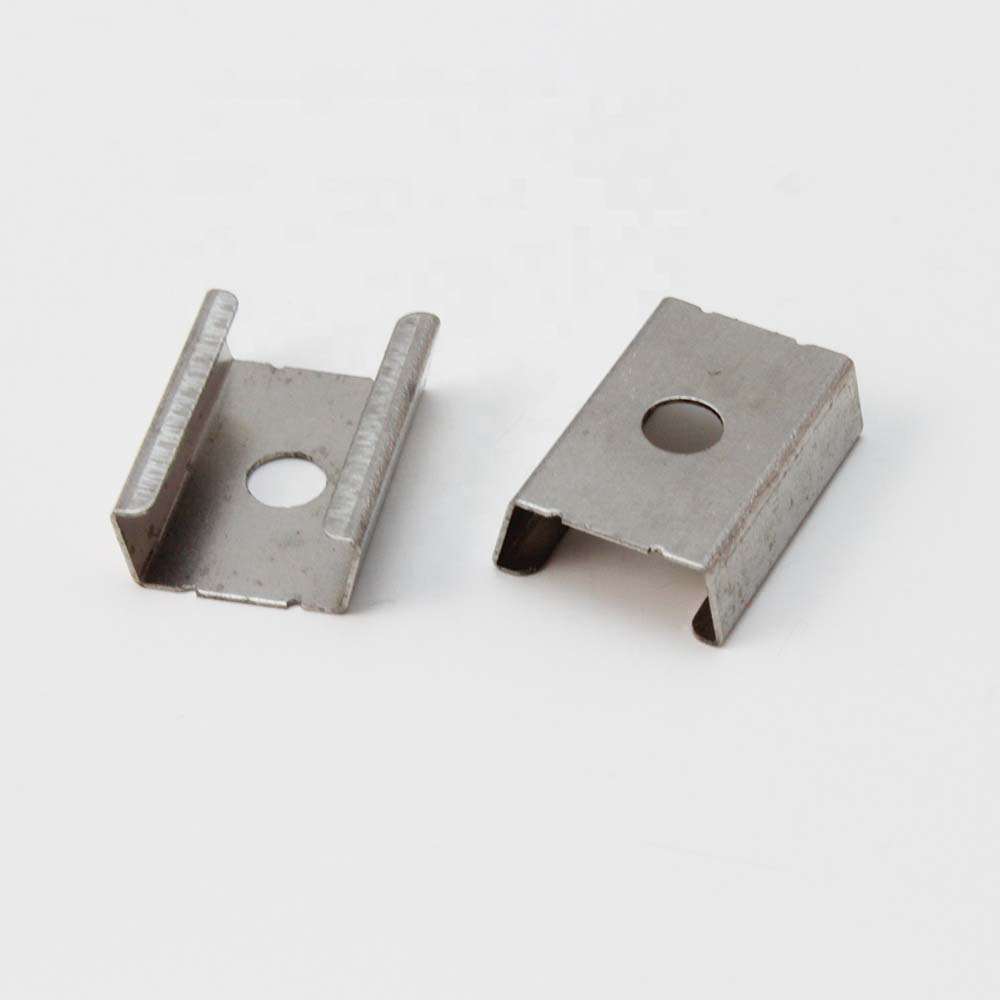

Metal clips with screw holes
