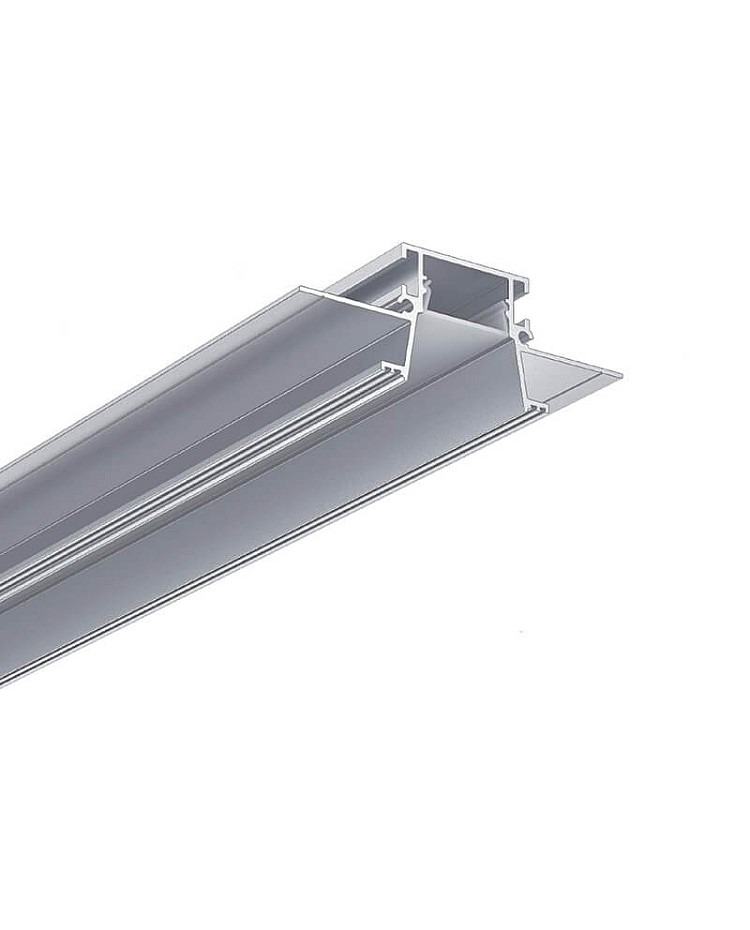

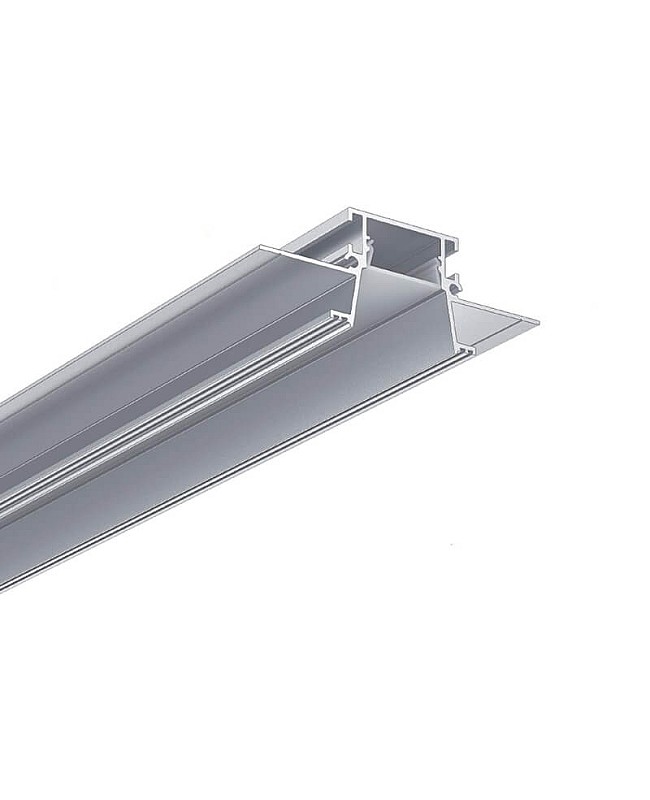

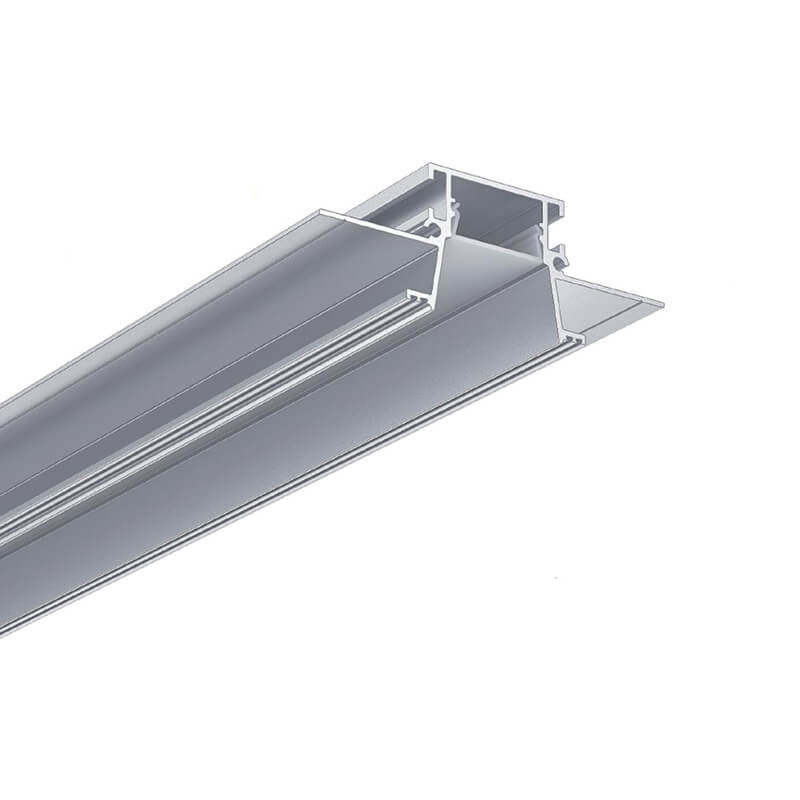

The LB241 and LB244 LED profiles feature a deep, regressed cover design that allows the strip lights and diffusers to sit deeper inside, reducing glare while delivering a smooth, professional linear lighting effect. They can flush mount with 1/2" plasterboards for a clean and seamless integration.
The anti-glare LED channels are made from quality extruded aluminum for excellent heat dissipation, extending the lifespan and performance of strip lights. The maximum stock length is 2m per piece, with support for custom lengths. Recommend adding high-density SMD or COB LED strips to create uniform lighting.

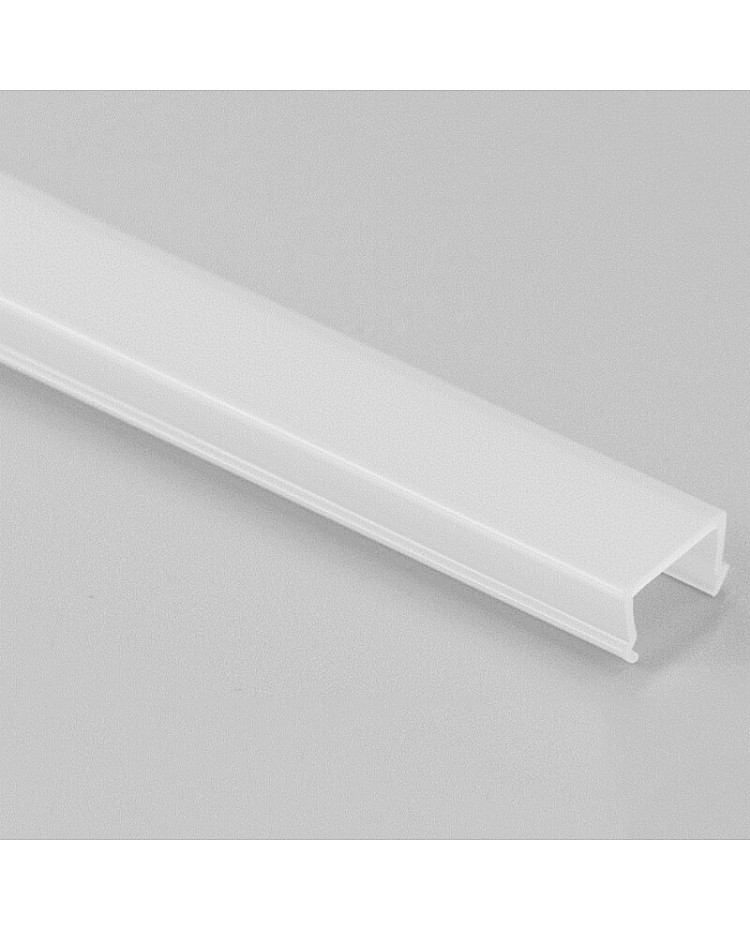

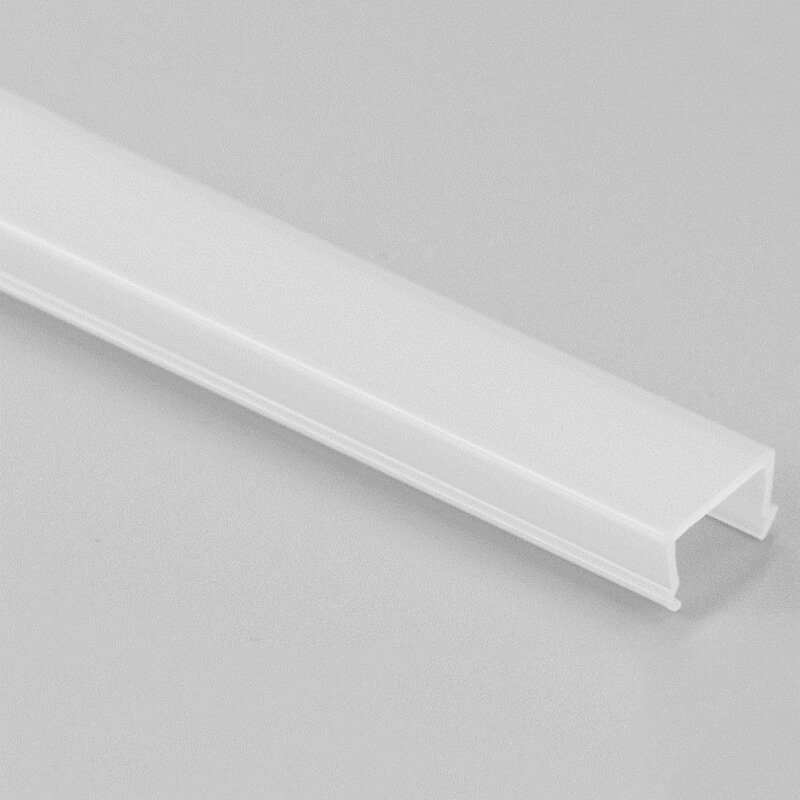

There is only one type of diffuser available: PC diffused covers. These are made from high-quality plastic for anti-yellowing and a longer lifespan. The regressed diffuser will soften the light output and help create a continuous linear lighting with reduced hotspots.

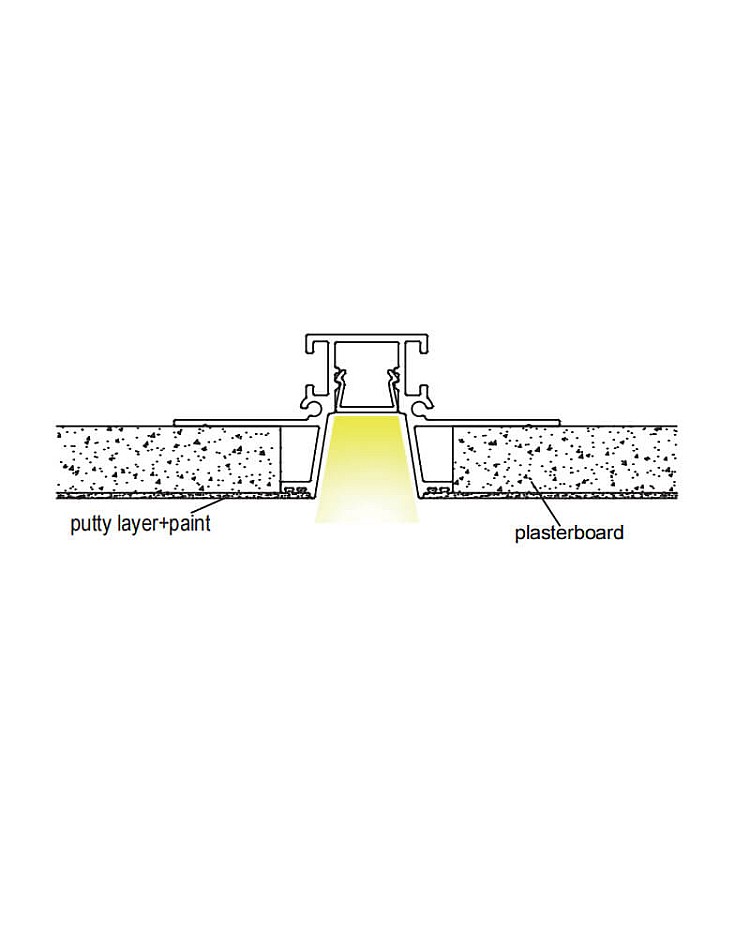

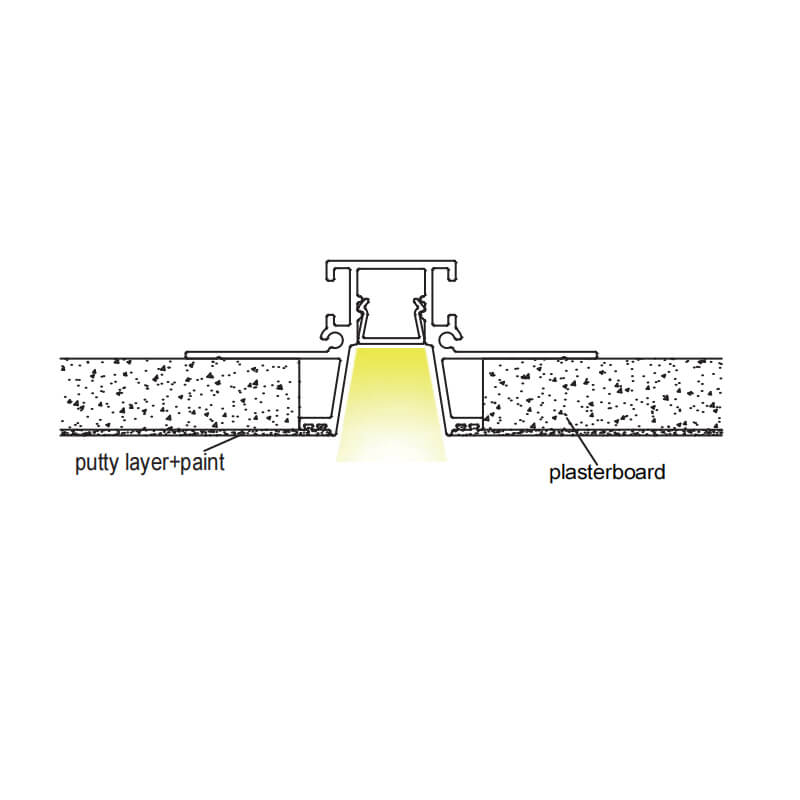

The trimless plaster-in LED channels can be recessed between two pieces of 1/2" plasterboards on the ceilings or walls for an invisible lighting appearance once finished with plaster and paint. Ideal for architectural, indirect, shadow-gap, and other lighting applications.

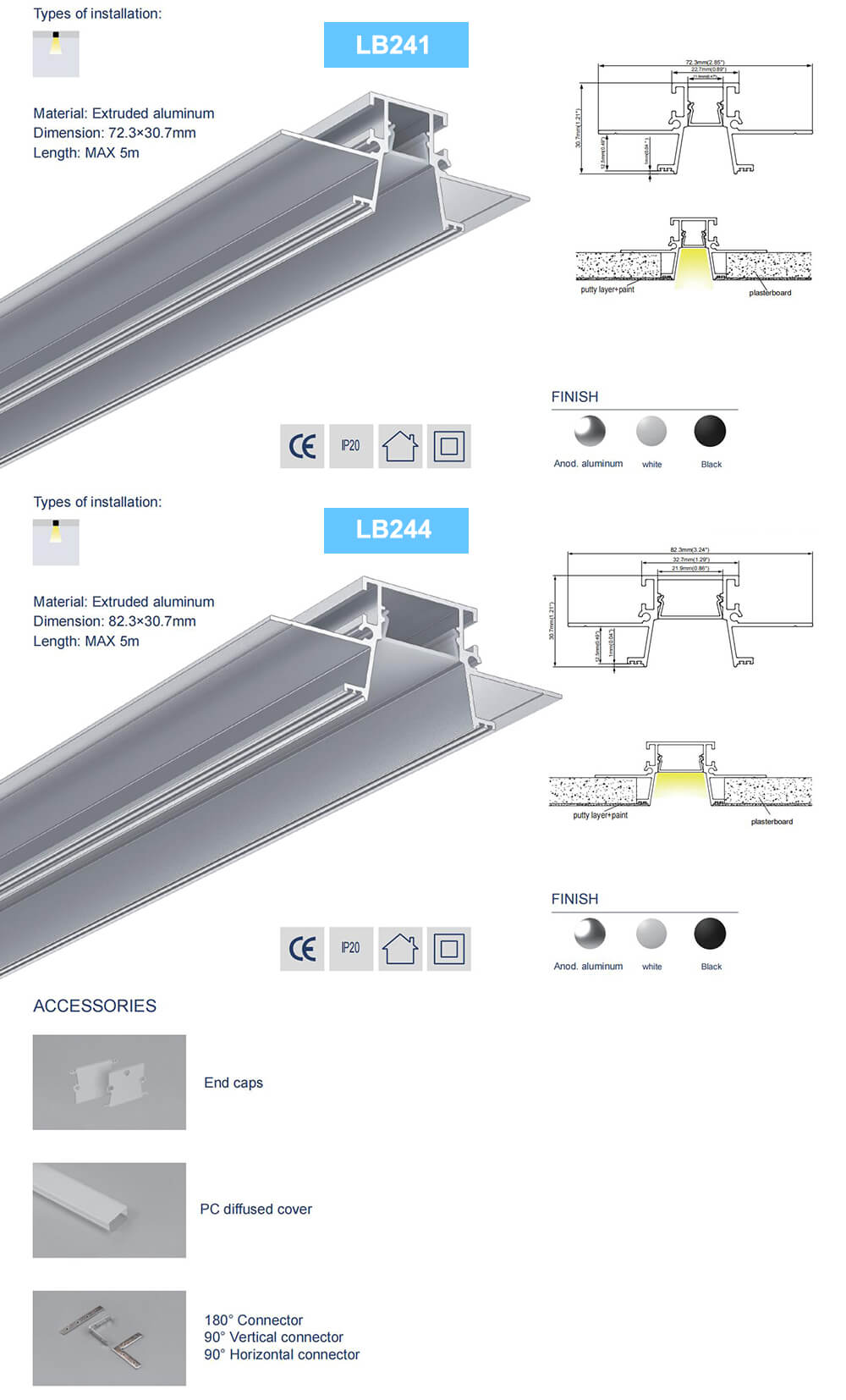

Specifications:
- Type: recessed LED channels with regressed cover
- Models: LB241 / LB244
- Material: Extruded aluminum
- Surface treatment: Anodized
- Color: Silver

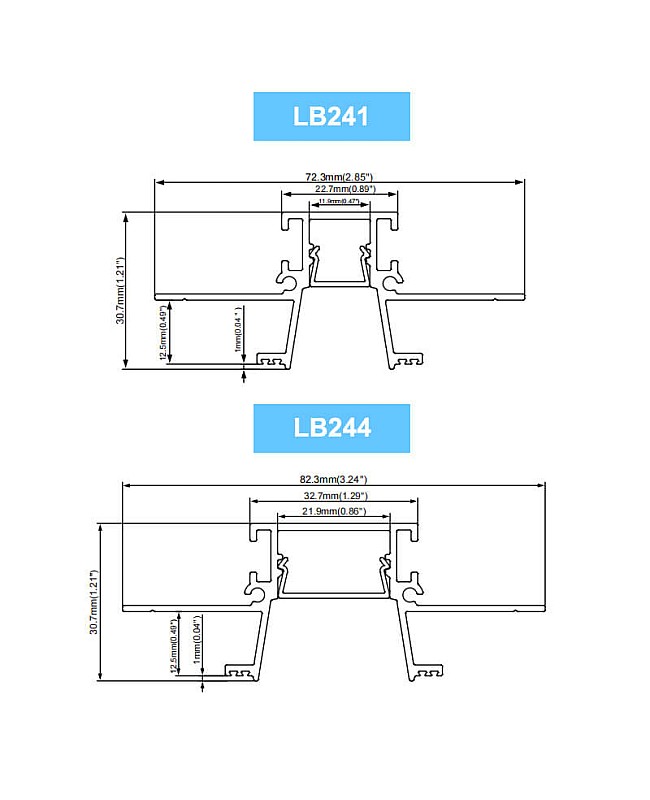

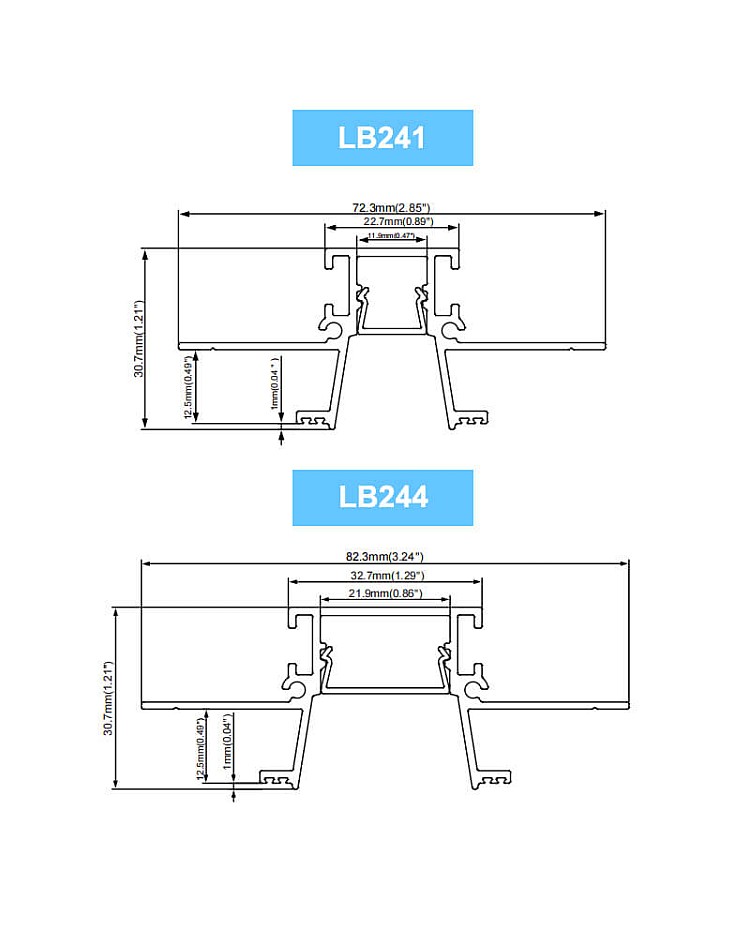

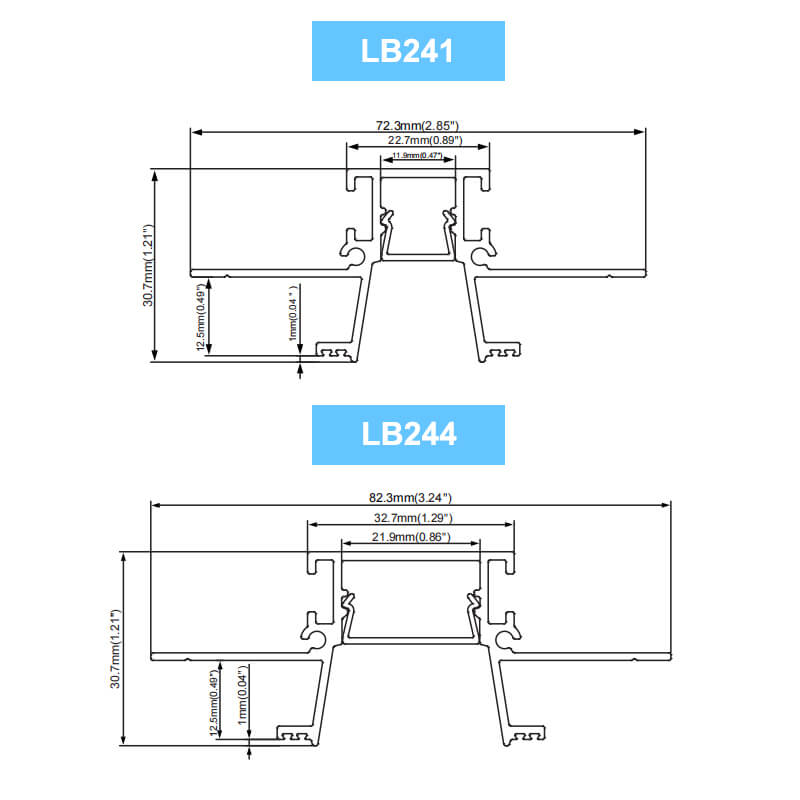

- Size: LB241: 72.3mm x 30.7mm/2.85" x 1.21"; LB244: 82.3mm x 30.7mm/ 3.24" x 1.21"
- Standard lengths: 1M ( 39.37" ), 2M ( 78.74" )
- Custom length supported
- Inner width: LB241: 11.9mm/0.47"; LB244: 21.9mm/0.86"
- Maximum width of strip lights: LB241: 11mm/0.43"; LB244: 21mm/0.83"
- Maximum power of strip lights: LB241: 15W/m; LB244: 20W/m
- Diffusers: PC diffused covers only

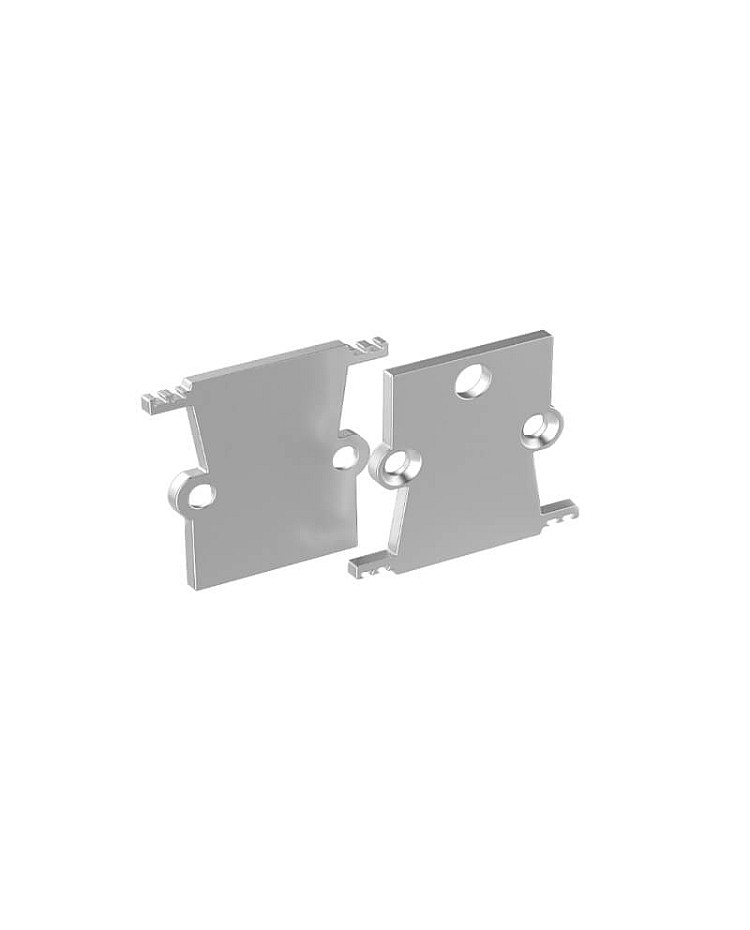

- End caps with and without wire holes are included
- Installation: Recessed 1/2" plasterboards
- Warranty: 5 years
Includes:
1 x Anti-glare recessed LED channel
1 x PC diffuser
1 x End caps ( With and without wire holes )
