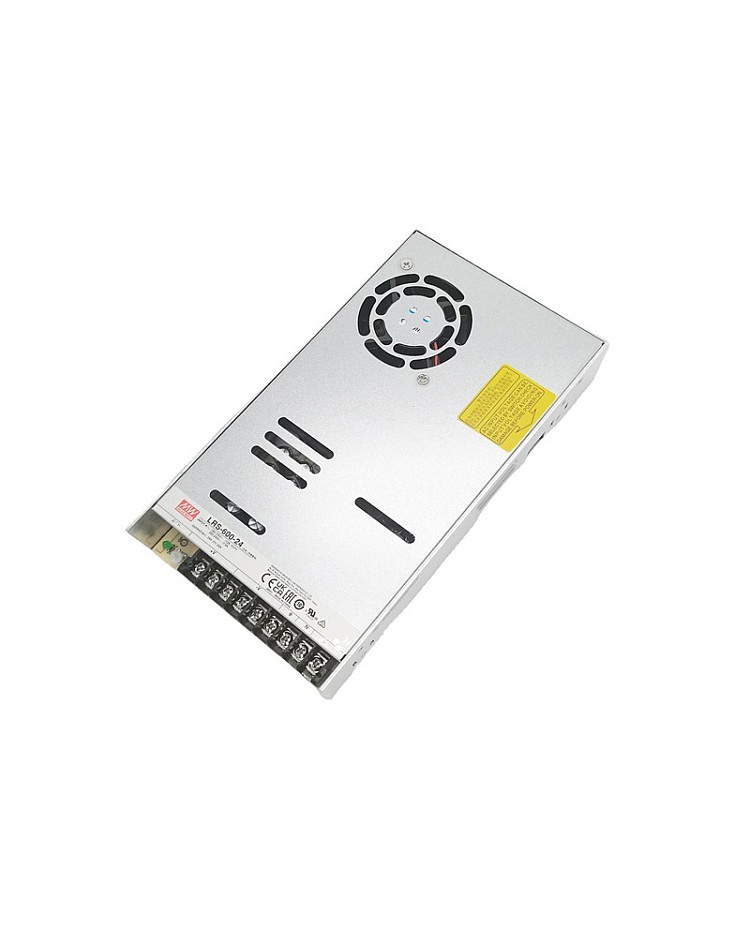

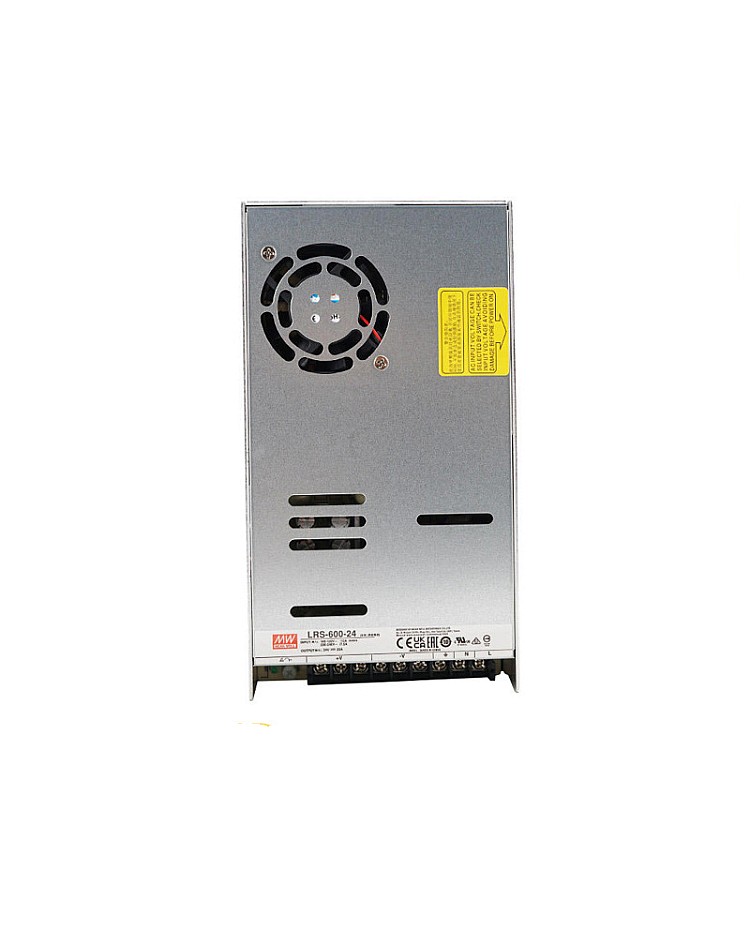

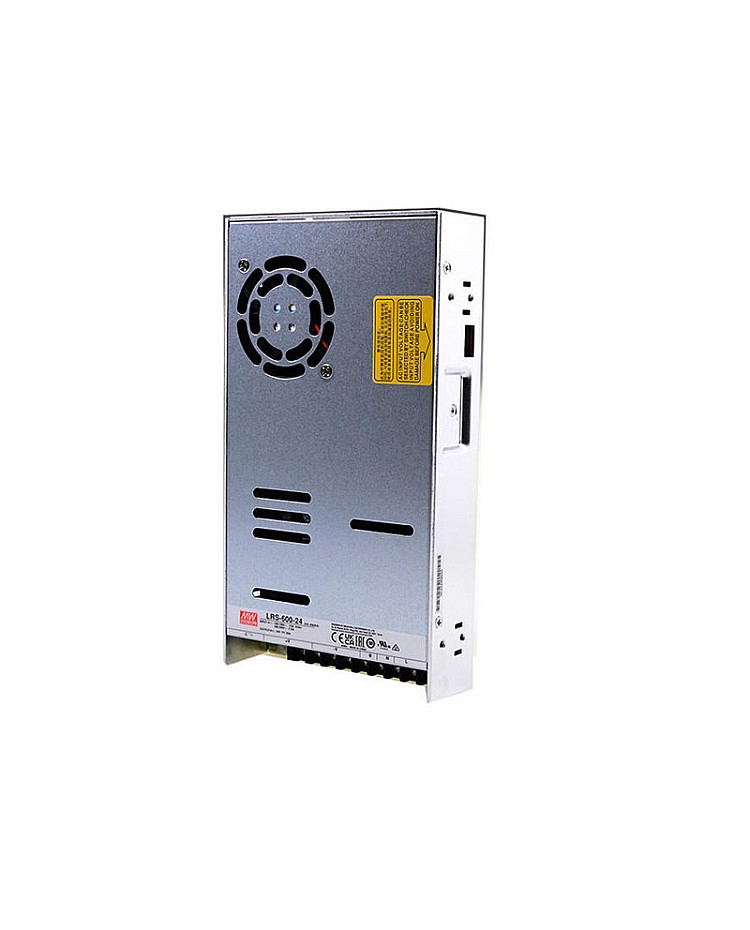

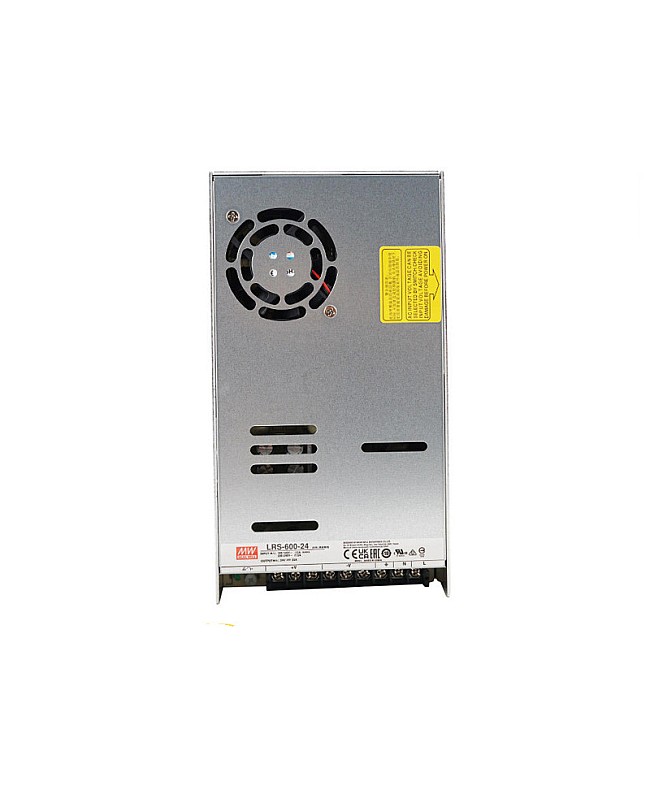

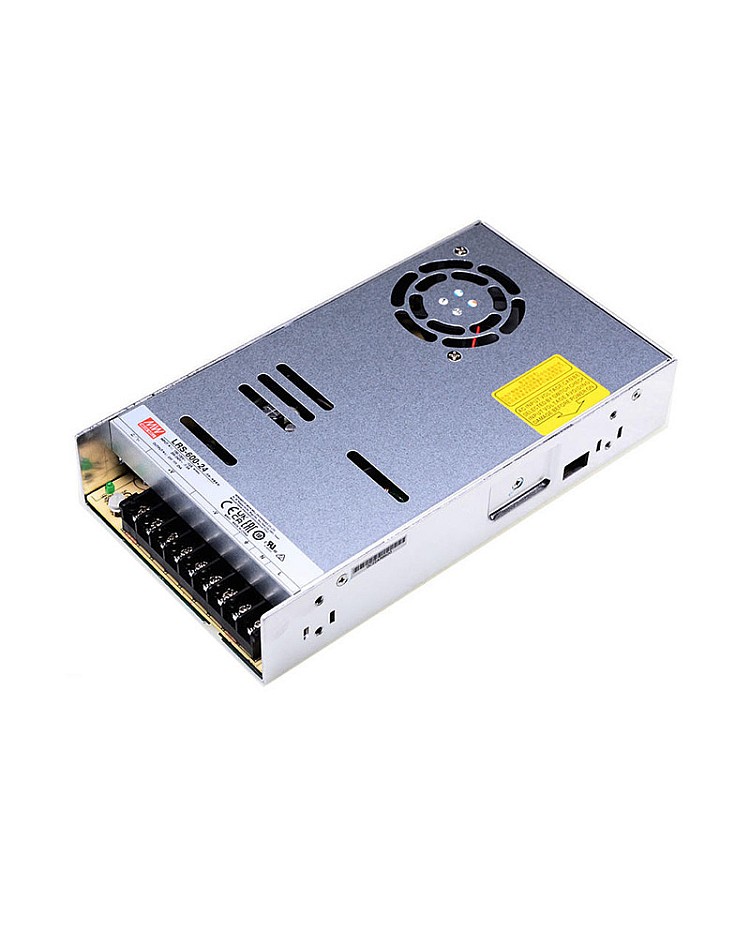

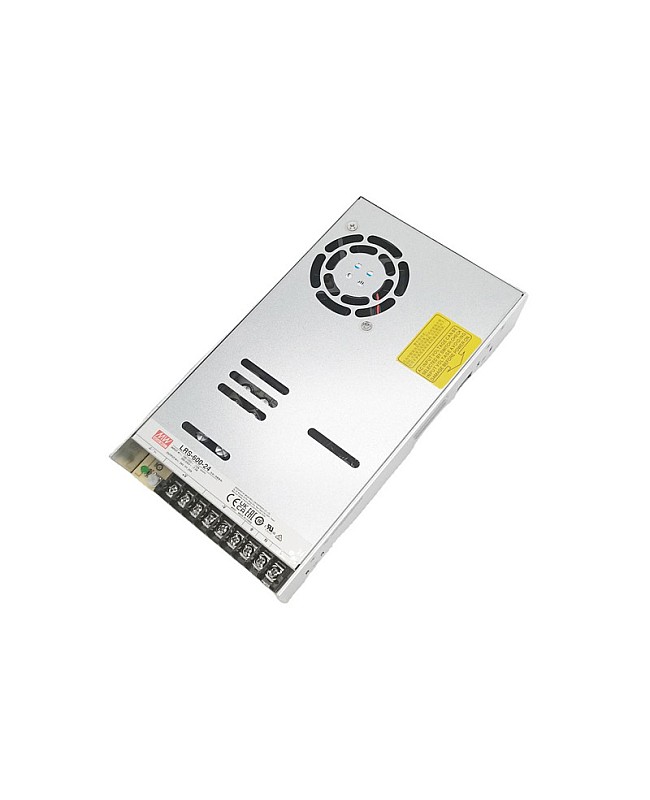

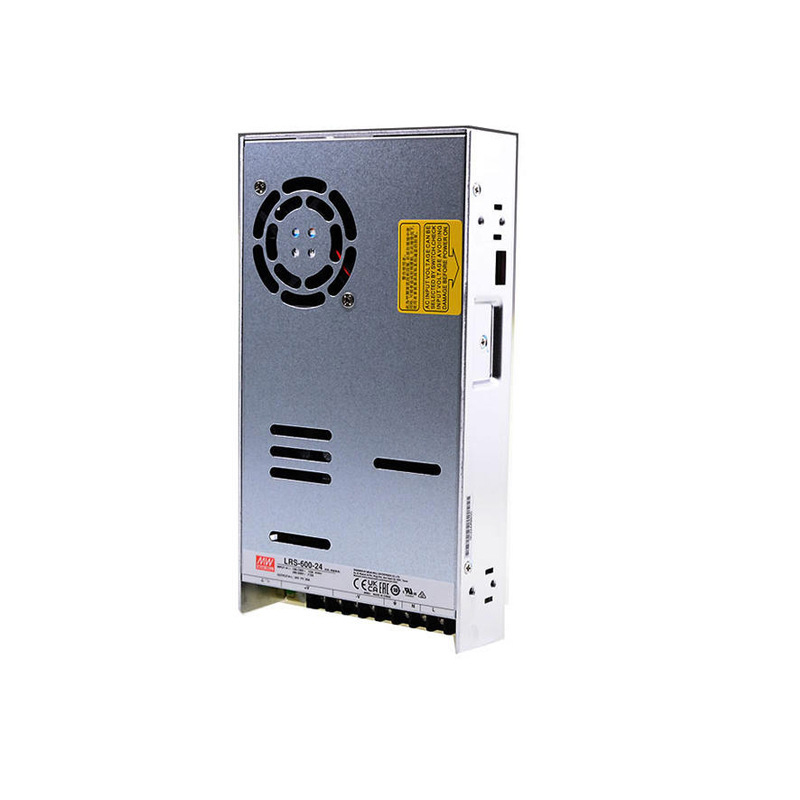

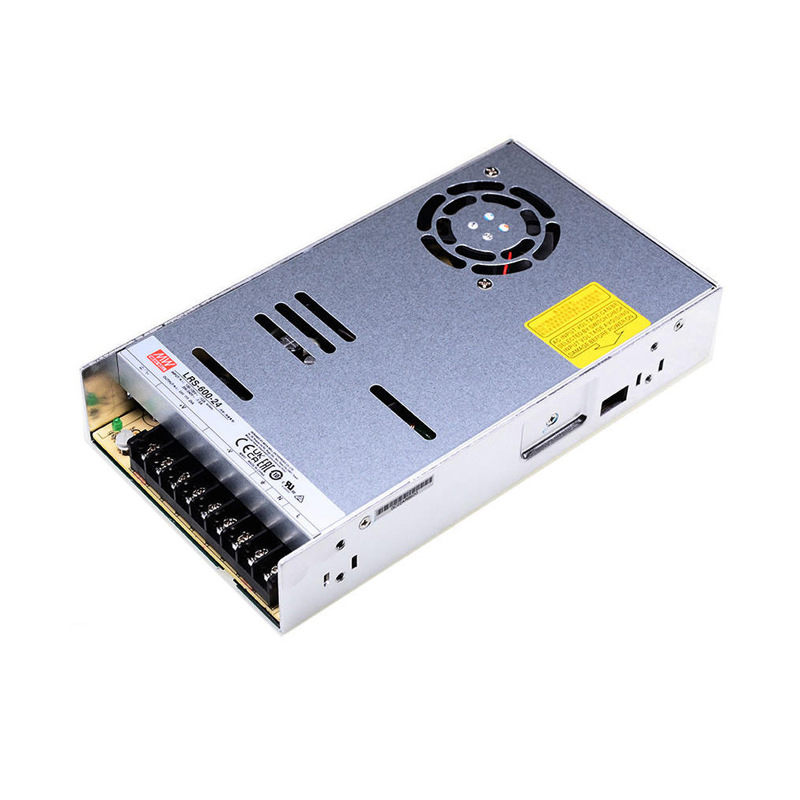

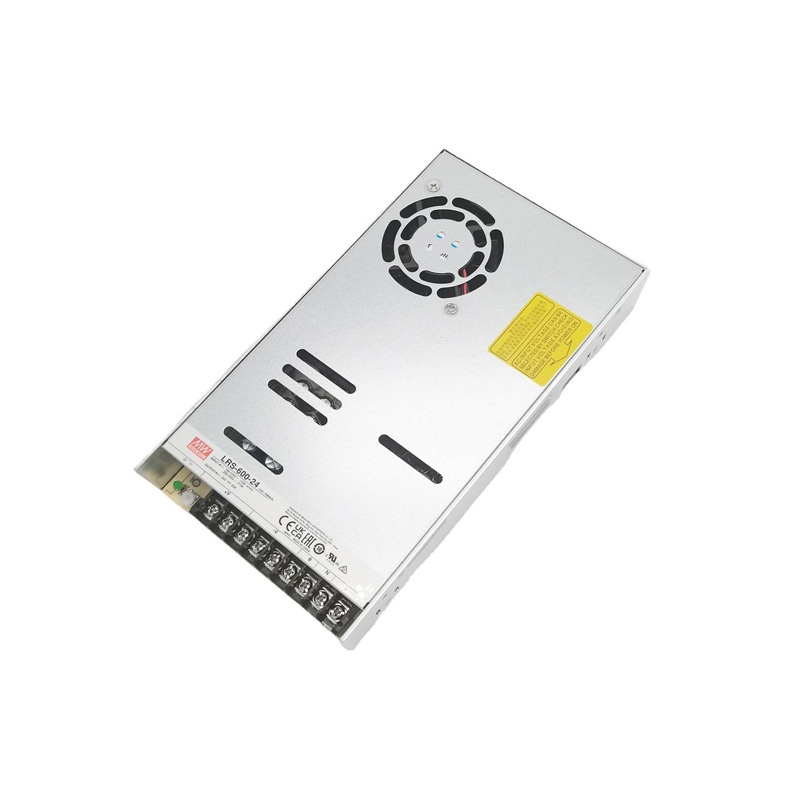

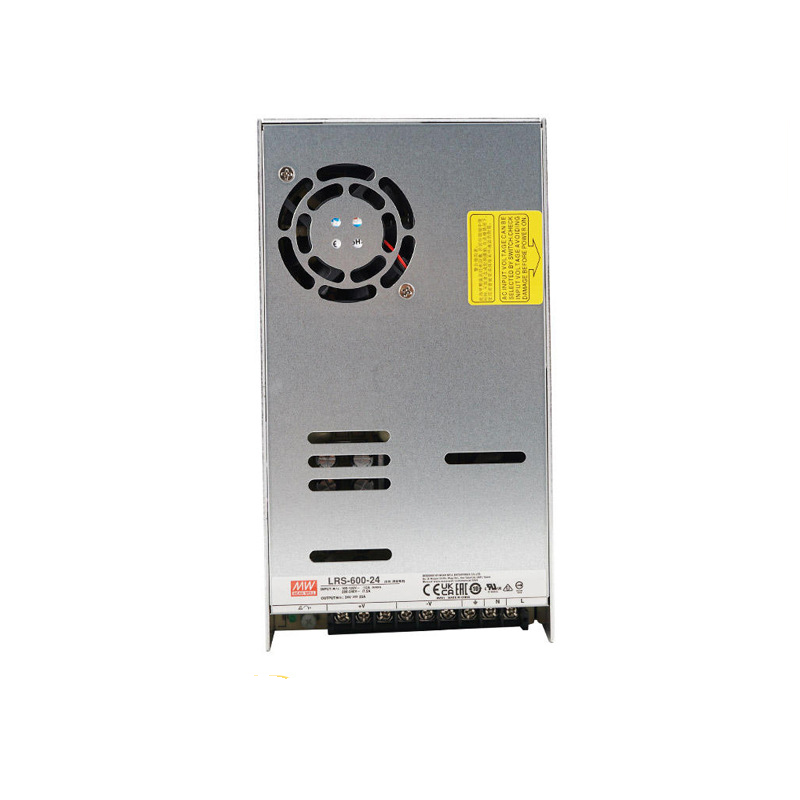

The Mean Well LRS-600 is a 600W single-output enclosed power supply with 41mm of low profile design. There are 5V, 12V, 15V, 24V, 36V, and 48V products available, and the input voltage can be adjustable by pressing the switch on the side. In addition to the high efficiency of up to 92%, with the built-in long-life fan, the 600W Mean Well Power Supply can work under -20℃ to 65℃ with a full load. The LRS 600 has complete protection functions and 5G anti-vibration capability. It complies with complete international safety regulations. The 24V Power Supplies can be used for various industrial applications and work with our SMD or COB LED Stripe Lights.

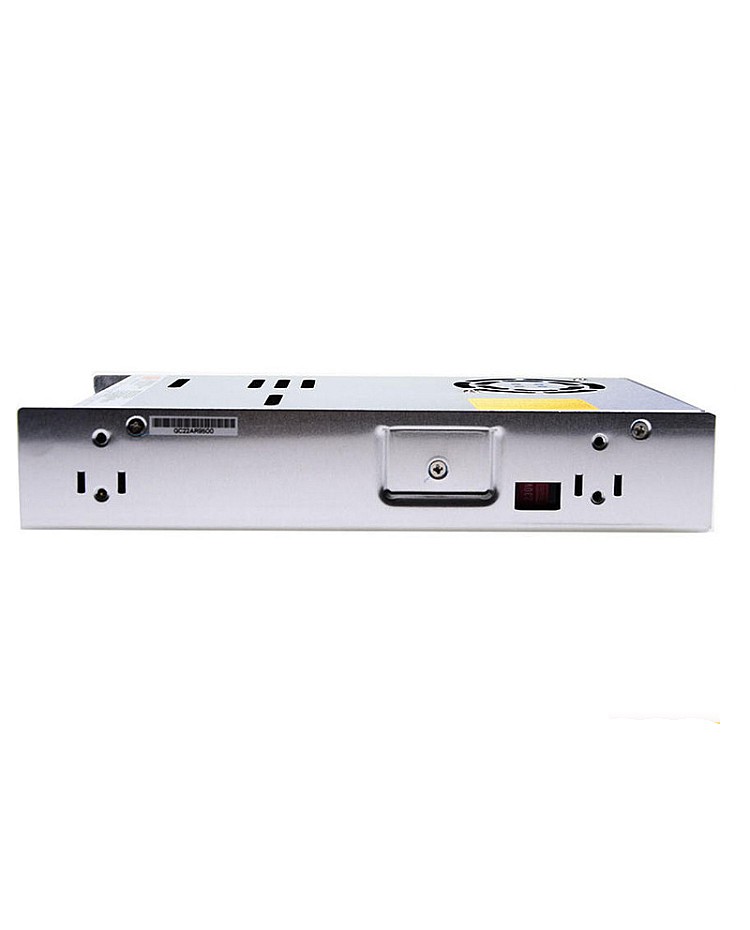

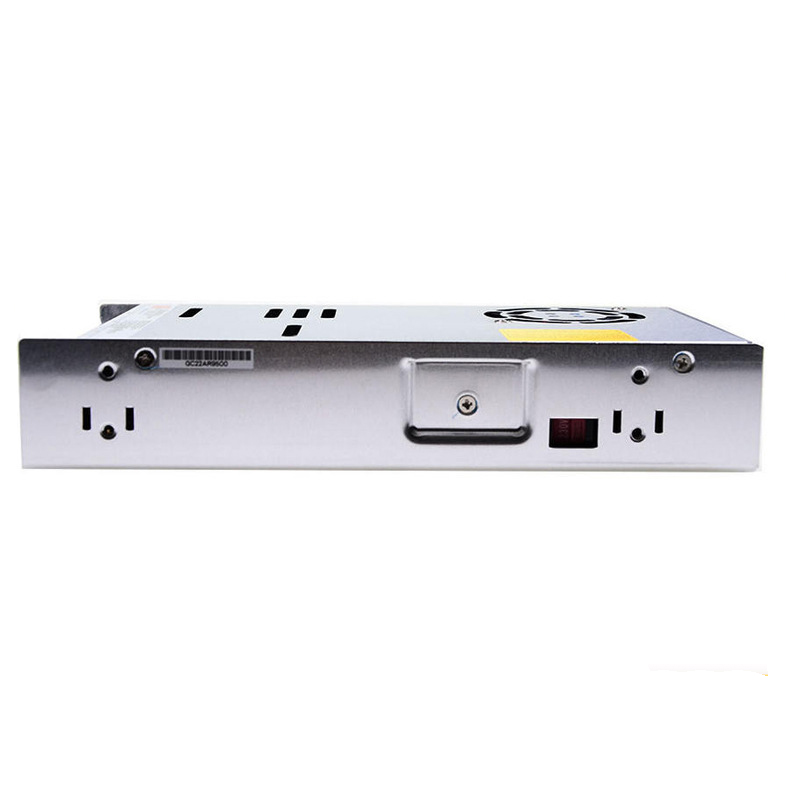

  • AC Input Range Selectable By Switch
  • Withstand 300VAC Surge Input For 5-Second
  • Forced Air Cooling
  • Built-in Cooling Fn ON-OFF Control
  • 1U Low Porfil
  • Withstand 5G Vibration Test
  • High Operating Temperature Up To 65℃
  • Operating Altitude Up To 5000 Meters
  • Short-circuit Protection
  • Overload Protection
  • Over-voltage Protection
  • Over-temperature Protection
  • MTBF > 1KK Hrs


  • Type: 600W Single Output Switching Power Supply
  • Model: LRS-600-12 / LRS-600-24
  • Size: 225*124*41mm(L*W*H)
  • Output Voltage: DC12V / DC24V
  • Rated Current: 50A(12V) / 25A(24V)
  • Current Range: 0-50A(12V) / 0-25A(24V)
  • Rated Power: 600W(12V) / 600W(24V)
  • Voltage ADJ. Range: 11.4-13.2V(12V) / 22.8-26.4V(24V)
  • Setup / Rise Time: 1300ms, 50ms/230VAC, 1300ms, 50ms/115VAC At Full Load
  • Hold Up Time: 20ms/230VAC, 16ms/115VAC At Full Load
  • Voltage Range: 90-132VAC / 180-264VAC By Switch
  • Frequency Range: 47-63Hz
  • Efficiency: 90%(12V) / 91%(24V)
  • AC Current: 12A/115VAC, 7.5A/230VAC
  • Working Temp: -20-+65℃
  • Working Humidity: 20-90% RH Non-condensing
  • Storage Temp, Humidity: -40-+85℃, 10-95% RH
  • Vibration; 10-500Hz, 5G 10min./1cycle, 60min. each along X, Y, and Z axes
  • 3 Years Warranty


1*LRS-600 24 Volt Power Supply
