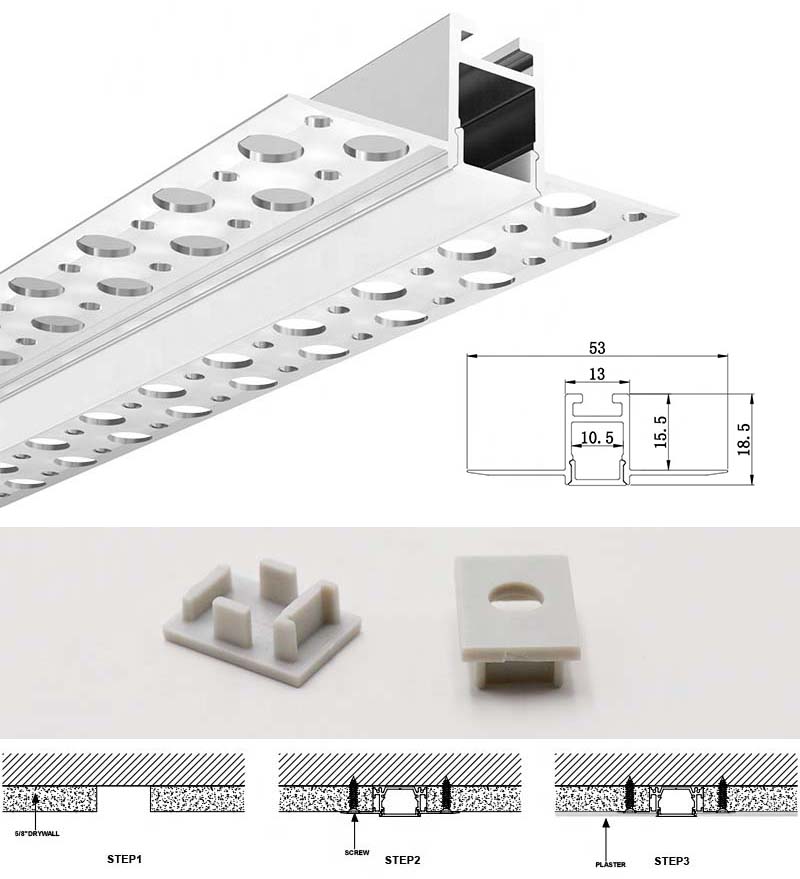

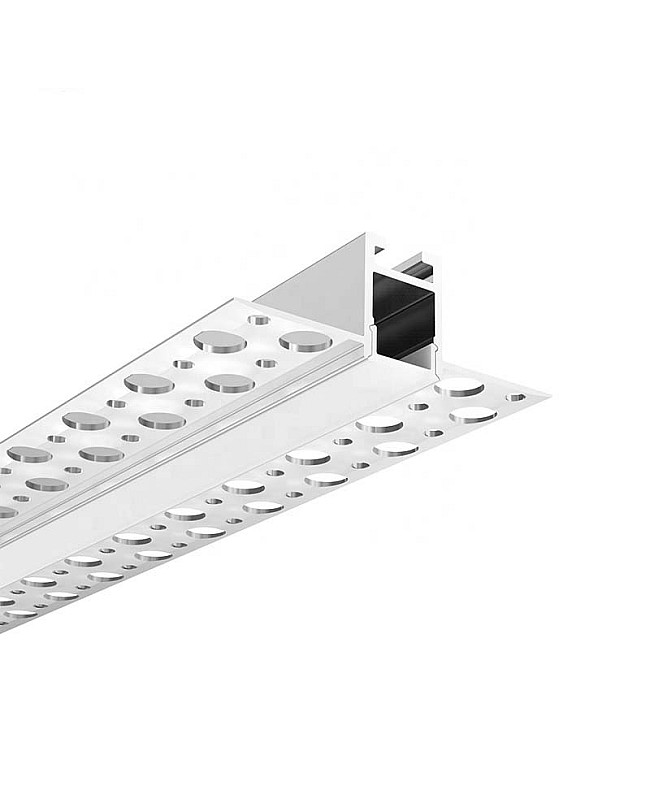

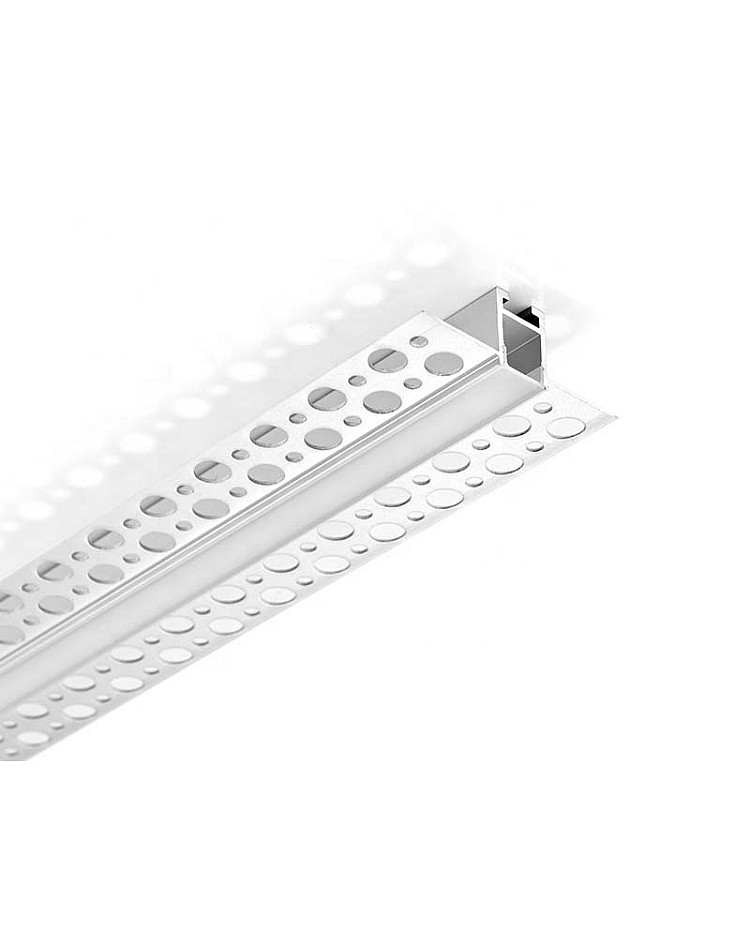

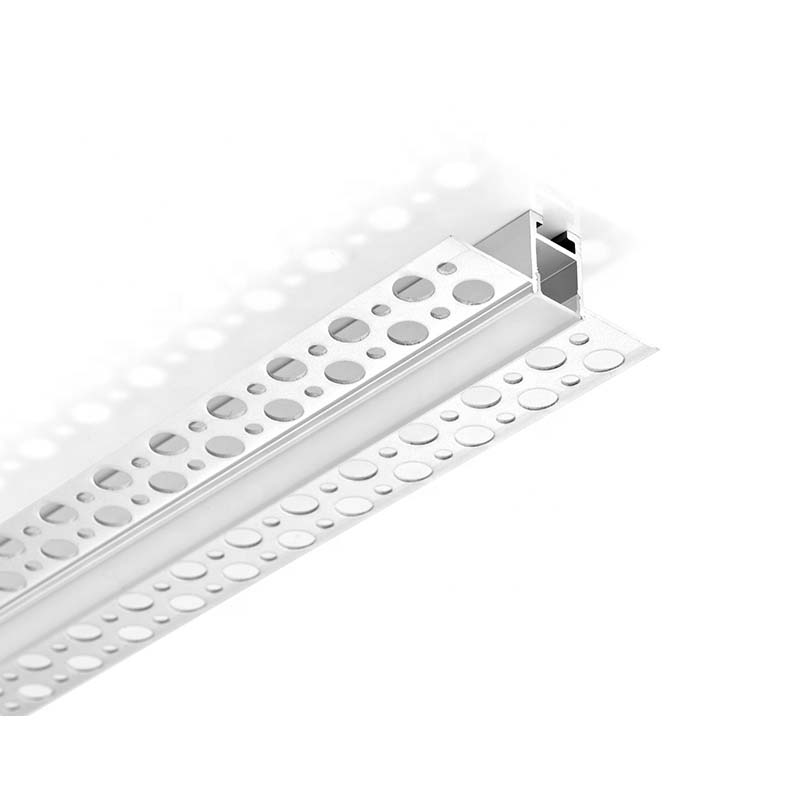

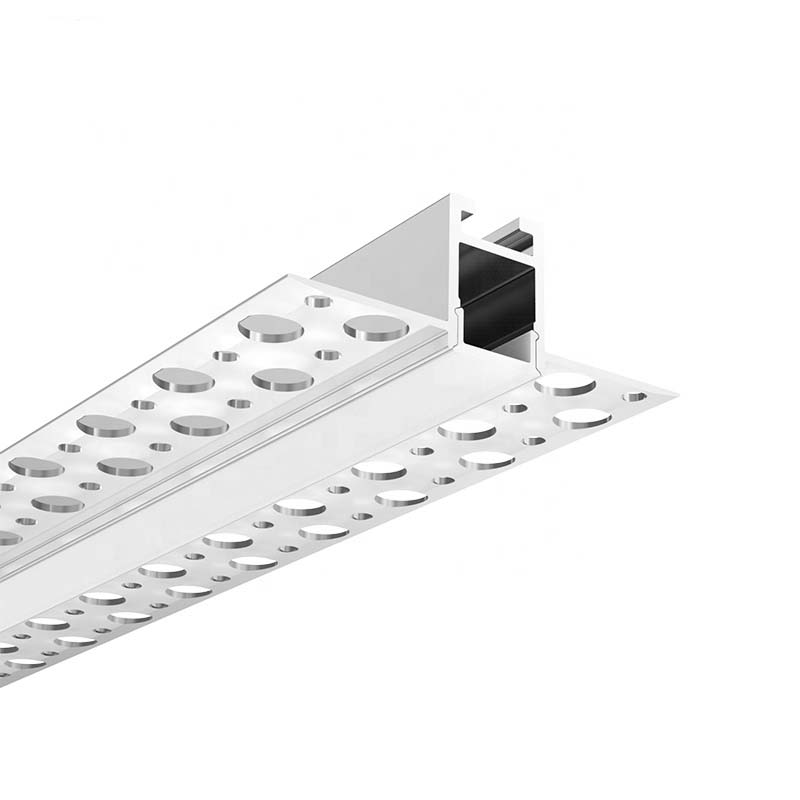

Check the ALP-079 Drywall LED Strip Channel, which can be recessed into the 15.5mm drywall for linear lighting. Made of 6063-T5 aluminum alloy material and with silver anodized surface treatment, anti-oxidation, and a longer lifespan than other similar products. There is only one type of diffuser available: PC diffused cover, which is made of brand material with stable quality, anti-yellowing, perfect light distribution, and soft light output. The standard length is 1M and 2M, you can cut to any length you want. The inner width is 10.5mm and allows the max width of LED Strips to be 10mm. The Aluminum Profile can work as a heat sink for better heat dissipation. End caps with and without wire holes are included, and easy to connect the LED Strips to LED Power Supply easily to light them up.


Features:

  • Model: ALP079
  • Surface Treatment: Anodized Silver
  • Material: 6063-T5 Aluminum Alloy
  • Colors: Silver, White, Black

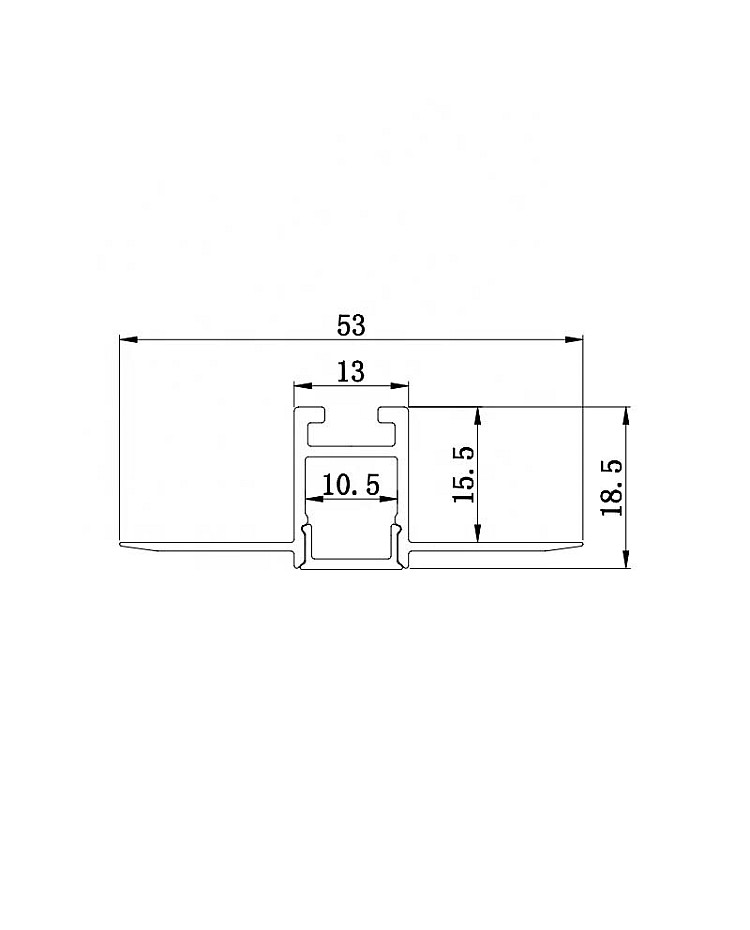

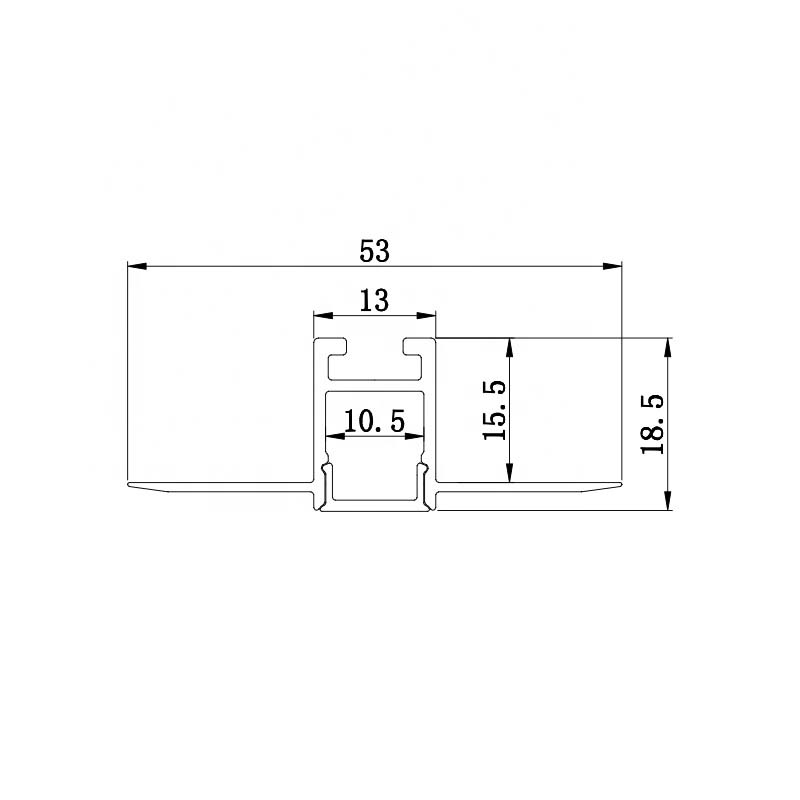

  • Size: 53*18.5mm
  • Standard Length: 1Meter
  • Other Lengths Available: 1.5Meter, 2Meter, 2.5Meter, 3Meter
  • Custom Length Available: YES
  • Diffusers: PC Diffused Cover

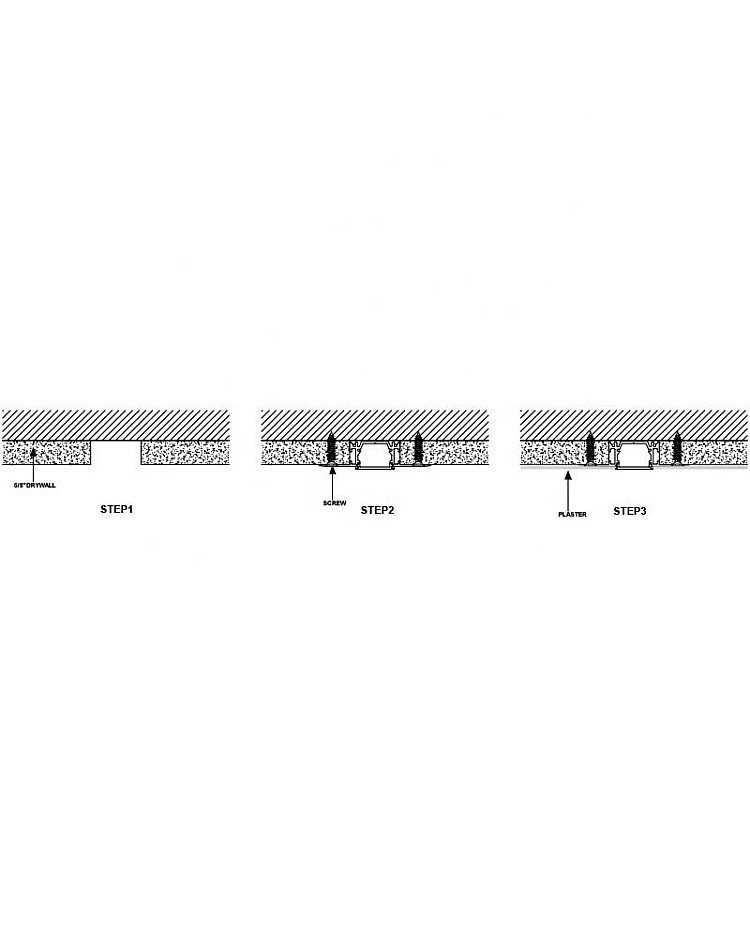

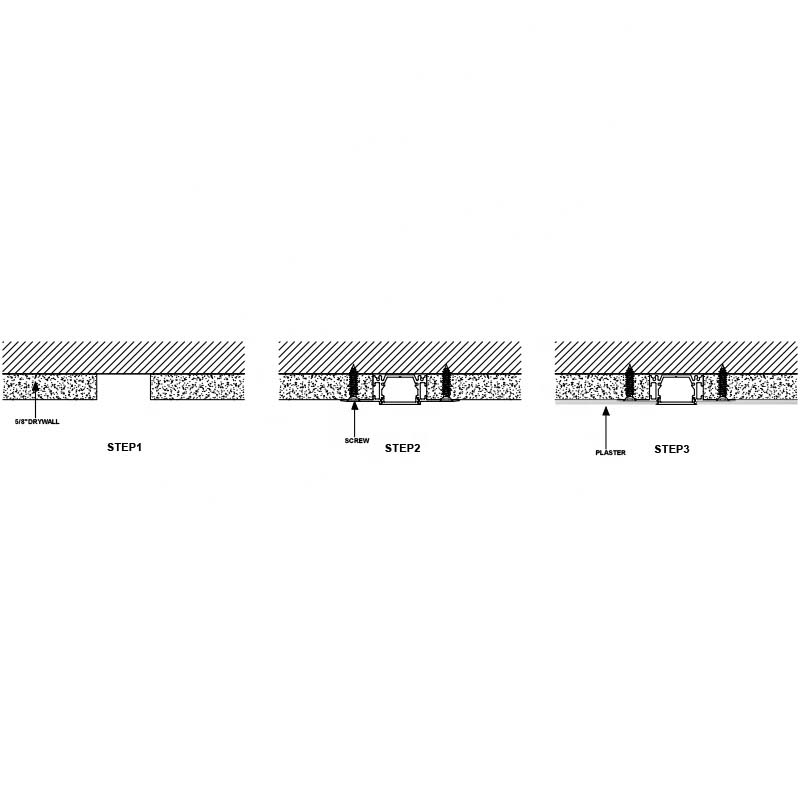

  • Installation: Recessed Plaster-In 5/8" Drywall
  • Inner Width: 10.5mm
  • Compatible With 2835, 3528, Or 5050 LED Strips
  • Max Power: <15W/Meter

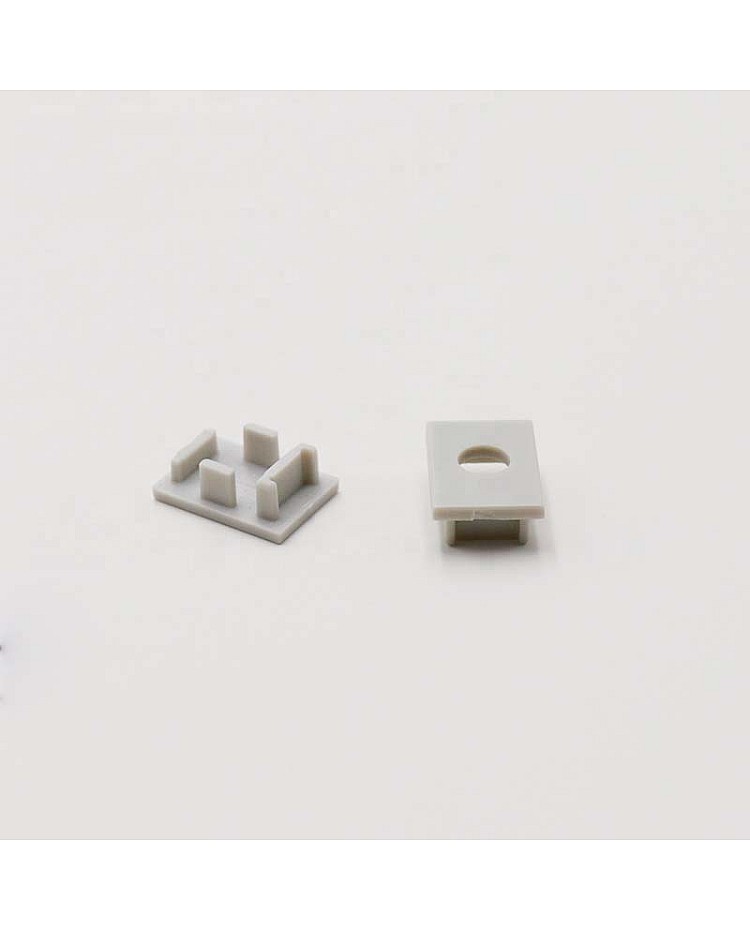

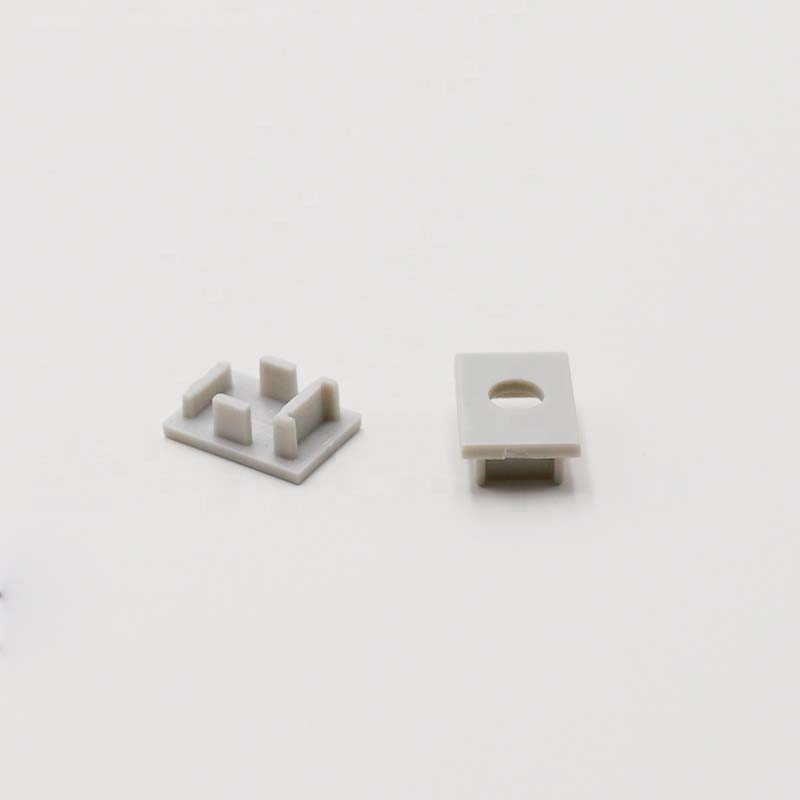

  • End Caps With Wire Hole And Without Wire Hole Included
  • Installation: 5/8" Drywall Recessed

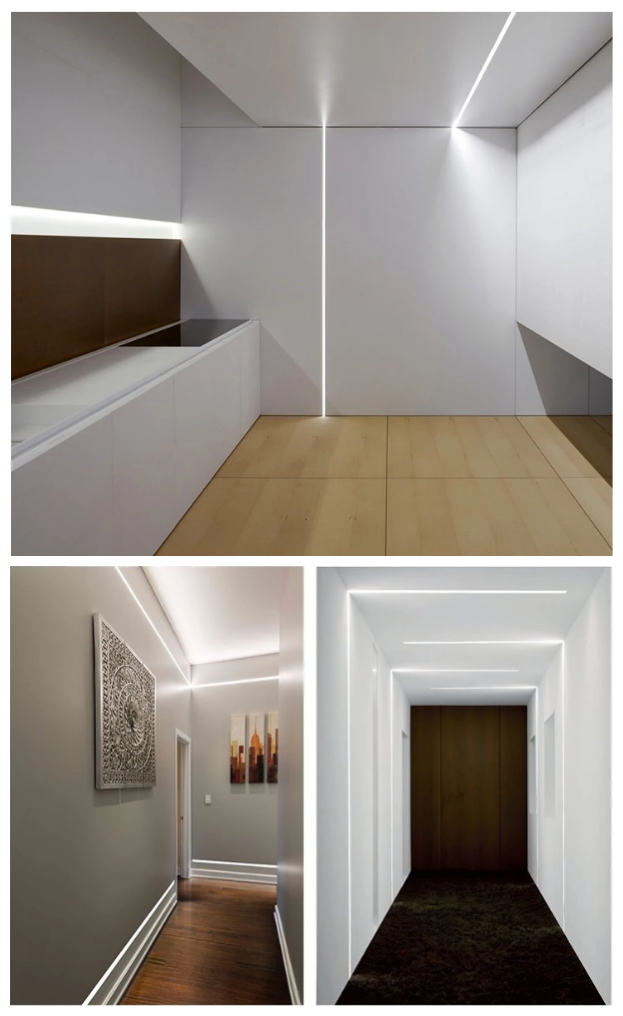

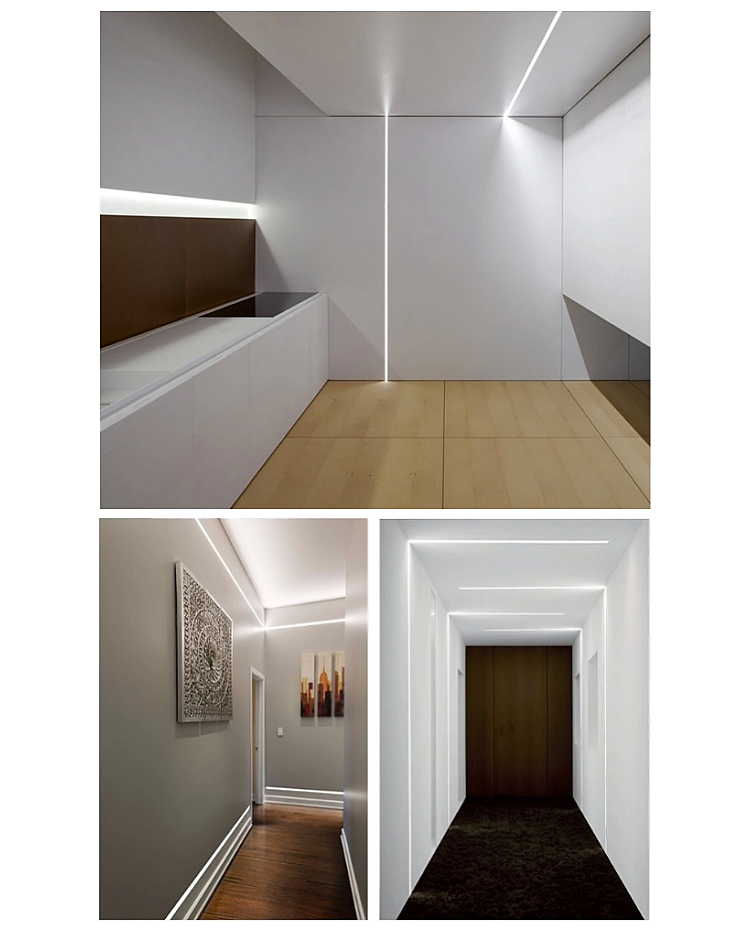

  • Usage: Architectural Lighting Projects
  • 5 Years Warranty


Includes:

1*Drywall LED Strip Channel

End Caps(With Wire Holes And Without Wire Holes)

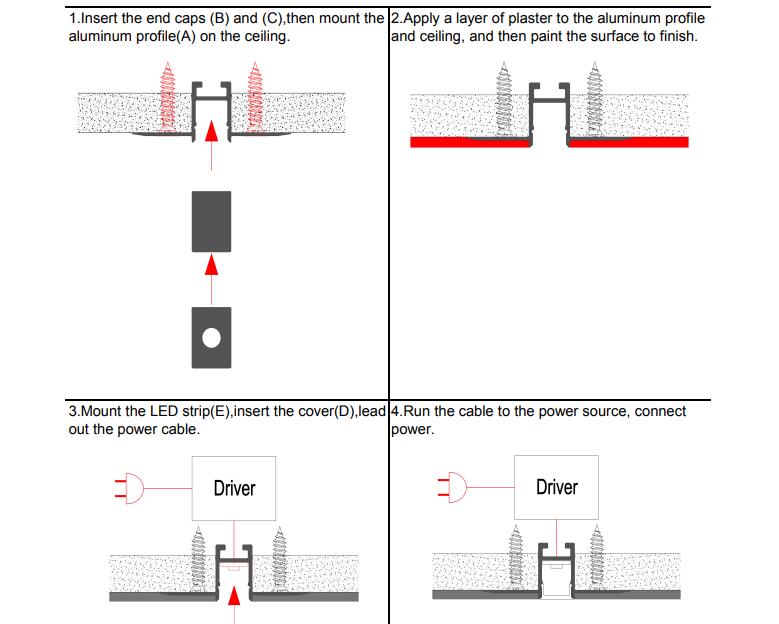

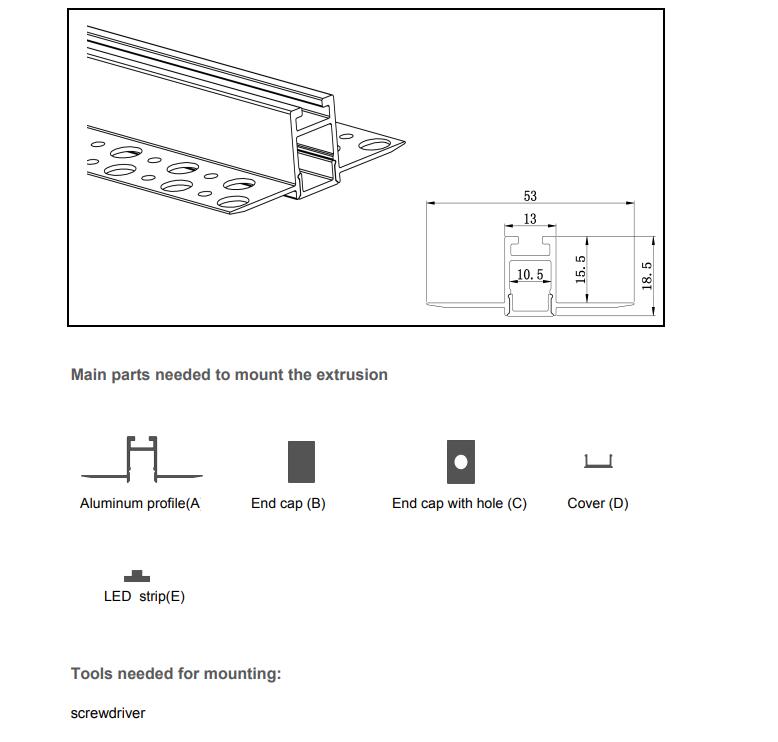

Dry Wall LED Strip Profile Recessed LED Strip Channels For Drywall How To Install Drywall LED Strip Channels Drywall LED Lighting Channels
