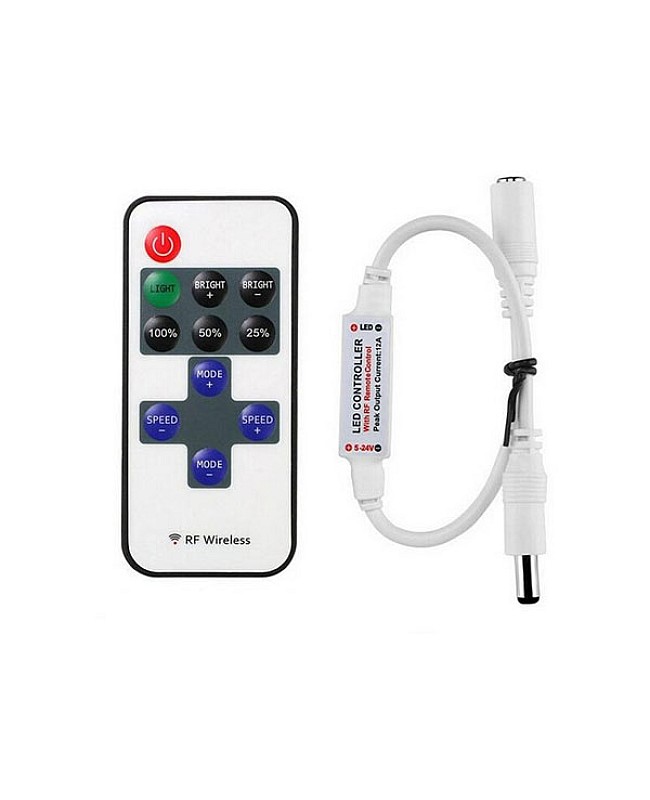

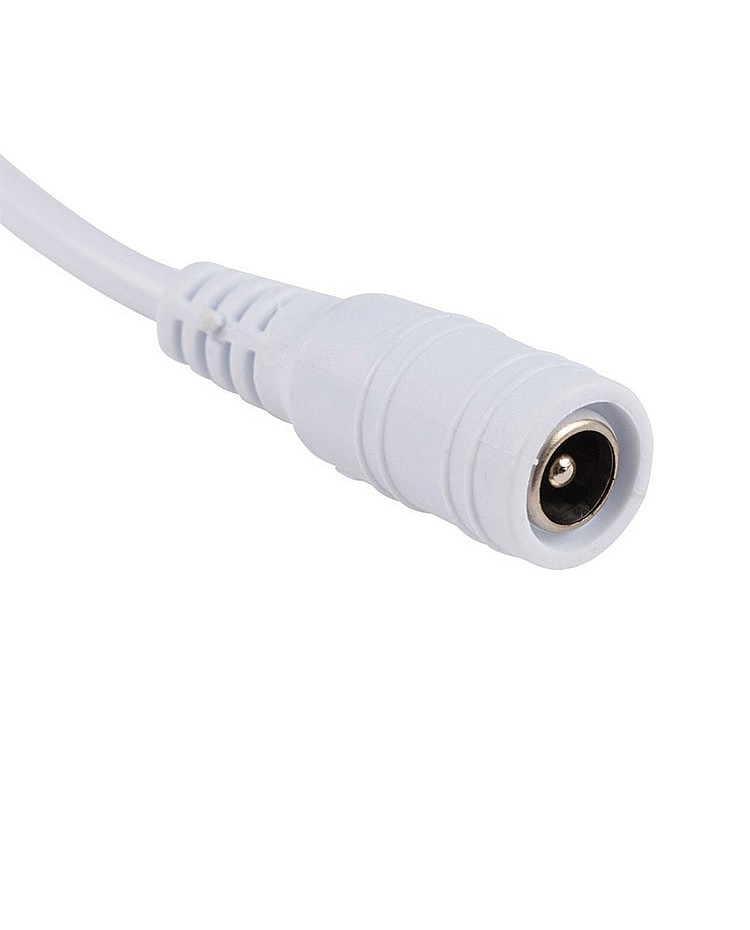

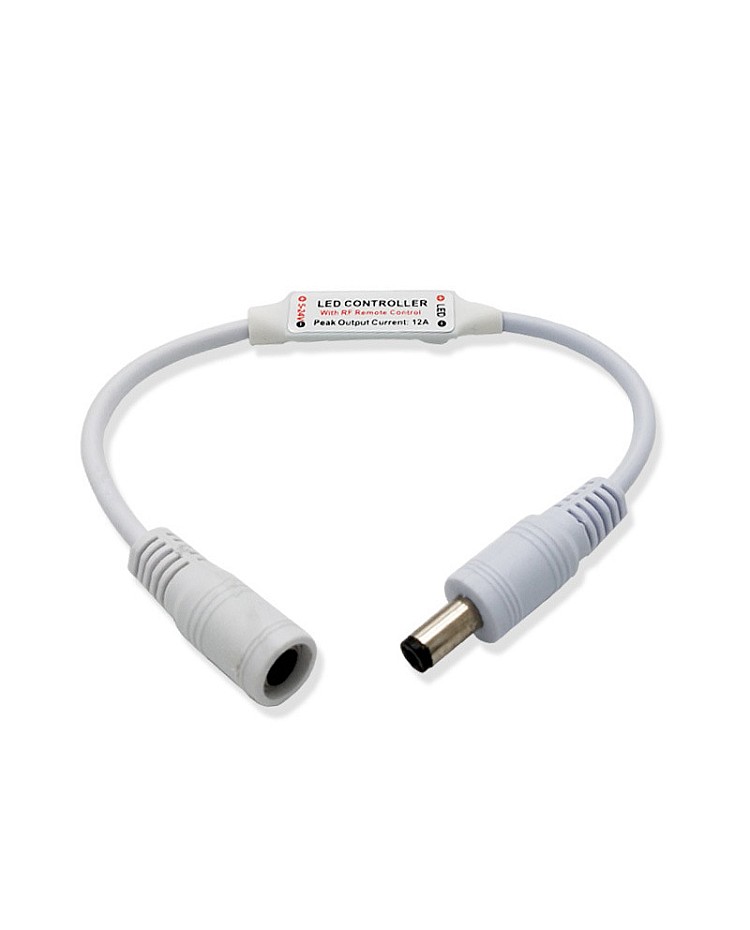

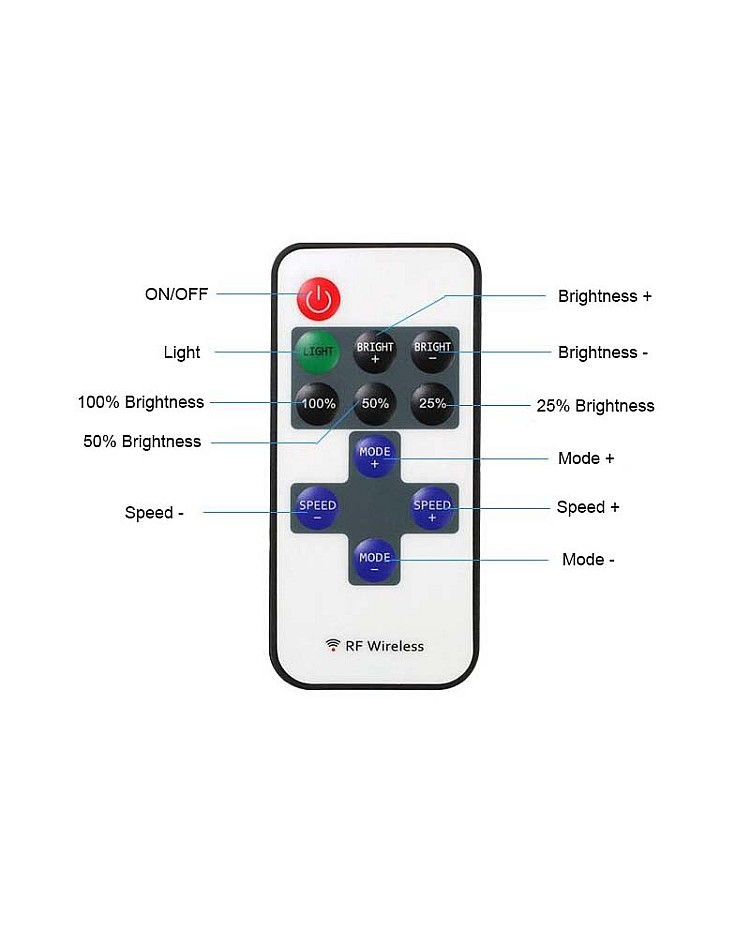

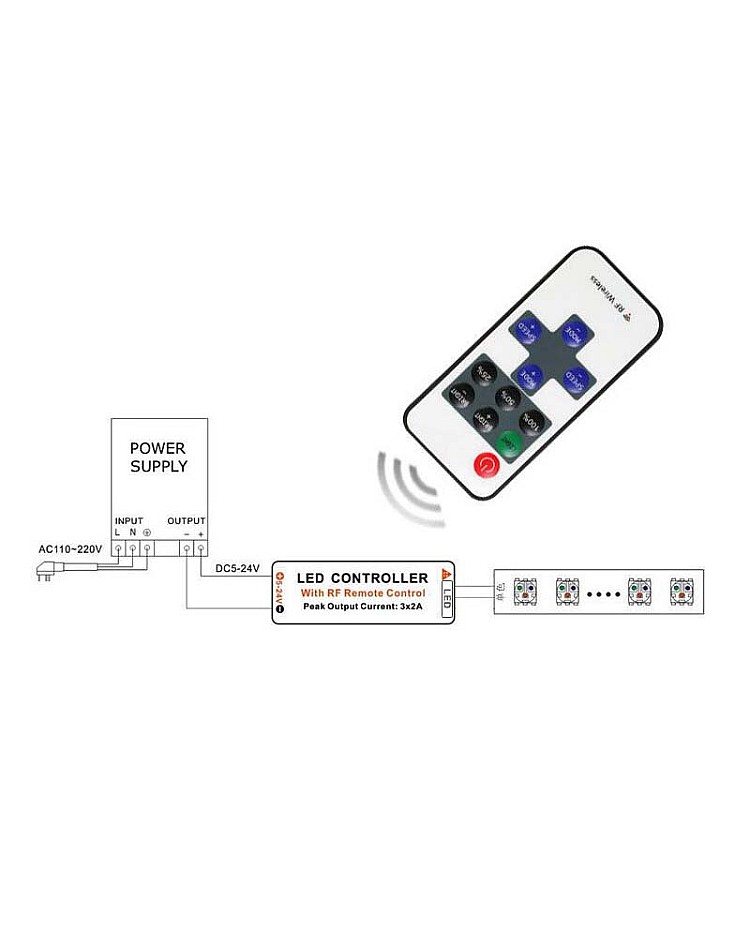

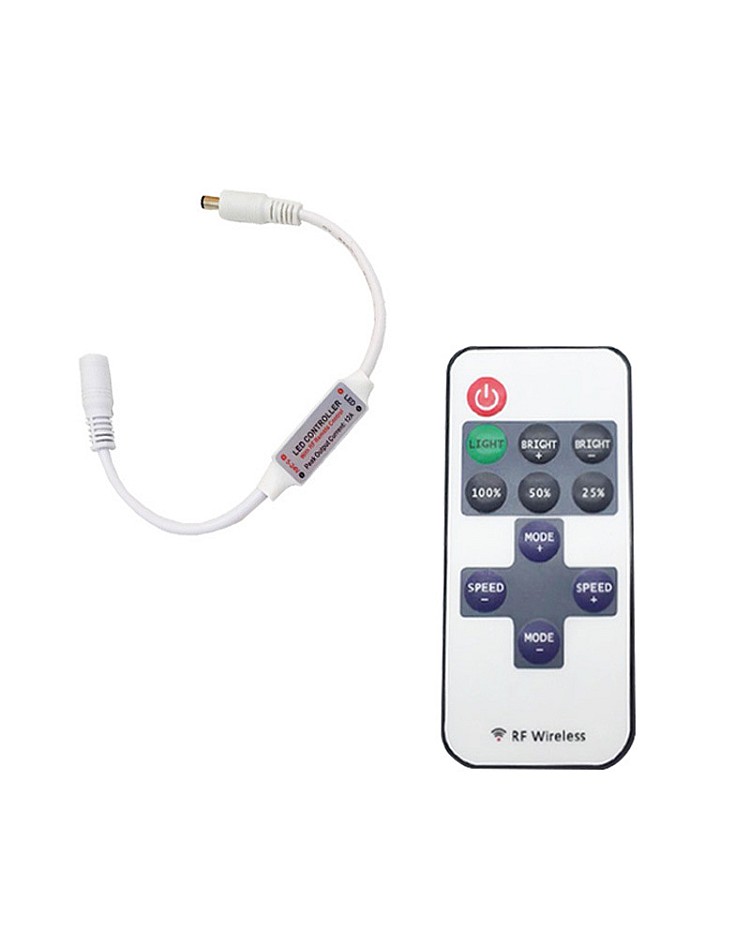

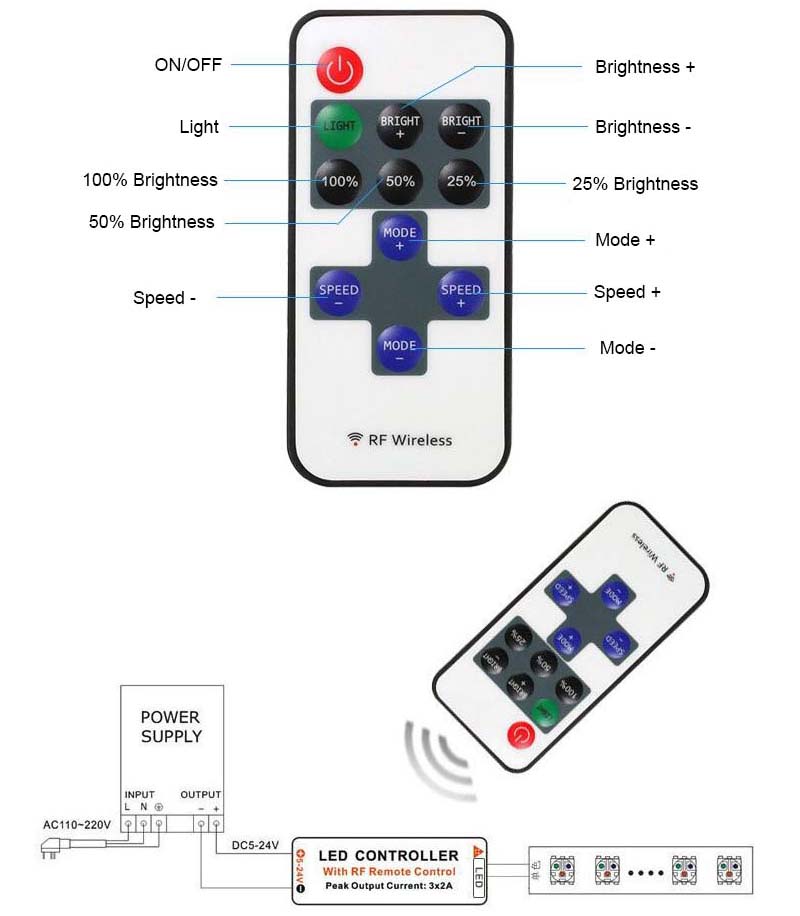

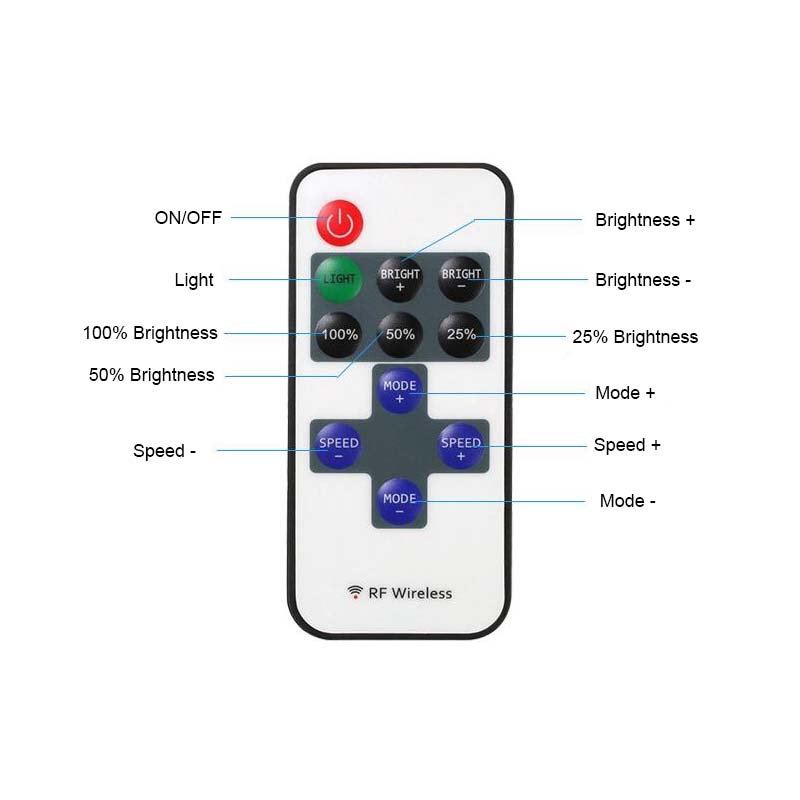

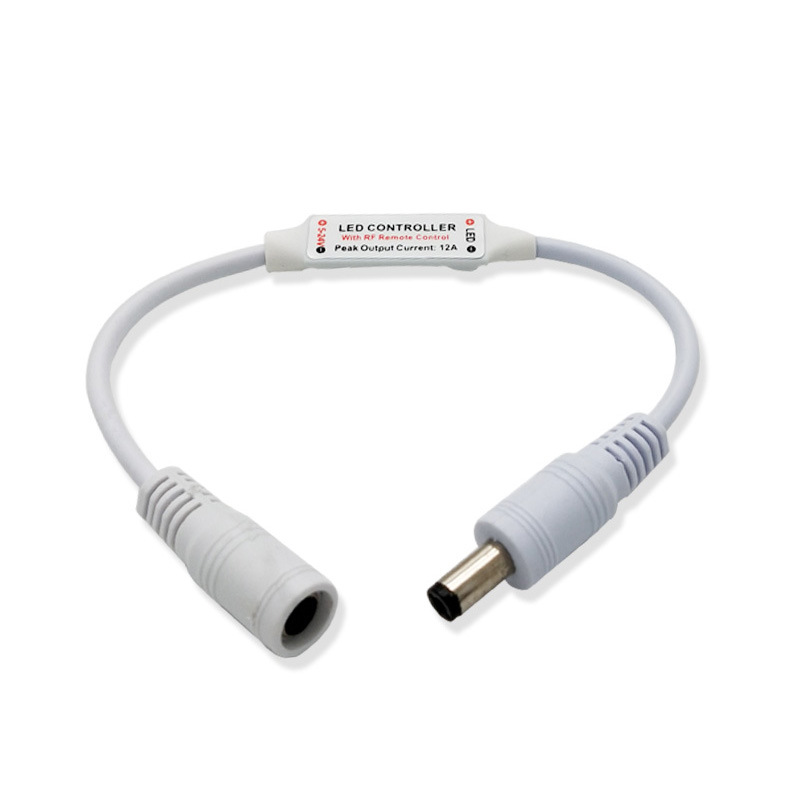

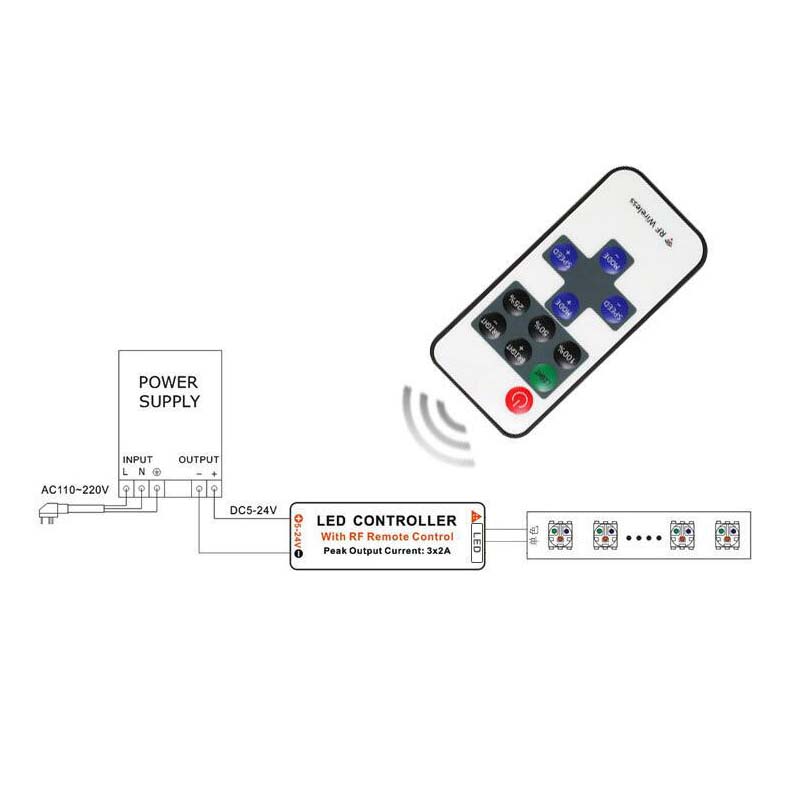

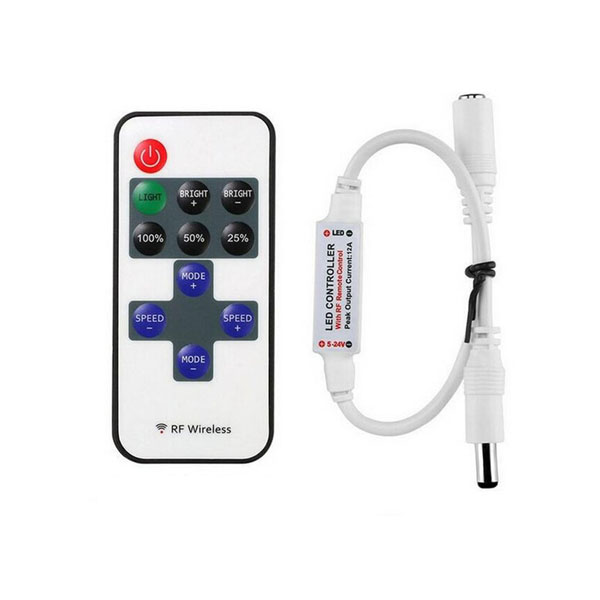

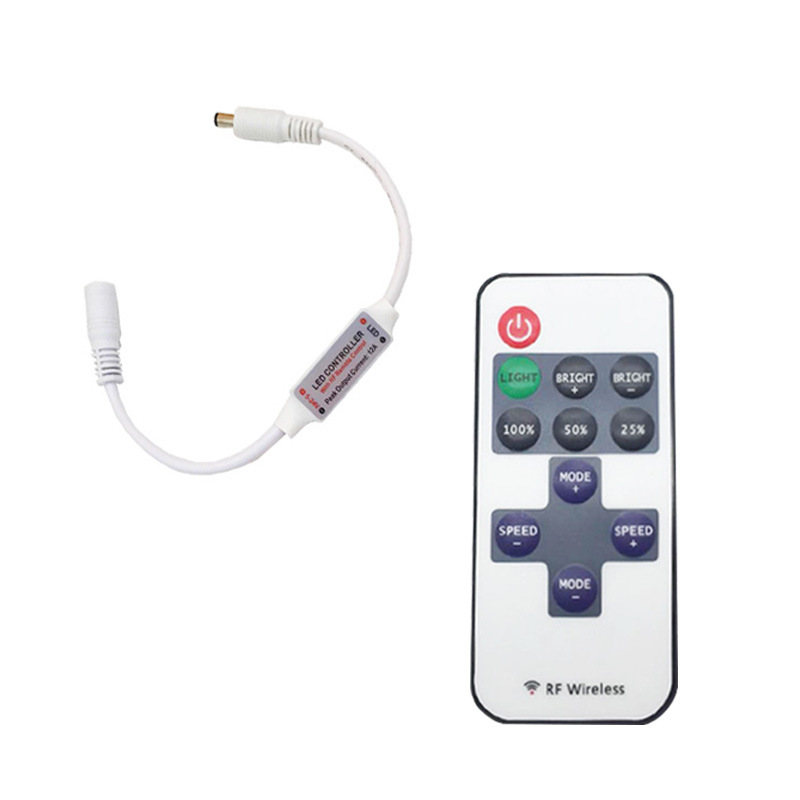

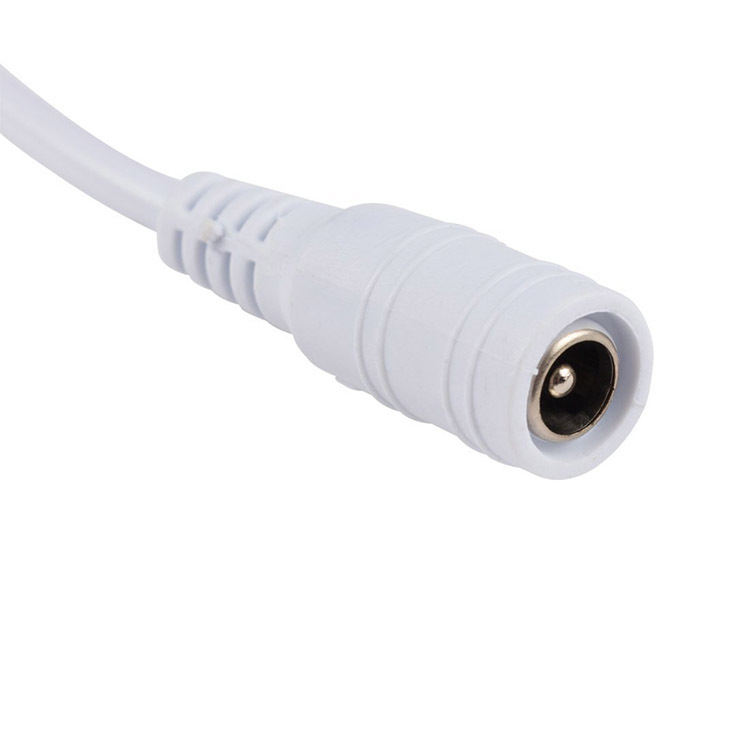

The single-color LED strip controller has a mini size and compact structure, which makes it suitable for use in a narrow space. The single color LED controller works on DC5V to DC24V, designed for the constant voltage single color LED lights, LED point source lights, LED strip lights, wall wash lights, etc., with one output channel design, the max output current is 6A, max loading power is 144W when working in DC24V. The 11-key RF remote control includes features that allow you to turn on/off the LED light, adjust the brightness of static colors, or adjust the speed of dynamic modes. The mini LED strip controllers with male and female DC connectors allow connecting to the LED transformer and single-color LED strips to light them up easily.
Specifications:
- Working Temperature: -20-60℃
- Size: 42*12*3mm(L*W*H)
- Static Power Consumption: <1W
- Working Voltage: DC5V, DC12V, DC24V
- Output Channels: 1
- Output Current: 6A*1Channels
- Power: DC5V: 30W; DC12V: 72W; DC24V: 144W
- Dynamic Modes: 8
- Dynamic Speed Levels: 10 Levels
- Light Brightness Levels: 10
- PWM Grade: 256
- 11 Keys Remote Control Included
- RF Distance: ≤20m
- Weight: 200g
Package:
1 * Single Color LED Strip Controller
