The SP52XE series SPI LED controllers are designed for use with various types of smart strip lighting. They are lightweight and mini, making it easy to connect them to your addressable LED lights to achieve various dynamic effects. The smart controllers integrate Wi-Fi and Bluetooth communication protocols, allowing them to be controlled by a smartphone app or remote controls. You can control the programmable LED lights to adjust brightness and color temperature, or set them to static colors or dynamic modes. It also supports voice control, with three voice input methods available: player streaming, mobile phone mic, and onboard mic. Under voice mode, the lighting will change automatically in response to different voice signals. You can also achieve other functions on your cell phone, such as group management and timer functions. One side of the SPI controller has DC female connectors, and the other has a fast connection connector for easy connection.
Specifications:
- Type: SPI voice control LED controller for smart strip lighting

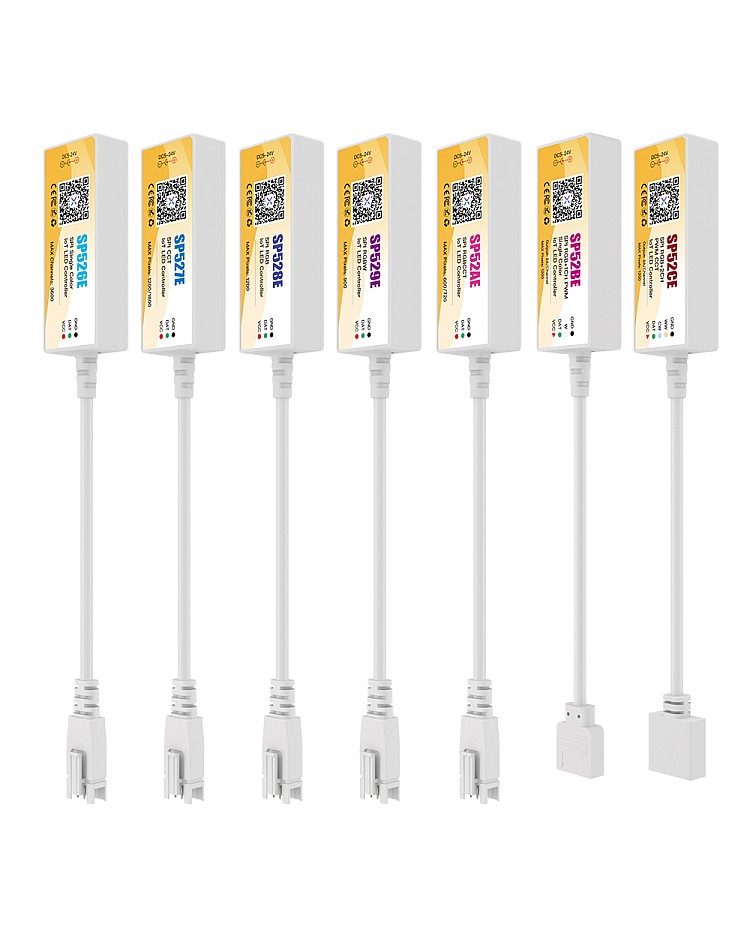

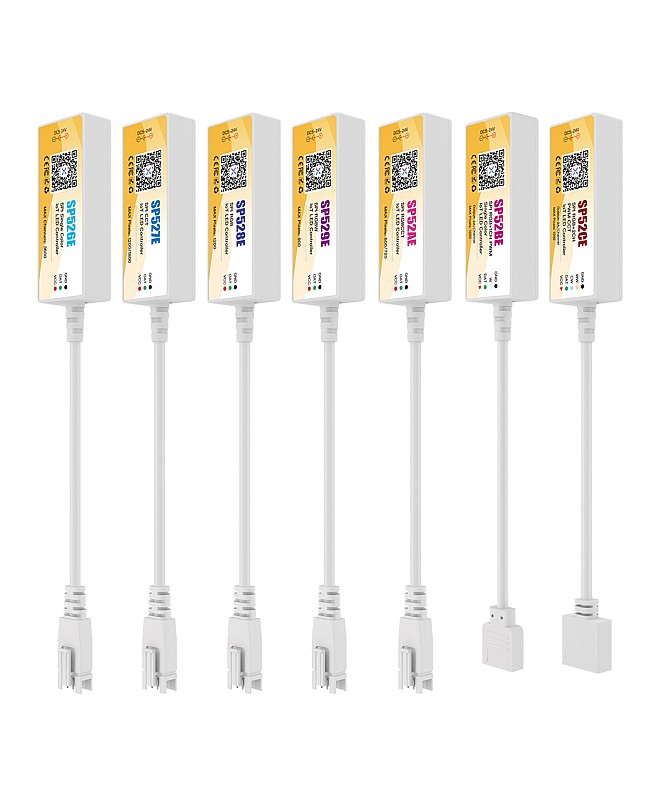

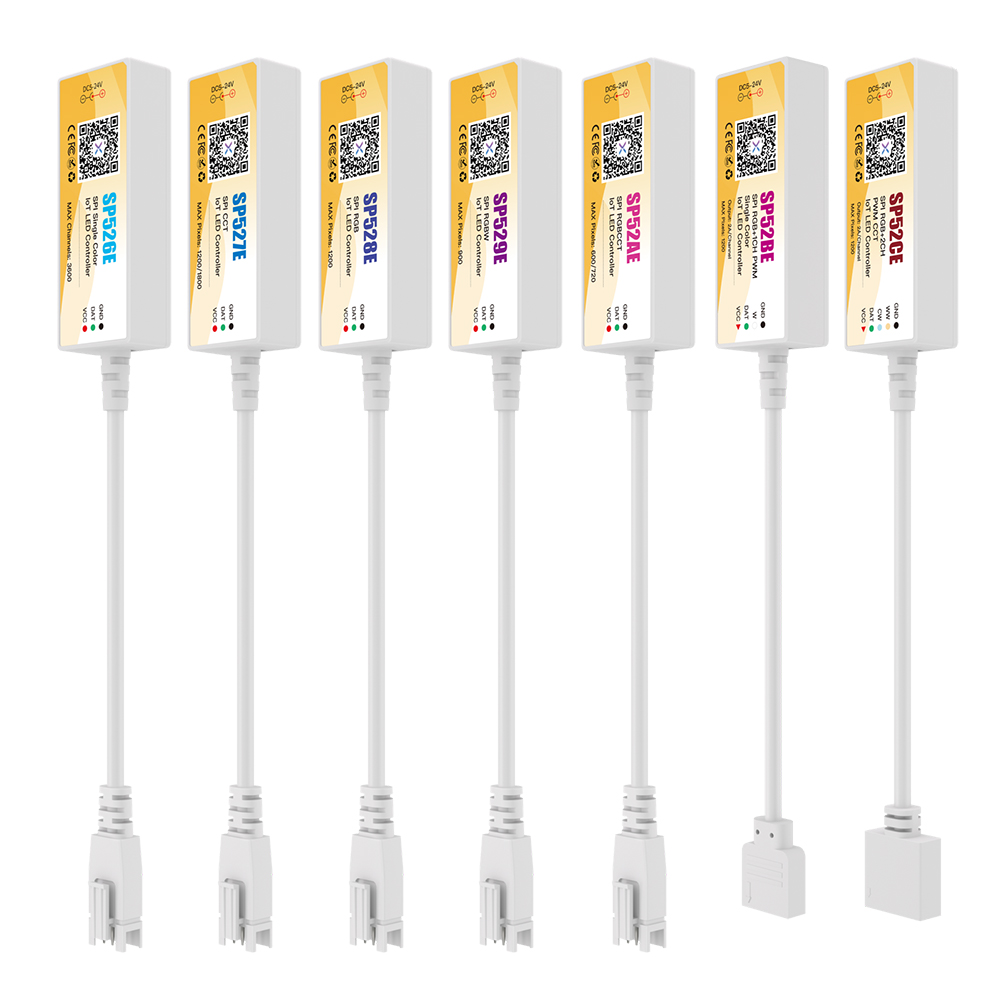

- Models: SP526E, SP527E, SP528E, SP529E, SP52AE, SP52BE, SP52CE
- Size(L x W x H): 56 mm x 21 mm x 21 mm ( 2.2" x 0.83" x 0.83" )
- Input voltage: DC 5V-DC 24V
- Working current: 12 mA -40 mA(SP526E), 12 mA - 45 mA(SP527E/SP528E/SP529E/SP52AE/SP52BE/SP52CE)
- Voice mode: Mobile phone Mic, player streaming, onboard Mic
- Max control number of ICs: 3600 PCS(SP526E), 1200/1800 PCS(SP627E), 1200 PCS(SP528E), 900 PCS(SP529E), 600/720 PCS(SP52AE), 1200 PCS(SP52BE), 1200 PCS(SP52CE)
- Communication protocols: Bluetooth, WiFi, 2.4G
- Control methods: Voice commands, remotes, APP
- APP name: BanlanX
- Support smart speakers: Xiaodu, Xiaoai, Alexa, Google Home

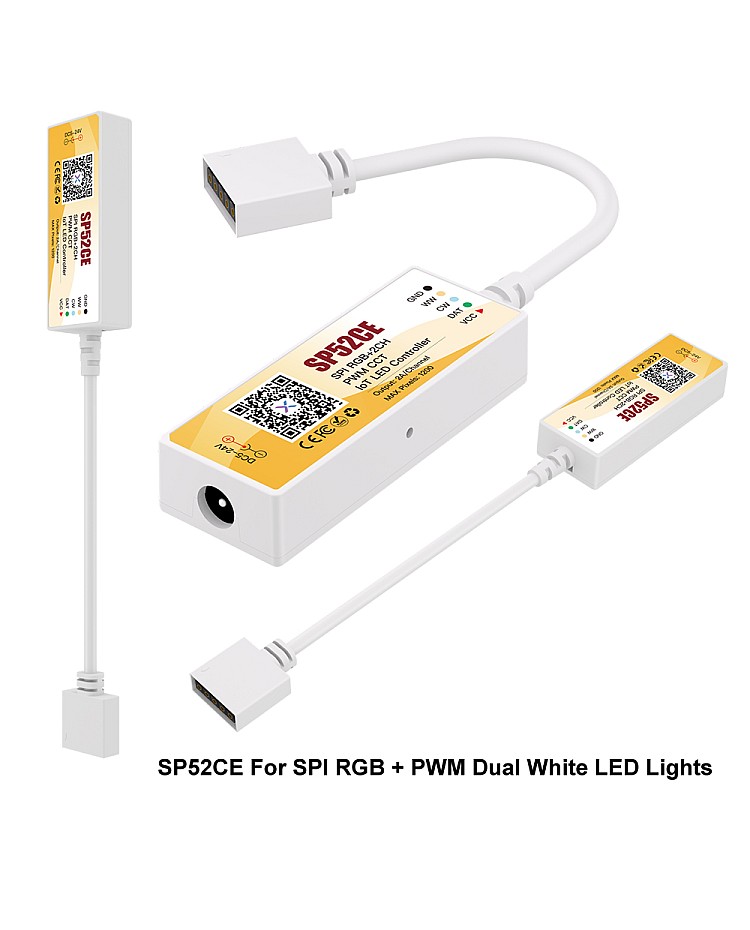

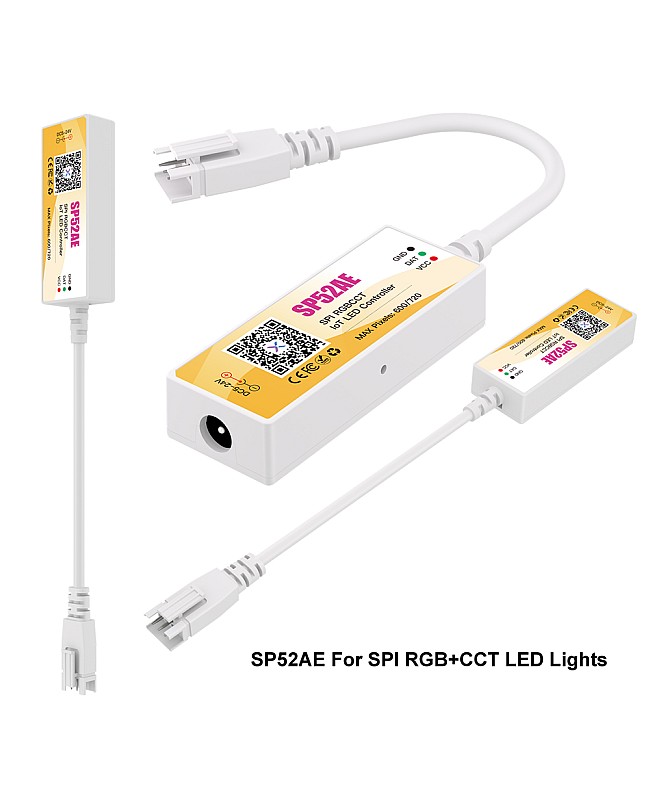

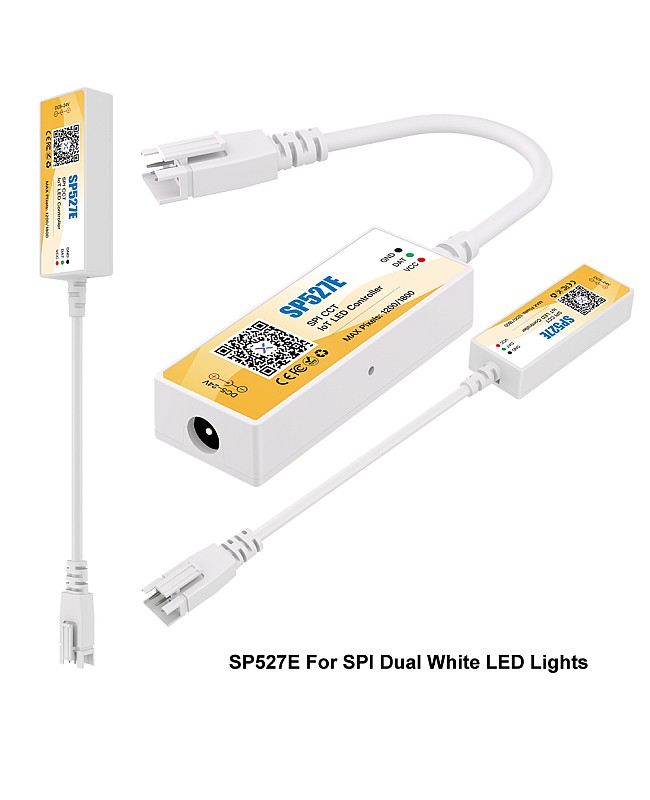

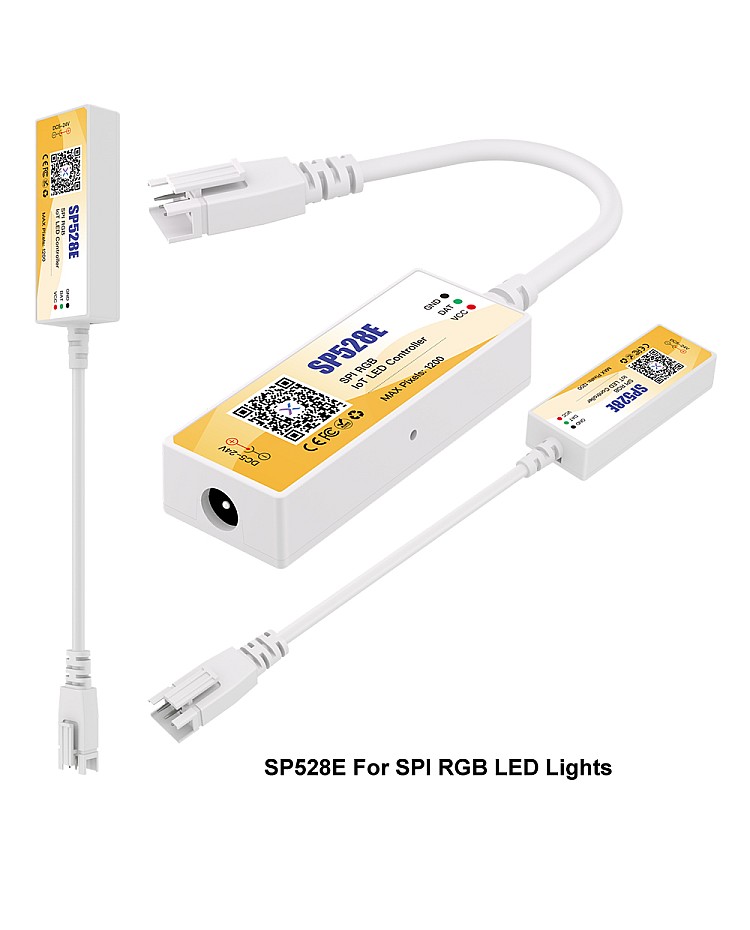

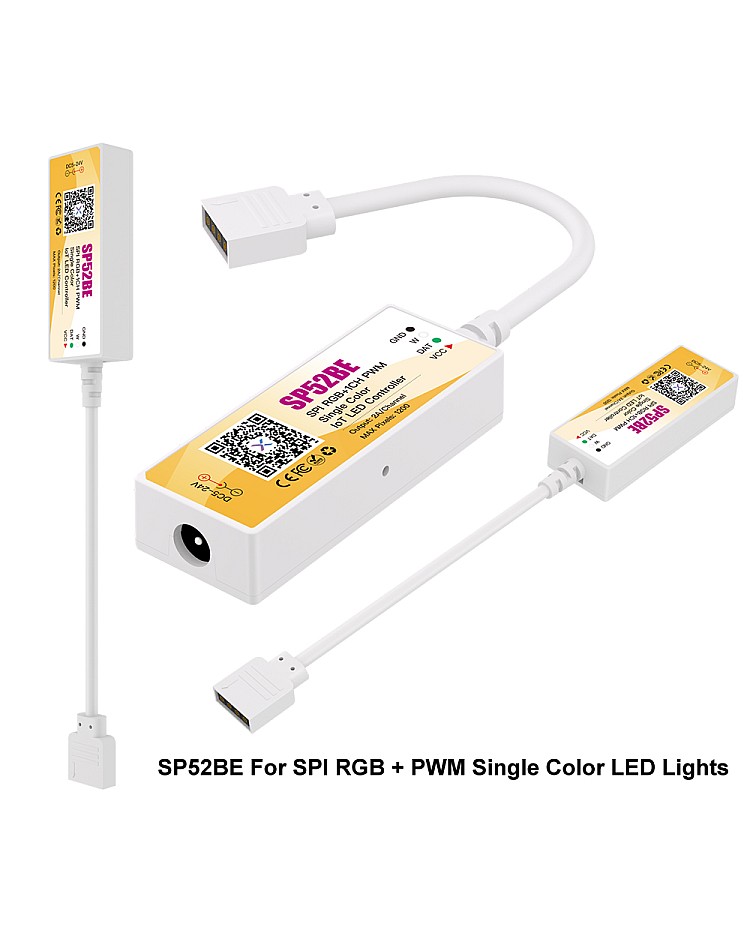

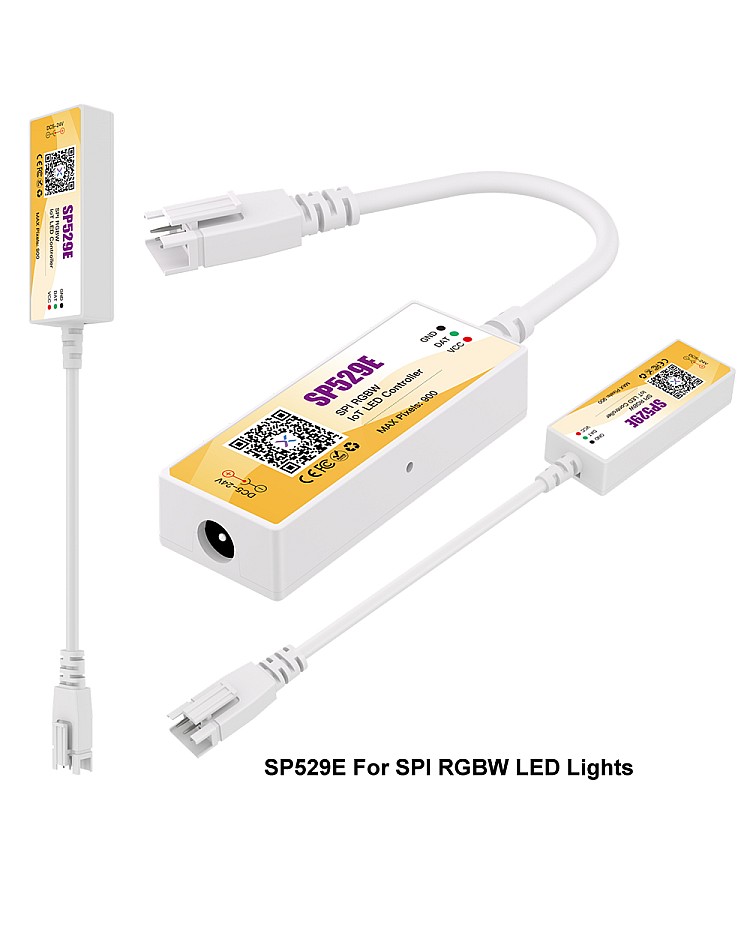

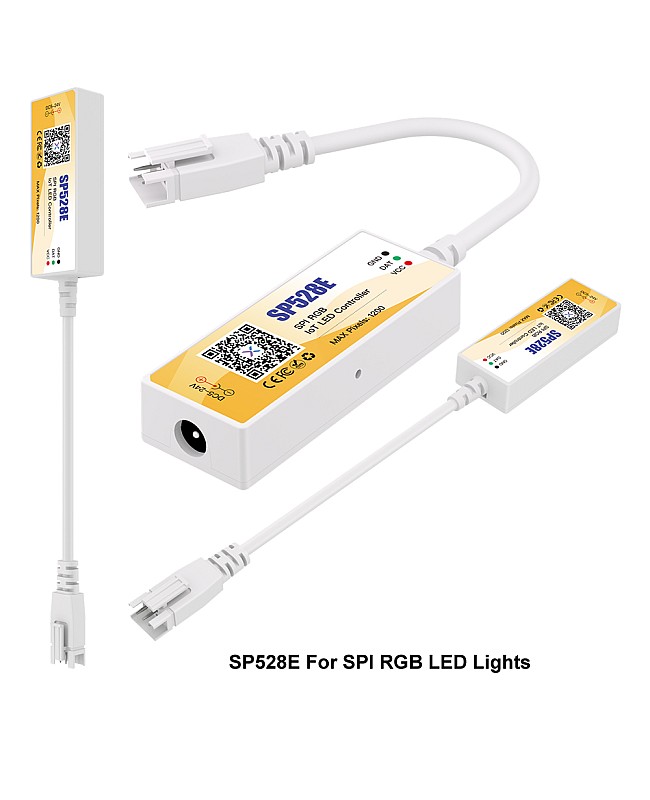

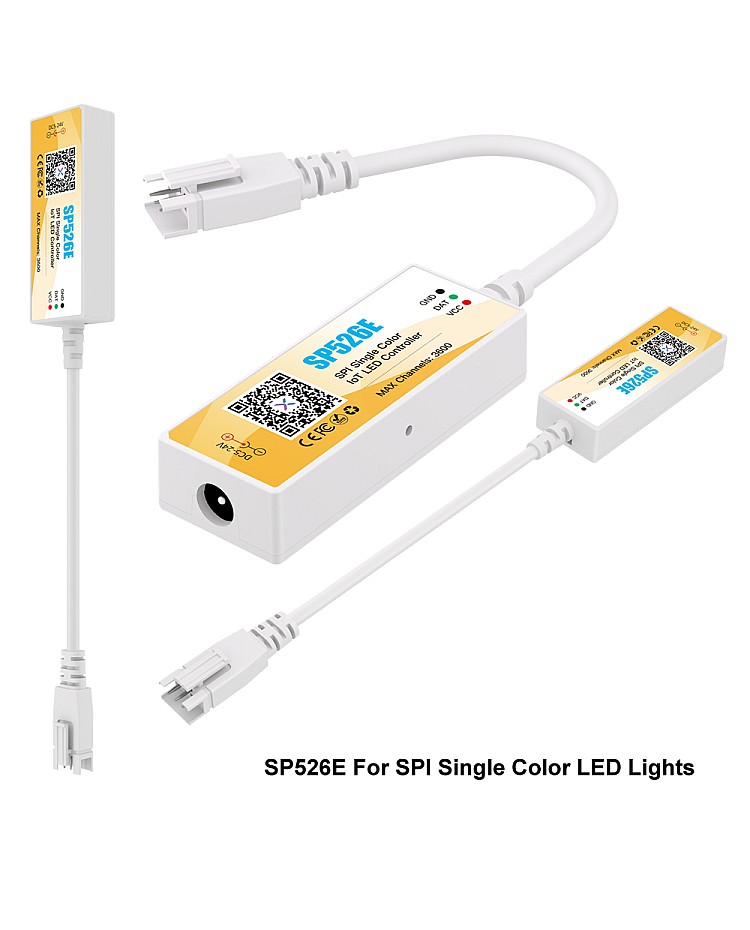

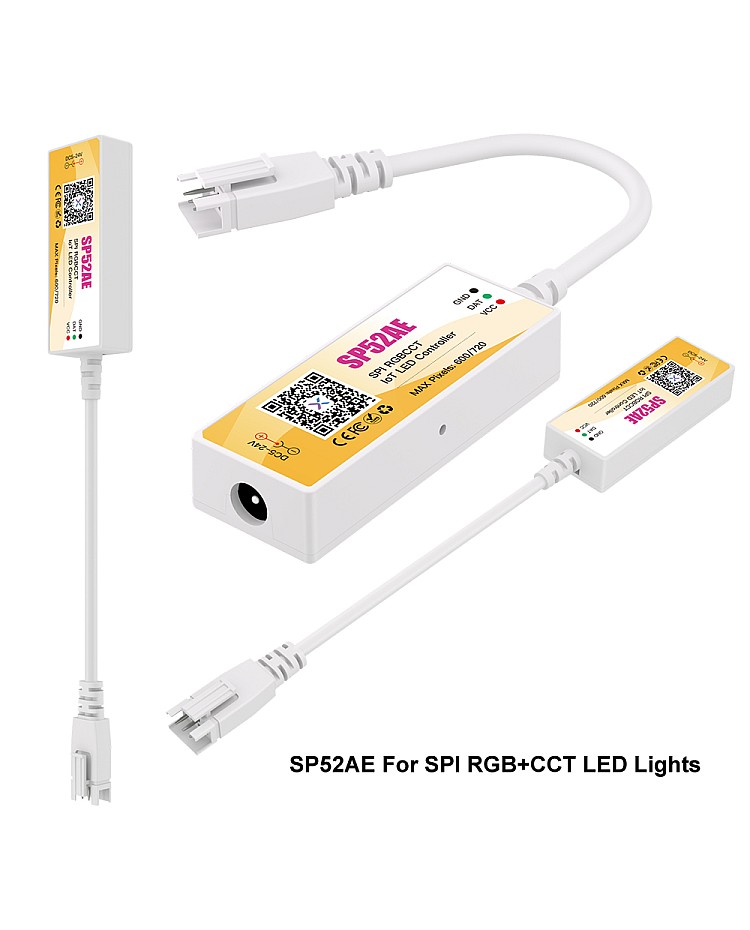

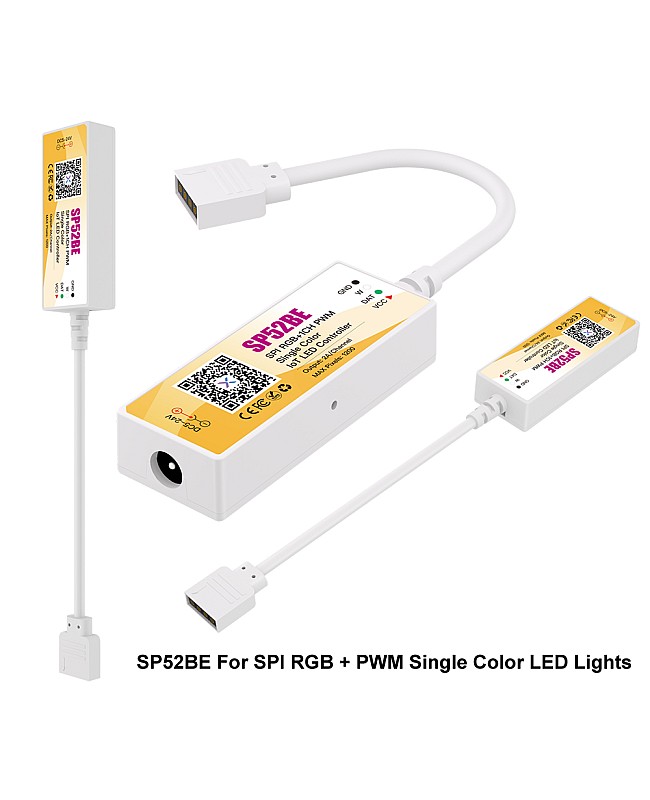

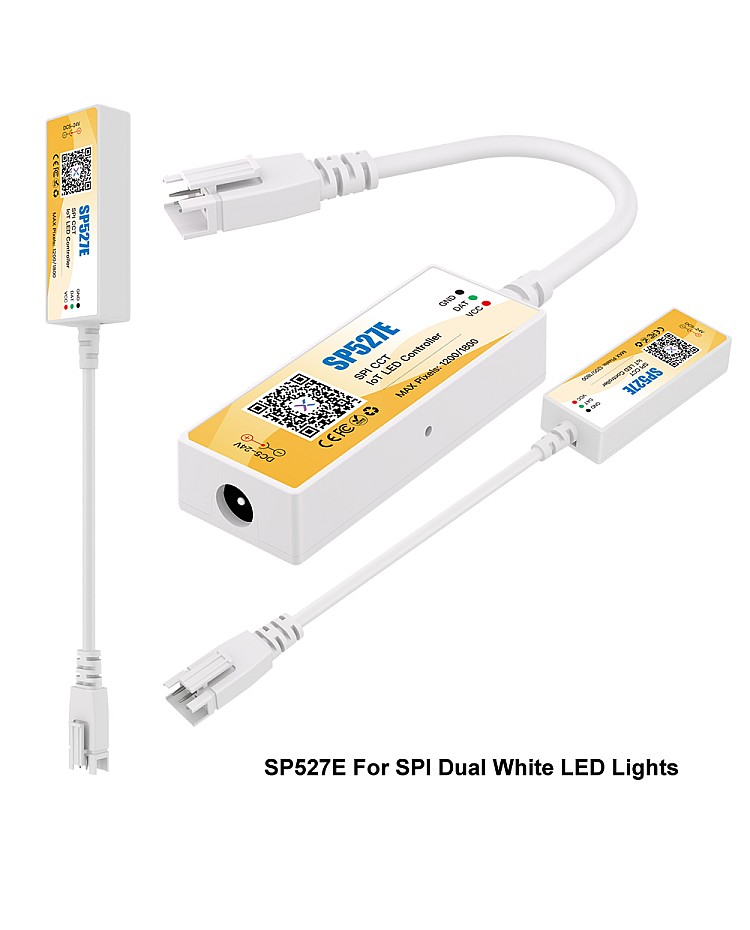

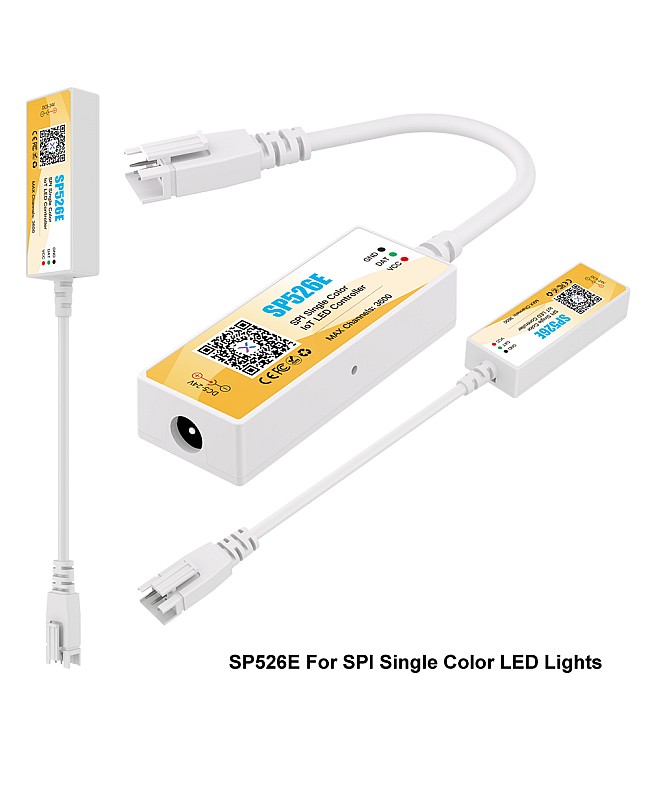

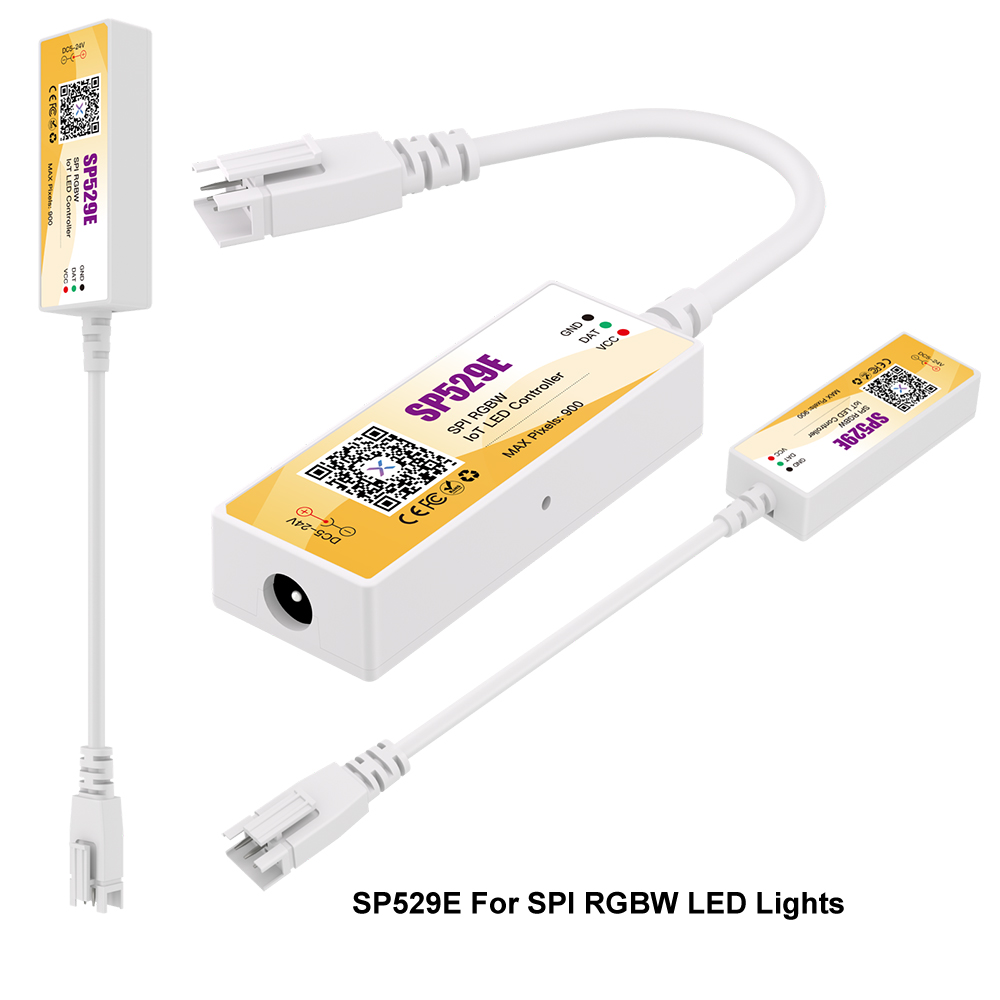

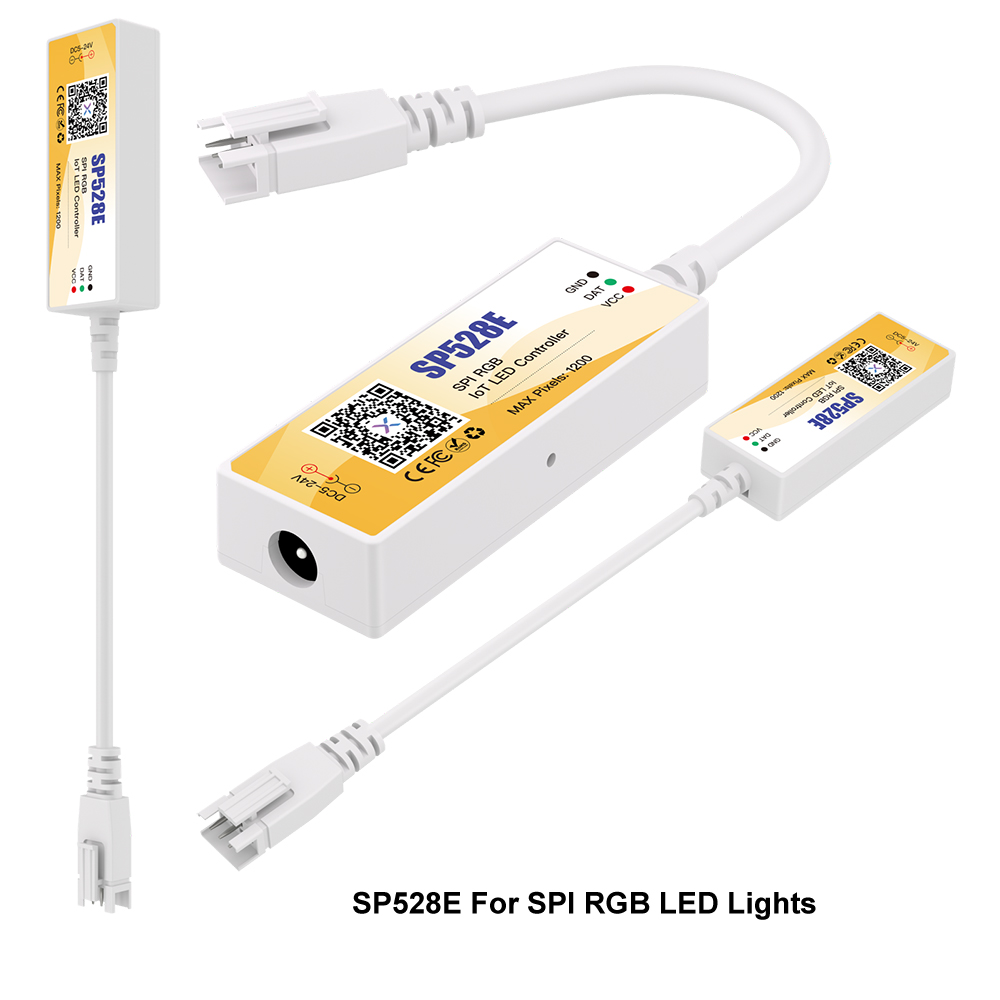

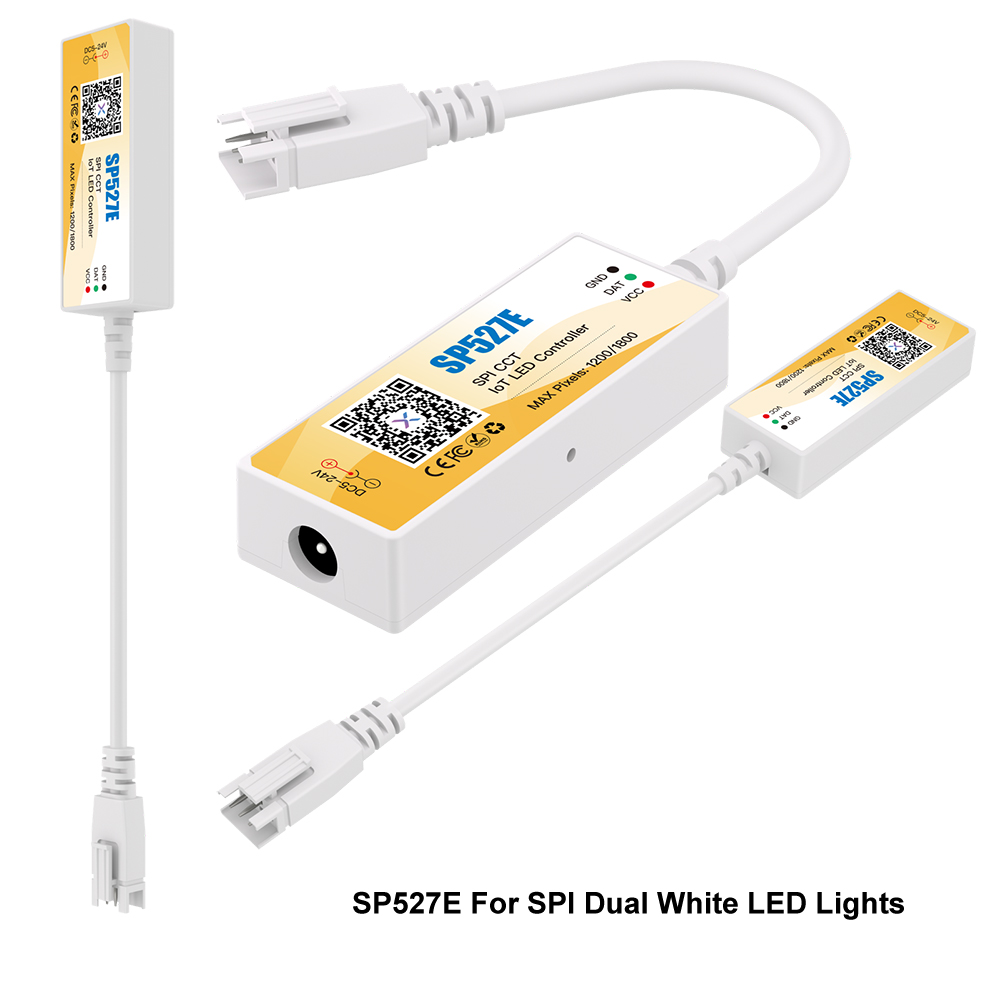

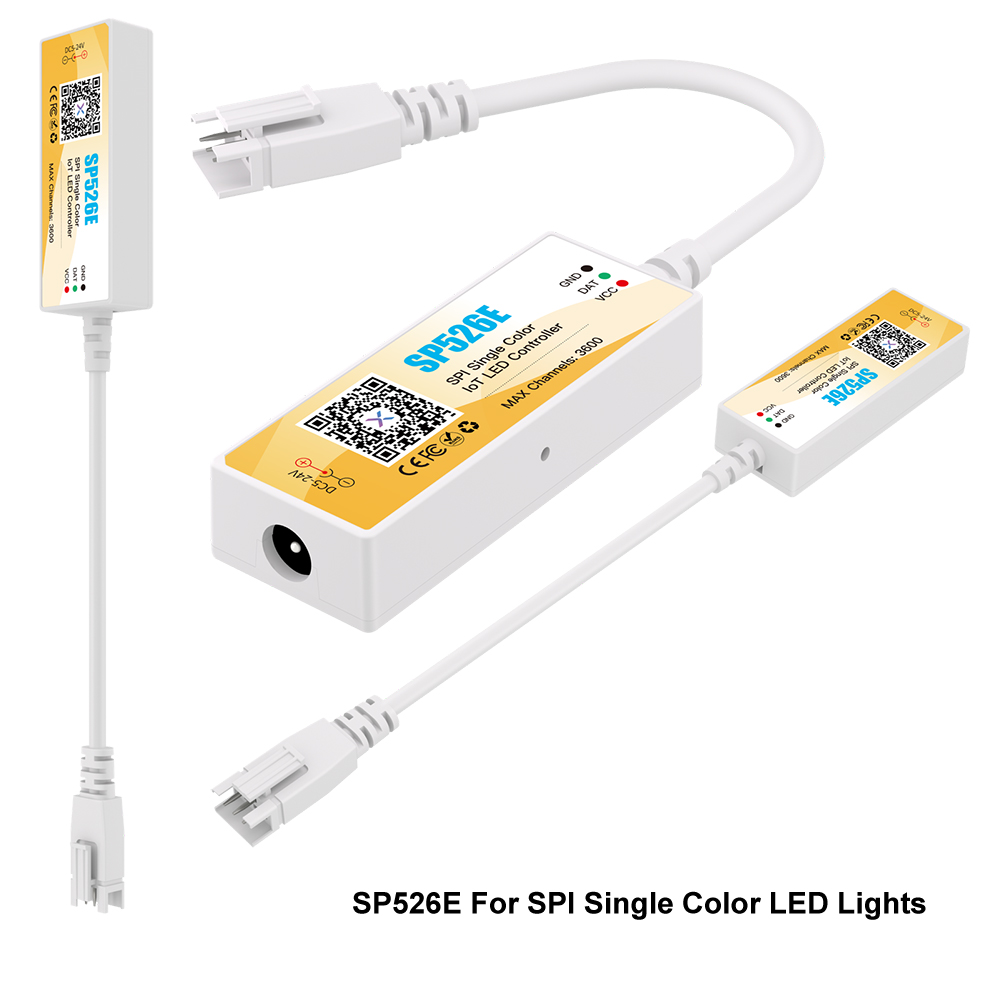

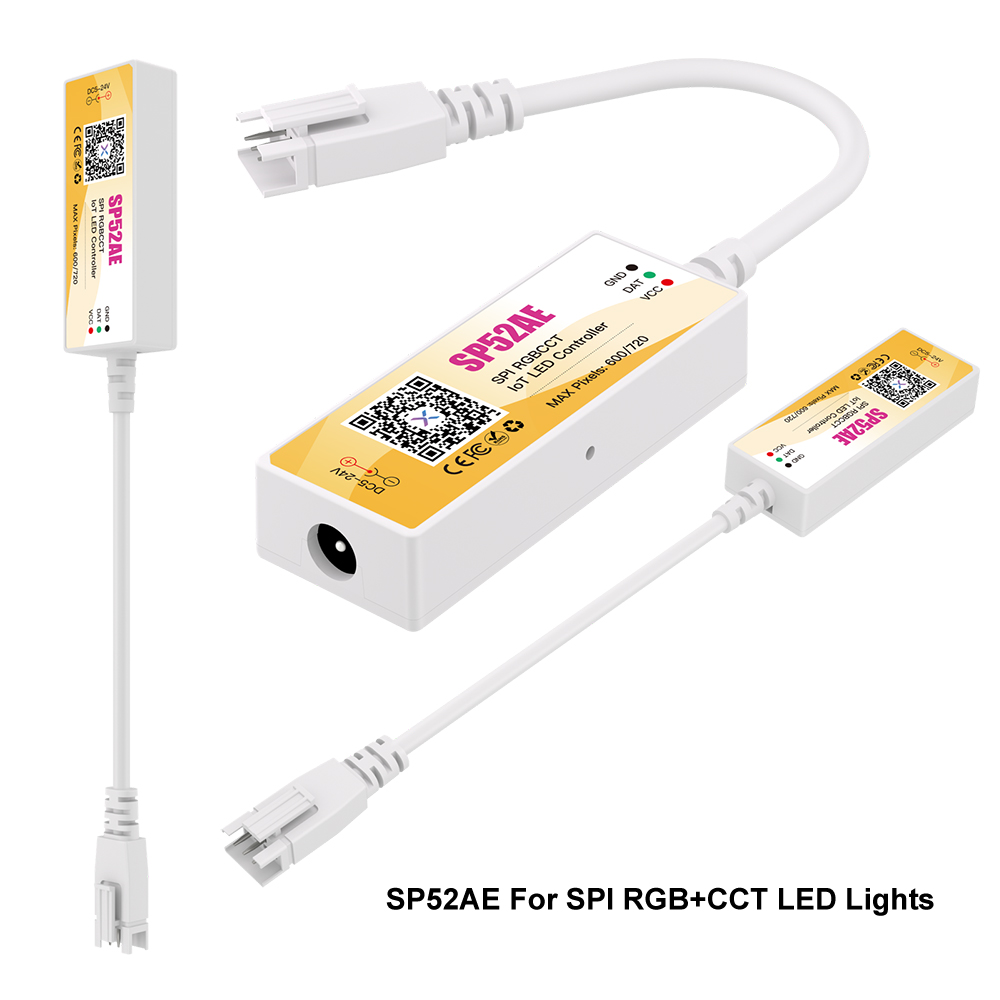

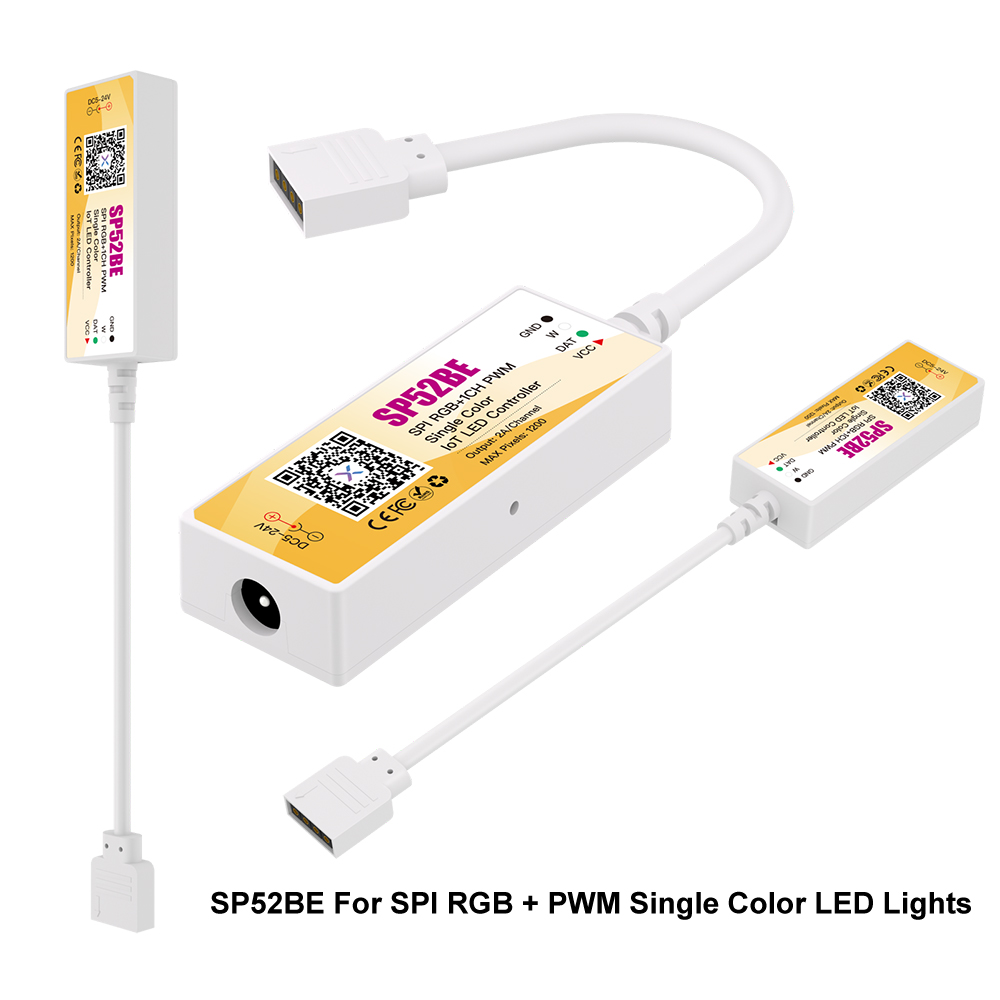

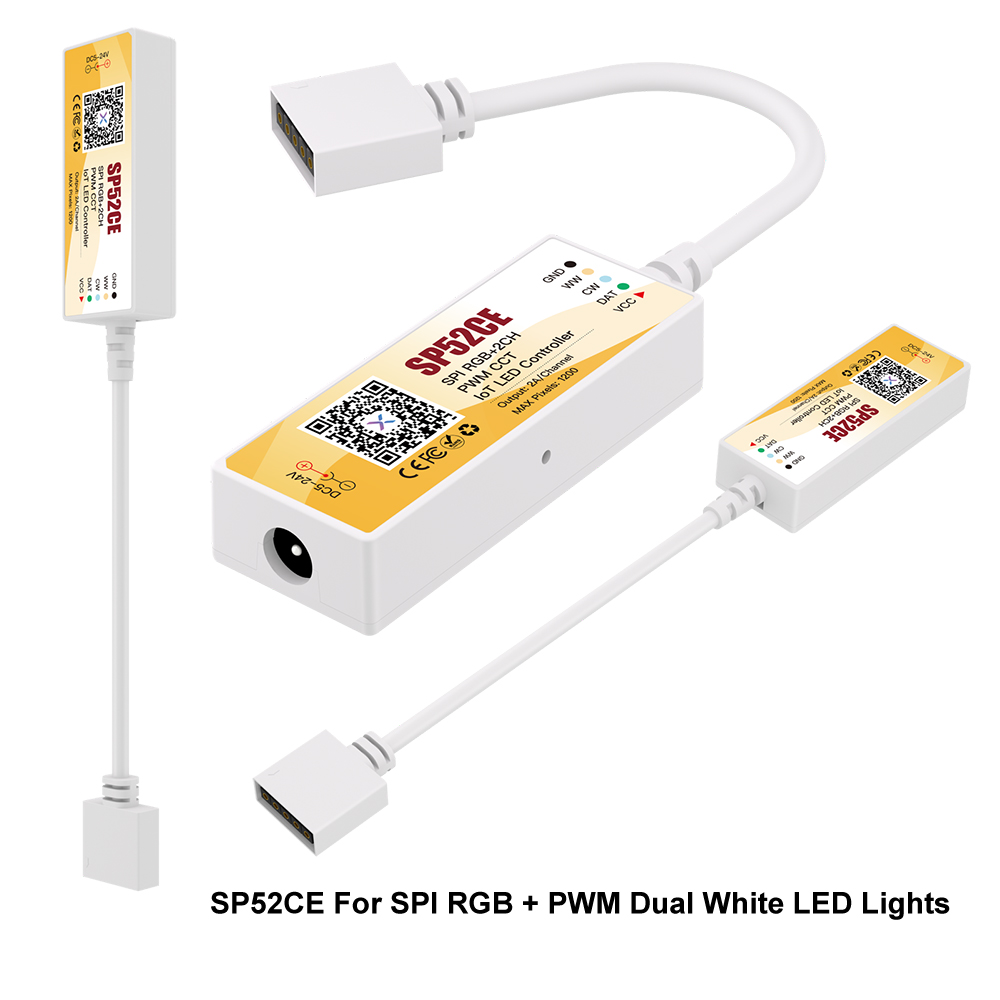

- Applications: SP526E for single color SPI LED lights, SP527E for dual white addressable LED strips, SP528E for RGB smart LED tapes, SP529E for RGBW programmable LED strips, SP52AE for RGBCCT pixel LED strips, SP52BE for SPI RGB+ PWM single color strip lights, SP52CE for SPI RGB+ PWM dual white tape lights
- Remote control recommended: RD1(SP526E), RD2(SP527E), RD3(SP528E/SP529E/SP52BE), RD4(SP52AE/SP52CE)
- Working temperature: -10℃-+60℃
- Lifespan: > 35,000 hours
- Warranty: 2 years
Includes:
1 * Smart strip light controller
