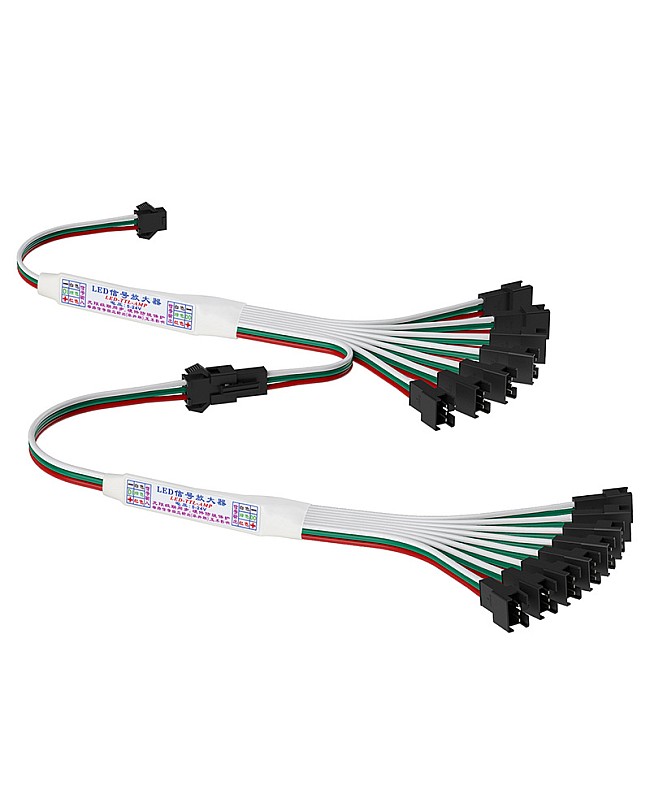

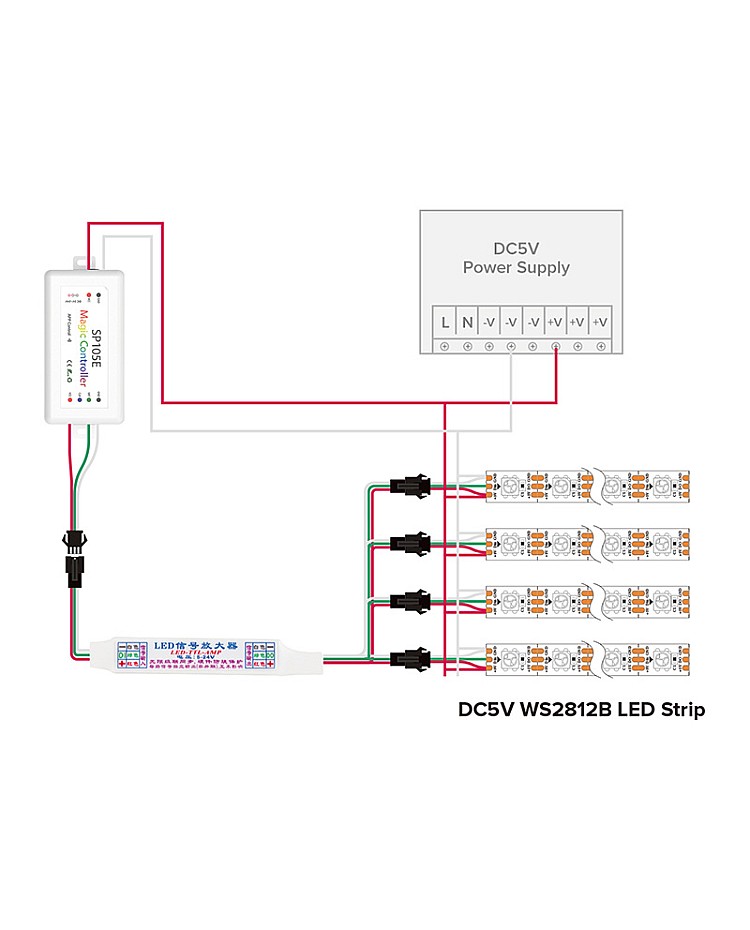

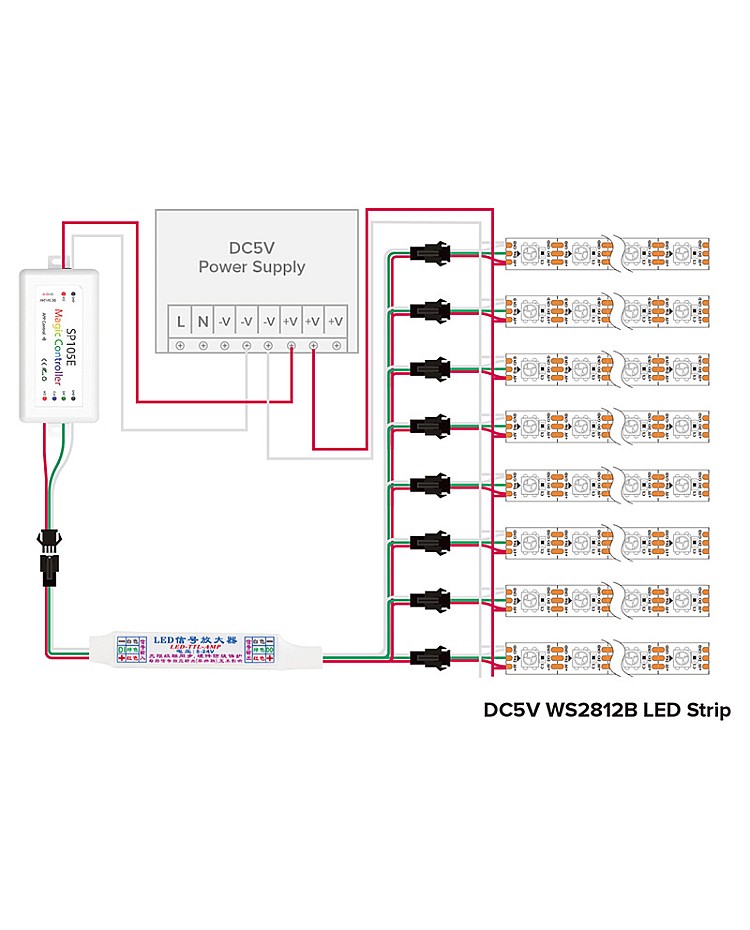

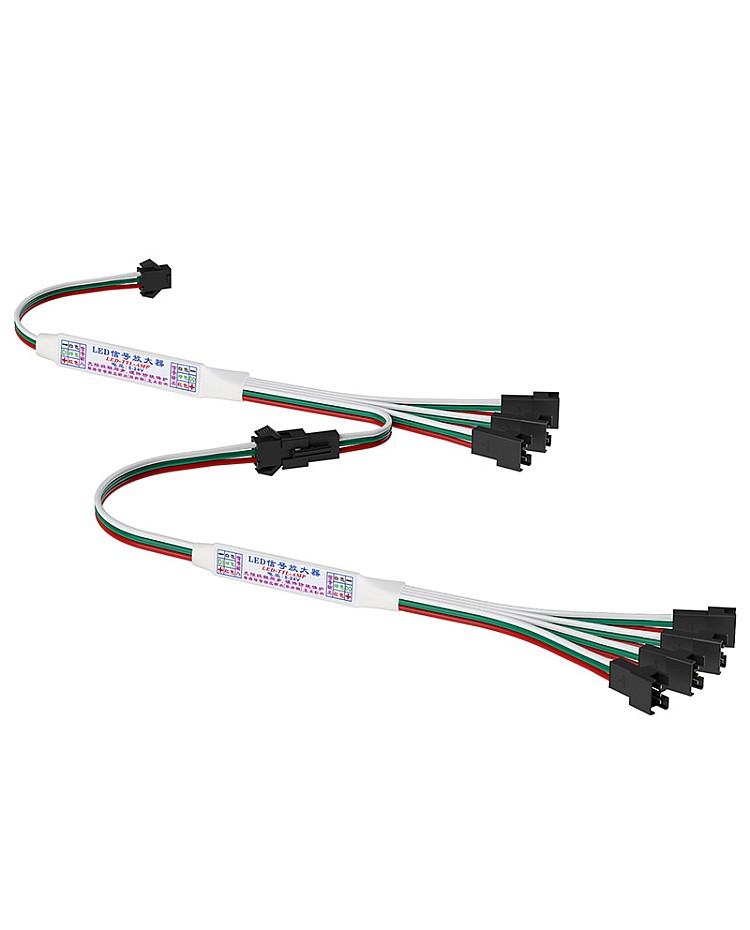

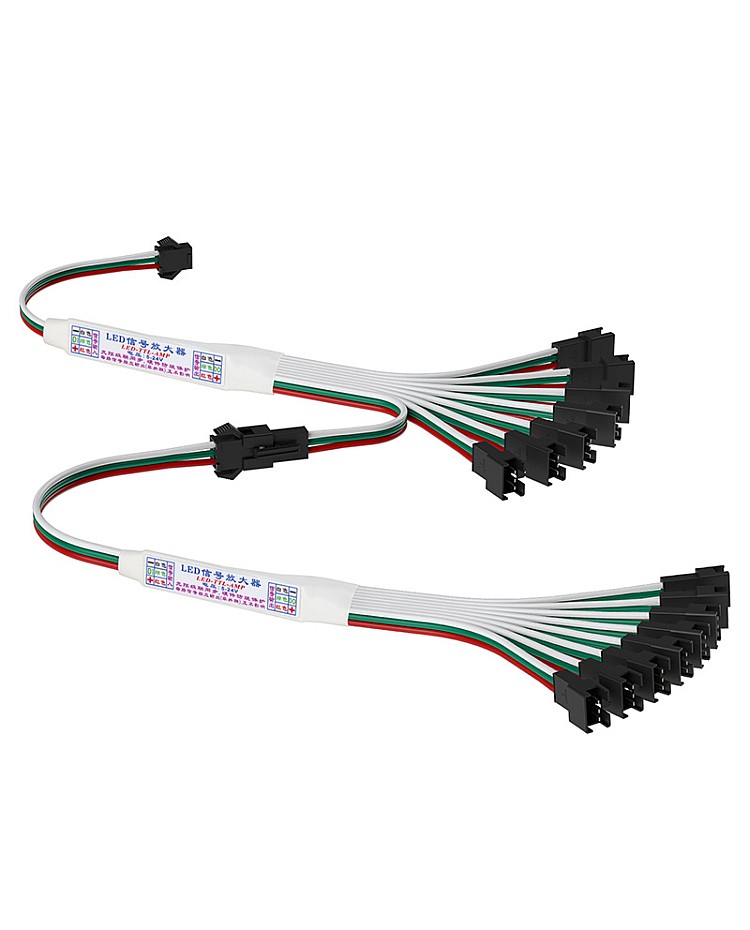

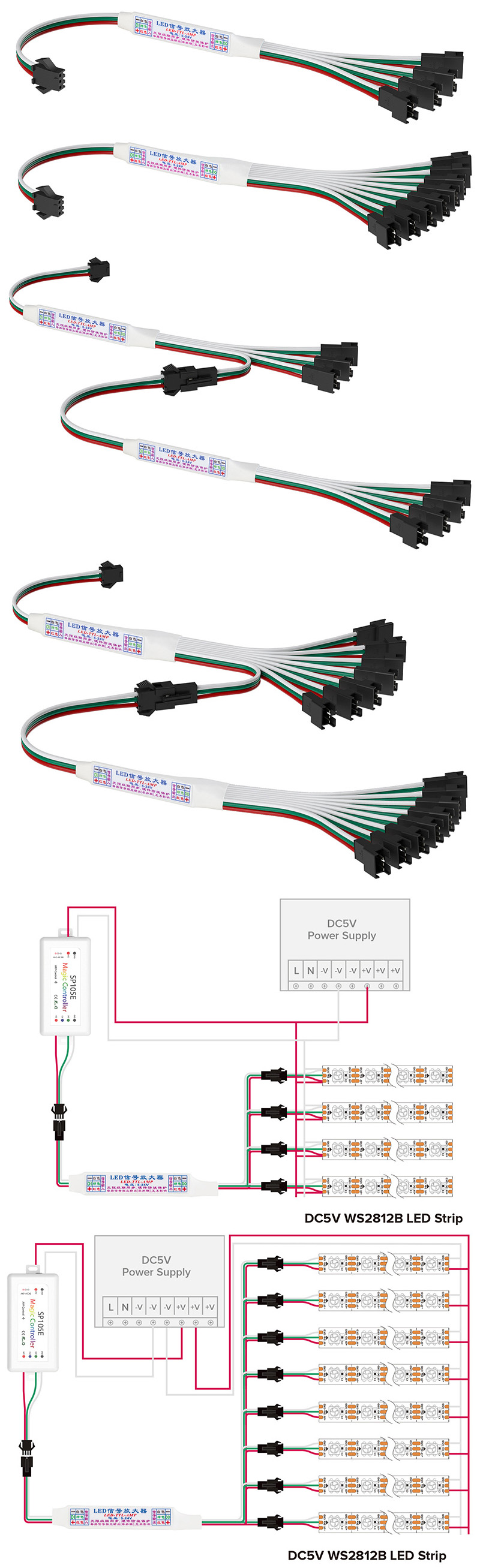

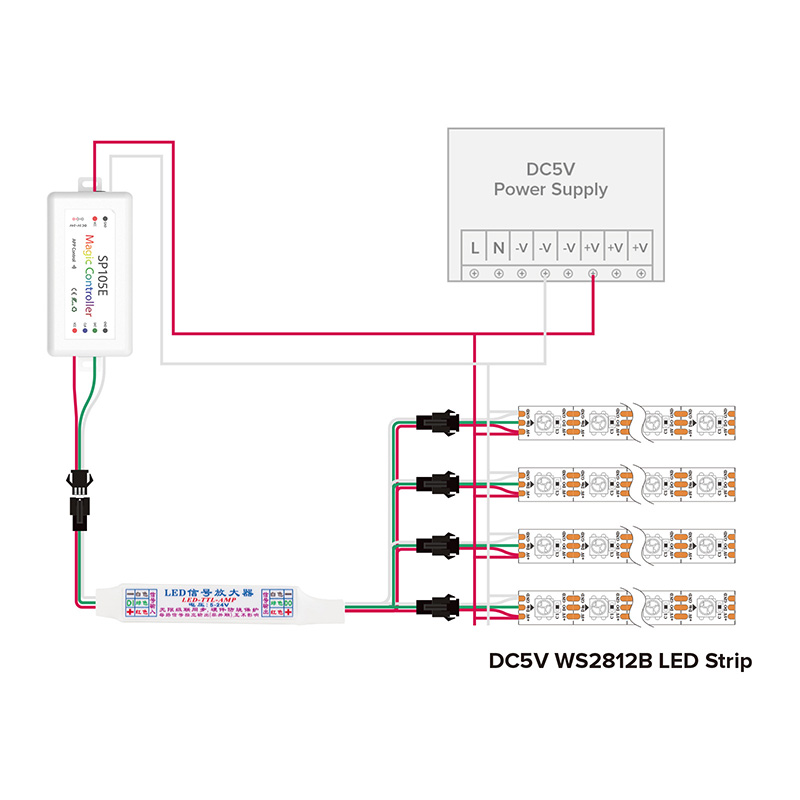

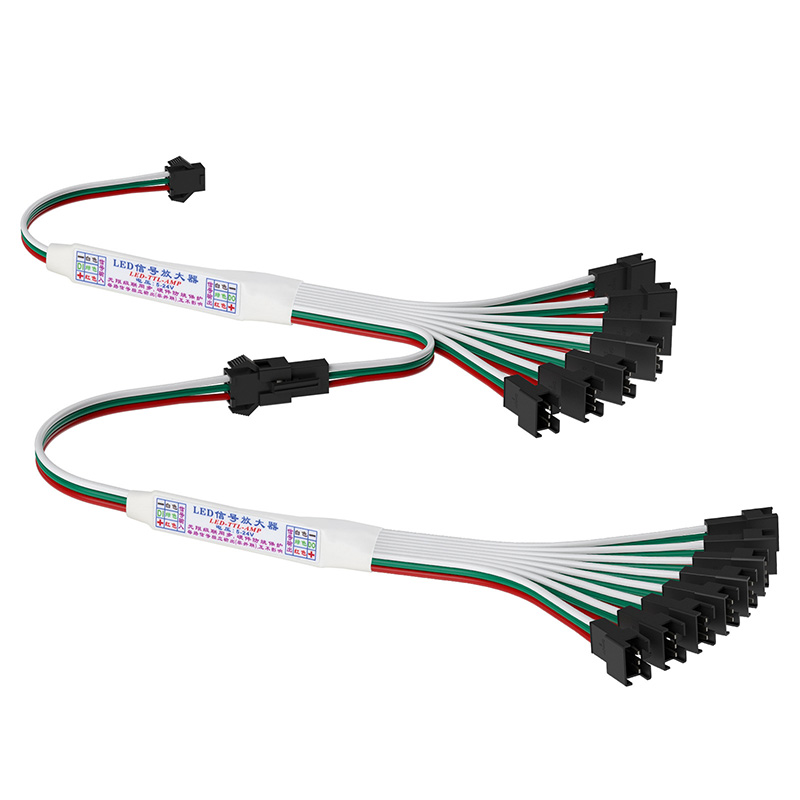

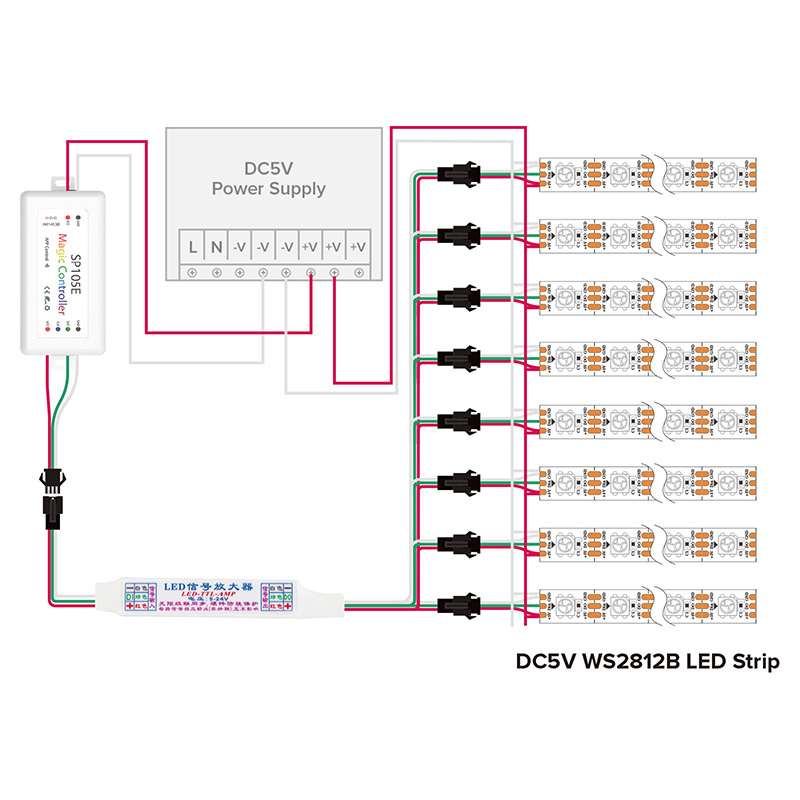

The 3-pin addressable LED strip signal boosters are designed to connect multiple RGBIC LED strips to a single controller and operate synchronously. You can choose the 1 to 4 or the 1 to 8. They have male and female 3P connectors on the sides, which allow them to connect to the programmable strip lights conveniently. The LED signal repeater receives a signal from the RGBIC LED controller and simultaneously sends it to 4 or 8 channels. Each channel can control the same number of ICs as the pixel LED controller.
Specifications:
- Type: Singal Booster For 3Pin Addressable LED Strip Lights
- Models: 1 To 4 / 1 To 8
- Working Voltage: DC5-24V

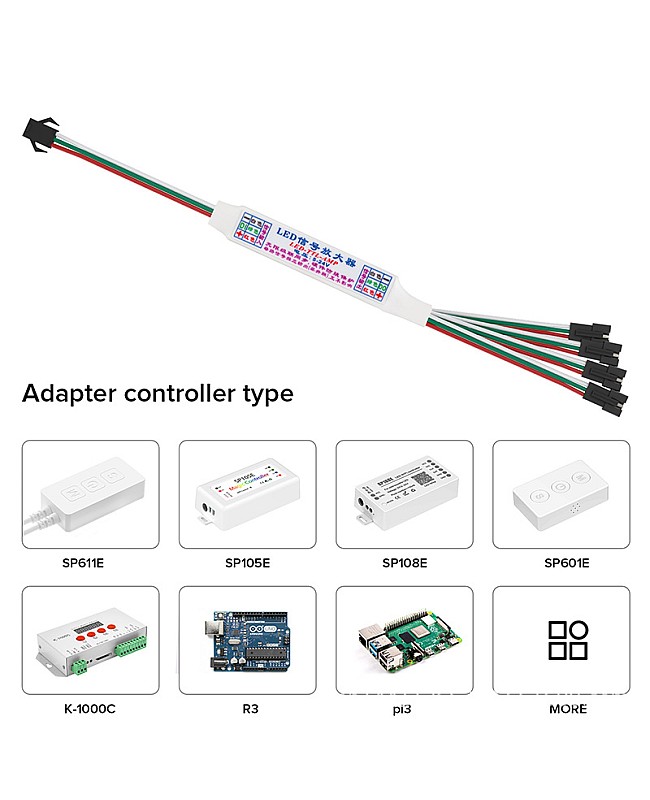

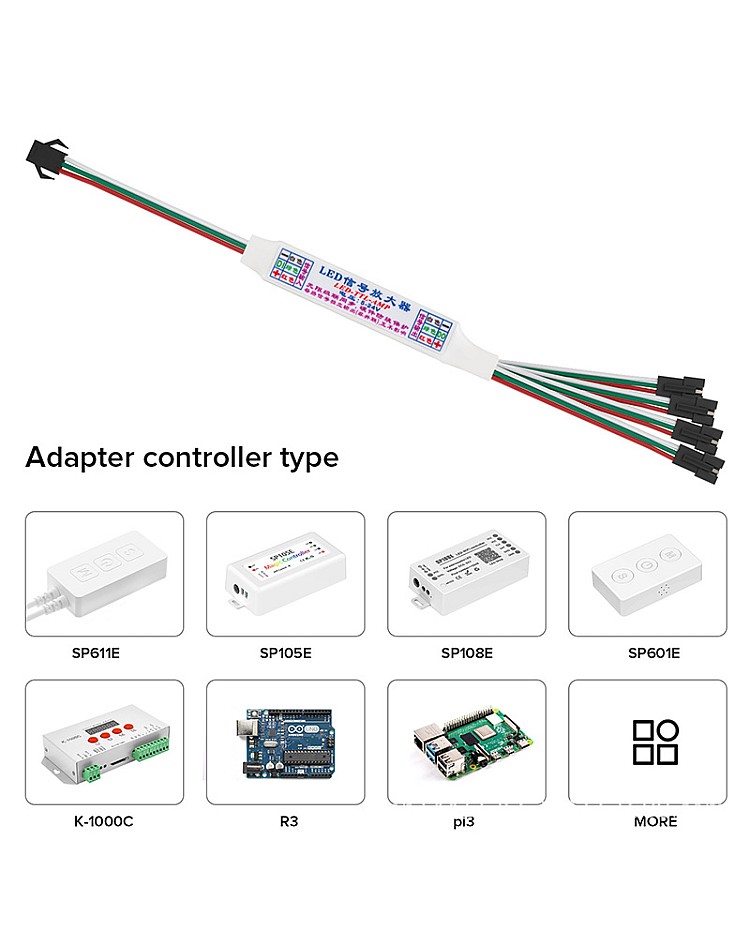

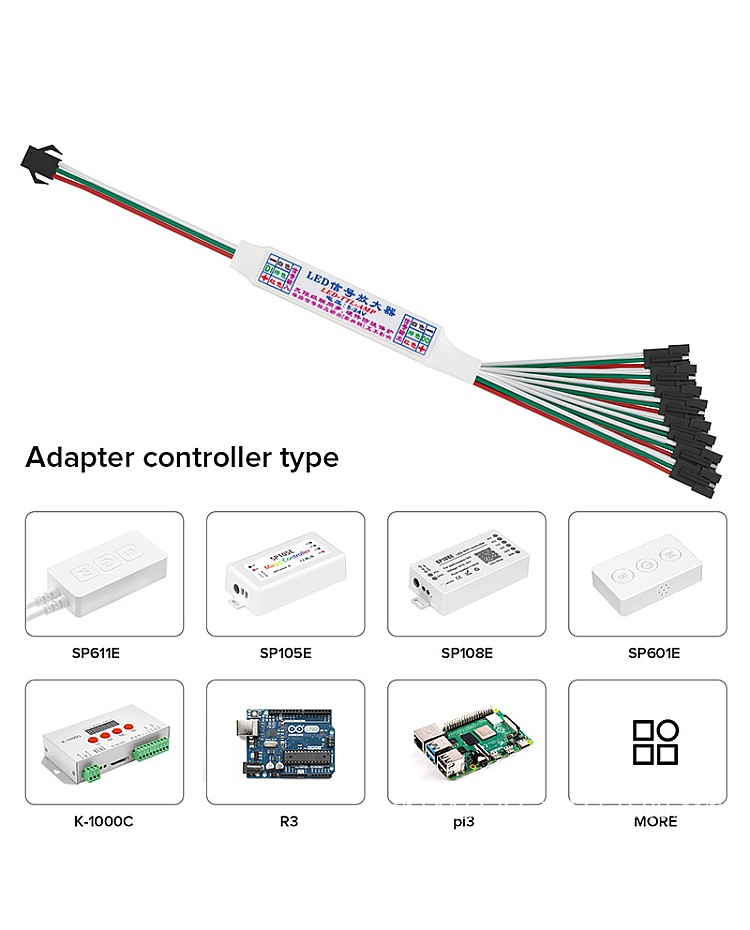

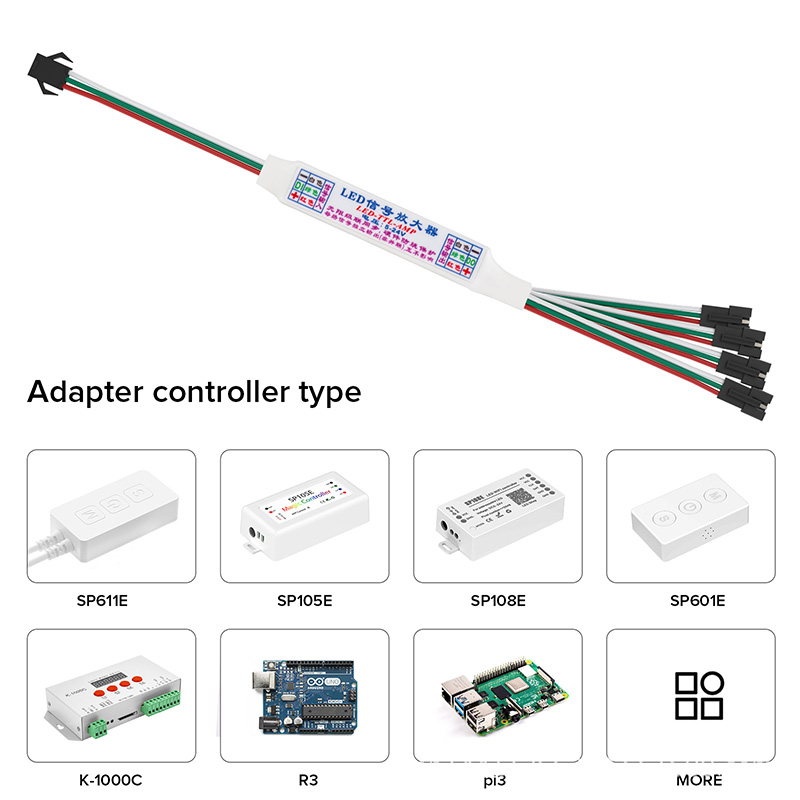

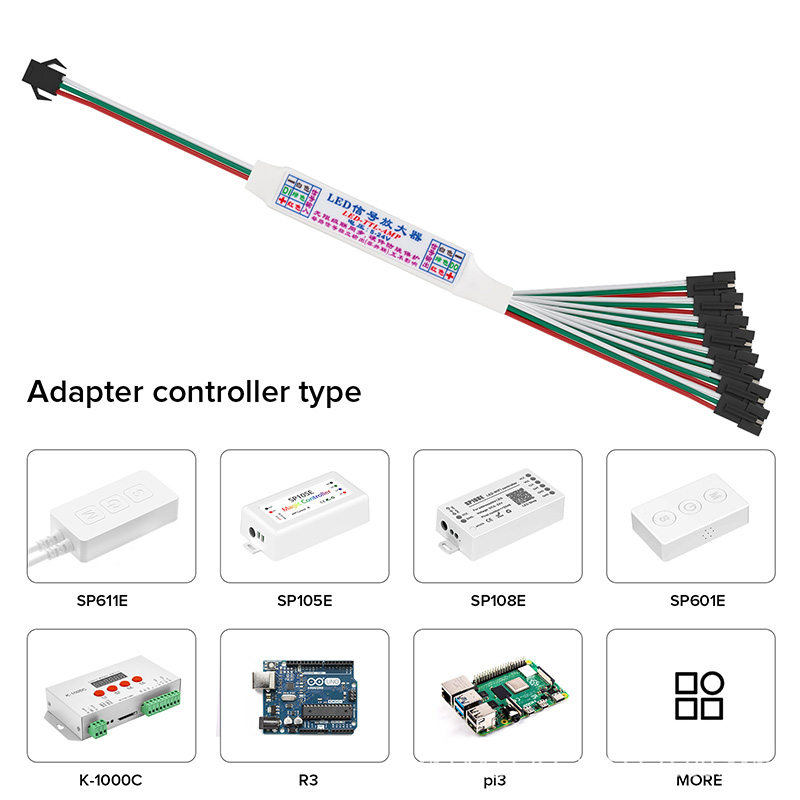

- Can work with SP611E, SP601E, SP108E, SP105E, SP608E, SP602E, Arduino R3, Rasp Pi, ESP8266, K-1000C, etc
- Only can work with 3Pin Addressable LED Strip Lights like WS2811, WS2812B, WS2814, SK6812, 16703, 1903, 6803, etc
- Input Side: GND(White Wire), DI(Green Wire), VCC(Red Wire)
- Output Side: GND(White Wire), DO(Green Wire), VCC(Red Wire)

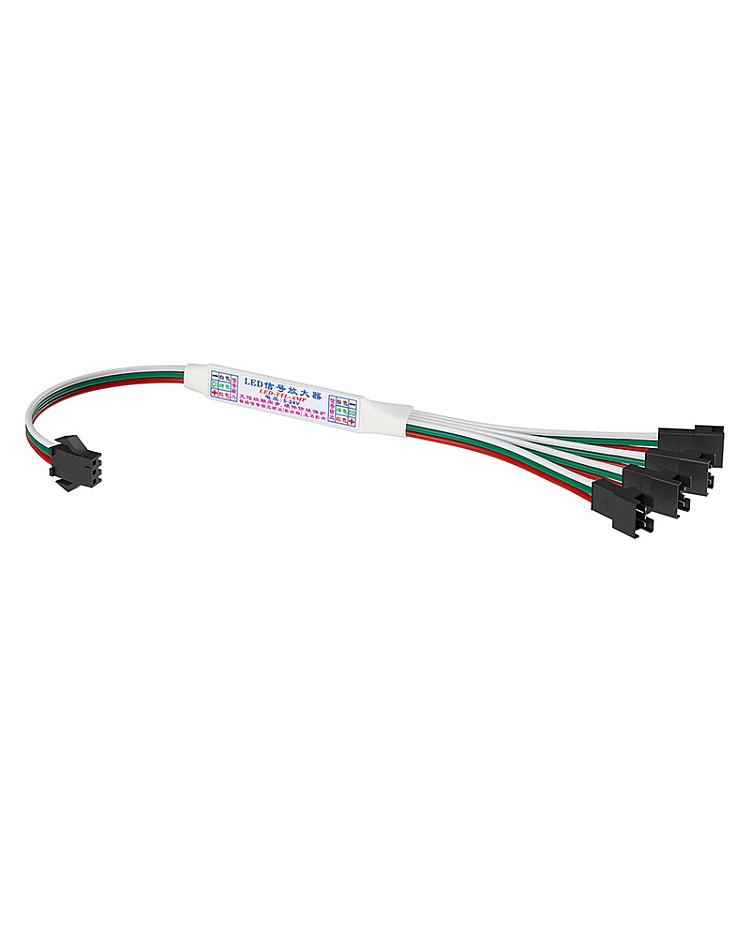

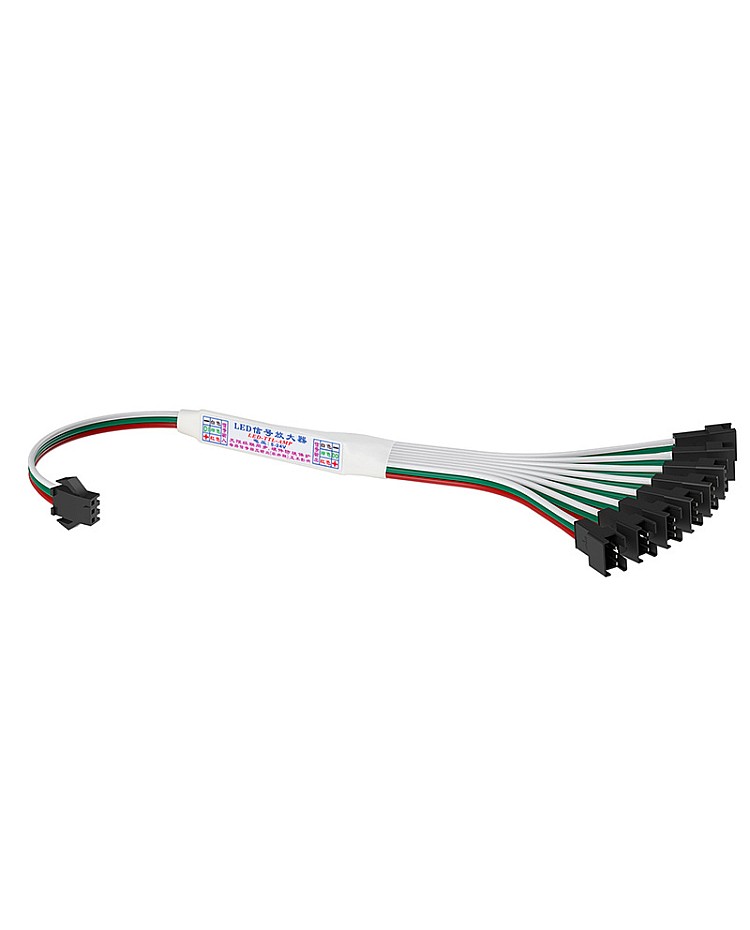

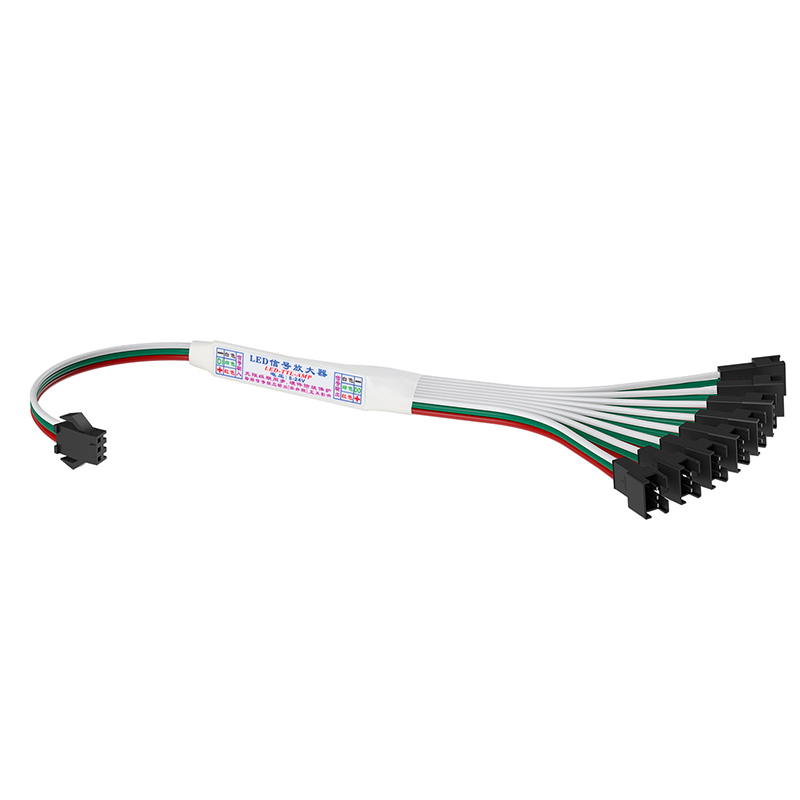

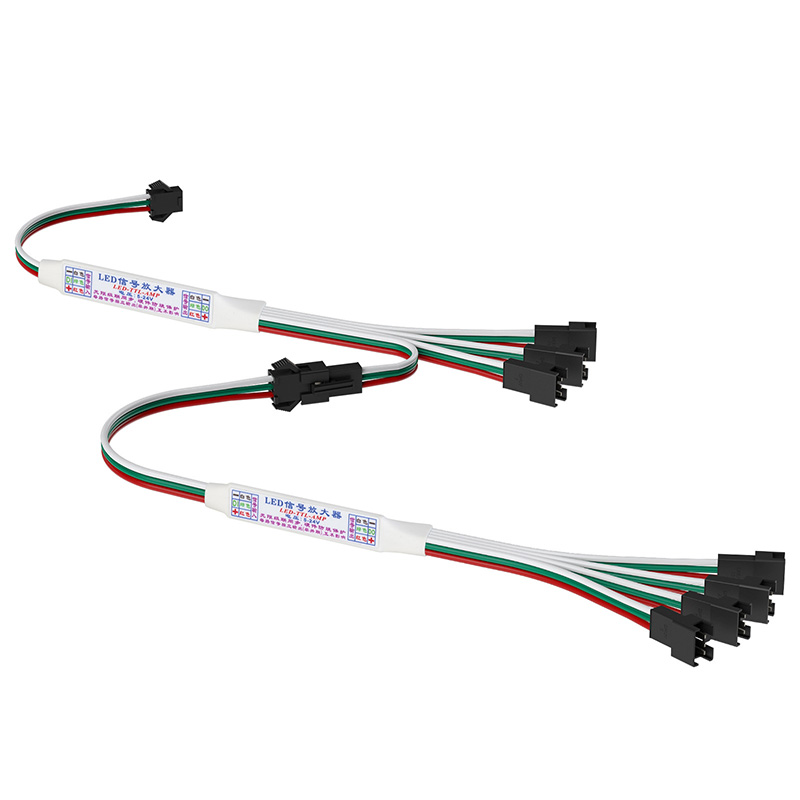

- One side has one male connector, and the other side has 4 or 8 female connectors
Includes:
1 * 1 To 4 / 1 To 8 Signal Booster
