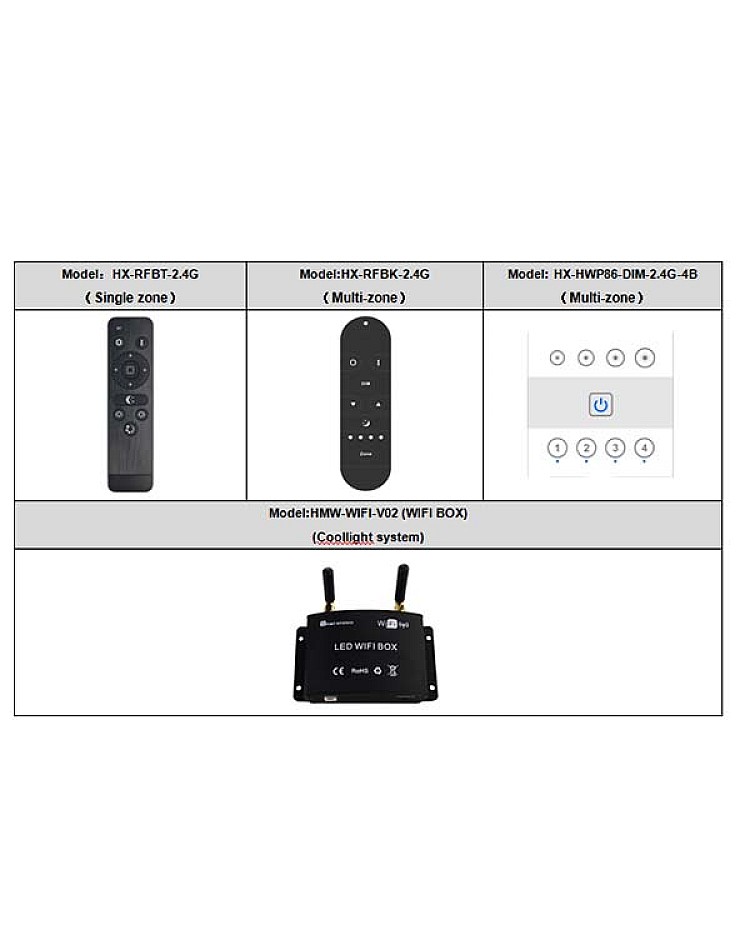

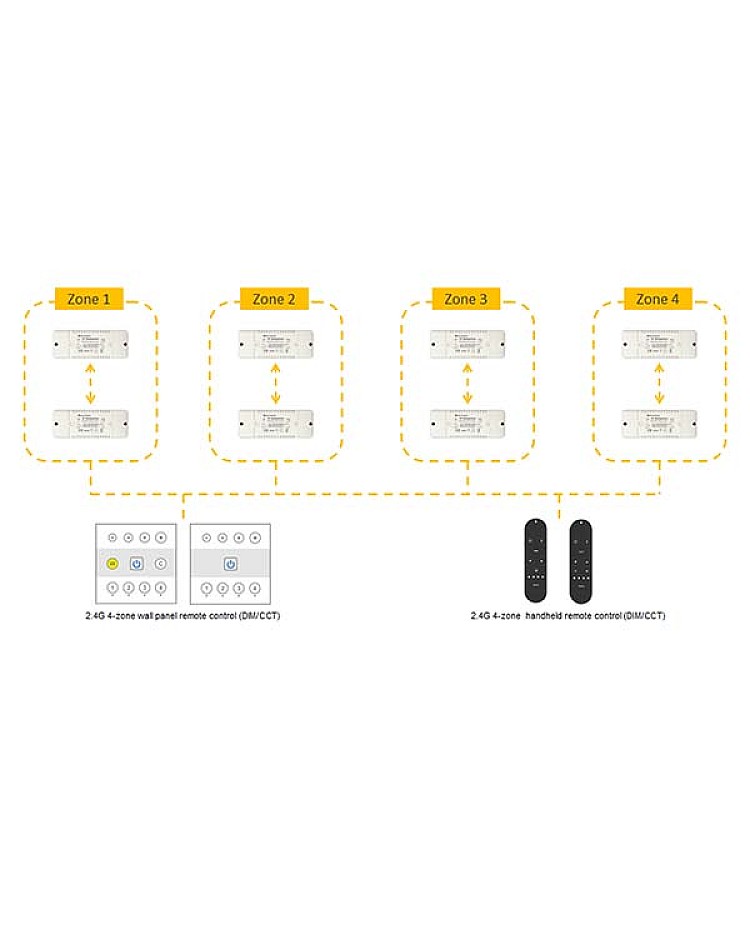

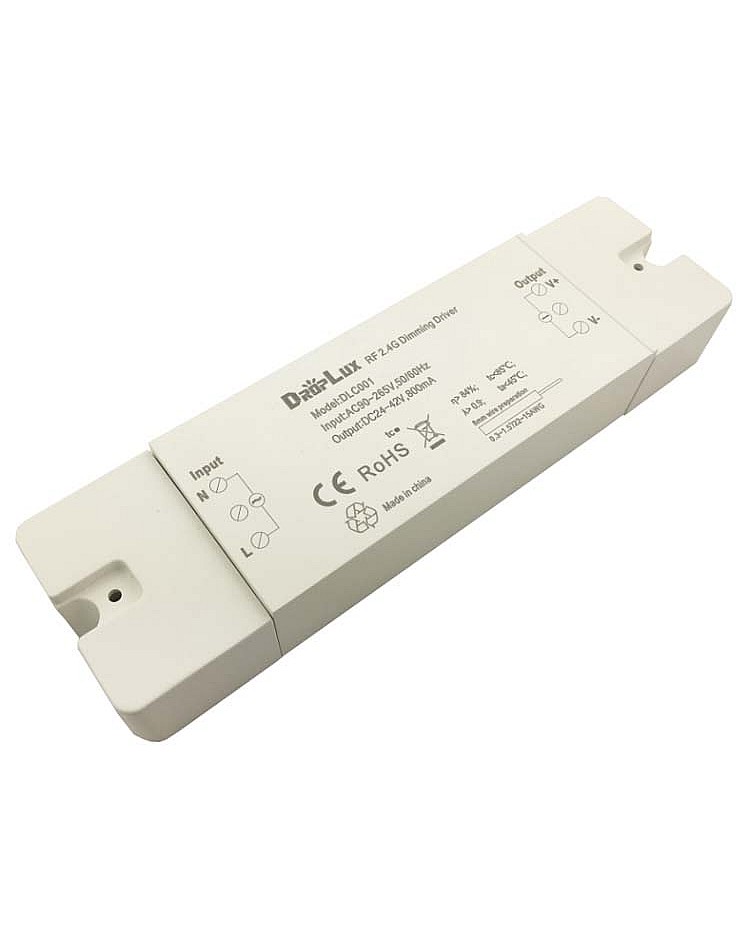

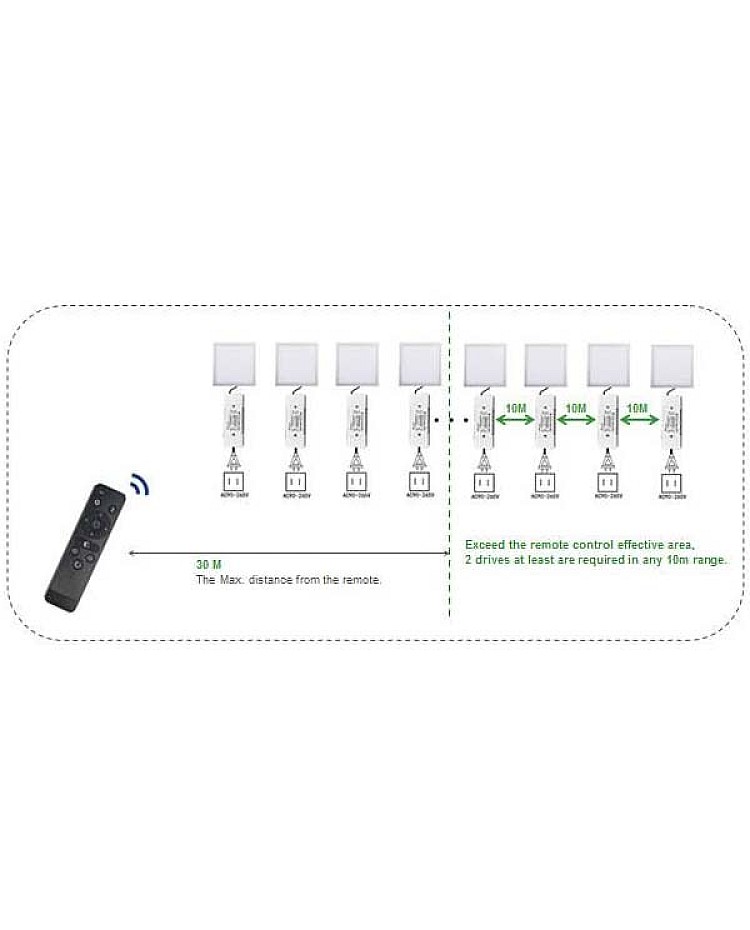

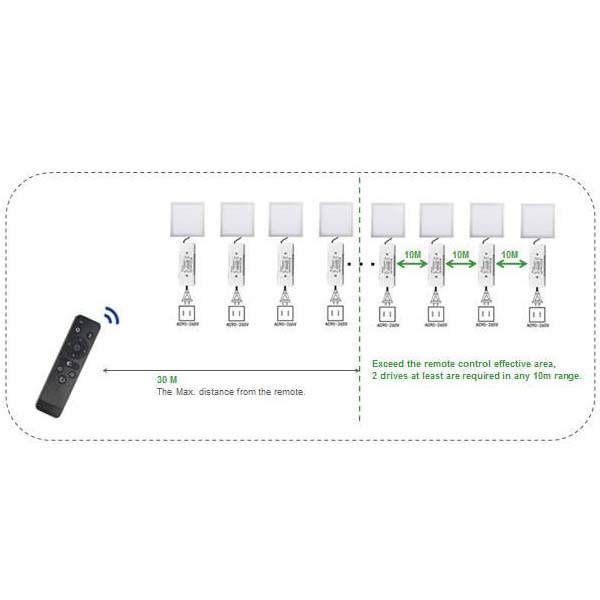

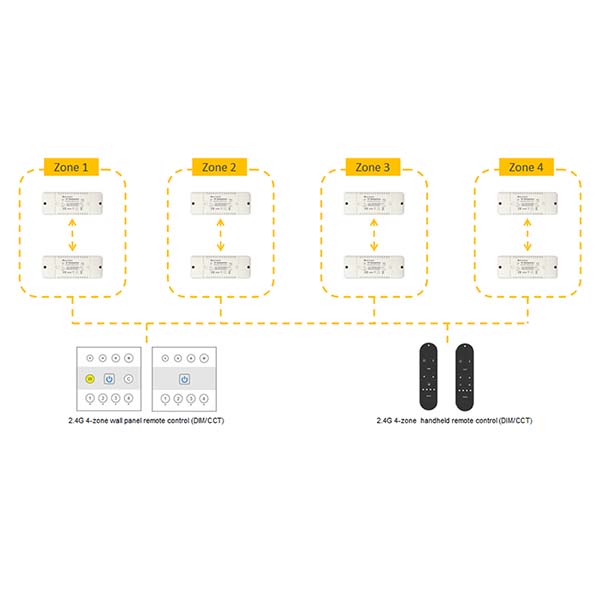

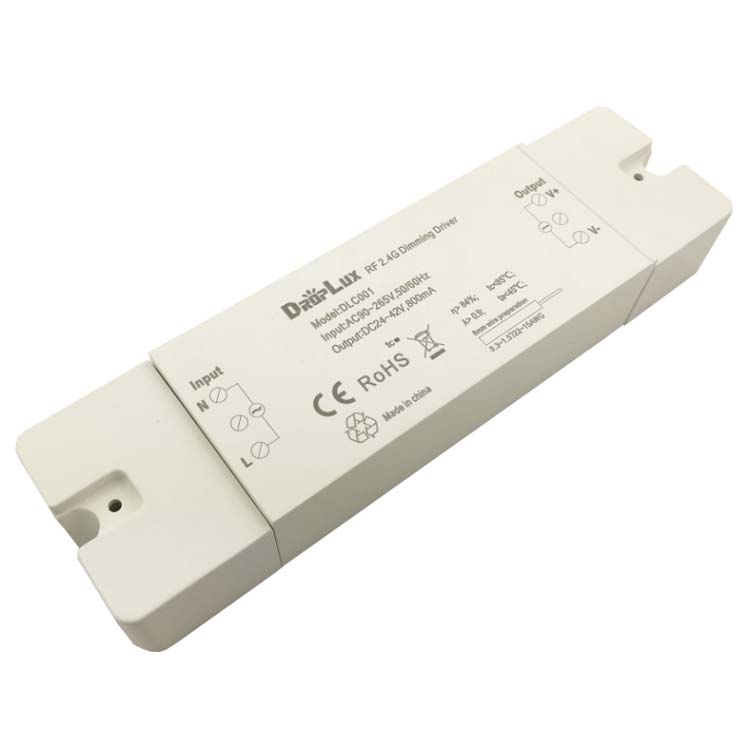

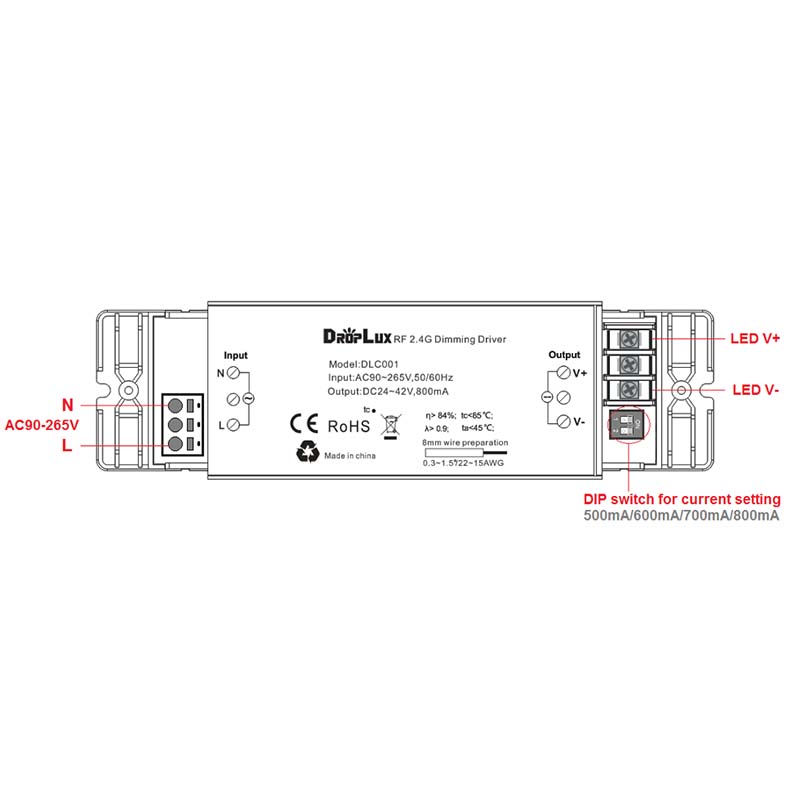

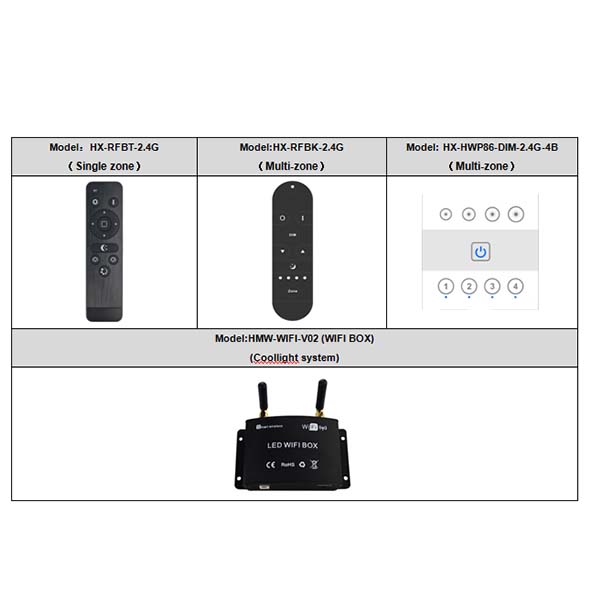

The Hoion DLC001 is a high-quality power supply designed to deliver reliable and stable current for LED lighting systems. Engineered with advanced circuitry, it ensures consistent light output, high efficiency, and excellent protection for LED fixtures. The constant current dimmable LED drivers feature a DIP switch for output current adjustment, which can be set to 500mA, 600mA, 700mA, or 800mA for various LED lights. The DLC001 supports smooth dimming and is compatible with a wide range of constant current LED luminaries, making it ideal for both residential and commercial lighting projects. Built-in protection against short-circuit, over-voltage, and over-temperature ensures long-lasting safety and performance. The LED dimmable driver utilizes PWM technology, ensuring compatibility with various control systems, including Freelighting, phone, PAD, and WiFi smart control. It offers 1024 grades of high-quality, smooth dimming with a dimming range from 3% to 100%. With a 2.4GHz wireless control module, you can connect to the 2.4G RF remote control to adjust the brightness or dynamic changing. With the air self-inspection sync control technology, one remote can control multiple dimming drivers, allowing many LED lights to work in synchronization.

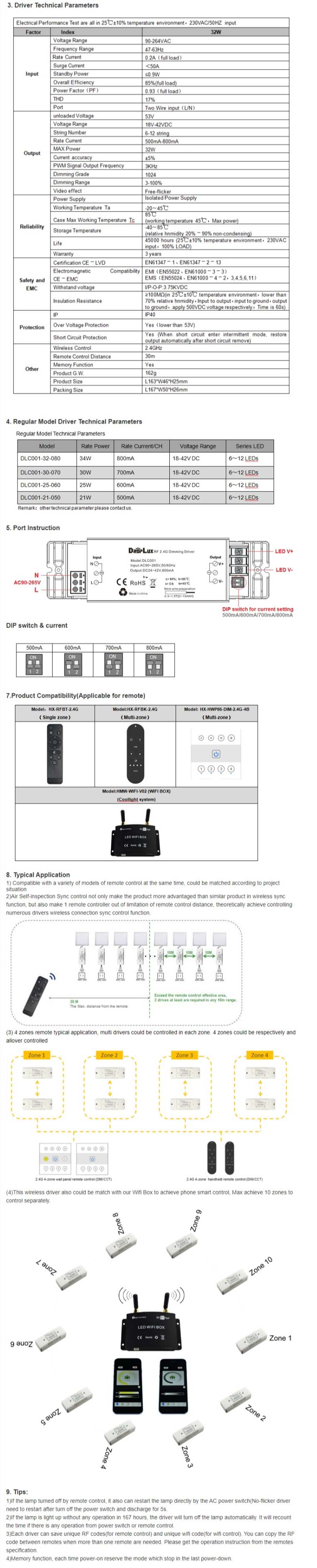

Specifications:
- Model: DLC001
- Type: Class II isolated
- Size ( L x W x H ): 163 mm x 46 mm x 25 mm ( 6.42" x 1.81" x 0.98" )
- Input:
- Input voltage: 90V-264VAC
- Frequency range: 47- 63Hz
- Rate current: 0.18A
- Power factor(PF): 0.9 (full load)
- THD: 19%
- Overall Efficiency: 84%(full load)
- Standby power: ≤0.8W
- Surge voltage: 3KV
- Surge current: 40A (230VAC)

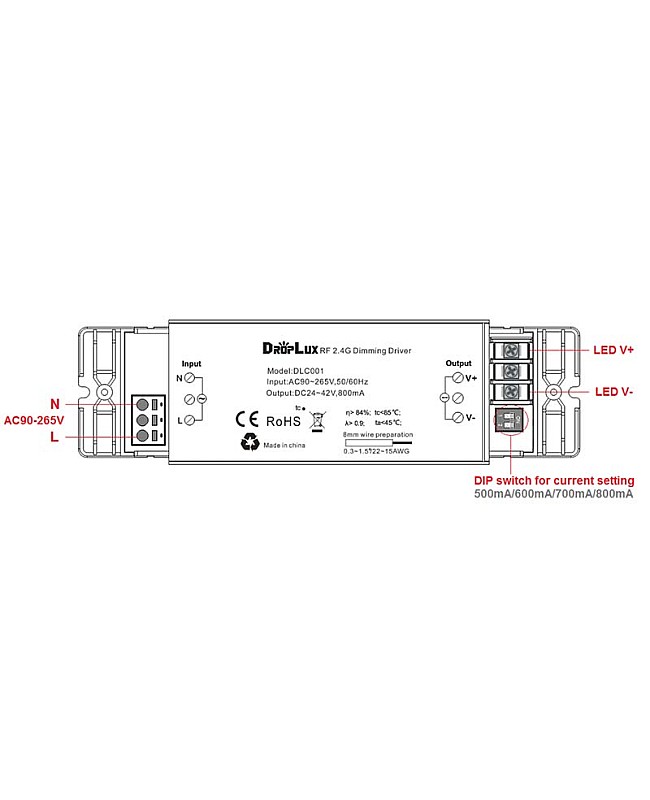

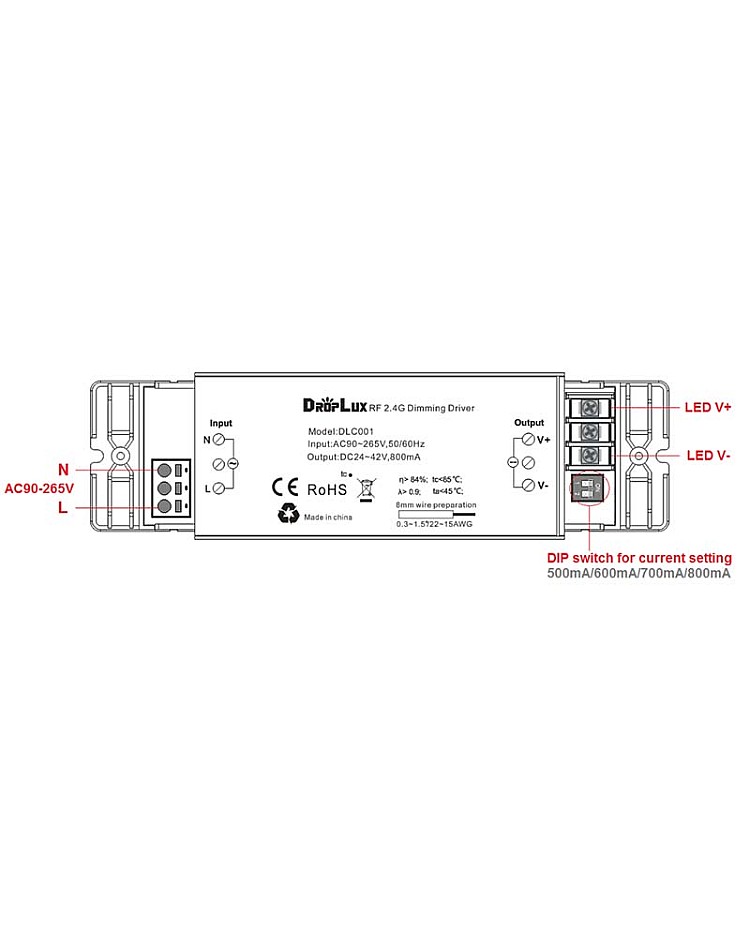

- Input connector: 3 Pin, L/N
- Wire: 26-16 AWG
- Output:
- Output voltage range: 18V-42VDC
- String number: 6-12 string
- Output current: 450mA-800mA ( settable by DIP switch)
- Max output power: 32W
- Current accuracy: ±5%
- PWM signal output frequency: 1KHz
- Dimming grade: 1024
- Dimming range: 3-100%
- Video effect: Free-flicker
- Output connector: 2 Pin, V+/V-
- Wire: 22-12AWG
- 0-10V:
- Signal connector: 2 Pin
- Wire: 22-14 AWG
- Protection:
- IP rating: IP40
- Overvoltage protection: Yes (up to 53V)
- Short circuit protection: Yes ( restore output automatically after removing the short circuit)
- Over power protection: Yes ( up to 40W)
- Reliability:
- Storage temperature: -20-85℃ (relative humidity 20%-90% non-condensing)
- Working temperature: -20-45℃
- Case max working temperature: 85℃ (working temperature 45℃, max power)
- Life: 4800 hours ( 25℃±10% temperature environment, 230VAC input, 100% load)
- Warranty: 3 years
- Safety and EMC:
- Certification CE-LVD: EN61347-1, EN61347-2-13
- Electromagnetic compatibility CE-EMC: EMI(EN55015)
- Hi-pot test: I/P-O-P: 3.75KVDC
- Certification: CE
Applications:
Ideal for commercial, residential, and architectural lighting, including downlights, panel lights, spotlights, and decorative fixtures requiring constant current control with wireless dimming capability.
Includes:
1 * Constant current dimmable LED driver
