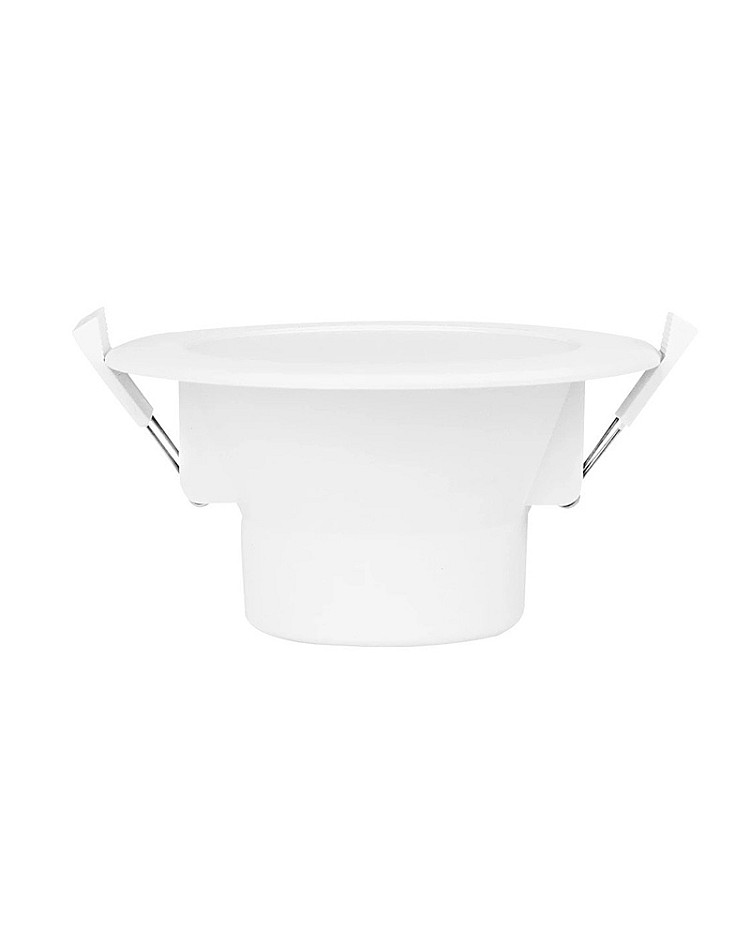

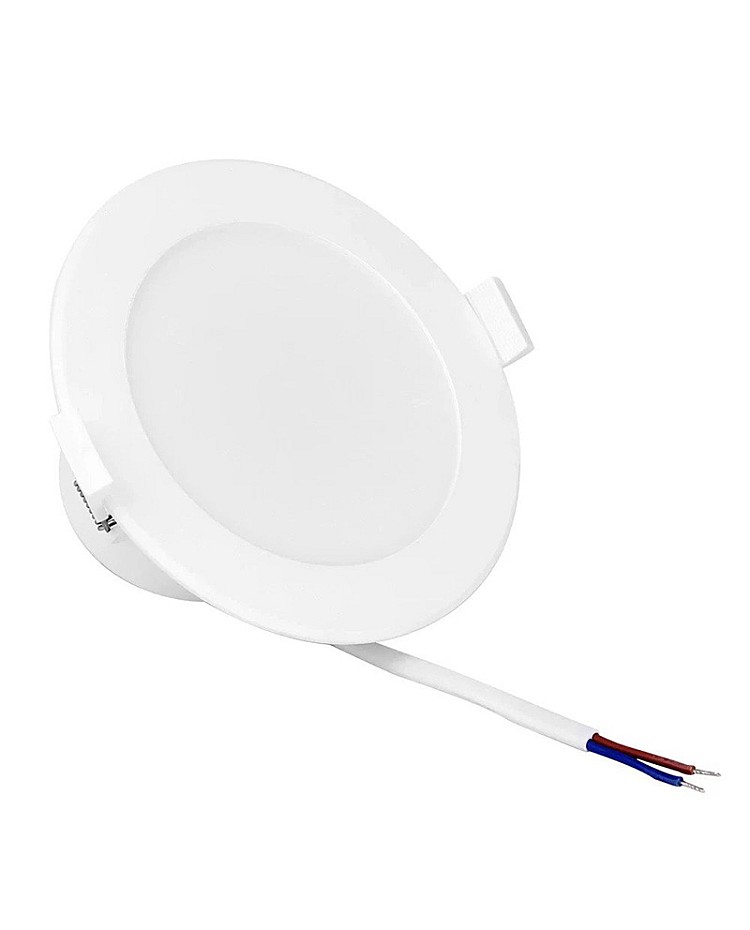

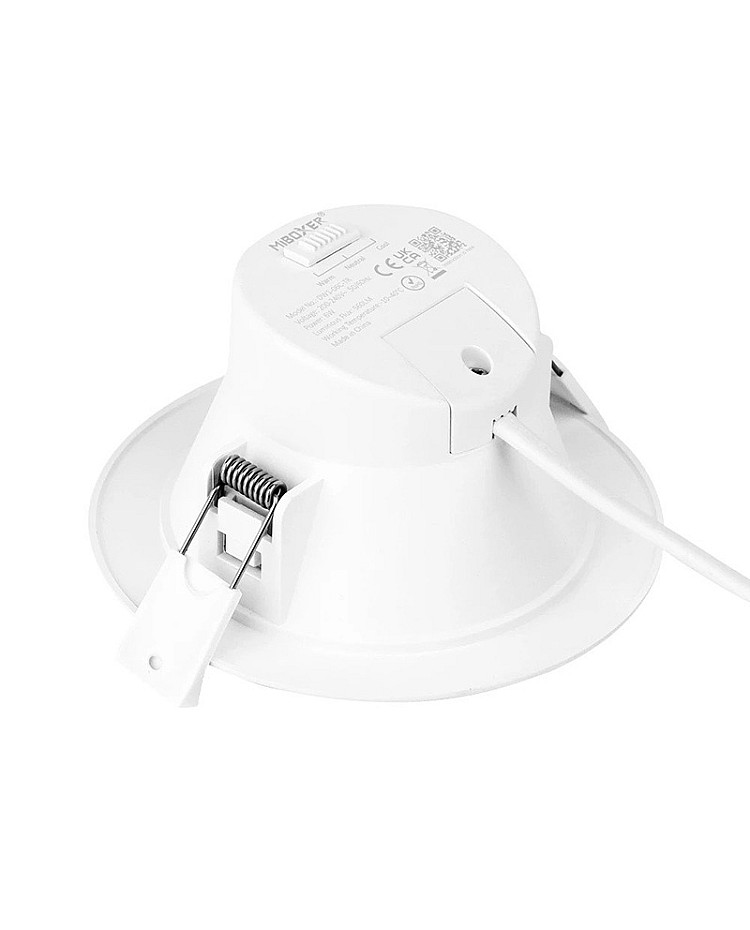

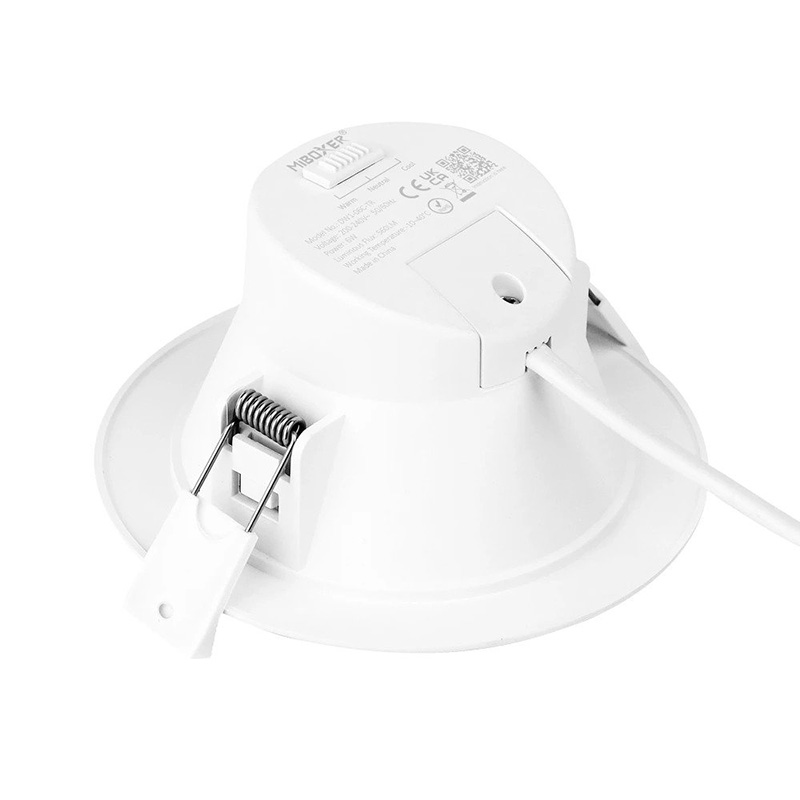

The MiBoxer DW1-06C-TR Downlight Fixtures are high-voltage lighting systems that provide reliable and efficient lighting in indoor spaces. The 6W Downlights are dimmable using a triac dimmer switch, allowing you to adjust the lighting level to suit your needs easily. Compatible with MiBoxer series Traic Dimmers to meet different dimming needs. The Shell of MiBoxer Down Lights is made of PA6 material, which has good heat and wear resistance and is more stable in use. The Triac Dimming Downlights allow manual switching of the color temperature from 3000K, 5000K, or 7000K, Toggle the switch left and right to select different color temperatures. It uses high-quality LEDs as the light source and stable quality light drivers, no flicker care for eye health, energy-saving and comfortable home lighting.


  • Type: Triac Dimming Downlight
  • Model: DW1-06C-TR

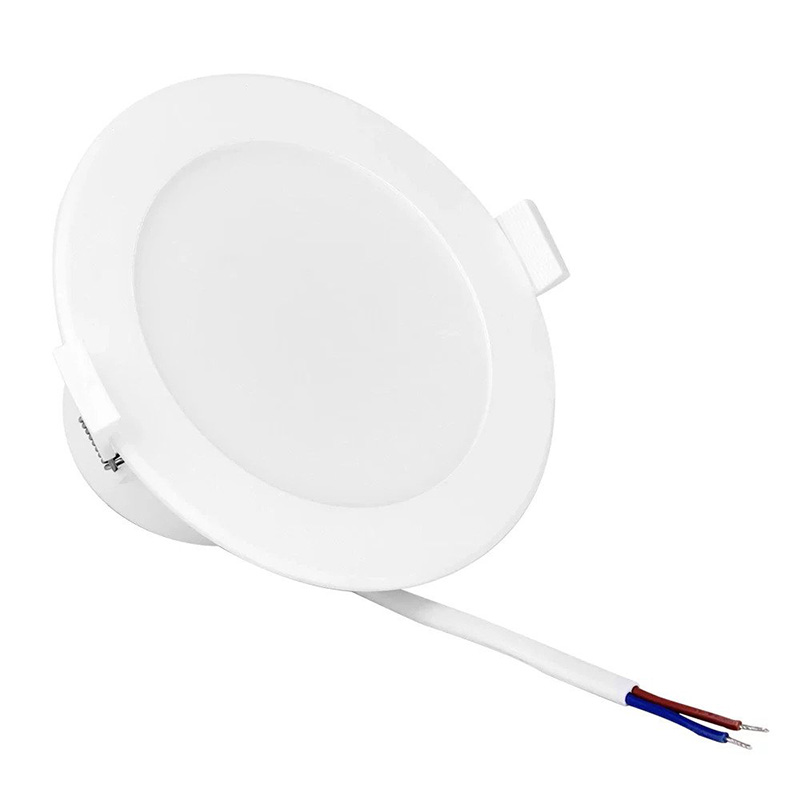

  • Diameter: ø115mm/4.5in

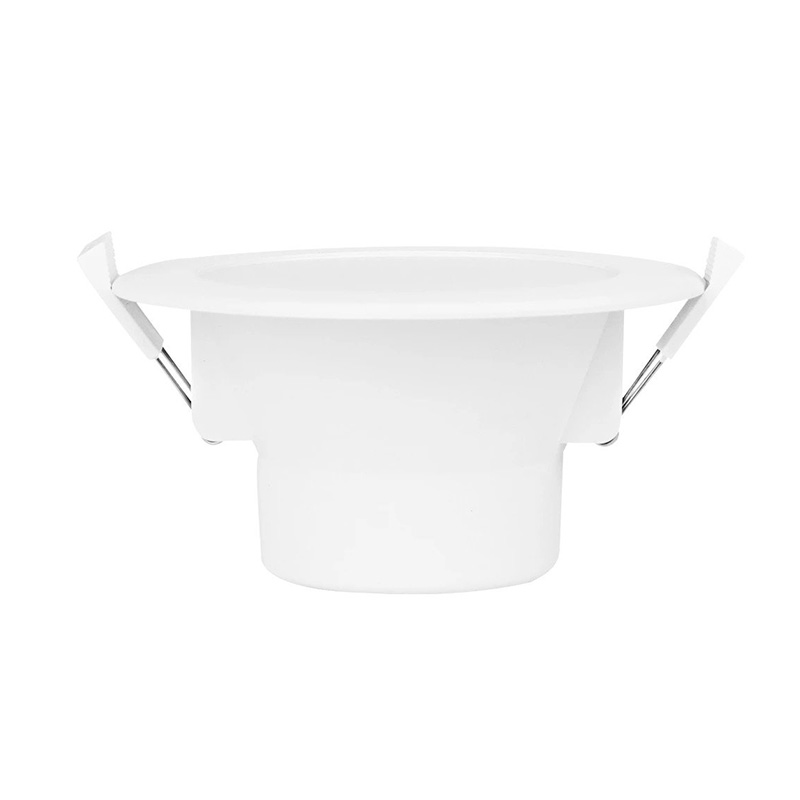

  • Height: 61mm/2.4in
  • Hole Size: ø90-95mm
  • Input Voltage: AC200-240V, 50/60Hz
  • Power: 6W

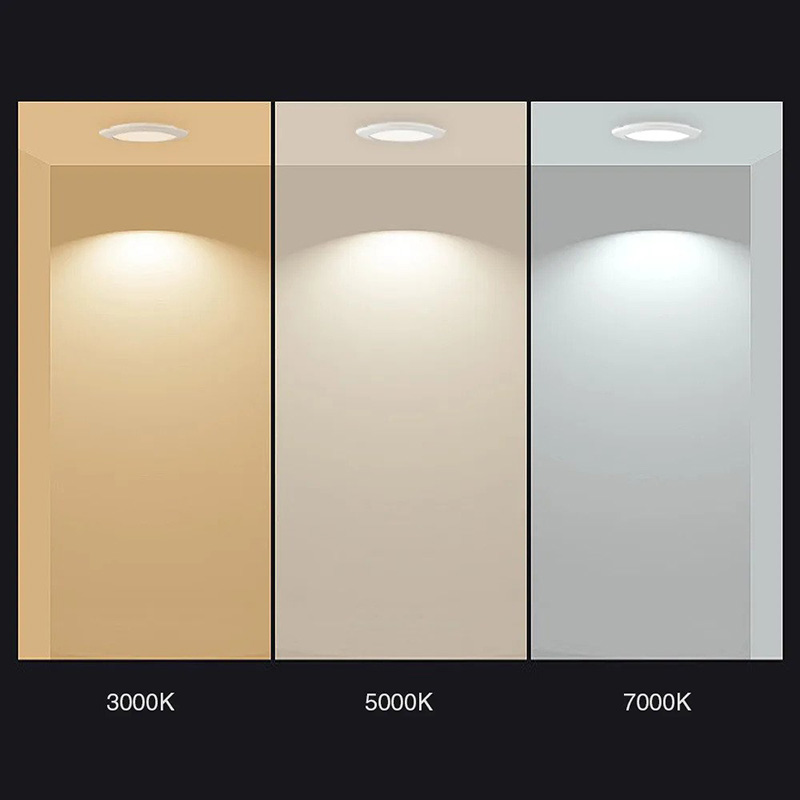

  • Color Temperature: 3000K, 5000K, 7000K
  • Luminous Flux: 560LM
  • Luminous Efficiency: 93LM/W
  • PF: 0.9
  • CRI: >80Ra
  • Beam Angle: 120°
  • IP Rate: IP20 Non-waterproof
  • Working Temperature: -10-40℃
  • 2 Years Warranty

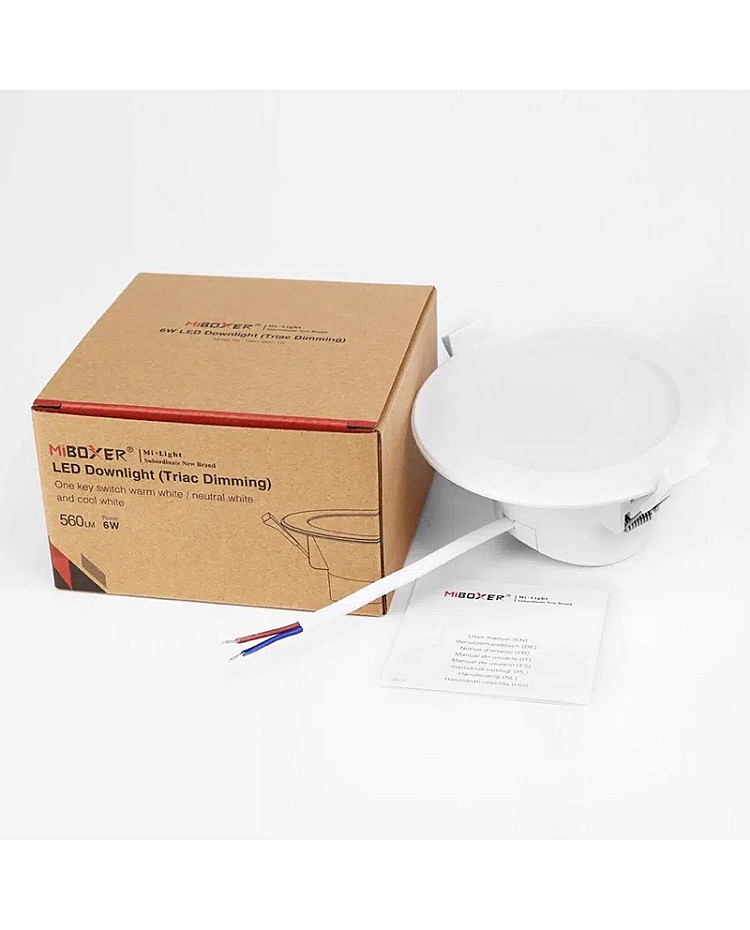

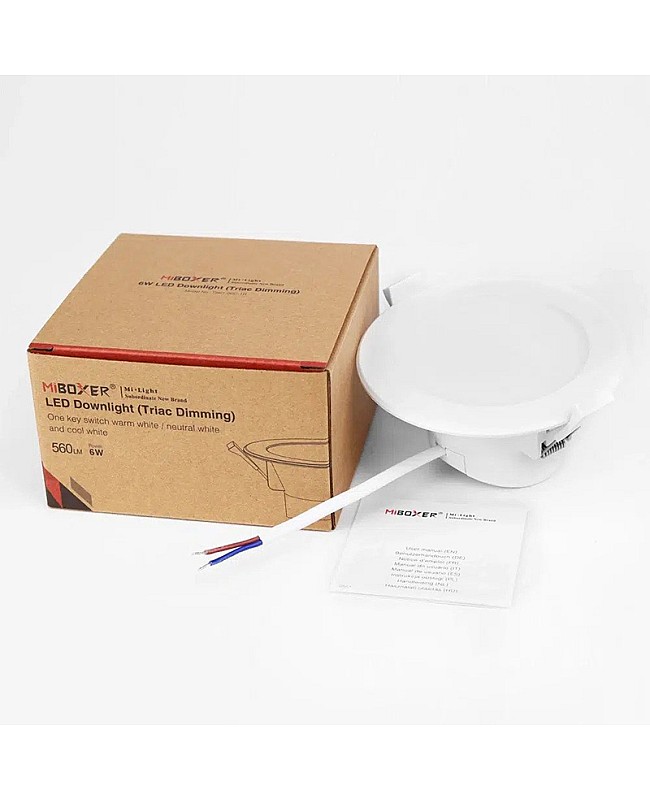

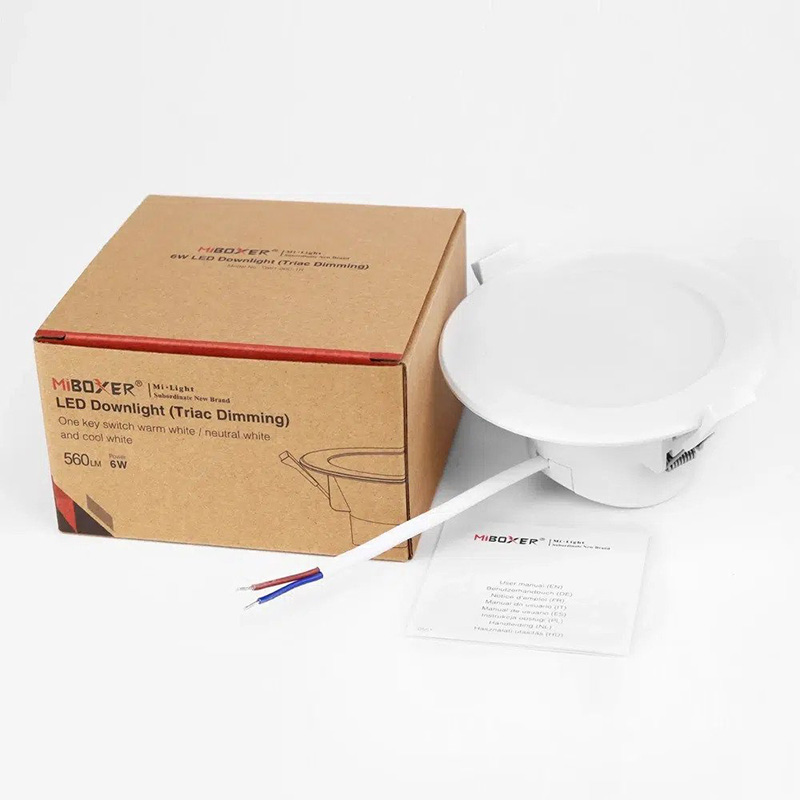

1*Triac Dimming Downlight Fixture

1*User Manual

MiBoxer Downlight Fixture
