In Stock
$9.14 $8.31 Sale -9% OFF
Reward Points: 8
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP040

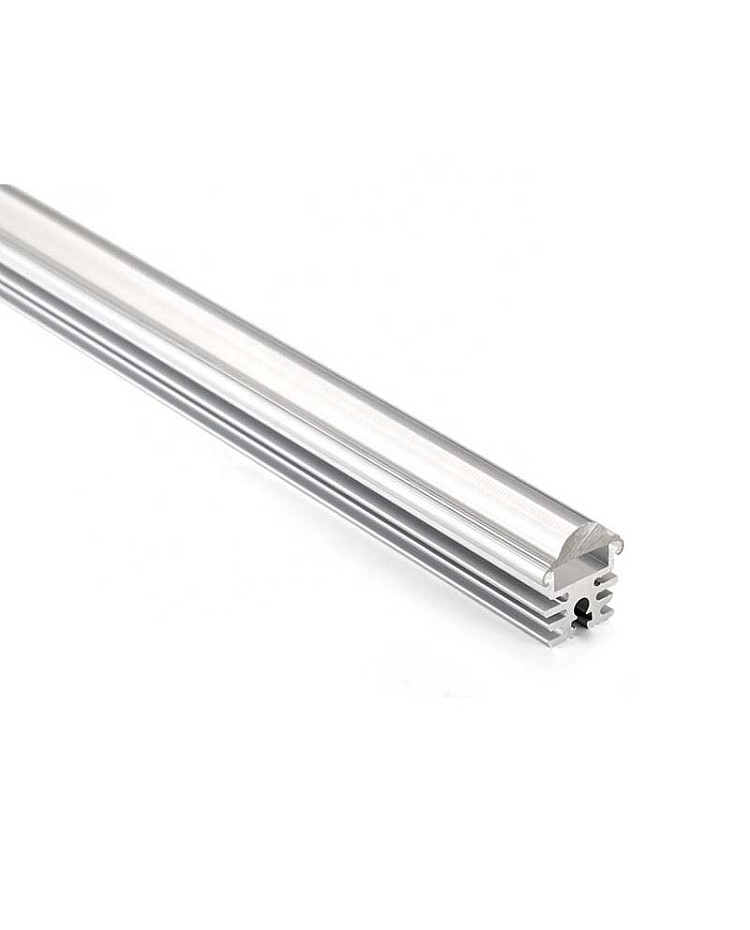

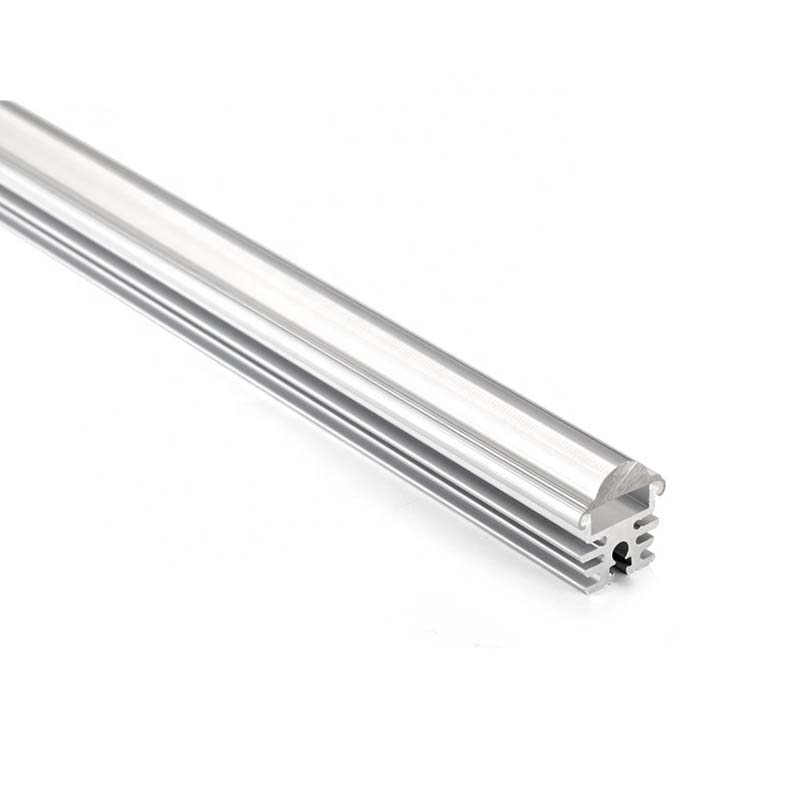

Check the LED Tape Light Profiles, which has 9 types of diffusers available, you could choose the round diffuser or 30°,60° and 90° lens for various lighting effects. with surface-mounted installation, you could fix them on the surface of your project, recommend using them under the cabinet of the wardrobe. the standard length is 1meter per piece and the max length is 3meter, which can be cut to any size for various locations. the LED Tape Profiles made of 6063-T5 aluminium alloy material and with silver anodized surface treatment, better anti-oxidation resistance and a longer lifespan than other similar products, the LED Profiles also can be used as a heat sink for better heat dissipation. there are 9 types of PMMA Lens available, which made of brand stable material, anti-yellowing, perfect light distribution and high light output. the end caps and metal clips included, easy to connect to the Power Supply LED to light up them.


  • Model: ALP040 Series
  • Material: 6063-T5 Aluminium Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver(Default), White, Black

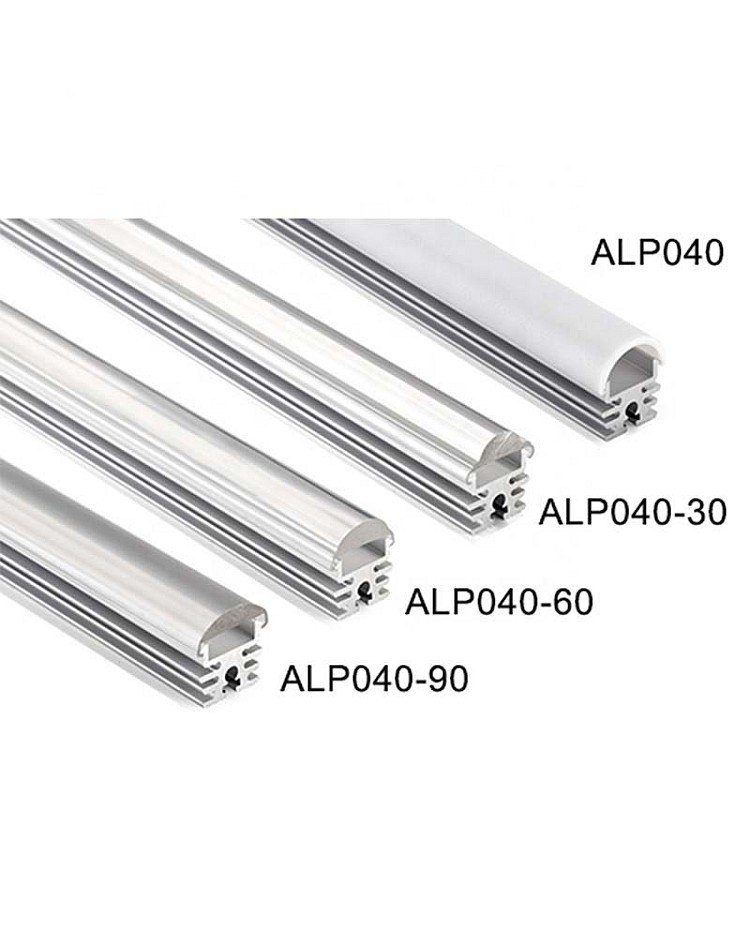

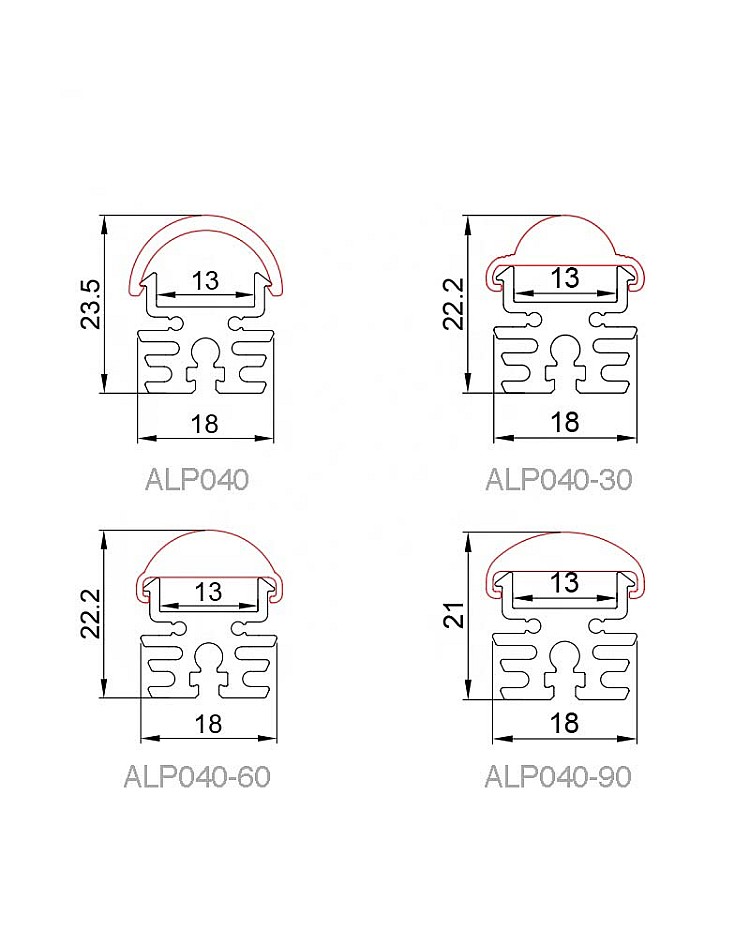

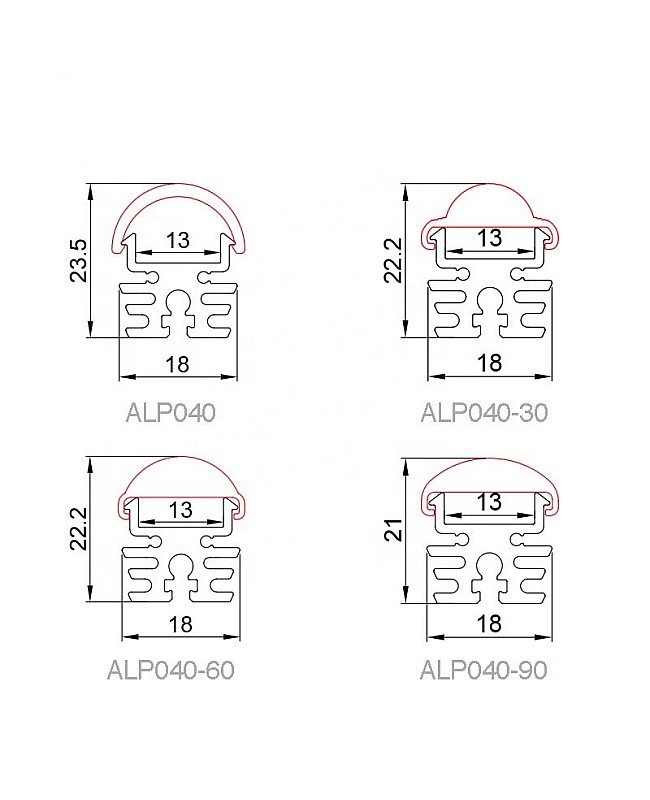

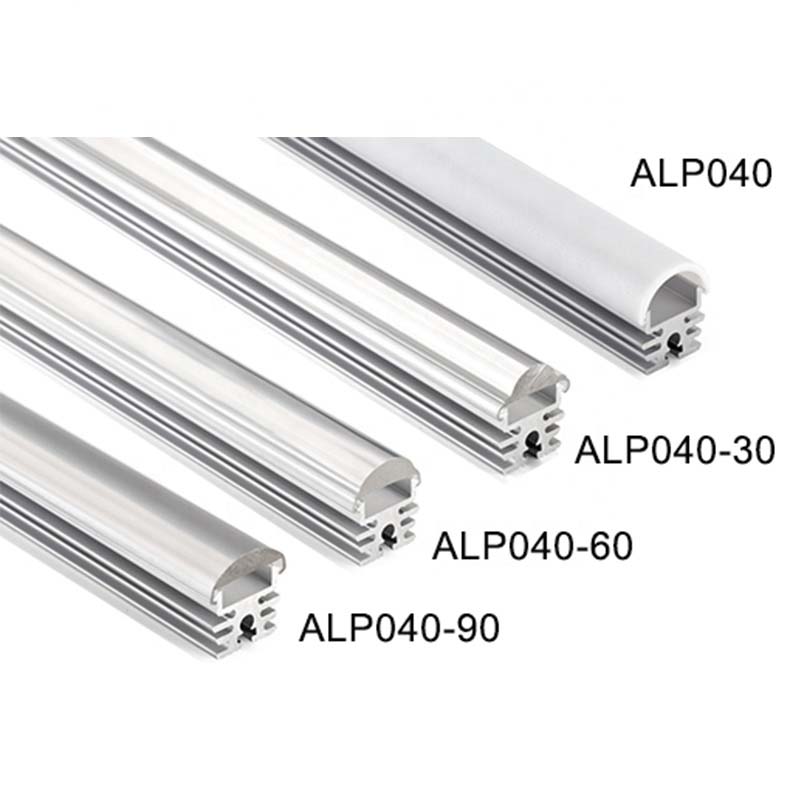

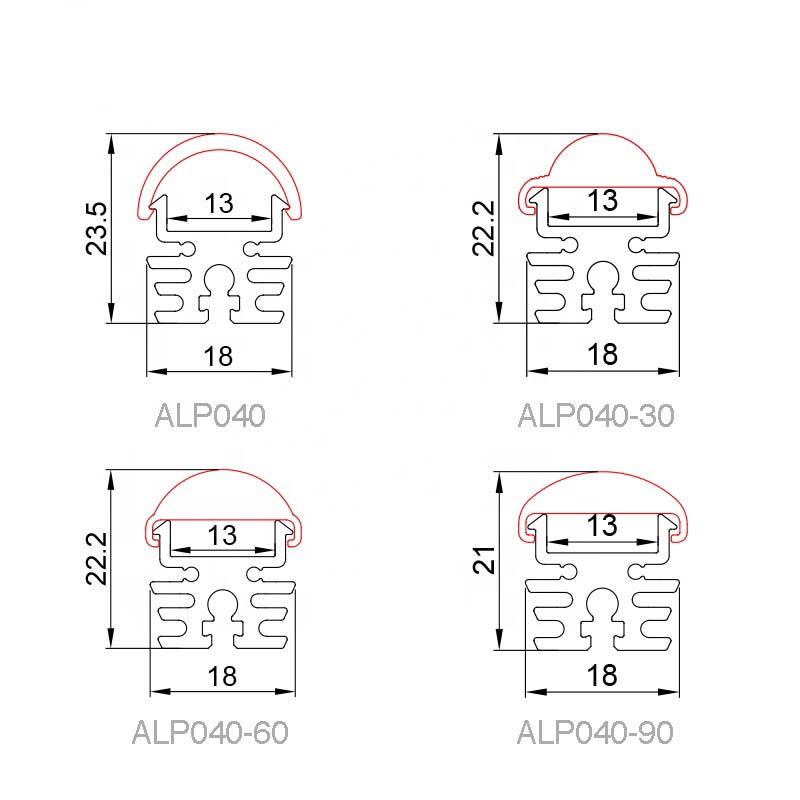

  • Size: ALP-040: 18*23.5mm(W*H); ALP-040-30: 18*22.2mm(W*H); ALP-040-60: 18*22.2mm(W*H); ALP-040-90: 18*21mm(W*H)
  • Inner Width: 18mm
  • Compatible With Double Rows 3528 Or Single Row 5050 LED Strips
  • Max Power: <15W/Meter
  • Beam Angle: 180°,30°,60°,90°
  • Standard Length: 1Meter
  • Other Lengths Available: 0.5M, 1.5M, 2M, 2.5M, 3M
  • Custom Length Available: YES
  • Diffusers: PMMA Opal Matte Diffuser, PMMA Semi-Clear Diffuser, PMMA Clear Diffuser, PMMA 30° Clear Lens, PMMA 30° Semi-Clear Lens, PMMA 60° Clear Lens, PMMA 60° Semi-Clear Lens, PMMA 90° Clear Lens, PMMA 90° Semi-Clear Lens
  • End Caps With Wire Holes And Metal Clips Included
  • COB LED Strips Sold Separately

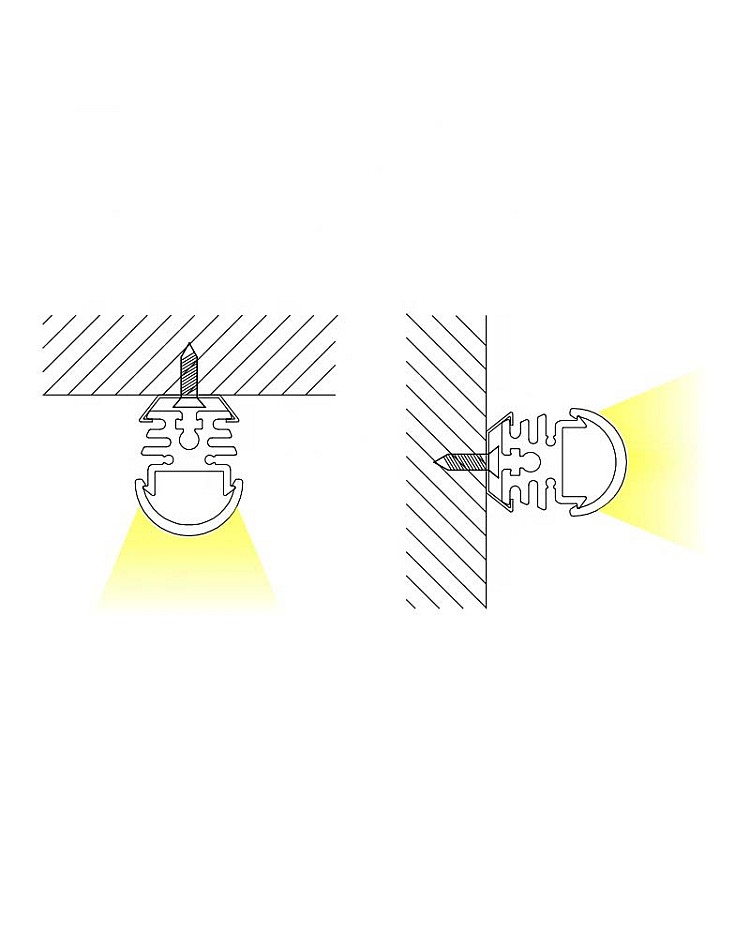

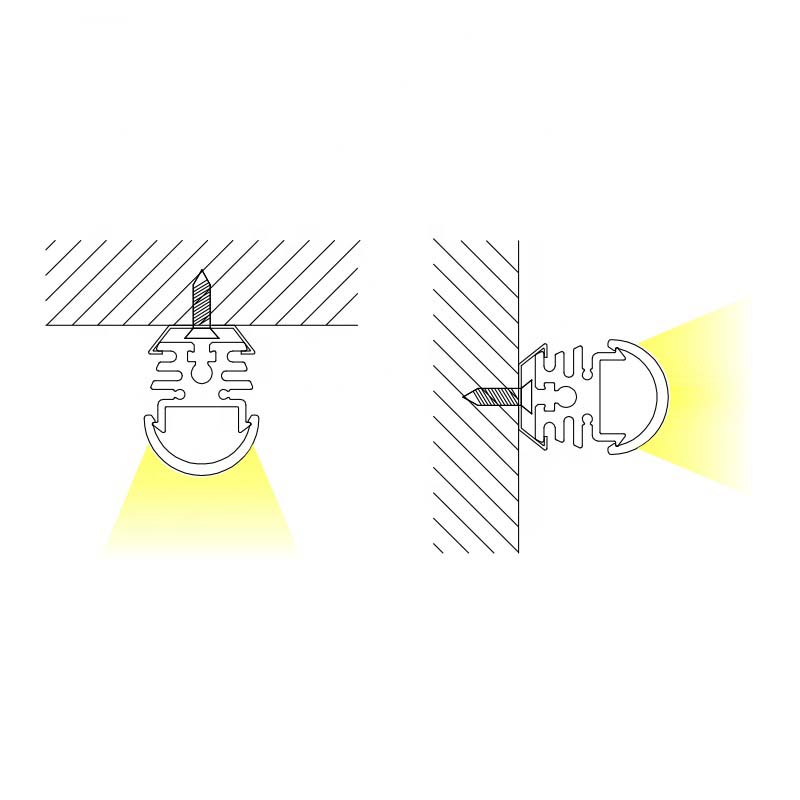

  • Installation: Surface Mounted
  • Applications: Under Cabinet Or Wardrobe
  • 5 Years Warranty


1*LED Tape Light Profile With Lens

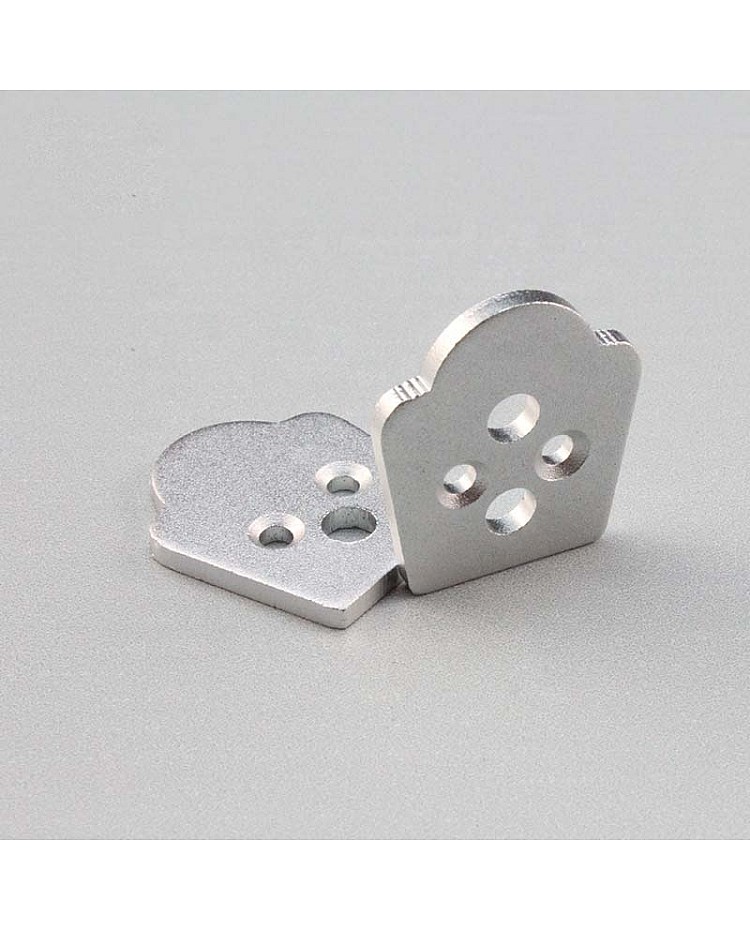

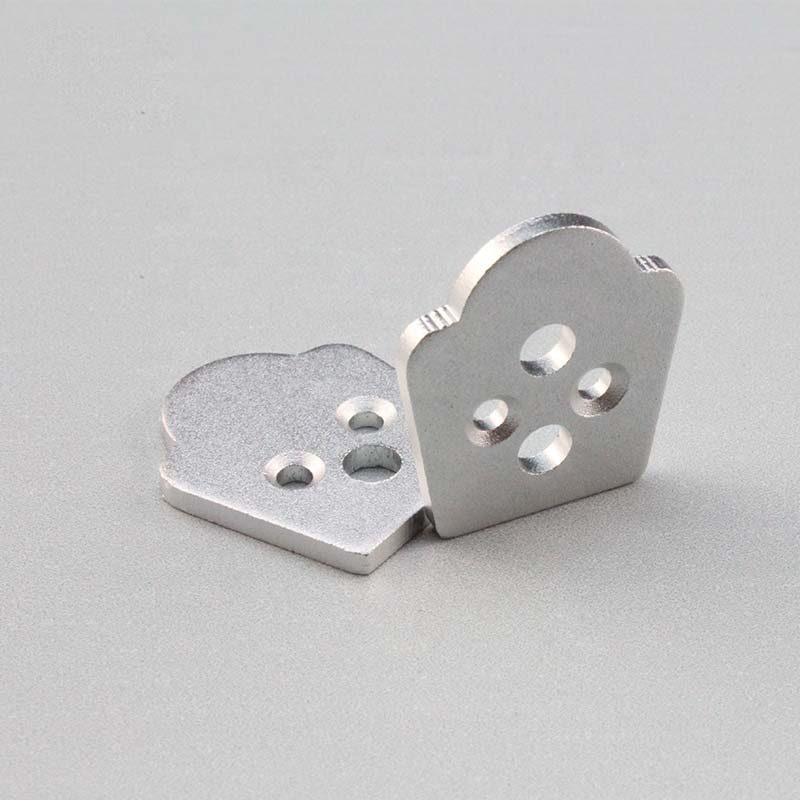

End Caps

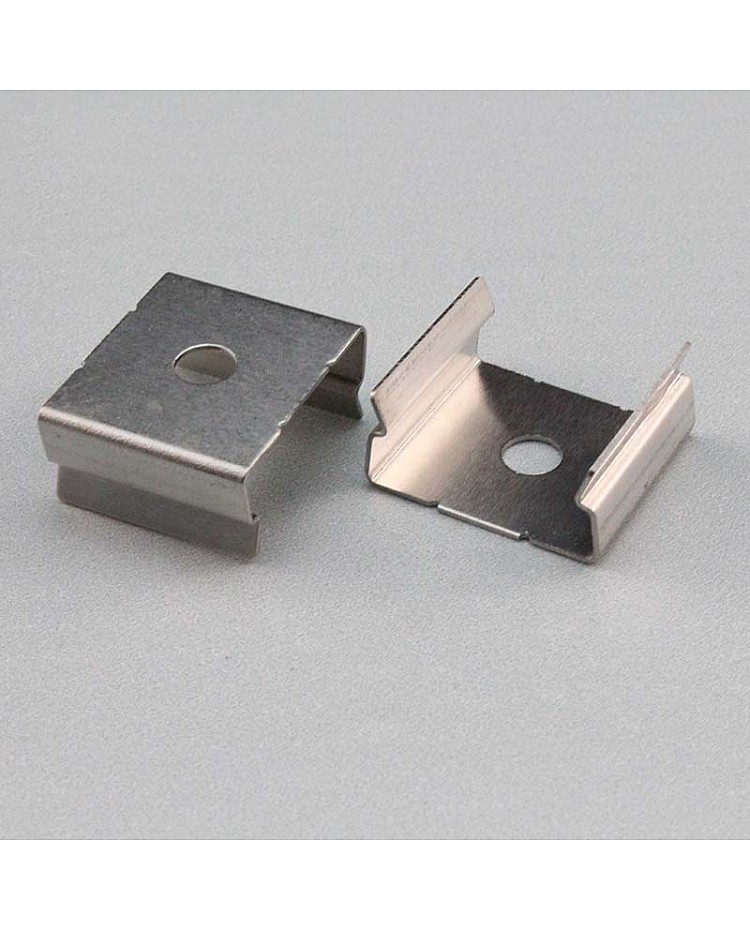

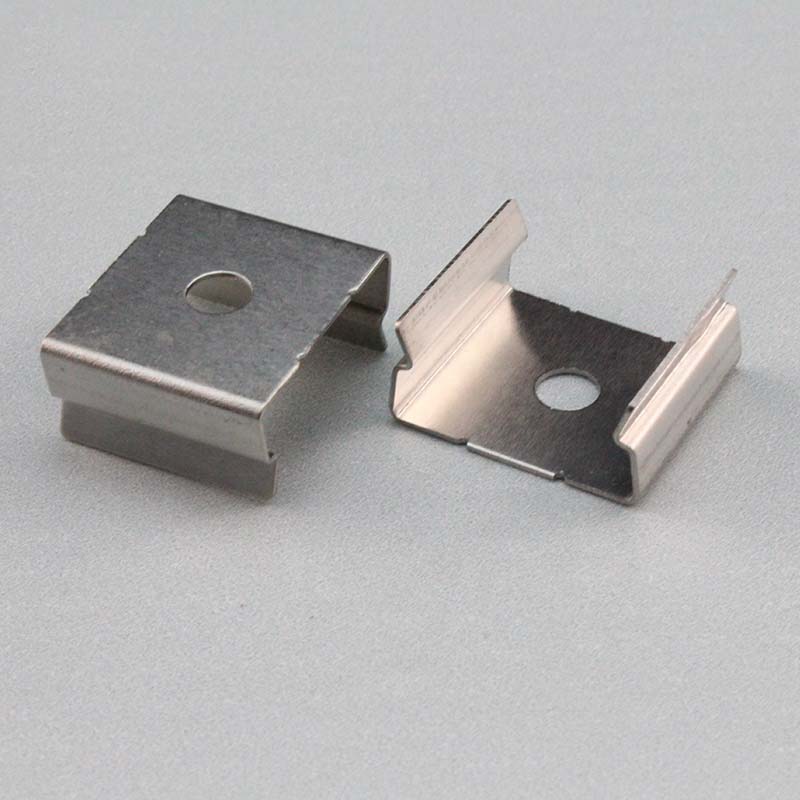

Metal Clips

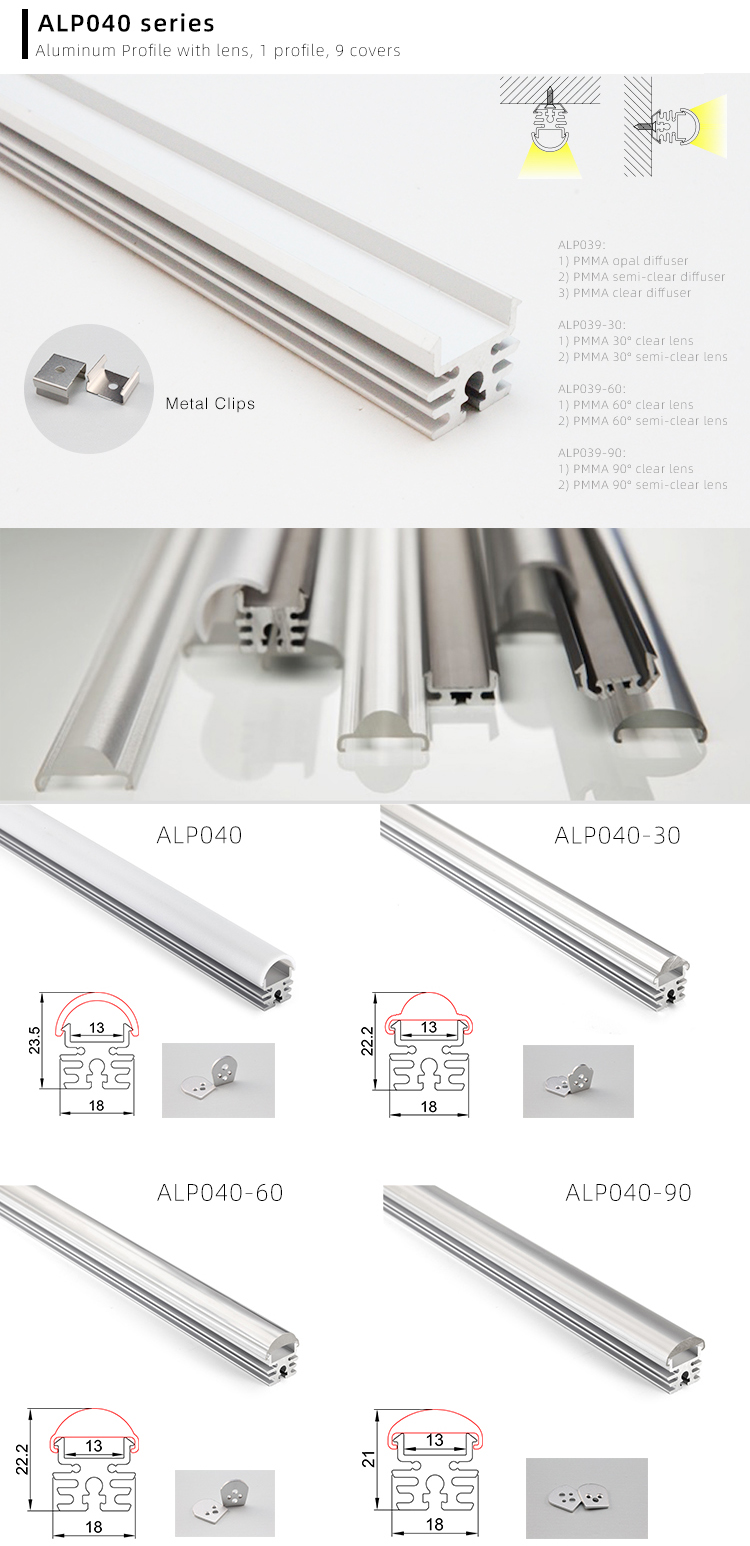

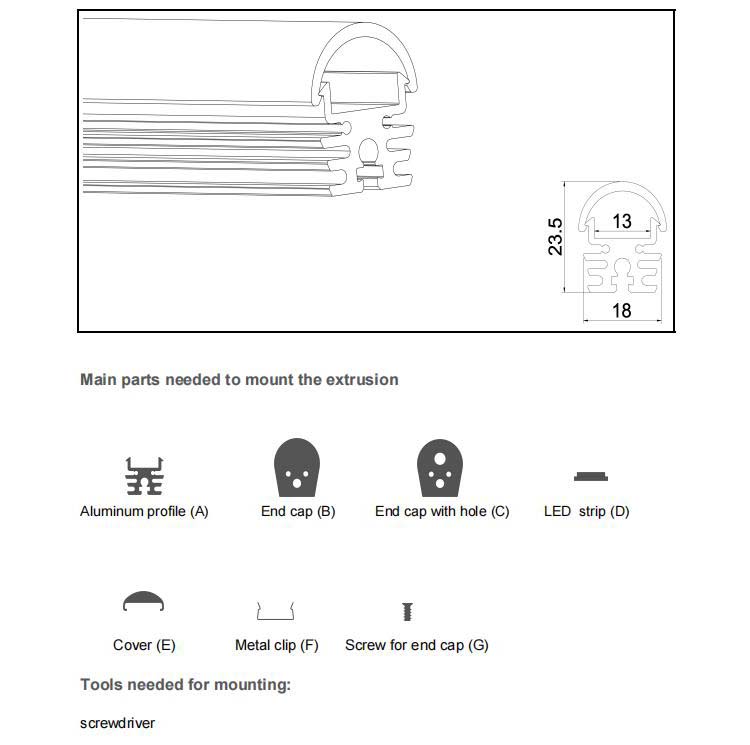

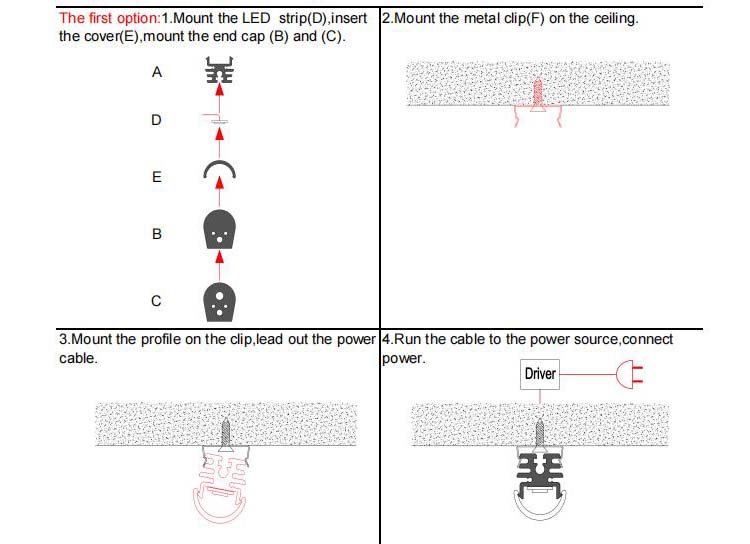

LED Tape Lighting Channel LED Tape Light Profiles With PMMA Lens How To Install The LED Tape Light Profiles
