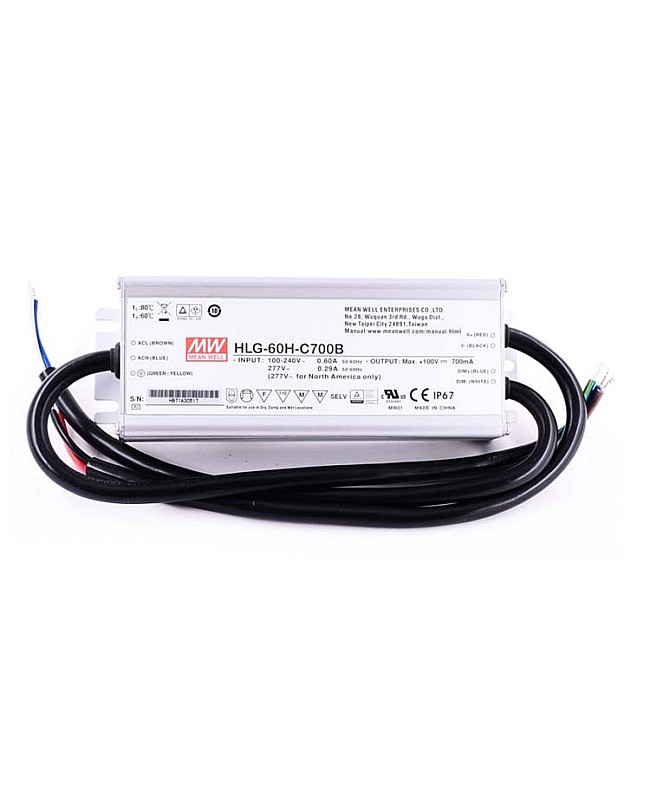

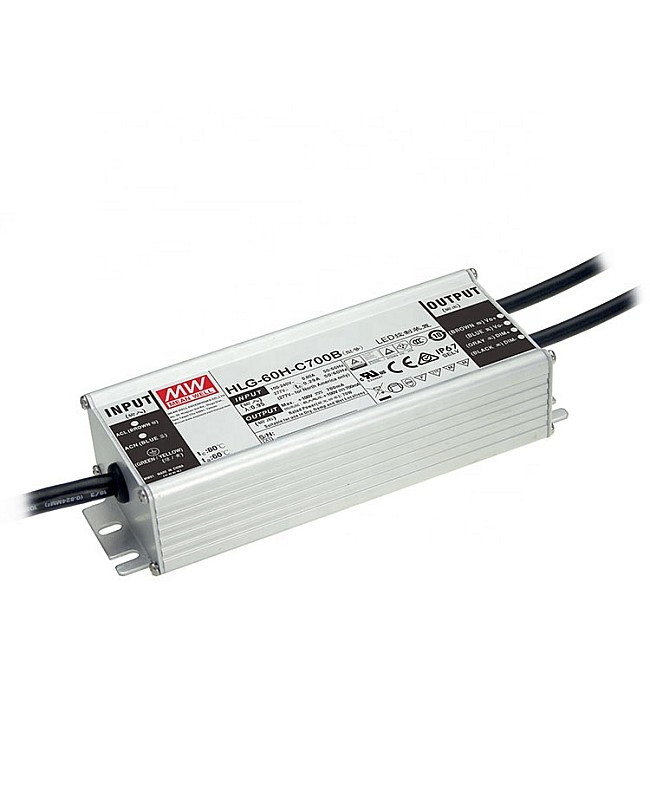

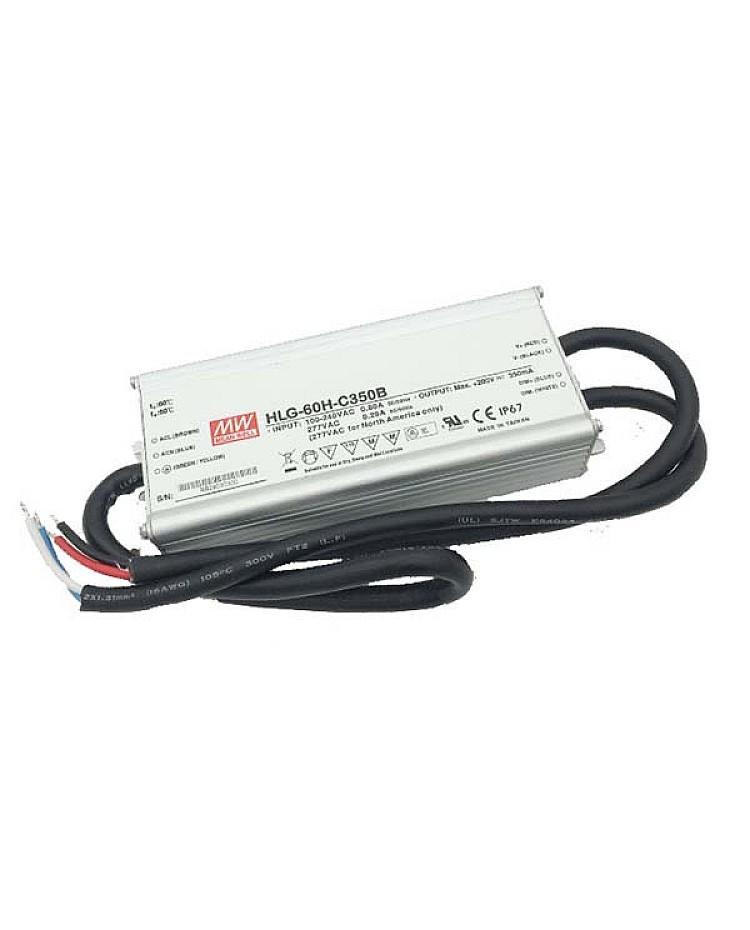

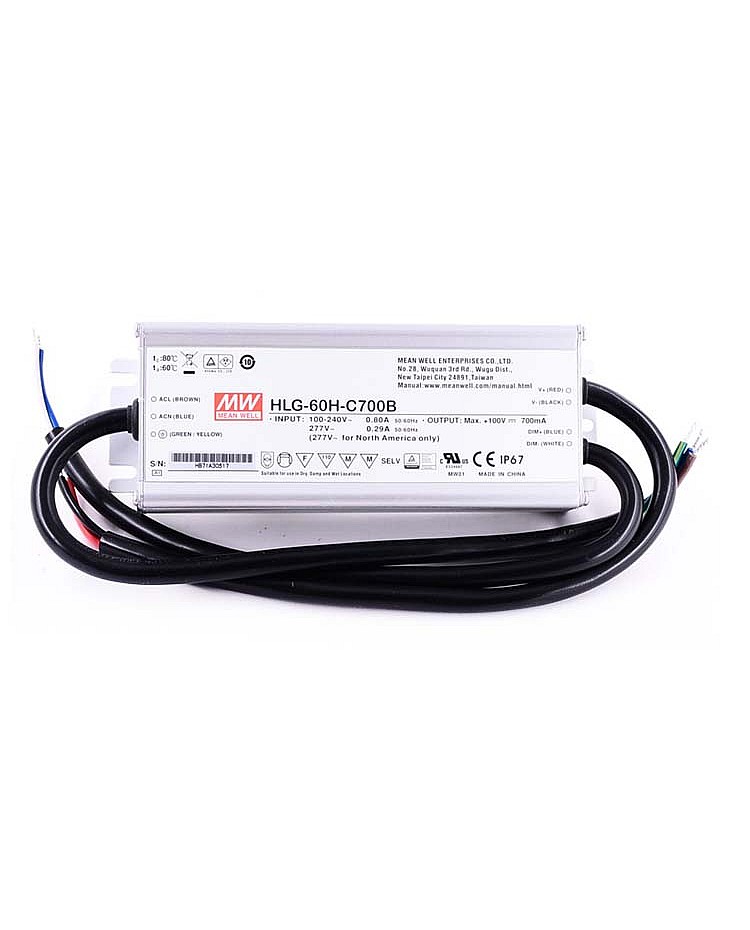

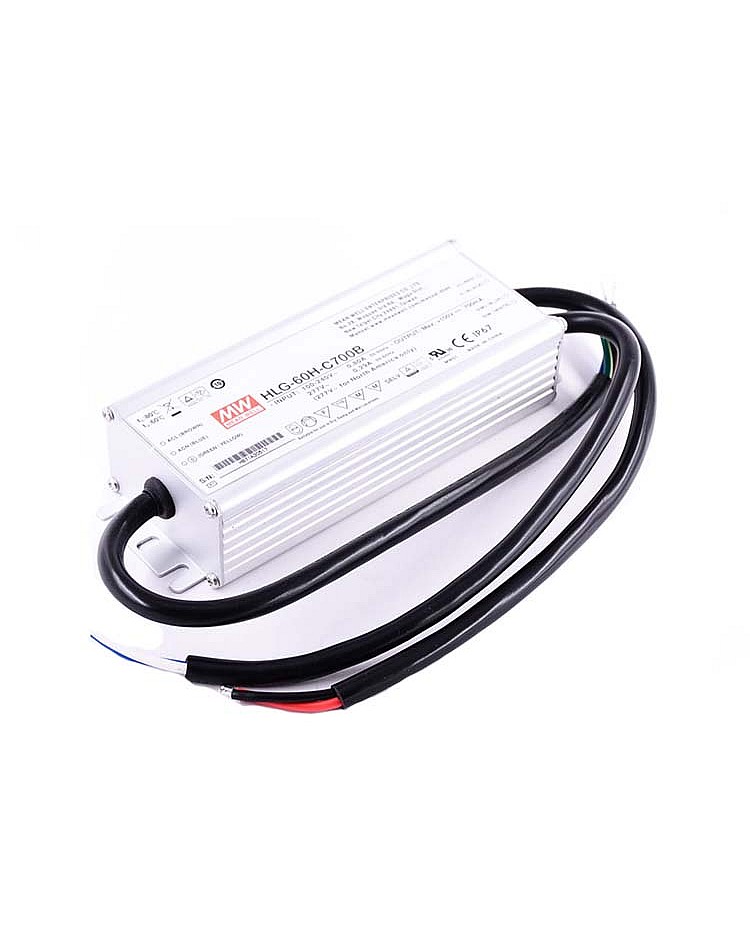

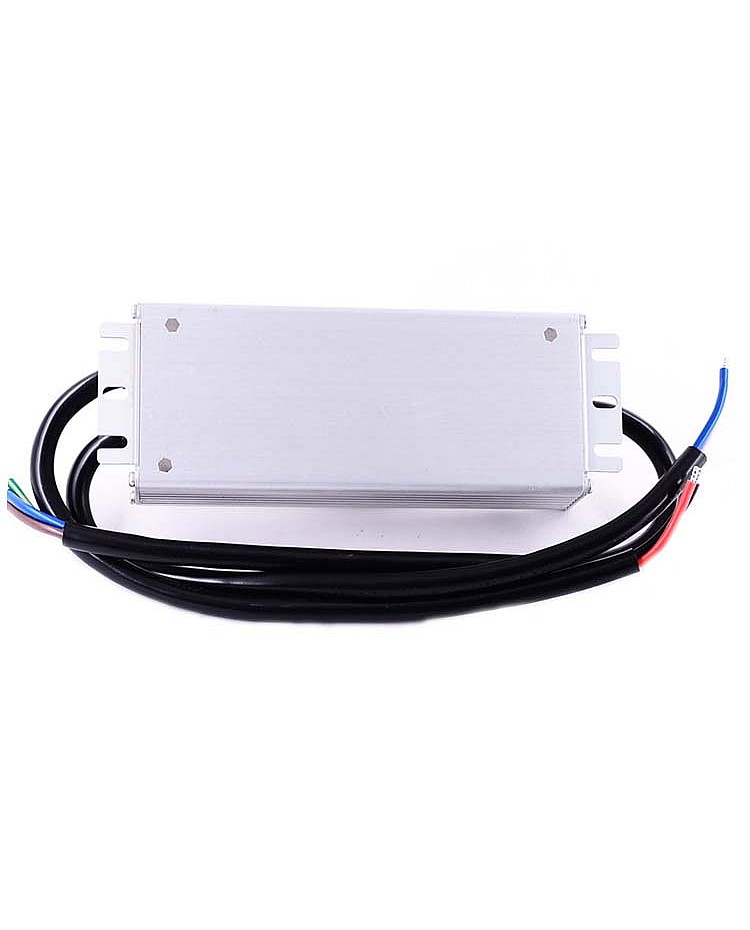

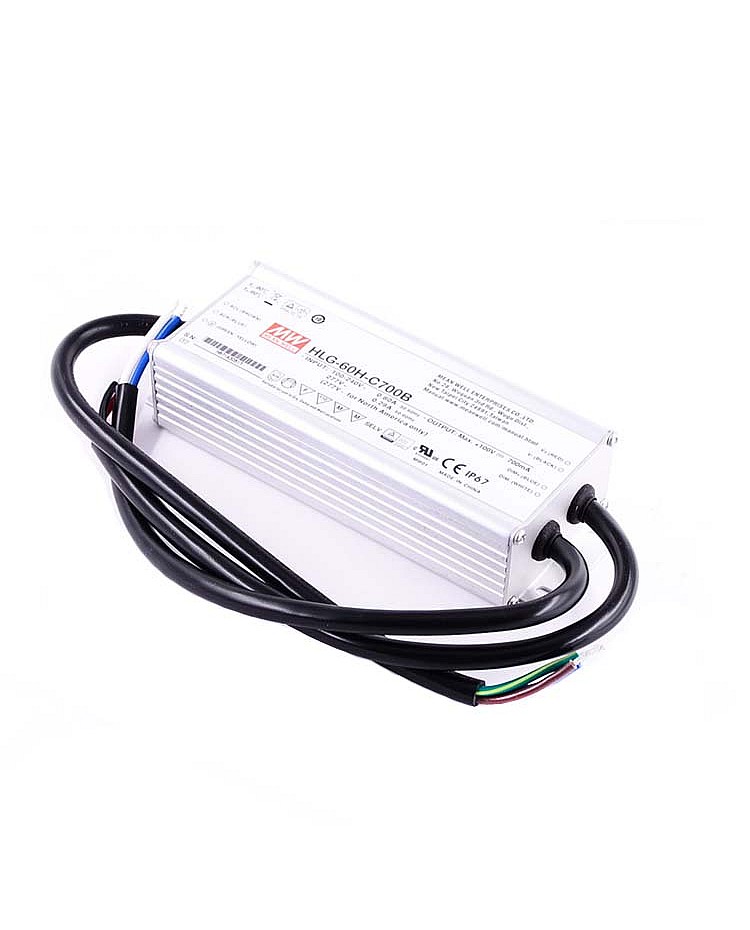

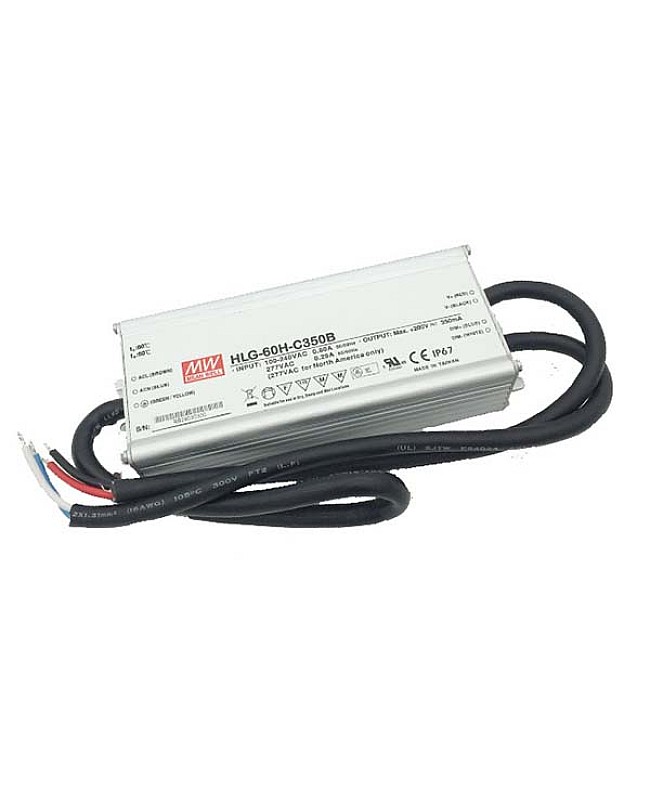

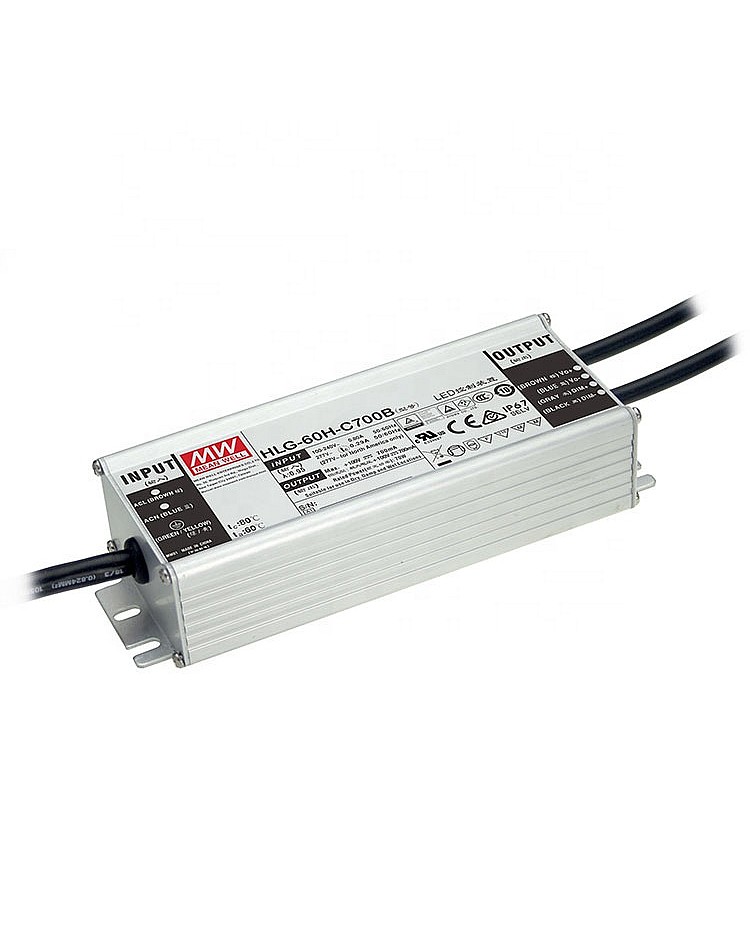

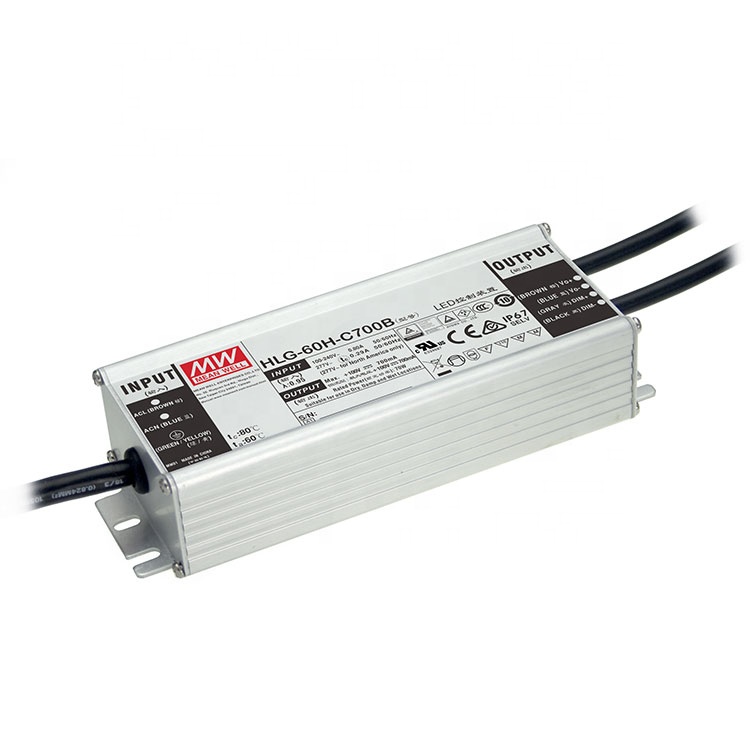

Mean Well HLG-60H-C Series Constant Current LED Driver

Check the Mean Well HLG-60H-C series Constant Current LED Drivers, the max loading power up to 70W and features the constant current mode and high voltage output. you can choose the HLG-60H-C350 and HLG-60H-C700, the max output current is 350mA or 700mA, there are 4 types of products available, the A and AB with output current adjustable design, B and AB with 3 in1 dimming functions. the Constant Current LED Drivers enclosed in a metal housing with class I design, the waterproof level can reach IP65 or IP67, you can use them for the indoor or outdoor applications, you can use for Street Lamps, Fishing Lighting, Harbor Lights, Architectural Lighting, etc. the input voltage range between AC90V to AC305V, can connect the public power system directly without extra adapters. with the fanless design, the LED Drivers are able to operate for -40℃ to 80℃ case temperature under free air convection. the high efficiency up to 91% and saving energy, the lifespan over 62,000 hours and get 7 years warranty.

• Constant Current Mode Output
• Metal Housing With Class I Design
• Built-in Active PFC Function
• Max Loading Power Up To 70W
• High Input Voltage Up To 305VAC
• 4 Types Products Available: A, B, AB, D
• IP67/IP65 Design For Indoor Or Outdoor Installations
• Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming; Timer Dimming
• Lifespan: >62,000Hours
• Suitable For Steet Lights, Fishing Lamps, Harbor Lights, Architectural Lights, Greenhouse Lighting, etc

Quick Links:

Mean Well HLG-60H-C Series Specification Document

Features:

• Model: HLG-60H-C

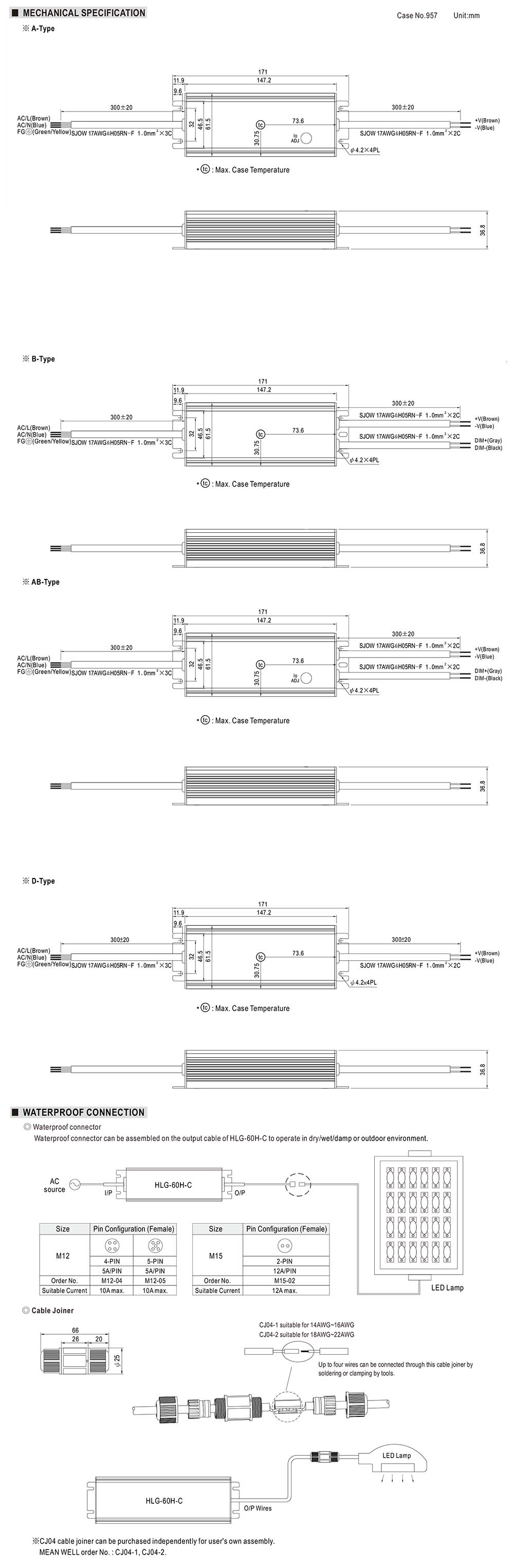

• Size: 171*61.5*36.8mm(L*W*H)

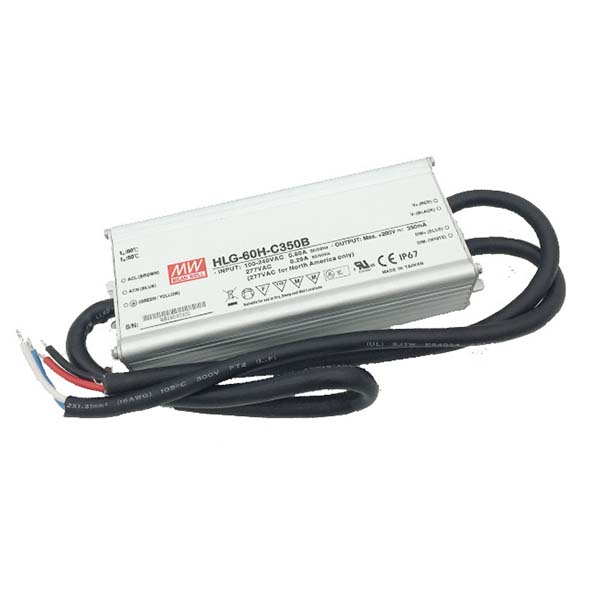

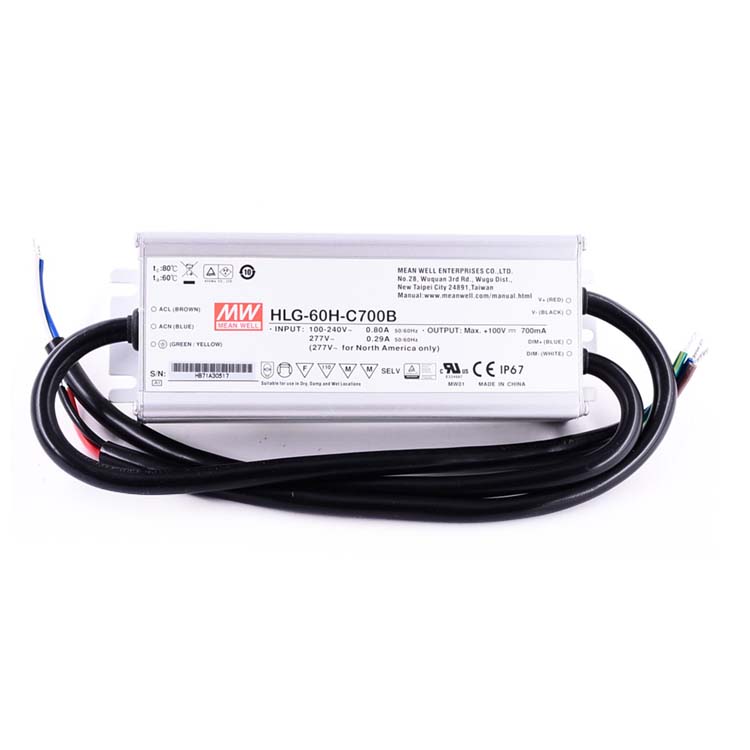

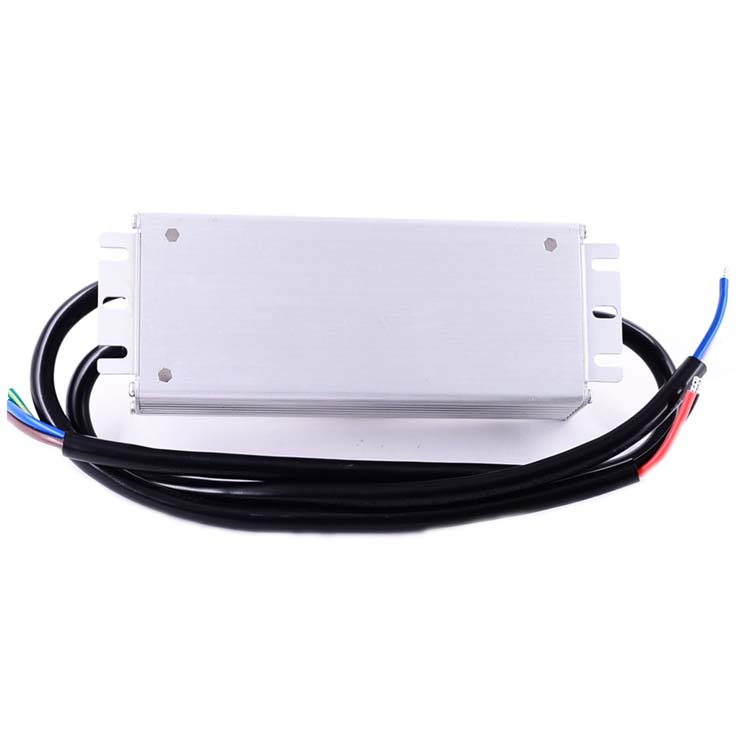

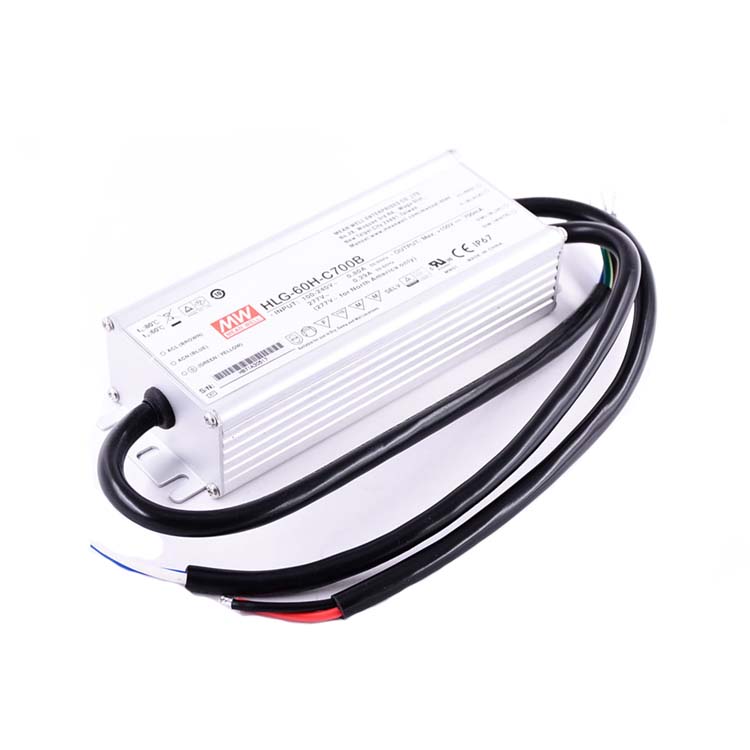

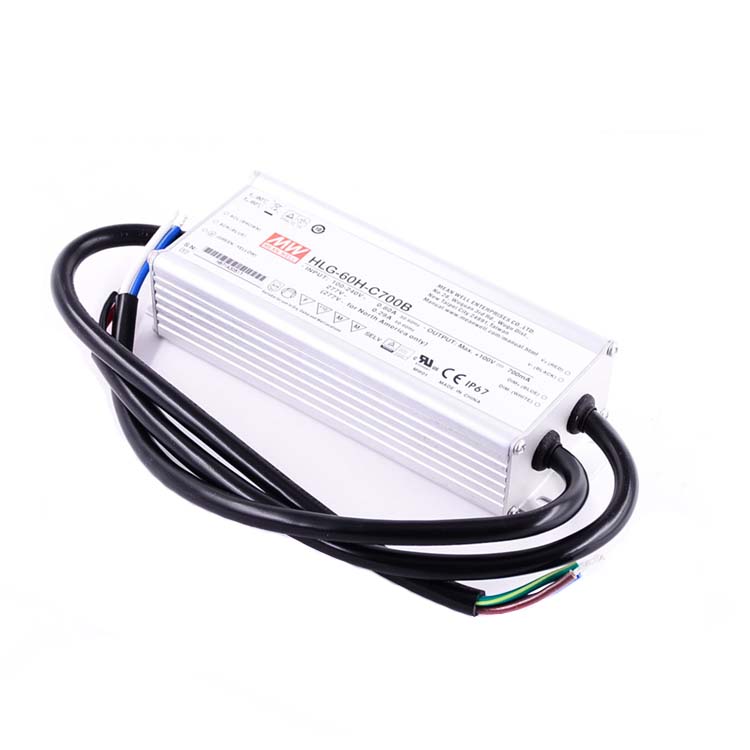

• Models Available: HLG-60H-C350/HLG-60H-C700
• Types:
• A: IP65 Waterproof Level, Output Current Adjustable Through Built-in Potentiometer

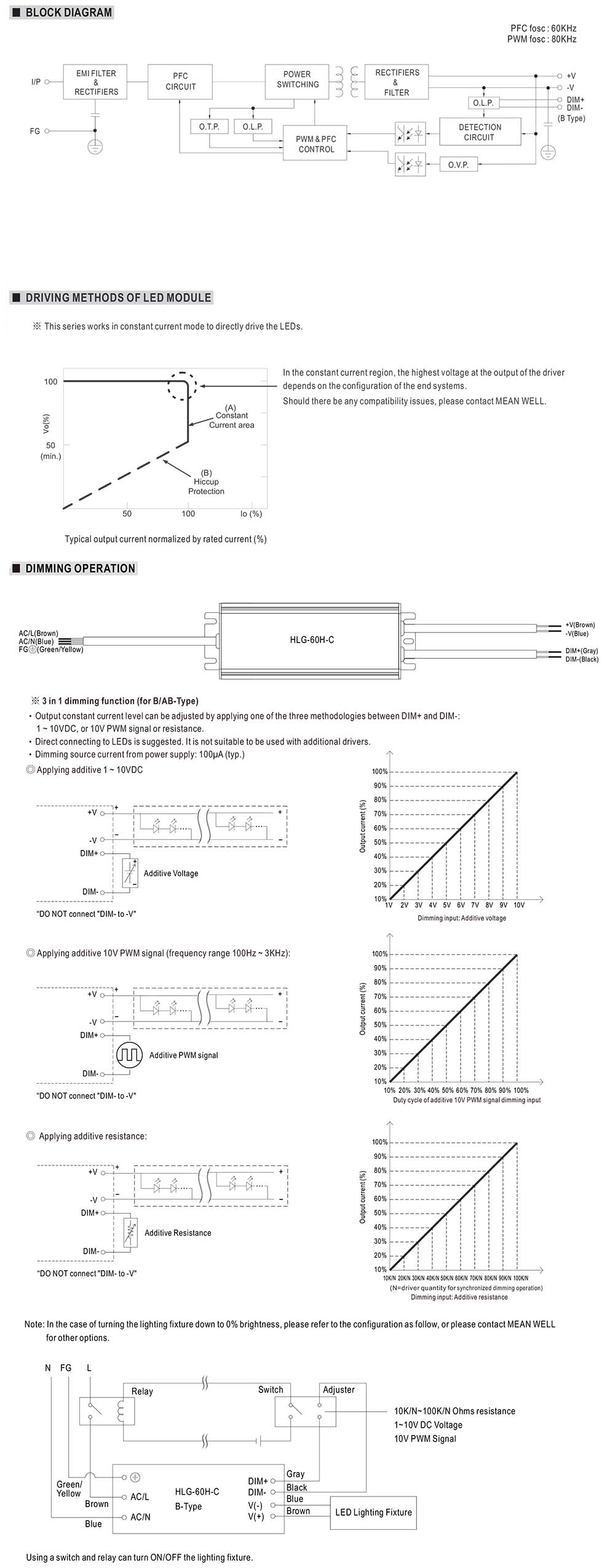

• B: IP67 Waterproof Level, 3 In 1 Dimming Function(1 To 10VDC, 10V PWM Signal And Resistance)
• AB: IP65 Waterproof Level, Output Current Adjustable Through Built-in Potentiometer&3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
• D: IP67 Waterproof Level, Timer Dimming Function
• Input Voltage Range: 90-305VAC
• Frequency Range: 47-63Hz
• Power Factor: PF≥0.98/115VAC, PF≥0.96/230VAC, PF≥0.94/277VAC
• Rated Current: 350mA(HLG-60H-C350)/700mA(HLG-60H-C700)
• Rated Power: 70W(HLG-60H-C350)/70W(HLG-60H-C700)
• Output Current Adjustable Range: 210-350mA(HLG-60H-C350)/420-700mA(HLG-60H-C700)
• Efficiency: 91%(HLG-60H-C350)/90.5%(HLG-60H-C700)
• AC Current: 0.69A/115VAC, 0.35A/230VAC, 0.29A/277VAC
• Working Temperature Range: -40℃-+80℃
• Vibration: 10-500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
• Safety Standards: UL8750, CSA C22.2 No.250.0-08, EN/AS/NZS 6134701, EN/AS/NZS 613457-2-13 Independent, GB19510.1, GB19510.14, EAC TP TC 004, IP65 Or IP67 Approved
• Short Circuit Protection
• Over Voltage Protection
• Over Temperature Protection
• 7 Years Warranty

Includes:

1*Mean Well HLG-60H-C Constant Current LED Driver
