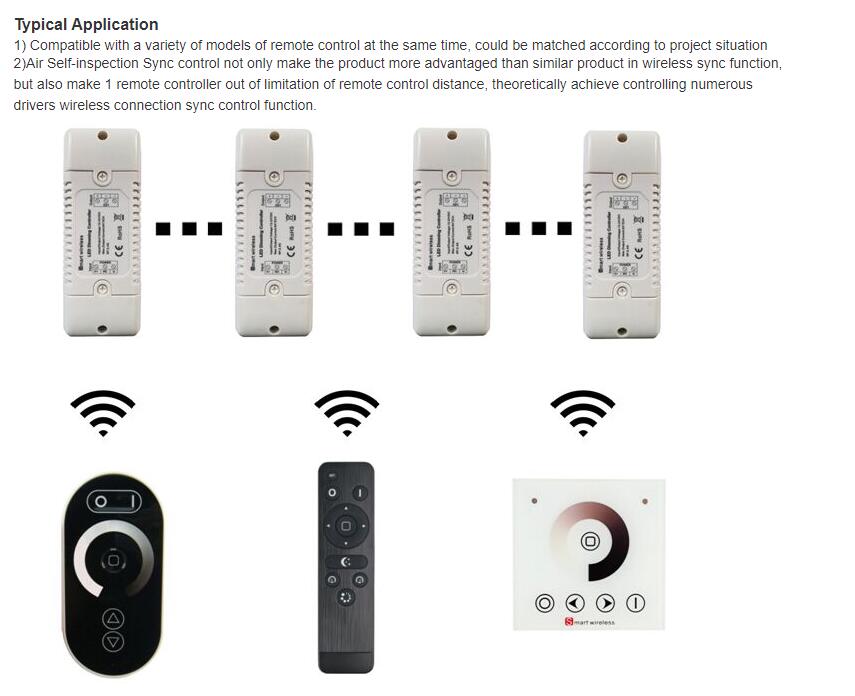

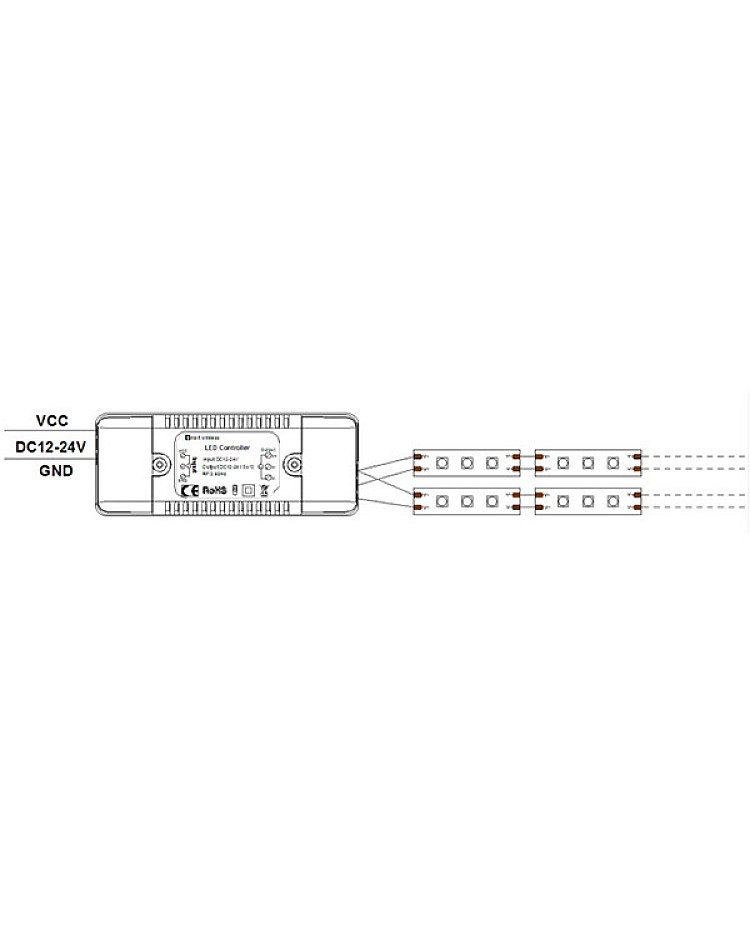

The 12V LED dimmer works on DC12V or DC24V, with a two-output-channel design, the max output current of each channel is 8A. LED dimmers adopt PWM dimming technology to achieve a high-quality, delicate, soft dimming and non-flicker. You can use it to control a variety of dual-white LED lamps, constant voltage dual-white LED strips, line lights, and panel lights. Adopting 2.4G wireless remote control mode and excellent synchronization technology, you can achieve all the controller's wireless synchronization functions, making wiring simpler and more convenient.
Specifications:
- Size:115*45*31mm
- Working Temperature: -20-60℃
- Working Voltage: DC12-24V
- Max Output Power: 192W(DC12V) / 384W(24V)
- Max Output Current: 8A*2Channels
- PWM Frequency: 3GHz
- Memory Function: Support
- Static Power Consumption: <1W
- Gray Scale: 1024 Levels

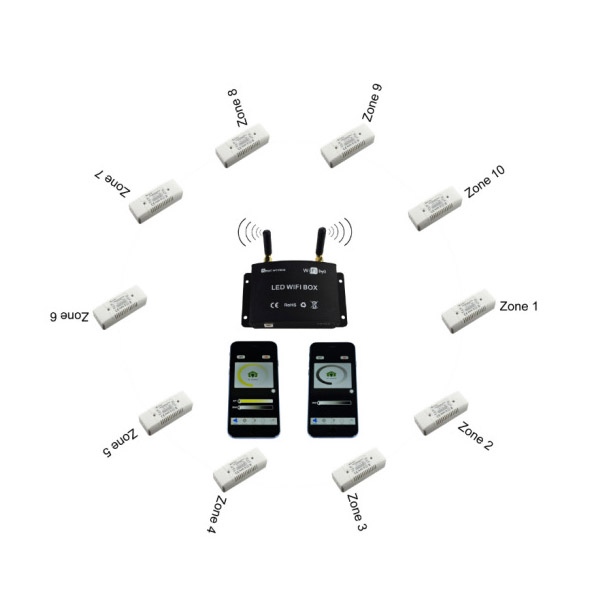

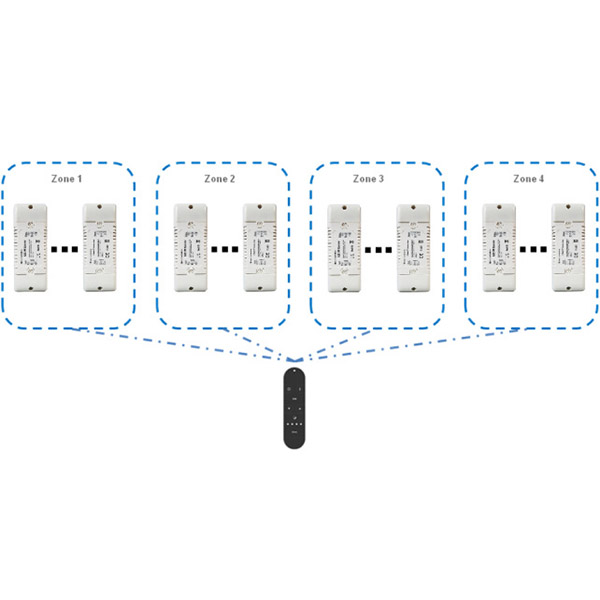

- Synchronization Function: Support
- RF Frequency: 2.4GHz
- Remote Control Distance: <30M
- Mode: 3

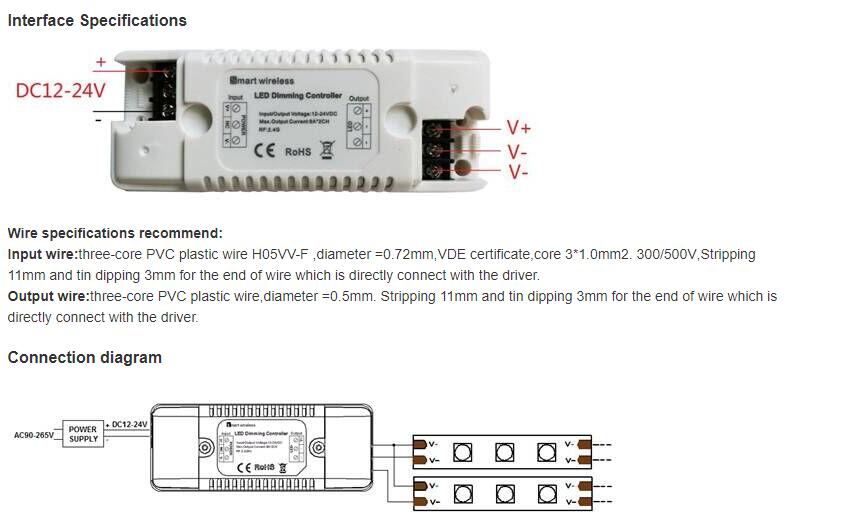

- Connecting Mode: Common Anode
- 3 Years Warranty

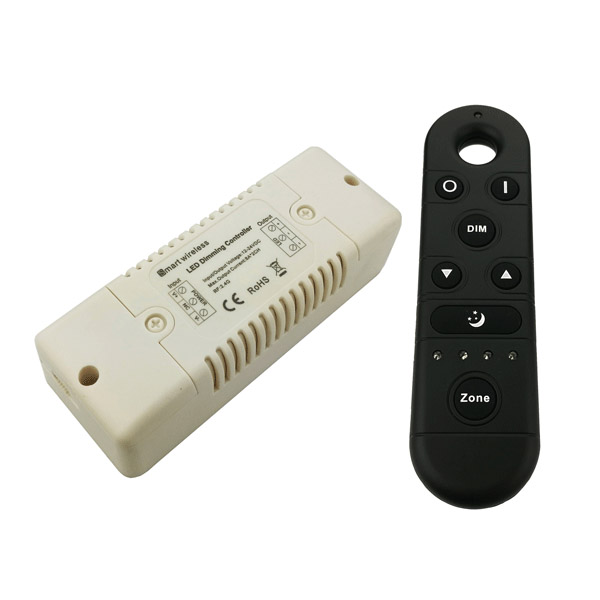

Includes:

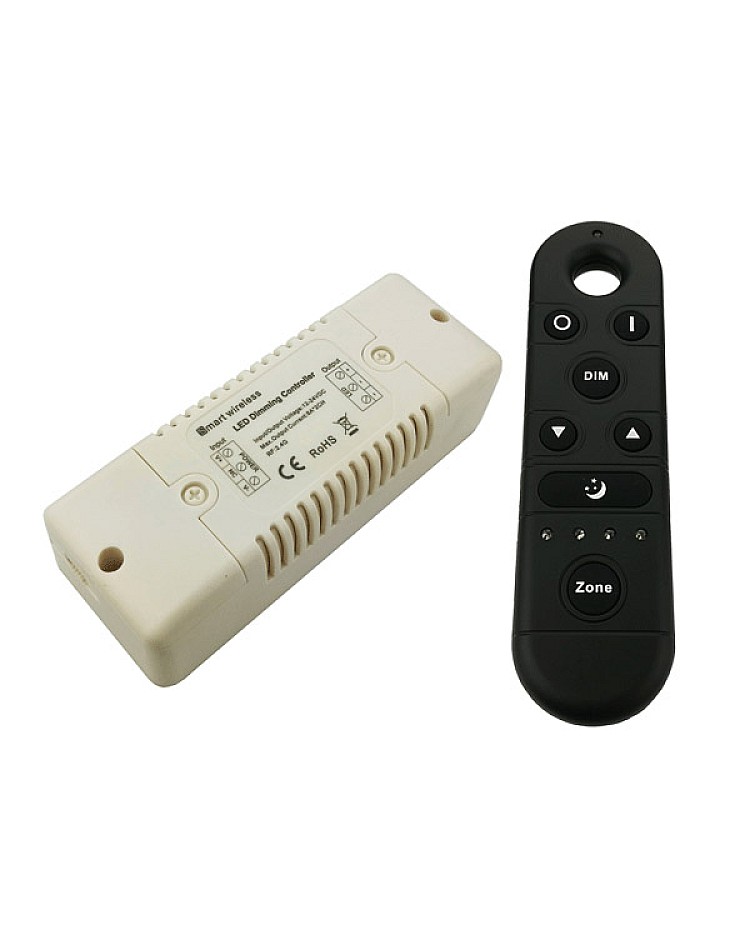

1 * 12-24V LED Dimmer
1 * Remote
