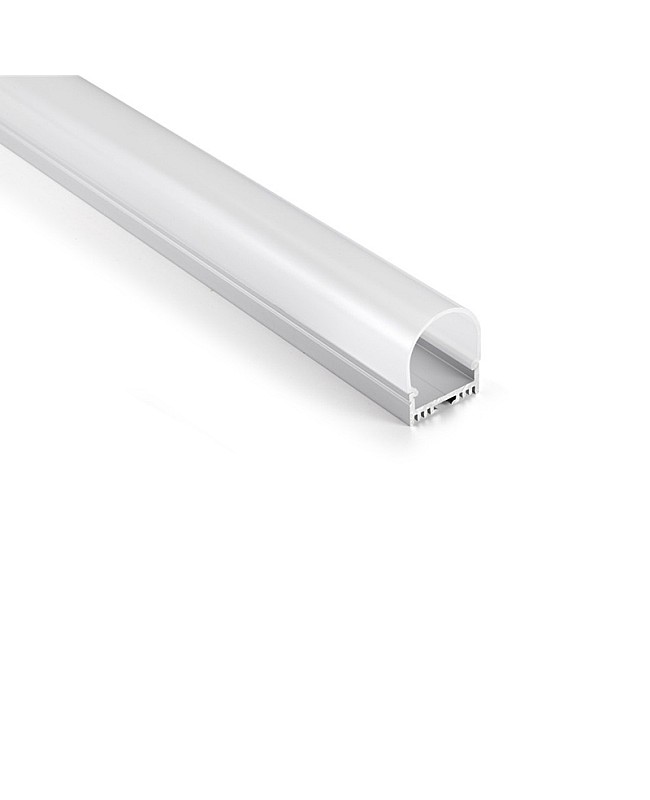

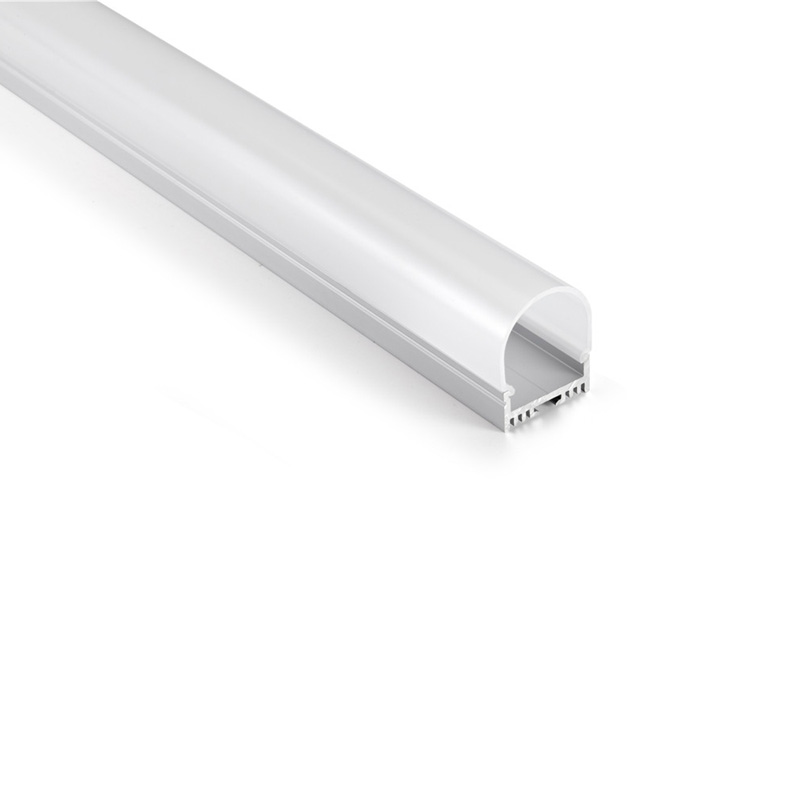

The Milky LED Strip Diffuser Profile has a half-round milky color PC diffused cover for a wide view angle, creating a stylish and uniform light line. Whether you want to highlight a specific area or create a cozy ambiance, this diffuser profile is the ideal solution. The end caps and metal clips are included for surface-mounted installation. The LED Strip Profiles are made of 6063-T5 aluminum material with anodized surface treatment and anti-oxidation resistance for a longer lifespan than similar products. The aluminium profile can work as a heat sinker for better heat dissipation of the LED light, extending the LED strips' lifespan. The standard length is 1M and 2M and can be cut to any size for your projects. The inner width is 22.2mm, allowing the max width of LED Strips to be 22mm. End caps with wire holes and without wire holes are included and can connect with the LED dimmers or LED controller to adjust the brightness for single-color LED strips or the color-changing style for RGB LED light strips. The LED Strip Diffuser Profile is non-waterproof and only recommended for indoor use. You can use them at homes, offices, schools, hotels, and restaurants.

Quick Links:

LED Profile Connectors


Features:

  • Material: Aluminium Alloy(6063-T5)
  • Surface Treatment: Silver Anodized
  • Colors: Silver, White, Black
  • Model: ALP044-PC-R

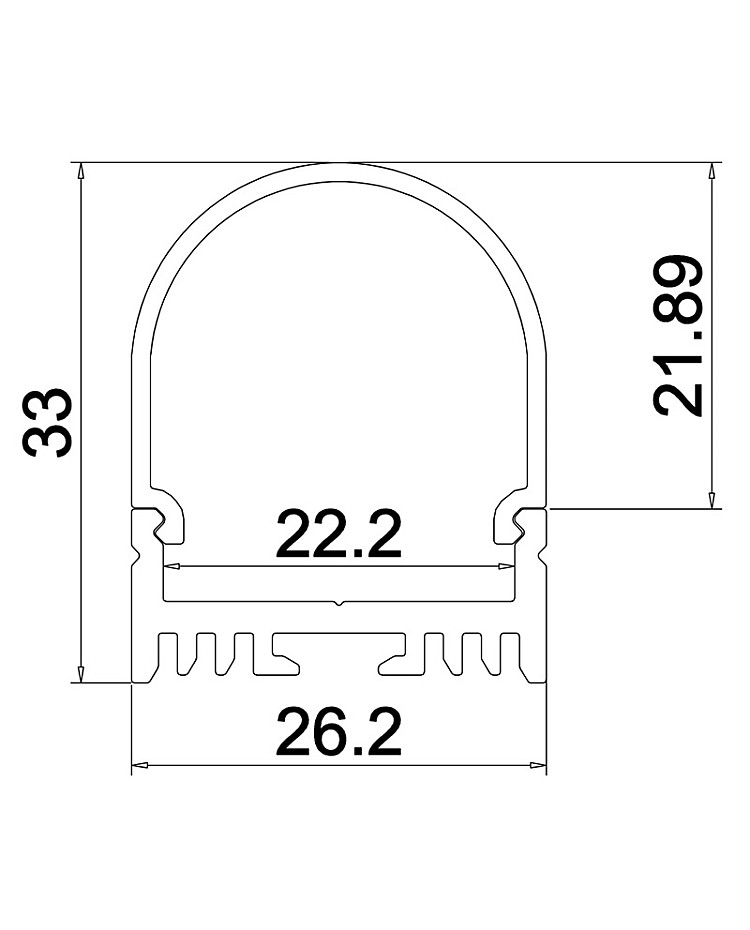

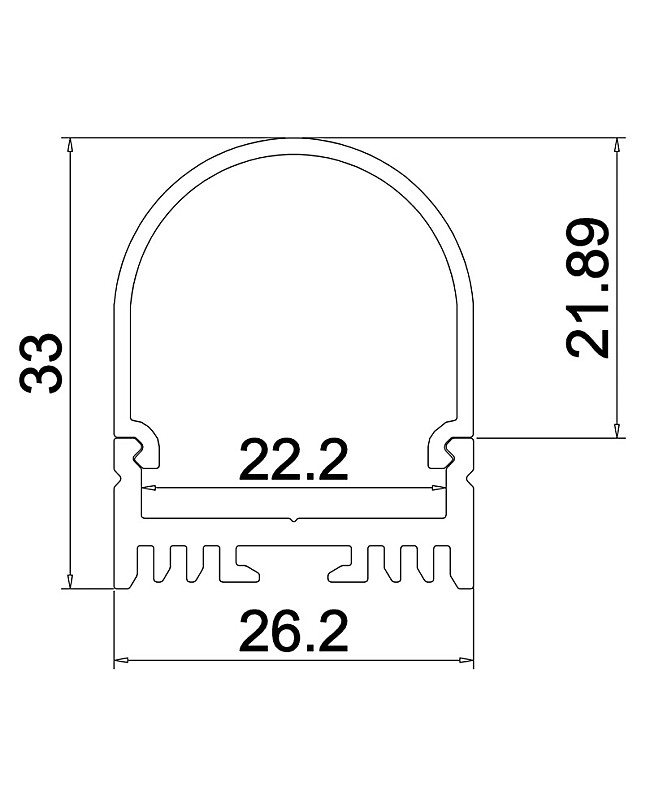

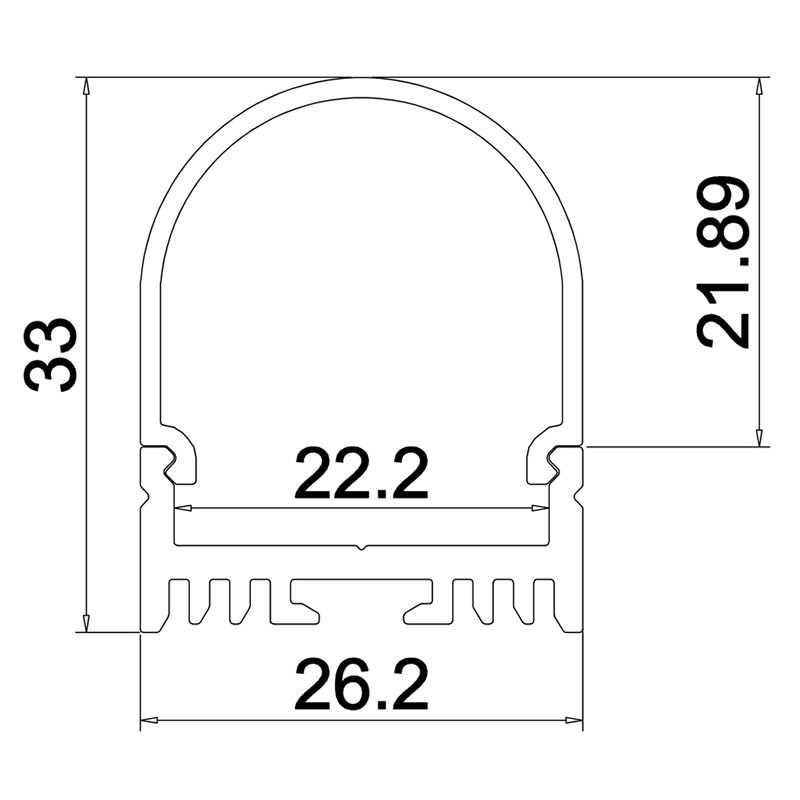

  • Size: 33*26.2mm
  • Diffusers: PC Diffused Cover
  • Color: Silver(Aluminum Base)/ Milky(Cover)
  • Default Length: 1Meter
  • Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
  • Custom Length Available: YES
  • Inner Width: 22.2mm
  • Recommended LED Strips: 2835, 3528, 5050, 5630, 5730, And COB
  • Max Power: <25W/Meter
  • End Caps And Metal Clips Included

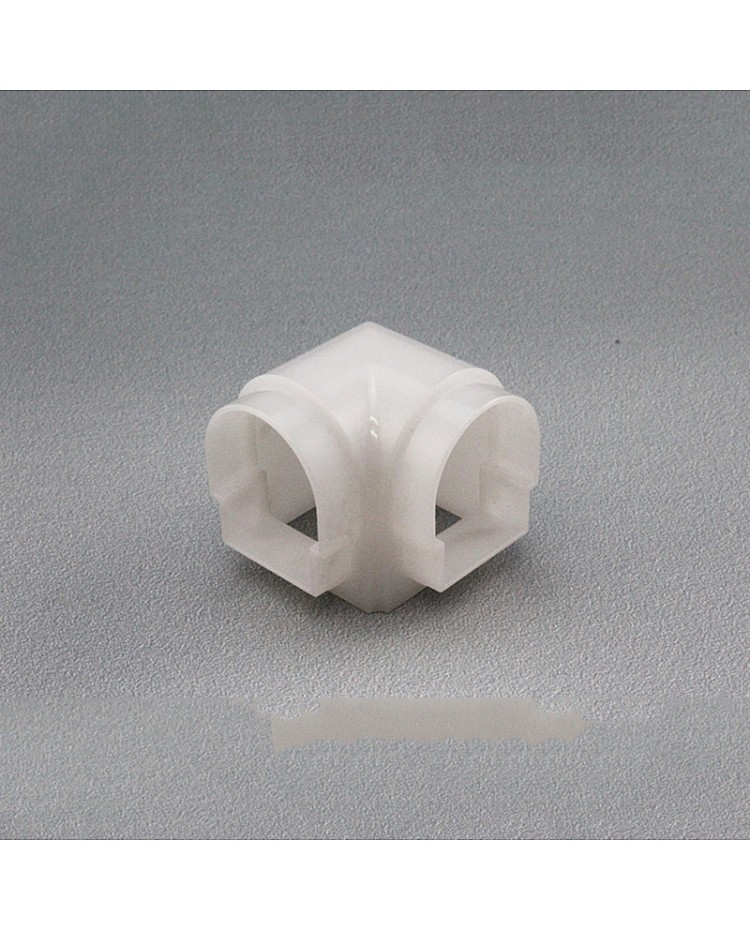

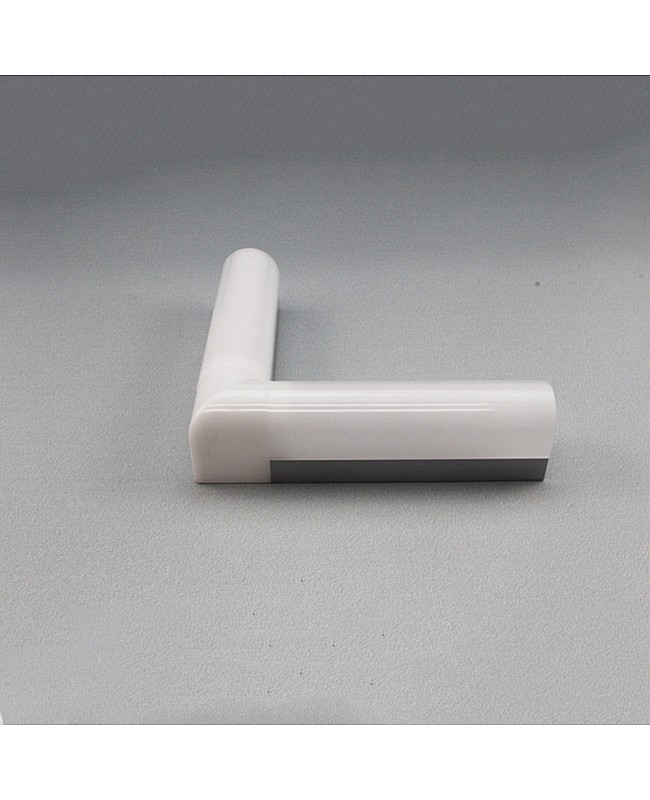

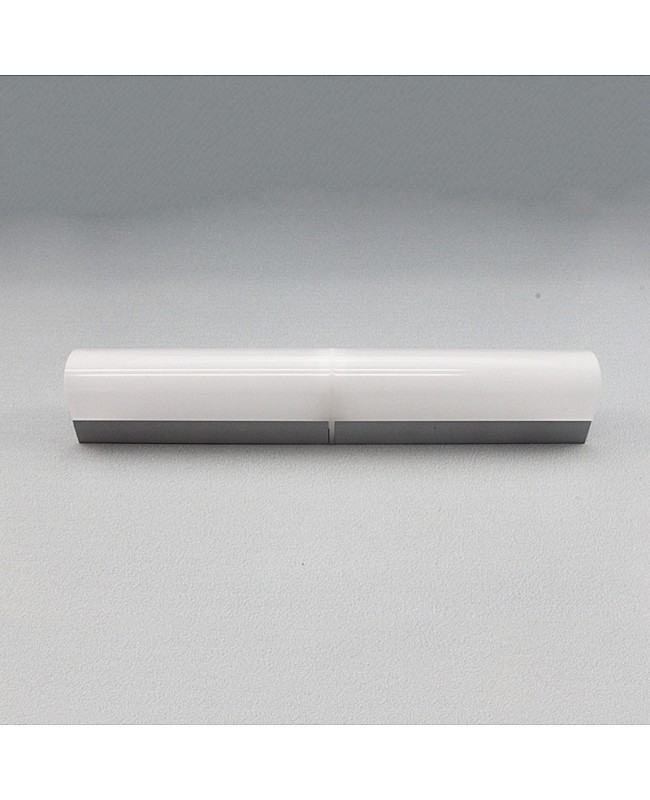

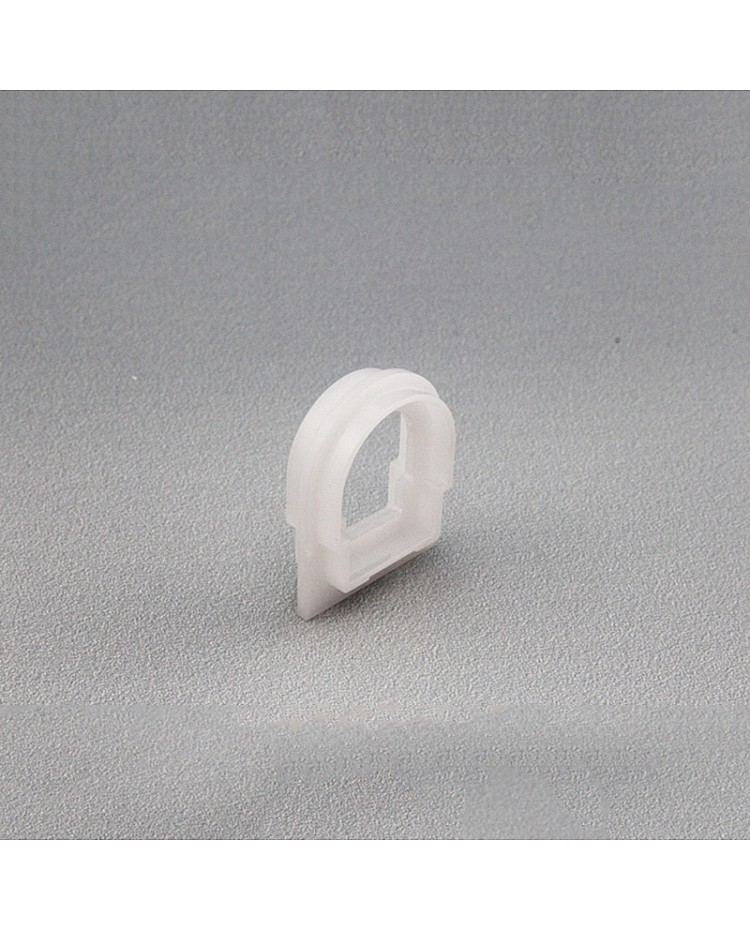

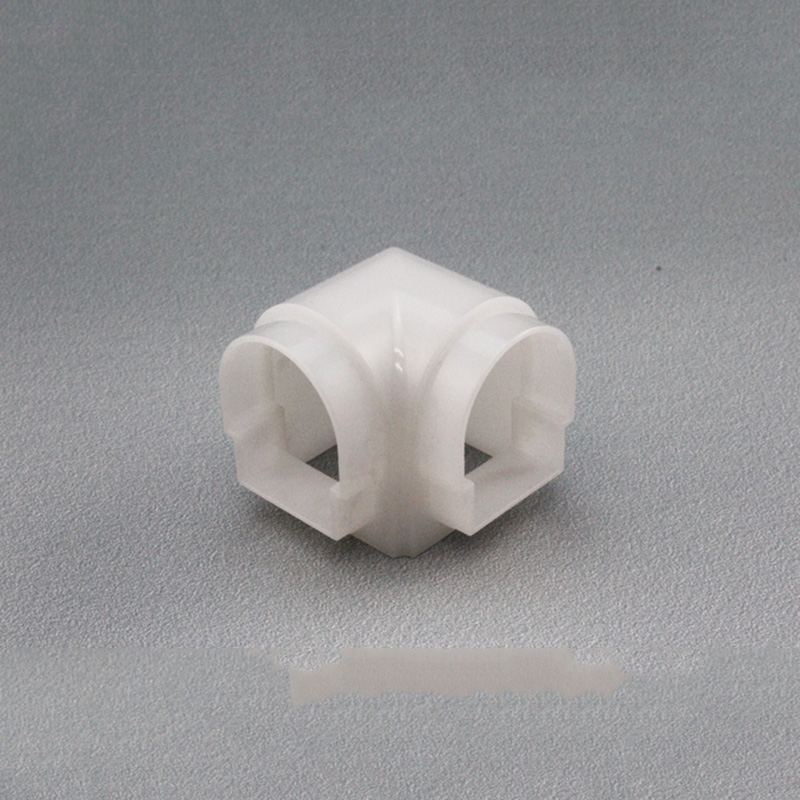

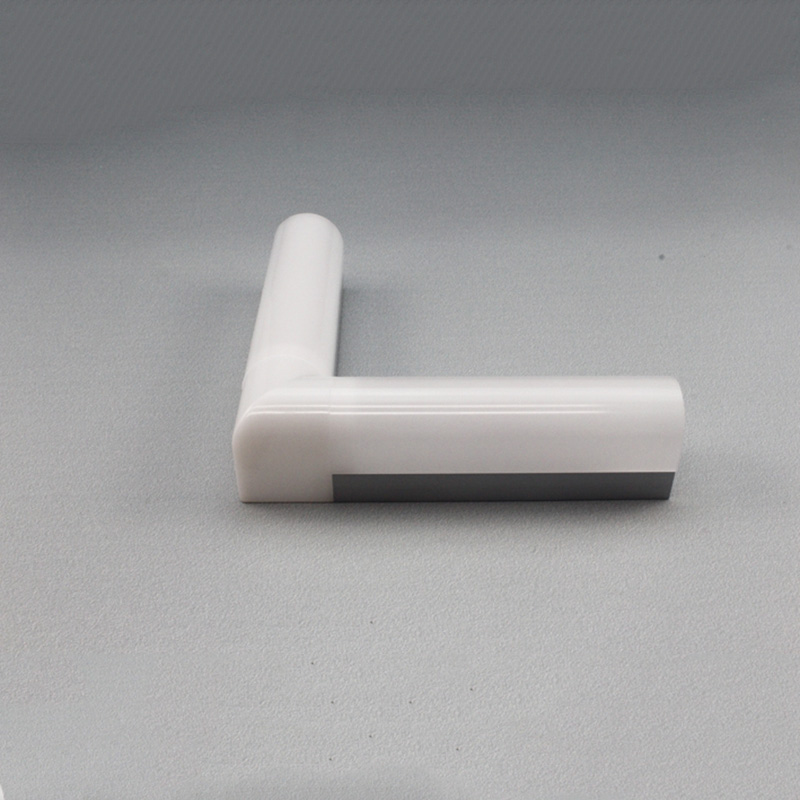

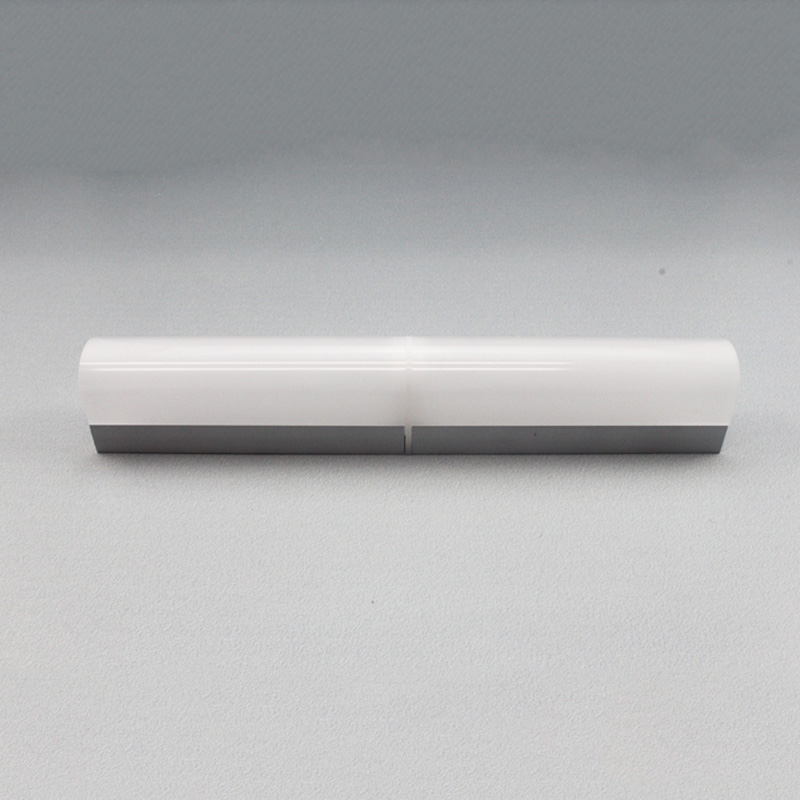

  • 180° And 90° Connectors Sold Separately
  • Installation: Surface Mounted
  • Application: Commercial, Retail, Residential, Internal And External Architectural, Furniture, Spa & Landscape
  • 5 Years Warranty


Includes:

1*Milky LED Strip Diffuser Profile

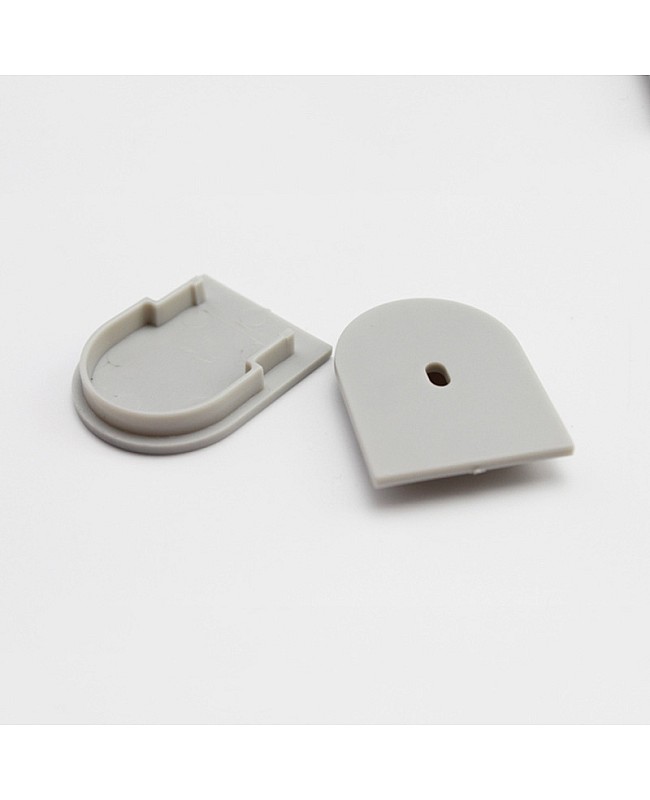

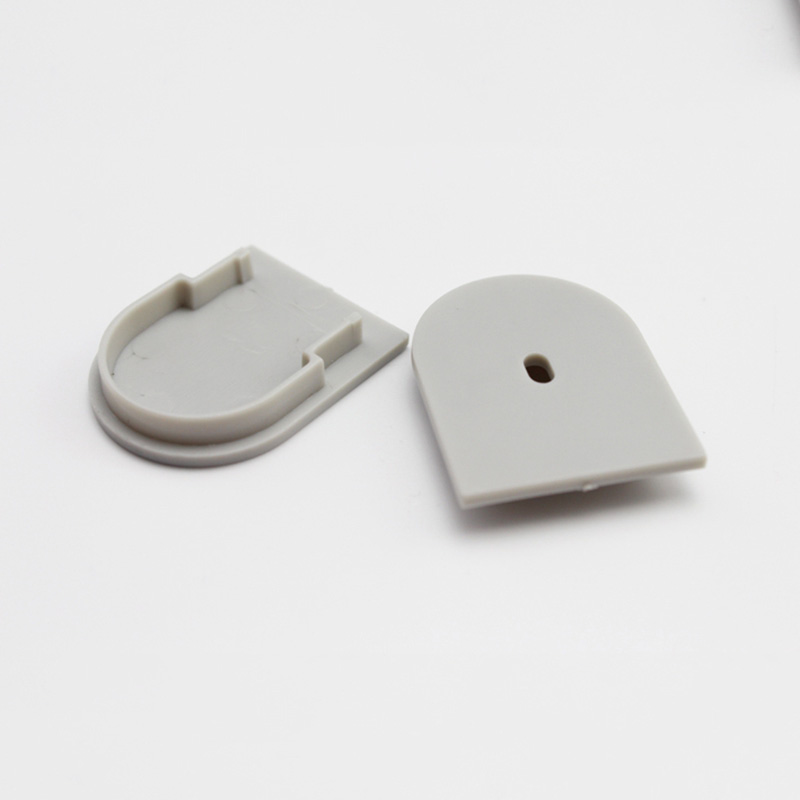

End Caps(With Wire Hole/Without Wire Hole)

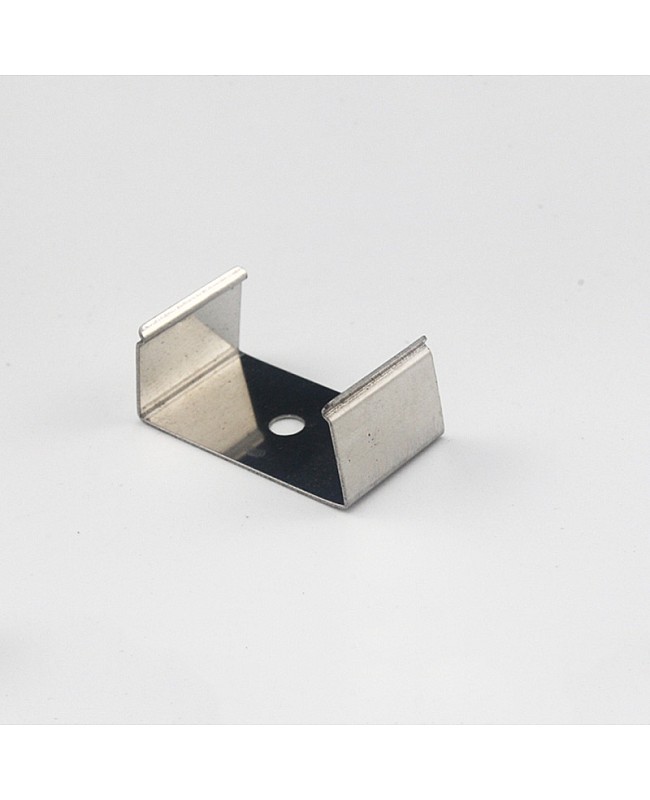

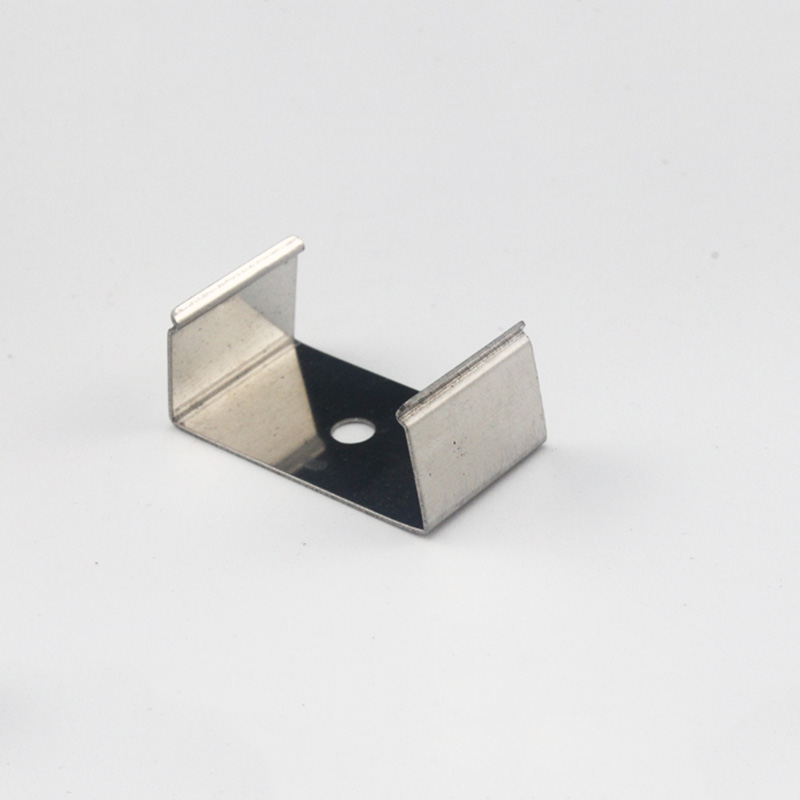

Metal Clips

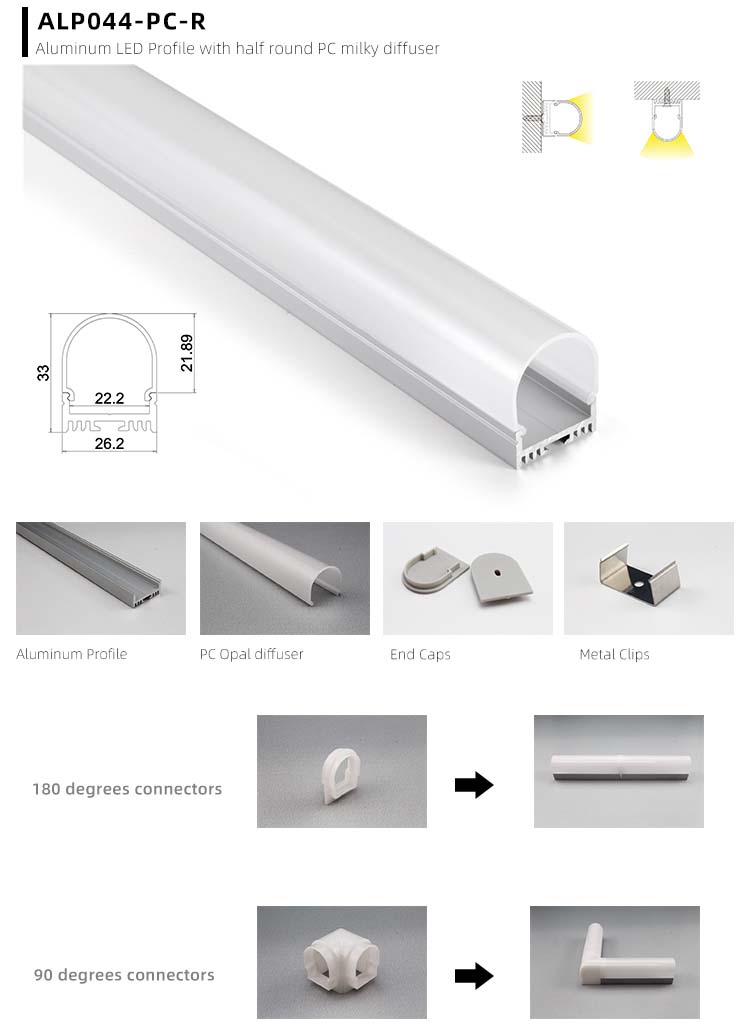

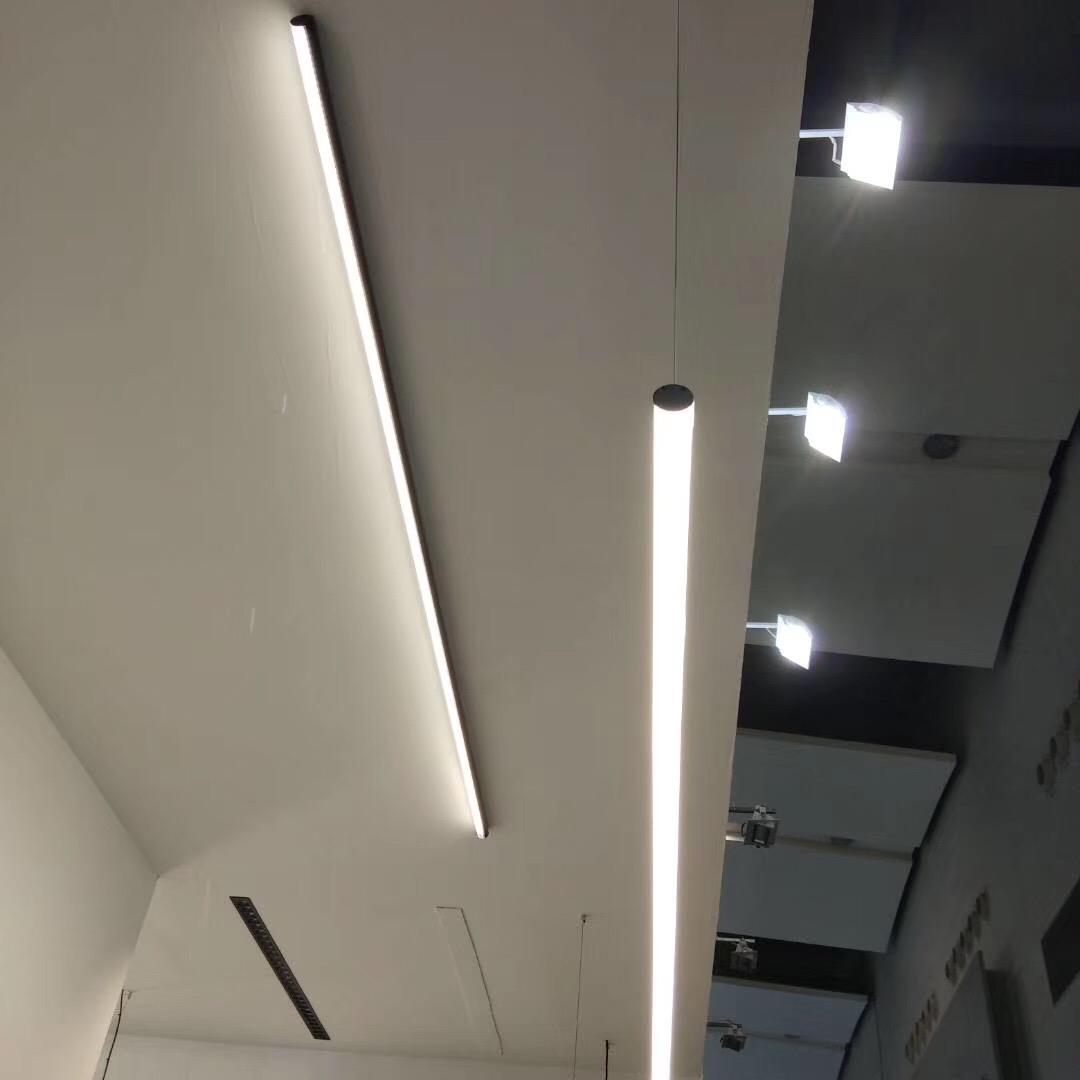

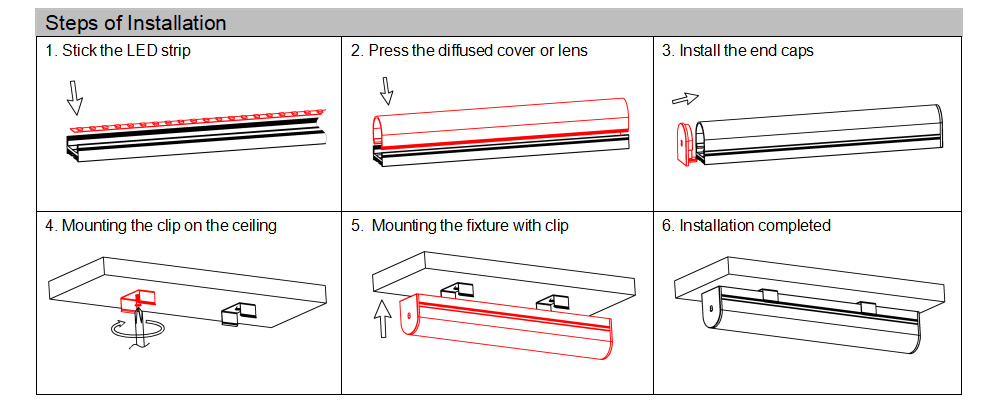

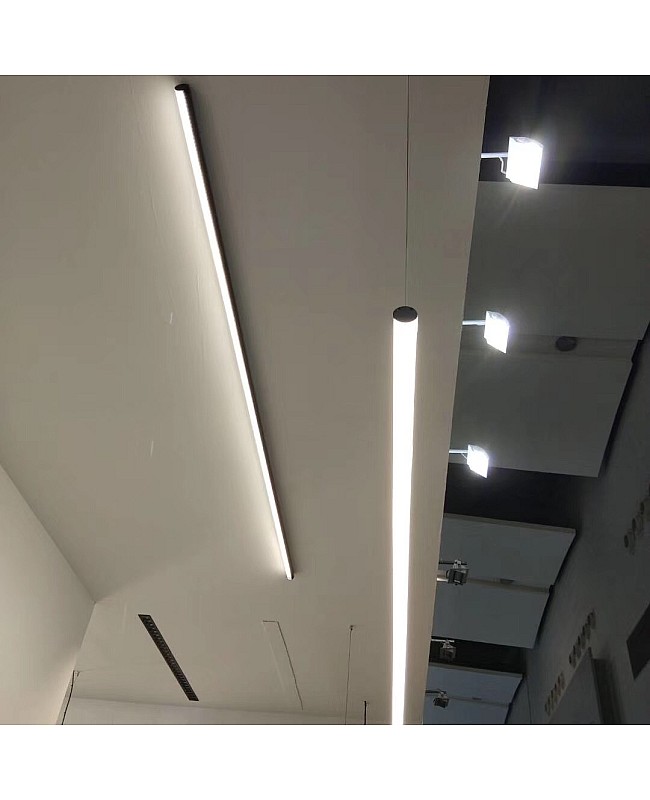

LED Strip Diffuser Profiles Installation LED Strip Diffuser Channel Installation Wall Linear LED Diffuser Profiles
