In Stock
$12.70 $8.40 Sale -34% OFF
Reward Points: 8
-
+
  • Brand: Ledbe
  • Product Code: 5050IG-4LEDs

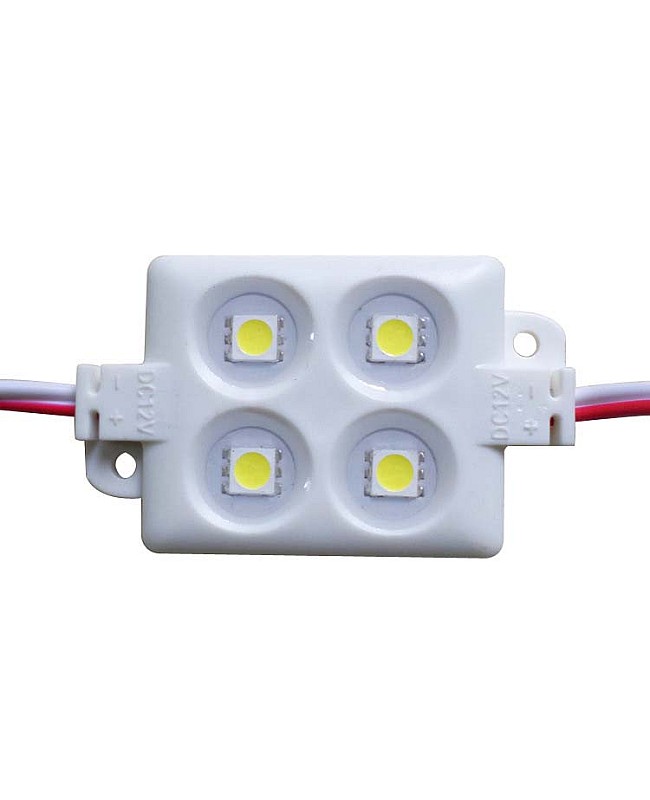

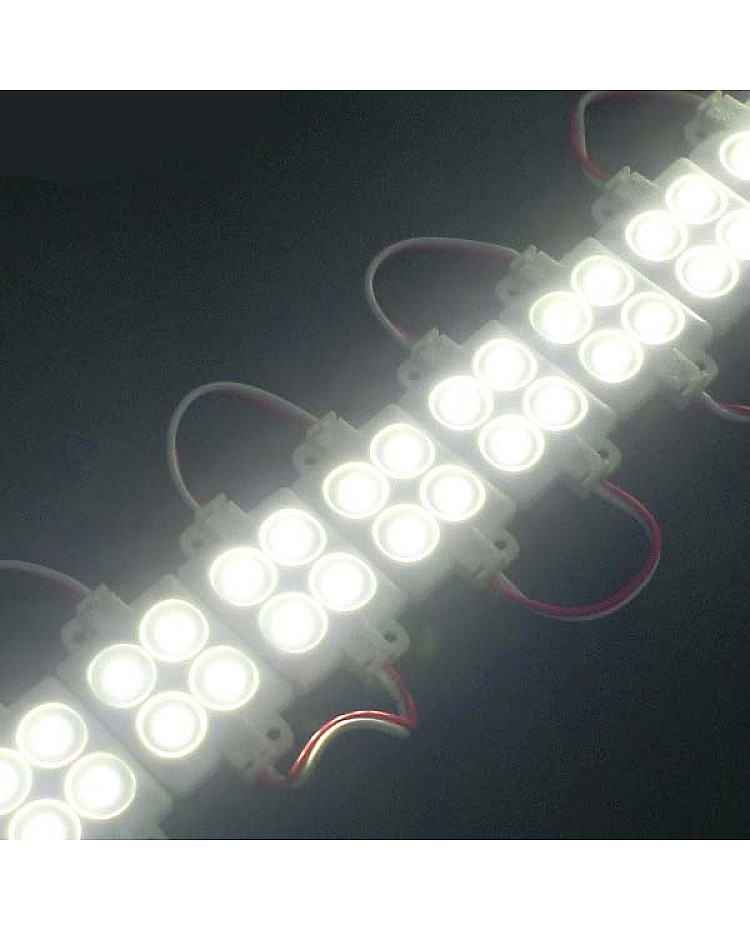

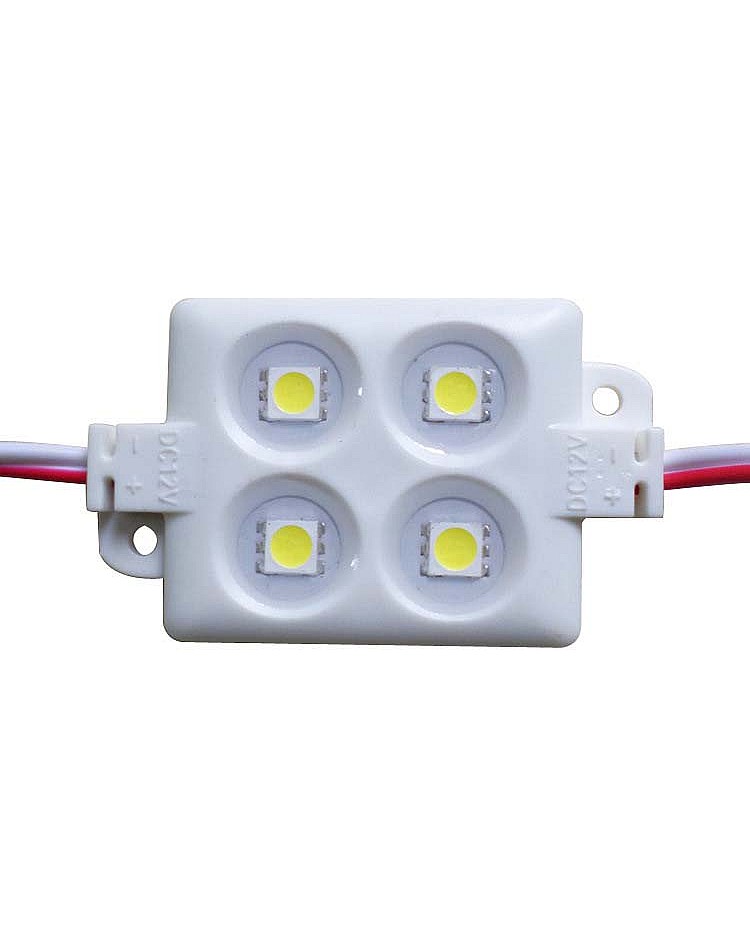

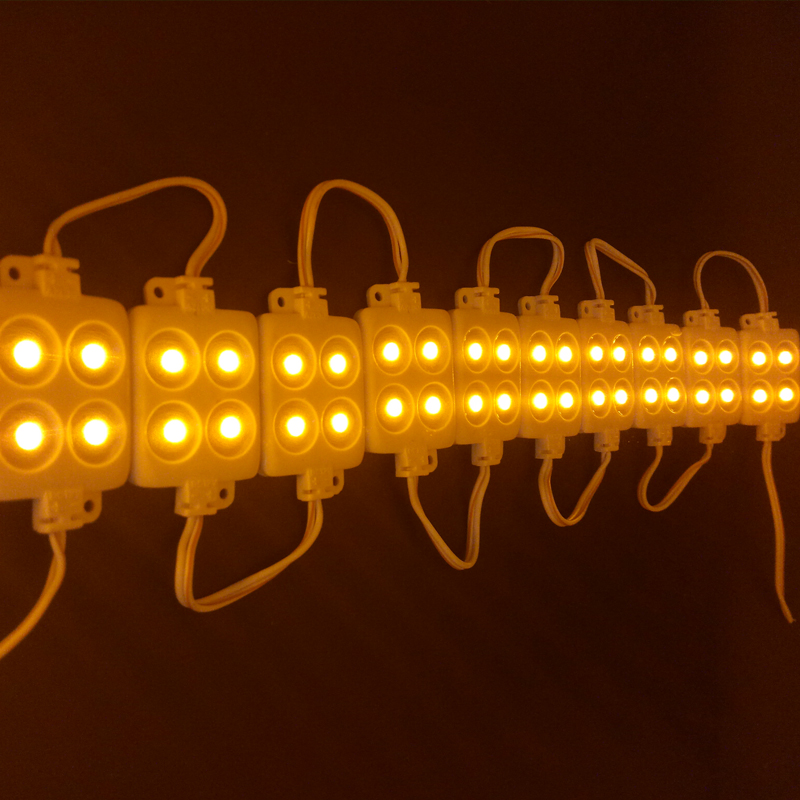

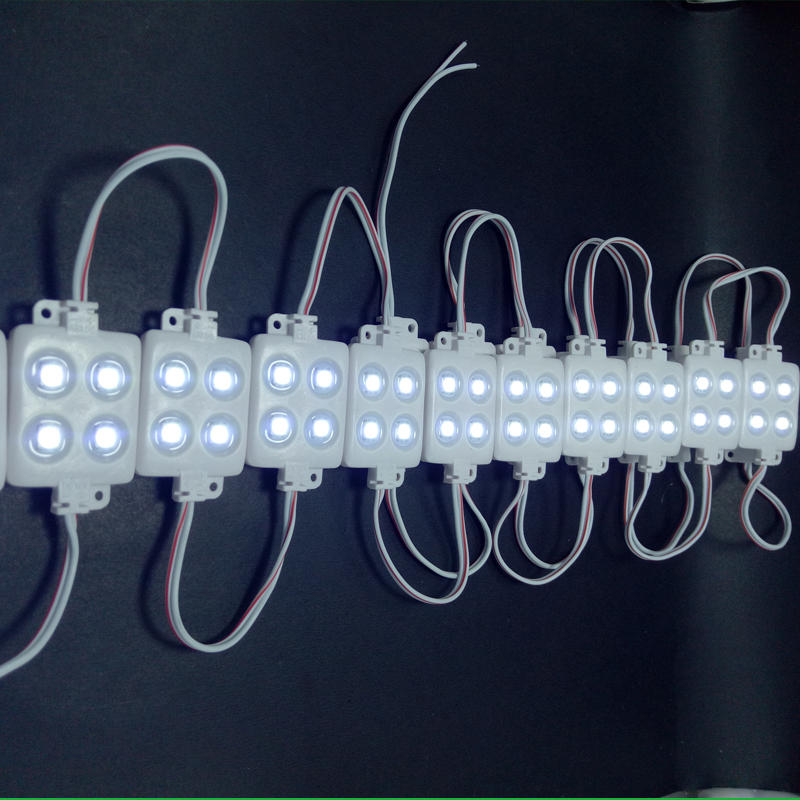

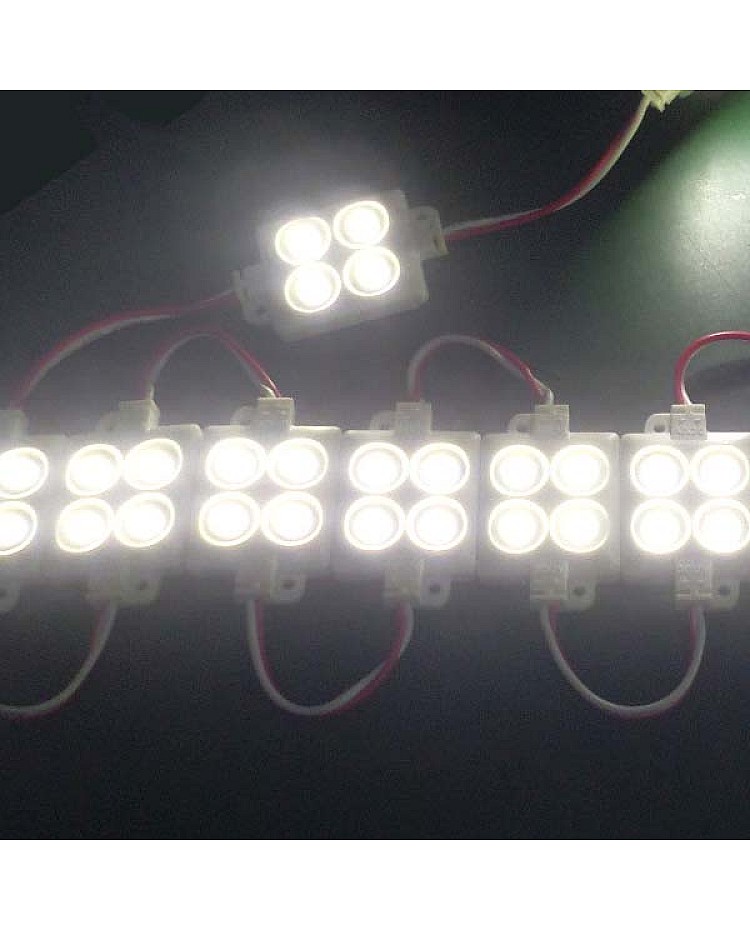

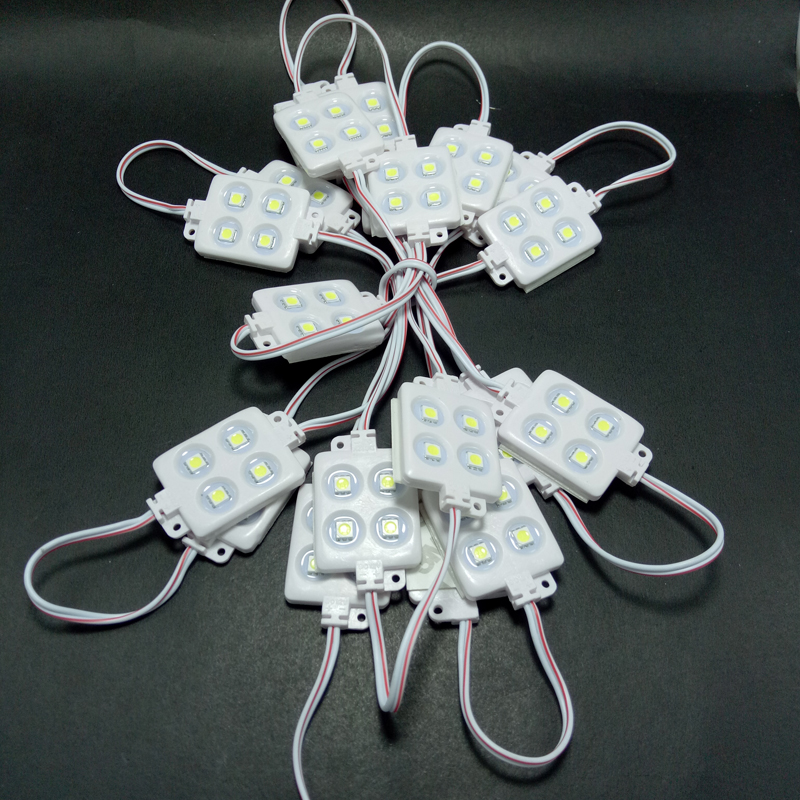

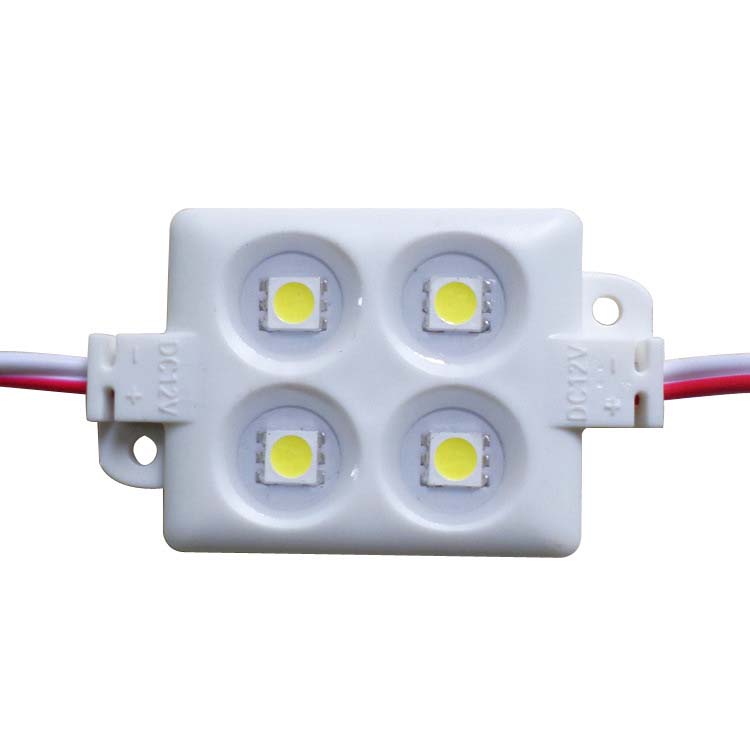

Check the LED Module 5050 with waterproof injection design, the waterproof level can reach IP65, you can use the 5050 LED Modules for indoor or outdoor LED Projects. the LED Modules use 4PCS high-quality 5050 SMD LEDs as the light source, the SMD LEDs mounted on the aluminum board for better heat dissipation, with fireproof ABS material shell and the surface with epoxy sealed, working in DC12V, easy to connect to the LED Driver to light up or connect the LED Dimmer Controller to adjust the brightness. the back of the 5050 Modules with double-sided adhesive tape, the end of both sides with screw holes, easy to install and use, take off the protector on the tape and stick on the place you want to install or use the crews to fix them. you can use the 5050 LED Modules to design your LED Signs, channel letters. 20PCS Waterproof LED Modules per string, cuttable and reconnectable, you can cut any quantity and reconnect them for your projects. 3 years warranty for a free replacement.


Features:

  • Material: ABS + Epoxy Resin
  • Driving Method: Constant Voltage
  • Size: 55*33*5.7mm(L*W*H)
  • Working Voltage: DC12V
  • Working Temperature: -25-60℃
  • LED Type: 5050 SMD LEDs
  • LED Quantity: 4PCS
  • Input Current: 0.12A
  • Lumen: 56-64lm
  • Power Consumption: 0.96W/PC
  • Power Factor: >0.9
  • Emitting Colors: Warm White, Cool White, Red, Green,  Blue, Yellow
  • Color Temperature: Warm White(2700K-3200K), Cool White(9000-12000K), Red(620-625nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
  • Luminous Flux/PC: White(80-88lm), Red(26lm), Green(50lm), Blue(16lm), Yellow(20lm)
  • View Angle: 120°
  • Waterproof Level: IP65
  • Optical Attenuation: 1000H>2%
  • Color Rendering Index: 80Ra
  • 20PCS Per String
  • Warranty: 3 Years
  • Lifespan: >50,000 Hours


Include:

1*LED Module 5050(20PCS/String)

Waterproof LED Module 5050 5050 LED Modules 5050 LED Module Light
