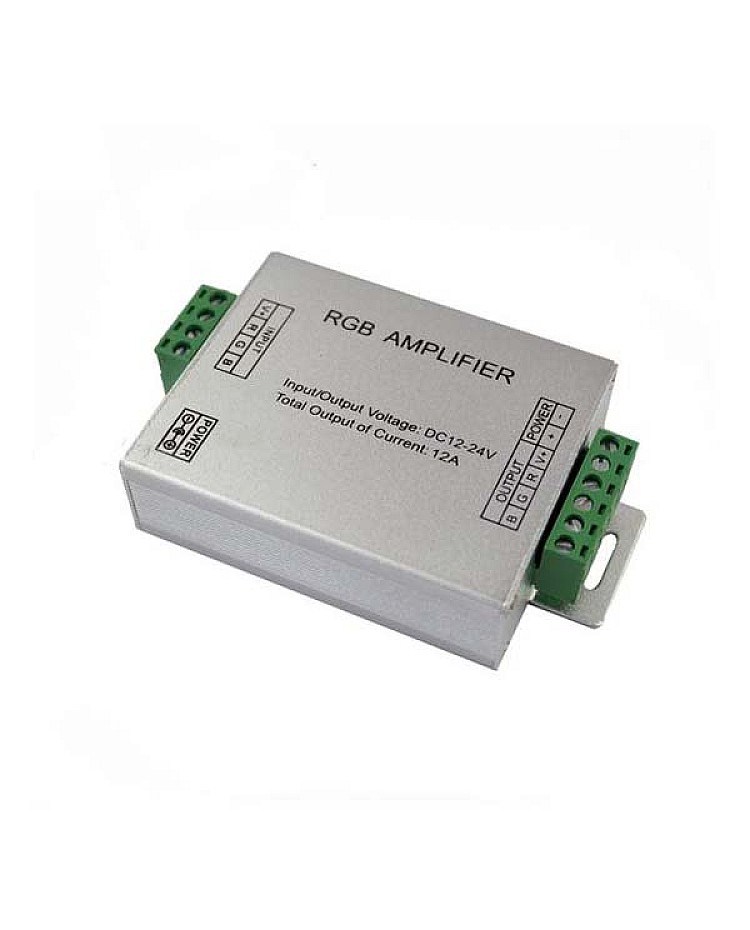

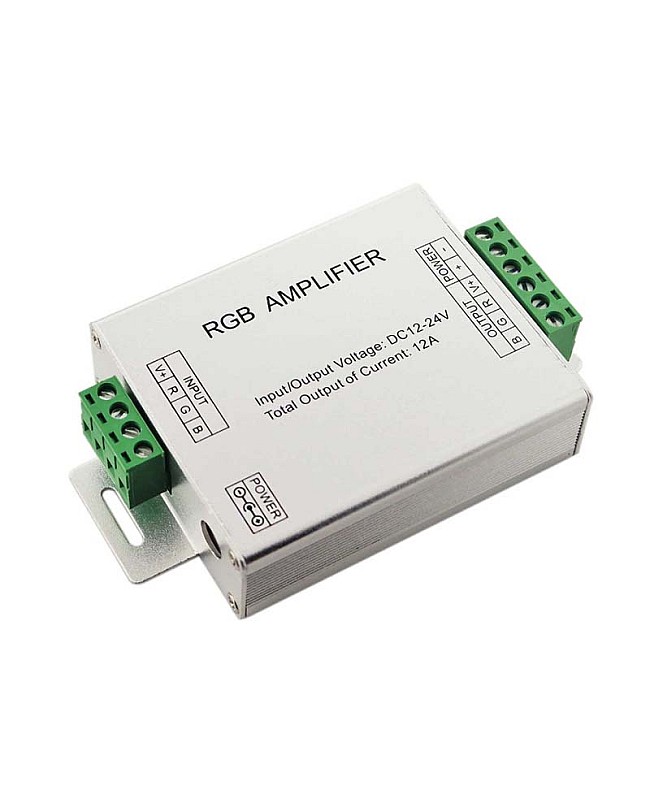

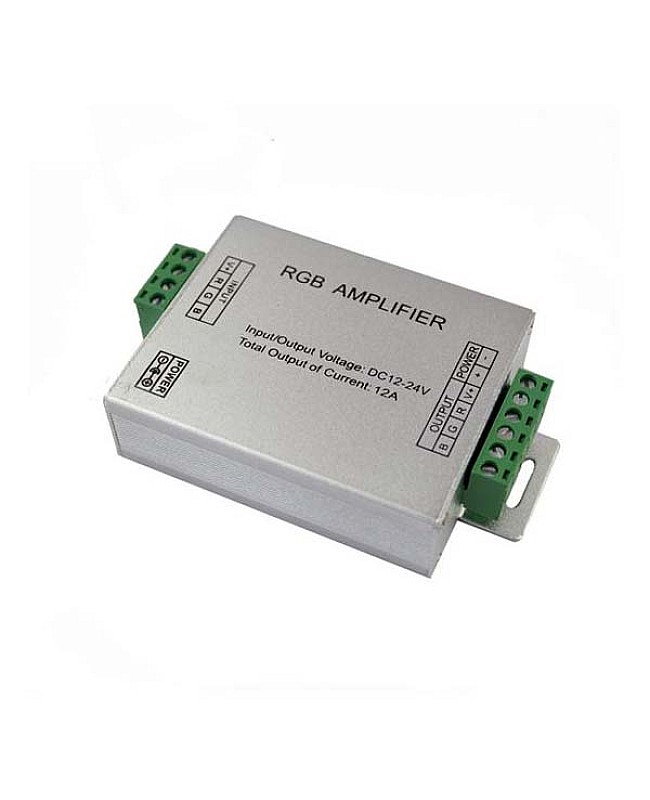

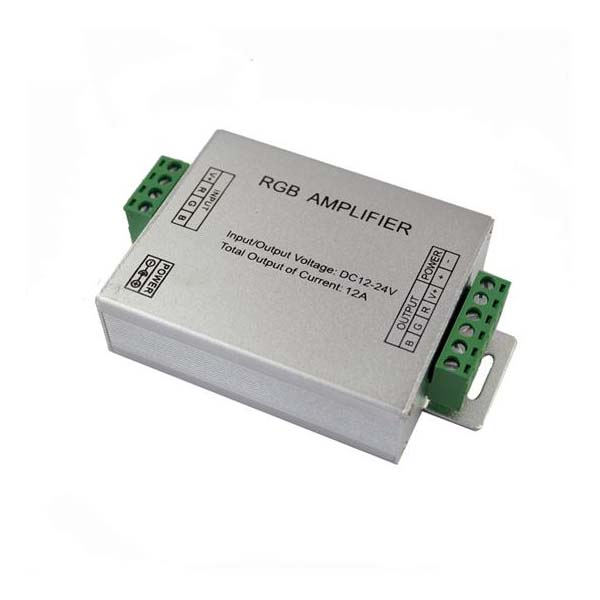

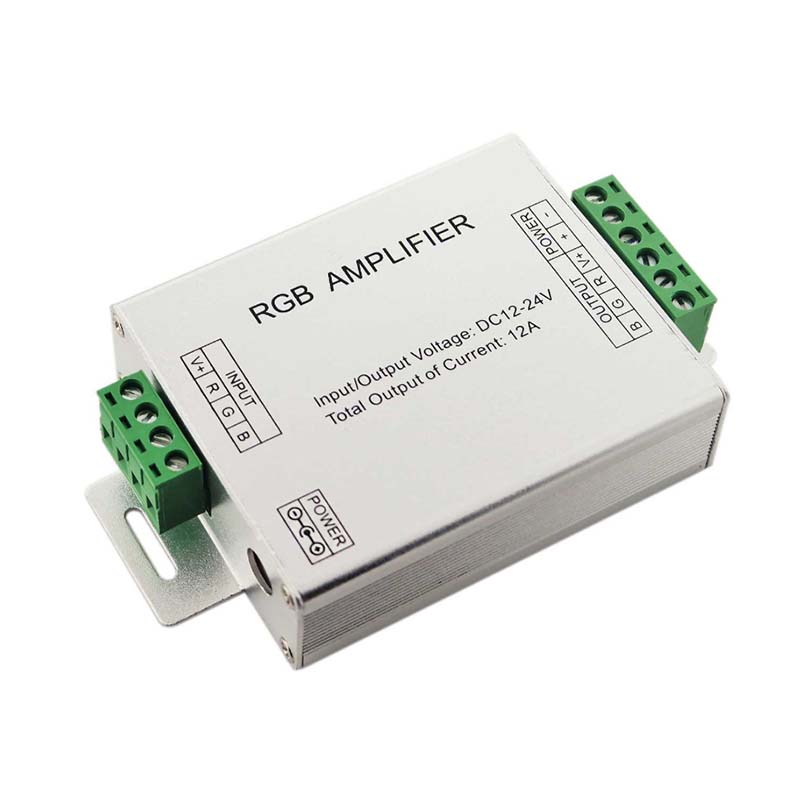

The RGB LED signal amplifiers have an aluminium shell for better heat dissipation. They work on DC12V-24V and have three output channels. The max output current is up to 4A each channel, and the max loading power is up to 288W when working in DC24V. The RGB LED strip amplifier can work with all Hoion RGB LED light controllers, receive and transmit the PWM signal, and connect to numerous devices. In theory, you can use them for the RGB LED strip lights.
Specifications:
- Item NO: HX-AMF-01
- Dimensions: L105 mm* W65 mm* H23 mm
- Working Temperature: -20 ℃-60 ℃
- Voltage: DC12V-24V
- Output: 3 Channels
- Max Output Current: 4A(Each Channel)
- Output Power: 144W(DC12V), 288W(DC24V)
- Connecting Mode: Common Anode
- Static power consumption: <1W
- Certificate: CE, RHS
- Weight: 200g
- Warranty: 2 Years
Includes:
1 * RGB LED Signal Amplifier
