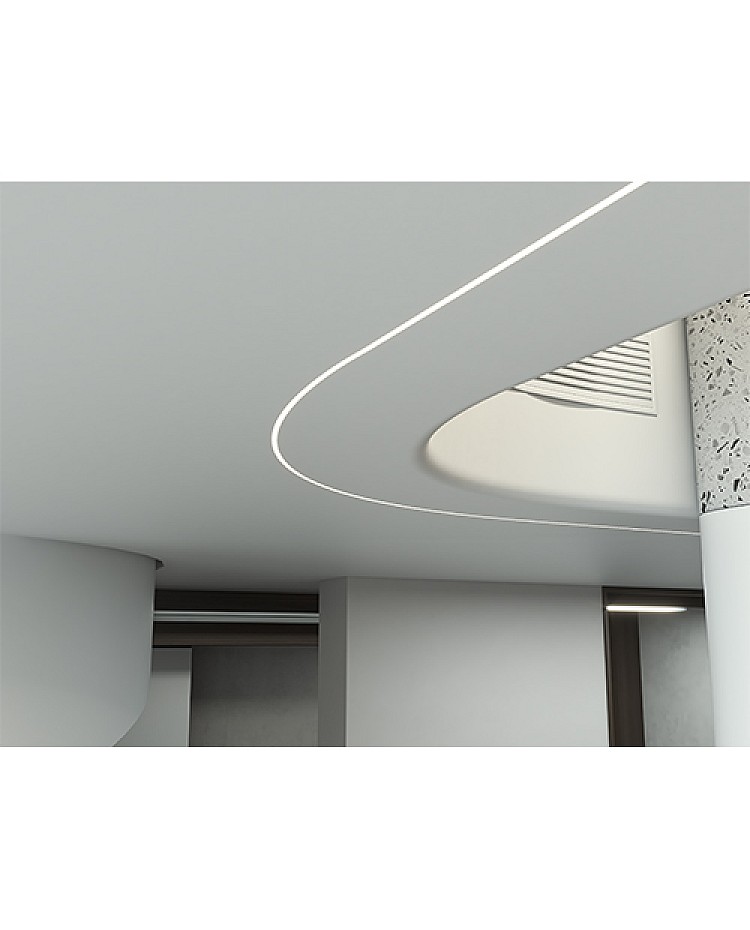

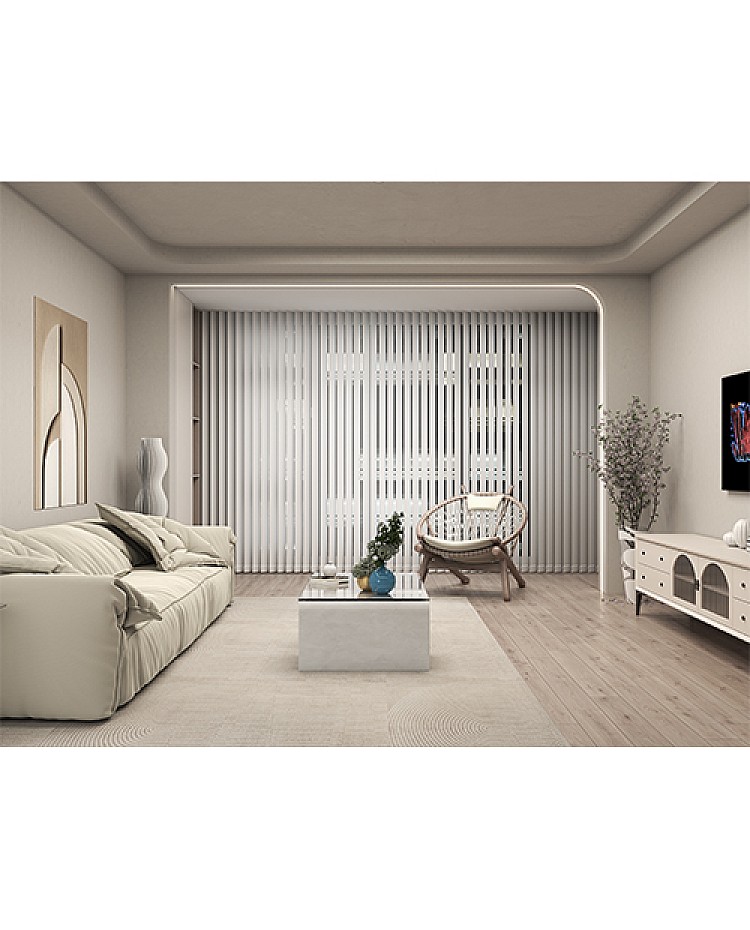

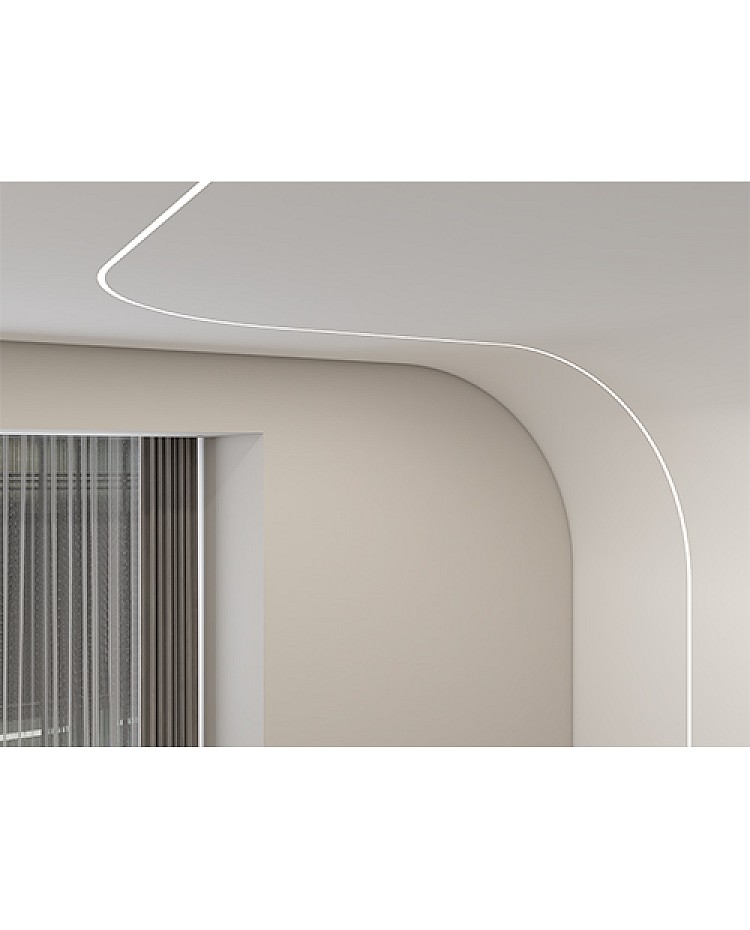

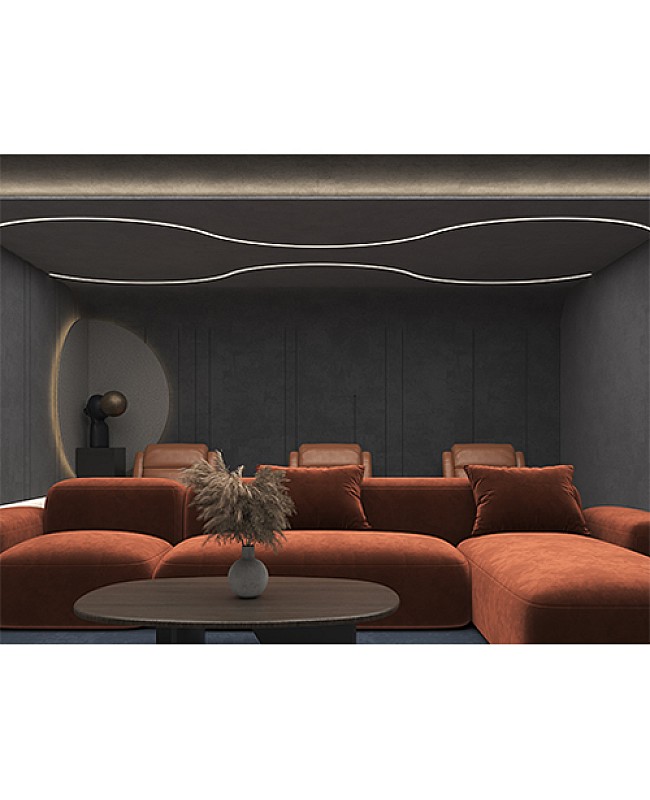

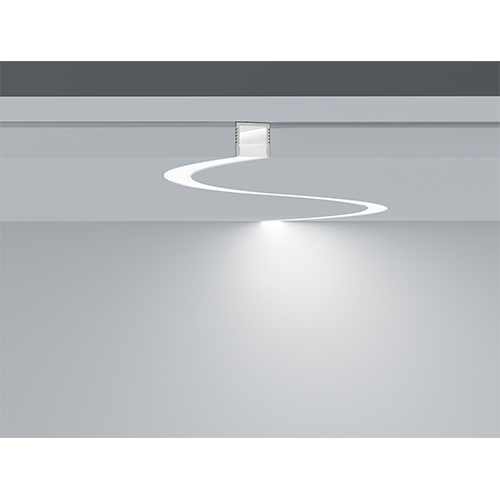

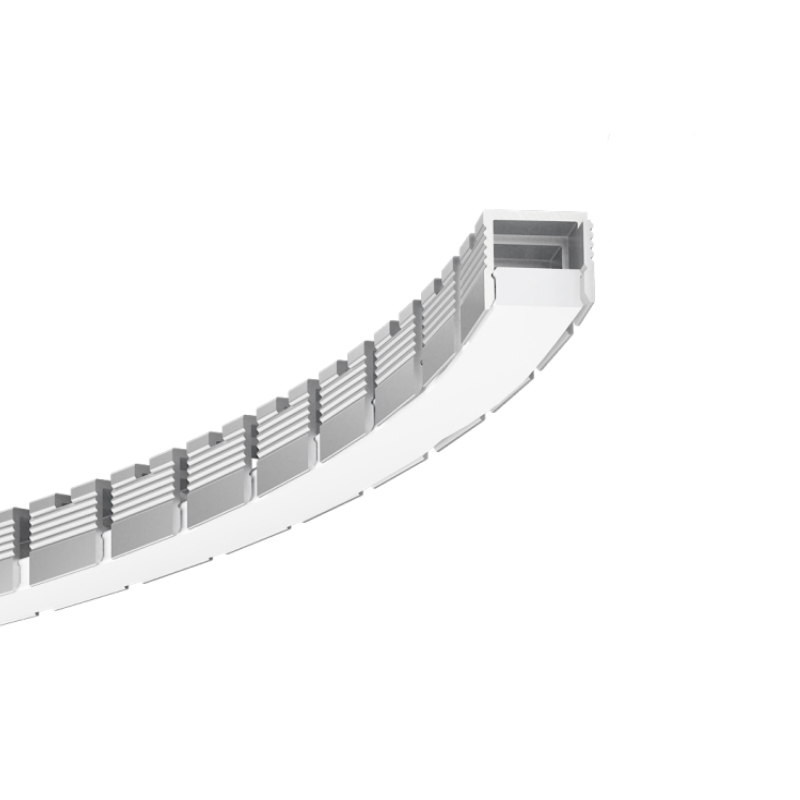

The 12mm bendable LED light channels can create curved-line lighting for architectural and commercial applications. They can be bent into shape inside and outside, and can be spliced arbitrarily. Ideal for interior lines or curved lighting in residential and commercial applications. The flexible LED profiles are made of 6063-T5 extruded aluminum and feature a silver anodized surface treatment that enhances oxidation resistance and extends lifespan. The standard lengths are 1 m, 2 m, and 3 m, and can be cut to any desired size. The silicone cover for LED lights is anti-yellowing and provides perfect light distribution. The inner width is 10.3mm, and the maximum width of strip lights is 5mm(horizontal bending) or 10mm(vertical bending). We recommend using high-density COB strip lights as the light source to ensure uniform brightness with no dark areas or light spots. Four types of products are available: left-right bending, up-down bending, straight(no bendable), and full bending. You can use them to bend shapes inside and outside, and they can be spliced arbitrarily. You can use them to create circular, rounded corners, suspended, curved shapes on beams, walkways, internal corners, external corners, floors, stairs, baseboards, walls, and ceilings, among other applications.
Specifications:
- Type: Bendable aluminum LED light channels

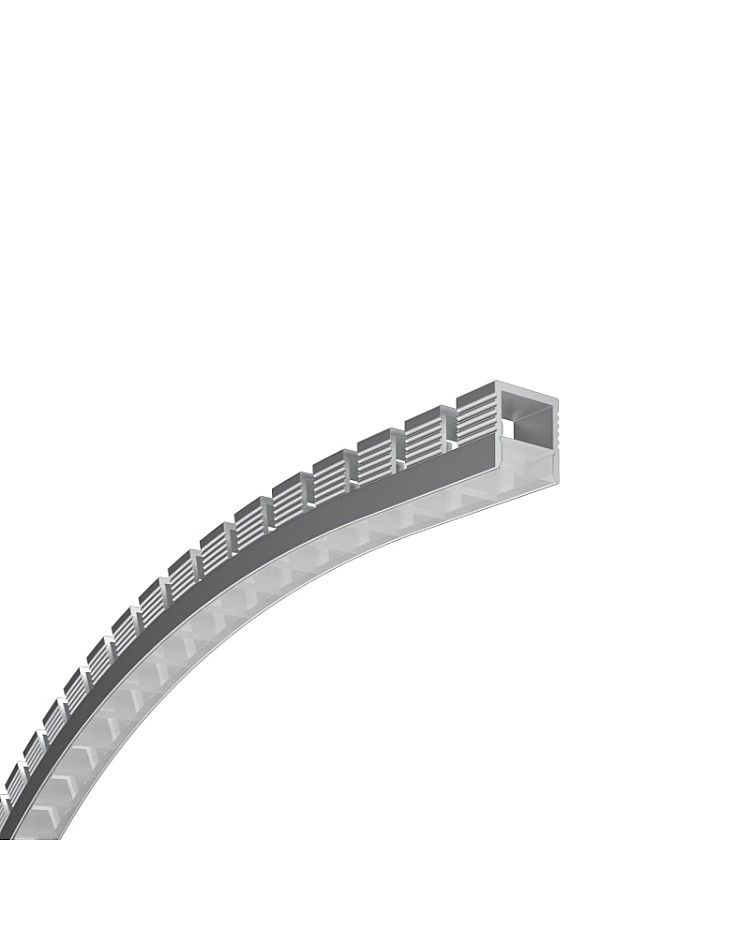

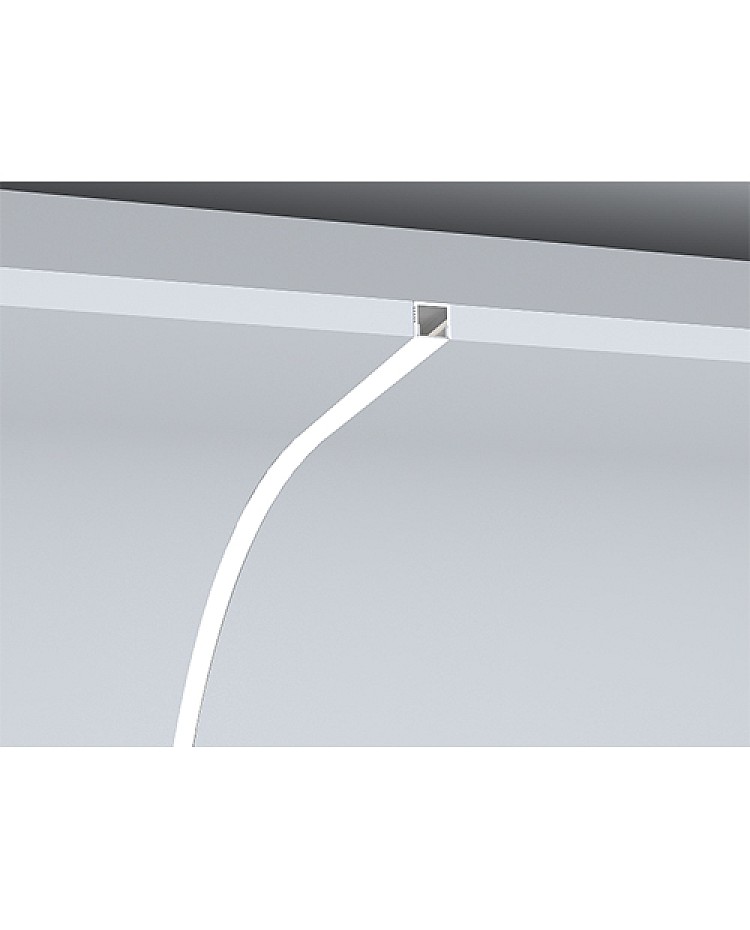

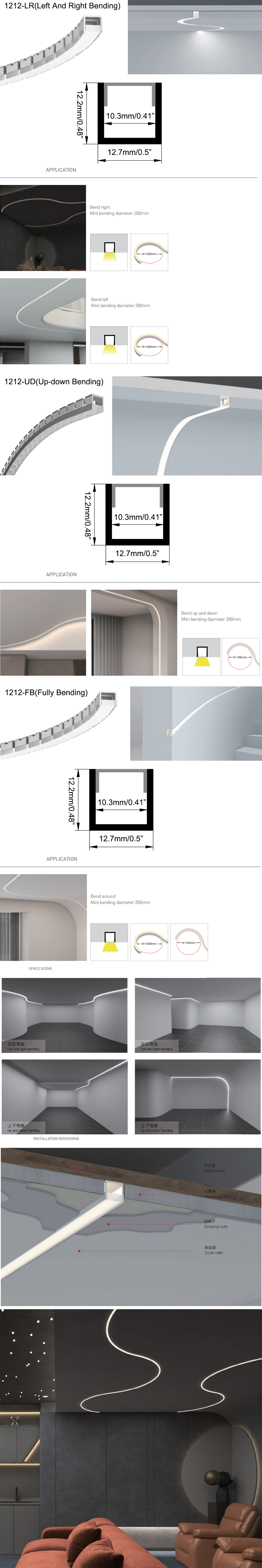

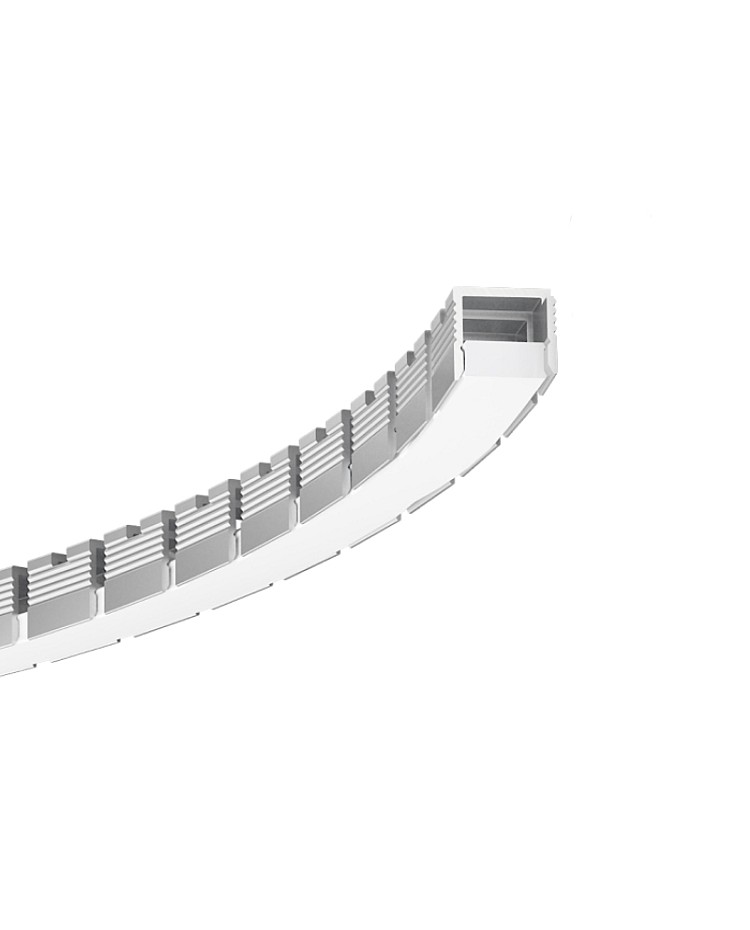

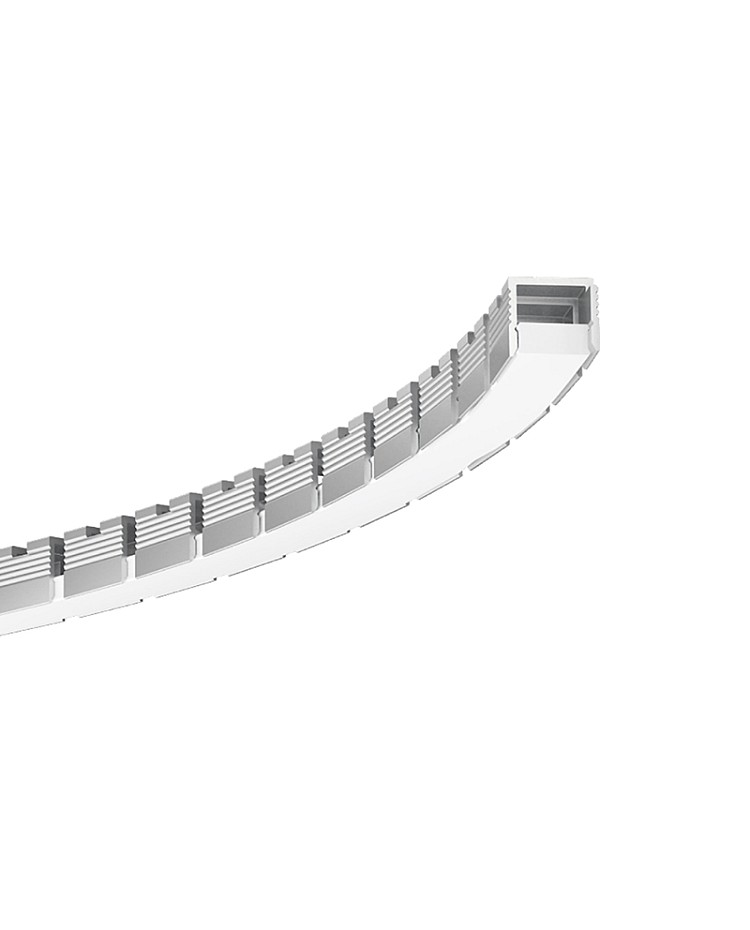

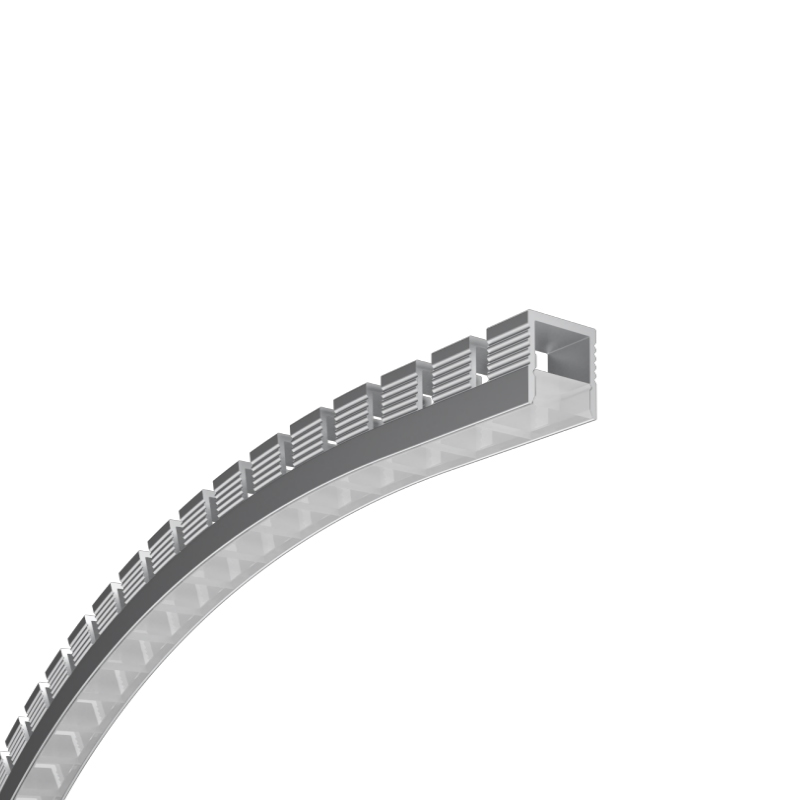

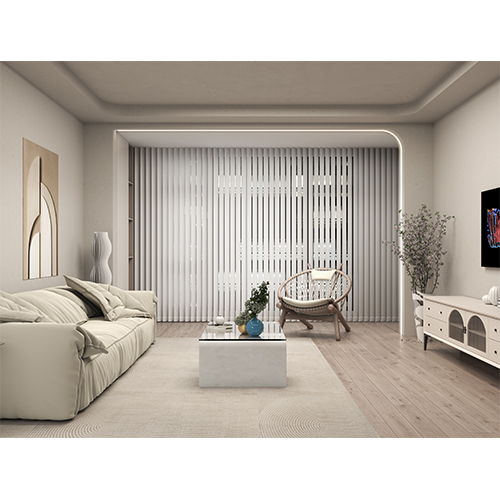

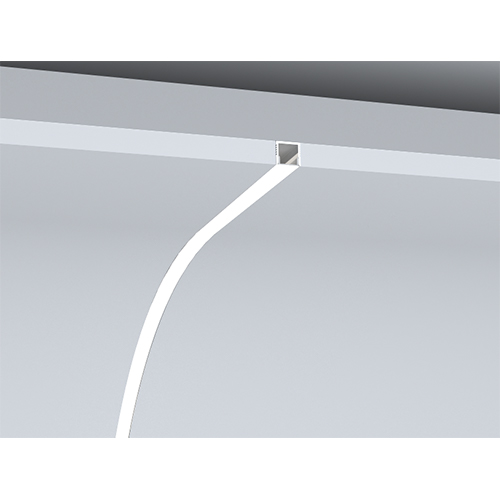

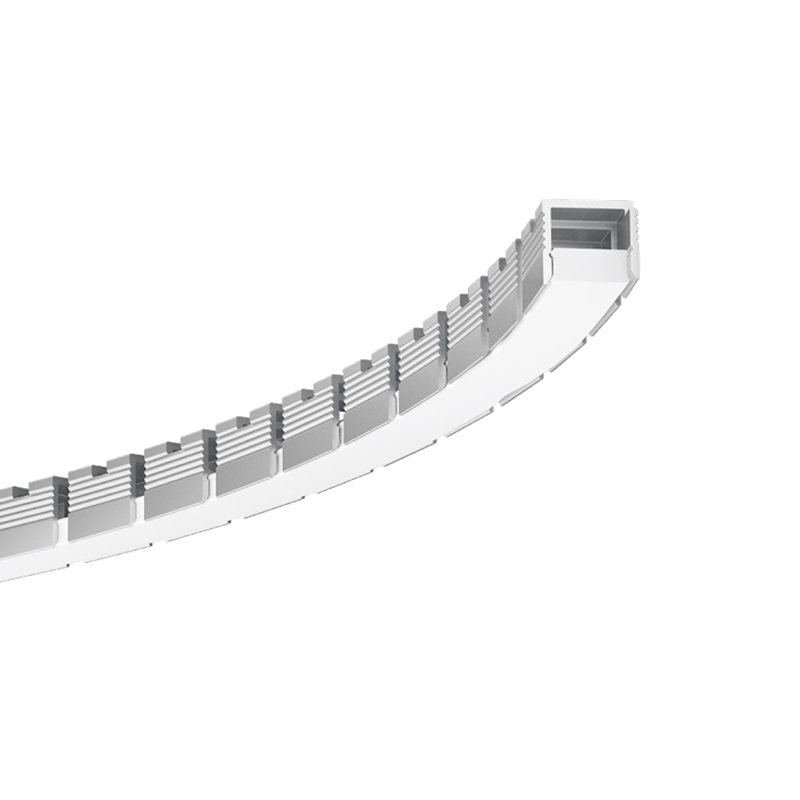

- Type: 1212-LR(left and right bending), 1212-UD(up and down bending), 1212-FB(left, right, up and down bending)
- Material: 6063-T5 Aluminum
- Surface Treatment: Anodized
- Colors: Silver(aluminum channel)

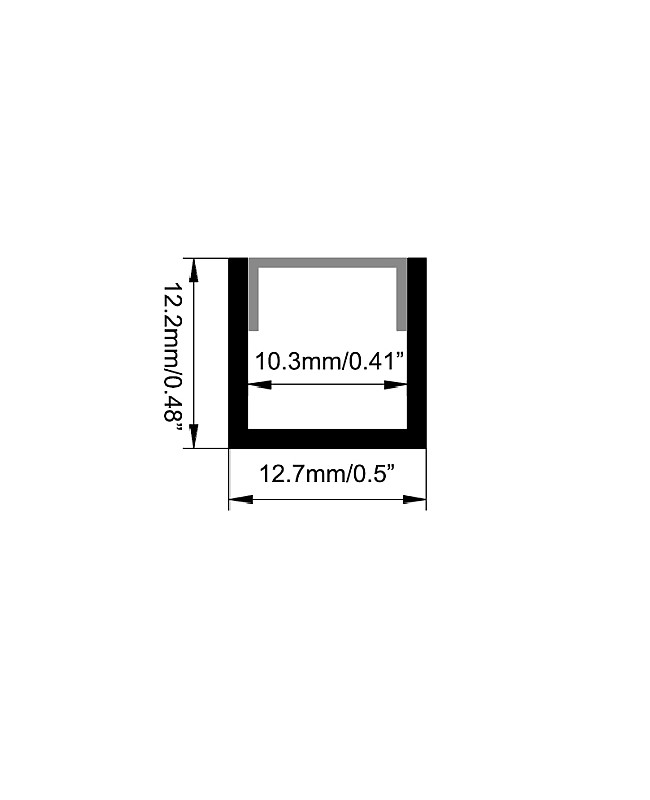

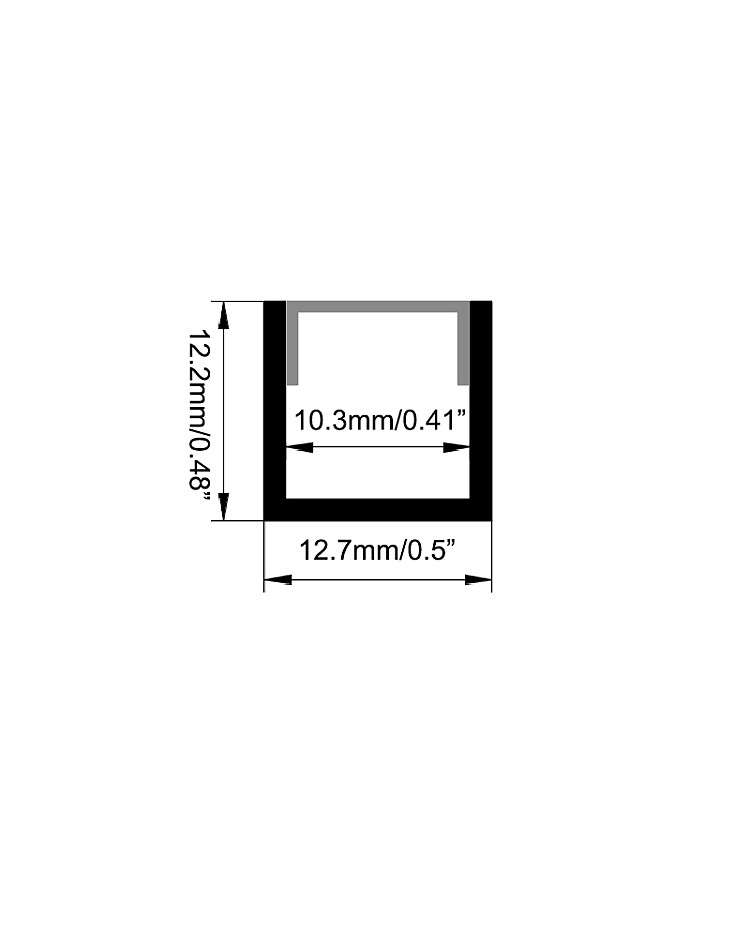

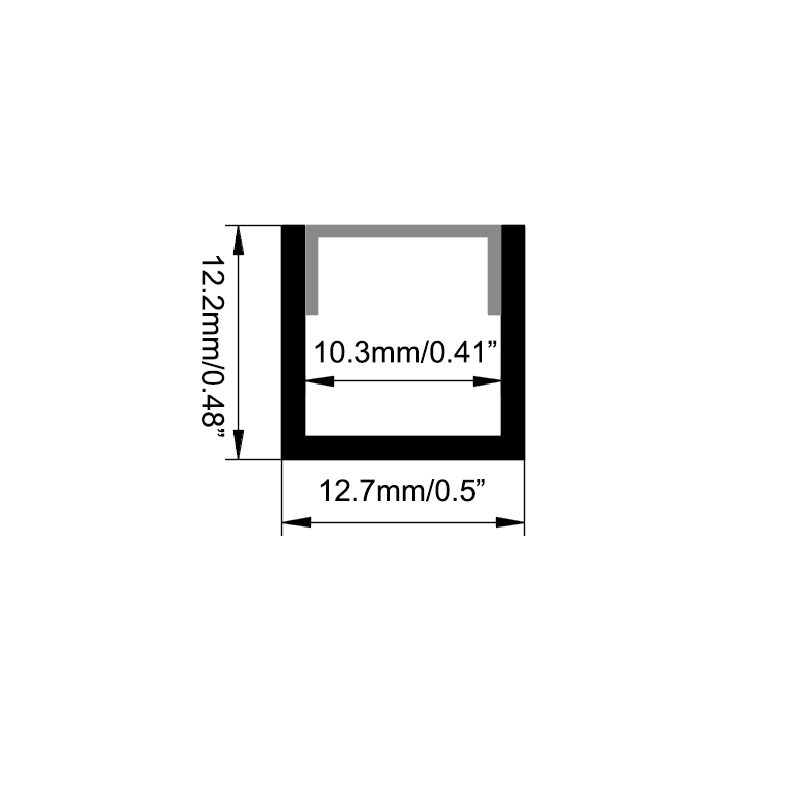

- Size(W*H): 12.7mm x 12.2 mm / (0.5" x 0.48")
- Inner Width: 10.3mm (0.41")
- Maximum Width Of Strip Lights: 5mm regular COB or SMD LED strips on the side or 10mm zig-zag light strips on the bottom (1212-LR); 10mm regular COB or SMD LED tapes(1212-UD)
- Aluminum Channel's Lengths Available: 1m (39”), 2 m (78"), 3 m (118")
- Silicone Diffuser's Max Length: 50 m / 100 m per roll
- Length Custom: YES
- Mini Bending Diameter: 200mm (7.87")
- IP Rating: IP20 non-waterproof
- Installation: Recessed/surface-mounted

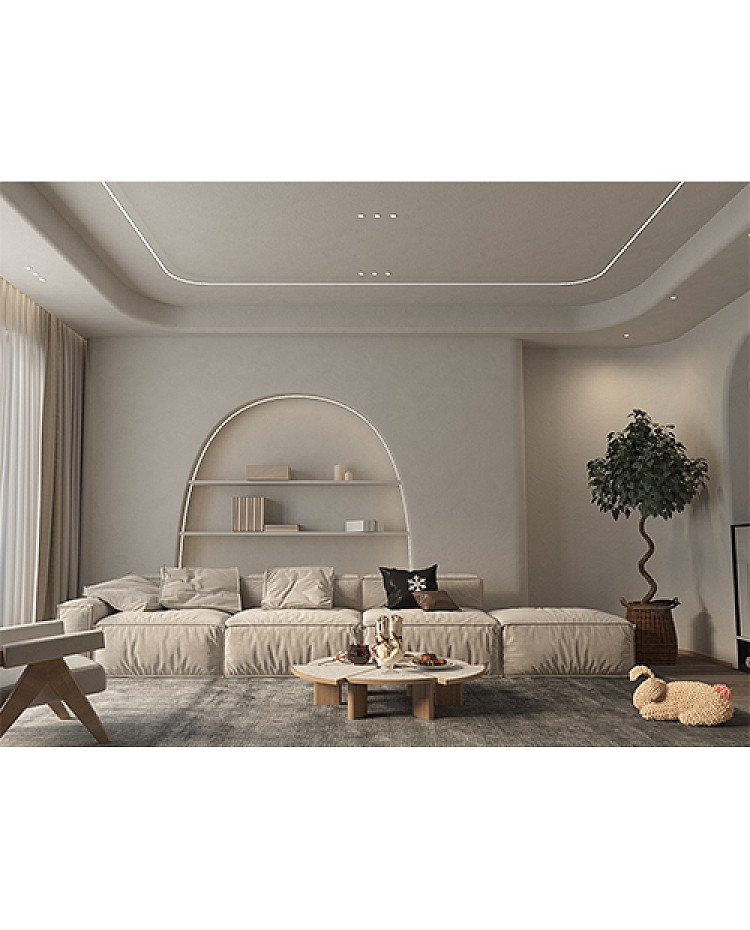

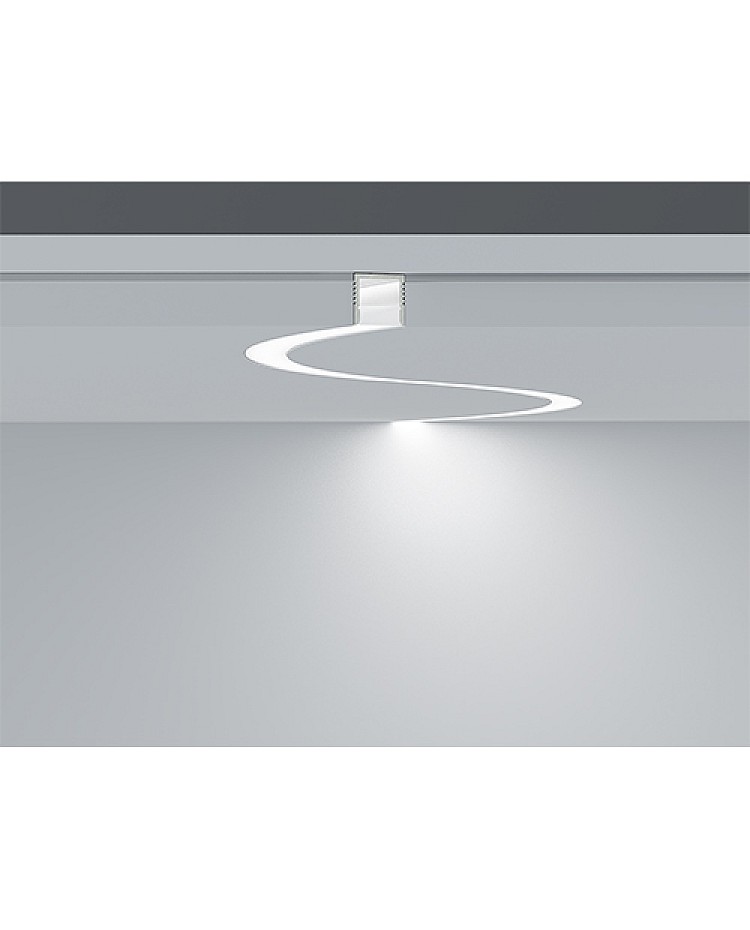

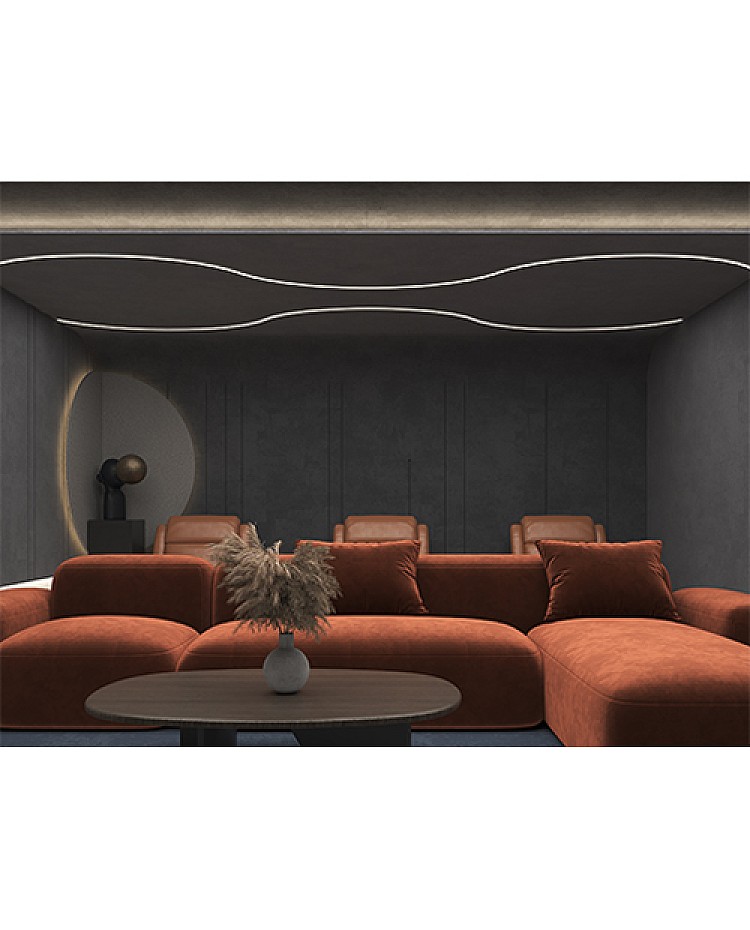

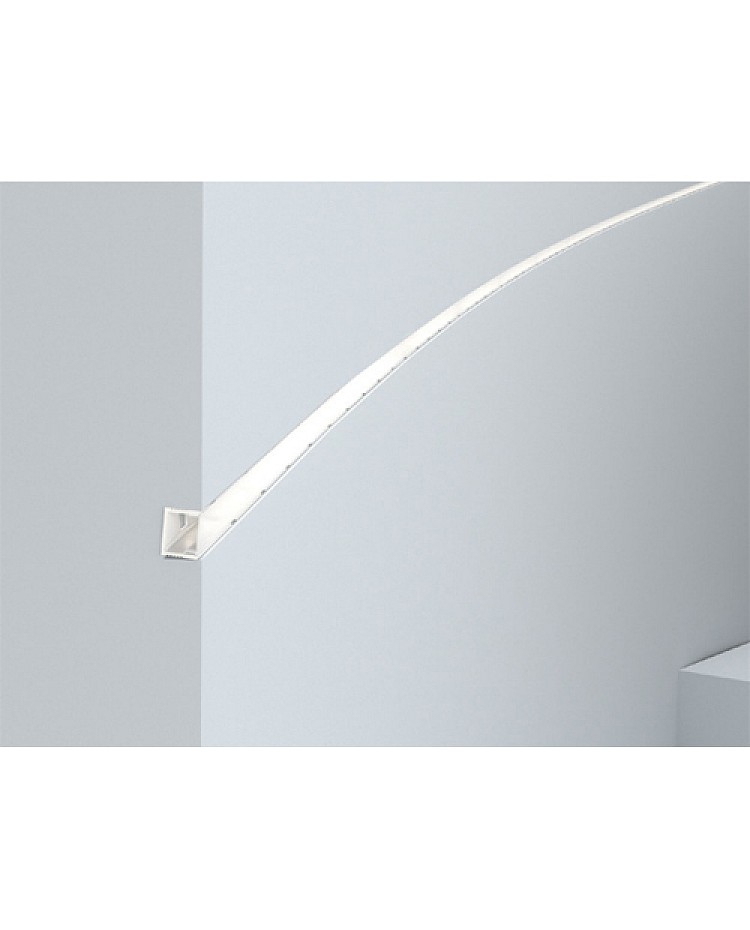

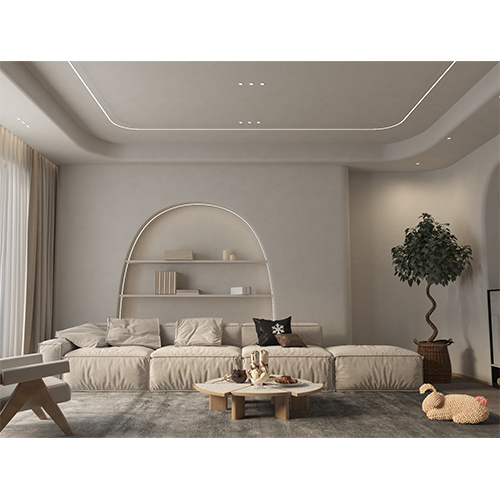

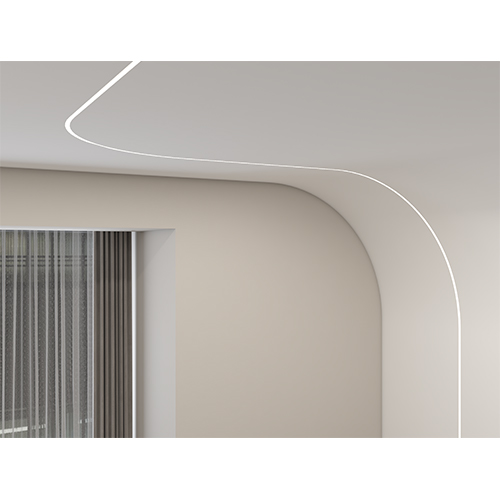

- Applications: Circular/rounded corner/suspended/free line lighting on beams, walkways, internal corners, external corners, floors, baseboards, walls, ceilings, etc
- Warranty: 3 years
Applications:
- Home & Commercial Lighting(kitchens, bars, display cases)

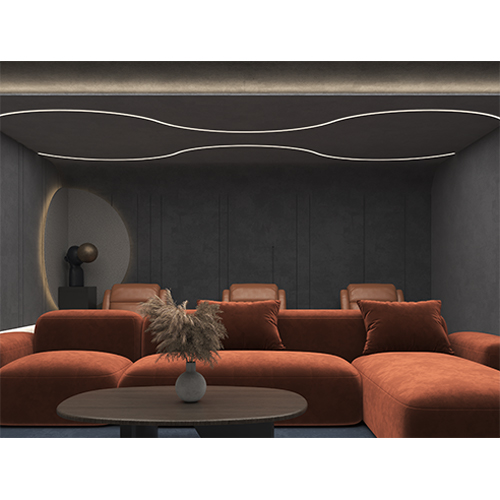

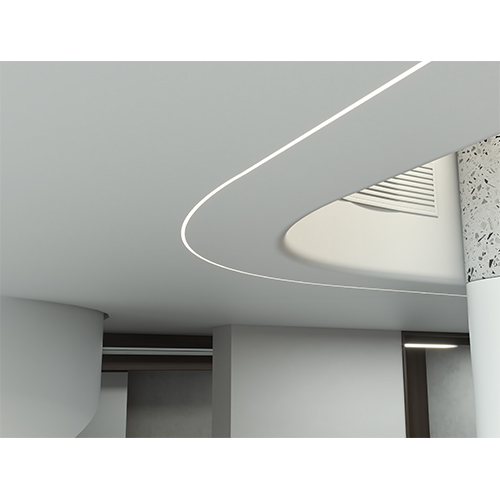

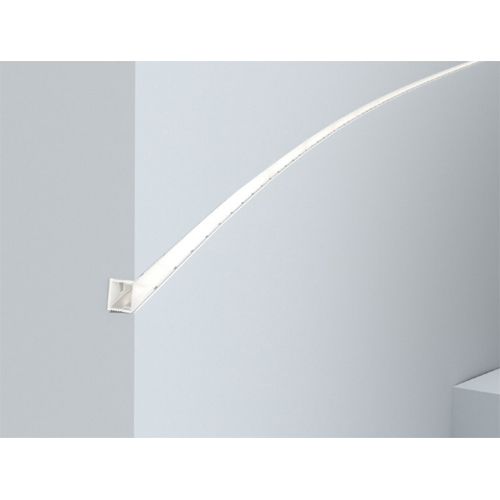

- Architectural Accents(ceilings, walls, curved surfaces)
- Automotive & Marine Lighting
- Retail & Signage Lighting
Includes:
1 * 12mm LED light channel
1 * Silicone cover
1 * End caps
